2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

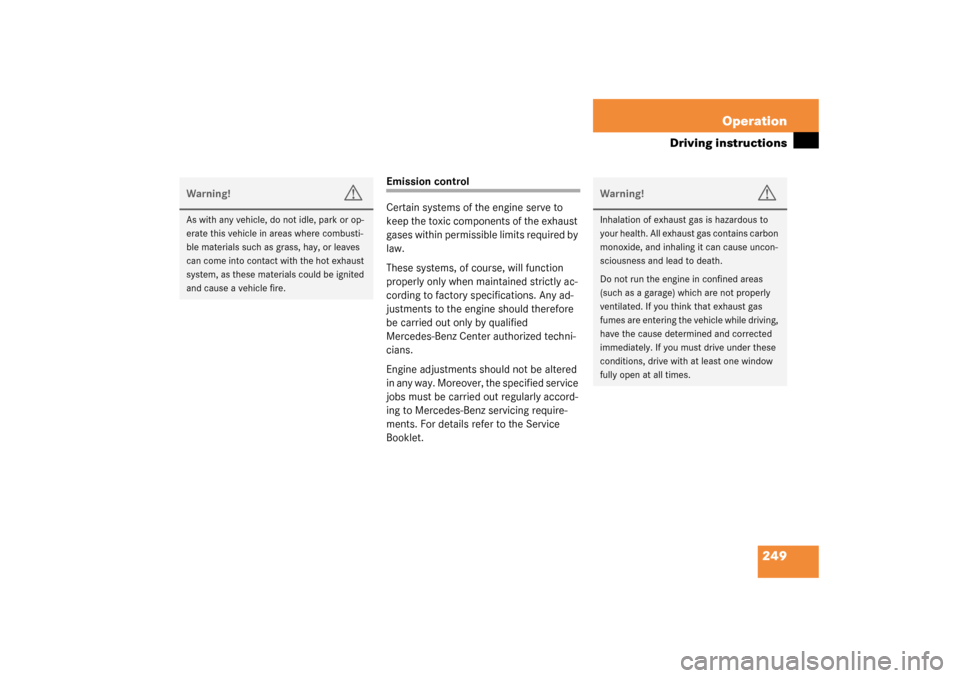

249 Operation
Driving instructions
Emission control
Certain systems of the engine serve to
keep the toxic components of the exhaust
gases within permissible limits required by
law.
These systems, of course, will function
properly only when maintained strictly ac-
cording to factory specifications. Any ad-
justments to the engine should therefore
be carried out only by qualified
Mercedes-Benz Center authorized techni-
cians.
Engine adjustments should not be altered
in any way. Moreover, the specified service
jobs must be carried out regularly accord-
ing to Mercedes-Benz servicing require-
ments. For details refer to the Service
Booklet.
Warning!
G
As with any vehicle, do not idle, park or op-
erate this vehicle in areas where combusti-
ble materials such as grass, hay, or leaves
can come into contact with the hot exhaust
system, as these materials could be ignited
and cause a vehicle fire.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open at all times.

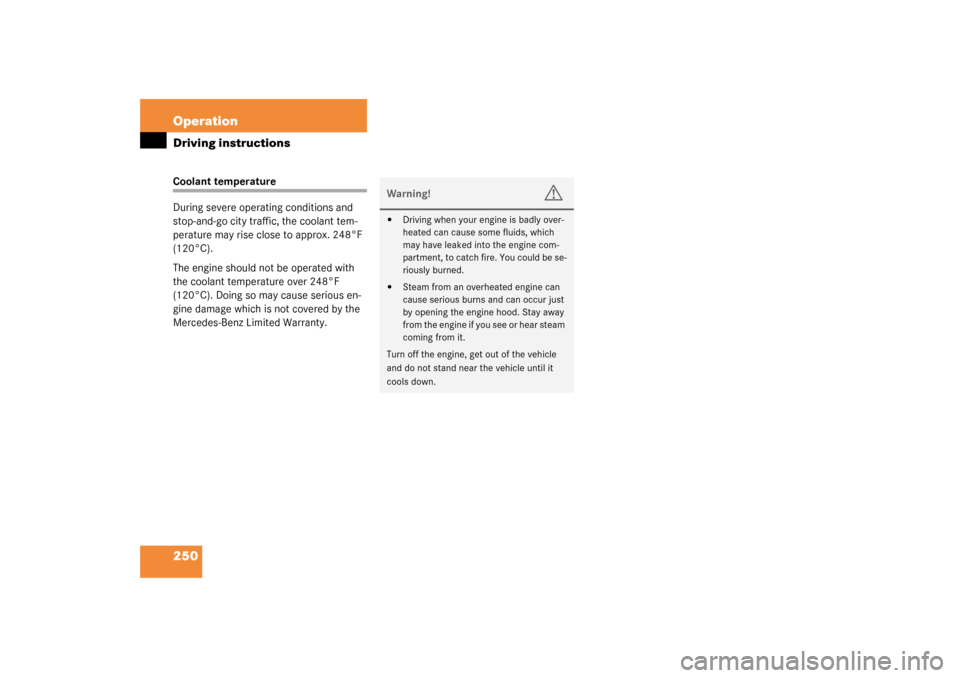

250 OperationDriving instructionsCoolant temperature
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to approx. 248°F
(120°C).
The engine should not be operated with
the coolant temperature over 248°F
(120°C). Doing so may cause serious en-
gine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids, which
may have leaked into the engine com-
partment, to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
from the engine if you see or hear steam
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.

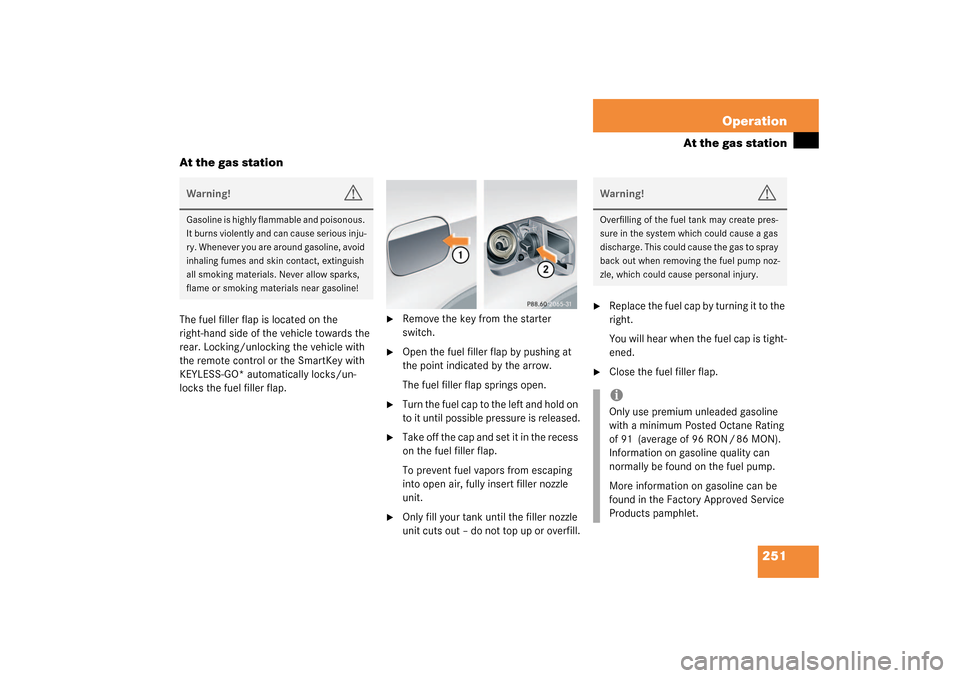

251 Operation
At the gas station
At the gas station
The fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the remote control or the SmartKey with
KEYLESS-GO* automatically locks/un-
locks the fuel filler flap.

Remove the key from the starter
switch.

Open the fuel filler flap by pushing at
the point indicated by the arrow.
The fuel filler flap springs open.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in the recess
on the fuel filler flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or overfill.

Replace the fuel cap by turning it to the
right.
You will hear when the fuel cap is tight-
ened.

Close the fuel filler flap.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.iOnly use premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.

252 OperationAt the gas station
Check regularly and before a long trip
1Coolant level
More information on coolant can be
found in the “Operation” section on
(
page 256).
2Brake fluid (fuse box cover removed)
More information on brake fluid can be
found in the “Technical data” section
on (page 353).
3Windshield washer and headlamp
cleaning system
More information on refilling the reser-
voir can be found in the “Operation”
section on (
page 259).Engine oil level
More information on engine oil can be
found in the “Operation” section on
(
page 254).
Vehicle lighting
Check function and cleanliness.More infor-
mation on replacing light bulbs can be
found in the “Practical hints” section on
(page 316).
Tire inflation pressure
More information on tire inflate pressure
can be found in the “Operation” section on
(page 262).
Opening hood see (
page 253).
Removing fuse box cover see
(
page 337).
Exterior lamp switch see (
page 105)
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
More information can be found in the
“Practical hints” section (
page 280).

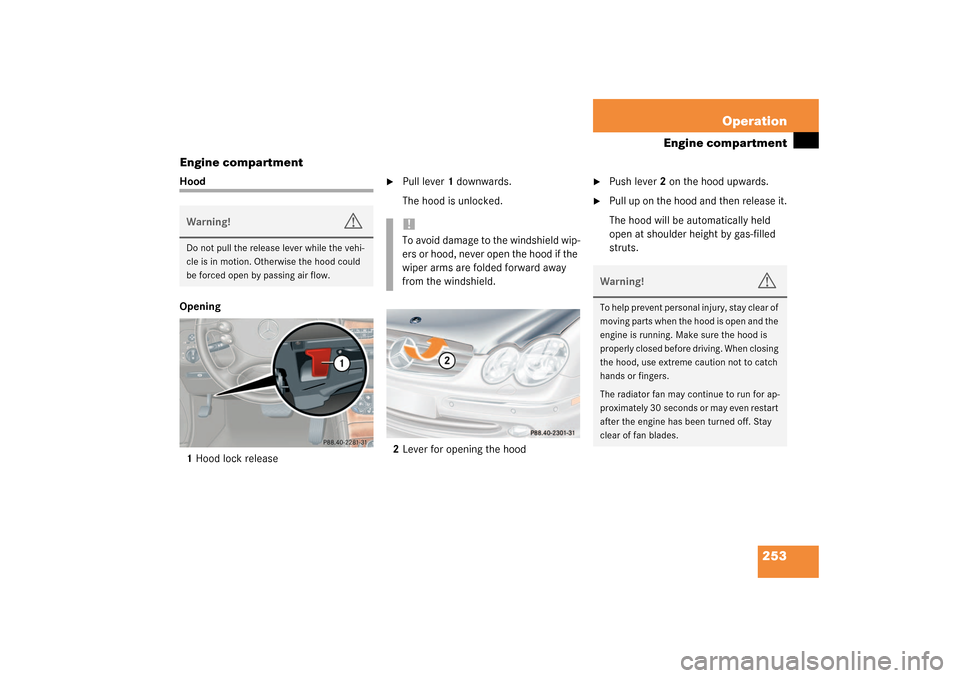

253 Operation
Engine compartment
Engine compartment
Hood
Opening
1Hood lock release

Pull lever 1 downwards.
The hood is unlocked.
2Lever for opening the hood

Push lever 2 on the hood upwards.

Pull up on the hood and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or may even restart
after the engine has been turned off. Stay
clear of fan blades.

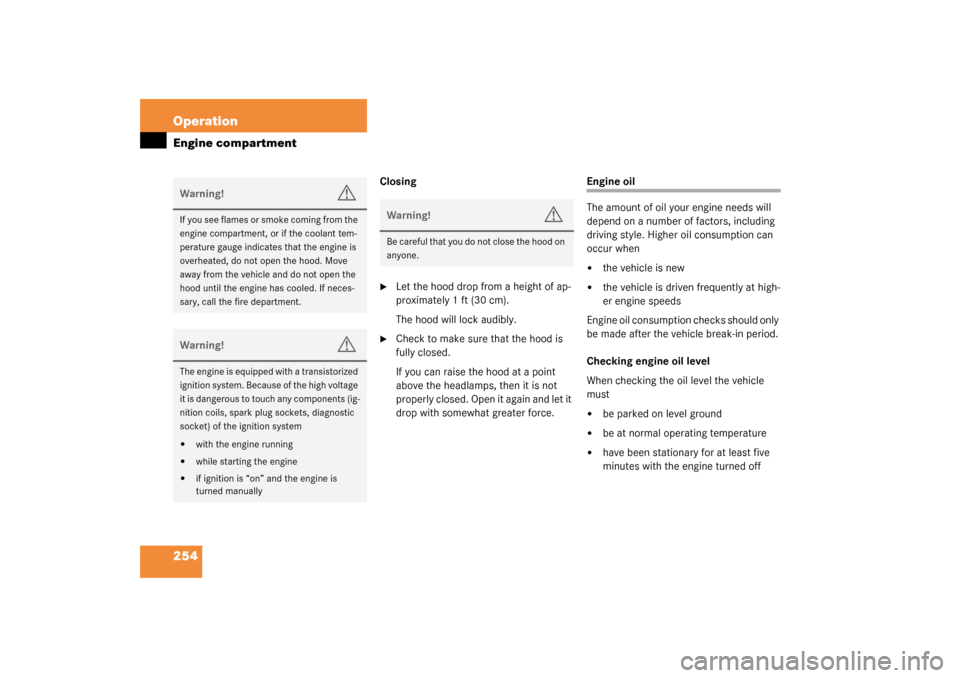

254 OperationEngine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure that the hood is
fully closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at high-
er engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Checking engine oil level
When checking the oil level the vehicle
must


be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from the vehicle and do not open the
hood until the engine has cooled. If neces-
sary, call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.

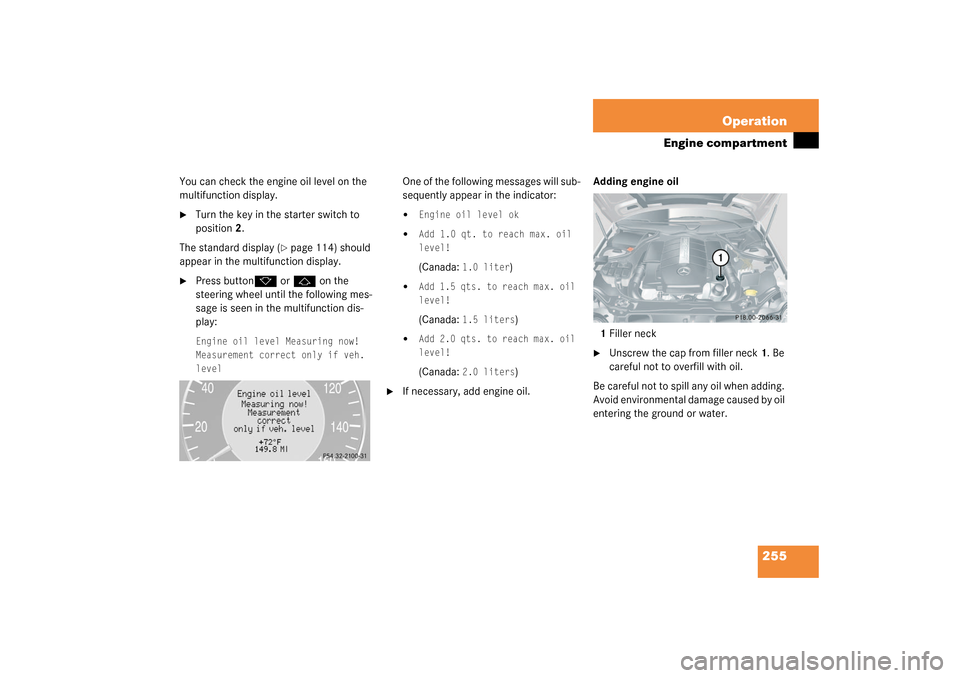

255 Operation
Engine compartment
You can check the engine oil level on the
multifunction display.
Turn the key in the starter switch to
position2.
The standard display (
page 114) should
appear in the multifunction display.

Press button
k
or
j
on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:
Engine oil level Measuring now!
Measurement correct only if veh.
level
One of the following messages will sub-
sequently appear in the indicator:

Engine oil level ok


Add 1.0 qt. to reach max. oil
level!(Canada:
1.0 liter
)


Add 1.5 qts. to reach max. oil
level!(Canada:
1.5 liters
)


Add 2.0 qts. to reach max. oil
level!(Canada:
2.0 liters
)

If necessary, add engine oil.Adding engine oil
1Filler neck

Unscrew the cap from filler neck 1. Be
careful not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

256 OperationEngine compartment
Screw the cap back on the filler neck.
Other display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear:
Engine oil level Reduce oil level!
Have excess oil siphoned.
If the key is not turned to position 2 in the
starter switch:
Turn on ignition to see engine oil
level!
Switch on the ignition.If you see the message:
Observe waiting time
Wait five minutes before repeating
check procedure.
If you see the message:
Engine oil level Not when engine on!
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.
See “Practical hints” (
page 294) if the
engine oil level indicator lights up in the
display while the engine is running.More information on engine oil can be
found in the “Technical data”
(
page 353).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Coolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
iIf you want to interrupt the checking
procedure, press the
k
or
j
but-
ton on the multifunction steering
wheel.
