2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

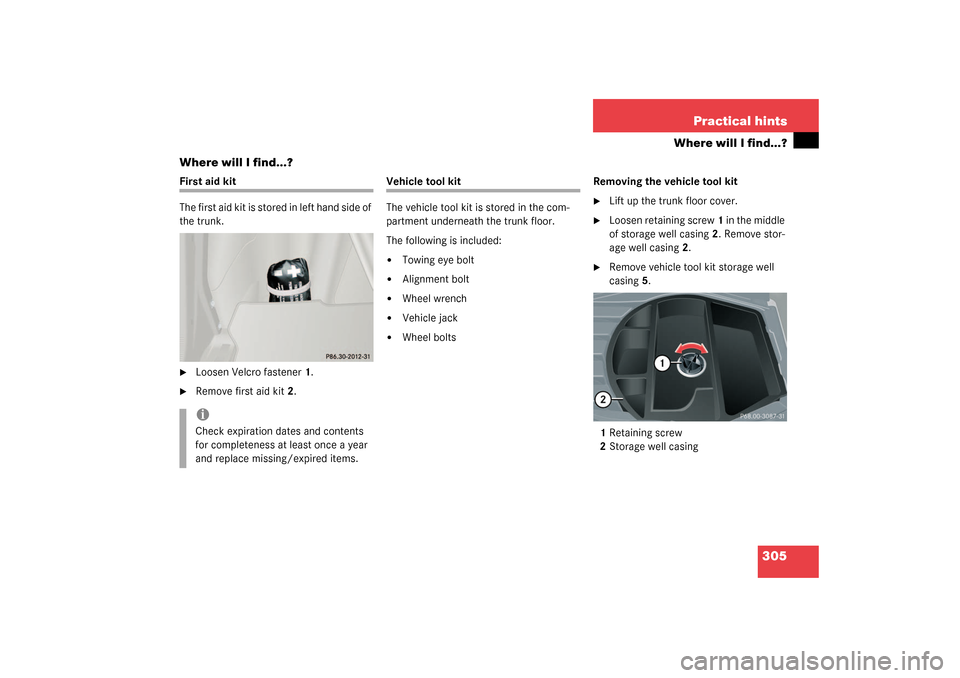

305 Practical hints
Where will I find...?
Where will I find...?
First aid kit
The first aid kit is stored in left hand side of
the trunk.
Loosen Velcro fastener1.

Remove first aid kit2.
Vehicle tool kit
The vehicle tool kit is stored in the com-
partment underneath the trunk floor.
The following is included:

Towing eye bolt


Alignment bolt


Wheel wrench


Vehicle jack


Wheel boltsRemoving the vehicle tool kit

Lift up the trunk floor cover.

Loosen retaining screw 1 in the middle
of storage well casing2. Remove stor-
age well casing2.

Remove vehicle tool kit storage well
casing5.
1Retaining screw
2Storage well casing
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

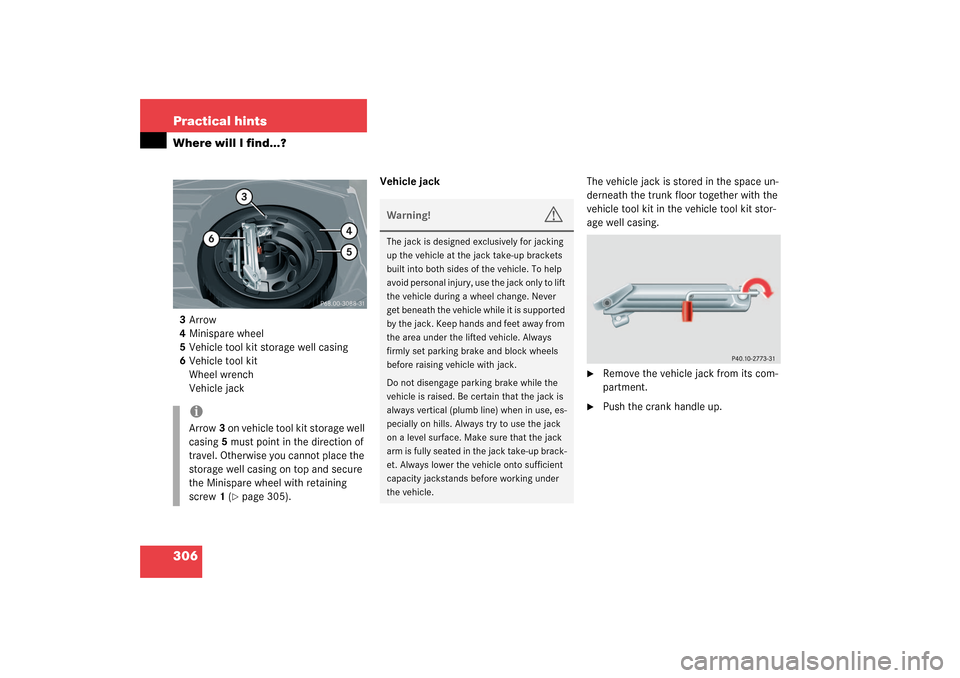

306 Practical hintsWhere will I find...?3Arrow
4Minispare wheel
5Vehicle tool kit storage well casing
6Vehicle tool kit
Wheel wrench
Vehicle jackVehicle jackThe vehicle jack is stored in the space un-
derneath the trunk floor together with the
vehicle tool kit in the vehicle tool kit stor-
age well casing.

Remove the vehicle jack from its com-
partment.

Push the crank handle up.
iArrow3 on vehicle tool kit storage well
casing5 must point in the direction of
travel. Otherwise you cannot place the
storage well casing on top and secure
the Minispare wheel with retaining
screw 1 (
page 305).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on a level surface. Make sure that the jack
arm is fully seated in the jack take-up brack-
et. Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

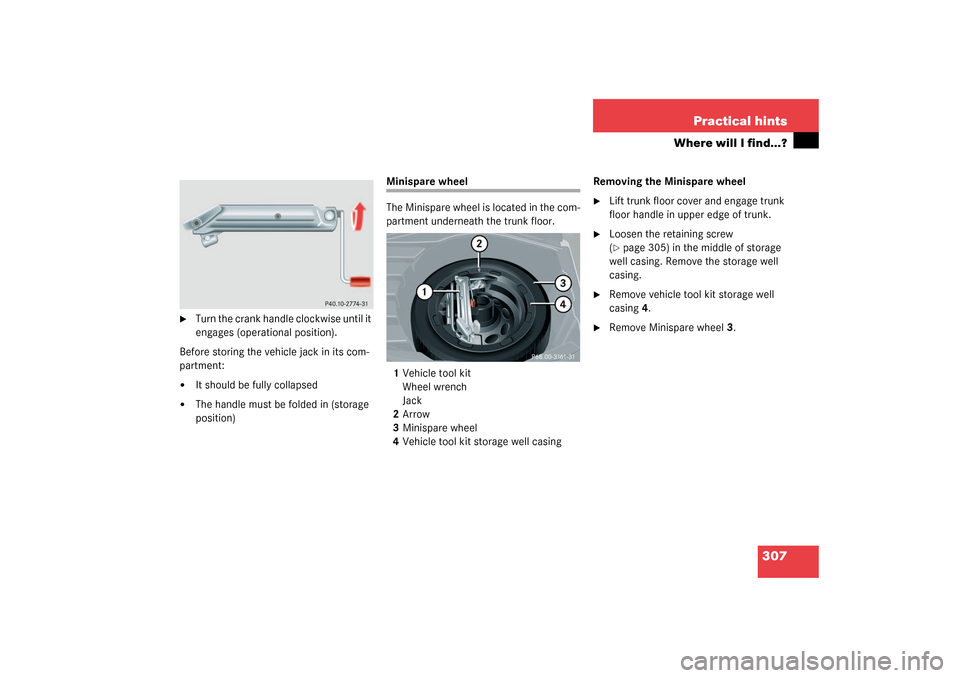

307 Practical hints
Where will I find...?

Turn the crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its com-
partment:


It should be fully collapsed


The handle must be folded in (storage
position)
Minispare wheel
The Minispare wheel is located in the com-
partment underneath the trunk floor.
1Vehicle tool kit
Wheel wrench
Jack
2Arrow
3Minispare wheel
4Vehicle tool kit storage well casingRemoving the Minispare wheel

Lift trunk floor cover and engage trunk
floor handle in upper edge of trunk.

Loosen the retaining screw
(page 305) in the middle of storage
well casing. Remove the storage well
casing.

Remove vehicle tool kit storage well
casing4.

Remove Minispare wheel3.

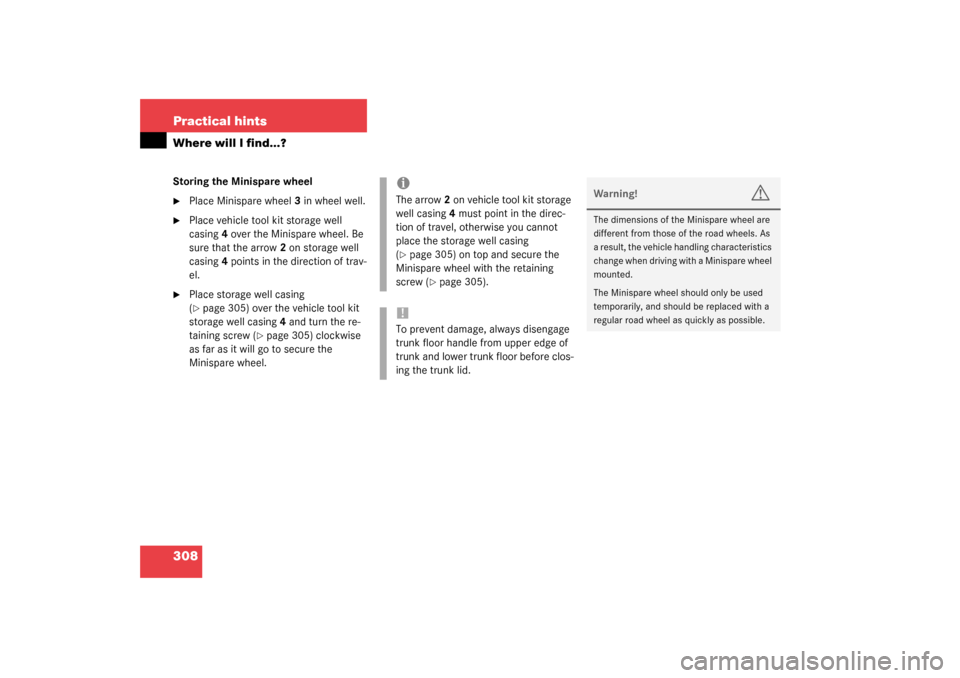

308 Practical hintsWhere will I find...?Storing the Minispare wheel
Place Minispare wheel3 in wheel well.

Place vehicle tool kit storage well
casing4 over the Minispare wheel. Be
sure that the arrow 2 on storage well
casing4 points in the direction of trav-
el.

Place storage well casing
(page 305) over the vehicle tool kit
storage well casing 4 and turn the re-
taining screw (
page 305) clockwise
as far as it will go to secure the
Minispare wheel.
iThe arrow 2 on vehicle tool kit storage
well casing4 must point in the direc-
tion of travel, otherwise you cannot
place the storage well casing
(page 305) on top and secure the
Minispare wheel with the retaining
screw (
page 305).
!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before clos-
ing the trunk lid.
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The Minispare wheel should only be used
temporarily, and should be replaced with a
regular road wheel as quickly as possible.

309 Practical hints
Where will I find...?
In the case of a flat tire, you may tempo-
rarily use the Minispare wheel when ob-
serving the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one Minispare wheel mounted.
More information can be found in the
“Technical data” section (
page 345).Minispare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims
!Wheel bolts2 must be used when
mounting the Minispare wheel. The use
of any wheel bolts other than wheel
bolts 2 for the Minispare will physically
damage the vehicle's brakes.
Warning!
G
Be sure to use the original length wheel
bolts when remounting the original wheel af-
ter it has been repaired.

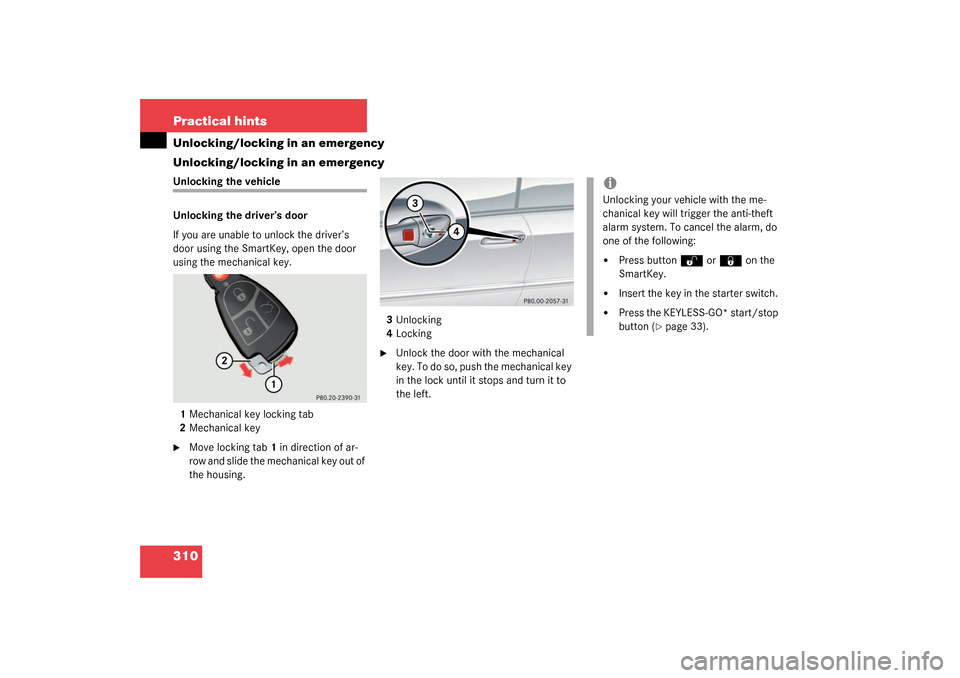

310 Practical hintsUnlocking/locking in an emergency
Unlocking/locking in an emergencyUnlocking the vehicle
Unlocking the driver’s door
If you are unable to unlock the driver’s
door using the SmartKey, open the door
using the mechanical key.
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of ar-
row and slide the mechanical key out of
the housing.3Unlocking
4Locking

Unlock the door with the mechanical
key. To do so, push the mechanical key
in the lock until it stops and turn it to
the left.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button
Œ
or
‹
on the
SmartKey.


Insert the key in the starter switch.


Press the KEYLESS-GO* start/stop
button (
page 33).

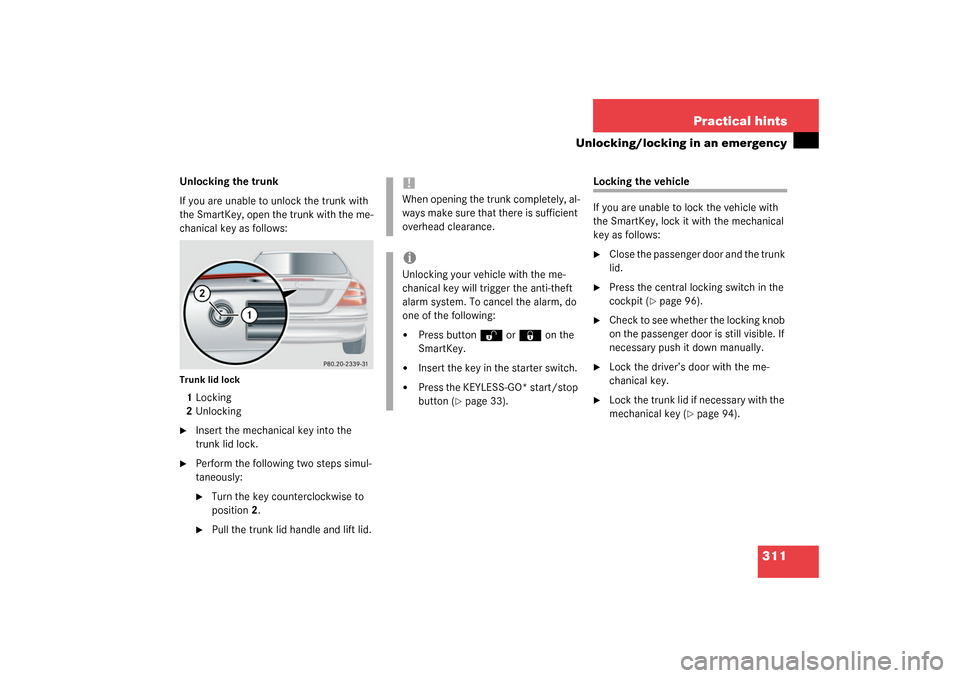

311 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
If you are unable to unlock the trunk with
the SmartKey, open the trunk with the me-
chanical key as follows:Trunk lid lock1Locking
2Unlocking
Insert the mechanical key into the
trunk lid lock.

Perform the following two steps simul-
taneously:
Turn the key counterclockwise to
position2.

Pull the trunk lid handle and lift lid.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, lock it with the mechanical
key as follows:
Close the passenger door and the trunk
lid.

Press the central locking switch in the
cockpit (
page 96).

Check to see whether the locking knob
on the passenger door is still visible. If
necessary push it down manually.

Lock the driver’s door with the me-
chanical key.

Lock the trunk lid if necessary with the
mechanical key (
page 94).
!When opening the trunk completely, al-
ways make sure that there is sufficient
overhead clearance.iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button
Œ
or
‹
on the
SmartKey.


Insert the key in the starter switch.


Press the KEYLESS-GO* start/stop
button (
page 33).

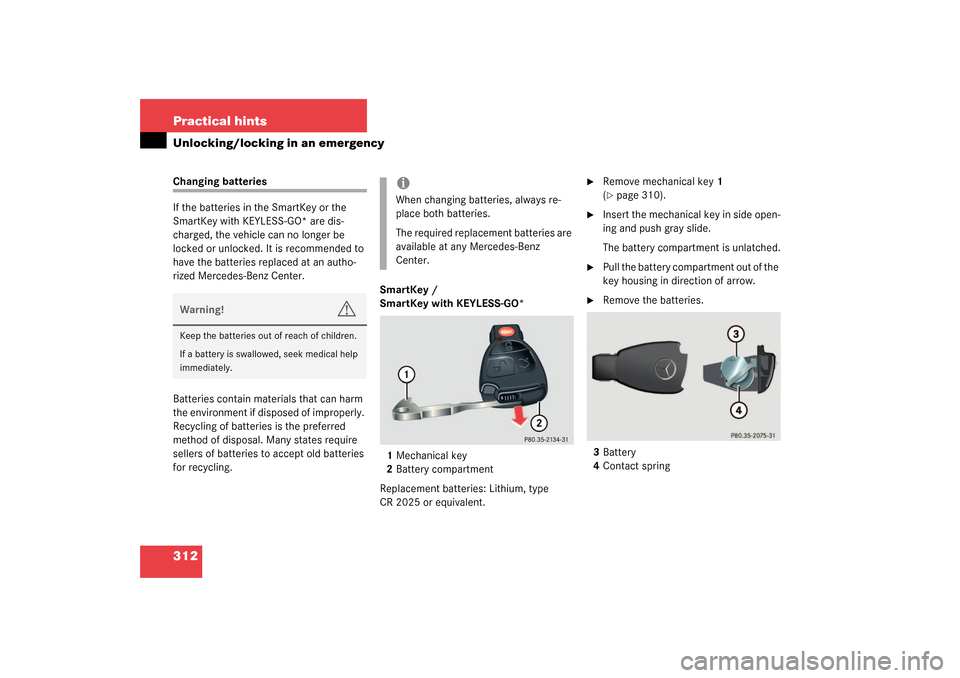

312 Practical hintsUnlocking/locking in an emergencyChanging batteries
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.SmartKey /
SmartKey with KEYLESS-GO*
1Mechanical key
2Battery compartment
Replacement batteries: Lithium, type
CR 2025 or equivalent.

Remove mechanical key1
(page 310).

Insert the mechanical key in side open-
ing and push gray slide.
The battery compartment is unlatched.

Pull the battery compartment out of the
key housing in direction of arrow.

Remove the batteries.
3Battery
4Contact spring
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen changing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz
Center.
