2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

185 Controls in detail
Audio system
Speed dialing
Input the desired entry number using
the number keys 1 to 0.
A maximum of two digits can be en-
tered.
If necessary, correct the last number
entered with the
CLR
key.

Press the
SND
key.
The telephone number stored under
that entry will be dialed. The number,
Land the full entry number will be
shown in the display.
Express dialing

Press one of the desired number but-
tons 1 to 0 longer than one second.
The telephone number saved under
that number will be dialed.Emergency call

Press button1 longer than one second.

A call will be placed to the saved num-
ber (e.g. 911).
You can make an emergency call to an
emergency rescue station with a mobile
communications network.
The emergency call will be placed as long
as the corresponding mobile communica-
tions network is available. To do this,
switch the telephone on if not already done
so.
The call will also be placed if the un-
lock-code is not entered.Emergency calls may not be possible with
all telephone networks or if certain net-
work services and/or telephone functions
are active. Check with your local network
operation company. It may take some time
to set up an emergency call.
To use this function you must ensure that
the number stored in memory location 1 is
the number to be dialed in case of emer-
gency.
If an emergency call cannot be connected,
the message
SYSTM BUSY
appears.
!Please be aware that button 1 might al-
ready be reserved for an emergency
call number.
!Please be aware that the 911 emergen-
cy call system is a public service. Using
it without due cause is a criminal of-
fense.

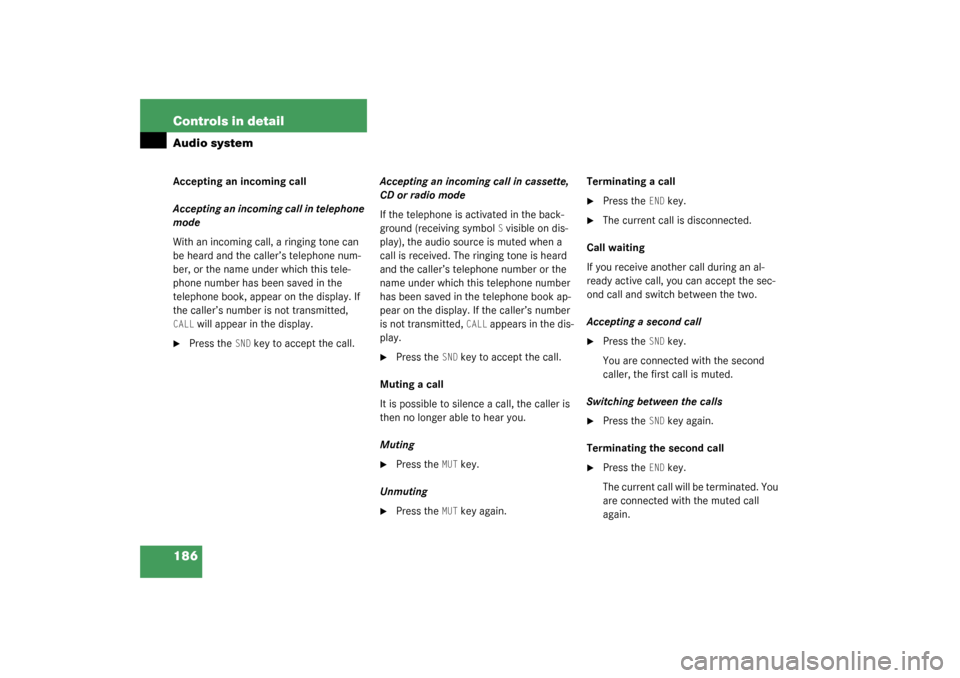

186 Controls in detailAudio systemAccepting an incoming call
Accepting an incoming call in telephone
mode
With an incoming call, a ringing tone can
be heard and the caller’s telephone num-
ber, or the name under which this tele-
phone number has been saved in the
telephone book, appear on the display. If
the caller’s number is not transmitted, CALL
will appear in the display.

Press the
SND
key to accept the call.Accepting an incoming call in cassette,
CD or radio mode
If the telephone is activated in the back-
ground (receiving symbol
S visible on dis-
play), the audio source is muted when a
call is received. The ringing tone is heard
and the caller’s telephone number or the
name under which this telephone number
has been saved in the telephone book ap-
pear on the display. If the caller’s number
is not transmitted,
CALL
appears in the dis-
play.

Press the
SND
key to accept the call.
Muting a call
It is possible to silence a call, the caller is
then no longer able to hear you.
Muting

Press the
MUT
key.
Unmuting

Press the
MUT
key again.Terminating a call

Press the
END
key.

The current call is disconnected.
Call waiting
If you receive another call during an al-
ready active call, you can accept the sec-
ond call and switch between the two.
Accepting a second call

Press the
SND
key.
You are connected with the second
caller, the first call is muted.
Switching between the calls

Press the
SND
key again.
Terminating the second call

Press the
END
key.
The current call will be terminated. You
are connected with the muted call
again.

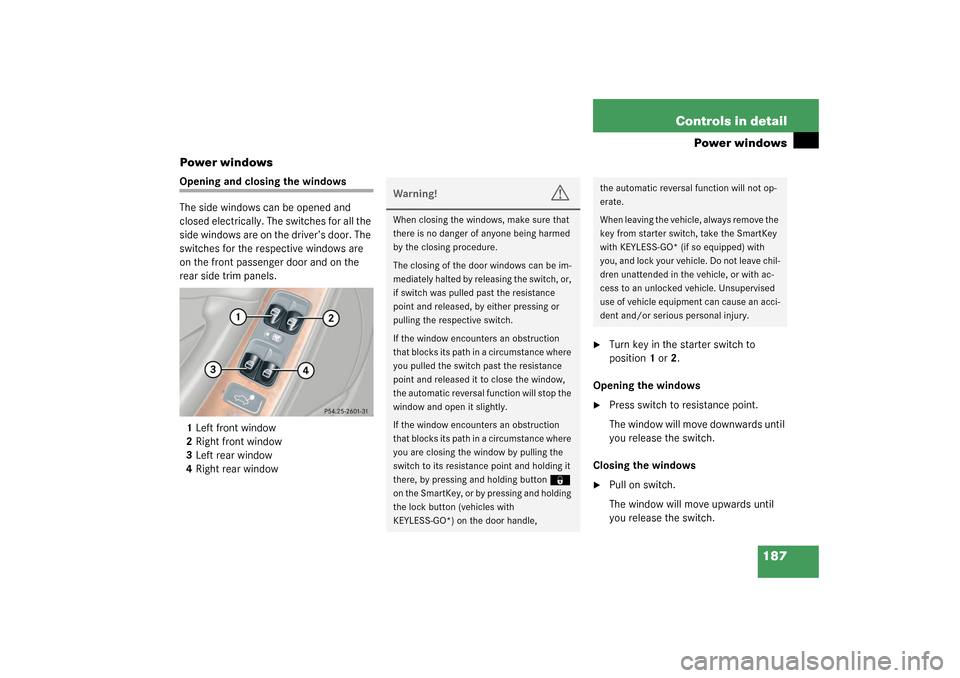

187 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and on the
rear side trim panels.
1Left front window
2Right front window
3Left rear window
4Right rear window

Turn key in the starter switch to
position1 or2.
Opening the windows

Press switch to resistance point.
The window will move downwards until
you release the switch.
Closing the windows

Pull on switch.
The window will move upwards until
you release the switch.
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch, or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling the
switch to its resistance point and holding it
there, by pressing and holding button ‹
on the SmartKey, or by pressing and holding
the lock button (vehicles with
KEYLESS-GO*) on the door handle,
the automatic reversal function will not op-
erate.
When leaving the vehicle, always remove the
key from starter switch, take the SmartKey
with KEYLESS-GO* (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.

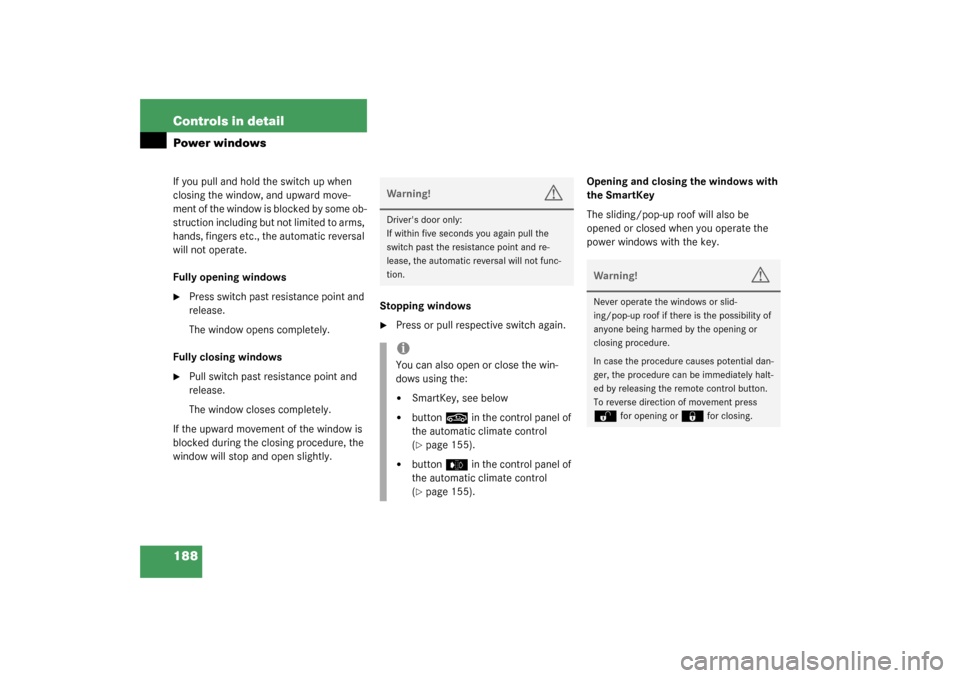

188 Controls in detailPower windowsIf you pull and hold the switch up when
closing the window, and upward move-
ment of the window is blocked by some ob-
struction including but not limited to arms,
hands, fingers etc., the automatic reversal
will not operate.
Fully opening windows
Press switch past resistance point and
release.
The window opens completely.
Fully closing windows

Pull switch past resistance point and
release.
The window closes completely.
If the upward movement of the window is
blocked during the closing procedure, the
window will stop and open slightly.Stopping windows

Press or pull respective switch again.Opening and closing the windows with
the SmartKey
The sliding/pop-up roof will also be
opened or closed when you operate the
power windows with the key.Warning!
G
Driver's door only:
If within five seconds you again pull the
switch past the resistance point and re-
lease, the automatic reversal will not func-
tion.iYou can also open or close the win-
dows using the:

SmartKey, see below


button
,
in the control panel of
the automatic climate control
(
page 155).


button
e
in the control panel of
the automatic climate control
(
page 155).
Warning!
G
Never operate the windows or slid-
ing/pop-up roof if there is the possibility of
anyone being harmed by the opening or
closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the remote control button.
To reverse direction of movement press

Œ
for opening or
‹
for closing.

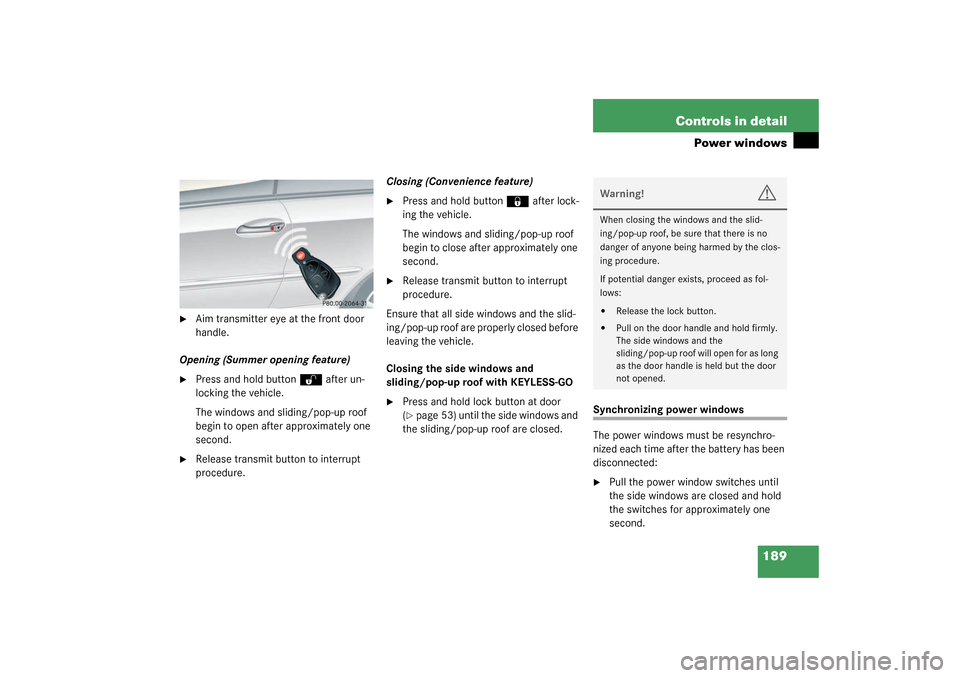

189 Controls in detail
Power windows

Aim transmitter eye at the front door
handle.
Opening (Summer opening feature)

Press and hold button
Œ
after un-
locking the vehicle.
The windows and sliding/pop-up roof
begin to open after approximately one
second.

Release transmit button to interrupt
procedure.Closing (Convenience feature)

Press and hold button
‹
after lock-
ing the vehicle.
The windows and sliding/pop-up roof
begin to close after approximately one
second.

Release transmit button to interrupt
procedure.
Ensure that all side windows and the slid-
ing/pop-up roof are properly closed before
leaving the vehicle.
Closing the side windows and
sliding/pop-up roof with KEYLESS-GO

Press and hold lock button at door
(page 53) until the side windows and
the sliding/pop-up roof are closed.
Synchronizing power windows
The power windows must be resynchro-
nized each time after the battery has been
disconnected:
Pull the power window switches until
the side windows are closed and hold
the switches for approximately one
second.Warning!
G
When closing the windows and the slid-
ing/pop-up roof, be sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the
sliding/pop-up roof will open for as long
as the door handle is held but the door
not opened.

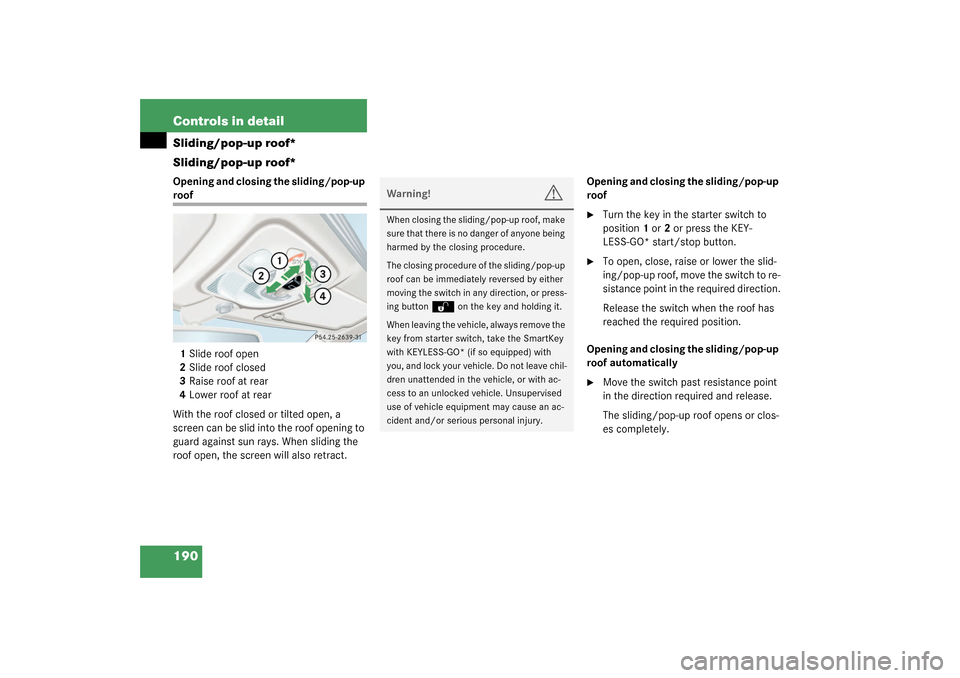

190 Controls in detailSliding/pop-up roof*
Sliding/pop-up roof*Opening and closing the sliding/pop-up roof
1Slide roof open
2Slide roof closed
3Raise roof at rear
4Lower roof at rear
With the roof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
roof open, the screen will also retract.Opening and closing the sliding/pop-up
roof

Turn the key in the starter switch to
position1 or2 or press the KEY-
LESS-GO* start/stop button.

To open, close, raise or lower the slid-
ing/pop-up roof, move the switch to re-
sistance point in the required direction.
Release the switch when the roof has
reached the required position.
Opening and closing the sliding/pop-up
roof automatically

Move the switch past resistance point
in the direction required and release.
The sliding/pop-up roof opens or clos-
es completely.
Warning!
G
When closing the sliding/pop-up roof, make
s ure th at th ere is no da nge r o f a ny o ne bei ng
harmed by the closing procedure.
The closing procedure of the sliding/pop-up
roof can be immediately reversed by either
moving the switch in any direction, or press-
ing button
Œ
on the key and holding it.
When leaving the vehicle, always remove the
key from starter switch, take the SmartKey
with KEYLESS-GO* (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.

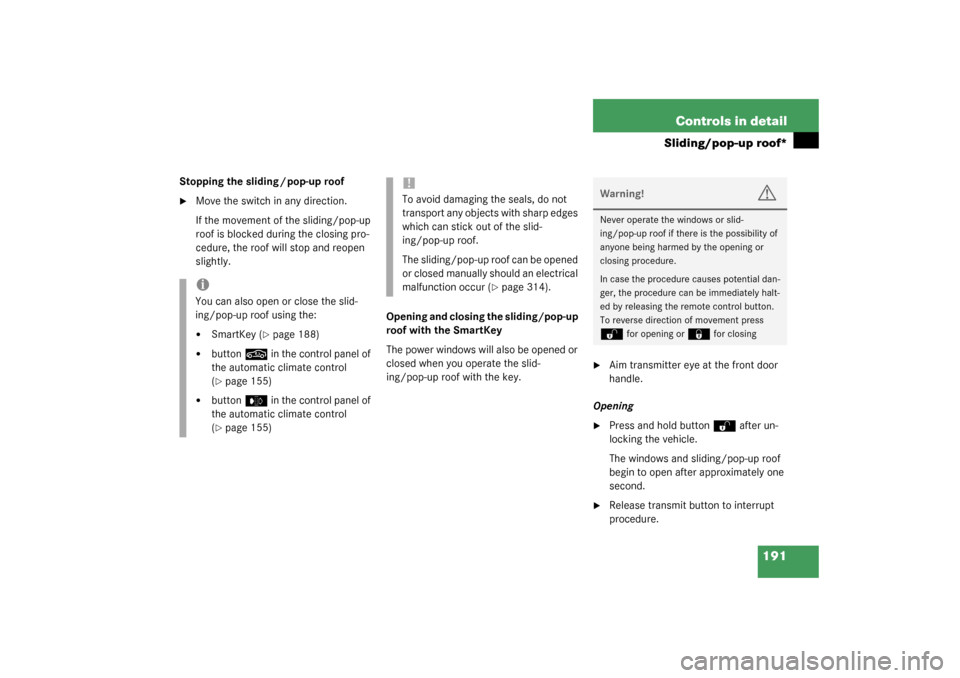

191 Controls in detail
Sliding/pop-up roof*
Stopping the sliding / pop-up roof
Move the switch in any direction.
If the movement of the sliding/pop-up
roof is blocked during the closing pro-
cedure, the roof will stop and reopen
slightly.
Opening and closing the sliding/pop-up
roof with the SmartKey
The power windows will also be opened or
closed when you operate the slid-
ing/pop-up roof with the key.

Aim transmitter eye at the front door
handle.
Opening

Press and hold button
Œ
after un-
locking the vehicle.
The windows and sliding/pop-up roof
begin to open after approximately one
second.

Release transmit button to interrupt
procedure.
iYou can also open or close the slid-
ing/pop-up roof using the:

SmartKey (
page 188)


button
,
in the control panel of
the automatic climate control
(
page 155)


button
e
in the control panel of
the automatic climate control
(
page 155)
!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the slid-
ing/pop-up roof.
The sliding/pop-up roof can be opened
or closed manually should an electrical
malfunction occur (
page 314).
Warning!
G
Never operate the windows or slid-
ing/pop-up roof if there is the possibility of
anyone being harmed by the opening or
closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the remote control button.
To reverse direction of movement press

Œ
for opening or
‹
for closing

192 Controls in detailSliding/pop-up roof*Closing
Press and hold button
‹
after lock-
ing the vehicle.
The windows and sliding/pop-up roof
begin to close after approximately one
second.

Release transmit button to interrupt
procedure.
Ensure that all side windows and the slid-
ing/pop-up roof are properly closed before
leaving the vehicle.
Closing the side windows and
sliding/pop-up roof with KEYLESS-GO

Press and hold lock button at door
(page 53) until the side windows and
the sliding/pop-up roof are closed.
Synchronizing the sliding / pop-up roof
The power sliding/pop-up roof must be re-
synchronized each time after:

the battery has been disconnected


the sliding/pop-up roof has been
closed manually


the sliding/pop-up roof does not open
smoothly


a malfunction

Press the switch in direction3.

Wait until the sliding/pop-up roof is
raised and hold the switch down for
approx. one second.
Warning!
G
When closing the windows and the slid-
ing/pop-up roof, be sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the
sliding/pop-up roof will open for as long
as the door handle is held but the door
not opened.
