2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

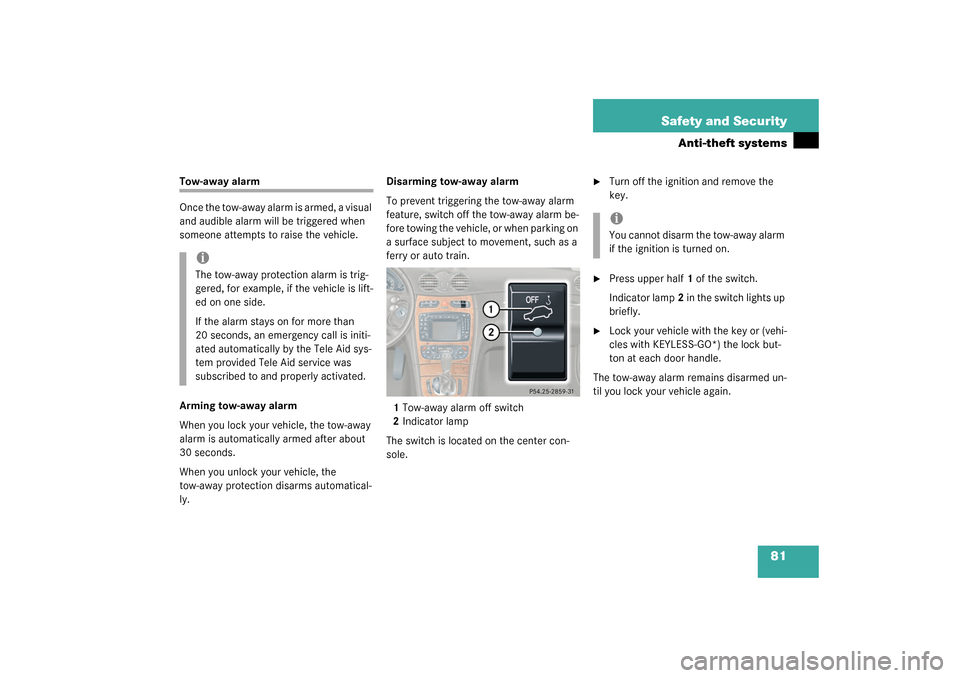

81 Safety and Security
Anti-theft systems
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms automatical-
ly.Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.
1Tow-away alarm off switch
2Indicator lamp
The switch is located on the center con-
sole.

Turn off the ignition and remove the
key.

Press upper half1 of the switch.
Indicator lamp2 in the switch lights up
briefly.

Lock your vehicle with the key or (vehi-
cles with KEYLESS-GO*) the lock but-
ton at each door handle.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem provided Tele Aid service was
subscribed to and properly activated.
iYou cannot disarm the tow-away alarm
if the ignition is turned on.

82

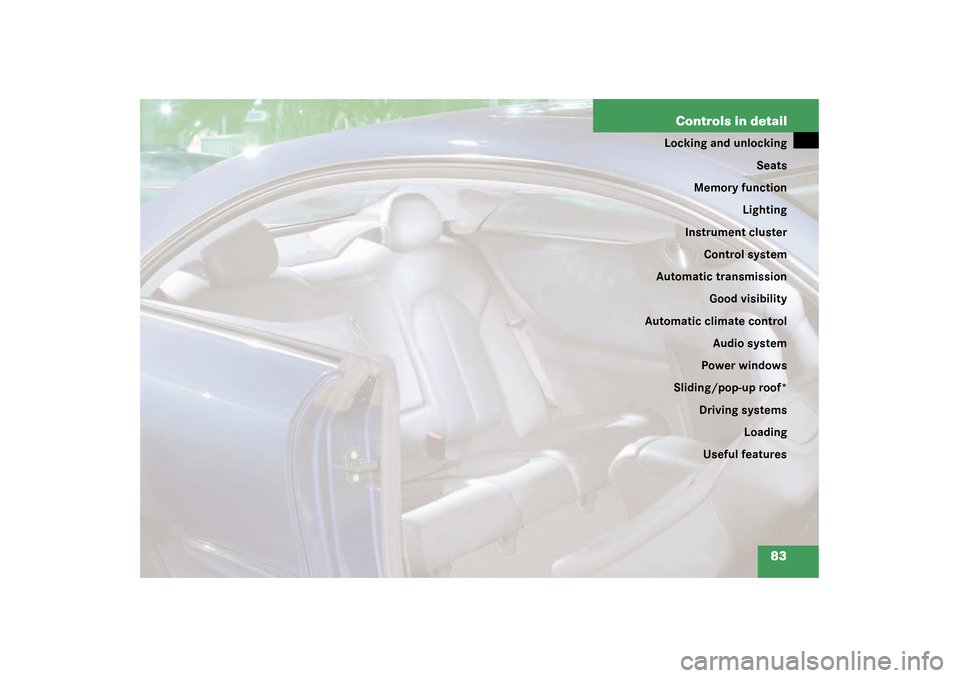

83 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Automatic climate control
Audio system
Power windows
Sliding/pop-up roof*
Driving systems
Loading
Useful features

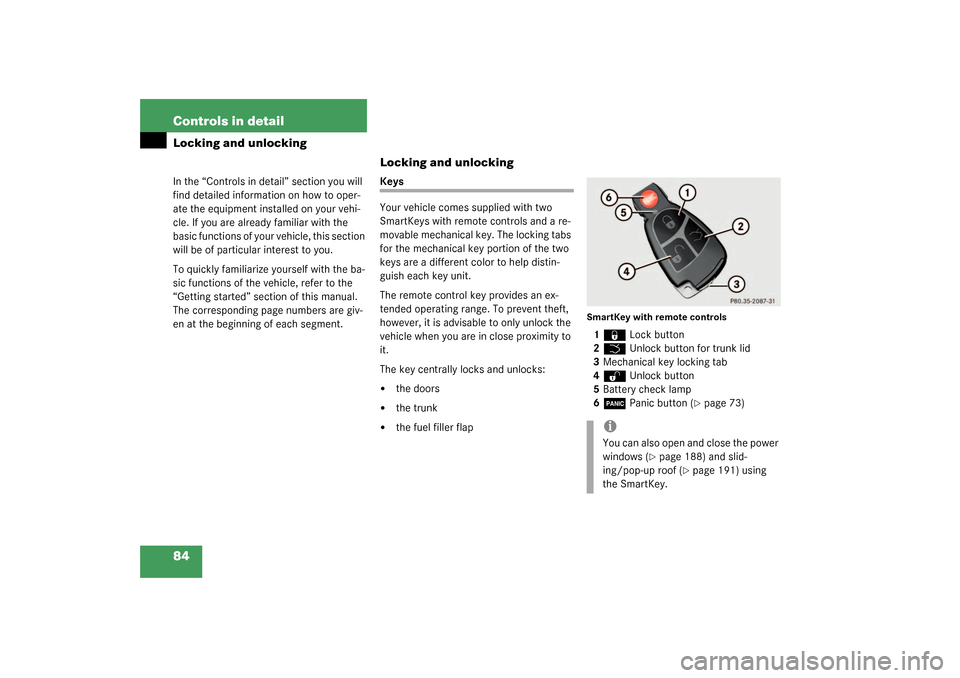

84 Controls in detailLocking and unlockingIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
Locking and unlockingKeys
Your vehicle comes supplied with two
SmartKeys with remote controls and a re-
movable mechanical key. The locking tabs
for the mechanical key portion of the two
keys are a different color to help distin-
guish each key unit.
The remote control key provides an ex-
tended operating range. To prevent theft,
however, it is advisable to only unlock the
vehicle when you are in close proximity to
it.
The key centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with remote controls1‹
Lock button
2
Š
Unlock button for trunk lid
3Mechanical key locking tab
4
Œ
Unlock button
5Battery check lamp
6
Â
Panic button (
page 73)
iYou can also open and close the power
windows (
page 188) and slid-
ing/pop-up roof (
page 191) using
the SmartKey.

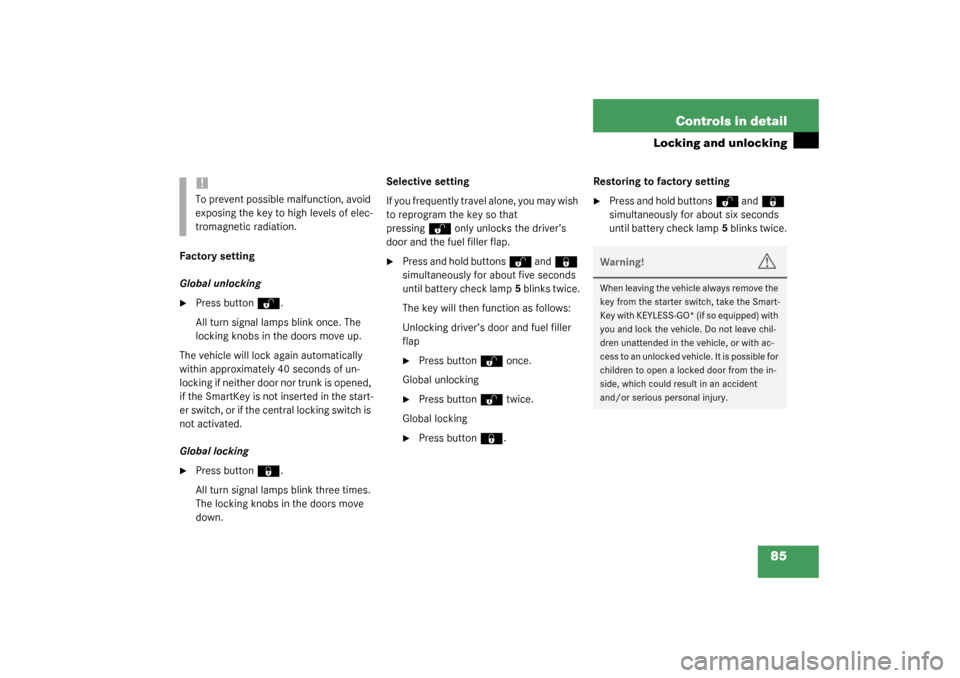

85 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press button
Œ
.
All turn signal lamps blink once. The
locking knobs in the doors move up.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor trunk is opened,
if the SmartKey is not inserted in the start-
er switch, or if the central locking switch is
not activated.
Global locking

Press button
‹
.
All turn signal lamps blink three times.
The locking knobs in the doors move
down.Selective setting
If you frequently travel alone, you may wish
to reprogram the key so that
pressing
Œ
only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttons
Œ
and
‹

simultaneously for about five seconds
until battery check lamp5 blinks twice.
The key will then function as follows:
Unlocking driver’s door and fuel filler
flap

Press button
Œ
once.
Global unlocking

Press button
Œ
twice.
Global locking

Press button
‹
.Restoring to factory setting

Press and hold buttons
Œ
and
‹

simultaneously for about six seconds
until battery check lamp5 blinks twice.
!To prevent possible malfunction, avoid
exposing the key to high levels of elec-
tromagnetic radiation.
Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO* (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. It is possible for
children to open a locked door from the in-
side, which could result in an accident
and/or serious personal injury.

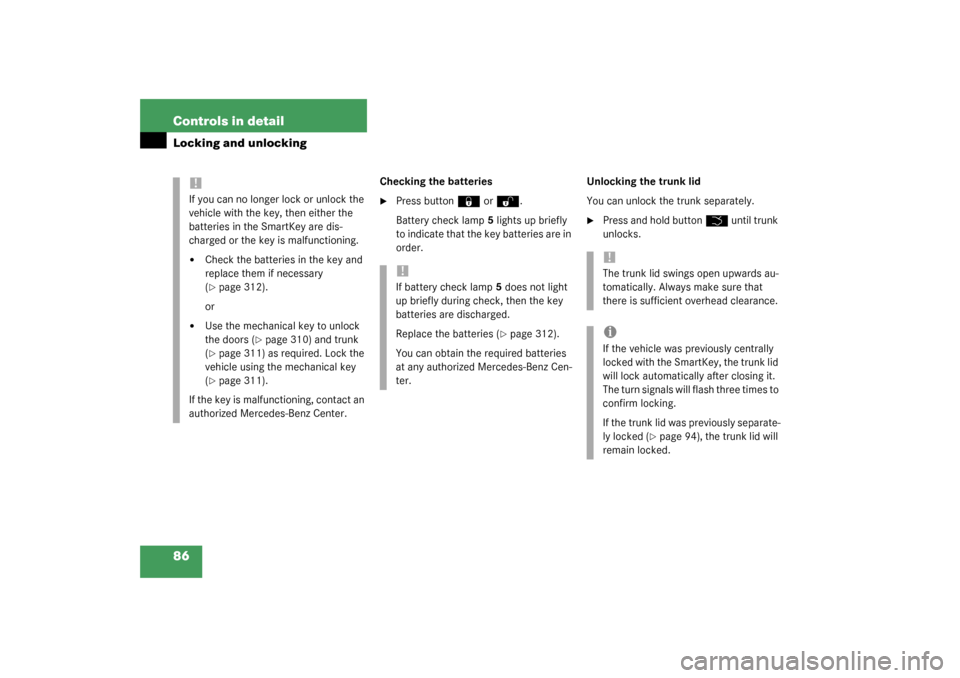

86 Controls in detailLocking and unlocking
Checking the batteries
Press button
‹
or
Œ
.
Battery check lamp5 lights up briefly
to indicate that the key batteries are in
order.Unlocking the trunk lid
You can unlock the trunk separately.

Press and hold button
Š
until trunk
unlocks.
!If you can no longer lock or unlock the
vehicle with the key, then either the
batteries in the SmartKey are dis-
charged or the key is malfunctioning.

Check the batteries in the key and
replace them if necessary
(page 312).
or


Use the mechanical key to unlock
the doors (
page 310) and trunk
(
page 311) as required. Lock the
vehicle using the mechanical key
(page 311).
If the key is malfunctioning, contact an
authorized Mercedes-Benz Center.
!If battery check lamp5 does not light
up briefly during check, then the key
batteries are discharged.
Replace the batteries (
page 312).
You can obtain the required batteries
at any authorized Mercedes-Benz Cen-
ter.
!The trunk lid swings open upwards au-
tomatically. Always make sure that
there is sufficient overhead clearance.iIf the vehicle was previously centrally
locked with the SmartKey, the trunk lid
will lock automatically after closing it.
The turn signals will flash three times to
confirm locking.
If the trunk lid was previously separate-
ly locked (
page 94), the trunk lid will
remain locked.

87 Controls in detail
Locking and unlocking
Opening the trunk lid
The handle is located in the rear license
plate recess.
Lift the trunk lid.
The trunk lid swings open upwards. Always
make sure that there is sufficient overhead
clearance.The trunk can also be opened from the in-
side in an emergency, see “Trunk lid emer-
gency release” (
page 93).Loss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:

Have the SmartKey deactivated by an
authorized Mercedes-Benz Center.

Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.

If necessary, have the mechanical lock
replaced.
Your authorized Mercedes-Benz Center
will be glad to supply you with a replace-
ment.
iThe vehicle must be unlocked.

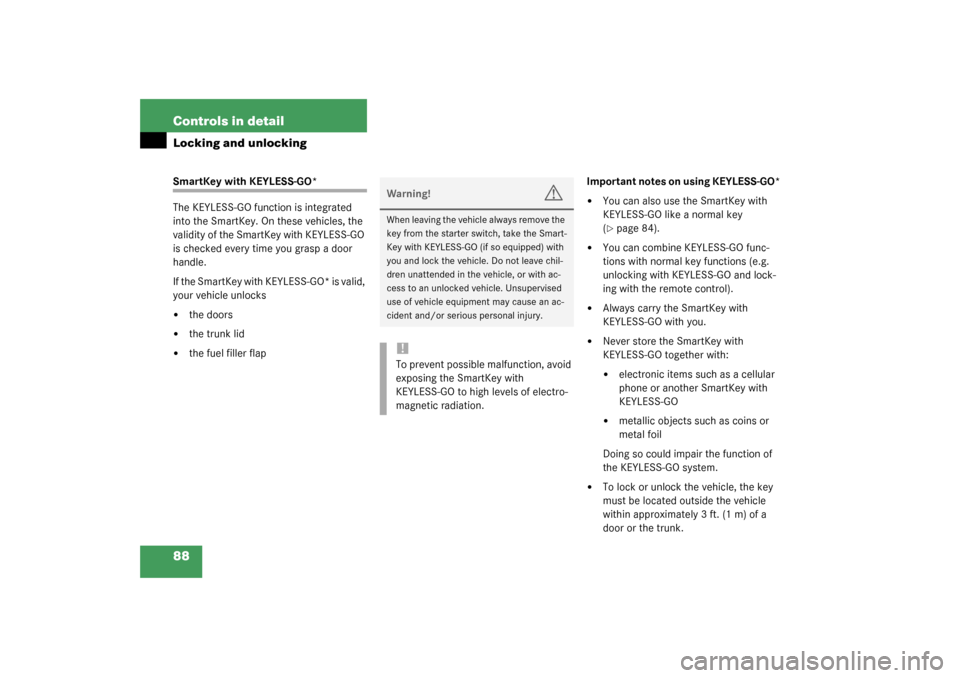

88 Controls in detailLocking and unlockingSmartKey with KEYLESS-GO*
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you grasp a door
handle.
If the SmartKey with KEYLESS-GO* is valid,
your vehicle unlocks

the doors


the trunk lid


the fuel filler flapImportant notes on using KEYLESS-GO*


You can also use the SmartKey with
KEYLESS-GO like a normal key
(page 84).


You can combine KEYLESS-GO func-
tions with normal key functions (e.g.
unlocking with KEYLESS-GO and lock-
ing with the remote control).


Always carry the SmartKey with
KEYLESS-GO with you.


Never store the SmartKey with
KEYLESS-GO together with:

electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO


metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.


To lock or unlock the vehicle, the key
must be located outside the vehicle
within approximately 3 ft. (1 m) of a
door or the trunk.
Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey with
KEYLESS-GO to high levels of electro-
magnetic radiation.
