2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

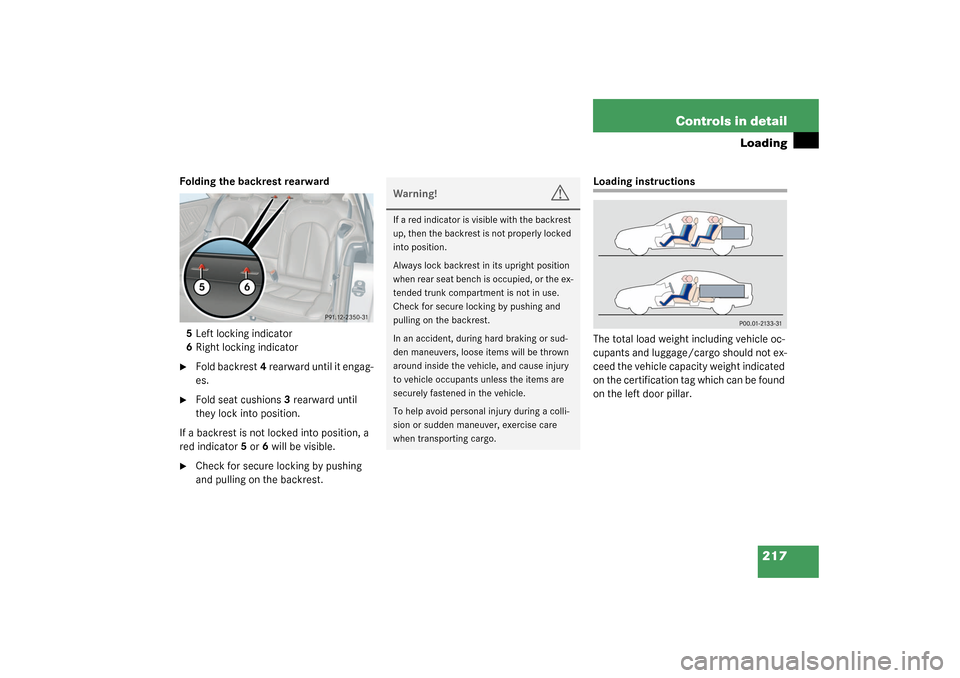

217 Controls in detail
Loading
Folding the backrest rearward
5Left locking indicator
6Right locking indicator
Fold backrest4 rearward until it engag-
es.

Fold seat cushions3 rearward until
they lock into position.
If a backrest is not locked into position, a
red indicator5 or 6 will be visible.

Check for secure locking by pushing
and pulling on the backrest.
Loading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the vehicle capacity weight indicated
on the certification tag which can be found
on the left door pillar.
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the ex-
tended trunk compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.

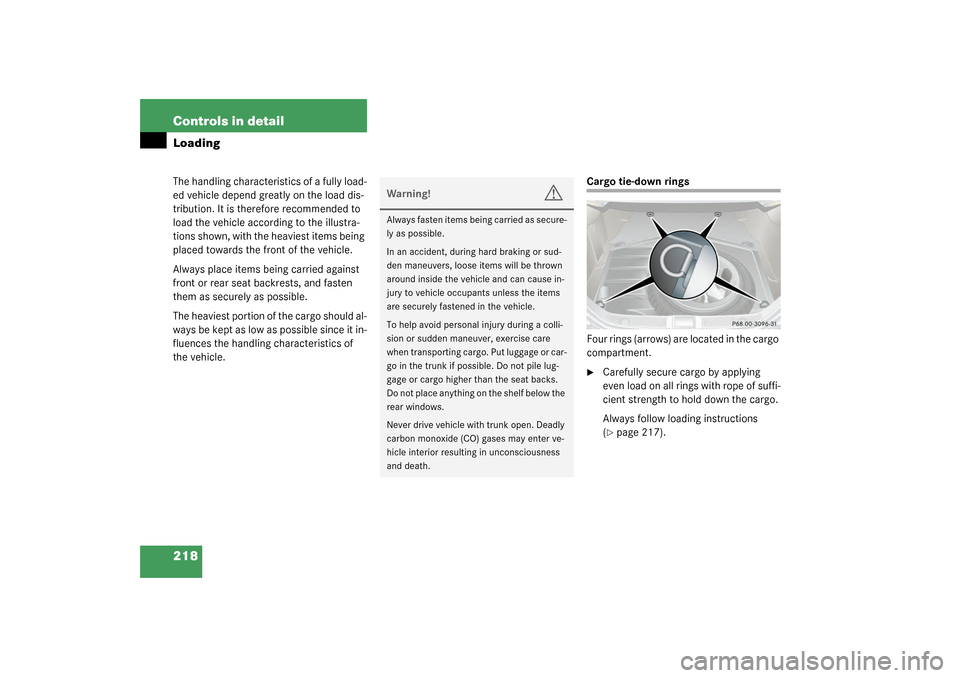

218 Controls in detailLoadingThe handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Always place items being carried against
front or rear seat backrests, and fasten
them as securely as possible.
The heaviest portion of the cargo should al-
ways be kept as low as possible since it in-
fluences the handling characteristics of
the vehicle.
Cargo tie-down rings
Four rings (arrows) are located in the cargo
compartment.
Carefully secure cargo by applying
even load on all rings with rope of suffi-
cient strength to hold down the cargo.
Always follow loading instructions
(page 217).
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the shelf below the
rear windows.
Never drive vehicle with trunk open. Deadly
carbon monoxide (CO) gases may enter ve-
hicle interior resulting in unconsciousness
and death.

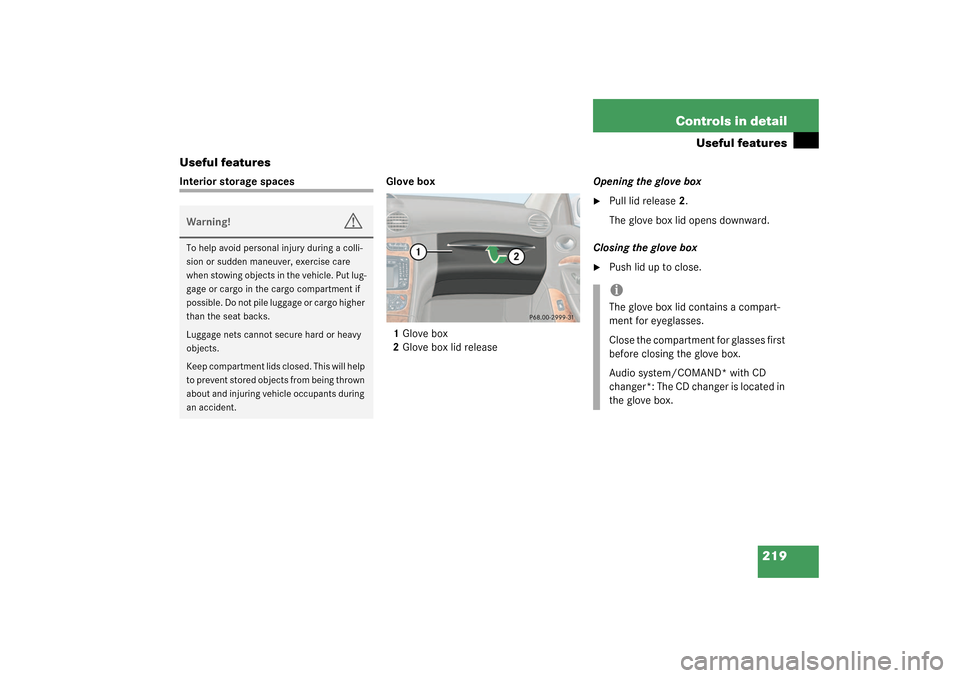

219 Controls in detail
Useful features
Useful features
Interior storage spaces Glove box
1Glove box
2Glove box lid releaseOpening the glove box

Pull lid release2.
The glove box lid opens downward.
Closing the glove box

Push lid up to close.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
gage or cargo in the cargo compartment if
possible. Do not pile luggage or cargo higher
than the seat backs.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iThe glove box lid contains a compart-
ment for eyeglasses.
Close the compartment for glasses first
before closing the glove box.
Audio system/COMAND* with CD
changer*: The CD changer is located in
the glove box.

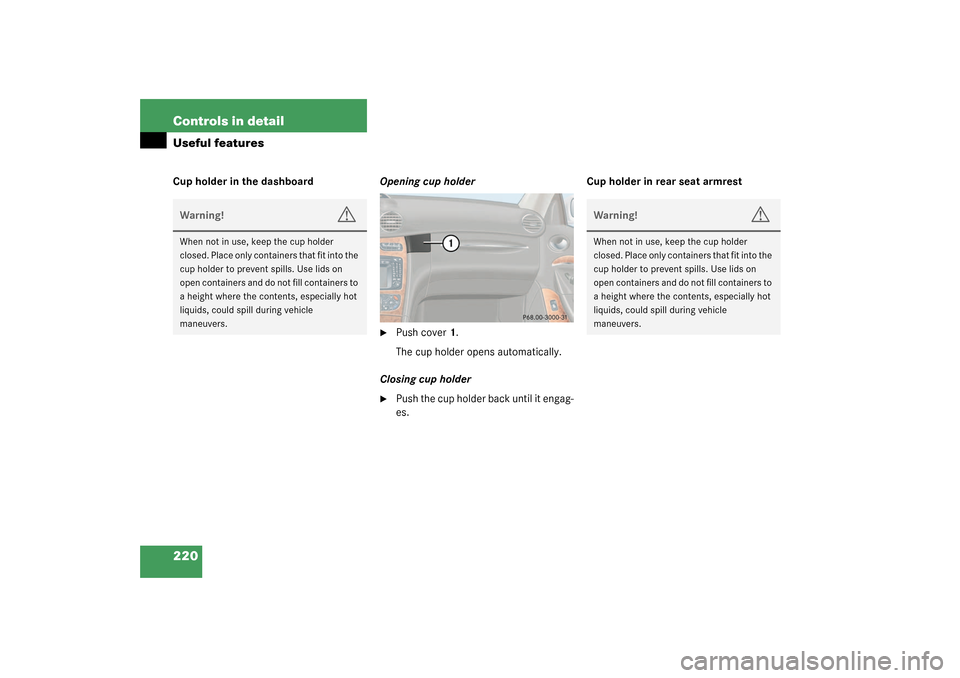

220 Controls in detailUseful featuresCup holder in the dashboardOpening cup holder

Push cover1.
The cup holder opens automatically.
Closing cup holder

Push the cup holder back until it engag-
es.Cup holder in rear seat armrest
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle
maneuvers.
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle
maneuvers.

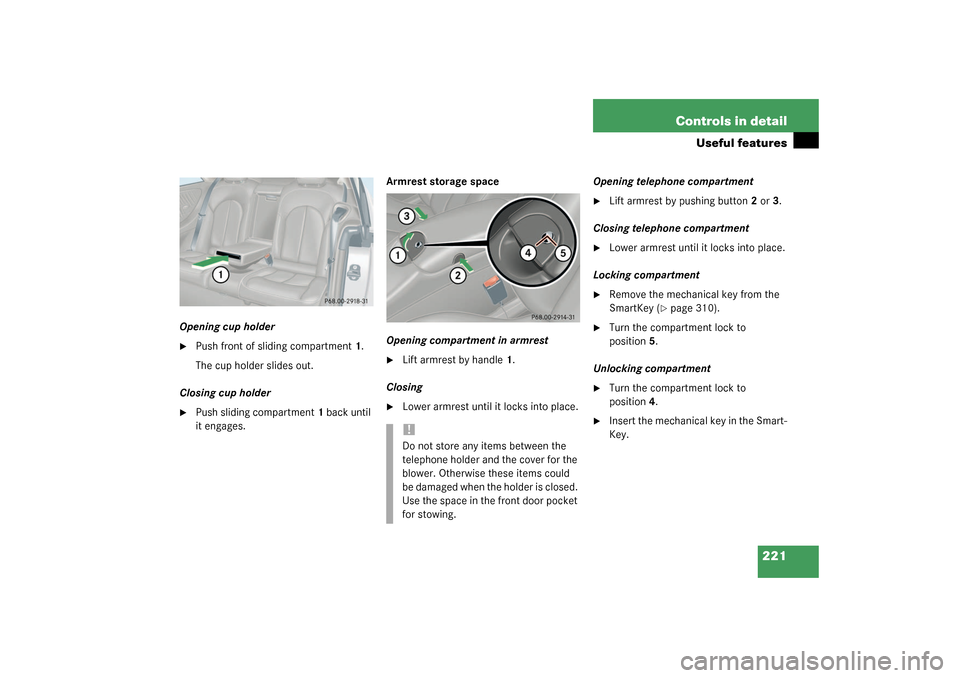

221 Controls in detail
Useful features
Opening cup holder
Push front of sliding compartment1.
The cup holder slides out.
Closing cup holder

Push sliding compartment1 back until
it engages.Armrest storage space
Opening compartment in armrest

Lift armrest by handle1.
Closing

Lower armrest until it locks into place.Opening telephone compartment

Lift armrest by pushing button2 or 3.
Closing telephone compartment

Lower armrest until it locks into place.
Locking compartment

Remove the mechanical key from the
SmartKey (
page 310).

Turn the compartment lock to
position5.
Unlocking compartment

Turn the compartment lock to
position4.

Insert the mechanical key in the Smart-
Key.
!Do not store any items between the
telephone holder and the cover for the
blower. Otherwise these items could
be damaged when the holder is closed.
Use the space in the front door pocket
for stowing.

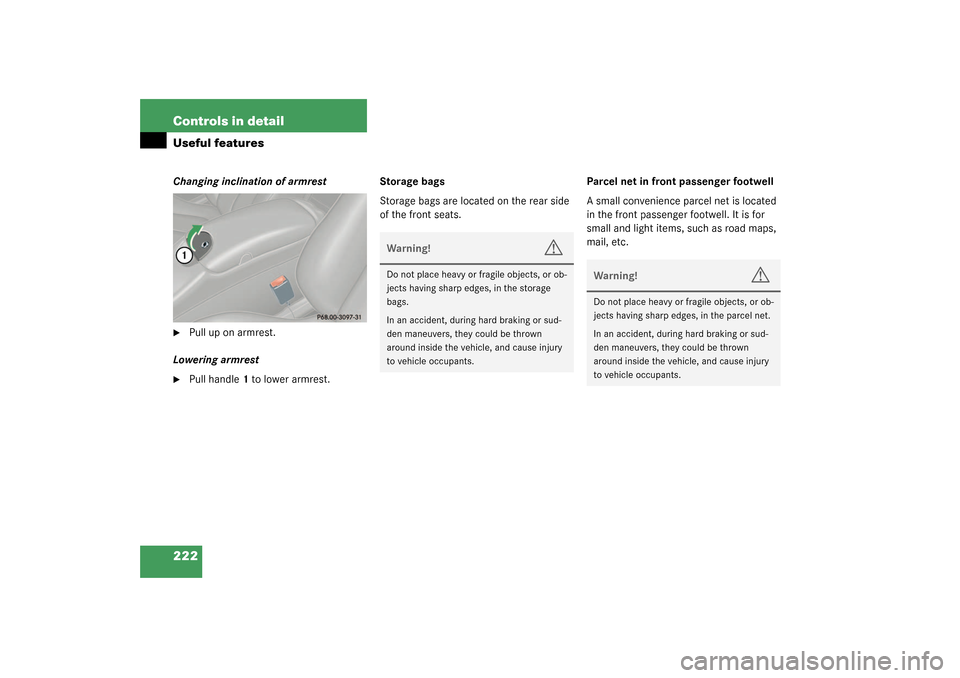

222 Controls in detailUseful featuresChanging inclination of armrest
Pull up on armrest.
Lowering armrest

Pull handle1 to lower armrest.Storage bags
Storage bags are located on the rear side
of the front seats.Parcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the storage
bags.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the parcel net.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.

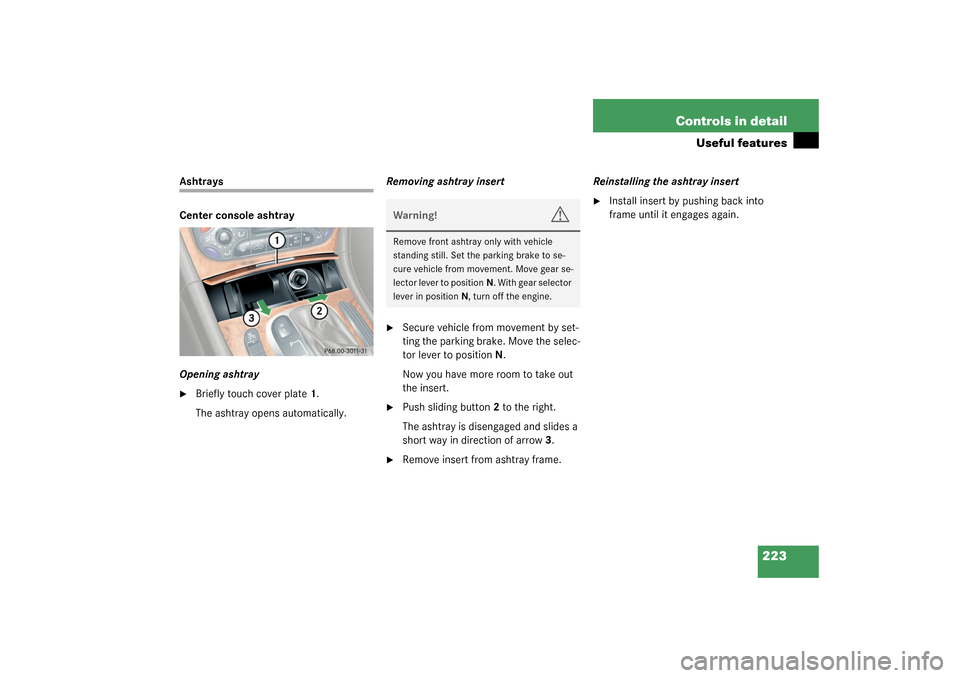

223 Controls in detail
Useful features
Ashtrays
Center console ashtray
Opening ashtray
Briefly touch cover plate1.
The ashtray opens automatically.Removing ashtray insert

Secure vehicle from movement by set-
ting the parking brake. Move the selec-
tor lever to positionN.
Now you have more room to take out
the insert.

Push sliding button2 to the right.
The ashtray is disengaged and slides a
short way in direction of arrow 3.

Remove insert from ashtray frame.Reinstalling the ashtray insert

Install insert by pushing back into
frame until it engages again.
Warning!
G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move gear se-
lector lever to positionN. With gear selector
lever in positionN, turn off the engine.

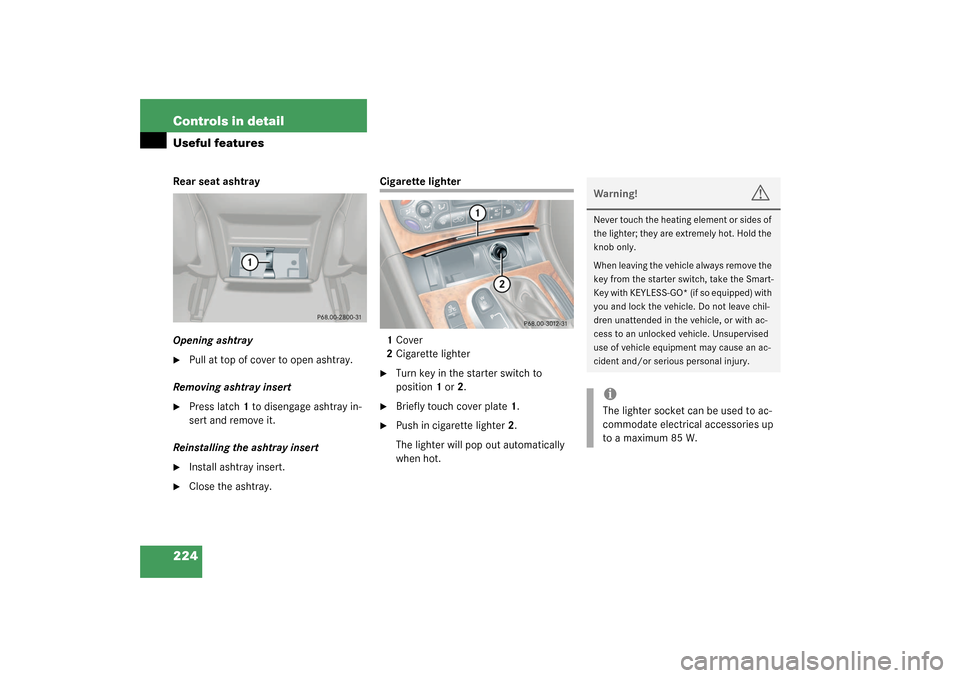

224 Controls in detailUseful featuresRear seat ashtray
Opening ashtray
Pull at top of cover to open ashtray.
Removing ashtray insert

Press latch1 to disengage ashtray in-
sert and remove it.
Reinstalling the ashtray insert

Install ashtray insert.

Close the ashtray.
Cigarette lighter
1Cover
2Cigarette lighter
Turn key in the starter switch to
position1 or2.

Briefly touch cover plate1.

Push in cigarette lighter2.
The lighter will pop out automatically
when hot.
Warning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO* (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.iThe lighter socket can be used to ac-
commodate electrical accessories up
to a maximum 85 W.
