2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

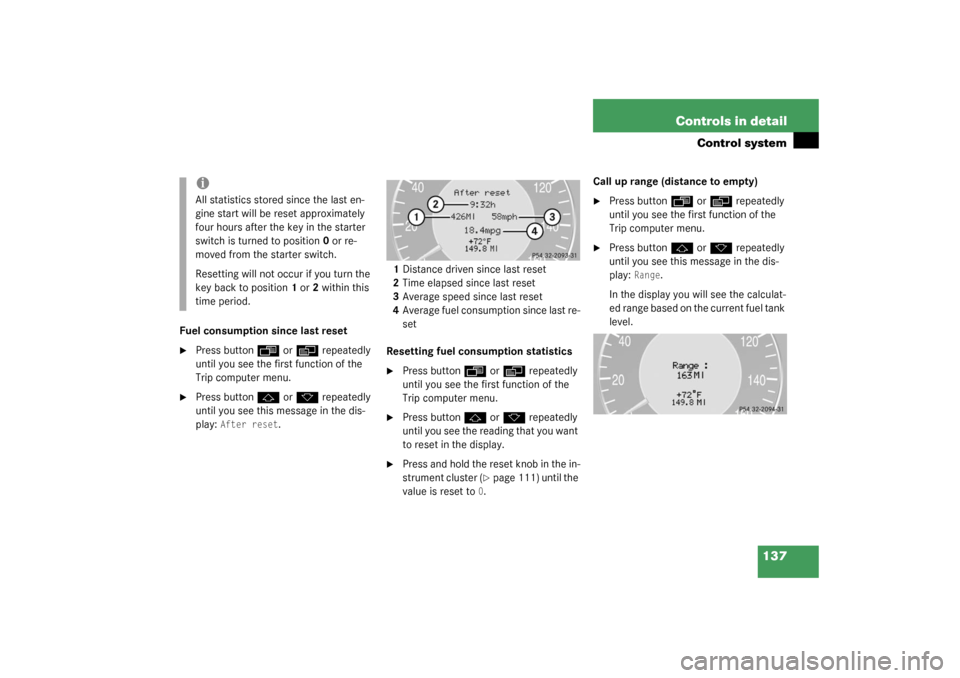

137 Controls in detail
Control system
Fuel consumption since last reset
Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
After reset
.1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last re-
set
Resetting fuel consumption statistics

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset knob in the in-
strument cluster (
page 111) until the
value is reset to
0.Call up range (distance to empty)

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Range
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the key in the starter
switch is turned to position0 or re-
moved from the starter switch.
Resetting will not occur if you turn the
key back to position1 or2 within this
time period.

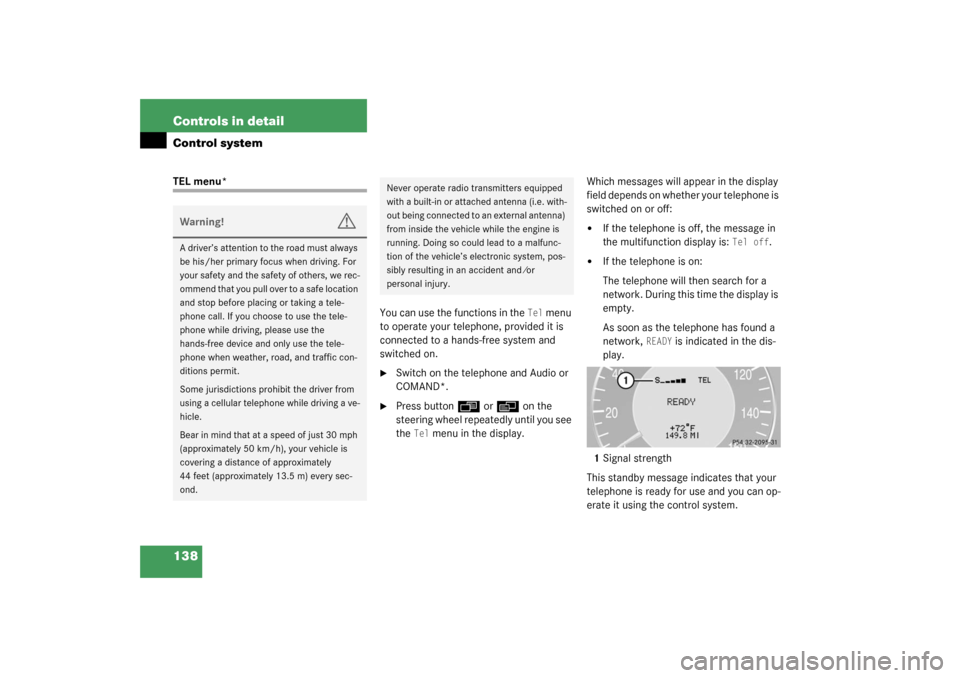

138 Controls in detailControl systemTEL menu*
You can use the functions in the
Tel
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and Audio or
COMAND*.

Press button
ÿ
or
è
on the
steering wheel repeatedly until you see
the
Tel
menu in the display.Which messages will appear in the display
field depends on whether your telephone is
switched on or off:


If the telephone is off, the message in
the multifunction display is:
Tel off
.


If the telephone is on:
The telephone will then search for a
network. During this time the display is
empty.
As soon as the telephone has found a
network,
READY
is indicated in the dis-
play.
1Signal strength
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
o m m e n d t h a t y o u p u l l o v e r t o a s a f e l o c a t i o n
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road, and traffic con-
ditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of approximately
44 feet (approximately 13.5 m) every sec-
ond.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and ⁄or
personal injury.

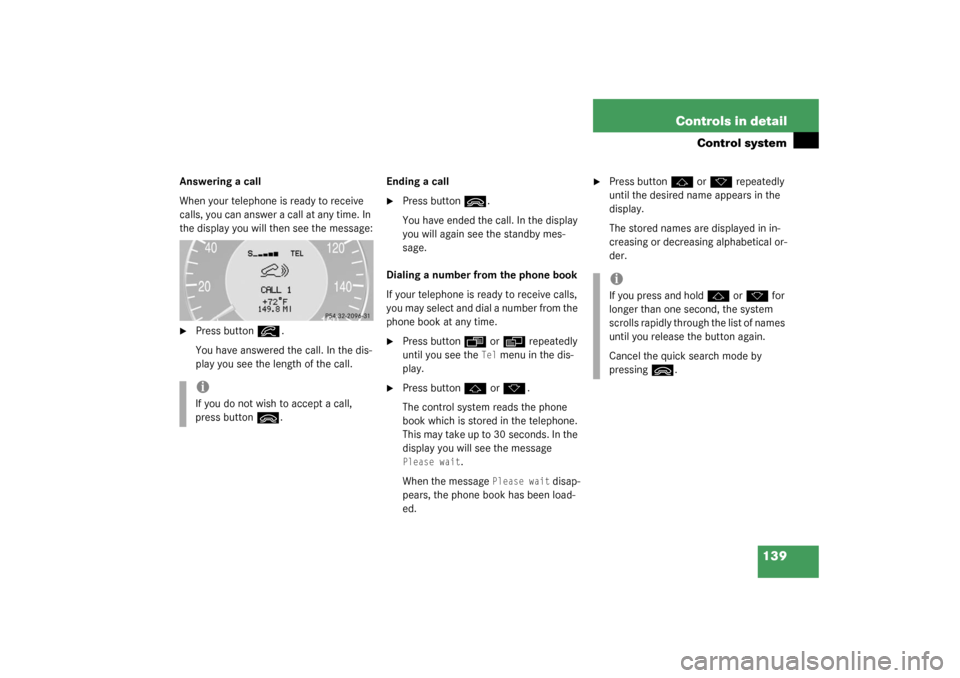

139 Controls in detail
Control system
Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:
Press button
í
.
You have answered the call. In the dis-
play you see the length of the call.Ending a call

Press button
ì
.
You have ended the call. In the display
you will again see the standby mes-
sage.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press button
ÿ
or
è
repeatedly
until you see the
Tel
menu in the dis-
play.

Press button
j
or
k
.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
display you will see the message
Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.
The stored names are displayed in in-
creasing or decreasing alphabetical or-
der.
iIf you do not wish to accept a call,
press button
ì
.
iIf you press and hold
j
or
k
for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressing
ì
.

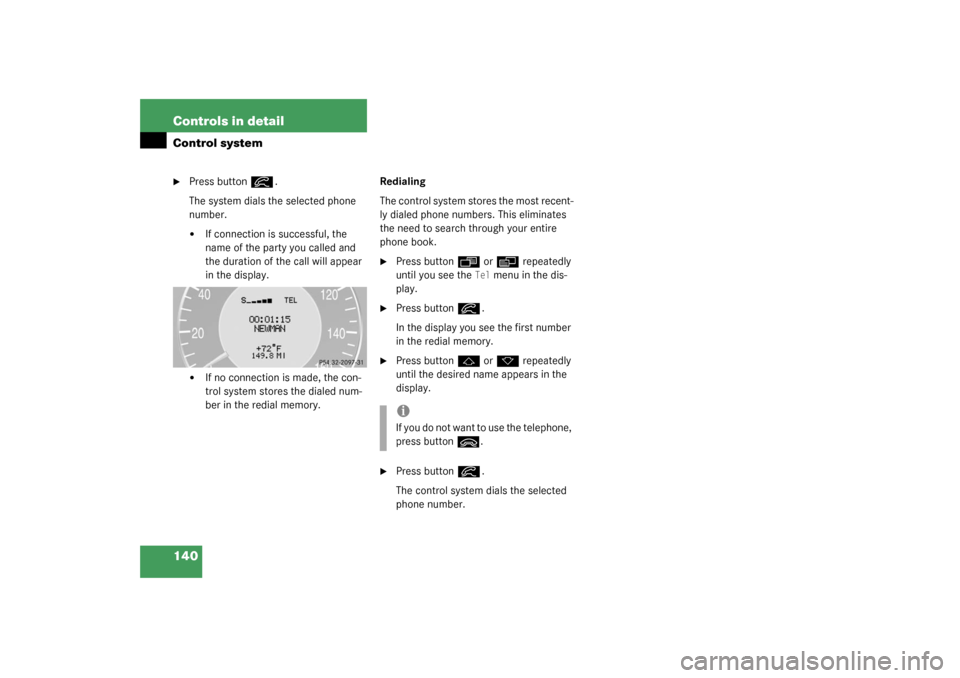

140 Controls in detailControl system
Press button
í
.
The system dials the selected phone
number.


If connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press button
ÿ
or
è
repeatedly
until you see the
Tel
menu in the dis-
play.

Press button
í
.
In the display you see the first number
in the redial memory.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.

Press button
í
.
The control system dials the selected
phone number.
iIf you do not want to use the telephone,
press button
ì
.

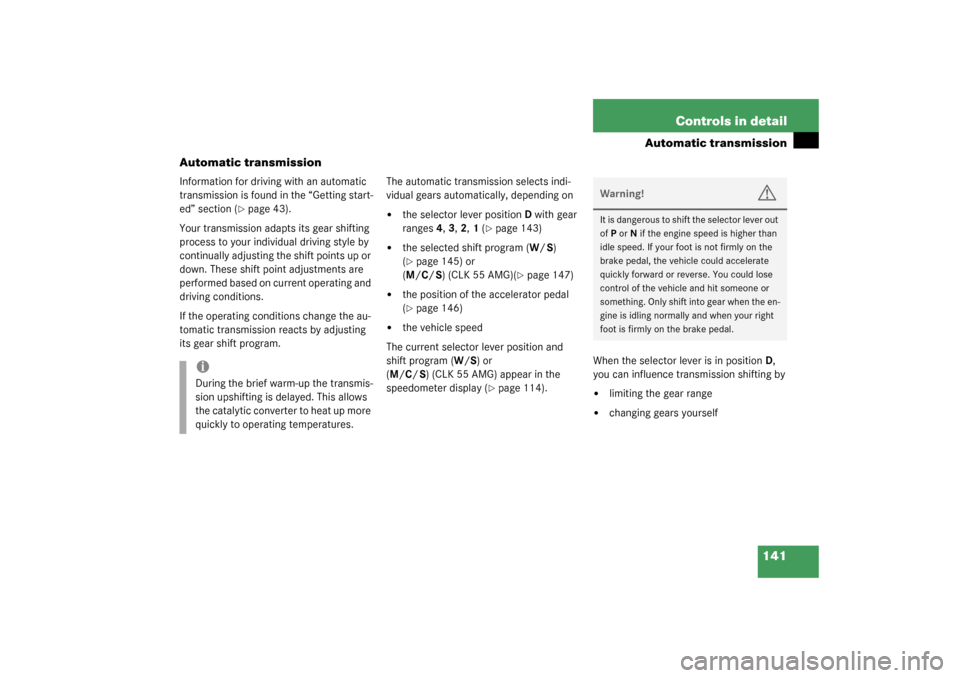

141 Controls in detail
Automatic transmission
Automatic transmission
Information for driving with an automatic
transmission is found in the “Getting start-
ed” section (
page 43).
Your transmission adapts its gear shifting
process to your individual driving style by
continually adjusting the shift points up or
down. These shift point adjustments are
performed based on current operating and
driving conditions.
If the operating conditions change the au-
tomatic transmission reacts by adjusting
its gear shift program.The automatic transmission selects indi-
vidual gears automatically, depending on


the selector lever positionD with gear
ranges4, 3, 2, 1 (
page 143)


the selected shift program (W/S)
(page 145) or
(M/C/S)(CLK55AMG)(
page 147)


the position of the accelerator pedal
(page 146)


the vehicle speed
The current selector lever position and
shift program (W/S) or
(M/C/S) (CLK 55 AMG) appear in the
speedometer display (
page 114).When the selector lever is in positionD,
you can influence transmission shifting by


limiting the gear range


changing gears yourself
iDuring the brief warm-up the transmis-
sion upshifting is delayed. This allows
the catalytic converter to heat up more
quickly to operating temperatures.
Warning!
G
It is dangerous to shift the selector lever out
of P or N if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the en-
gine is idling normally and when your right
foot is firmly on the brake pedal.

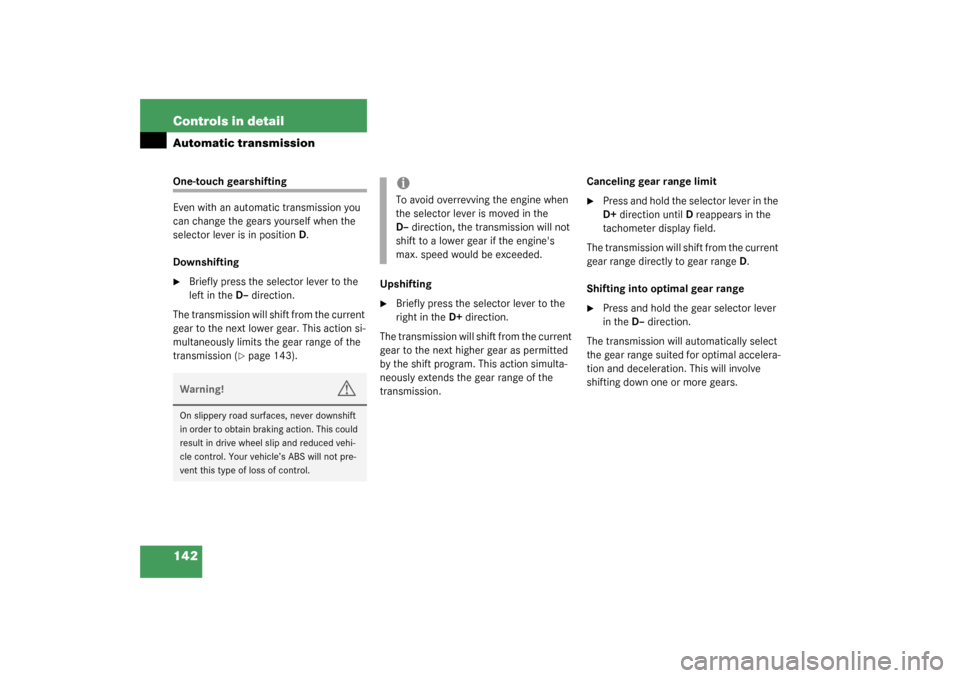

142 Controls in detailAutomatic transmissionOne-touch gearshifting
Even with an automatic transmission you
can change the gears yourself when the
selector lever is in positionD.
Downshifting
Briefly press the selector lever to the
left in the D–direction.
The transmission will shift from the current
gear to the next lower gear. This action si-
multaneously limits the gear range of the
transmission (
page 143).Upshifting

Briefly press the selector lever to the
right in the D+direction.
The transmission will shift from the current
gear to the next higher gear as permitted
by the shift program. This action simulta-
neously extends the gear range of the
transmission.Canceling gear range limit

Press and hold the selector lever in the
D+direction until D reappears in the
tachometer display field.
The transmission will shift from the current
gear range directly to gear rangeD.
Shifting into optimal gear range

Press and hold the gear selector lever
in the D–direction.
The transmission will automatically select
the gear range suited for optimal accelera-
tion and deceleration. This will involve
shifting down one or more gears.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
iTo avoid overrevving the engine when
the selector lever is moved in the
D–direction, the transmission will not
shift to a lower gear if the engine's
max. speed would be exceeded.

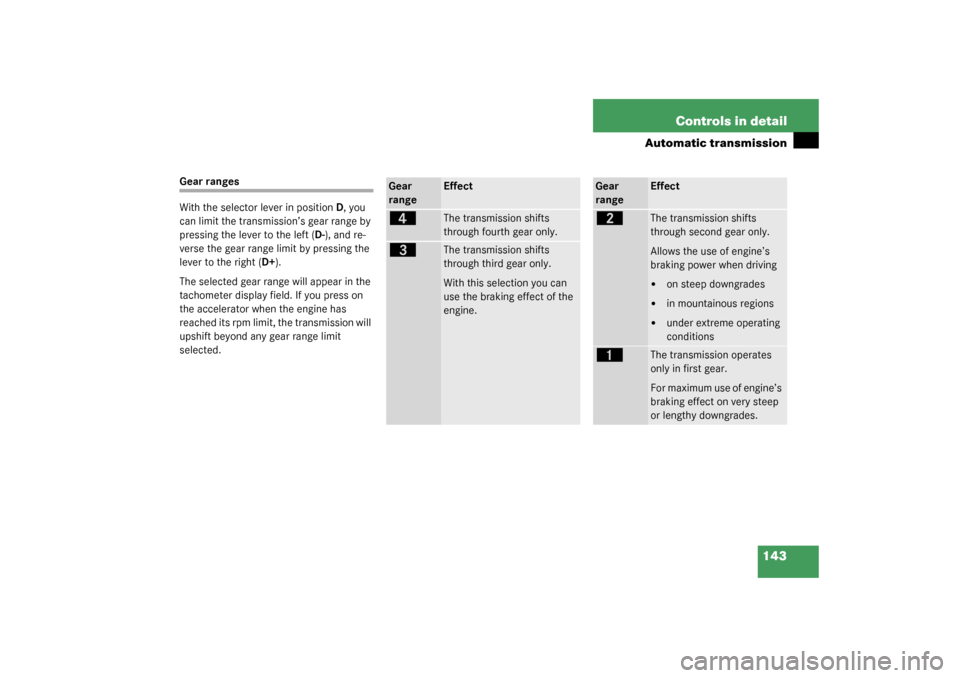

143 Controls in detail
Automatic transmission
Gear ranges
With the selector lever in positionD, you
can limit the transmission’s gear range by
pressing the lever to the left (D-), and re-
verse the gear range limit by pressing the
lever to the right (D+).
The selected gear range will appear in the
tachometer display field. If you press on
the accelerator when the engine has
reached its rpm limit, the transmission will
upshift beyond any gear range limit
selected.
Gear
range
Effect
é
The transmission shifts
through fourth gear only.
è
The transmission shifts
through third gear only.
With this selection you can
use the braking effect of the
engine.
Gear
range
Effect
ç
The transmission shifts
through second gear only.
Allows the use of engine’s
braking power when driving

on steep downgrades


in mountainous regions


under extreme operating
conditions
æ
The transmission operates
only in first gear.
For maximum use of engine’s
braking effect on very steep
or lengthy downgrades.

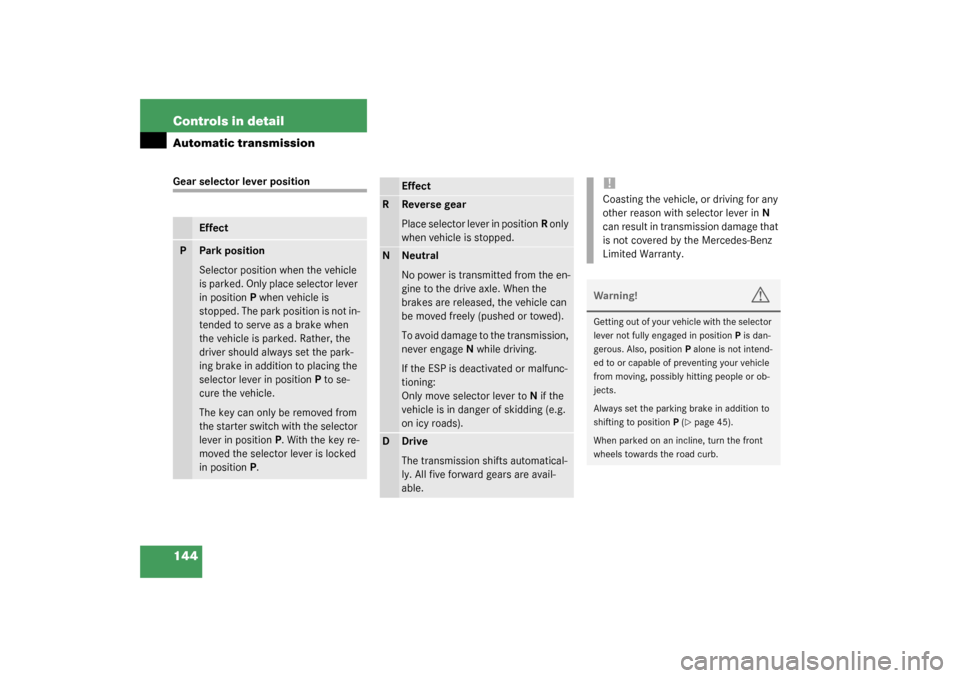

144 Controls in detailAutomatic transmissionGear selector lever position
Effect
P
Park position
Selector position when the vehicle
is parked. Only place selector lever
in positionP when vehicle is
stopped. The park position is not in-
tended to serve as a brake when
the vehicle is parked. Rather, the
driver should always set the park-
ing brake in addition to placing the
selector lever in positionP to se-
cure the vehicle.
The key can only be removed from
the starter switch with the selector
lever in positionP. With the key re-
moved the selector lever is locked
in positionP.
Effect
R
Reverse gear
Place selector lever in positionR only
when vehicle is stopped.
N
Neutral
No power is transmitted from the en-
gine to the drive axle. When the
brakes are released, the vehicle can
be moved freely (pushed or towed).
To avoid damage to the transmission,
never engageN while driving.
If the ESP is deactivated or malfunc-
tioning:
Only move selector lever toN if the
vehicle is in danger of skidding (e.g.
on icy roads).
D
Drive
The transmission shifts automatical-
ly. All five forward gears are avail-
able.
!Coasting the vehicle, or driving for any
other reason with selector lever inN
can result in transmission damage that
is not covered by the Mercedes-Benz
Limited Warranty.Warning!
G
Getting out of your vehicle with the selector
lever not fully engaged in positionP is dan-
gerous. Also, positionP alone is not intend-
ed to or capable of preventing your vehicle
from moving, possibly hitting people or ob-
jects.
Always set the parking brake in addition to
shifting to positionP (
page 45).
When parked on an incline, turn the front
wheels towards the road curb.
