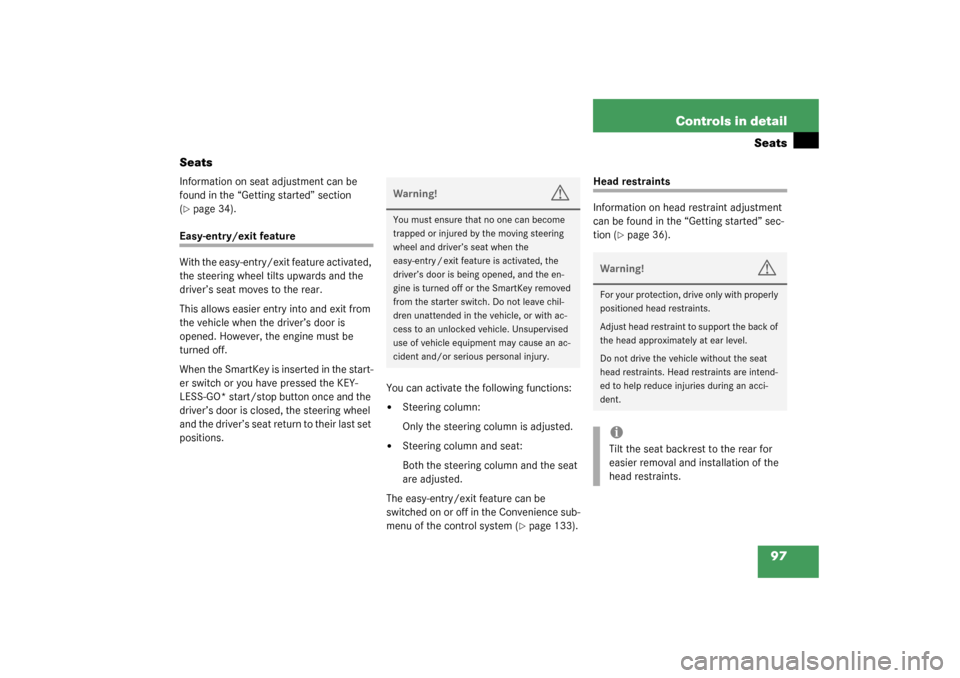

97 Controls in detail
Seats
Seats
Information on seat adjustment can be
found in the “Getting started” section
(page 34).
Easy-entry/exit feature
With the easy-entry/exit feature activated,
the steering wheel tilts upwards and the
driver’s seat moves to the rear.
This allows easier entry into and exit from
the vehicle when the driver’s door is
opened. However, the engine must be
turned off.
When the SmartKey is inserted in the start-
er switch or you have pressed the KEY-
LESS-GO* start/stop button once and the
driver’s door is closed, the steering wheel
and the driver’s seat return to their last set
positions.You can activate the following functions:


Steering column:
Only the steering column is adjusted.


Steering column and seat:
Both the steering column and the seat
are adjusted.
The easy-entry/exit feature can be
switched on or off in the Convenience sub-
menu of the control system (
page 133).
Head restraints
Information on head restraint adjustment
can be found in the “Getting started” sec-
tion (
page 36).
Warning!
G
You must ensure that no one can become
trapped or injured by the moving steering
wheel and driver’s seat when the
easy-entry / exit feature is activated, the
driver’s door is being opened, and the en-
gine is turned off or the SmartKey removed
from the starter switch. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.iTilt the seat backrest to the rear for
easier removal and installation of the
head restraints.

98 Controls in detailSeatsFront seat head restraints, power seat
Removing front head restraints
Press switch1 upwards and hold until
the head restraint is fully extended.

Pull out head restraint.Installing front head restraints:

Press switch1 upwards and hold for
about five seconds.

Push the head restraint down until it
engages.

Adjust head restraint to desired posi-
tion.
Rear seat head restraintsFolding rear head restraints back

Make sure that the engine is running.

Press switch1.
The rear head restraints will fold back-
ward.
Warning!
G
For safety reasons, always drive with the
rear head restraints in the upright position
when the rear seats are occupied.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.

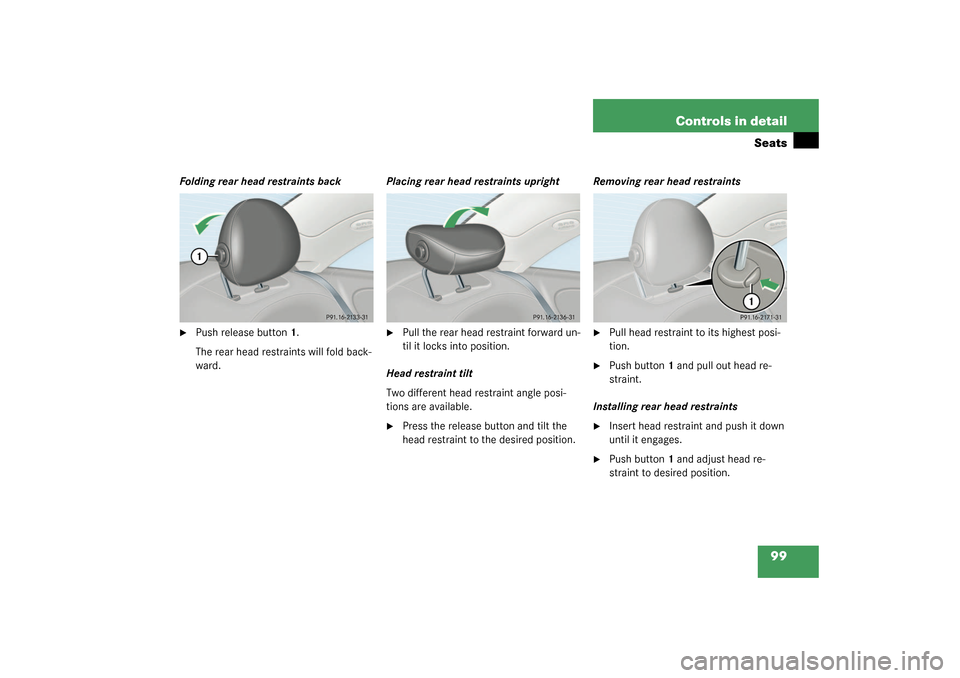

99 Controls in detail
Seats
Folding rear head restraints back
Push release button1.
The rear head restraints will fold back-
ward.Placing rear head restraints upright

Pull the rear head restraint forward un-
til it locks into position.
Head restraint tilt
Two different head restraint angle posi-
tions are available.

Press the release button and tilt the
head restraint to the desired position.Removing rear head restraints

Pull head restraint to its highest posi-
tion.

Push button1 and pull out head re-
straint.
Installing rear head restraints

Insert head restraint and push it down
until it engages.

Push button1 and adjust head re-
straint to desired position.

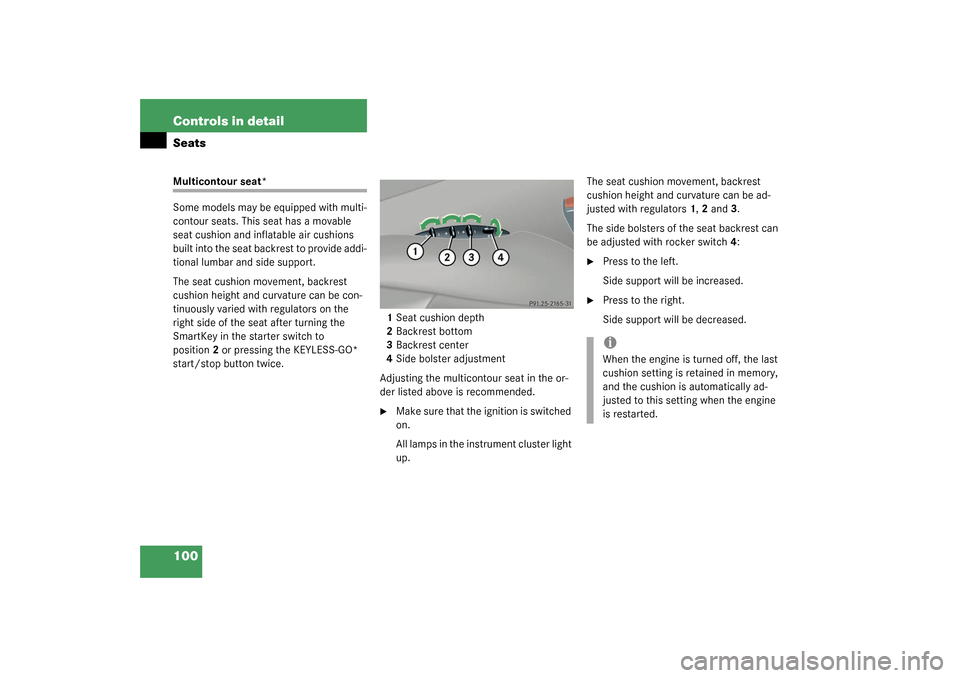

100 Controls in detailSeatsMulticontour seat*
Some models may be equipped with multi-
contour seats. This seat has a movable
seat cushion and inflatable air cushions
built into the seat backrest to provide addi-
tional lumbar and side support.
The seat cushion movement, backrest
cushion height and curvature can be con-
tinuously varied with regulators on the
right side of the seat after turning the
SmartKey in the starter switch to
position2 or pressing the KEYLESS-GO*
start/stop button twice.1Seat cushion depth
2Backrest bottom
3Backrest center
4Side bolster adjustment
Adjusting the multicontour seat in the or-
der listed above is recommended.

Make sure that the ignition is switched
on.
All lamps in the instrument cluster light
up.The seat cushion movement, backrest
cushion height and curvature can be ad-
justed with regulators1, 2 and3.
The side bolsters of the seat backrest can
be adjusted with rocker switch4:

Press to the left.
Side support will be increased.

Press to the right.
Side support will be decreased.iWhen the engine is turned off, the last
cushion setting is retained in memory,
and the cushion is automatically ad-
justed to this setting when the engine
is restarted.

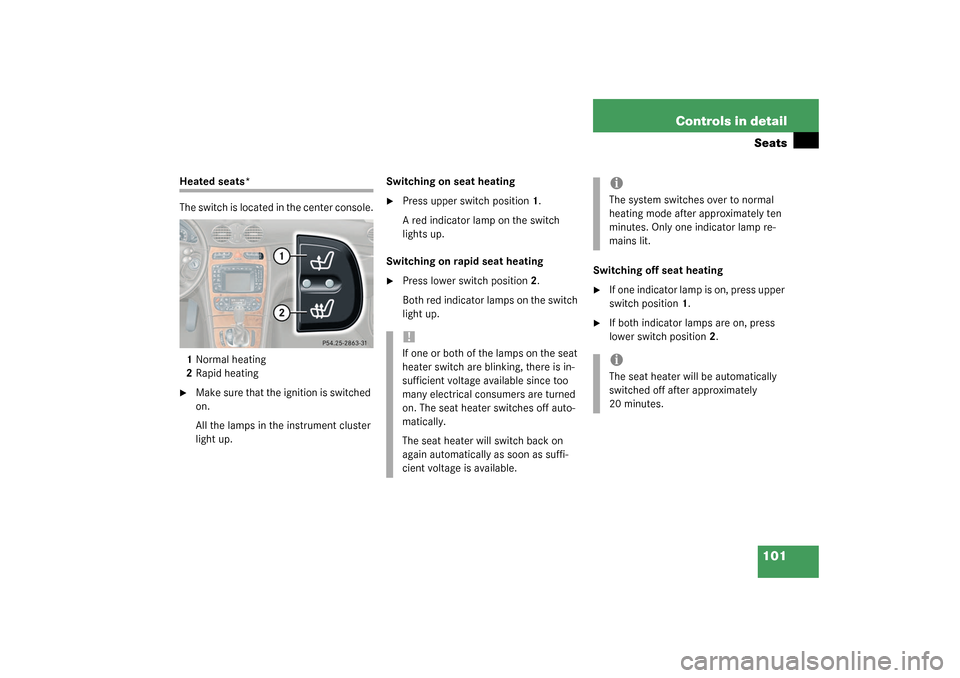

101 Controls in detailSeats
Heated seats*
The switch is located in the center console.
1Normal heating
2Rapid heating
Make sure that the ignition is switched
on.
All the lamps in the instrument cluster
light up.Switching on seat heating

Press upper switch position1.
A red indicator lamp on the switch
lights up.
Switching on rapid seat heating

Press lower switch position2.
Both red indicator lamps on the switch
light up.Switching off seat heating

If one indicator lamp is on, press upper
switch position1.

If both indicator lamps are on, press
lower switch position2.
!If one or both of the lamps on the seat
heater switch are blinking, there is in-
sufficient voltage available since too
many electrical consumers are turned
on. The seat heater switches off auto-
matically.
The seat heater will switch back on
again automatically as soon as suffi-
cient voltage is available.
iThe system switches over to normal
heating mode after approximately ten
minutes. Only one indicator lamp re-
mains lit. iThe seat heater will be automatically
switched off after approximately
20 minutes.

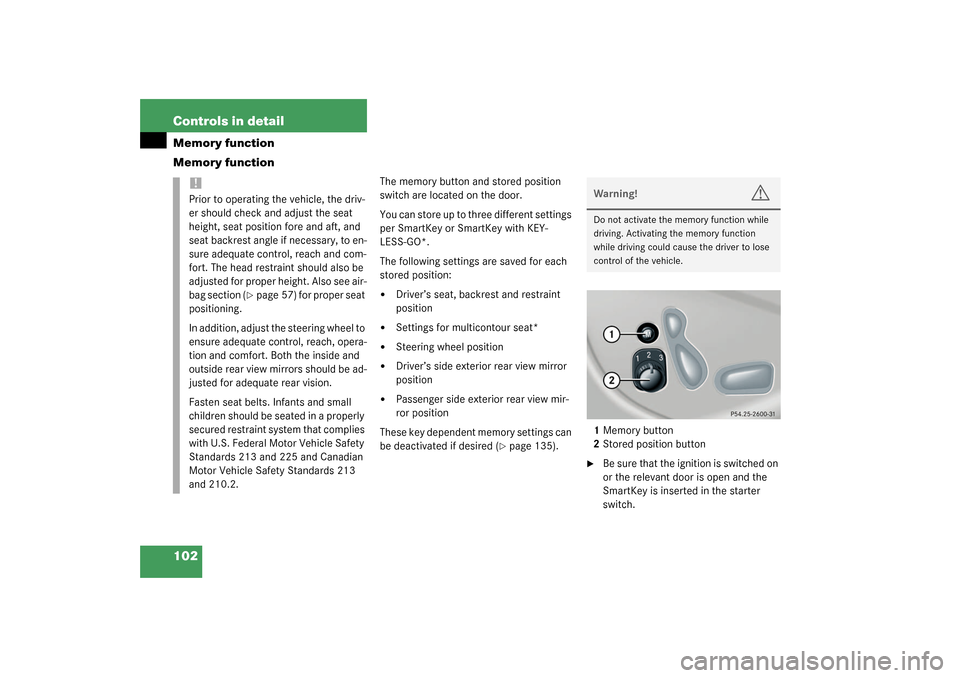

102 Controls in detailMemory function
Memory function
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per SmartKey or SmartKey with KEY-
LESS-GO*.
The following settings are saved for each
stored position:

Driver’s seat, backrest and restraint
position


Settings for multicontour seat*


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger side exterior rear view mir-
ror position
These key dependent memory settings can
be deactivated if desired (
page 135).1Memory button
2Stored position button

Be sure that the ignition is switched on
or the relevant door is open and the
SmartKey is inserted in the starter
switch.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. Also see air-
bag section (
page 57) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

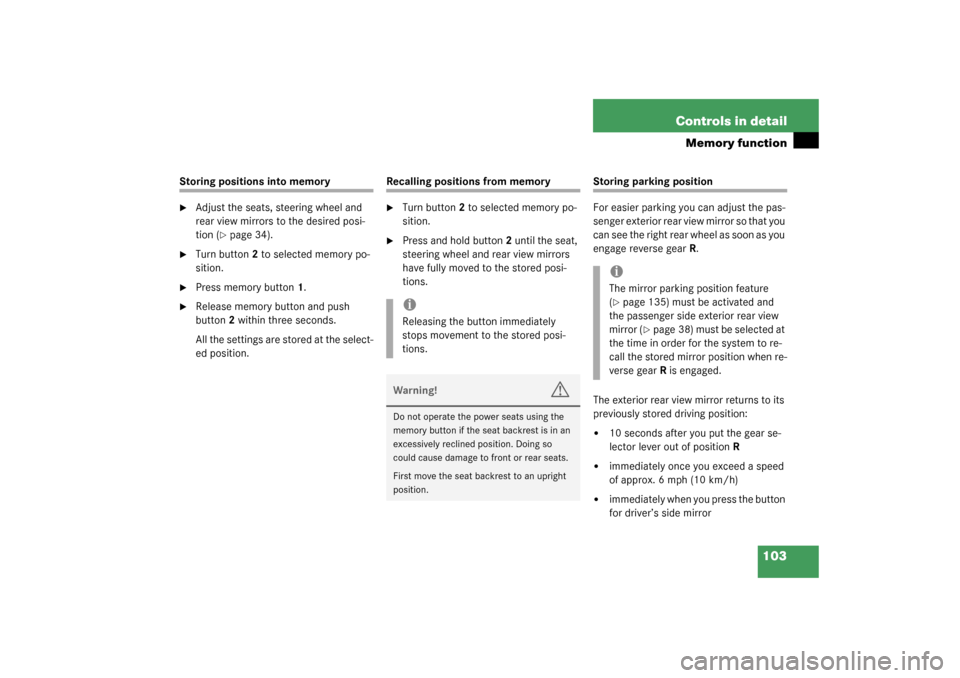

103 Controls in detail
Memory function
Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 34).

Turn button2 to selected memory po-
sition.

Press memory button1.

Release memory button and push
button2 within three seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Turn button2 to selected memory po-
sition.

Press and hold button2 until the seat,
steering wheel and rear view mirrors
have fully moved to the stored posi-
tions.
Storing parking position
For easier parking you can adjust the pas-
senger exterior rear view mirror so that you
can see the right rear wheel as soon as you
engage reverse gearR.
The exterior rear view mirror returns to its
previously stored driving position:

10 seconds after you put the gear se-
lector lever out of positionR


immediately once you exceed a speed
of approx. 6 mph (10 km/h)


immediately when you press the button
for driver’s side mirror
iReleasing the button immediately
stops movement to the stored posi-
tions.Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move the seat backrest to an upright
position.
iThe mirror parking position feature
(page 135) must be activated and
the passenger side exterior rear view
mirror (
page 38) must be selected at
the time in order for the system to re-
call the stored mirror position when re-
verse gearR is engaged.

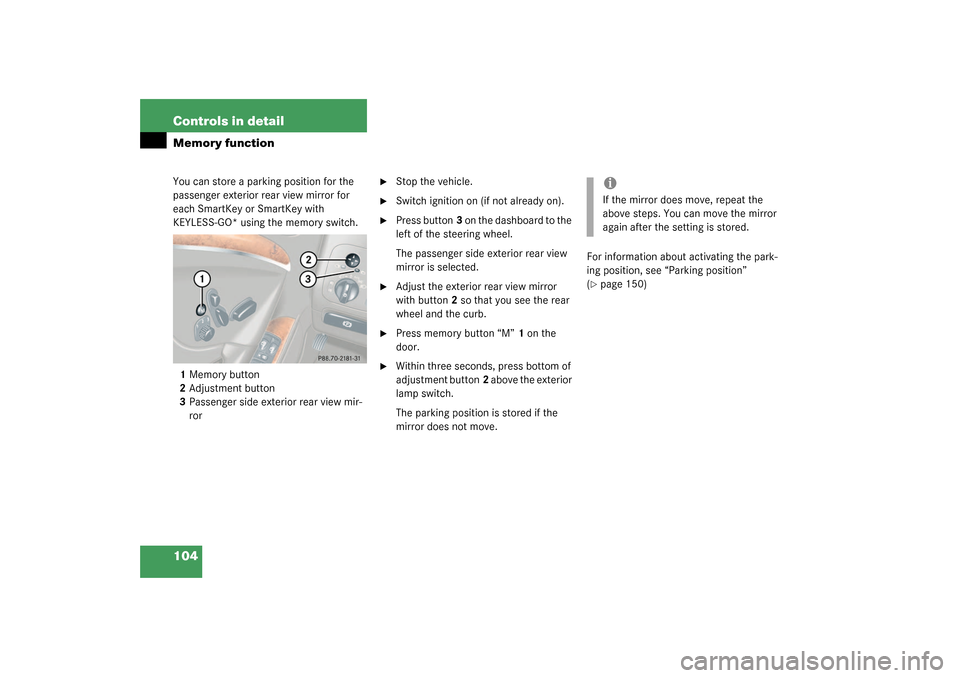

104 Controls in detailMemory functionYou can store a parking position for the
passenger exterior rear view mirror for
each SmartKey or SmartKey with
KEYLESS-GO* using the memory switch.
1Memory button
2Adjustment button
3Passenger side exterior rear view mir-
ror

Stop the vehicle.

Switch ignition on (if not already on).

Press button3 on the dashboard to the
left of the steering wheel.
The passenger side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button2 so that you see the rear
wheel and the curb.

Press memory button “M”1 on the
door.

Within three seconds, press bottom of
adjustment button2 above the exterior
lamp switch.
The parking position is stored if the
mirror does not move.For information about activating the park-
ing position, see “Parking position”
(
page 150)iIf the mirror does move, repeat the
above steps. You can move the mirror
again after the setting is stored.
