2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

129 Controls in detail
Control system
Set time (minutes)
Move the selection marker with
the
æ
or
ç
button to the
Time

submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Clock, minutes
.
The selection marker is on the minute
setting.

Press
æ
or
ç
to set the minutes.

Press the reset knob in the instrument
cluster to confirm.
The minutes are set and stored.Lighting submenu
Access the
Lighting
submenu via the
Set-
tings
menu. Use the
Lighting
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
the
æ
or
ç
button to the
Light-
ing
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Lamp circuit headlamp
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select
manual
or
daytime running lamp (
constant
)
mode. This function is not available in
countries where daytime running
lamps are mandatory.
Function
Page
Set daytime running lamp mode
(USA only)
see
below
Set locator lighting
130
Exterior lamps delayed
switch-off
131
Interior lighting delayed
switch-off
132

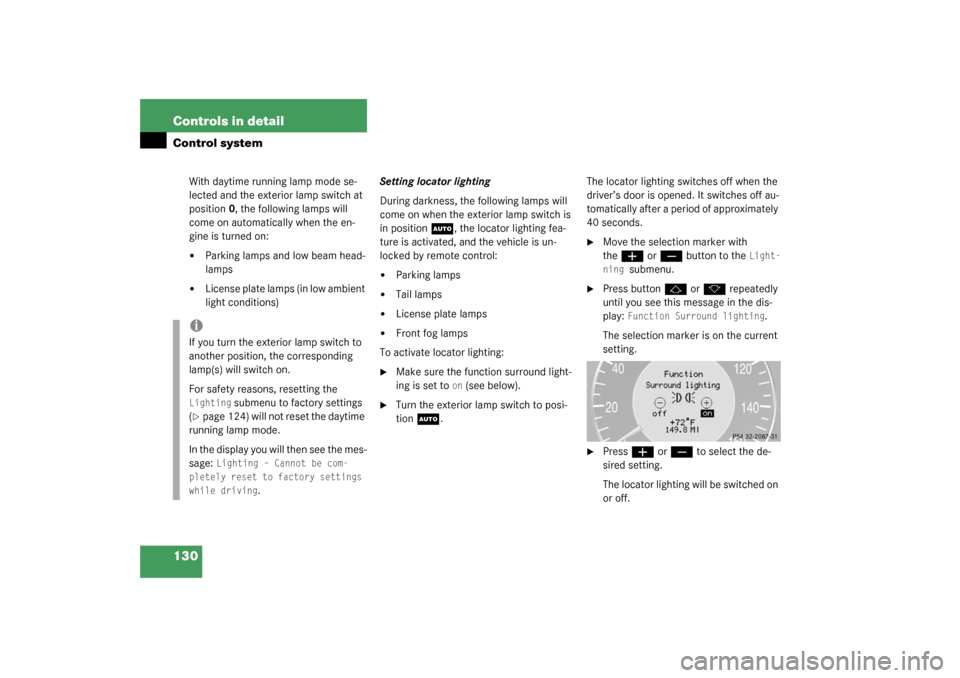

130 Controls in detailControl system
With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:

Parking lamps and low beam head-
lamps


License plate lamps (in low ambient
light conditions) Setting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position
U
, the locator lighting fea-
ture is activated, and the vehicle is un-
locked by remote control:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
To activate locator lighting:

Make sure the function surround light-
ing is set to
on (see below).

Turn the exterior lamp switch to posi-
tion
U
.The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.

Move the selection marker with
the
æ
or
ç
button to the
Light-
ning
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Function Surround lighting
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired setting.
The locator lighting will be switched on
or off.
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the Lighting
submenu to factory settings
(
page 124) will not reset the daytime
running lamp mode.
In the display you will then see the mes-
sage:
Lighting – Cannot be com-
pletely reset to factory settings
while driving
.

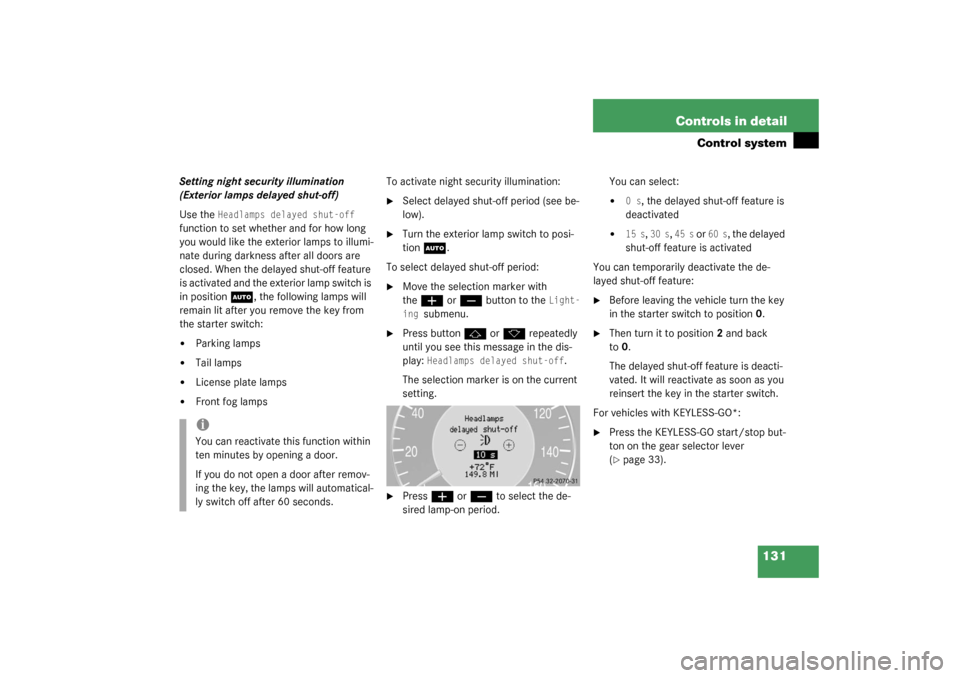

131 Controls in detail
Control system
Setting night security illumination
(Exterior lamps delayed shut-off)
Use the
Headlamps delayed shut-off

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed shut-off feature
is activated and the exterior lamp switch is
in position
U
, the following lamps will
remain lit after you remove the key from
the starter switch:


Parking lamps


Tail lamps


License plate lamps


Front fog lampsTo activate night security illumination:

Select delayed shut-off period (see be-
low).

Turn the exterior lamp switch to posi-
tion
U
.
To select delayed shut-off period:

Move the selection marker with
the
æ
or
ç
button to the
Light-
ing
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Headlamps delayed shut-off
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on period.You can select:


0 s
, the delayed shut-off feature is
deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
shut-off feature is activated
You can temporarily deactivate the de-
layed shut-off feature:

Before leaving the vehicle turn the key
in the starter switch to position0.

Then turn it to position2 and back
to0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the key in the starter switch.
For vehicles with KEYLESS-GO*:

Press the KEYLESS-GO start/stop but-
ton on the gear selector lever
(page 33).
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the key, the lamps will automatical-
ly switch off after 60 seconds.

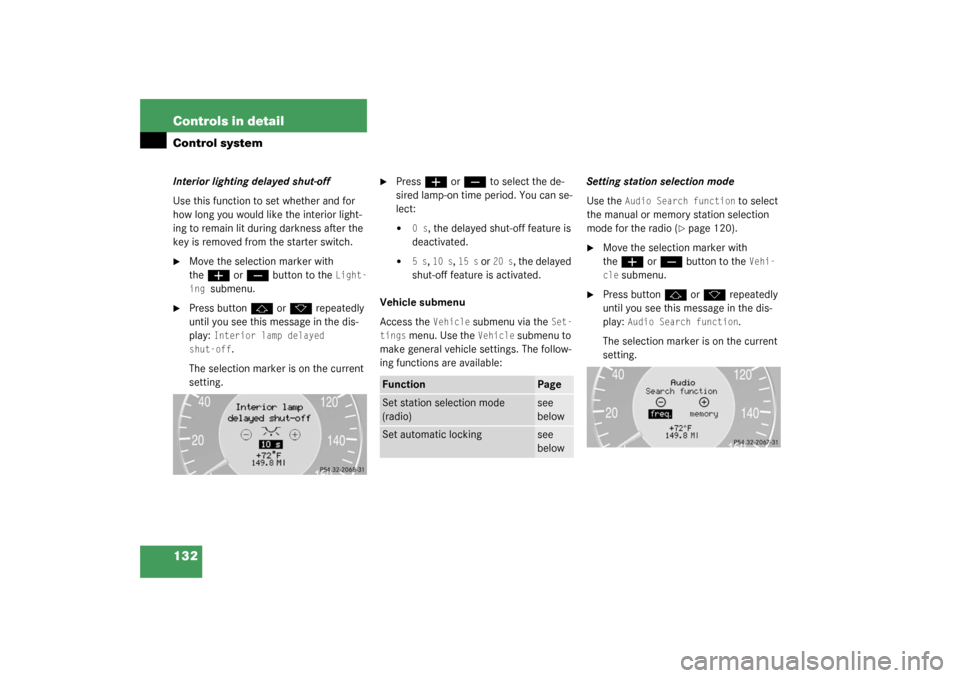

132 Controls in detailControl systemInterior lighting delayed shut-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
key is removed from the starter switch.
Move the selection marker with
the
æ
or
ç
button to the
Light-
ing
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Interior lamp delayed
shut-off
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on time period. You can se-
lect:


0 s
, the delayed shut-off feature is
deactivated.


5 s
, 10 s
, 15 s
or
20 s
, the delayed
shut-off feature is activated.
Vehicle submenu
Access the
Vehicle
submenu via the
Set-
tings
menu. Use the
Vehicle
submenu to
make general vehicle settings. The follow-
ing functions are available:Setting station selection mode
Use the
Audio Search function
to select
the manual or memory station selection
mode for the radio (
page 120).

Move the selection marker with
the
æ
or
ç
button to the
Vehi-
cle
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Audio Search function
.
The selection marker is on the current
setting.
Function
Page
Set station selection mode
(radio)
see
below
Set automatic locking
see
below

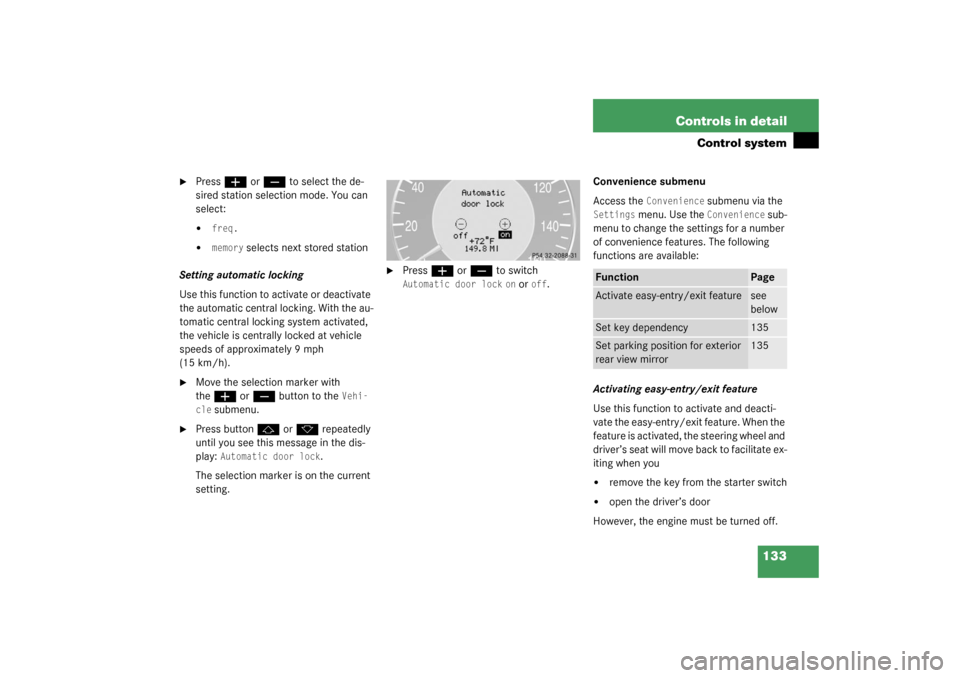

133 Controls in detail
Control system

Press
æ
or
ç
to select the de-
sired station selection mode. You can
select:


freq.


memory
selects next stored station
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
the
æ
or
ç
button to the
Vehi-
cle
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Automatic door lock
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch
Automatic door lock
on or
off
.Convenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off.
Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
135
Set parking position for exterior
rear view mirror
135

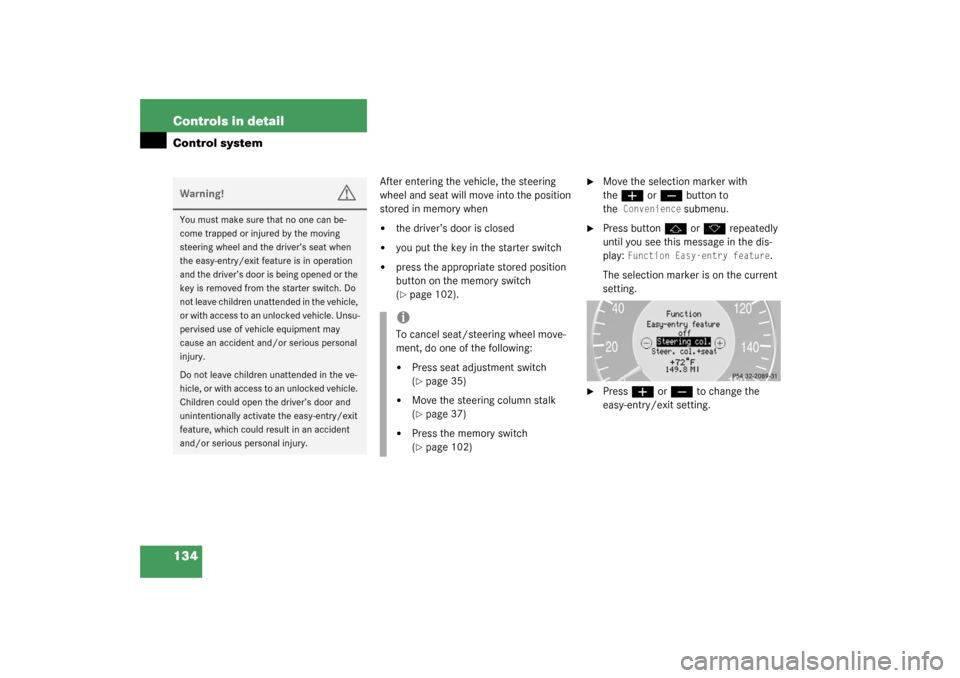

134 Controls in detailControl system
After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when

the driver’s door is closed


you put the key in the starter switch


press the appropriate stored position
button on the memory switch
(page 102).

Move the selection marker with
the
æ
or
ç
button to
the
Convenience
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Function Easy-entry feature
.
The selection marker is on the current
setting.

Press
æ
or
ç
to change the
easy-entry/exit setting.
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature is in operation
and the driver’s door is being opened or the
key is removed from the starter switch. Do
not leave children unattended in the vehicle,
or with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press seat adjustment switch
(page 35)


Move the steering column stalk
(page 37)


Press the memory switch
(page 102)

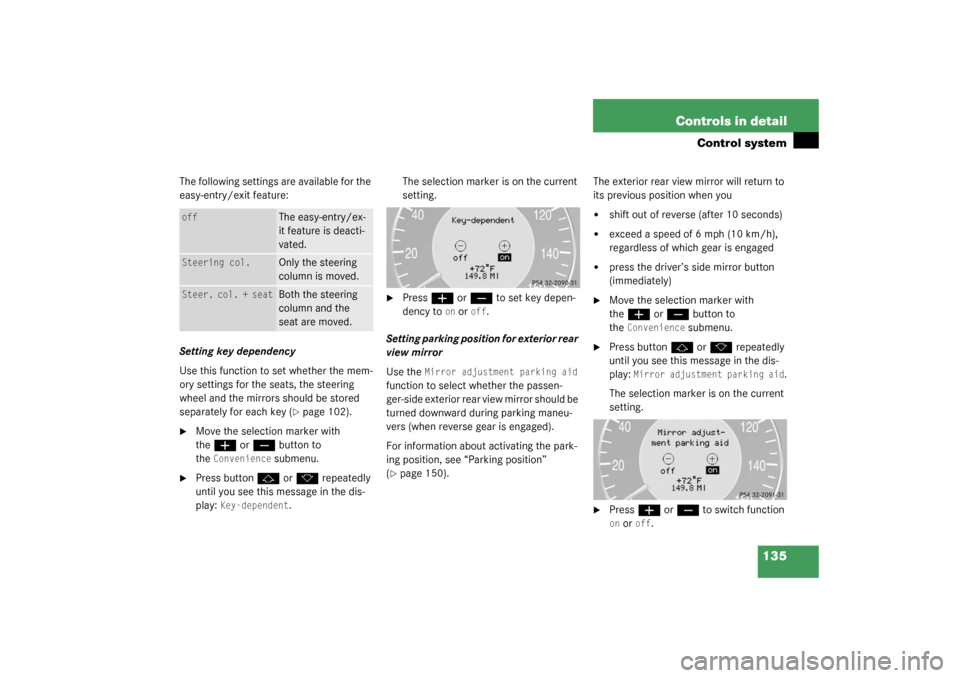

135 Controls in detail
Control system
The following settings are available for the
easy-entry/exit feature:
Setting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 102).

Move the selection marker with
the
æ
or
ç
button to
the
Convenience
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Key-dependent
.The selection marker is on the current
setting.

Press
æ
or
ç
to set key depen-
dency to
on or
off
.
Setting parking position for exterior rear
view mirror
Use the
Mirror adjustment parking aid

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers (when reverse gear is engaged).
For information about activating the park-
ing position, see “Parking position”
(
page 150).The exterior rear view mirror will return to
its previous position when you


shift out of reverse (after 10 seconds)


exceed a speed of 6 mph (10 km/h),
regardless of which gear is engaged


press the driver’s side mirror button
(immediately)

Move the selection marker with
the
æ
or
ç
button to
the
Convenience
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Mirror adjustment parking aid
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch function
on or
off
.
off
The easy-entry/ex-
it feature is deacti-
vated.
Steering col.
Only the steering
column is moved.
Steer. col. + seat
Both the steering
column and the
seat are moved.

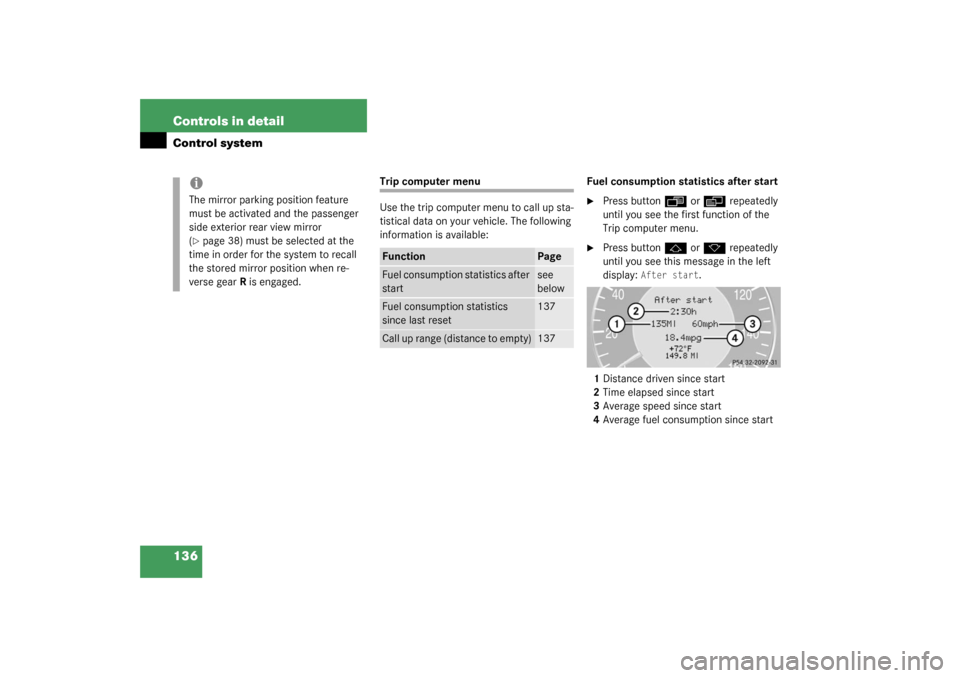

136 Controls in detailControl system
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Fuel consumption statistics after start

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the left
display:
After start
.
1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since start
iThe mirror parking position feature
must be activated and the passenger
side exterior rear view mirror
(page 38) must be selected at the
time in order for the system to recall
the stored mirror position when re-
verse gearR is engaged.
Function
Page
Fuel consumption statistics after
start
see
below
Fuel consumption statistics
since last reset
137
Call up range (distance to empty)
137
