2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

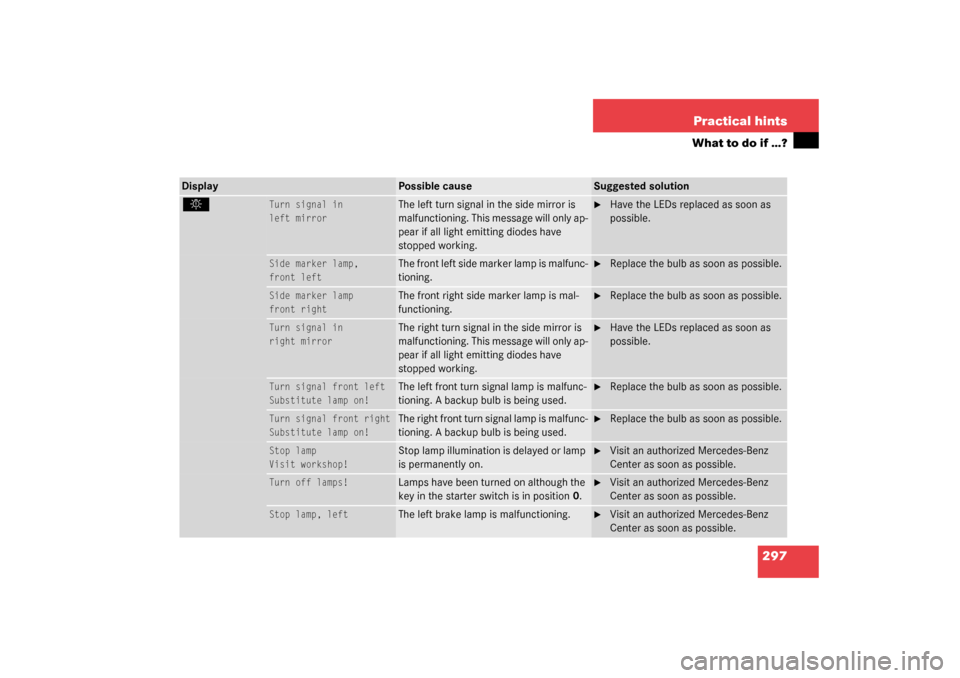

297 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
.
Turn signal in
left mirror
The left turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Side marker lamp,
front left
T h e f r o n t l e f t s i d e m a r k e r l a m p i s m a l f u n c-
tioning.

Replace the bulb as soon as possible.
Side marker lamp
front right
The front right side marker lamp is mal-
functioning.

Replace the bulb as soon as possible.
Turn signal in
right mirror
The right turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal front left
Substitute lamp on!

The left front turn signal lamp is malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as possible.
Turn signal front right
Substitute lamp on!

The right front turn signal lamp is malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as possible.
Stop lamp
Visit workshop!
Stop lamp illumination is delayed or lamp
is permanently on.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn off lamps!
Lamps have been turned on although the
key in the starter switch is in position 0.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Stop lamp, left
The left brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.

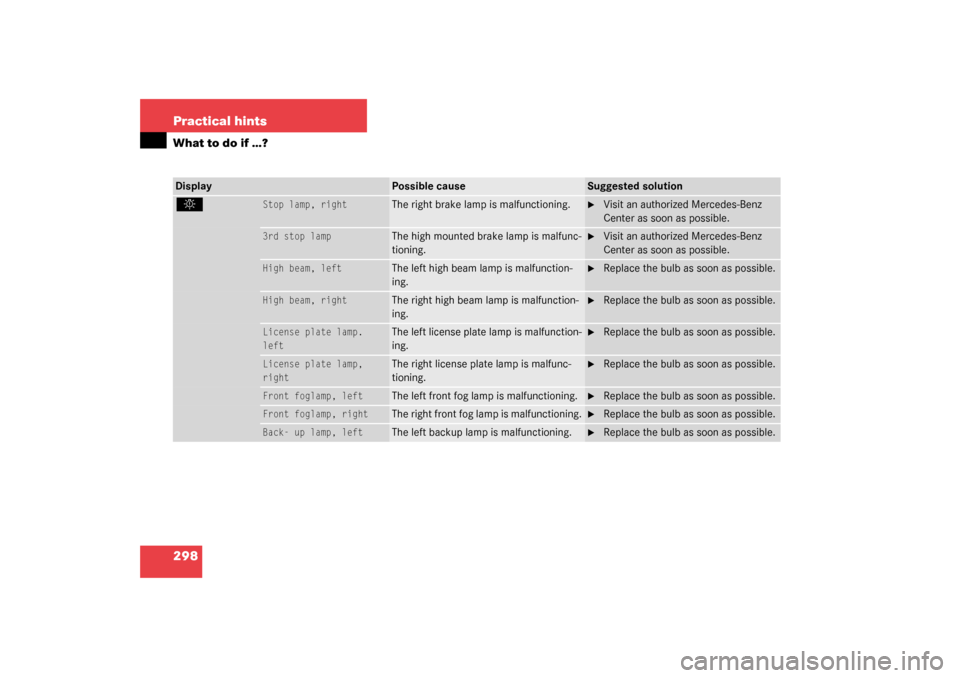

298 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
.
Stop lamp, right
The right brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
3rd stop lamp
The high mounted brake lamp is malfunc-
tioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
High beam, left
The left high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
High beam, right
The right high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
License plate lamp.
left
The left license plate lamp is malfunction-
ing.

Replace the bulb as soon as possible.
License plate lamp,
right

The right license plate lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Front foglamp, left
The left front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
Front foglamp, right
The right front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
Back- up lamp, left
The left backup lamp is malfunctioning.

Replace the bulb as soon as possible.

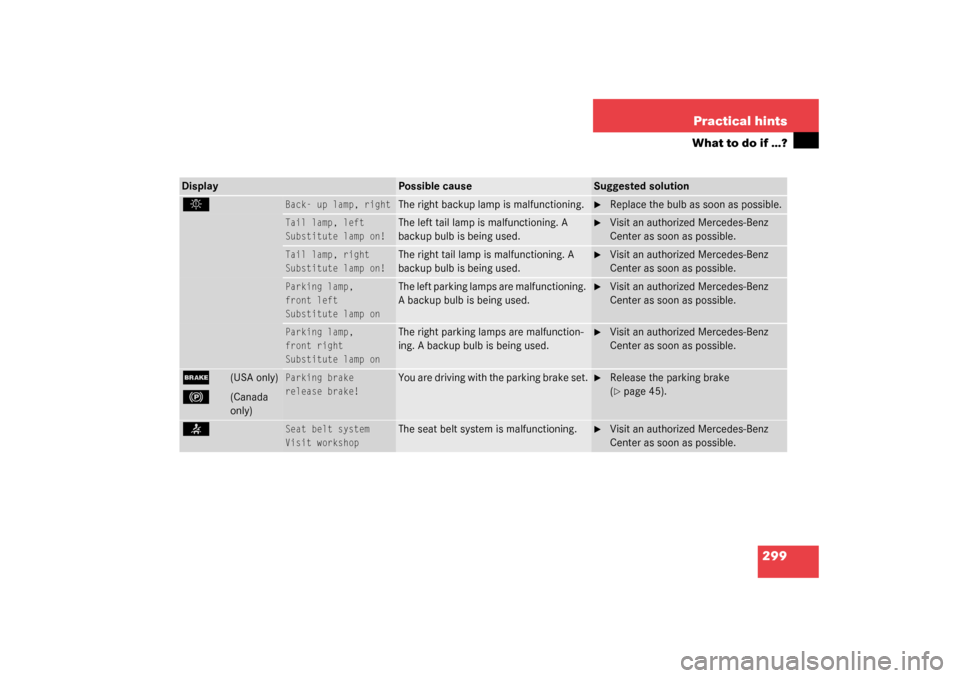

299 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
.
Back- up lamp, right
The right backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Tail lamp, left
Substitute lamp on!

The left tail lamp is malfunctioning. A
backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp, right
Substitute lamp on!

The right tail lamp is malfunctioning. A
backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp,
front left

Substitute lamp on

The left parking lamps are malfunctioning.
A backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp,
front right

Substitute lamp on

The right parking lamps are malfunction-
ing. A backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
;
(USA only)
!
(Canada
only)
Parking brake
release brake!
You are driving with the parking brake set.

Release the parking brake
(page 45).
<
Seat belt system
Visit workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.

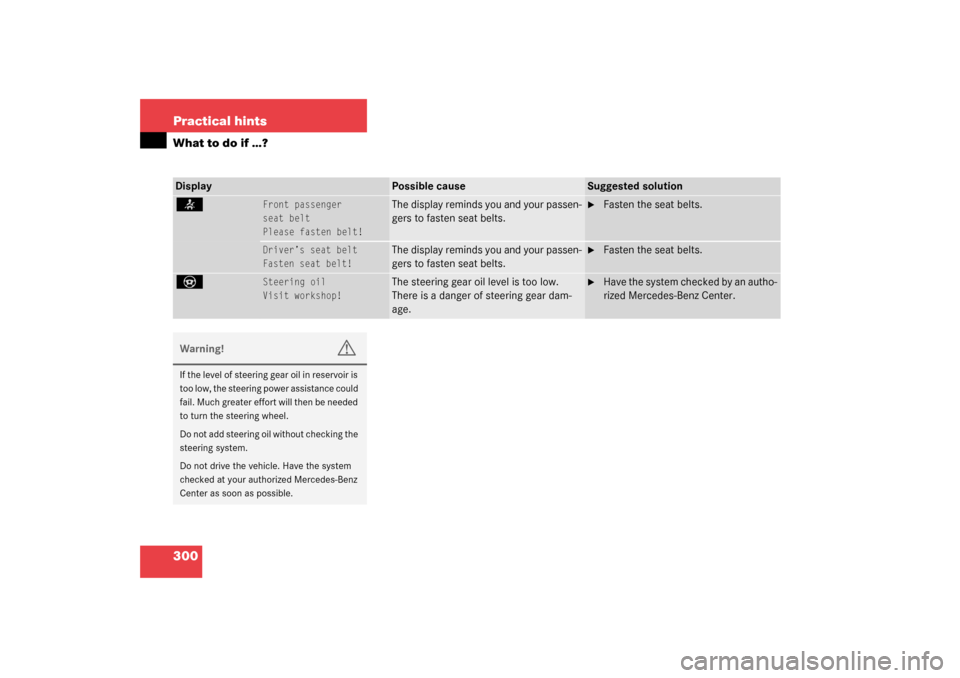

300 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
<
Front passenger
seat belt
Please fasten belt!
The display reminds you and your passen-
gers to fasten seat belts.

Fasten the seat belts.
Driver’s seat belt
Fasten seat belt!
The display reminds you and your passen-
gers to fasten seat belts.

Fasten the seat belts.
_
Steering oil
Visit workshop!
The steering gear oil level is too low.
There is a danger of steering gear dam-
age.

Have the system checked by an autho-
rized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at your authorized Mercedes-Benz
Center as soon as possible.

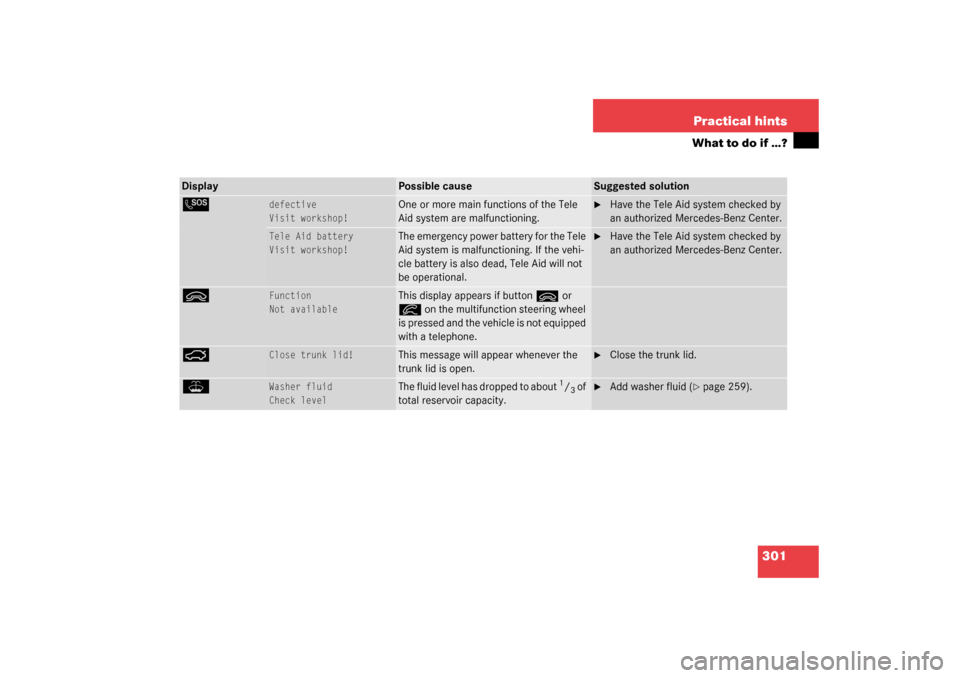

301 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
L
defective
Visit workshop!
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
Tele Aid battery
Visit workshop!
The emergency power battery for the Tele
Aid system is malfunctioning. If the vehi-
cle battery is also dead, Tele Aid will not
be operational.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
ì
Function
Not available
This display appears if button
ì
or
í
on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
Close trunk lid!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
Washer fluid
Check level
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 259).

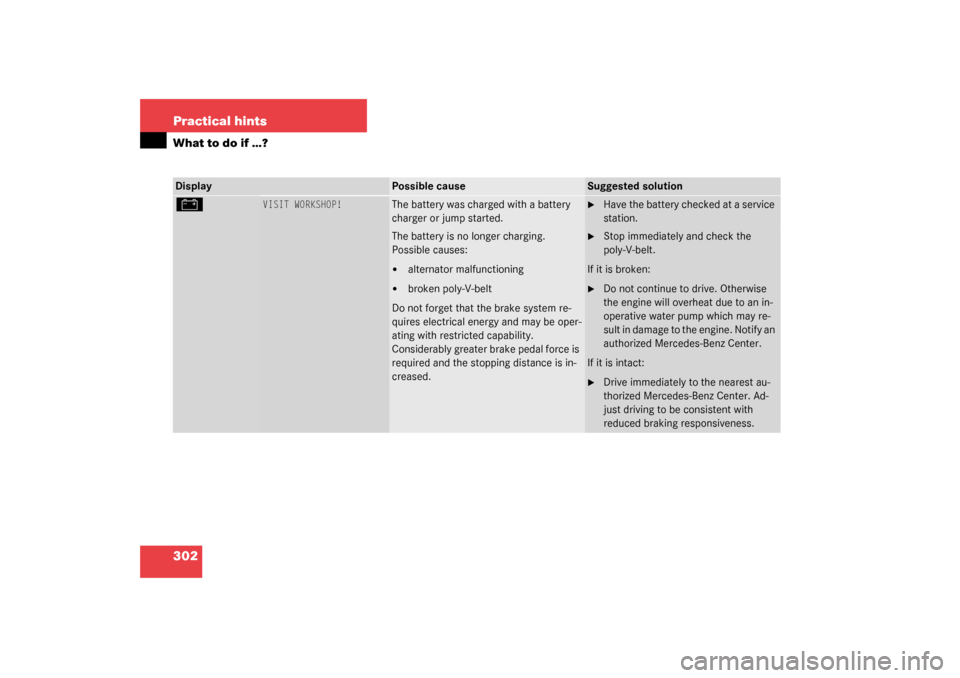

302 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
#
VISIT WORKSHOP!
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be oper-
ating with restricted capability.
Considerably greater brake pedal force is
required and the stopping distance is in-
creased.

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify an
authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest au-
thorized Mercedes-Benz Center. Ad-
just driving to be consistent with
reduced braking responsiveness.

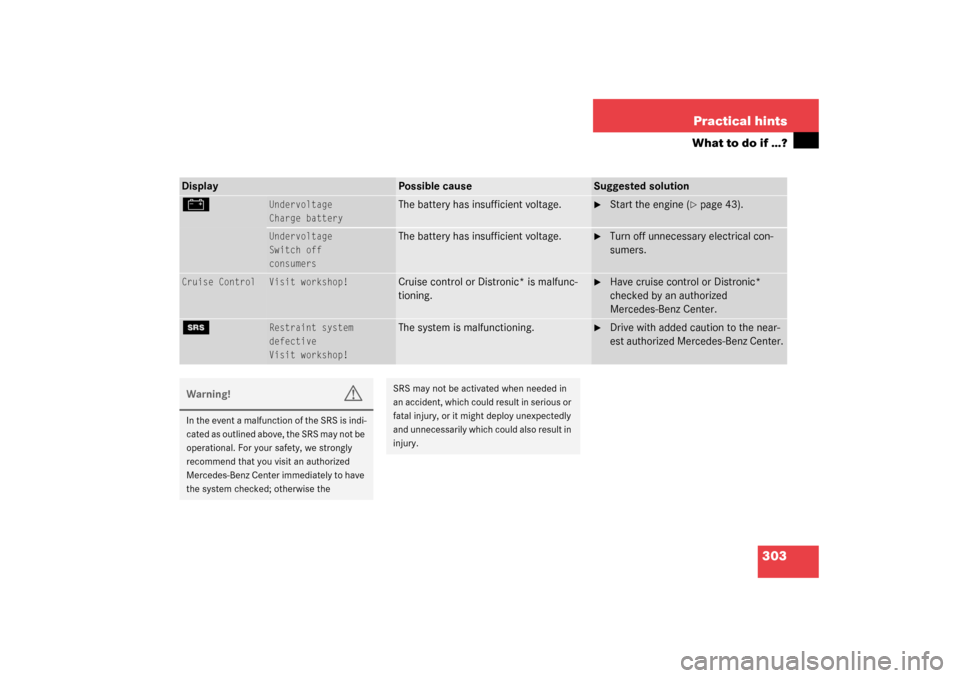

303 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
#
Undervoltage
Charge battery
The battery has insufficient voltage.

Start the engine (
page 43).
Undervoltage
Switch off
consumers
The battery has insufficient voltage.

Turn off unnecessary electrical con-
sumers.
Cruise Control
Visit workshop!
Cruise control or Distronic* is malfunc-
tioning.

Have cruise control or Distronic*
checked by an authorized
Mercedes-Benz Center.
1
Restraint system
defective
Visit workshop!
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the
SRS may not be activated when needed in
an accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.

304 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
G
Display defective
Visit workshop!
The instrument cluster display is malfunc-
tioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Center as soon as possible.
The displays for several systems have
malfunctioned. Some systems them-
selves may also have malfunctioned.

Have the electronic systems checked
by an authorized Mercedes-Benz Cen-
ter.
±
Display defective
Visit workshop!
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems checked
by an authorized Mercedes-Benz Cen-
ter.
