33 Getting started
Unlocking
1KEYLESS-GO start/stop button
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status 0 (as with key re-
moved).Make sure the gear selector lever is set
toP.
Do not depress the brake pedal.
Position 1

Press the KEYLESS-GO start/stop but-
ton once.
This supplies power to some electrical
consumers, such as seat adjustment.Ignition (or position 2)

Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power to all electrical
consumers. All the lights in the instru-
ment cluster light up.
More information can be found in the
“Controls in detail” section (
page 88).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 44).
iIf you now press the KEYLESS-GO
start/stop button twice, the power
supply is again switched off.
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.

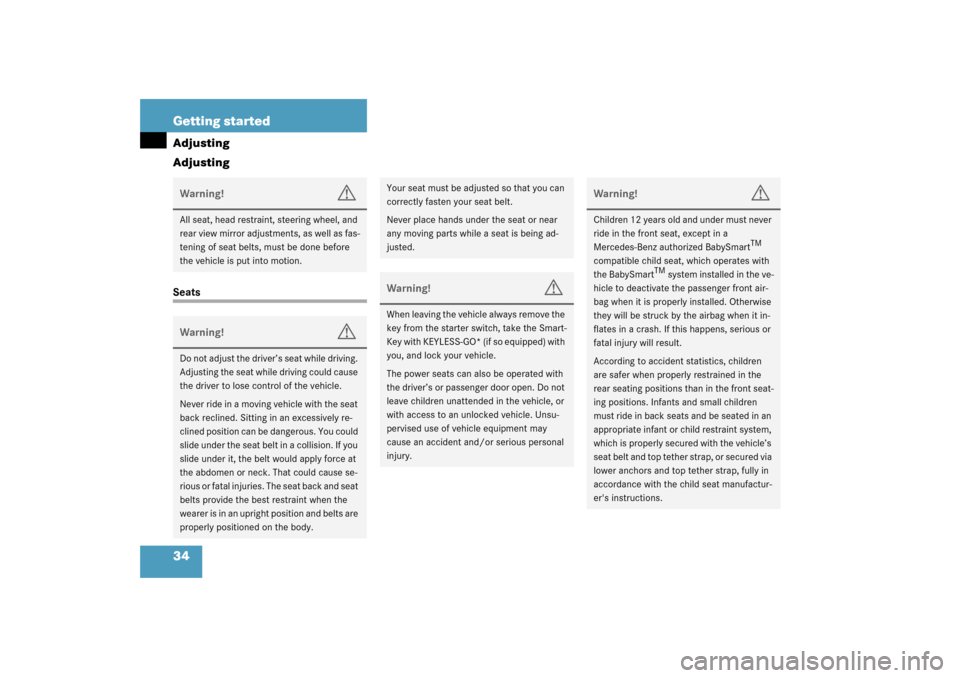

34 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries. The seat back and seat
belts provide the best restraint when the
wearer is in an upright position and belts are
properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt.
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO* (if so equipped) with
you, and lock your vehicle.
The power seats can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er's instructions.

35 Getting started
Adjusting
Seat adjustment
The seat adjustment switches are located
in each door.
1Seat height
2Seat fore and aft adjustment
3Seat cushion tilt
4Backrest tilt
5Head restraint height
Turn the key in the starter switch to
position1or2.
or

Press the KEYLESS GO* start/stop
button once or twice.
or

Open the driver’s or passenger door.
Seat height

Press the switch up or down in the di-
rection of arrow1.
Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow2.
Adjust to a comfortable seating posi-
tion that still allows you to reach the
accelerator / brake pedal safely. The
position should be as far to the rear as
possible, consistent with ability to
properly operate controls.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iWhen moving the seat, be sure that
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.

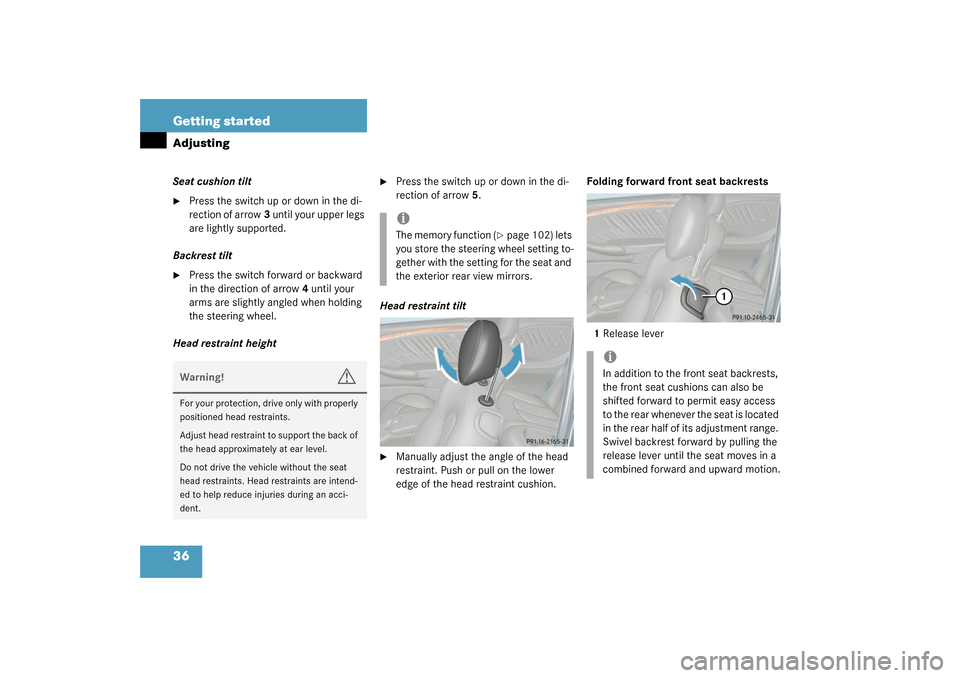

36 Getting startedAdjustingSeat cushion tilt
Press the switch up or down in the di-
rection of arrow3 until your upper legs
are lightly supported.
Backrest tilt

Press the switch forward or backward
in the direction of arrow4 until your
arms are slightly angled when holding
the steering wheel.
Head restraint height

Press the switch up or down in the di-
rection of arrow 5.
Head restraint tilt

Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.Folding forward front seat backrests
1Release lever
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
iThe memory function (
page 102) lets
you store the steering wheel setting to-
gether with the setting for the seat and
the exterior rear view mirrors.
iIn addition to the front seat backrests,
the front seat cushions can also be
shifted forward to permit easy access
to the rear whenever the seat is located
i n the r ea r ha lf of its a djus tm ent ra nge .
Swivel backrest forward by pulling the
release lever until the seat moves in a
combined forward and upward motion.

37 Getting started
Adjusting
Folding backrests forward
Pull the release lever forward and
swing the backrest to the front.
Folding backrests to the rear

Fold back and push the backrest until
the seat cushion and backrest audibly
engage into the driving position.
More information can be found in the
“Controls in detail” section (
page 97).
Steering wheel Steering wheel adjustment
The stalk is located on the steering column
(lower left).
1Steering column, lengthen or shorten
2Steering column, height

Turn the key in the starter switch to
position1or2.
or

Press the KEYLESS GO* start/stop
button once or twice.
or

Open the driver’s door.
iThe head restraint is automatically low-
ered.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO* (if so equipped) with
you and lock your vehicle.
The electrical steering wheel adjustment
feature can also be operated with the driv-
er’s door open. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

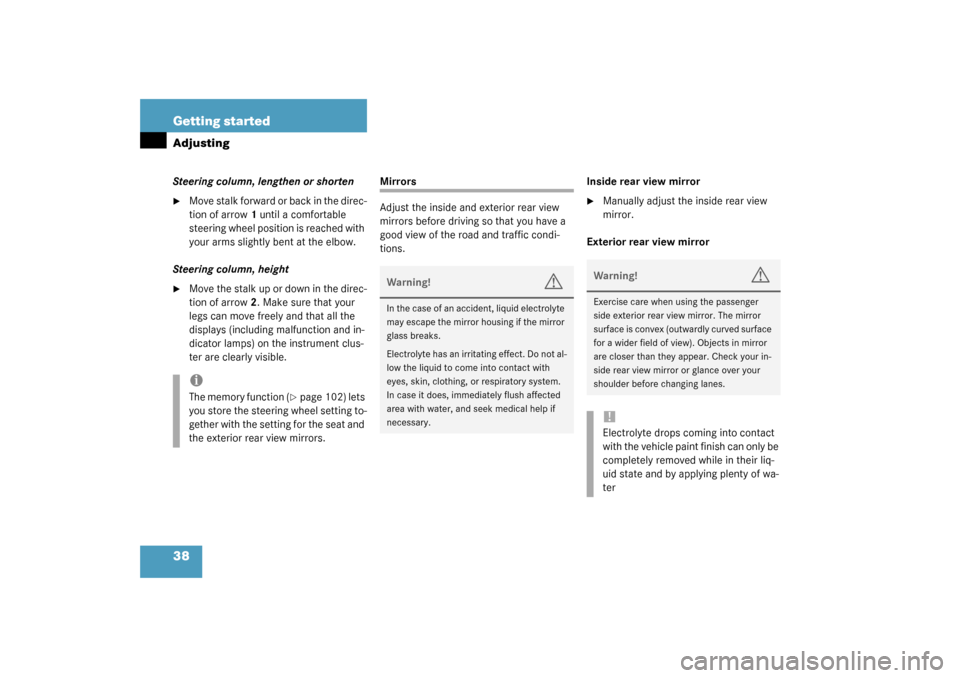

38 Getting startedAdjustingSteering column, lengthen or shorten
Move stalk forward or back in the direc-
tion of arrow 1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height

Move the stalk up or down in the direc-
tion of arrow 2. Make sure that your
legs can move freely and that all the
displays (including malfunction and in-
dicator lamps) on the instrument clus-
ter are clearly visible.
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Inside rear view mirror

Manually adjust the inside rear view
mirror.
Exterior rear view mirror
iThe memory function (
page 102) lets
you store the steering wheel setting to-
gether with the setting for the seat and
the exterior rear view mirrors.
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter

39 Getting started
Adjusting

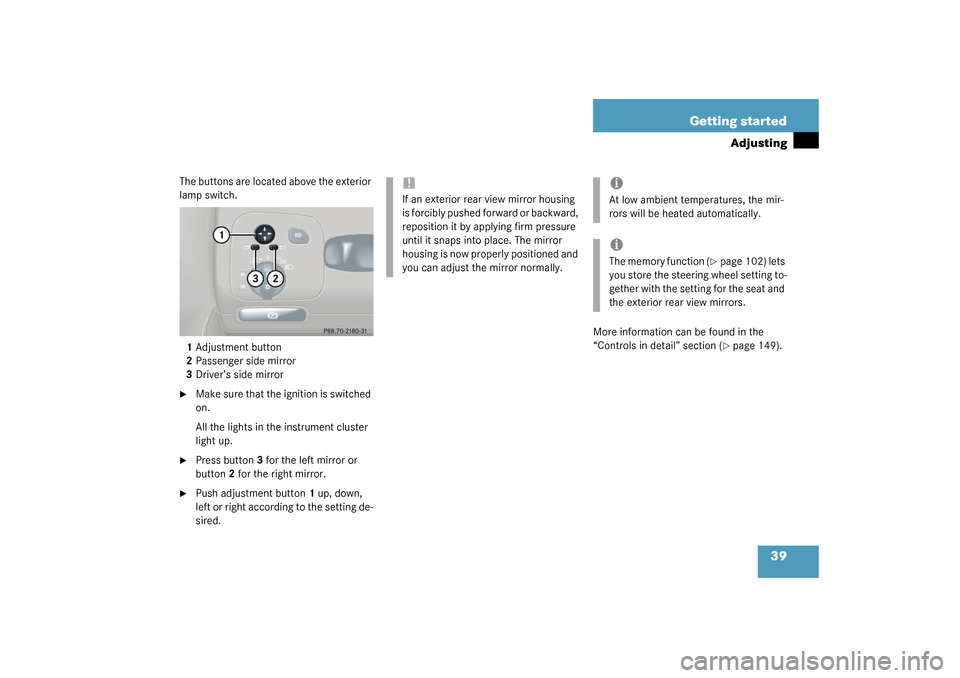

The buttons are located above the exterior
lamp switch.
1Adjustment button
2Passenger side mirror
3Driver’s side mirror
Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.

Press button3 for the left mirror or
button2 for the right mirror.

Push adjustment button1 up, down,
left or right according to the setting de-
sired.More information can be found in the
“Controls in detail” section (
page 149).
!If an exterior rear view mirror housing
is forcibly pushed forward or backward,
reposition it by applying firm pressure
until it snaps into place. The mirror
housing is now properly positioned and
you can adjust the mirror normally.
iAt low ambient temperatures, the mir-
rors will be heated automatically.iThe memory function (
page 102) lets
you store the steering wheel setting to-
gether with the setting for the seat and
the exterior rear view mirrors.

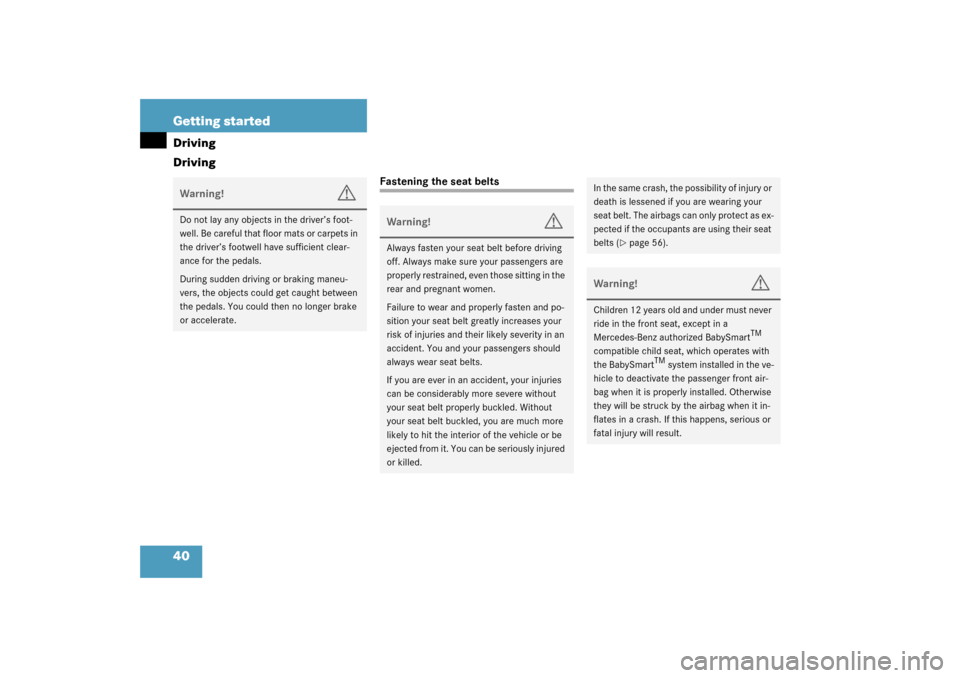

40 Getting startedDriving
Driving
Fastening the seat belts
Warning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate.
Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The airbags can only protect as ex-
pected if the occupants are using their seat
belts (
page 56).
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
