2003 MERCEDES-BENZ CLK320 COUPE Owner's Manual

201 Controls in detail
Driving systems

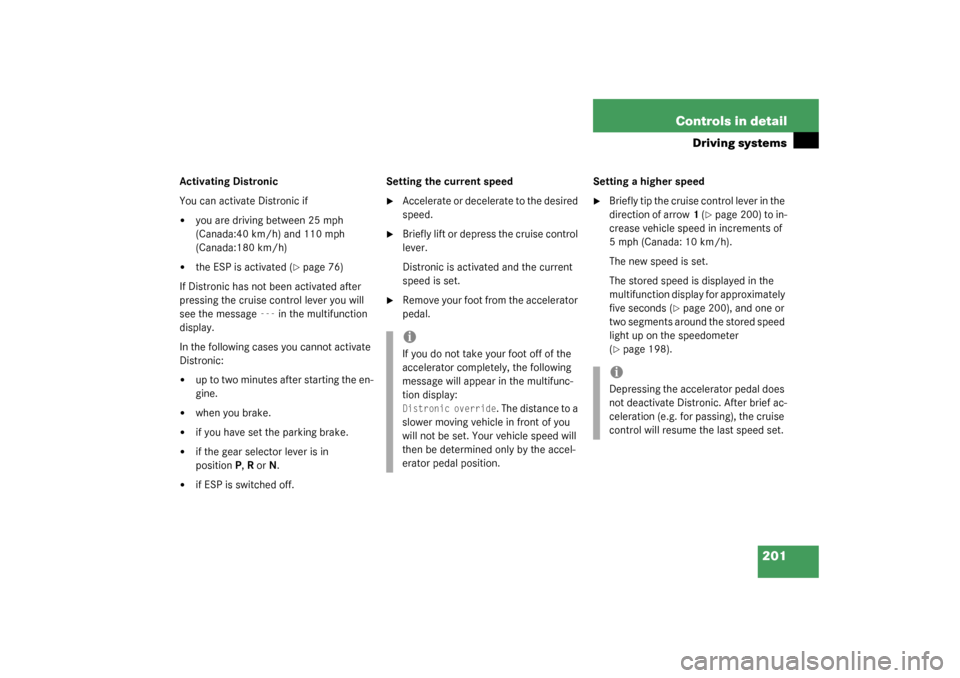

Activating Distronic
You can activate Distronic if

you are driving between 25 mph
(Canada:40 km/h) and 110 mph
(Canada:180 km/h)


the ESP is activated (
page 76)
If Distronic has not been activated after
pressing the cruise control lever you will
see the message
---
in the multifunction
display.
In the following cases you cannot activate
Distronic:


up to two minutes after starting the en-
gine.


when you brake.


if you have set the parking brake.


if the gear selector lever is in
positionP, R or N.


if ESP is switched off.Setting the current speed

Accelerate or decelerate to the desired
speed.

Briefly lift or depress the cruise control
lever.
Distronic is activated and the current
speed is set.

Remove your foot from the accelerator
pedal.Setting a higher speed

Briefly tip the cruise control lever in the
direction of arrow1 (
page 200) to in-
crease vehicle speed in increments of
5 mph (Canada: 10 km/h).
The new speed is set.
The stored speed is displayed in the
multifunction display for approximately
five seconds (
page 200), and one or
two segments around the stored speed
light up on the speedometer
(
page 198).
iIf you do not take your foot off of the
accelerator completely, the following
message will appear in the multifunc-
tion display: Distronic override
. The distance to a
slower moving vehicle in front of you
will not be set. Your vehicle speed will
then be determined only by the accel-
erator pedal position.
iDepressing the accelerator pedal does
not deactivate Distronic. After brief ac-
celeration (e.g. for passing), the cruise
control will resume the last speed set.

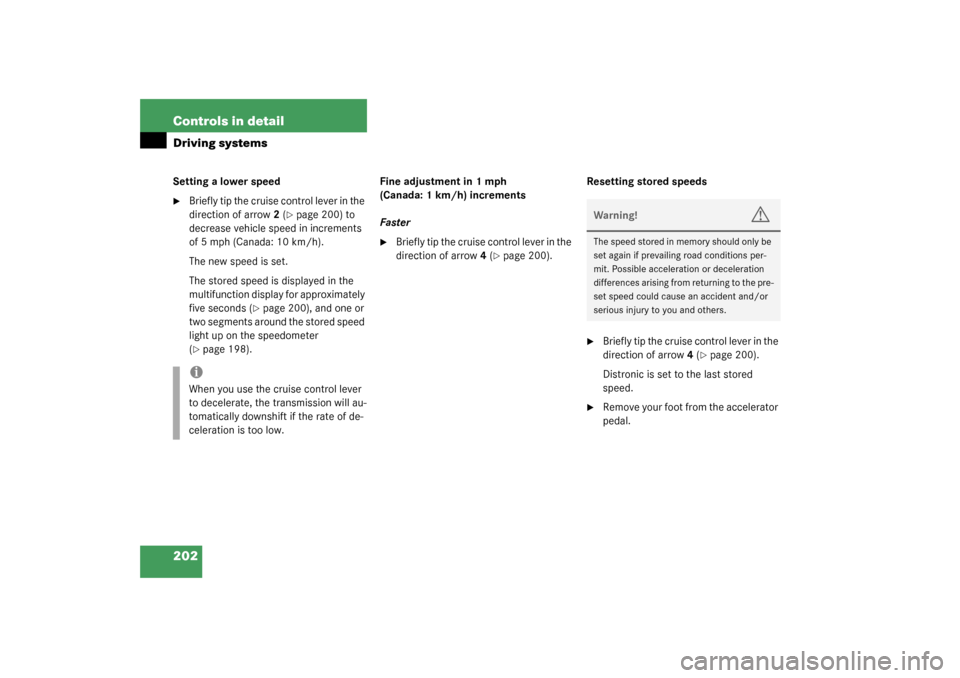

202 Controls in detailDriving systemsSetting a lower speed
Briefly tip the cruise control lever in the
direction of arrow2 (
page 200) to
decrease vehicle speed in increments
of 5 mph (Canada: 10 km/h).
The new speed is set.
The stored speed is displayed in the
multifunction display for approximately
five seconds (
page 200), and one or
two segments around the stored speed
light up on the speedometer
(
page 198).Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow4 (
page 200).Resetting stored speeds

Briefly tip the cruise control lever in the
direction of arrow4 (
page 200).
Distronic is set to the last stored
speed.

Remove your foot from the accelerator
pedal.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the rate of de-
celeration is too low.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.

203 Controls in detail
Driving systems

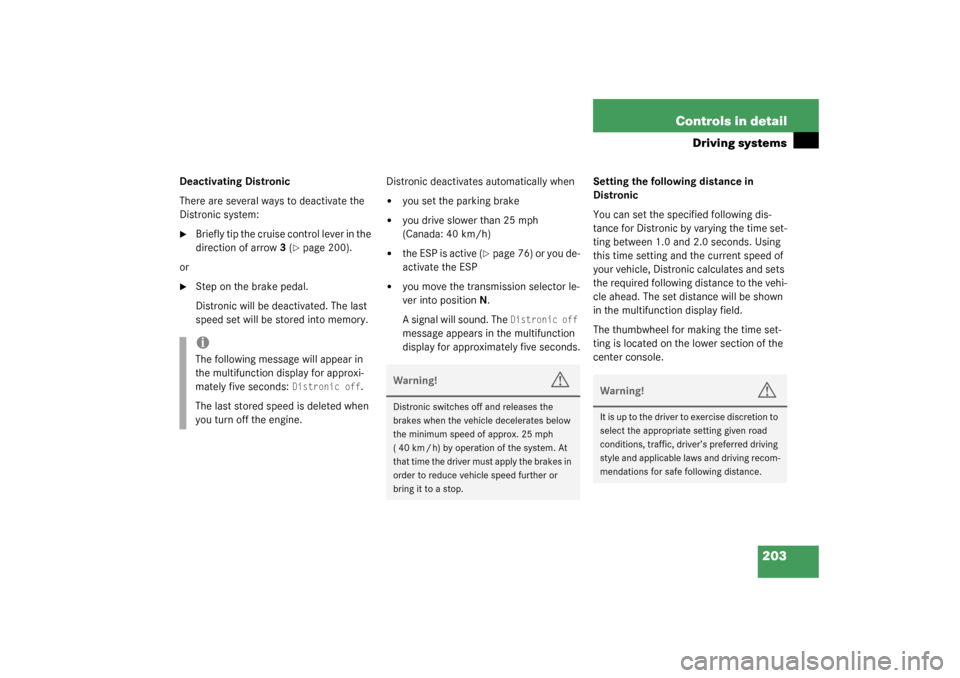

Deactivating Distronic
There are several ways to deactivate the
Distronic system:
Briefly tip the cruise control lever in the
direction of arrow3 (
page 200).
or

Step on the brake pedal.
Distronic will be deactivated. The last
speed set will be stored into memory.Distronic deactivates automatically when


you set the parking brake


you drive slower than 25 mph
(Canada: 40 km/h)


the ESP is active (
page 76) or you de-
activate the ESP


you move the transmission selector le-
ver into positionN.
A signal will sound. The
Distronic off

message appears in the multifunction
display for approximately five seconds.Setting the following distance in
Distronic
You can set the specified following dis-
tance for Distronic by varying the time set-
ting between 1.0 and 2.0 seconds. Using
this time setting and the current speed of
your vehicle, Distronic calculates and sets
the required following distance to the vehi-
cle ahead. The set distance will be shown
in the multifunction display field.
The thumbwheel for making the time set-
ting is located on the lower section of the
center console.
iThe following message will appear in
the multifunction display for approxi-
mately five seconds:
Distronic off
.
The last stored speed is deleted when
you turn off the engine.
Warning!
G
Distronic switches off and releases the
brakes when the vehicle decelerates below
the minimum speed of approx. 25 mph
( 40 km / h) by operation of the system. At
that time the driver must apply the brakes in
order to reduce vehicle speed further or
bring it to a stop.
Warning!
G
It is up to th e dr iv er t o e xer ci s e di sc r et io n t o
select the appropriate setting given road
conditions, traffic, driver’s preferred driving
style and applicable laws and driving recom-
mendations for safe following distance.

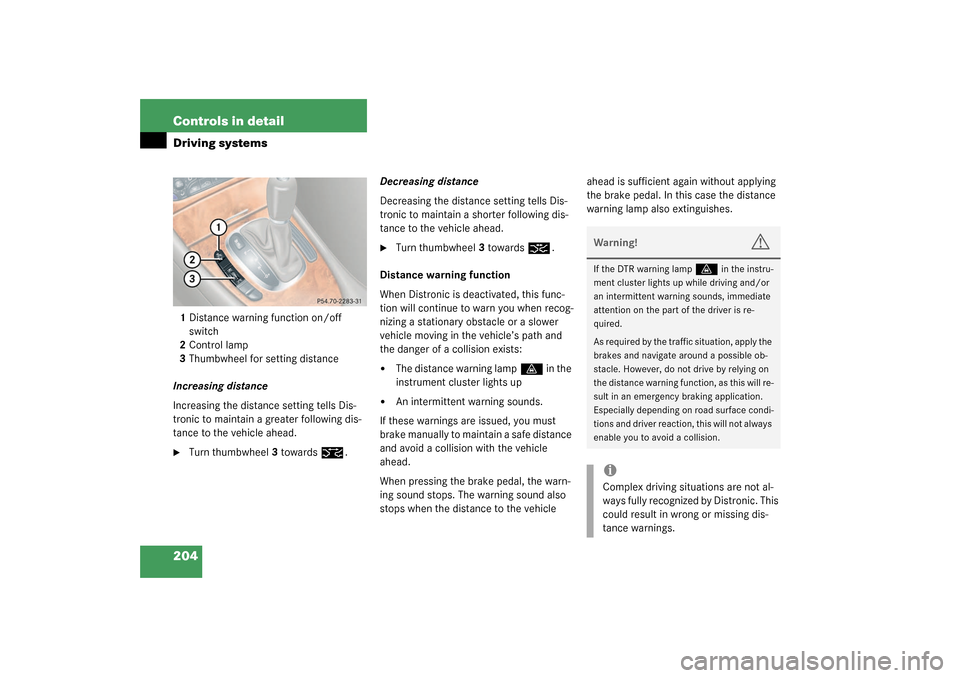

204 Controls in detailDriving systems1Distance warning function on/off
switch
2Control lamp
3Thumbwheel for setting distance
Increasing distance
Increasing the distance setting tells Dis-
tronic to maintain a greater following dis-
tance to the vehicle ahead.
Turn thumbwheel3 towards
¯
.Decreasing distance
Decreasing the distance setting tells Dis-
tronic to maintain a shorter following dis-
tance to the vehicle ahead.

Turn thumbwheel3 towards
®
.
Distance warning function
When Distronic is deactivated, this func-
tion will continue to warn you when recog-
nizing a stationary obstacle or a slower
vehicle moving in the vehicle’s path and
the danger of a collision exists:


The distance warning lamp
l
in the
instrument cluster lights up


An intermittent warning sounds.
If these warnings are issued, you must
brake manually to maintain a safe distance
and avoid a collision with the vehicle
ahead.
When pressing the brake pedal, the warn-
ing sound stops. The warning sound also
stops when the distance to the vehicle ahead is sufficient again without applying
the brake pedal. In this case the distance
warning lamp also extinguishes.
Warning!
G
If the DTR warning lamp
l
in the instru-
ment cluster lights up while driving and/or
an intermittent warning sounds, immediate
attention on the part of the driver is re-
quired.
As required by the traffic situation, apply the
brakes and navigate around a possible ob-
stacle. However, do not drive by relying on
the distance warning function, as this will re-
sult in an emergency braking application.
Especially depending on road surface condi-
tions and driver reaction, this will not always
enable you to avoid a collision.
iComplex driving situations are not al-
ways fully recognized by Distronic. This
could result in wrong or missing dis-
tance warnings.

205 Controls in detail
Driving systems

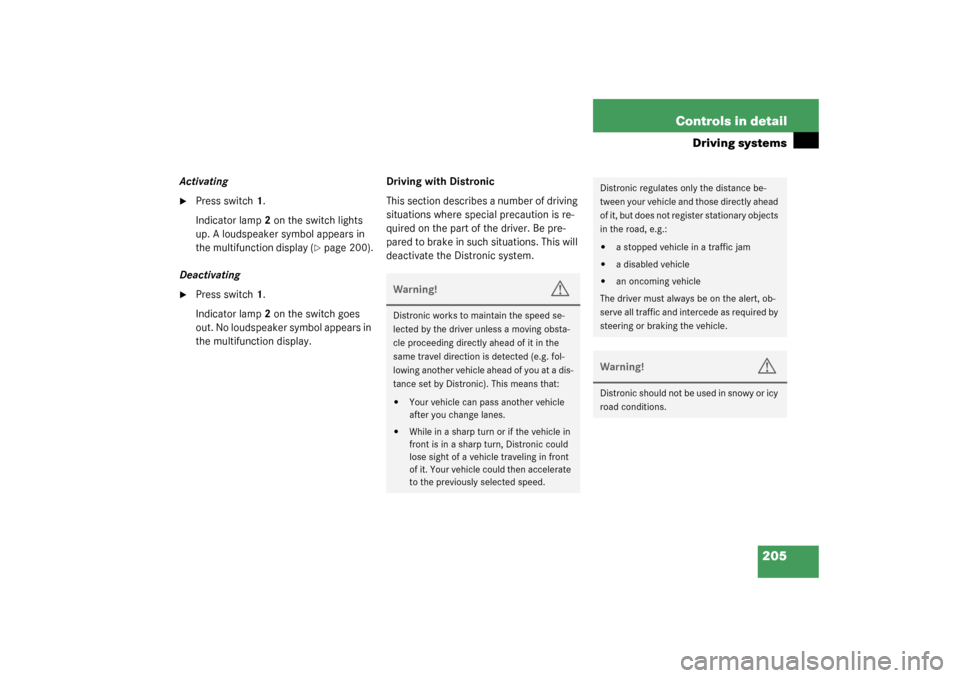

Activating
Press switch1.
Indicator lamp 2 on the switch lights
up. A loudspeaker symbol appears in
the multifunction display (
page 200).
Deactivating

Press switch1.
Indicator lamp 2 on the switch goes
out. No loudspeaker symbol appears in
the multifunction display.Driving with Distronic
This section describes a number of driving
situations where special precaution is re-
quired on the part of the driver. Be pre-
pared to brake in such situations. This will
deactivate the Distronic system.
Warning!
G
Distronic works to maintain the speed se-
lected by the driver unless a moving obsta-
cle proceeding directly ahead of it in the
same travel direction is detected (e.g. fol-
lowing another vehicle ahead of you at a dis-
tance set by Distronic). This means that:

Your vehicle can pass another vehicle
after you change lanes.


While in a sharp turn or if the vehicle in
front is in a sharp turn, Distronic could
lose sight of a vehicle traveling in front
of it. Your vehicle could then accelerate
to the previously selected speed.
Distronic regulates only the distance be-
tween your vehicle and those directly ahead
of it, but does not register stationary objects
in the road, e.g.:

a stopped vehicle in a traffic jam


a disabled vehicle


an oncoming vehicle
The driver must always be on the alert, ob-
serve all traffic and intercede as required by
steering or braking the vehicle.
Warning!
G
Distronic should not be used in snowy or icy
road conditions.

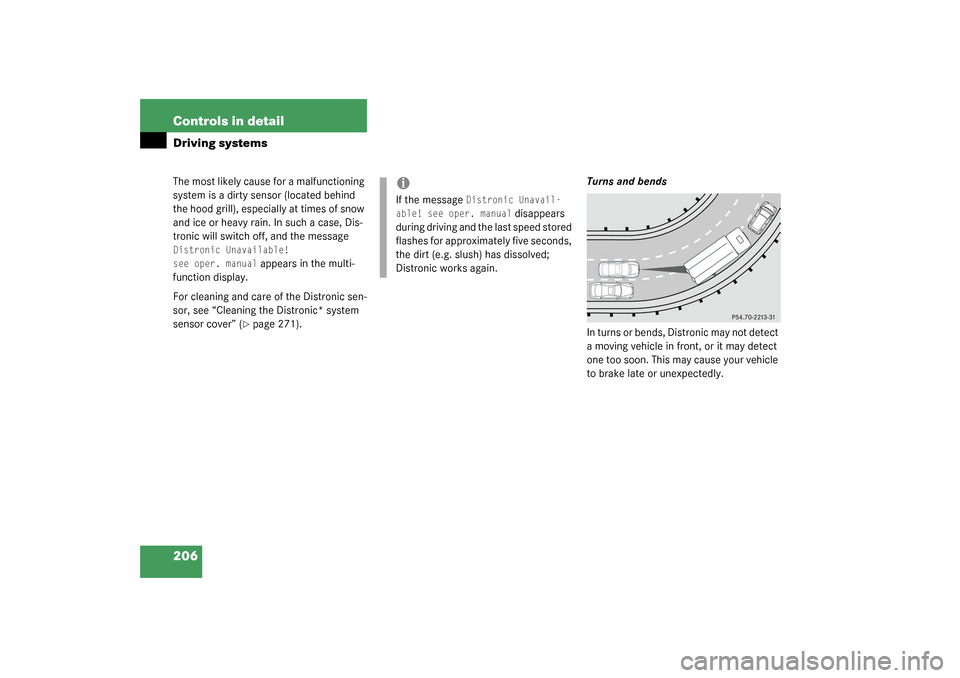

206 Controls in detailDriving systemsThe most likely cause for a malfunctioning
system is a dirty sensor (located behind
the hood grill), especially at times of snow
and ice or heavy rain. In such a case, Dis-
tronic will switch off, and the message Distronic Unavailable!
see oper. manual
appears in the multi-
function display.
For cleaning and care of the Distronic sen-
sor, see “Cleaning the Distronic* system
sensor cover” (
page 271).Turns and bends
In turns or bends, Distronic may not detect
a moving vehicle in front, or it may detect
one too soon. This may cause your vehicle
to brake late or unexpectedly.
iIf the message
Distronic Unavail-
able! see oper. manual
disappears
during driving and the last speed stored
flashes for approximately five seconds,
the dirt (e.g. slush) has dissolved;
Distronic works again.

207 Controls in detail
Driving systems

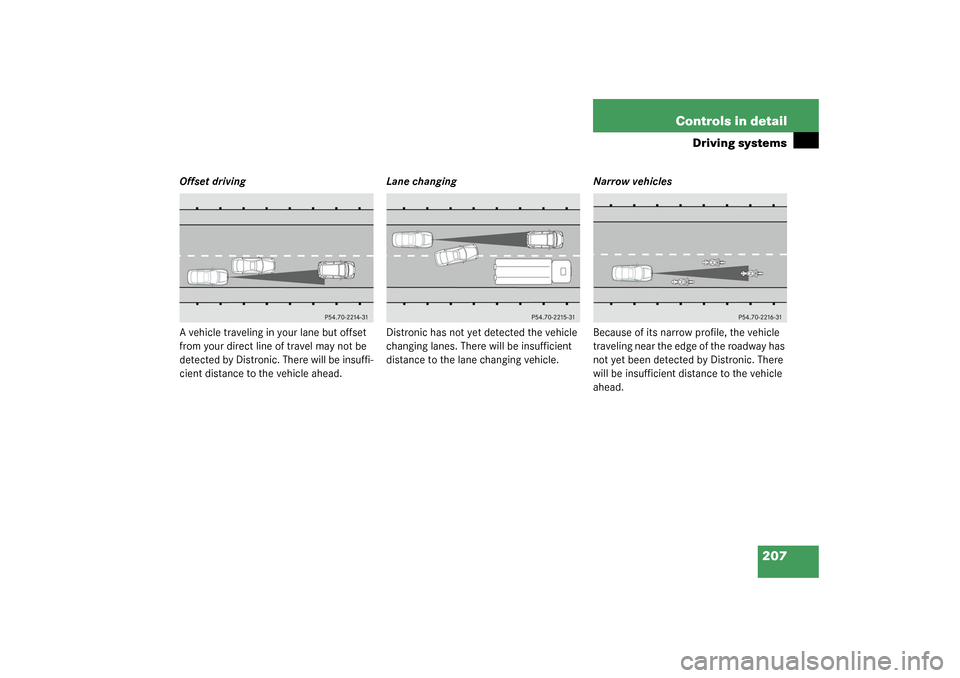

Offset driving
A vehicle traveling in your lane but offset
from your direct line of travel may not be
detected by Distronic. There will be insuffi-
cient distance to the vehicle ahead.Lane changing
Distronic has not yet detected the vehicle
changing lanes. There will be insufficient
distance to the lane changing vehicle.Narrow vehicles
Because of its narrow profile, the vehicle
traveling near the edge of the roadway has
not yet been detected by Distronic. There
will be insufficient distance to the vehicle
ahead.

208 Controls in detailDriving systemsPARKTRONIC system*
The Parktronic system is an electronic aid
designed to assist the driver during park-
ing maneuvers. It visually and audibly indi-
cates the relative distance between the
vehicle and an obstacle.
The Parktronic system is automatically ac-
tivated when you switch on the ignition
and release the parking brake. The Park-
tronic system deactivates at speeds over
11 mph (18 km/h). At lower speeds the
Parktronic system turns on again.The Parktronic system monitors the sur-
roundings of your vehicle with six sensors
in the front bumper and four sensors in the
rear bumper.
1Sensors in the front bumperWarning!
G
Parktronic is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always rests with the driver.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts or
street curbs). Such objects may not be de-
tected by the system and can damage the
vehicle.
The operational function of the Parktronic
can be affected by dirty sensors, especially
at times of snow and ice, see “Cleaning the
Parktronic* system sensors” (
page 272).
Interference caused by other ultrasonic sig-
nals (e.g. working jackhammers or the air
brakes of trucks) can cause the system to
send erratic indications, and should be tak-
en into consideration.
Warning!
G
Make sure that no persons or animals are in
the area in which you are maneuvering. You
could otherwise injure them.
