Page 1513 of 2177

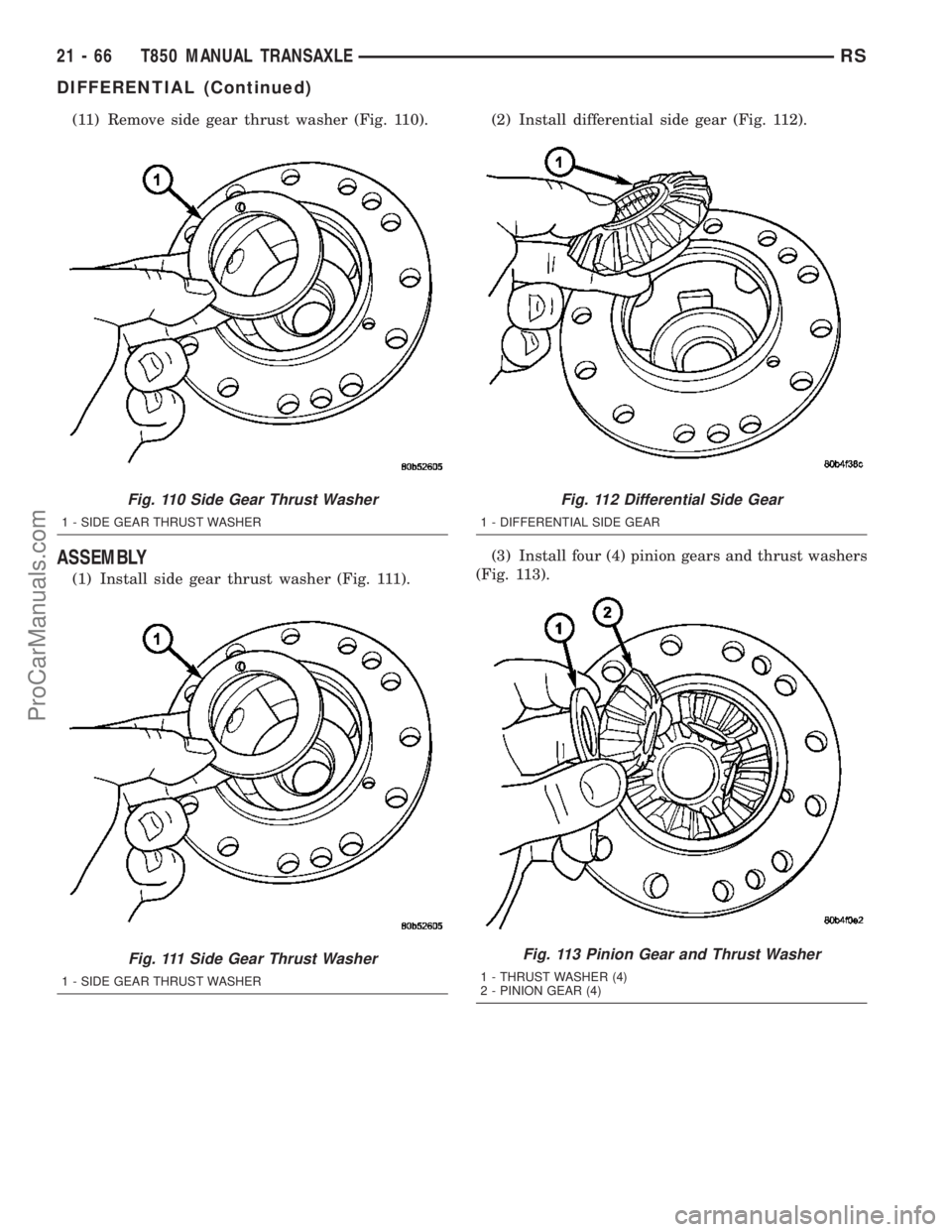

CHRYSLER CARAVAN 2003 Service Manual (11) Remove side gear thrust washer (Fig. 110). ASSEMBLY (1) Install side gear thrust washer (Fig. 111).(2) Install differential side gear (Fig. 112). (3) Install four (4) pinion gears and thrust wash

Page 1514 of 2177

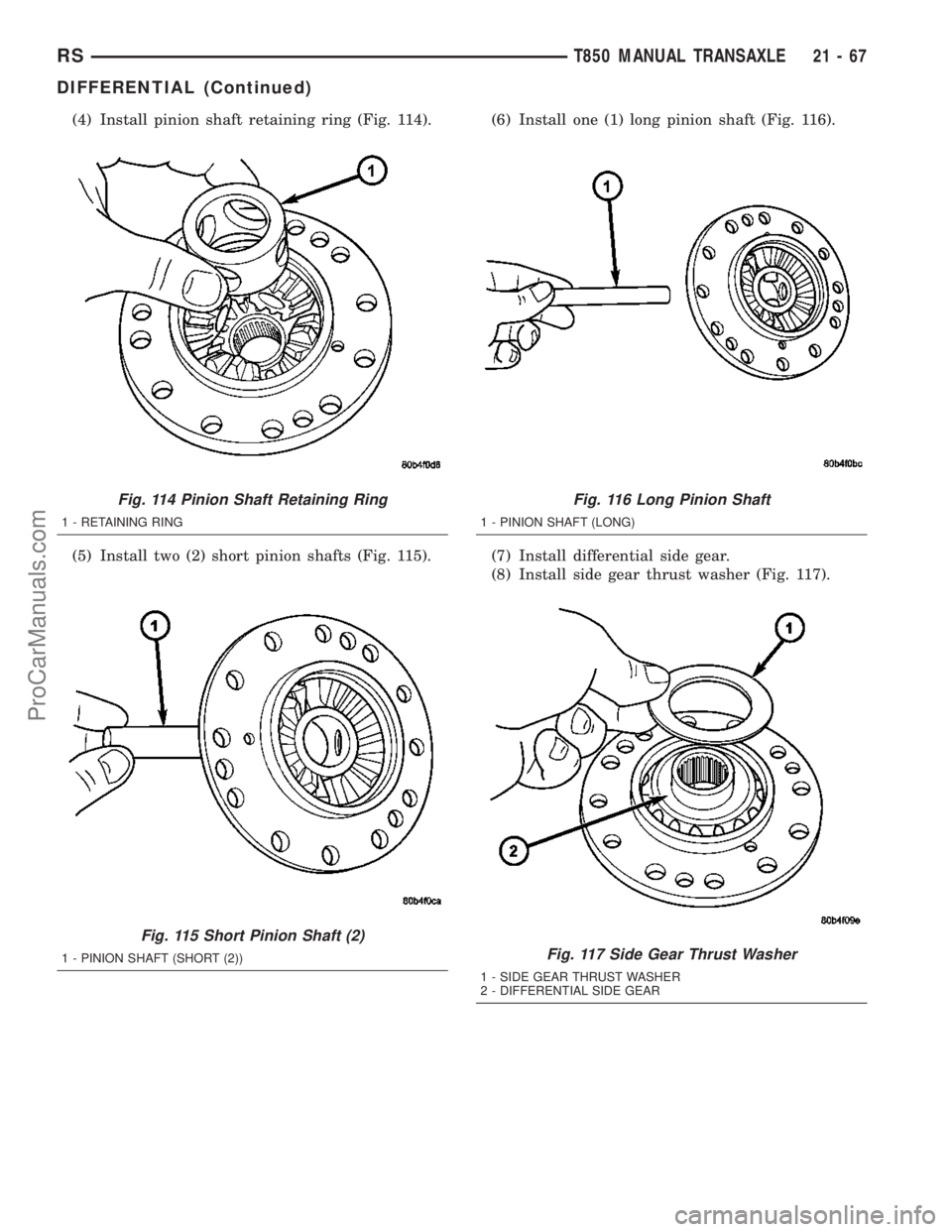

CHRYSLER CARAVAN 2003 Service Manual (4) Install pinion shaft retaining ring (Fig. 114). (5) Install two (2) short pinion shafts (Fig. 115).(6) Install one (1) long pinion shaft (Fig. 116). (7) Install differential side gear. (8) Install

Page 1515 of 2177

CHRYSLER CARAVAN 2003 Service Manual (9) Install differential support plate. Align support plate to differential case with alignment pins 8470 (Fig. 118). (10) Install thrust buttons 8491 to both bearing journals and press halves togethe

Page 1516 of 2177

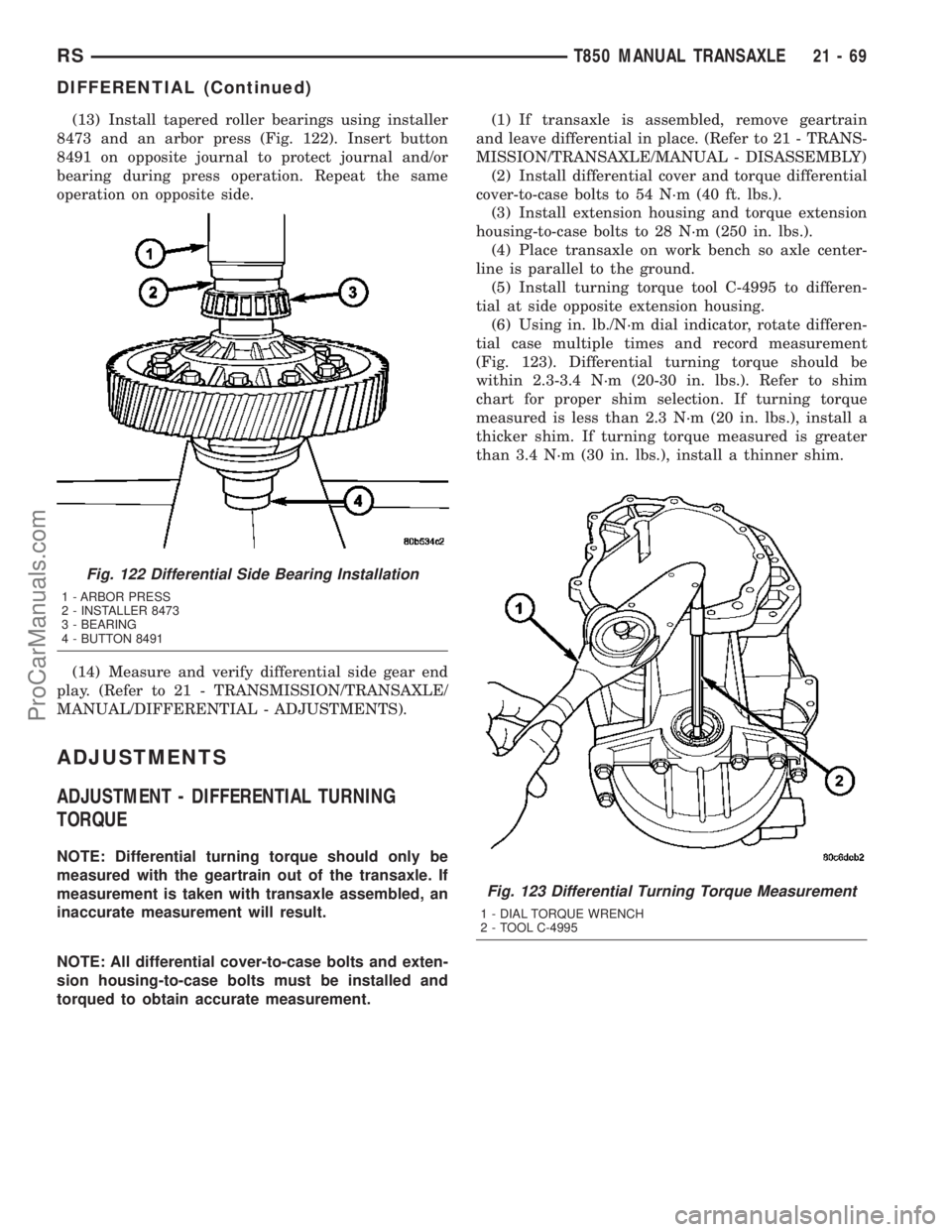

CHRYSLER CARAVAN 2003 Service Manual (13) Install tapered roller bearings using installer 8473 and an arbor press (Fig. 122). Insert button 8491 on opposite journal to protect journal and/or bearing during press operation. Repeat the sam

Page 1517 of 2177

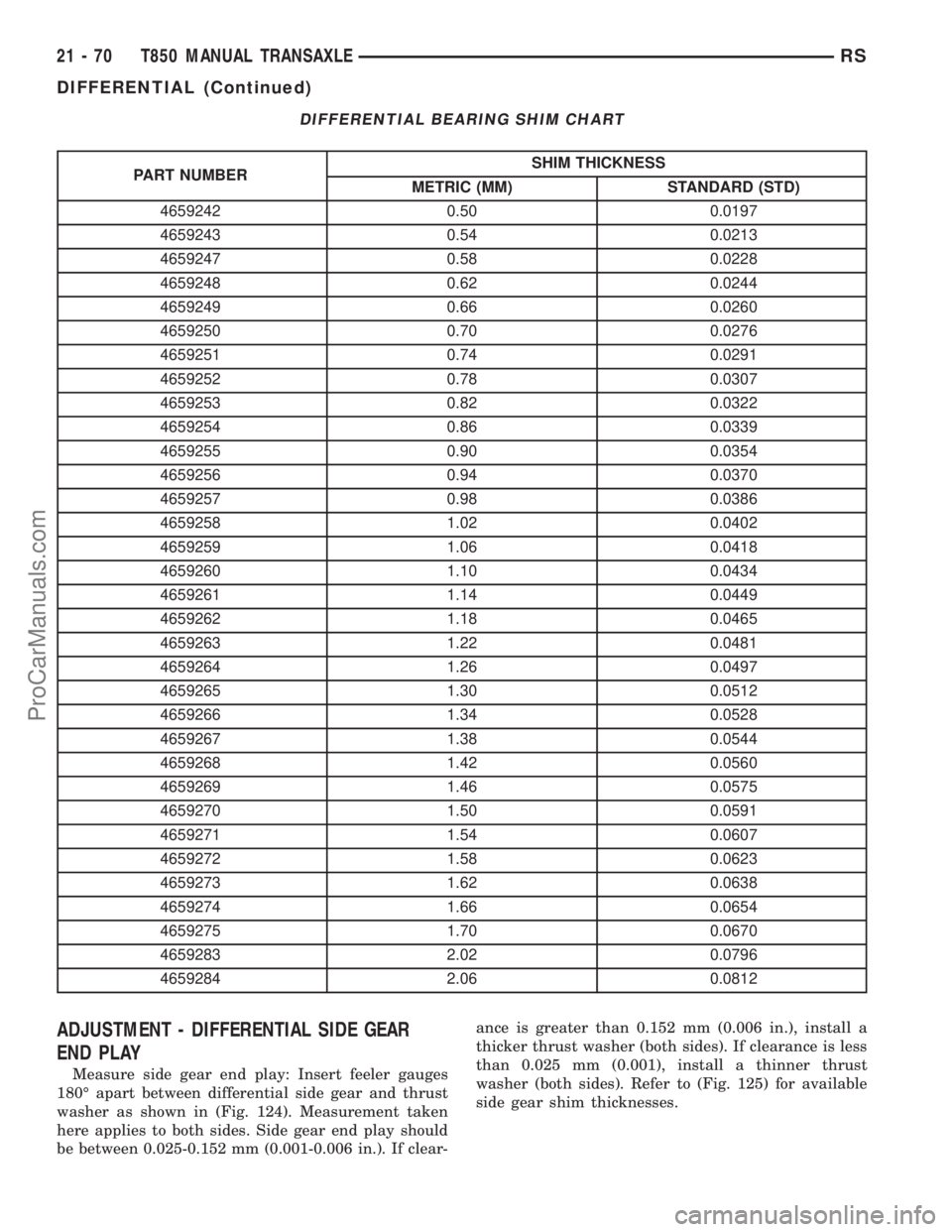

CHRYSLER CARAVAN 2003 Service Manual DIFFERENTIAL BEARING SHIM CHART PART NUMBERSHIM THICKNESS METRIC (MM) STANDARD (STD) 4659242 0.50 0.0197 4659243 0.54 0.0213 4659247 0.58 0.0228 4659248 0.62 0.0244 4659249 0.66 0.0260 4659250 0.70 0.

Page 1518 of 2177

CHRYSLER CARAVAN 2003 Service Manual If end play measurement indicates a thrust washer change is necessary, the differential must be disas- sembled. (Refer to 21 - TRANSMISSION/TRANS- AXLE/MANUAL/DIFFERENTIAL - DISASSEMBLY)FLUID STANDARD

Page 1519 of 2177

CHRYSLER CARAVAN 2003 Service Manual FLUID DRAIN (1) Raise vehicle on hoist. (2) Remove transaxle drain plug (Fig. 127) and drain fluid into suitable container. (3) Install drain plug and torque to 23 N´m (17 ft. lbs.). FLUID FILL (1) R

Page 1520 of 2177

CHRYSLER CARAVAN 2003 Service Manual INSTALLATION (1) Install gearshift boot to console and secure with three (3) retaining clips (Fig. 130). (2) Install gearshift knob (Fig. 129). Orient shift pattern 1¤4-turn clockwise, press down, an
