CHRYSLER CARAVAN 2003 Service Manual RIGHT PARK LAMP (EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z344 16BR GROUND 2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT) RIGHT POWER MIRROR - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 P174 20TN/LB (EX

Page 1106 of 2177

CHRYSLER CARAVAN 2003 Service Manual RIGHT REAR PILLAR SPEAKER - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X158 20GY/YL RIGHT REAR PILLAR SPEAKER (-) 2 X152 20GY/WT RIGHT REAR PILLAR SPEAKER (+) RIGHT REAR READING LAMP (LUXURY) - GRAY 3 WAY CAV

Page 1107 of 2177

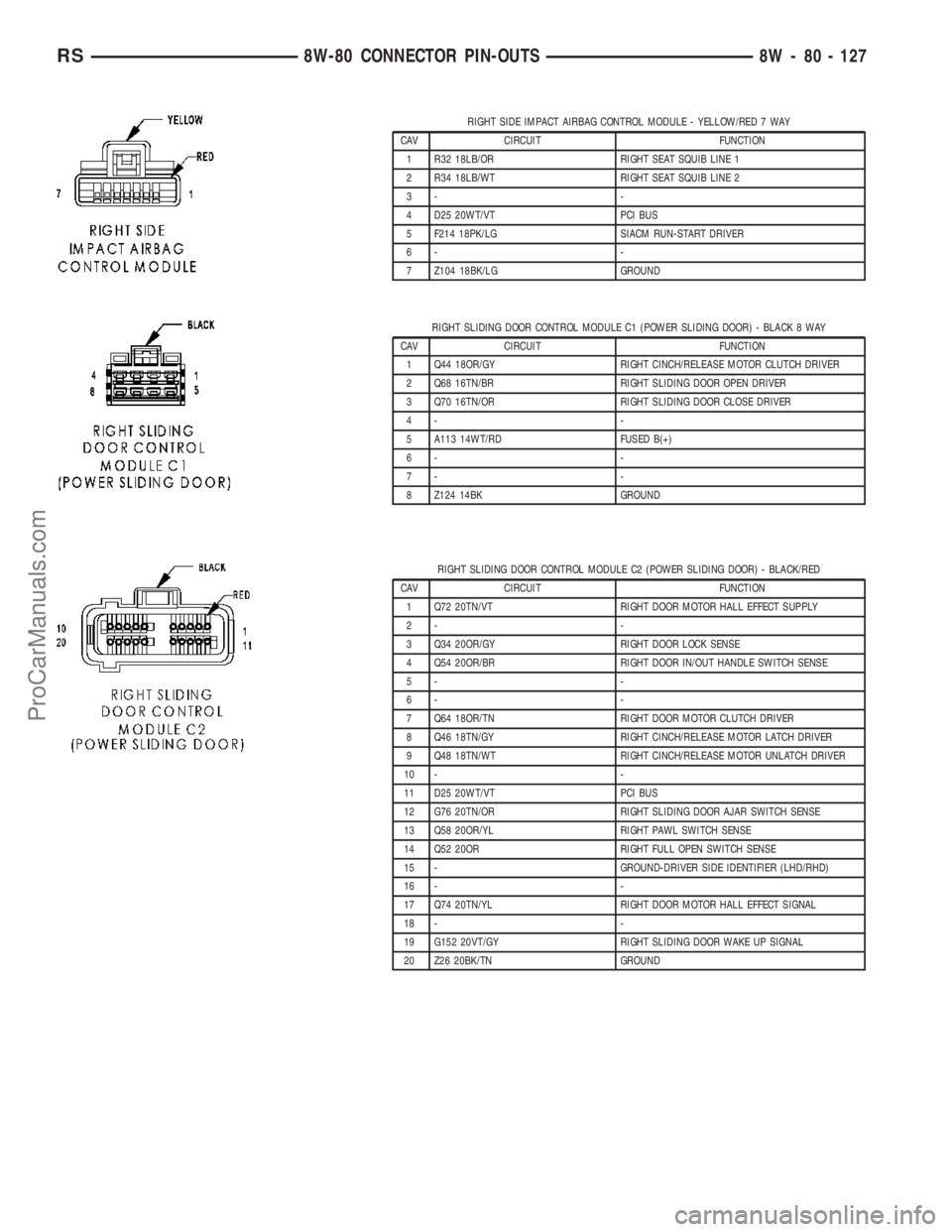

CHRYSLER CARAVAN 2003 Service Manual RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY 2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL RIGHT REMOTE RADIO SWITCH -

Page 1108 of 2177

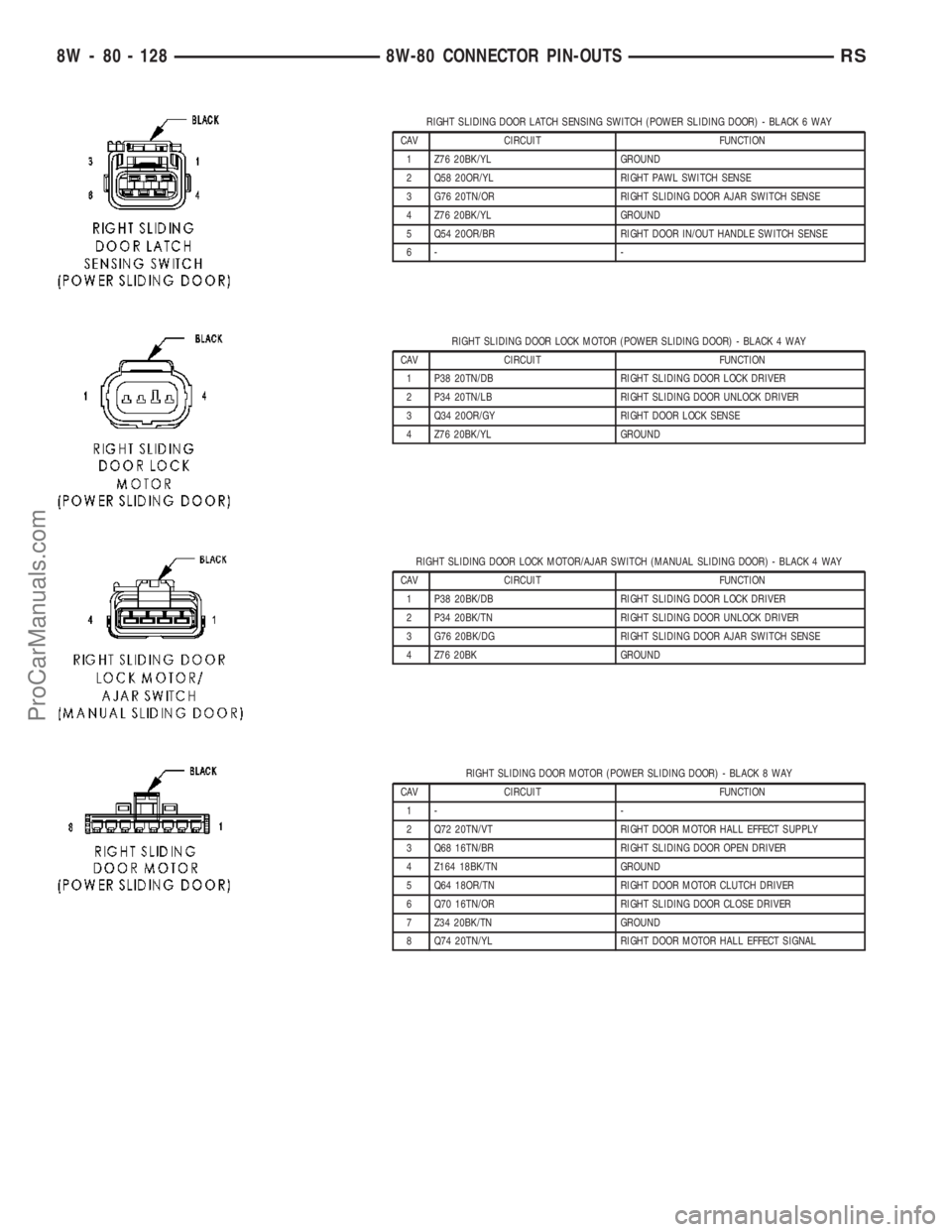

CHRYSLER CARAVAN 2003 Service Manual RIGHT SIDE IMPACT AIRBAG CONTROL MODULE - YELLOW/RED 7 WAY CAV CIRCUIT FUNCTION 1 R32 18LB/OR RIGHT SEAT SQUIB LINE 1 2 R34 18LB/WT RIGHT SEAT SQUIB LINE 2 3- - 4 D25 20WT/VT PCI BUS 5 F214 18PK/LG SI

Page 1109 of 2177

CHRYSLER CARAVAN 2003 Service Manual RIGHT SLIDING DOOR LATCH SENSING SWITCH (POWER SLIDING DOOR) - BLACK 6 WAY CAV CIRCUIT FUNCTION 1 Z76 20BK/YL GROUND 2 Q58 20OR/YL RIGHT PAWL SWITCH SENSE 3 G76 20TN/OR RIGHT SLIDING DOOR AJAR SWITCH

Page 1110 of 2177

CHRYSLER CARAVAN 2003 Service Manual RIGHT SPEED CONTROL SWITCH - WHITE 2 WAY CAV CIRCUIT FUNCTION A V37 20VT (EXCEPT 2.4L) SPEED CONTROL SWITCH SIGNAL A V37 20VT (2.4L) S/C SWITCH SIGNAL B Z23 20BK/VT RIGHT SPEED CONTROL SWITCH GROUND R

Page 1111 of 2177

CHRYSLER CARAVAN 2003 Service Manual SENTRY KEY IMMOBILIZER MODULE - BLACK 6 WAY CAV CIRCUIT FUNCTION 1- - 2 D25 20WT/VT PCI BUS 3- - 4 F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START) 5 Z120 22BK/WT GROUND 6 A114 20GY/RD (LHD) FUSED

Page 1112 of 2177

CHRYSLER CARAVAN 2003 Service Manual SUNROOF MODULE (EXCEPT EXPORT) - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 Q3 20OR/TN SUNROOF VENT 2 Q5 20OR/LB SUNROOF CLOSE 3 Q4 20OR/YL SUNROOF OPEN 4 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT 5 A115 14Y
