Page 1041 of 2177

CHRYSLER CARAVAN 2003 Service Manual DRIVER POWER WINDOW SWITCH (LHD EXCEPT LOWLINE) - GREEN 14 WAY CAV CIRCUIT FUNCTION 1 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN 2 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER (UP) 3 Q13 16OR/DB DRIVER

Page 1042 of 2177

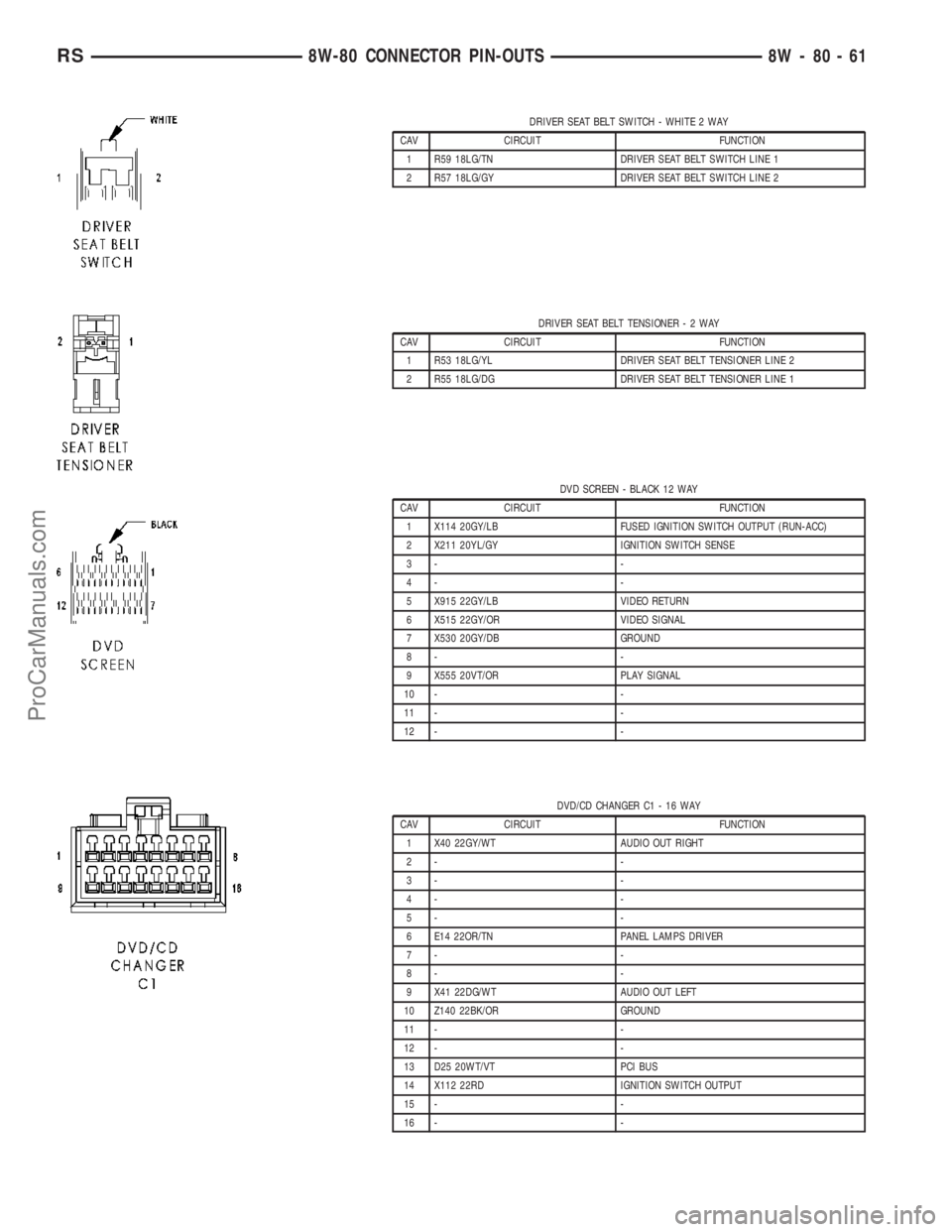

CHRYSLER CARAVAN 2003 Service Manual DRIVER SEAT BELT SWITCH - WHITE 2 WAY CAV CIRCUIT FUNCTION 1 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1 2 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2 DRIVER SEAT BELT TENSIONER-2WAY CAV CIRCUIT FUNCTIO

Page 1043 of 2177

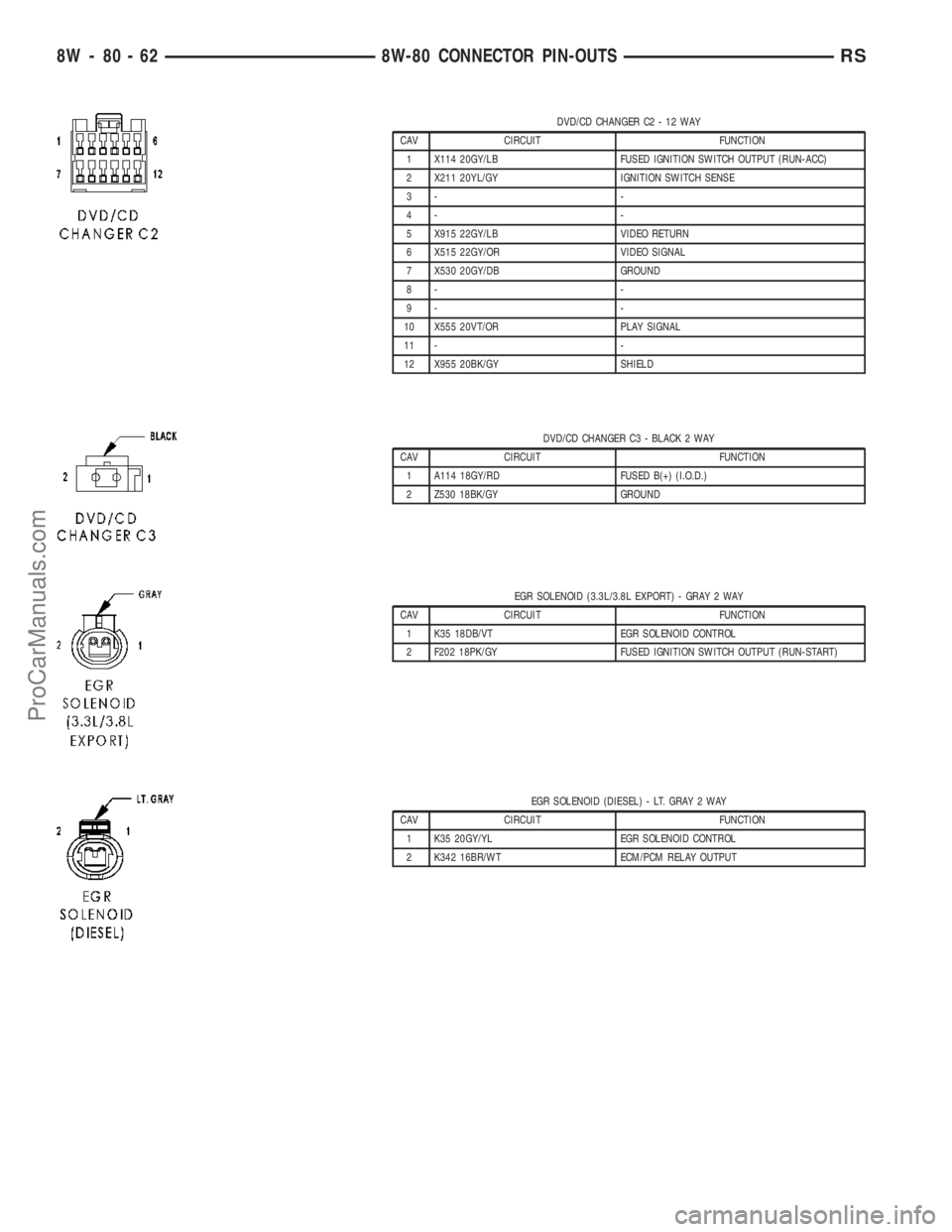

CHRYSLER CARAVAN 2003 Service Manual DVD/CD CHANGER C2 - 12 WAY CAV CIRCUIT FUNCTION 1 X114 20GY/LB FUSED IGNITION SWITCH OUTPUT (RUN-ACC) 2 X211 20YL/GY IGNITION SWITCH SENSE 3- - 4- - 5 X915 22GY/LB VIDEO RETURN 6 X515 22GY/OR VIDEO SI

Page 1044 of 2177

CHRYSLER CARAVAN 2003 Service Manual ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - 81 WAY CAV CIRCUIT FUNCTION 1 Z130 14BK/BR GROUND 2 Z131 14BK/DG GROUND 3 K20 14BR/GY GENERATOR FIELD CONTROL 4 K342 14BR/WT ECM/PCM RELAY OUTPUT 5 K

Page 1045 of 2177

CHRYSLER CARAVAN 2003 Service Manual ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - 81 WAY CAV CIRCUIT FUNCTION 54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND 55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL 56 C918 20BK/LB A/C PRESSURE SENSOR

Page 1046 of 2177

CHRYSLER CARAVAN 2003 Service Manual ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY CAV CIRCUIT FUNCTION 82 - - 83 - - 84 - - 85 - - 86 - - 87 - - 88 K35 20GY/YL EGR SOLENOID CONTROL 89 K35 20GY/YL EGR SOLENOID CONTROL 90 - - 91 - - 92

Page 1047 of 2177

CHRYSLER CARAVAN 2003 Service Manual ENGINE OIL PRESSURE SENSOR (DIESEL) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 F855 20PK/YL SENSOR REFERENCE VOLTAGE A 2 G6 20VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL 3 K936 20BR/YL ENGINE OIL PRESSURE SENSO

Page 1048 of 2177

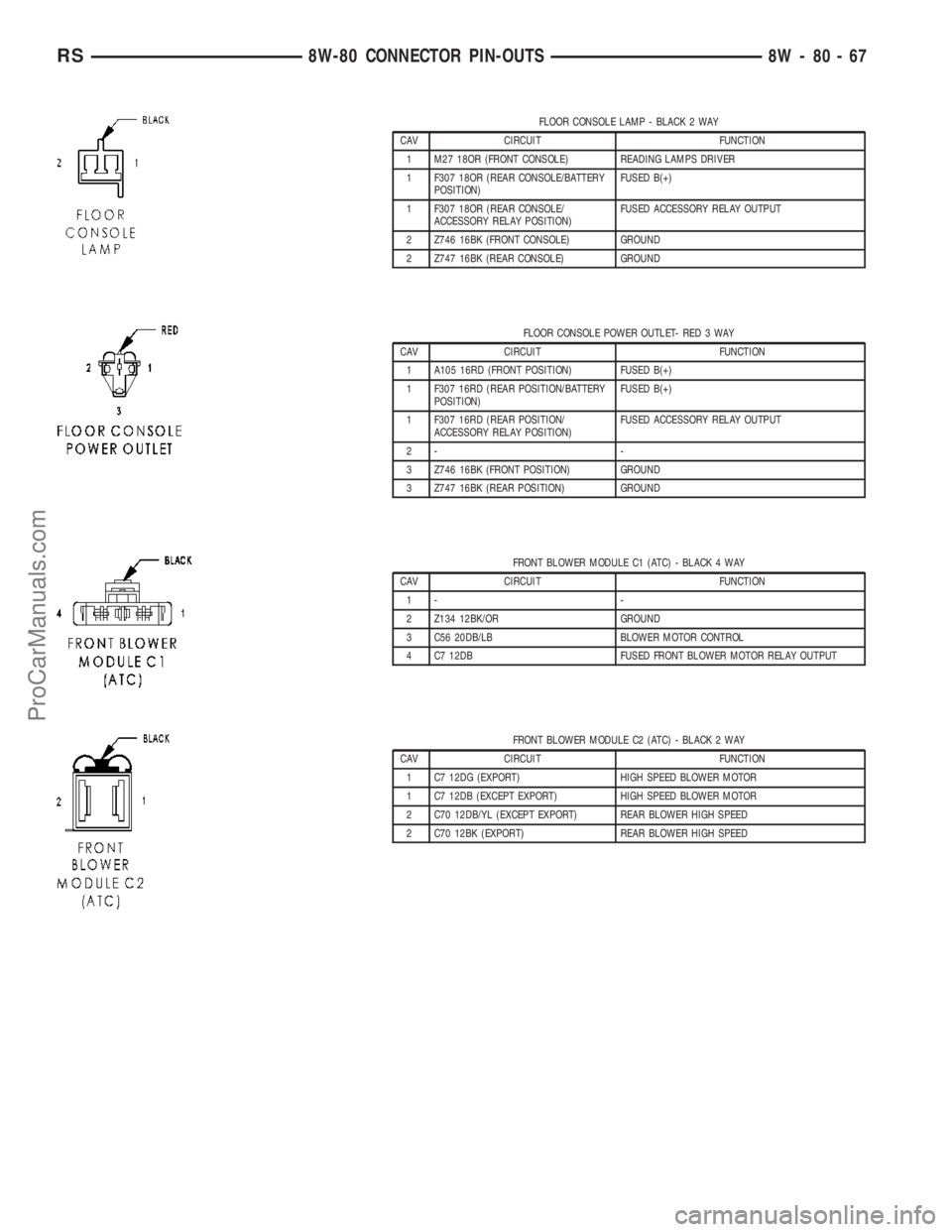

CHRYSLER CARAVAN 2003 Service Manual FLOOR CONSOLE LAMP - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 M27 18OR (FRONT CONSOLE) READING LAMPS DRIVER 1 F307 18OR (REAR CONSOLE/BATTERY POSITION)FUSED B(+) 1 F307 18OR (REAR CONSOLE/ ACCESSORY RELAY P
