Page 1009 of 2177

CHRYSLER CARAVAN 2003 Service Manual C300 (LHD) - (LEFT DOOR SIDE) CAV CIRCUIT 1 G75 20VT 2 Z821 12BK/BR (EXCEPT BASE) 2 Z75 20BK/VT (BASE) 3 X53 22DG 4 X55 22DG/BR 5 G161 22VT/DG (POWER LOCKS) 6 P1 20TN/LG (POWER LOCKS) 7 P3 20TN/WT (PO

Page 1010 of 2177

CHRYSLER CARAVAN 2003 Service Manual C300 (RHD EXCEPT LOWLINE) - (LEFT DOOR SIDE) CAV CIRCUIT 1 G75 20VT 2 Z821 12BK/BR 3 X53 20DG 4 X55 20DG/BR 5 G161 20VT/DG 6 P1 20TN/LG 7 P3 20TN/WT 8 F304 12WT/PK 9 Q16 12OR/TN 10 Q26 12OR/GY 11 Q13

Page 1011 of 2177

CHRYSLER CARAVAN 2003 Service Manual C301 (BASE/POWER LOCKS) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 G163 16VT/LB 2- C301 (BASE/POWER LOCKS) - LT. GRAY (LEFT DOOR SIDE) CAV CIRCUIT 1 G163 14VT/LB 2- C301 (LHD PREMIUM/MEMORY) - LT. GRAY (BOD

Page 1012 of 2177

CHRYSLER CARAVAN 2003 Service Manual C301 (RHD/LHD PREMIUM EXCEPT MEMORY ) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 M21 20YL/BR 2 X13 16DG/GY 3 X15 16GY/DG 4 X153 20DG/YL 5 X155 20DG/LB 6 G163 22VT/LB C301 (RHD/LHD PREMIUM EXCEPT MEMORY) - L

Page 1013 of 2177

CHRYSLER CARAVAN 2003 Service Manual C302 (RHD MEMORY) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 M21 20YL/BR 2 X13 16DG/GY (PREMIUM) 3 X15 16GY/DG (PREMIUM) 4 X154 20GY/YL (PREMIUM) 5 X156 20GY/LB (PREMIUM) 6 G162 22VT/TN (POWER LOCKS) 7 G200

Page 1014 of 2177

CHRYSLER CARAVAN 2003 Service Manual C303 (LHD) - BLACK (BODY SIDE) CAV CIRCUIT 1 G74 22VT/WT 2 Z822 20BK/BR 3 X54 22GY 4 X56 22GY/BR 5 G160 22VT/LG 6 P2 20TN/GY 7 P4 20TN/BR 8 F304 12WT/PK (POWER WINDOWS) 8 F304 18GY/PK (EXCEPT POWER WI

Page 1015 of 2177

CHRYSLER CARAVAN 2003 Service Manual C304 - YELLOW (BODY SIDE) CAV CIRCUIT 1 R53 18LG/YL (LHD) 1 R54 18LB/YL (RHD) 2 R56 18LB/DG (RHD) 2 R55 18LG/DG (LHD) 3 R31 18LG/OR 4 R33 18LG/WT C304 - YELLOW (SEAT SIDE) CAV CIRCUIT 1 R53 18LG/YL (L

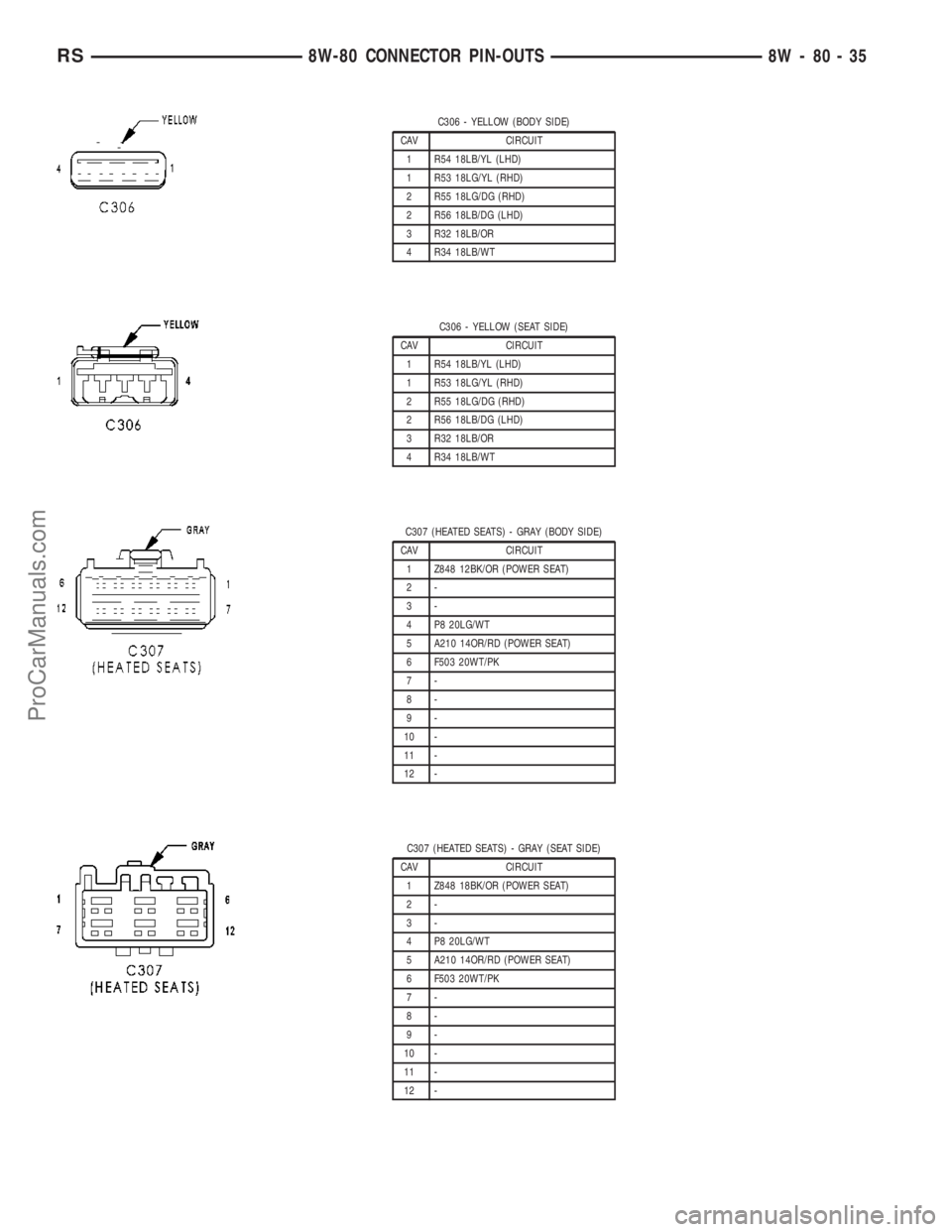

Page 1016 of 2177

CHRYSLER CARAVAN 2003 Service Manual C306 - YELLOW (BODY SIDE) CAV CIRCUIT 1 R54 18LB/YL (LHD) 1 R53 18LG/YL (RHD) 2 R55 18LG/DG (RHD) 2 R56 18LB/DG (LHD) 3 R32 18LB/OR 4 R34 18LB/WT C306 - YELLOW (SEAT SIDE) CAV CIRCUIT 1 R54 18LB/YL (L
