2002 SUBARU LEGACY Owners Manual

In case of emergency9-9
–
CONTINUED –

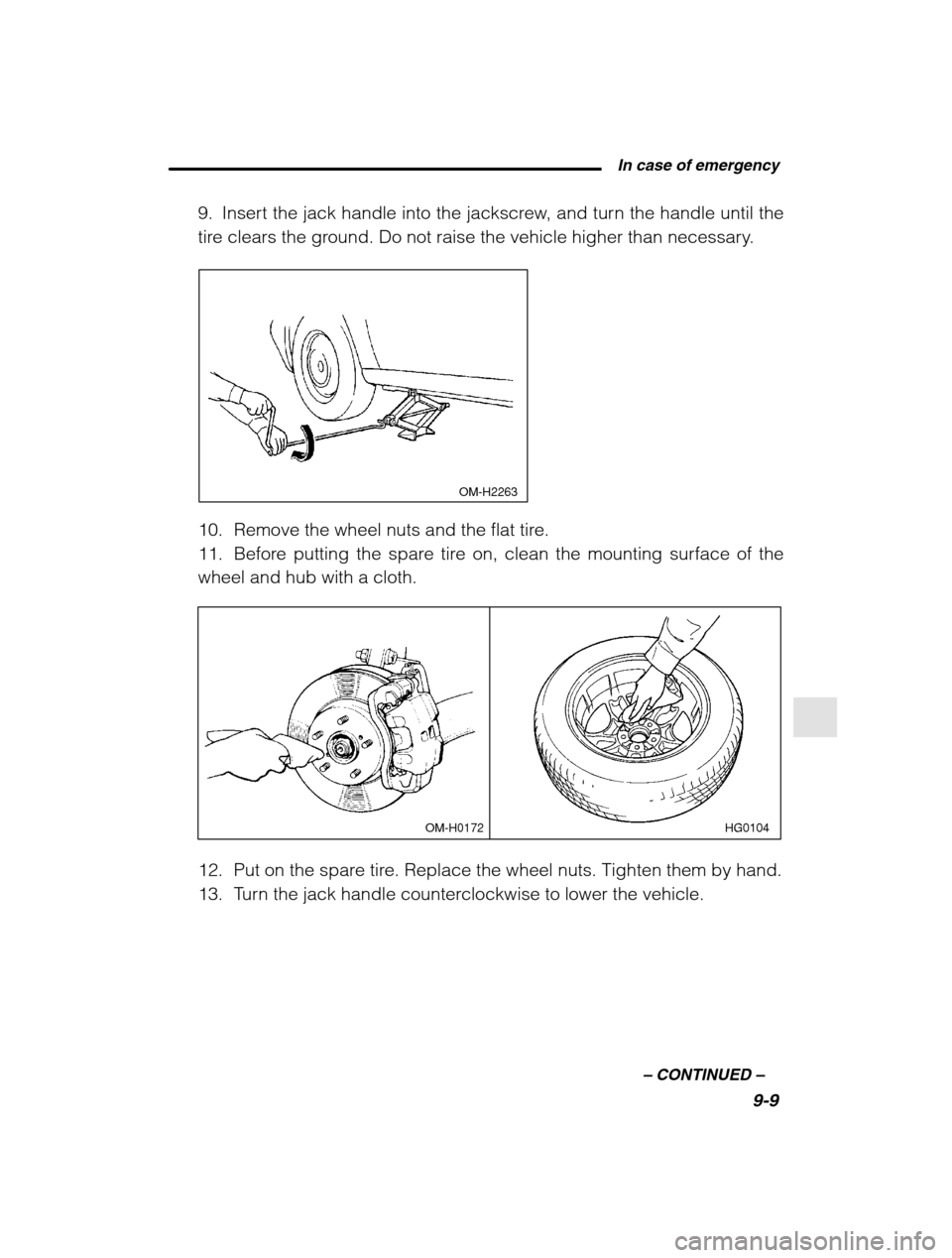

9. Insert the jack handle into the jackscrew, and turn the handle until the
tire clears the ground. Do not raise the vehicle higher than necessary.
OM-H2263
10. Remove the wheel nuts and the flat tire.
11. Before putting the spare tire on, clean the mounting surface of thewheel and hub with a cloth.
HG0104
OM-H0172
12. Put on the spare tire. Replace the wheel nuts. Tighten them by hand.
13. Turn the jack handle counterclockwise to lower the vehicle.

9-10
14. Use the wheel nut wrench to securely tighten the wheel nuts to the
specified torque, following the tightening order in the illustration.
OM-H0377
The torque for tightening the nuts is 58 to 72 ft-lb (78 to 98 N-m, 8 to 10
kg-m). This torque is equivalent to applying about 88 to 110 lbs (40 to 50
kg) at the top of the wheel nut wrench. Never use your foot on the wheel
nut wrench or a pipe extension on the wrench because you may exceed
the specified torque. Have the wheel nut torque checked at the nearest
automotive service facility.
15. Store the flat tire in the spare tire compartment.
HS0153
Flat tireAttaching bolt
Spacer
When storing a conventional tire, put the spacer upside down and tight-
en the attaching bolt firmly.
Also store the jack and wheel nut wrench in their storage locations.

In case of emergency9-11
–
CONTINUED –
Jump starting
WARNING
Battery fluid is SULFURIC ACID. Do not let it come in contact
with the eyes, skin, clothing or the vehicle. If battery fluid gets on you, thoroughly flush the exposed area
with water immediately. Get medical help if the fluid has enteredyour eyes. If battery fluid is accidentally swallowed, immediately drink a
large amount of milk or water, and obtain immediate medicalhelp.
Keep everyone including children away from the battery. The gas generated by a battery explodes if a flame or spark is
brought near it. Do not smoke or light a match while jump start-ing. Never attempt jump starting if the discharged battery is frozen.
It could cause the battery to burst or explode. Whenever working on or around a battery, always wear suit-
able eye protectors, and remove metal objects such as rings,
bands or other metal jewelry. Be sure the jumper cables and clamps on them do not have
loose or missing insulation.Do not jump start unless cables in suitable condition are avail-able. A running engine can be dangerous. Keep your fingers, hands,
clothing, hair and tools away from the cooling fan, belts and anyother moving engine parts. Removing rings, watches and ties isadvisable.
When your vehicle does not start due to a run down (discharged) bat-
tery, the vehicle may be jump started by connecting your battery to
another battery (called the booster battery) with jumper cables.
Jump starting is dangerous if it done incorrectly. If you are unsure about
the proper procedure for jump starting, consult a competent mechanic.

9-12

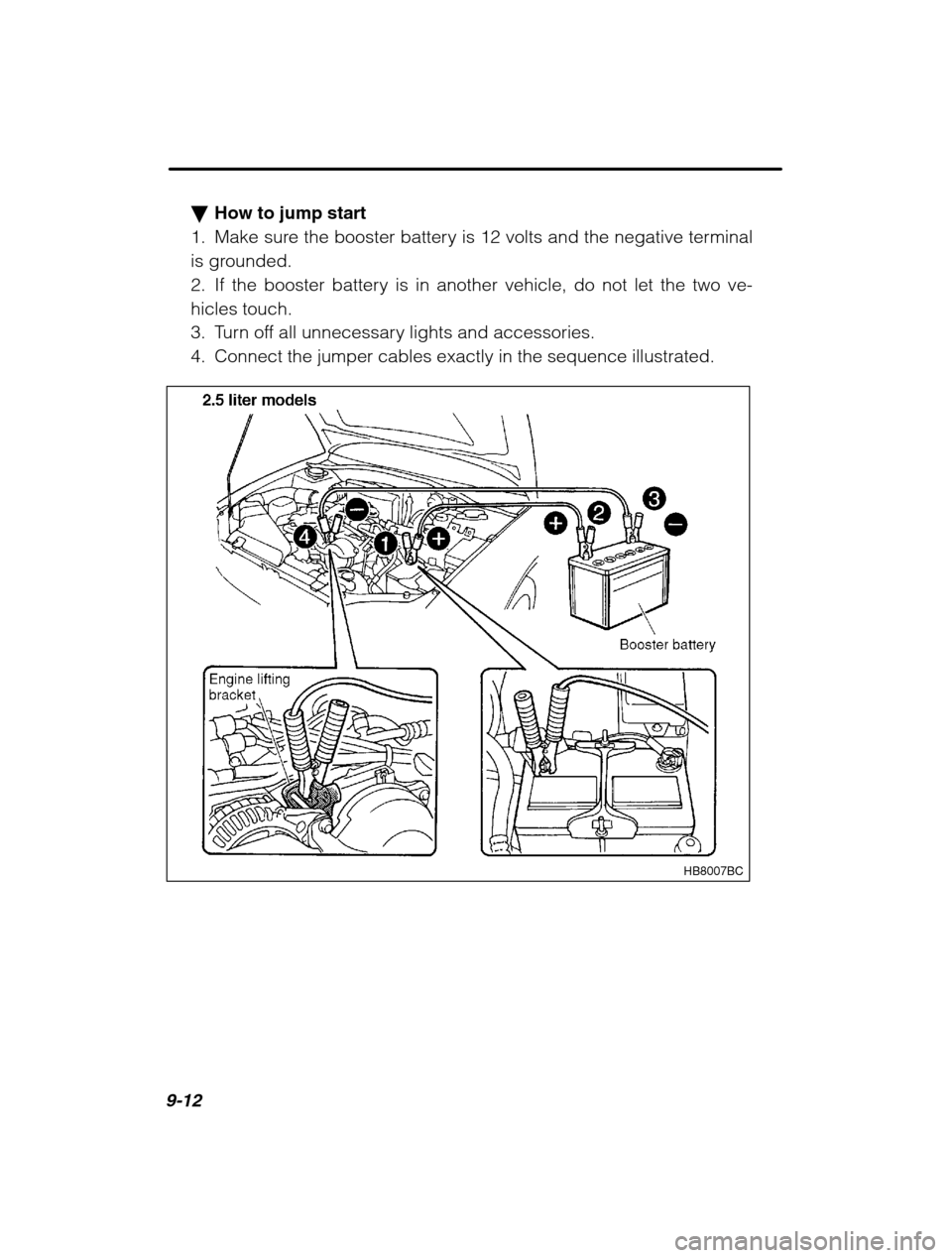

How to jump start
1. Make sure the booster battery is 12 volts and the negative terminal
is grounded.
2. If the booster battery is in another vehicle, do not let the two ve-hicles touch.
3. Turn off all unnecessary lights and accessories.
4. Connect the jumper cables exactly in the sequence illustrated.
HB8007BC

In case of emergency9-13
–
CONTINUED –

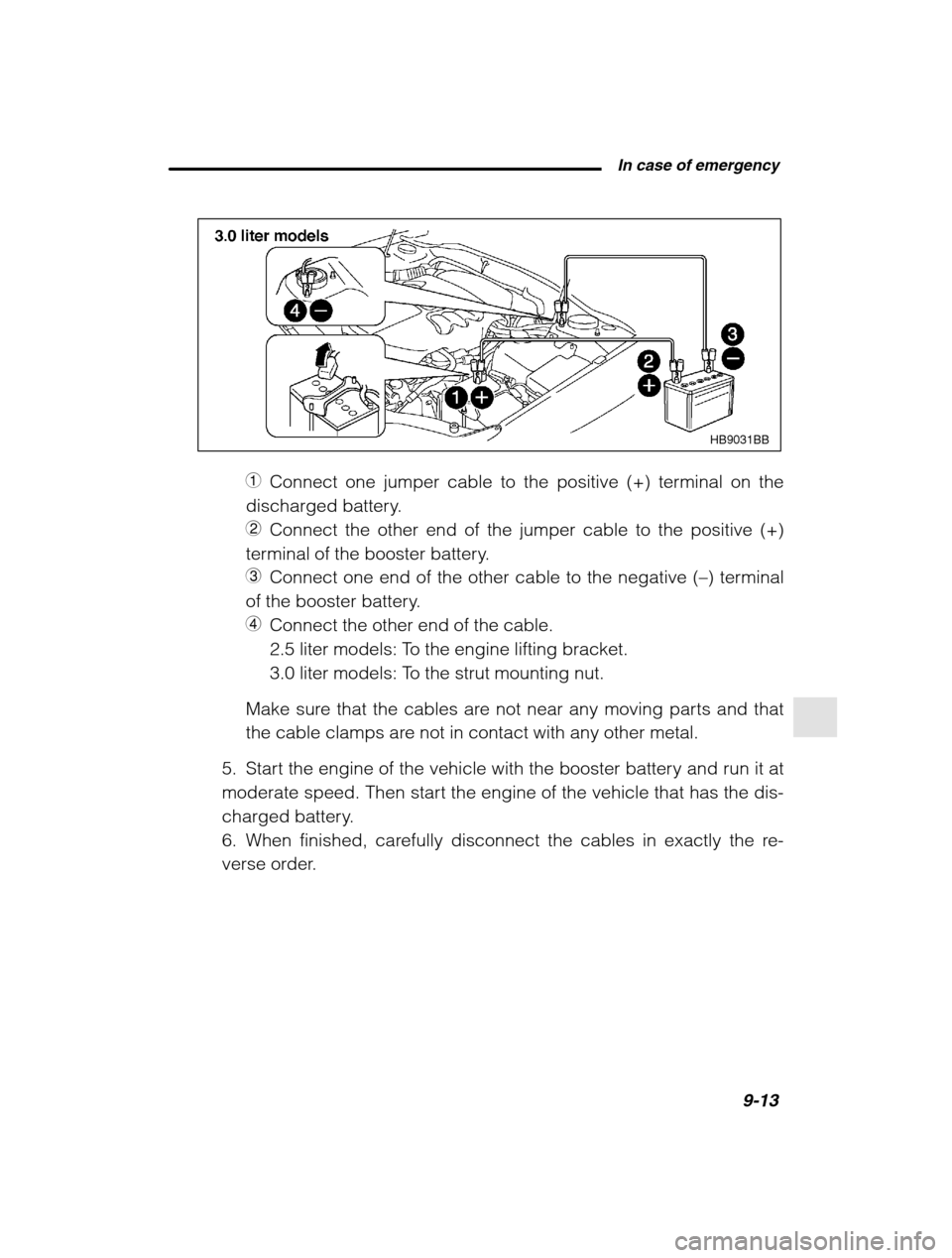

HB9031BB
1Connect one jumper cable to the positive (+) terminal on the
discharged battery. 2 Connect the other end of the jumper cable to the positive (+)
terminal of the booster battery.3 Connect one end of the other cable to the negative ( –) terminal
of the booster battery.4 Connect the other end of the cable.
2.5 liter models: To the engine lifting bracket.
3.0 liter models: To the strut mounting nut.
Make sure that the cables are not near any moving parts and that
the cable clamps are not in contact with any other metal.
5. Start the engine of the vehicle with the booster battery and run it at
moderate speed. Then start the engine of the vehicle that has the dis-
charged battery.
6. When finished, carefully disconnect the cables in exactly the re-
verse order.

9-14
Engine overheatingWARNING
Never attempt to remove the radiator cap until the engine has been shut off and has fully cooled down. When the engine is hot,the coolant is under pressure. Removing the cap while the engineis still hot could release a spray of boiling hot coolant, which
could burn you very seriously.
If the engine overheats, safely pull off the road and stop the vehicle in asafe place. If steam is coming from the engine compartment
Turn the engine off and get everyone away from the vehicle until itcools down. If no steam is coming from the engine compartment
1. Keep the engine running at idling speed.
2. Open the hood to ventilate the engine compartment.
Confirm that the cooling fan is turning. If the fan is not turning, im-
mediately turn the engine off and contact your authorized dealer for
repair.
3. After the engine coolant temperature has dropped, turn off the en-gine.
If the temperature gauge stays at the overheated zone, turn the en-
gine off.
4. After the engine has fully cooled down, check the coolant level in
the reserve tank.If the coolant level is below the “MIN” mark, add coolant up to the
“MAX” mark.
5. If there is no coolant in the reserve tank, add coolant to the reserve
tank. Then remove the radiator cap and fill the radiator with coolant.
If you remove the radiator cap from a hot radiator, first wrap a thick
cloth around the radiator cap, then turn the cap counterclockwise
slowly without pressing down until it stops. Release the pressure from

In case of emergency9-15
–
CONTINUED –
the radiator. After the pressure has been fully released, remove the
cap by pressing down and turning it.
Towing
WARNING
Never tow AWD vehicles (both AT and MT) with the front wheelsraised off the ground while the rear wheels are on the ground, orwith the rear wheels raised off the ground while the front wheelsare on the ground. This will cause the vehicle to spin away due tothe operation or deterioration of the center differential.
HG9013BA
If towing is necessary, it is best done by your SUBARU dealer or a com-
mercial towing service. Observe the following procedures for safety.

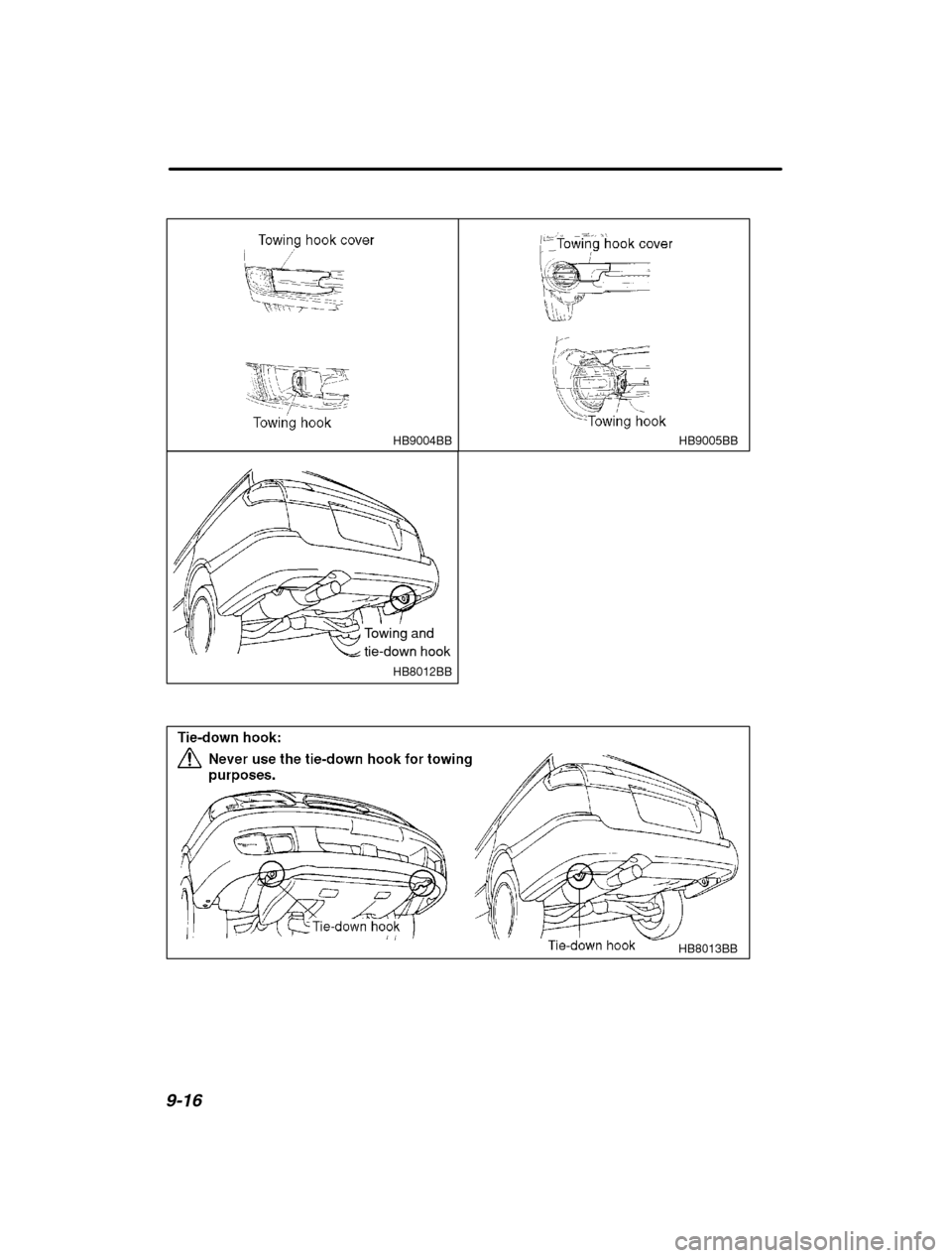

Towing and tie-down hooks
CAUTION
Use only specified towing hooks and tie-down hooks. Never
use suspension parts or other body parts for towing or tie-downpurposes. Never use the tie-down hook closest to the muffler under the
vehicle for towing purposes. Do not apply excessive lateral load to the towing hooks.

9-16
HB8012BBHB9005BB
HB9004BB
Towing and tie-down hook
HB8013BB
