2002 SUBARU LEGACY Owners Manual

5-14
To use this function, press the “TPS” button to turn on the “TPS” indi-
cator. If the fast-forward button “FF” E is then pressed, the player ad-
vances the tape to the beginning of the next selection and starts play-
ing it. If the rewind button “REW” R is pressed instead, the player
rewinds the tape to the beginning of the current selection and starts
replaying it. The “TPS” function may not operate properly under the
following conditions: When the recording level is low.
When there are long pauses in the middle of a selection.
When the tape contains verbal material such as conversations.
When the blanks between selections are shorter than five seconds.
When there are no blanks between selections (live concerts, etc.).
Repeat (RPT)
Press the “RPT” button
W while a song is playing to play the song
repeatedly. The “RPT” indicator will come on and the song will be
played continuously. To cancel the repeat mode, press the button
again. Then the “RPT” indicator goes out, and normal playback mode
is restored. Dolby B NR button (
)
Press the “
” button T when playing tapes recorded using the
Dolby NR system*. The “
” indicator will light up and high-frequen-
cy noise on the tape will be reduced for clearer sound reproduction.
*Noise reduction system manufactured under license from Dolby Laboratories
Licensing Corporation. “Dolby” and the double-D Symbol are trade marks of
Dolby Laboratories Licensing Corporation.

Audio5-15
–
CONTINUED –
CD player control (If optional CD player is connected) An optional CD player can be connected to this audio unit. See your
SUBARU dealer for more information. For procedures for loading and un-
loading CDs, refer to “CD player 1 ” in this chapter.
HB5041DB
U CD button
I RAND (Random) button
O RPT (Repeat) button P
Track selection buttons
A SCAN button
To start playback
n When CD is not in the CD player
Hold a disc with a finger in the center hole while gripping the edge of
the disc, then insert it in to the slot (with the label side up) on the CDplayer and the player will automatically pull the disc into position.
After insertion, the CD player mode indicator “CD” will come on and
playback will start. n When CD is in the CD player
Press the “CD” button
U. The “CD” indicator will come on, and the
track number will appear on the display and the CD player will start playback.

5-16
NOTE If the “CD” button is pressed during a radio broadcast, the
disc will interrupt the broadcast. After playback on the last song finishes, the player will auto-
matically return to track 1 (the first song on the disc). To select a song from its beginning
Briefly press the “ ❚” button
P to skip to the beginning of the next
track and briefly press the “❚ ” button to skip to the beginning of
the current track. Fast-forwarding and fast-reverse
Press the “ ❚” button
P continuously for more than a half second
to fast-forward the disc.
Press the “❚ ” button continuously for more than a half second to
fast reverse the disc.
Release the button to stop fast forwarding or fast reverse. Repeat
Press the “RPT” button
O while a song is playing to play the song
repeatedly. The “RPT” indicator will come on and the song will be
played continuously. To cancel the repeat mode, press the button
again. Then the “RPT” indicator goes out, and normal playback mode
is restored. Random playback
Press the “RAND” button
I while a disc is being played back to play
all songs on the disc in a random order. The “RAND” indicator will
come on and all songs on the disc will be played in a random order.
To cancel the random mode, press the button again. Then the
“RAND” indicator goes out, and normal playback mode is restored.
Scan (a convenient way to become familiar with a disc)
1. Press the “SCAN” button
A.
– The display shows “SCAN” and the track number being
scanned.– You hear the first 10 seconds of each track.
– The operation is automatically cleared after playing all pro-

Audio5-17
–
CONTINUED –
grams. Then, normal playback starts.
2. Press the “SCAN” button again when you hear a track you like.
– Normal playback resumes.
To stop playback
To stop playback and switch over to the radio mode, press the
“BAND” button. To stop playback and switch over to the cassette
player mode, press the “TAPE” button.
CD changer control (If optional in dash CD changer is connected) An optional CD changer can be connected to this audio unit. See your
SUBARU dealer for more information. For procedures for loading and un-
loading CDs, refer to “In-dash 6 CD auto changer ” in this chapter.
HB5041EB
S CD button
D Disc up/down buttons
F RAND (Random) button G
RPT (Repeat) button
H Track selection buttons
J SCAN button
To start playback
Press the “CD” button S. The “CD” indicator will come on and the
disc number will appear on the display and the CD changer will start playback.

5-18
NOTE If the “CD” button is pressed during a radio broadcast, the CD
changer will interrupt the broadcast. At the end of the disc, playback automatically continues with
the next disc. After playback on the last disc finishes, the player will auto-
matically return to the first disc. If you have loaded fewer than 6 discs, any missing disc is
automatically skipped. Selection of a desired disc
Briefly press the “ ” button
D to skip to the next disc and briefly
press the “ ” button to skip to the previous disc.
n Operation with the in-dash CD changer unit
Press the desired “Disc select ” button (numbered from 1 to 6) and the
disc will begin to play. To select a song from its beginning
Briefly press the “ ❚” button H to skip to the beginning of the next
track and briefly press the “❚ ” button to skip to the beginning of
the current track. Fast-forwarding and fast-reverse
Press the “ ❚” button H continuously for more than a half second
to fast-forward the disc.
Press the “❚ ” button continuously for more than a half second to
fast reverse the disc.
Release the button to stop fast forwarding or fast reverse. Repeat
Press the “RPT” button
G while a song is playing to play the song
repeatedly. The “RPT” indicator will come on and the song will be
played continuously. To cancel the repeat mode, press the button
again. Then the “RPT” indicator goes out, and normal playback mode
is restored. Random playback
Press the “RAND” button
F while a disc is being played back to play

Audio5-19
–
CONTINUED –
all songs on the disc in a random order. The “RAND” indicator will
come on and all songs on the disc will be played in a random order.
To cancel the random mode, press the button again. Then the
“RAND” indicator goes out, and normal playback mode is restored.
Scan (a convenient way to become familiar with a disc)
1. Press the “SCAN” button
J.
– The display shows “SCAN” and the track number being
scanned.– You hear the first 10 seconds of each track.
– The operation is automatically cleared after playing all pro-
grams. Then, normal playback starts.
2. Press the “SCAN” button again when you hear a track you like.
– Normal playback resumes.
To stop playback
To stop playback and switch over to the radio mode, press the
“BAND” button. To stop playback and switch over to the cassette
player mode, press the “TAPE” button.

5-20

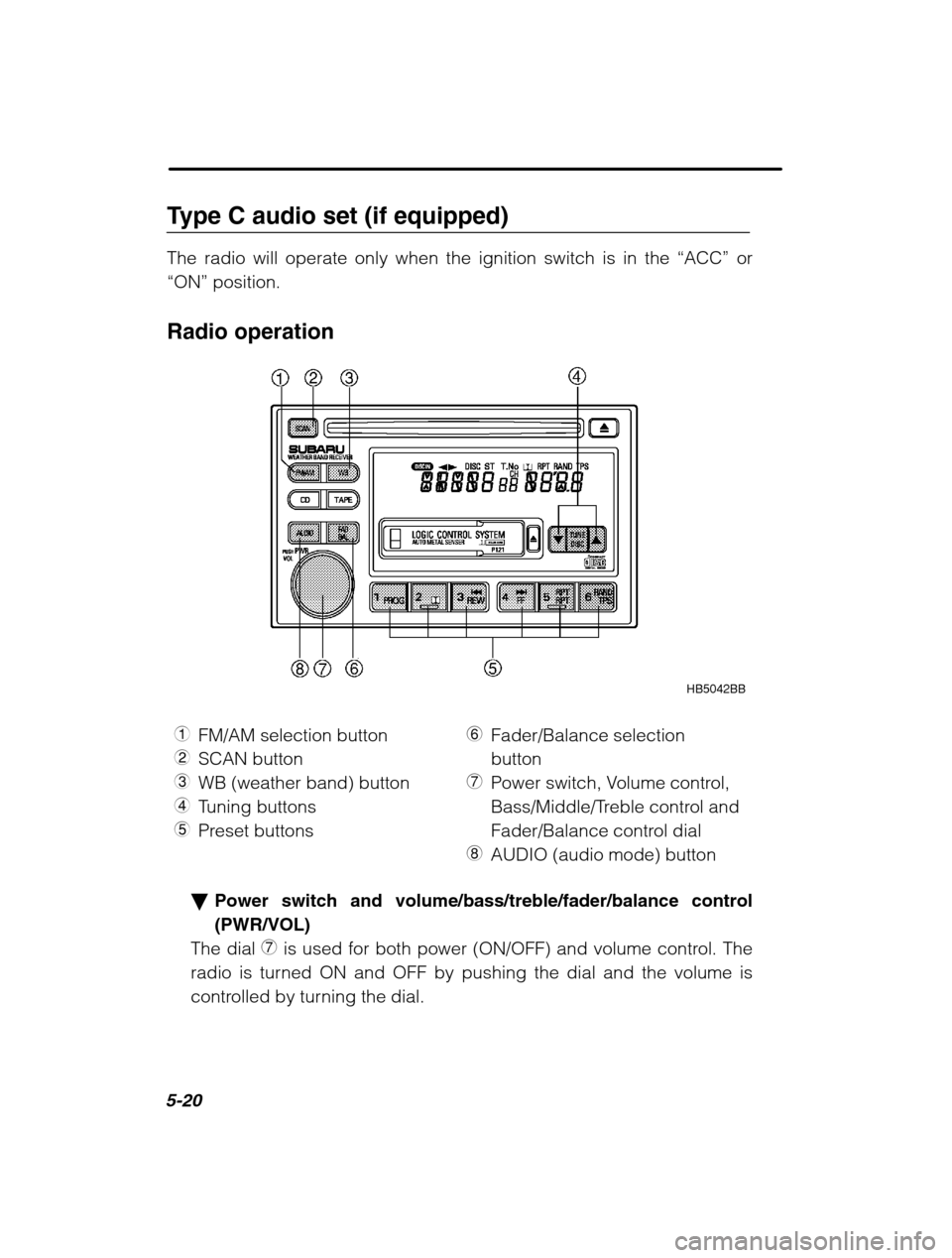

Type C audio set (if equipped) The radio will operate only when the ignition switch is in the “ACC” or
“ON” position.
Radio operation
HB5042BB
1 FM/AM selection button
2 SCAN button
3 WB (weather band) button
4 Tuning buttons
5 Preset buttons 6
Fader/Balance selection button
7 Power switch, Volume control,
Bass/Middle/Treble control and
Fader/Balance control dial
8 AUDIO (audio mode) button
Power switch and volume/bass/treble/fader/balance control (PWR/VOL)
The dial 7 is used for both power (ON/OFF) and volume control. The
radio is turned ON and OFF by pushing the dial and the volume is
controlled by turning the dial.

Audio5-21
–
CONTINUED –
This dial is used for bass/middle/treble controls when the “AUDIO”
button 8 is in the depressed position. It is also used for fader/balance
controls when the “FAD/BAL” button 6 is in the depressed position.
Display
Control mode
HB5036BA
Turn counterclockwiseTurn clockwise
BASBass controlFor less bassFor more bass
MIdMiddle note controlFor less middle noteFor more middle note
TRETreble controlFor less trebleFor more treble
FA dFader controlTo increase rear speaker
volume and decrease front
speaker volumeTo increase front speaker
volume and decrease rear
speaker volume
BALBalance controlTo increase left speaker
volume and decrease right
speaker volumeTo increase right speakervolume and decrease left
speaker volume
VOLVolume controlFor less volumeFor more volume
nTone control
The volume control dial 7 normally function as volume control. The
dial become a control for Bass, Middle note or Treble when you select
the appropriate tone control mode.
Choose desired level for each mode by turning the volume control
dial. The control function returns to volume control mode after about 5seconds.
To change control modes: Each brief press of the “AUDIO” button
8 changes control modes in the following sequence starting from
bass control mode. (When the radio is first turned on, the control
mode is in the volume control.)
