2002 SUBARU LEGACY Owners Manual

3-32
Compass mirror (if equipped)
HB6019BB
The inside electronic compass mirror has an anti-glare feature which
automatically reduces glare coming from headlights of vehicles be-hind you. It also contains a built-in compass.By pressing and releasing the left button, the automatic dimming
function is toggled on or off. When the automatic dimming function is
on, the auto dimming indicator light (green) located to the right of the
button will illuminate. By pressing and releasing the right button, the compass display is
toggled on or off. When the compass is on, an illuminated compass
reading will appear in the lower part of the mirror.
Even with the mirror in anti-glare mode, the mirror surface turns bright
if the transmission is shifted into reverse. This is to ensure good rear-
ward visibility during reversing.

Instruments and controls3-33
–
CONTINUED –
nPhotosensors
HB6020BA
The mirror has a photosensor attached on both the front and back
sides. If the glare from the headlights of vehicles behind you strikes
the mirror, these sensors detect it and make the reflection surface of
the mirror dimmer to help prevent you from being blinded. For this
reason, use care not to cover the sensors with stickers, or other simi-
lar items. Periodically wipe the sensors clean using a piece of dry soft
cotton cloth or an applicator. nCompass calibration
1. For optimum calibration, switch off all nonessential electrical ac-
cessories (rear window defogger, heater/air conditioning system,
spotlight, etc.) and ensure all doors are shut.
2. Drive to an open, level area away from large metallic objects or
structures and make certain the ignition switch is in the “ON” position.
3. Press and hold the left button for 3 seconds then release, and thecompass will enter the calibration mode. “CAL” and direction will be
displayed.
4. Drive slowly in a circle until “CAL” disappears from the display
(about two or three circles).
5. The compass is now calibrated. Further calibration is not required.
The compass will automatically calibrate from this point forward.

3-34
nCompass zone adjustment
HB6021AB
1. The zone setting is factory preset to Zone 8. Refer to the “Com-
pass calibration zone ” map shown above or one attached to the end
of this manual to verify that the compass zone setting is correct for your geographical location.
2. Press and hold the right button for 3 seconds then release, and the
word “ZONE” will briefly appear and then the zone number will be dis-
played.
3. Press the right hand button repeatedly to cycle the display through
all possible zone settings. Stop cycling when the correct zone settingfor your location is displayed.
4. Releasing the button for 3 seconds will exit the zone setting mode.
Outside mirrors Convex mirror (Passenger side)
WARNING
Objects look smaller in a convex mirror and farther away than
when viewed in a flat mirror. Do not use the convex mirror tojudge the distance of vehicles behind you when changing lanes.
Use the inside mirror (or glance backwards) to determine theactual size and distance of objects that you view in convex mir-
ror.

Instruments and controls3-35
–
CONTINUED –
Adjusting mirrors
To adjust the mirrors by hand, push where indicated by the arrows.
OM-H2737
Remote control mirror switch (if equipped)
The remote control mirrors operate only when the ignition switch is in the “ON” or “ACC” position.
HB4004BB
1. Press either end of the selection switch, “L” for the left, “R” for the
right.
2. Move the direction control switch in the direction you want to move
the mirror.
3. Return the selection switch to the neutral position to prevent
unintentional operation.
The mirrors can also be adjusted manually.

3-36
Outside mirror defogger (if equipped) CAUTION
To prevent the battery from being discharged, do not operate the
defogger continuously for any longer than necessary.
The outside mirror defogger operates only when the ignition switch isin the “ON” or “ACC” position.
HB4004CB
To turn on the outside mirror defogger, push the switch while the en- gine is running.The indicator light located on the switch will come on when the out-
side mirror defogger heater in operation.
To turn it off, push the switch again.
Tilt steering wheel
WARNING
Do not adjust the steering wheel tilt position while driving. This
may cause loss of vehicle control and result in personal injury.

Instruments and controls3-37
–
CONTINUED –

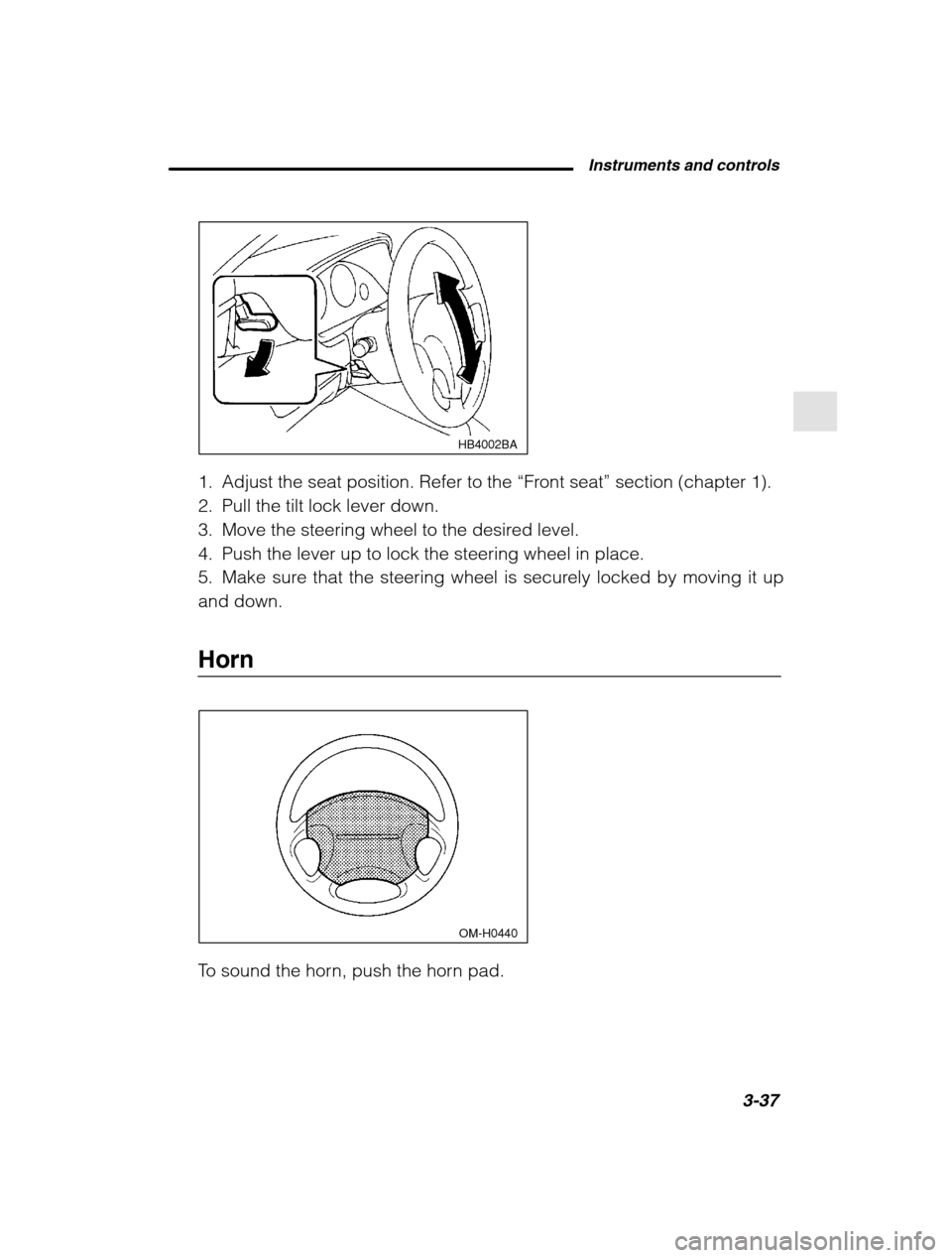

HB4002BA
1. Adjust the seat position. Refer to the “Front seat ” section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Push the lever up to lock the steering wheel in place.
5. Make sure that the steering wheel is securely locked by moving it upand down.
Horn
OM-H0440
To sound the horn, push the horn pad.

4
Climate control
Ventilator4-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual heating and air conditioning system 4-4 . . . . . . . . . . . . . . . . . . . .
Heater operation 4-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioner operation 4-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic climate control system (if equipped) 4-12 . . . . . . . . . . . . . . .
Operating tips for heater and air conditioner 4-20 . . . . . . . . . . . . . . . . . . .
Air filtration system (if equipped) 4-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-2
VentilatorCenter and side ventilators
HB5001BB
Adjustable side defroster grille (for driver ’s side only)
HB5003BB
HB5002BB
Normal position
Side defroster grilleFin
Windshield defrost assist position
The driver ’s side defroster grille is adjustable. The normal position as
shown in the diagram directs warm air to the side glass. When more
rapid defrosting of the windshield is desired, the air flow can be
directed temporarily toward the windshield to assist the windshield
defroster. If this is done, the driver ’s side grille should always be
returned to its normal position so that the warm air flow can then be
used to defrost the driver ’s side window.
