2002 SUBARU LEGACY Owners Manual

In case of emergency9-25
–
CONTINUED –

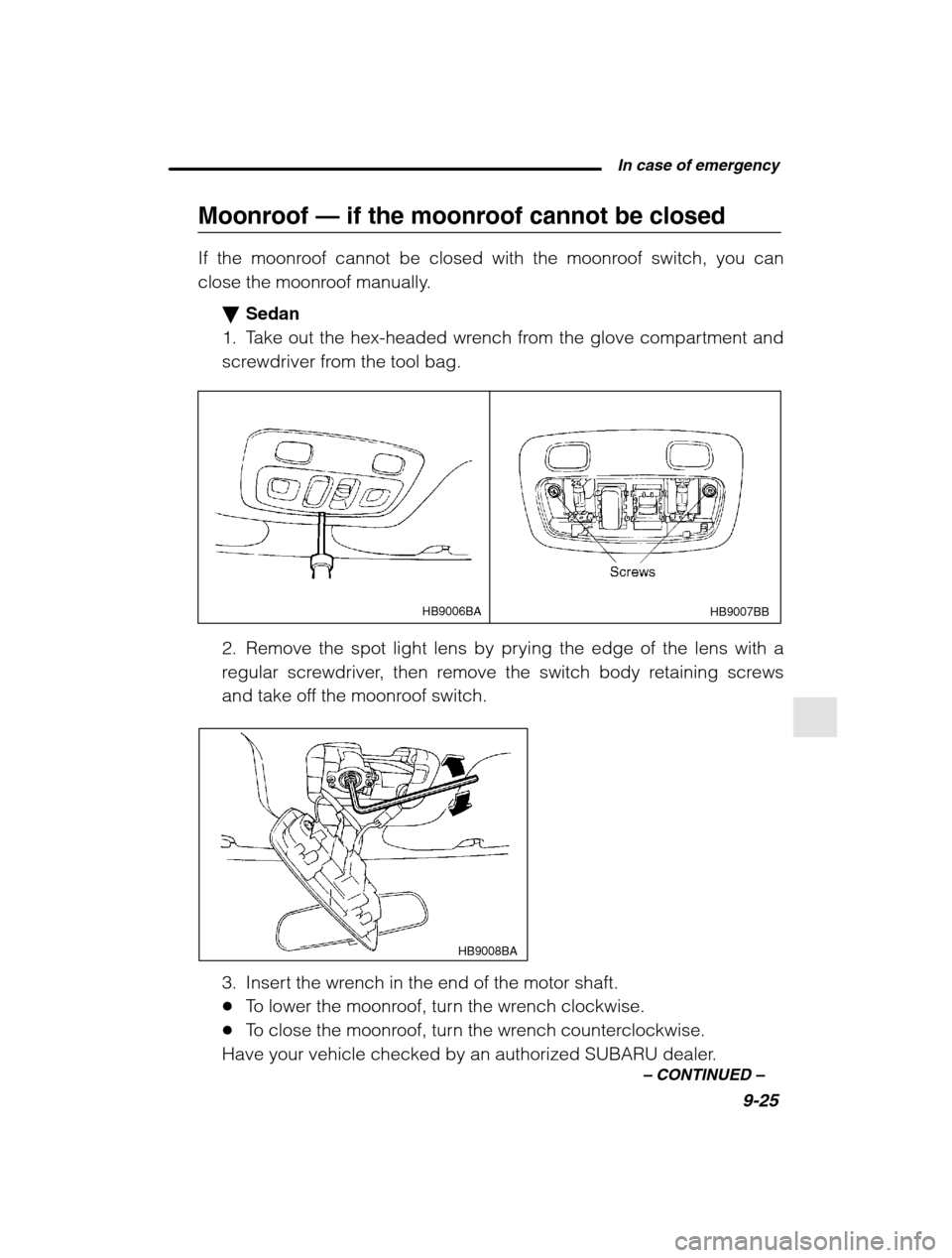

Moonroof — if the moonroof cannot be closed
If the moonroof cannot be closed with the moonroof switch, you can
close the moonroof manually. Sedan
1. Take out the hex-headed wrench from the glove compartment and
screwdriver from the tool bag.
HB9007BB
HB9006BA
2. Remove the spot light lens by prying the edge of the lens with a
regular screwdriver, then remove the switch body retaining screws
and take off the moonroof switch.
HB9008BA
3. Insert the wrench in the end of the motor shaft.
To lower the moonroof, turn the wrench clockwise.
To close the moonroof, turn the wrench counterclockwise.
Have your vehicle checked by an authorized SUBARU dealer.

9-26

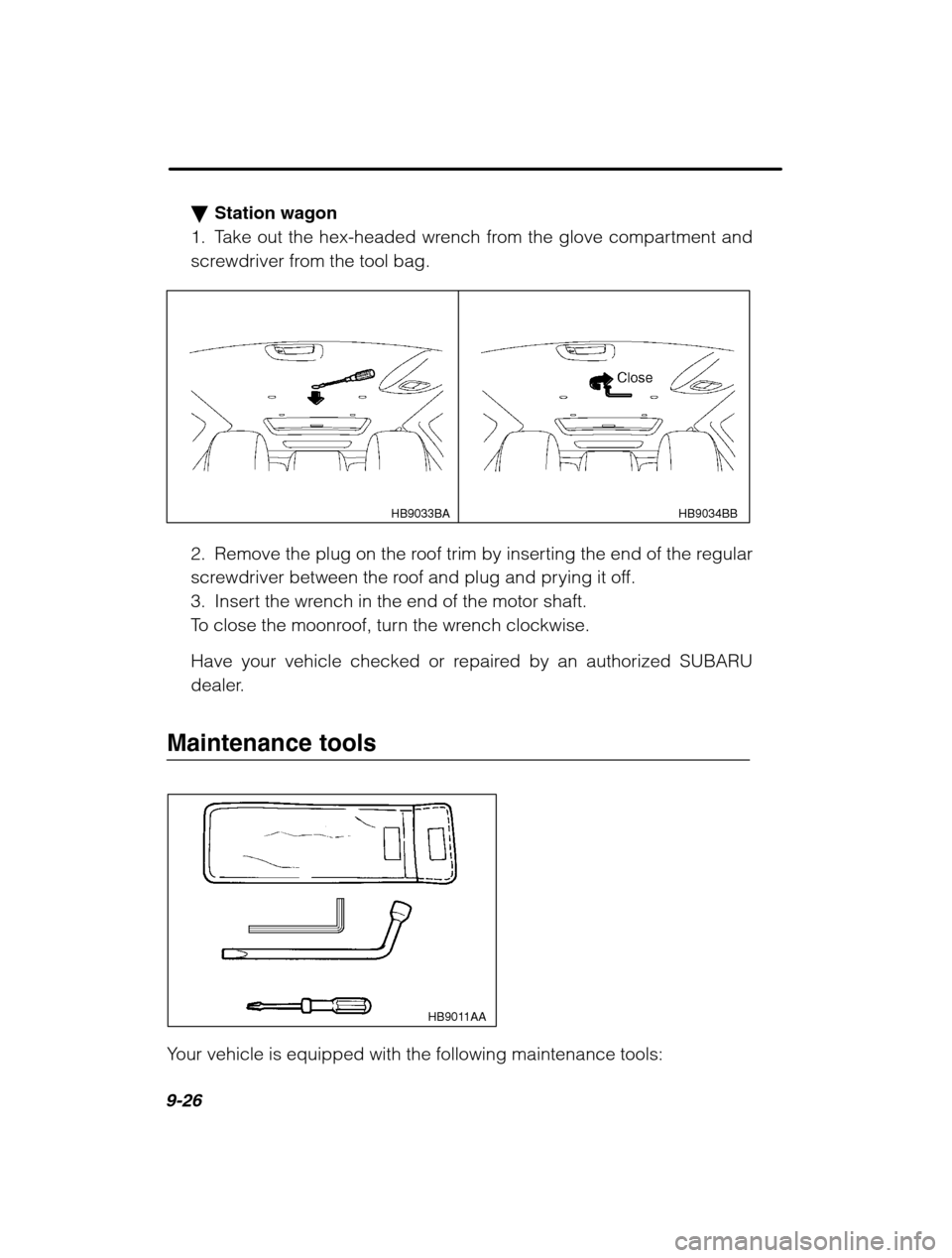

Station wagon
1. Take out the hex-headed wrench from the glove compartment and
screwdriver from the tool bag.
HB9034BB
HB9033BA
2. Remove the plug on the roof trim by inserting the end of the regular
screwdriver between the roof and plug and prying it off.
3. Insert the wrench in the end of the motor shaft.
To close the moonroof, turn the wrench clockwise.
Have your vehicle checked or repaired by an authorized SUBARU
dealer.
Maintenance tools
HB9011AA
Your vehicle is equipped with the following maintenance tools:

In case of emergency9-27
–
CONTINUED –
Screwdriver
Wheel nut wrench
Hex-headed wrench (for vehicles with moonroof)
Jack and jack handle
HB9001BA
HBF015CB
Jack handle
Jack
Spare tire
HB7008CA
HB8004BD
The jack is stored on the left side of the trunk or cargo area.
To take out the jack, turn the jackscrew counterclockwise to loosen it,
then remove the jack.
The jack handle is stored under the spare tire cover.
For how to use the jack, refer to “Flat tires ”.

10

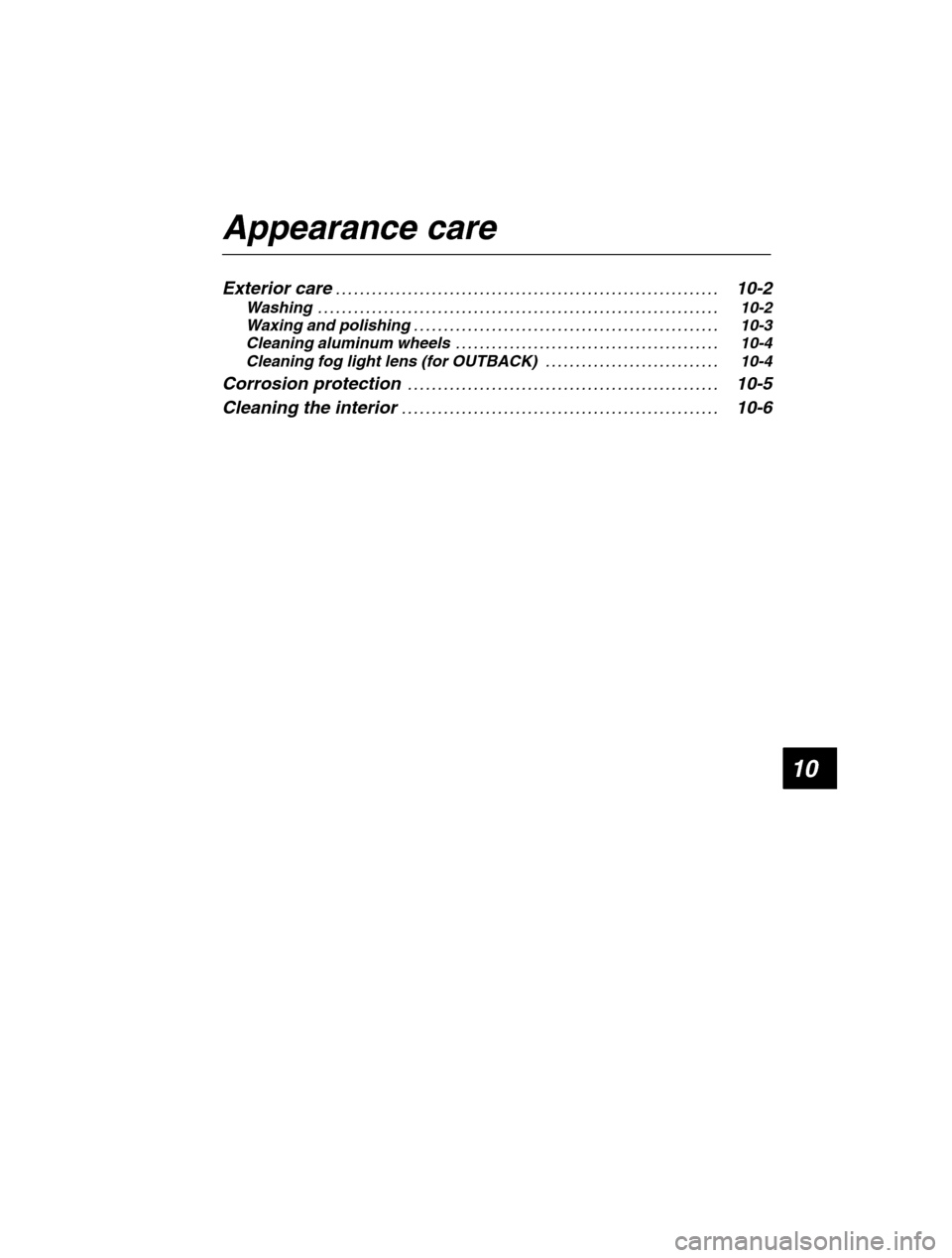

Appearance care Exterior care10-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing 10-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Waxing and polishing 10-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning aluminum wheels 10-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning fog light lens (for OUTBACK) 10-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Corrosion protection 10-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the interior 10-6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-2
Exterior care Washing
CAUTION
When washing the vehicle, the brakes may get wet. As a result,
the brake stopping distance will be longer. To dry the brakes, drive the vehicle at a safe speed while lightly pressing the brakepedal to heat up the brakes. Do not wash the engine compartment and areas adjacent to it.
If water enters the engine air intake, electrical parts or the power
steering fluid reservoir, it will cause engine trouble or faulty
power steering respectively.
The best way to preserve your vehicle ’s beauty is frequent washing.
Wash the vehicle at least once a month to avoid contamination by roadgrime.
Wash dirt off with a wet sponge and plenty of lukewarm or cold water. Do
not wash the vehicle with hot water and in direct sunlight.
Salt, chemicals, insects, tar, soot and bird droppings should be washed
off by using a light detergent, as required. If you use a light detergent,
make certain that it is a neutral detergent. Do not use strong soap or
chemical detergents. All cleaning agents should be promptly flushed
from the surface and not allowed to dry there. Rinse the vehicle thor-
oughly with plenty of lukewarm water. Wipe the remaining water off with a
chamois or soft cloth. NOTE When having your vehicle washed in an automatic car wash, make
sure beforehand that the car wash is of suitable type. If the vehicle
is equipped with a rear/roof spoiler, it may be damaged by car washbrushes or other equipment.

Appearance care10-3
–
CONTINUED –
Washing the underbody
Chemicals, salts and gravel used for deicing road surfaces are ex-
tremely corrosive, accelerating the corrosion of underbody compo-nents, such as the exhaust system, fuel and brake lines, brakecables, floor pan and fenders, and suspension.
Thoroughly flush the underbody and inside of the fenders with luke-
warm or cold water at frequent intervals to reduce the harmful effectsof such agents. Using a warm water washer
Keep a good distance of 12 in (30 cm) or more between the wash-
er nozzle and the vehicle. Do not wash the same area continuously.
If a stain will not come out easily, wash by hand. Some warm water
washers are of the high temperature, high pressure type, and they
can damage or deform the resin parts such as mouldings, or causewater to leak into the vehicle.
Waxing and polishing
Always wash and dry the vehicle before waxing and polishing.
Use a good quality polish and wax and apply them according to the
manufacturer’ s instructions. Wax or polish when the painted surface is
cool.
Be sure to polish and wax the chrome trim, as well as the painted sur-
faces. Loss of wax on a painted surface leads to loss of the original lus-
ter and also quickens the deterioration of the surface. It is recommendedthat a coat of wax be applied at least once a month, or whenever the
surface no longer repels water.
If the appearance of the paint has diminished to the point where the lus-
ter or tone cannot be restored, lightly polish the surface with a fine-
grained compound. Never polish just the affected area, but include the
surrounding area as well. Always polish in only one direction. A No. 2000
grain compound is recommended. Never use a coarse-grained com-
pound. Coarser grained compounds have a smaller grain-size numberand could damage the paint. After polishing with a compound, coat with

10-4
wax to restore the original luster. Frequent polishing with a compound or
an incorrect polishing technique will result in removing the paint layer
and exposing the undercoat. When in doubt, it is always best to contactyour SUBARU dealer or an auto paint specialist. Cleaning aluminum wheels
Promptly wipe the aluminum wheels clean of any kind of grime or
agent. If dirt is left on too long, it may be difficult to clean off. Do not use soap containing grit to clean the wheels. Be sure to use a
neutral cleaning agent, and later rinse thoroughly with water. Do not
clean the wheels with a stiff brush or expose them to a high-speed wash-ing device. Clean the vehicle (including the aluminum wheels) with water as soon
as possible when it has been splashed with sea water, exposed to sea
breezes, or driven on roads treated with salt or other agents. Cleaning fog light lens (for OUTBACK)
HBA017BB
1. Stop the vehicle in a safe place.
2. Stop the engine and turn off the fog lights.
3. Check that the fog lights are not hot. Then, grasp the protector and
turn it approximately 10 ° counter-clockwise.
4. Pull the protector off the fog light.
5. Wash the lens with water.
6. Apply the protector to the lens at an angle of approximately 10 ° from

Appearance care10-5
–
CONTINUED –
the fog light’s horizontal center line. Then, turn the protector clockwise
until it stops. Finally, check that the protector ’s horizontal bars are parallel
with the fog light ’s horizontal center line.

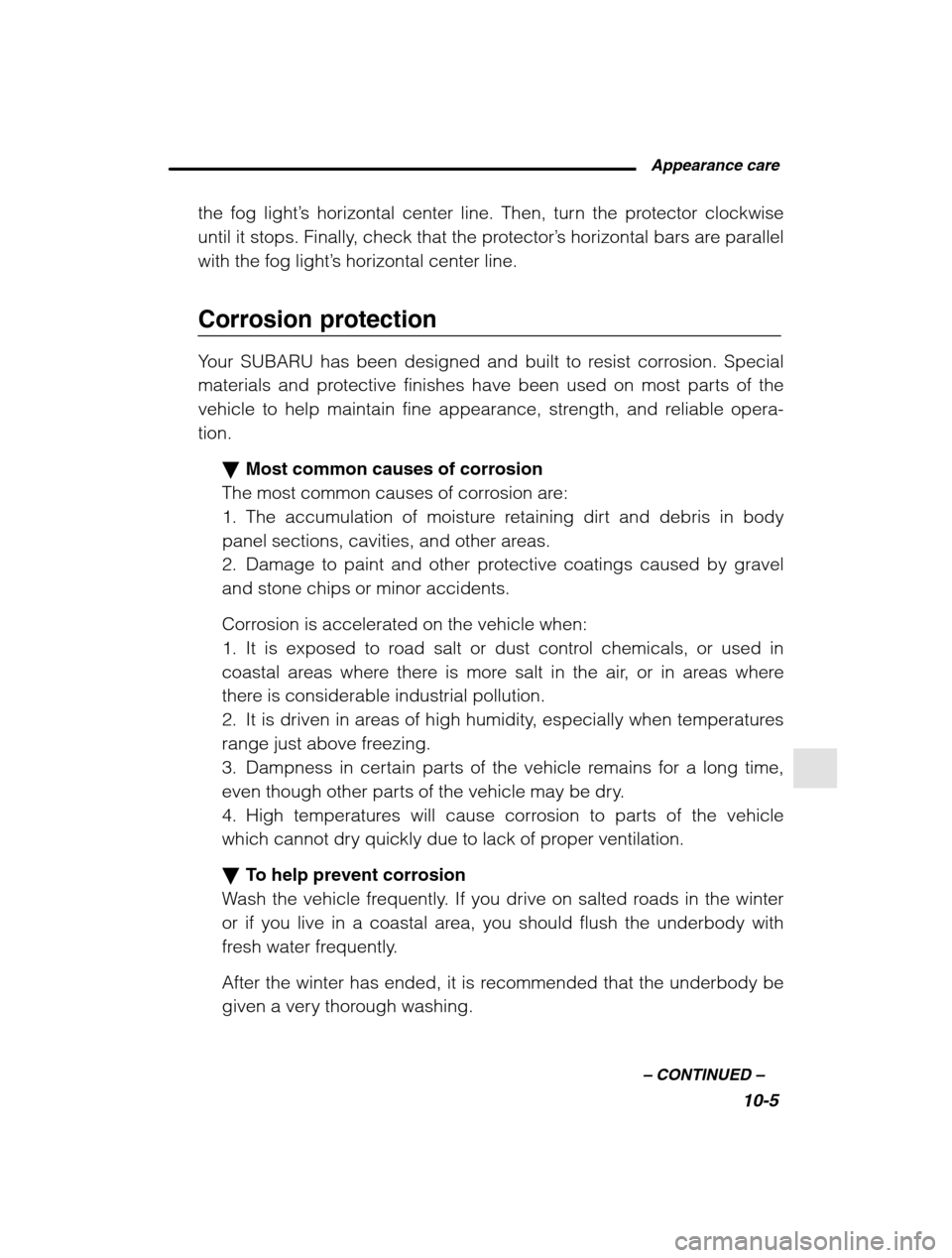

Corrosion protection
Your SUBARU has been designed and built to resist corrosion. Special
materials and protective finishes have been used on most parts of the
vehicle to help maintain fine appearance, strength, and reliable opera-tion. Most common causes of corrosion
The most common causes of corrosion are:
1. The accumulation of moisture retaining dirt and debris in body
panel sections, cavities, and other areas.
2. Damage to paint and other protective coatings caused by graveland stone chips or minor accidents.
Corrosion is accelerated on the vehicle when:
1. It is exposed to road salt or dust control chemicals, or used in
coastal areas where there is more salt in the air, or in areas where
there is considerable industrial pollution.
2. It is driven in areas of high humidity, especially when temperatures
range just above freezing.
3. Dampness in certain parts of the vehicle remains for a long time,
even though other parts of the vehicle may be dry.
4. High temperatures will cause corrosion to parts of the vehicle
which cannot dry quickly due to lack of proper ventilation. To help prevent corrosion
Wash the vehicle frequently. If you drive on salted roads in the winter
or if you live in a coastal area, you should flush the underbody with
fresh water frequently.
After the winter has ended, it is recommended that the underbody be
given a very thorough washing.
