When it is necessary to reduce vehicle speed due to slow traffic, turn-
ing corners, or driving up steep hills, downshift to a lower gear before
the engine starts to labor.
On steep downgrades, downshift the transmission to 4th, 3rd or 2nd
gear as necessary; this helps to maintain a safe speed and to extendbrake pad life.
In this way, the engine provides a braking effect. Remember, if you
“ride” (over use) the brakes while descending a hill, they may over-
heat and not work properly.
Automatic transmission
WARNING
Do not shift from the “P” or “N” position into the “D”, “3”, “2”,
“1” or “R” position while depressing the accelerator pedal. This
may cause the vehicle to jump forward or backward.
CAUTION
Shift into the “P” or “R” position only after the vehicle is com-
pletely stopped. Shifting while the vehicle is moving may cause
damage to the transmission. Do not race the engine for more than five seconds in any posi-
tion except the “N” or “P” position when the brake is set or the
tires are on blocks. This may cause the automatic transmissionfluid to overheat. Avoid shifting from one of the forward driving positions into
the “R” position or vice versa until the vehicle has completely
stopped. Such shifting may cause damage to the transmission.
The automatic transmission is electronically controlled with 4-forward
speeds and 1-reverse speed.

Starting and operating7-15
–
CONTINUED –
NOTE
Immediately after a disconnected battery is reconnected or ATF (au- tomatic transmission fluid) is replaced, you may feel that the auto-matic transmission operation is somewhat unusual.This results from erasure or invalidation of data the on-board com-puter has collected and stored in memory to allow the transmissionto shift at the most appropriate times for the current condition ofyour vehicle. Optimized shifting will be restored as the vehicle con-tinues to be driven for a while. Selector lever for automatic transmission
HB7021BB
HB7010AA
The selector lever has seven positions.
P (Park)
This position is for parking the vehicle and starting the engine.
In this position, the transmission is mechanically locked to prevent the
vehicle from rolling freely.
When you park the vehicle, first set the parking brake fully, then shift
into the “P” position. Do not hold the vehicle with only the transmis-
sion. A shift interlock function is employed in the automatic transmission
system to ensure safe starting of the vehicle.

7-16
To shift the selector lever from the “P” to the any other position, you
have to depress the brake pedal fully when the ignition switch is in the
“ON” position. This prevents the vehicle from lurching when it is
started.
If the shift lever does not move from the “P” position with the brake
pedal depressed, refer to the “Shift lock release ” section in this chap-
ter. R (Reverse)
This position is for backing the vehicle.
To shift from the “N” to “R” position, first stop the vehicle completely
then move the lever to the “R” position.
N (Neutral)
WARNING
Do not drive the vehicle with the selector lever in the “N” (neutral)
position. Engine braking has no effect in this condition and the risk of an accident is consequently increased.
This position is for restarting a stalled engine.
In this position the wheels and transmission are not locked. In this
position, the transmission is neutral; the vehicle will roll freely, even onthe slightest incline unless the parking brake or foot brake is on. D (Drive)
This position is for normal driving.
The transmission automatically shifts into a suitable gear from 1st to
4th according to the vehicle speed and the acceleration you require.
When more acceleration is required in this position, press the acceler- ator pedal fully to the floor and hold that position. The transmission
will automatically downshift to 3rd, 2nd or 1st gear. When you release
the pedal, the transmission will return to the original gear position. n While climbing a grade
When driving up a hill, undesired upshift to 4th gear is prevented from

Starting and operating7-17
–
CONTINUED –
taking place when the accelerator is released. This minimizes the
chance of subsequent downshifting to a lower gear when accelerat-
ing again. This prevents repeated upshifting and downshifting result-ing in a smoother operation of the vehicle. NOTE
The transmission may downshift to 2nd or 1st gear, depending on the way the accelerator pedal is pressed to accelerate the vehicleagain. nWhile going down a hill
When descending a steep hill, depressing the brake pedal will cause
the transmission to downshift to 3rd gear, thus applying engine brak-
ing. Reacceleration for a short time will cause the transmission to up-
shift normally. NOTE In some cases, depressing the brake pedal on a downhill grade
does not result in an automatic downshift to 3rd gear. This canhappen when the automatic transmission fluid temperature is
very low, for example, during driving shortly after the vehicle has
been parked for an extended period of time. When the ATF tem-perature has risen to a certain level, automatic downshift normal-ly takes place. In the meantime, downshift manually for enginebraking as required.Also, downshifting when braking downhill will not occur at
speeds above approximately 50 mph (80 km/h). 3 (Third)
This position is for using engine braking when going down a hill or for
climbing a grade.
The transmission automatically shifts into a suitable gear from 1st to
3rd according to the vehicle speed and the acceleration you require.
When more acceleration is required in this position, press the acceler- ator pedal fully to the floor and hold that position. The transmission
will automatically downshift to 2nd or 1st gear. When you release the
pedal, the transmission will return to the original gear position.

7-18

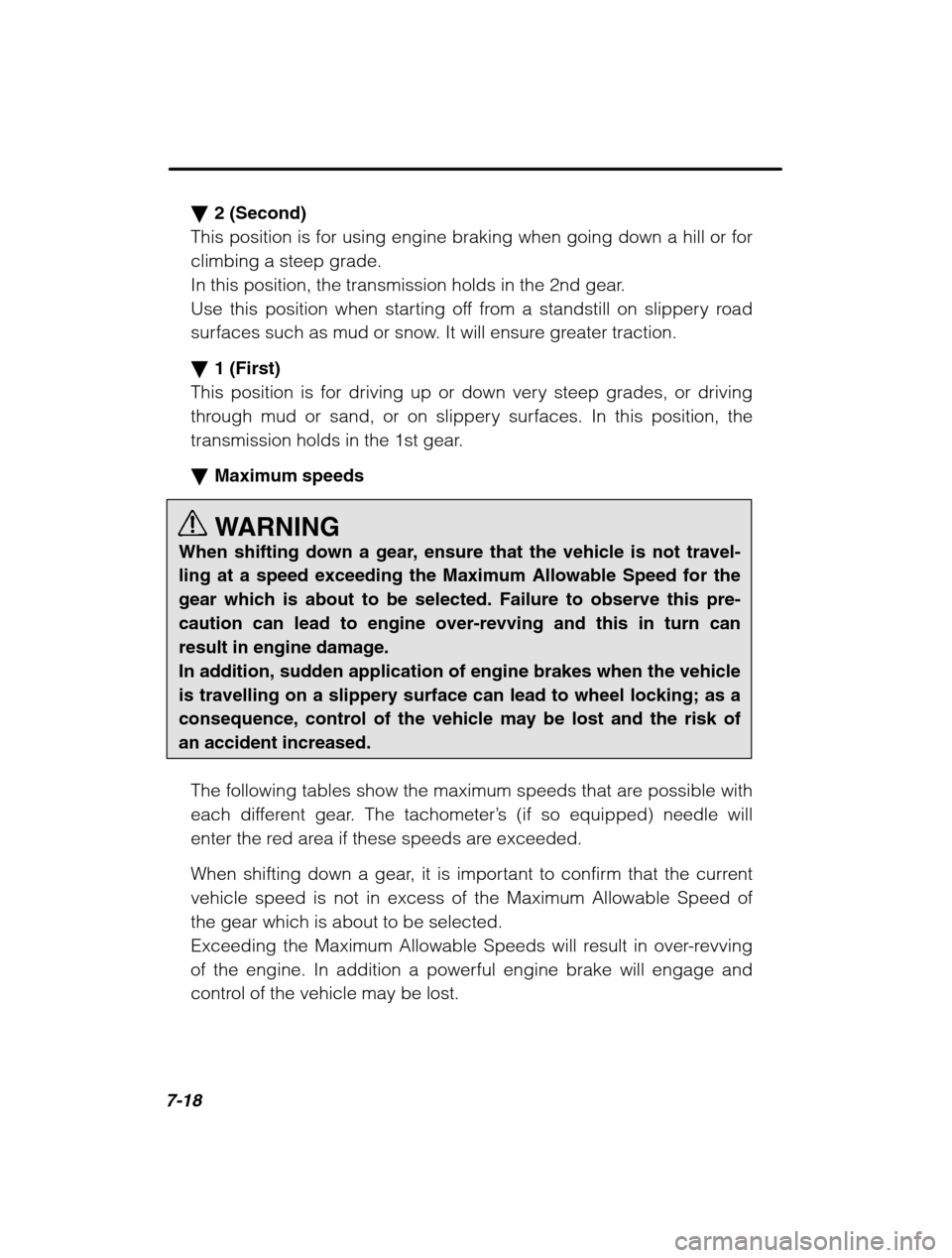

2 (Second)
This position is for using engine braking when going down a hill or for
climbing a steep grade.
In this position, the transmission holds in the 2nd gear.
Use this position when starting off from a standstill on slippery road
surfaces such as mud or snow. It will ensure greater traction. 1 (First)
This position is for driving up or down very steep grades, or driving
through mud or sand, or on slippery surfaces. In this position, the
transmission holds in the 1st gear. Maximum speeds
WARNING
When shifting down a gear, ensure that the vehicle is not travel- ling at a speed exceeding the Maximum Allowable Speed for thegear which is about to be selected. Failure to observe this pre-caution can lead to engine over-revving and this in turn canresult in engine damage.In addition, sudden application of engine brakes when the vehicleis travelling on a slippery surface can lead to wheel locking; as a
consequence, control of the vehicle may be lost and the risk ofan accident increased.
The following tables show the maximum speeds that are possible with
each different gear. The tachometer ’s (if so equipped) needle will
enter the red area if these speeds are exceeded.
When shifting down a gear, it is important to confirm that the current
vehicle speed is not in excess of the Maximum Allowable Speed ofthe gear which is about to be selected.
Exceeding the Maximum Allowable Speeds will result in over-revving
of the engine. In addition a powerful engine brake will engage and
control of the vehicle may be lost.

Starting and operating7-19
–
CONTINUED –

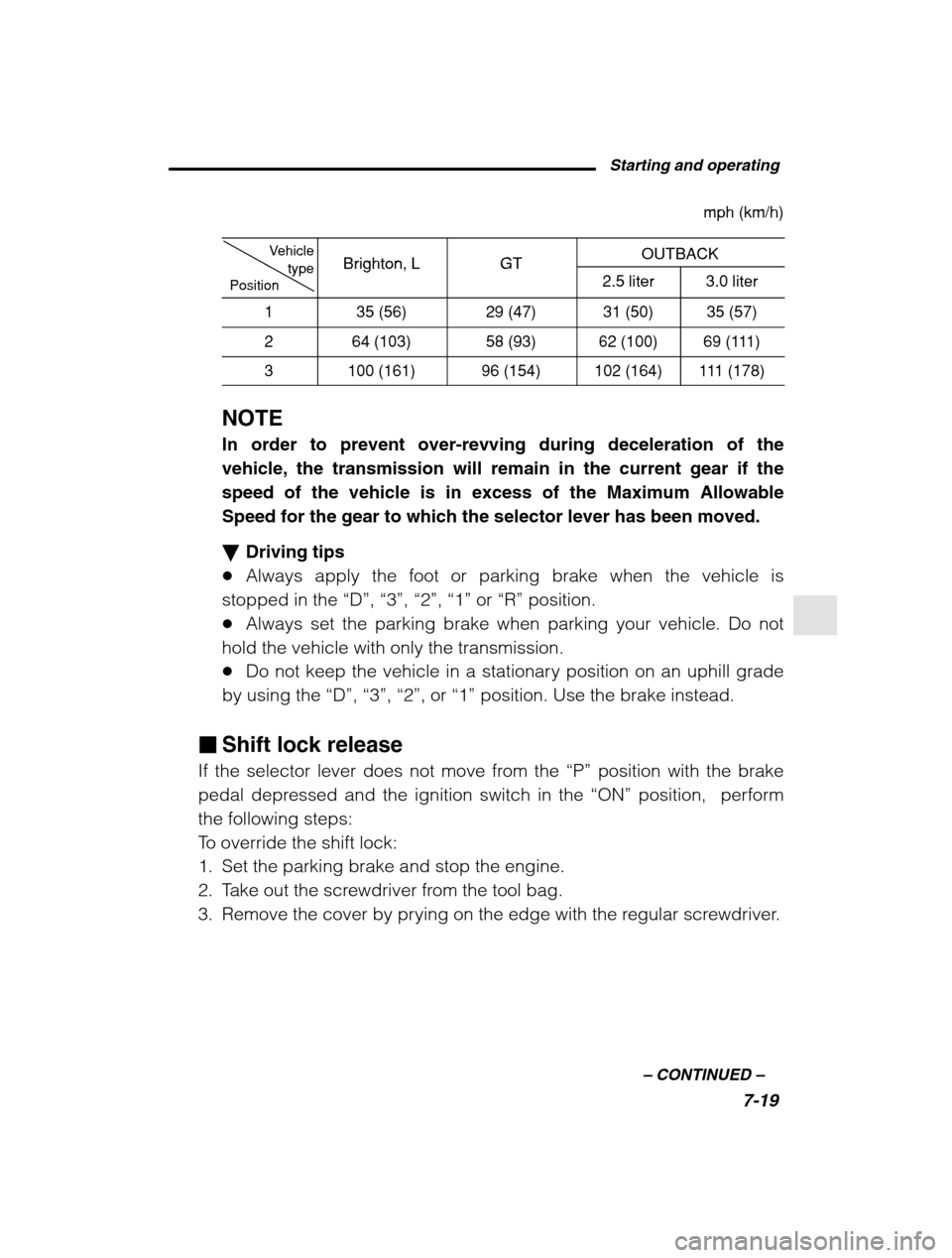

mph (km/h)
Vehicle
typeBrighton LGTOUTBACK
PositiontypeBrighton, LGT2.5 liter3.0 liter
135 (56)29 (47)31 (50)35 (57)
264 (103)58 (93)62 (100)69 (111)
3100 (161)96 (154)102 (164)111 (178)
NOTE In order to prevent over-revving during deceleration of the
vehicle, the transmission will remain in the current gear if thespeed of the vehicle is in excess of the Maximum AllowableSpeed for the gear to which the selector lever has been moved. Driving tips
Always apply the foot or parking brake when the vehicle is
stopped in the “D”, “3”, “2”, “1” or “R” position.
Always set the parking brake when parking your vehicle. Do not
hold the vehicle with only the transmission. Do not keep the vehicle in a stationary position on an uphill grade
by using the “D”, “3”, “2”, or “1” position. Use the brake instead.
Shift lock release
If the selector lever does not move from the “P” position with the brake
pedal depressed and the ignition switch in the “ON” position, perform
the following steps:
To override the shift lock:
1. Set the parking brake and stop the engine.
2. Take out the screwdriver from the tool bag.
3. Remove the cover by prying on the edge with the regular screwdriver.

7-20
HB7020BA
HB7010CA
4. Insert the screwdriver into the hole.
5. Push down on the screwdriver and move the selector lever from the“P” to the “N” position.
6. Remove the screwdriver from the hole. Depress the brake pedal and
start the engine.
Take your vehicle to the nearest SUBARU dealer immediately to have the
system repaired.
Rear viscous limited slip differential (LSD) (if equipped)
CAUTION
Never start the engine while a tire on one side is jacked up, as
the vehicle may move. If one rear tire is spinning in mud, avoid continued spinning at
high speed as this could adversely affect the LSD. If a different size rear tire is temporarily used (as in an emer-
gency), it will adversely affect the LSD. Always replace it with aregular size tire as soon as possible.
The LSD provides optimum distribution of power according to the differ-
ence in revolutions between the right and left rear wheels that may be
caused by certain driving conditions, thereby improving driving stability
on snow-covered, muddy or other slippery roads.

Starting and operating7-21
–
CONTINUED –
Power steering
CAUTION
Do not hold the steering wheel at the fully locked position left or right for more than five seconds. This may damage the powersteering pump.
The power steering system operates only when the engine is running.
If you lose power steering assist because the engine stops or the system
fails to function, you can steer but it will take much more effort. NOTE Right after the engine has been started and before it has warmed up, you may hear a noise coming from areas adjacent to the powersteering pump which is located at the right-front area of the enginecompartment. This noise is normal. It does not indicate power steer-ing system trouble. Braking Braking tips
WARNING
Never rest your foot on the brake pedal while driving. This can
cause dangerous overheating of the brakes and needless wearon the brake pads and linings.
When the brakes get wet
When driving in rain or after washing the vehicle, the brakes may get
wet. As a result, brake stopping distance will be longer. To dry the
brakes, drive the vehicle at a safe speed while lightly depressing thebrake pedal to heat up the brakes.
