2002 SUBARU LEGACY Owners Manual

6
Interior equipment Interior light6-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dome light 6-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo area light (if equipped) 6-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spotlight (if equipped) 6-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 6-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirror (if equipped) 6-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment 6-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove compartment 6-6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center console 6-6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coin tray 6-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead console (if equipped) 6-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder 6-8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter socket (if equipped) 6-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtray 6-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessory power socket 6-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convenience hook 6-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat (if equipped) 6-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover (if equipped) 6-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo anchorage eyelets (if equipped) 6-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage tray (if equipped) 6-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-2
Interior light Dome light
HS6003BC
The dome light switch has three positions: ON: The light stays on continuously.
DOOR (middle position): The light comes on when any of the doors (or
the rear gate on the wagon) is opened. The light remains on for several
seconds and gradually goes out after all doors (and the rear gate on the
wagon) are closed or if the key is inserted in the ignition switch.
The light also can be turned on by use of the keyless entry transmitter. See the “Keyless entry system ” in chapter 2 for detailed information.
OFF: The light stays off.
When leaving your vehicle, make sure the light goes out to avoid batterydischarge.

Interior equipment6-3
–
CONTINUED –

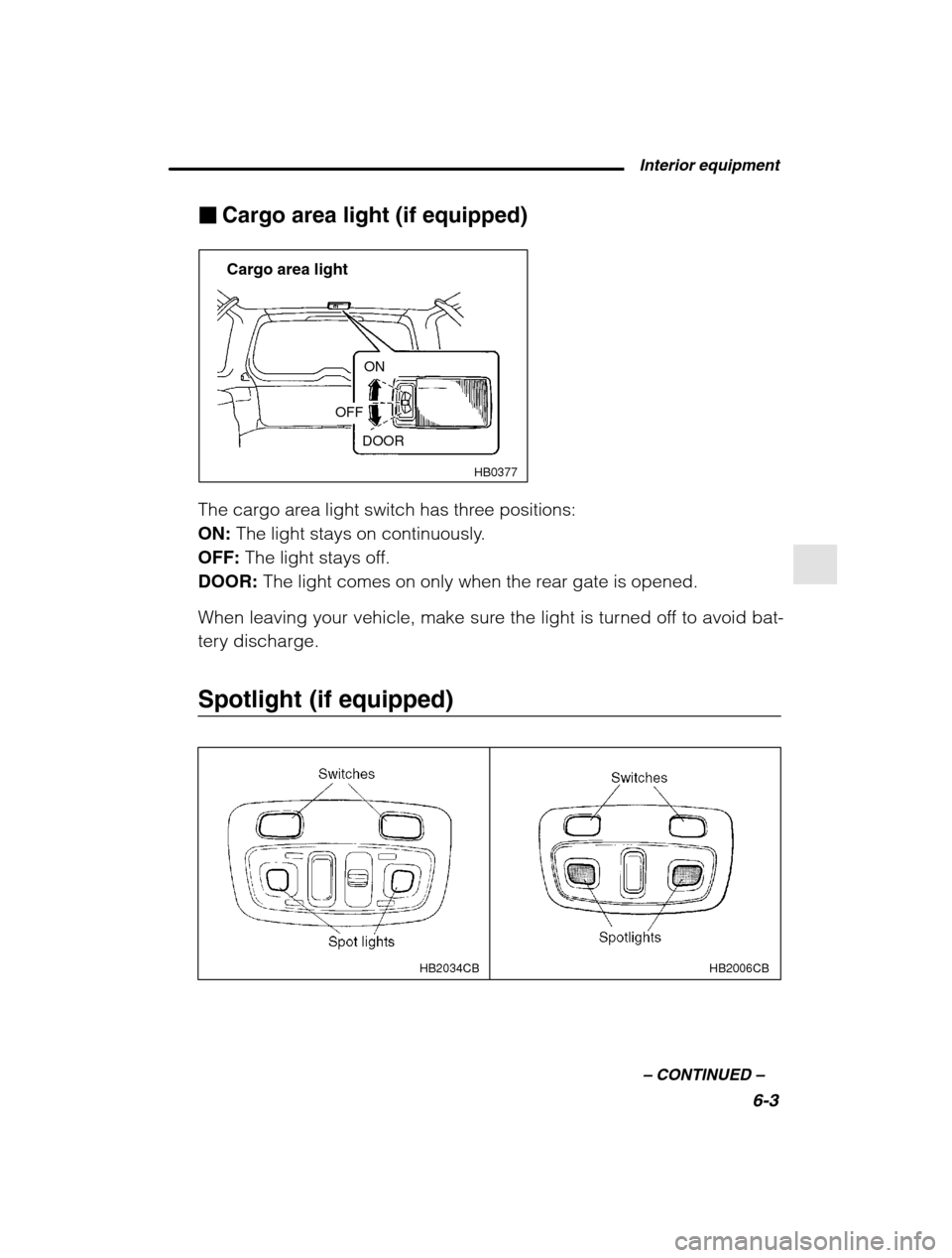

Cargo area light (if equipped)
HB0377
ON
DOOR
OFF
Cargo area light
The cargo area light switch has three positions: ON: The light stays on continuously.
OFF: The light stays off.
DOOR: The light comes on only when the rear gate is opened.
When leaving your vehicle, make sure the light is turned off to avoid bat-
tery discharge.
Spotlight (if equipped)
HB2006CB
HB2034CB

6-4

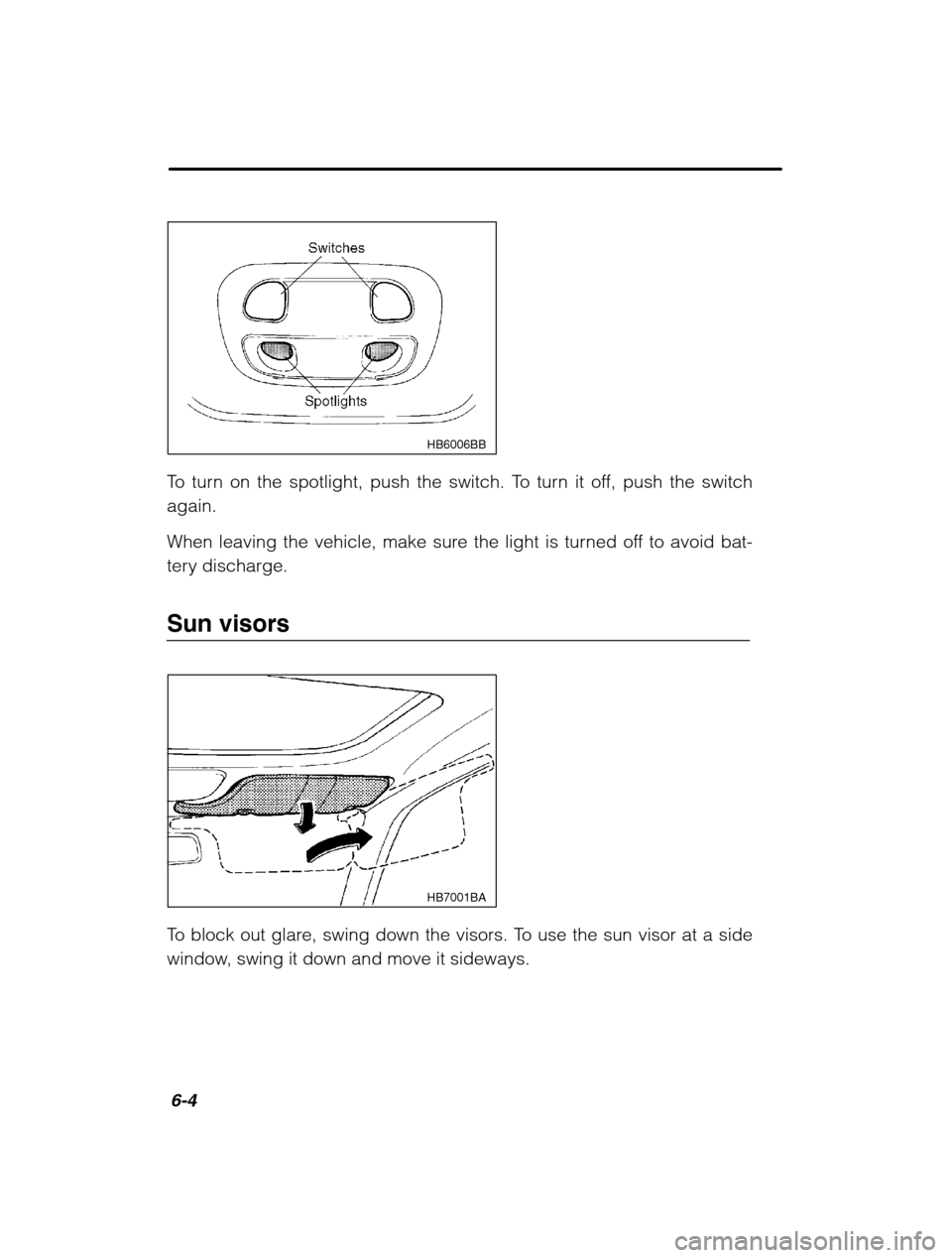

HB6006BB
To turn on the spotlight, push the switch. To turn it off, push the switch again.
When leaving the vehicle, make sure the light is turned off to avoid bat-
tery discharge.
Sun visors
HB7001BA
To block out glare, swing down the visors. To use the sun visor at a side
window, swing it down and move it sideways.

Interior equipment6-5
–
CONTINUED –

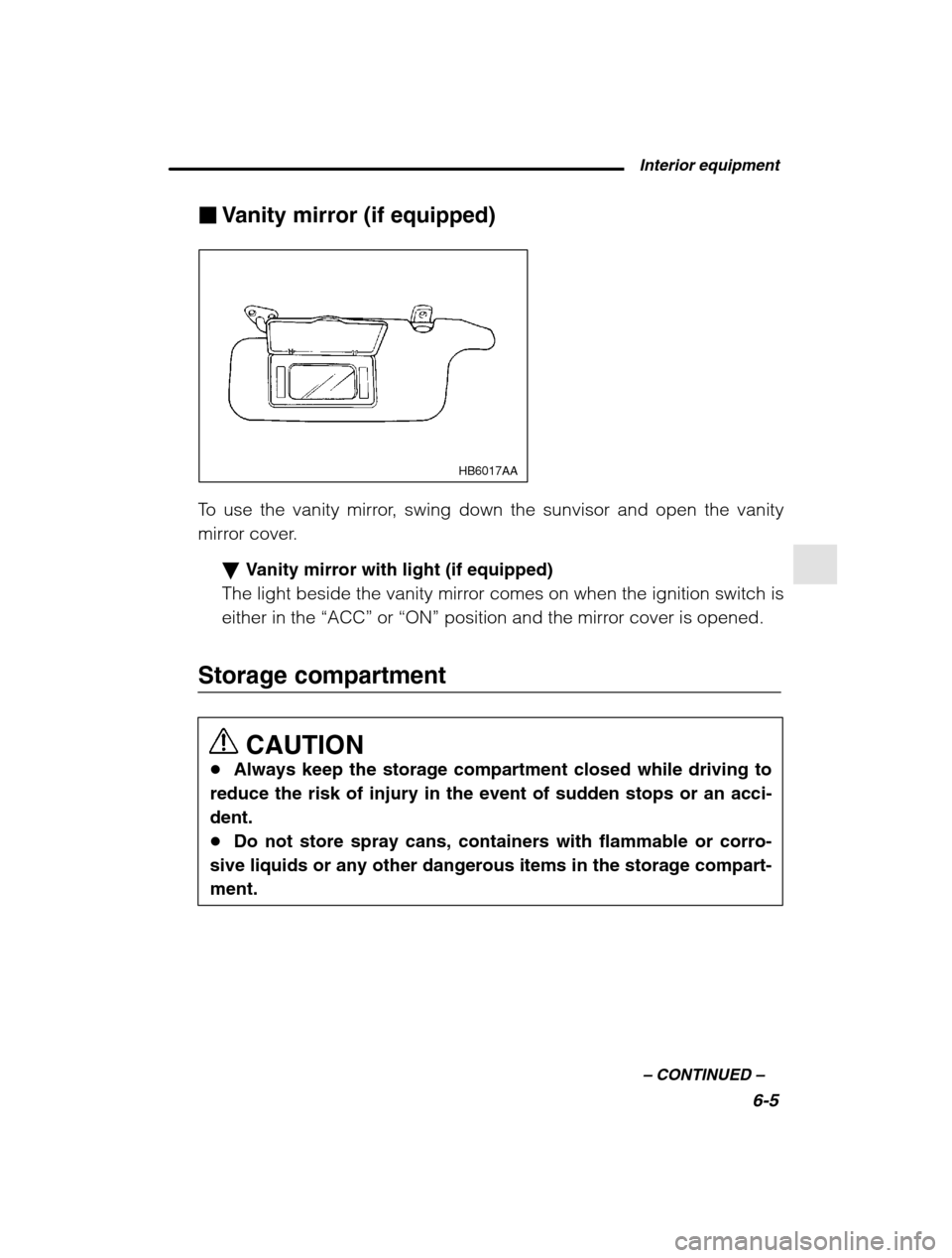

Vanity mirror (if equipped)
HB6017AA
To use the vanity mirror, swing down the sunvisor and open the vanity
mirror cover. Vanity mirror with light (if equipped)
The light beside the vanity mirror comes on when the ignition switch is
either in the “ACC” or “ON” position and the mirror cover is opened.
Storage compartment
CAUTION
Always keep the storage compartment closed while driving to
reduce the risk of injury in the event of sudden stops or an acci-dent. Do not store spray cans, containers with flammable or corro-
sive liquids or any other dangerous items in the storage compart-ment.

6-6
Glove compartment
HS0090
Unlock
Lock
To open the glove compartment, pull the handle. To close it, push the lid
firmly upward.
To lock the glove compartment, insert the key and turn it clockwise. Center console
HB6022BA
To open the lid, pull up the lock release.
If the console lid is fully opened when a large cup is put in the rear pas-
senger’ s cup holder, the lid may hit the cup and beverage may be
spilled.

Interior equipment6-7
–
CONTINUED –

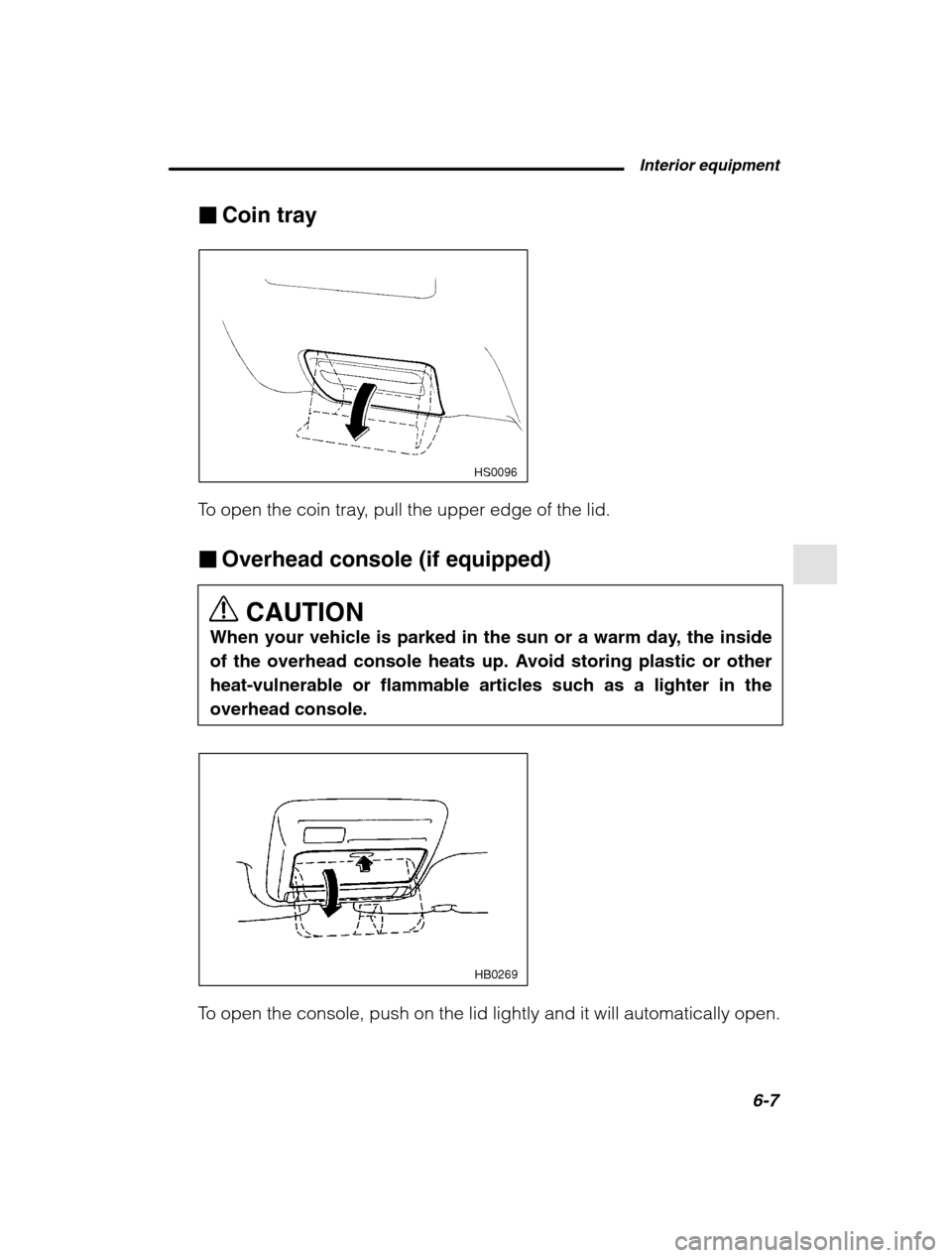

Coin tray
HS0096
To open the coin tray, pull the upper edge of the lid. Overhead console (if equipped)
CAUTION
When your vehicle is parked in the sun or a warm day, the inside
of the overhead console heats up. Avoid storing plastic or other
heat-vulnerable or flammable articles such as a lighter in theoverhead console.
HB0269
To open the console, push on the lid lightly and it will automatically open.

6-8
Cup holderCAUTION
Do not pick up a cup from the cup holder or put a cup in the
holder while you are driving, as this may distract you and lead to an accident. Take care to avoid spills. Beverages, if hot, might burn you or
your passengers. Spilled beverages may also damage upholstery,carpets or audio equipment.
Front cup holder
HB6023BA
A dual cup holder is built in the center console, beside the parking
brake lever.
