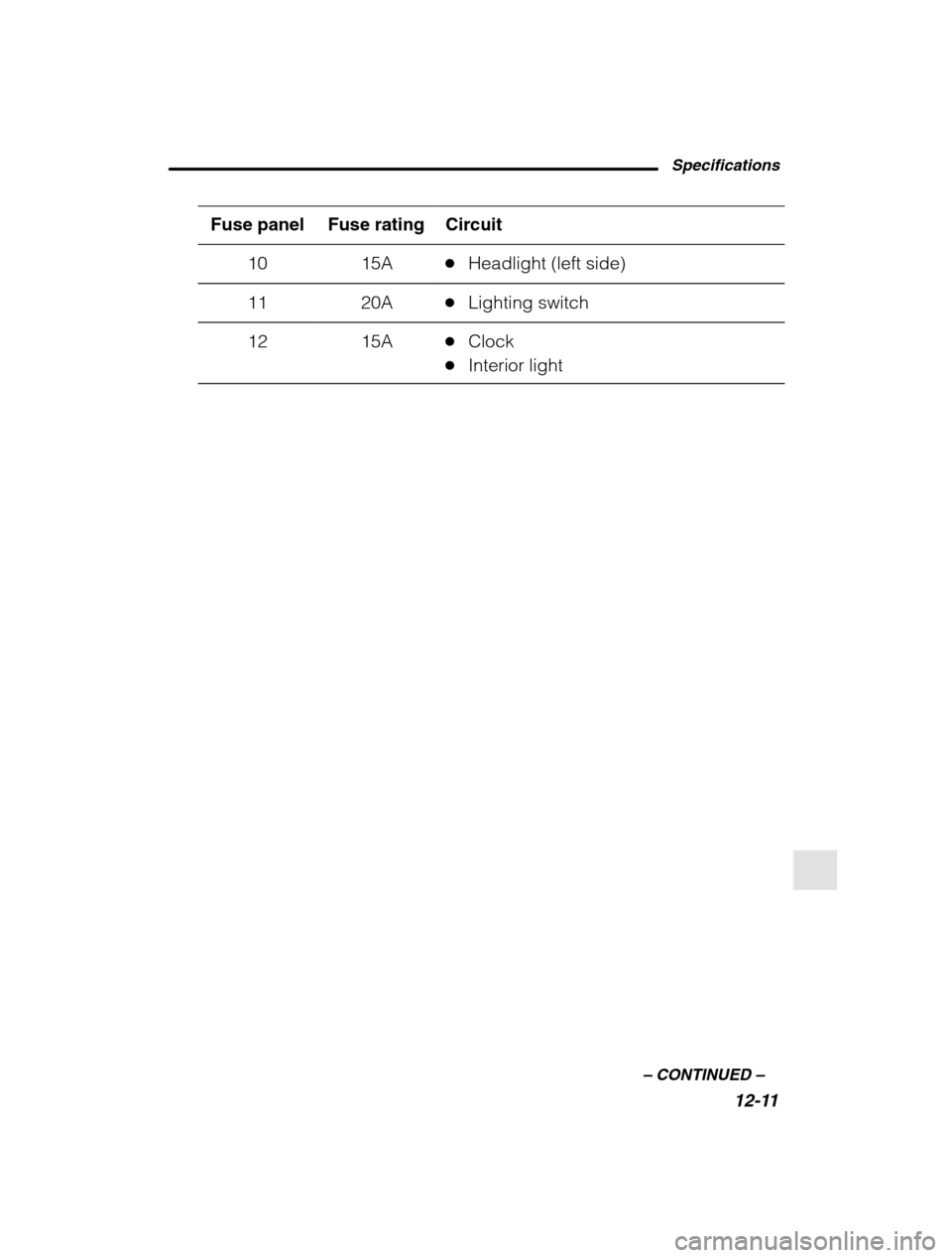

Specifications12-11
–
CONTINUED –
Fuse panel Circuit Fuse rating
1015AHeadlight (left side)
1120ALighting switch
1215AClock
Interior light

12-12
3.0 liter models
HBC004BC
Fuse panelFuse ratingCircuit
130ARadiator cooling fan (Main)
230ARadiator cooling fan (Sub)
350AABS (VDC) motor
430AMcIntosh audio amp (if equipped)
520ARear window defogger
615AHazard warning flasher
Horn
715AMeter
SRS airbag system warning light
810AAutomatic transmission control unit
ABS UNIT
910AAlternator
1015AHeadlight (right side)

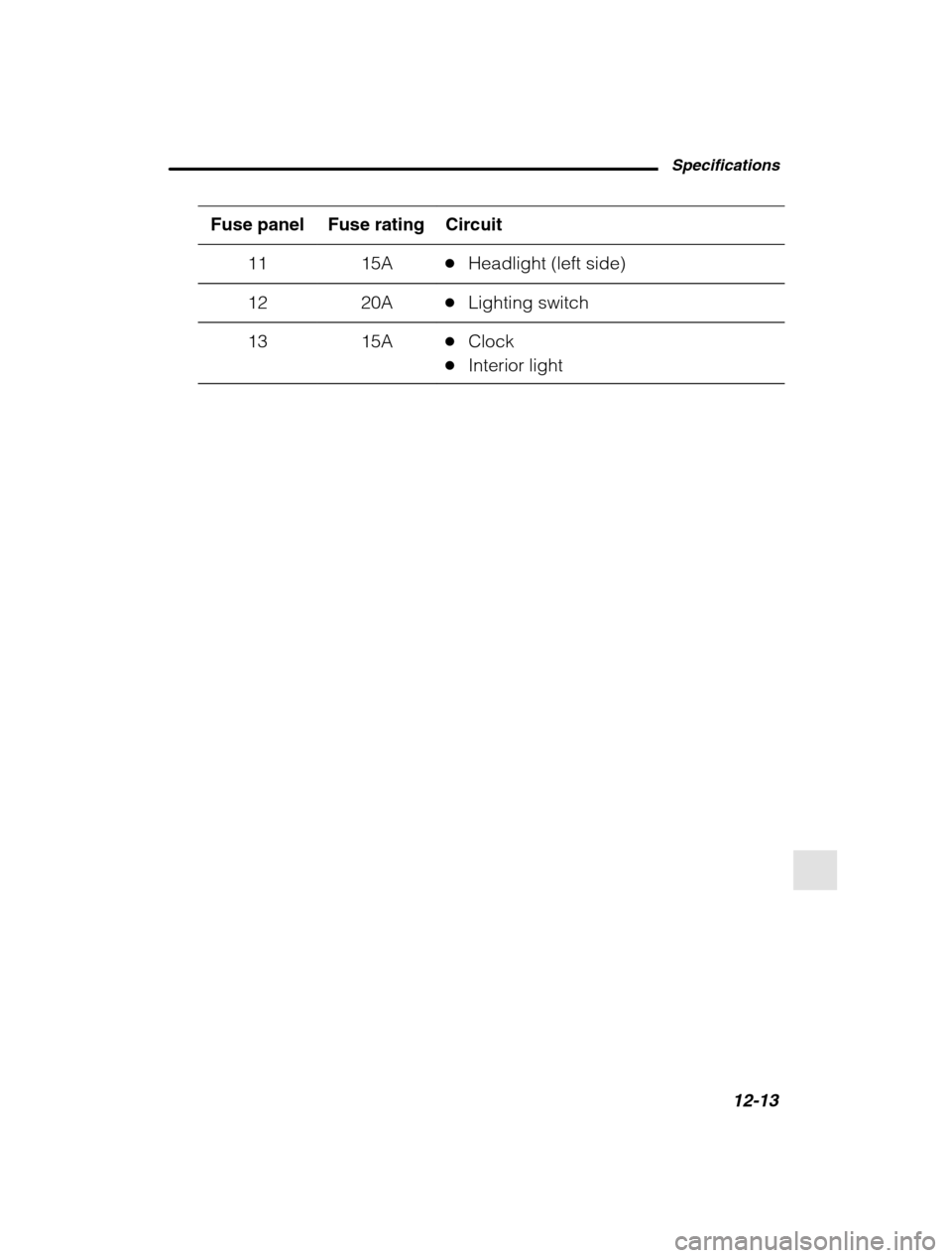

Specifications12-13
–
CONTINUED –
Fuse panel Circuit Fuse rating
1115AHeadlight (left side)
1220ALighting switch
1315AClock
Interior light

12-14
Bulb chartWattage Bulb No.
Headlight GT and OUTBACK
Low beam 12V –55W H1
High beam 12V –60W 9005 (HB3)
Except GT and OUTBACK 12V –60/55W 9007 (HB5)
Front turn signal 12V –27W 1156NA (Amber)
Spot light 12V –8W —
Dome light 12V –8W —
Door step light 12V –3.4W —
Parking and front side marker light 12V –27/8W 1157NA (Amber)
Front fog light Except OUTBACK 12V –55W H3
OUTBACK 12V– 51W 9006 (HB4)
Backup light
Sedan 12V–27W 3156K
Station wagon 12V –27W 1156
Luggage area light 12V –13W —
High mount stop light
Sedan 12V–18W 921
Station wagon 12V –13W 912
Rear turn signal light Sedan 12V–21W —
Station wagon 12V –21W R2172 7440
Brake/tail light
Sedan 12V–27/8W 3157K
Station wagon 12V –27/8W 1157
Licence plate light Sedan 12V–5W 168
Station wagon 12V –3.8W or 5W 194 or 168
Trunk room light 12V –5W W5W

Specifications12-15
–
CONTINUED –

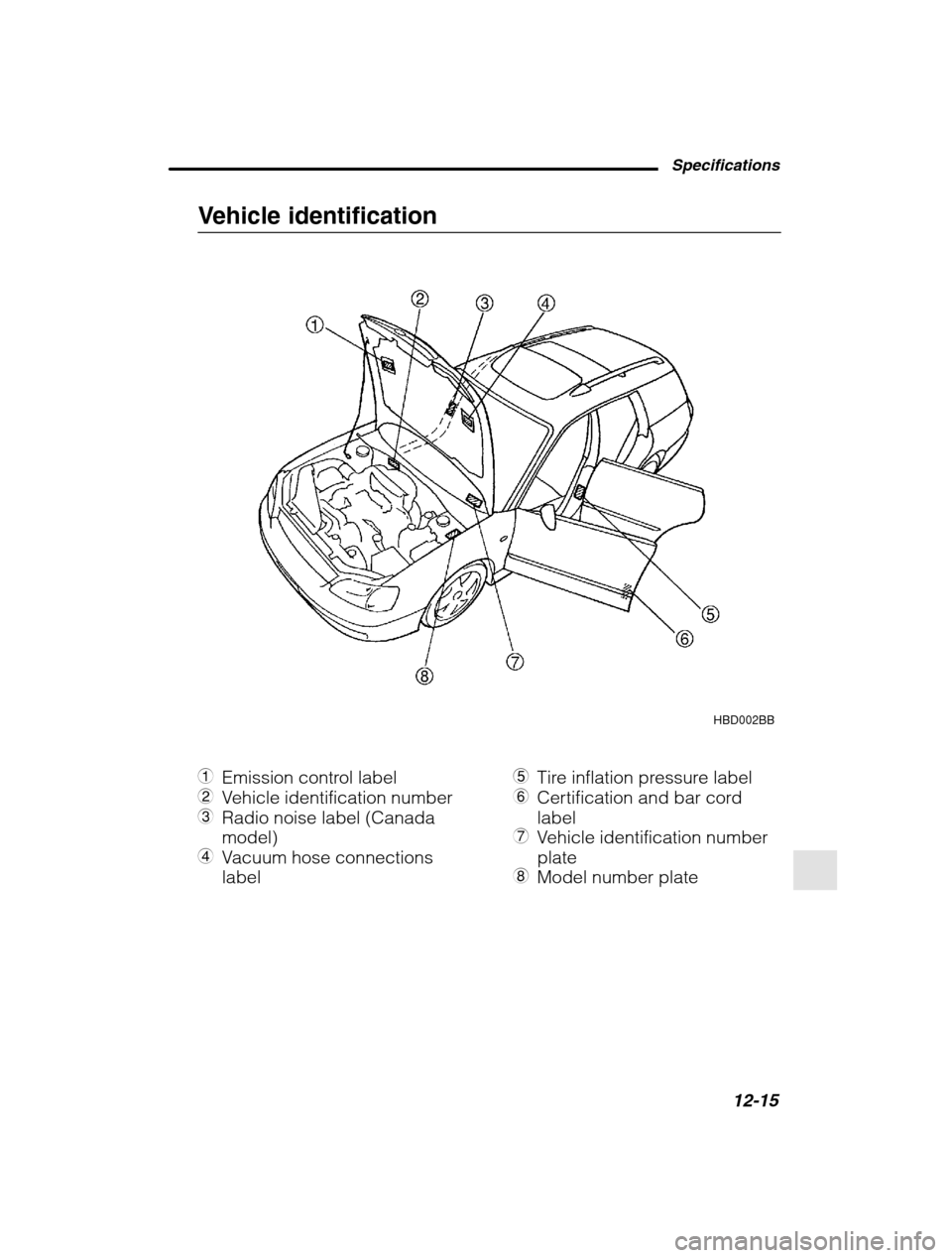

Vehicle identification
HBD002BB
1 Emission control label
2 Vehicle identification number
3 Radio noise label (Canada model)
4 Vacuum hose connectionslabel 5
Tire inflation pressure label
6 Certification and bar cordlabel
7 Vehicle identification numberplate
8 Model number plate

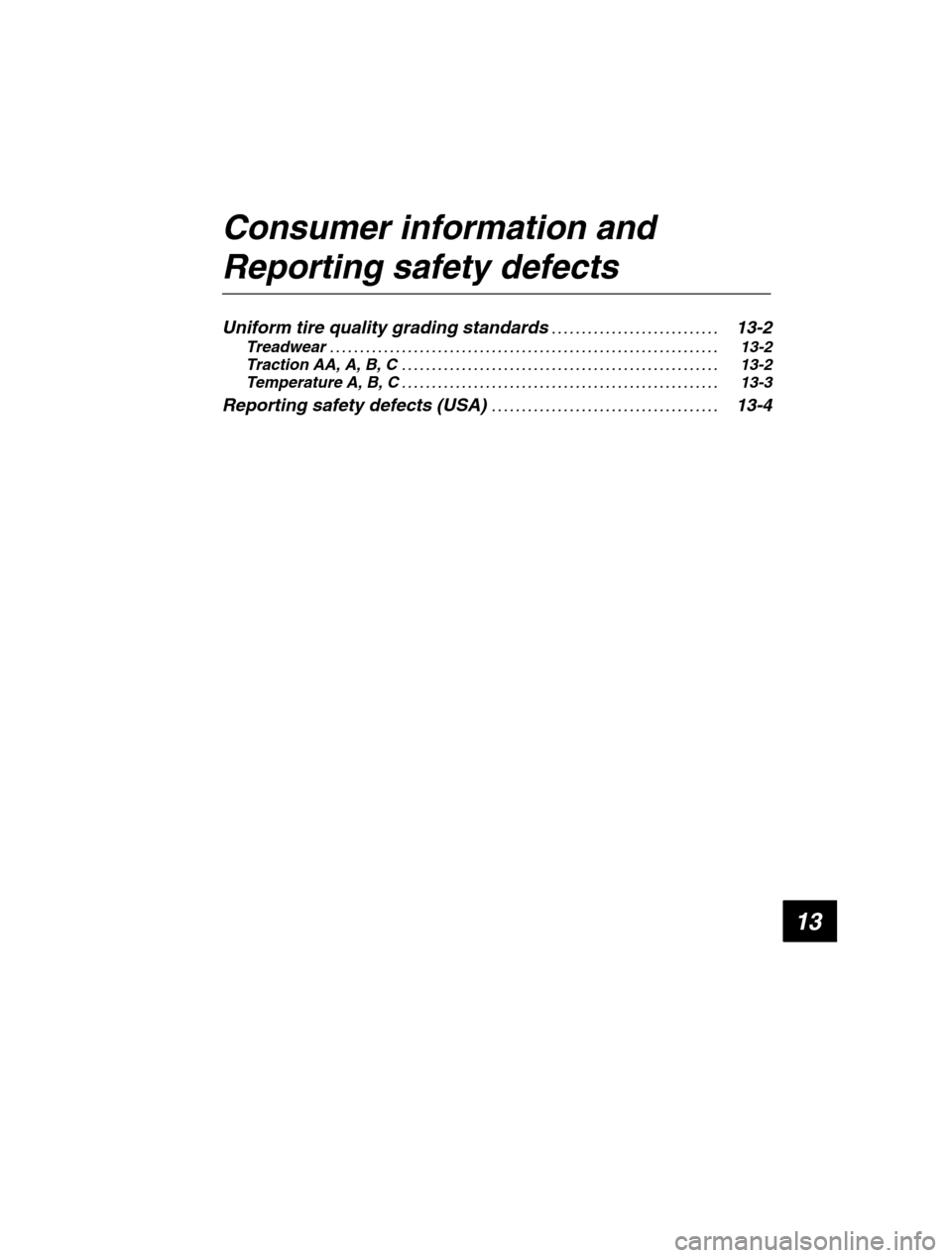

13
Consumer information and Reporting safety defects
Uniform tire quality grading standards 13-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Treadwear 13-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Traction AA, A, B, C 13-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature A, B, C 13-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reporting safety defects (USA) 13-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13-2
For U.S.A.
The following information has been compiled according to Code of Fed-eral Regulations “Title 49, Part 575 ”.
Uniform tire quality grading standards
This information indicates the relative performance of passenger car tires
in the area of treadwear, traction, and temperature resistance. This is to
aid the consumer in making an informed choice in the purchase of tires.
Quality grades can be found where applicable on the tire sidewall be-
tween tread shoulder and maximum section width. For example:
Treadwear 200 Traction AA Temperature A
The quality grades apply to new pneumatic tires for use on passenger
cars. However, they do not apply to deep tread, winter type snow tires,
space-saver or temporary use spare tires, tires with nominal rim diame-
ters of 12 inches or less, or to some limited production tires.
All passenger car tires must confirm to Federal Safety Requirements in
addition to these grades. Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified govern-
ment test course.
For example, a tire graded 150 would wear one and one-half (1-1/2)
times as well on the government course as a tire graded 100. The rela-
tive performance of tires depends upon the actual conditions of their
use, however, and may depart significantly from the norm due to varia-
tions in driving habits, service practices and differences in road charac-teristics and climate. Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C. Those
grades represent the tire ’s ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of as-

Consumer information and Reporting safety defects13-3
–
CONTINUED –

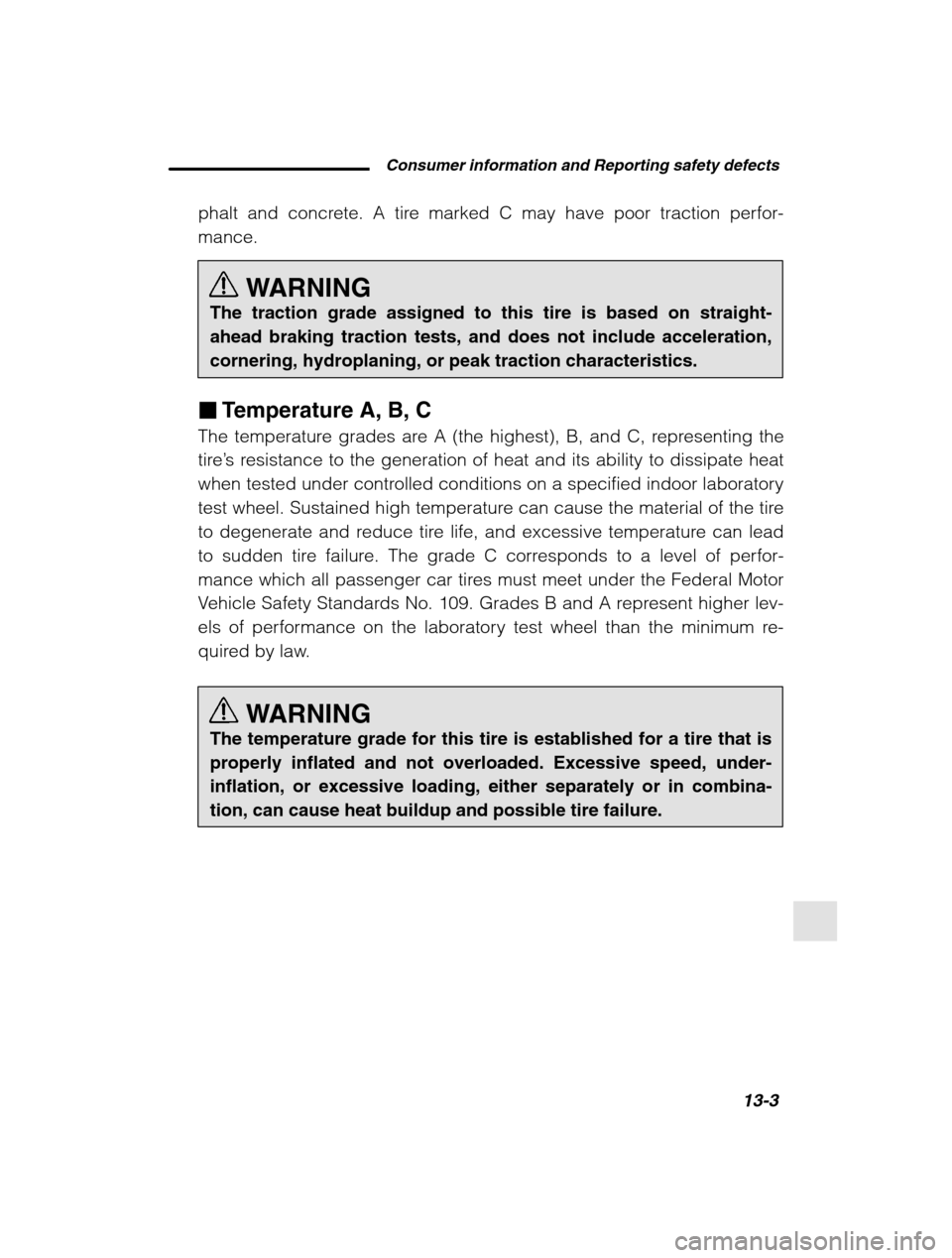

phalt and concrete. A tire marked C may have poor traction perfor- mance.
WARNING
The traction grade assigned to this tire is based on straight-
ahead braking traction tests, and does not include acceleration,cornering, hydroplaning, or peak traction characteristics.
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing the
tire’ s resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure. The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet under the Federal Motor
Vehicle Safety Standards No. 109. Grades B and A represent higher lev-
els of performance on the laboratory test wheel than the minimum re-
quired by law.
WARNING
The temperature grade for this tire is established for a tire that isproperly inflated and not overloaded. Excessive speed, under-inflation, or excessive loading, either separately or in combina-tion, can cause heat buildup and possible tire failure.
