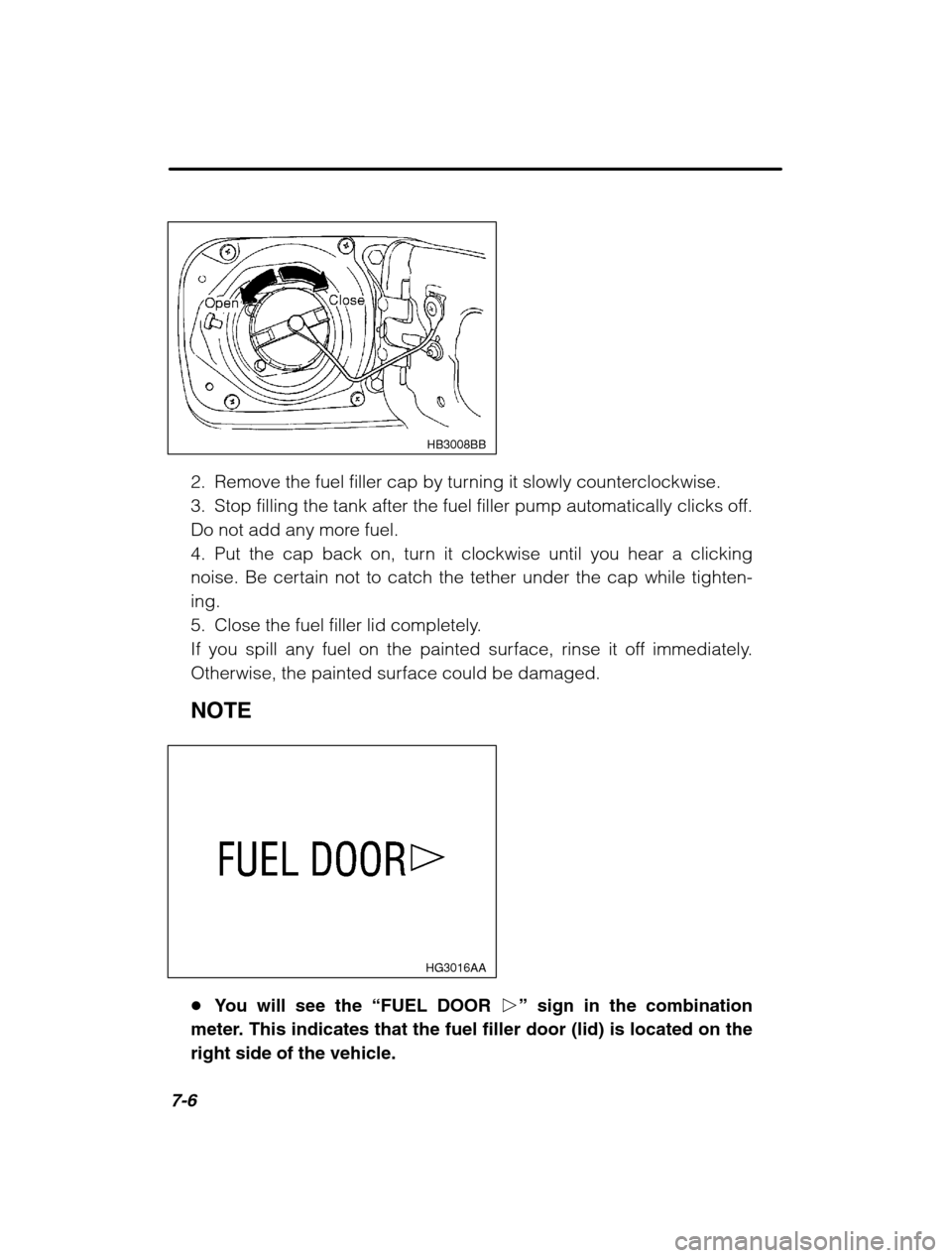

7-6
HB3008BB
2. Remove the fuel filler cap by turning it slowly counterclockwise.
3. Stop filling the tank after the fuel filler pump automatically clicks off.
Do not add any more fuel.
4. Put the cap back on, turn it clockwise until you hear a clicking
noise. Be certain not to catch the tether under the cap while tighten-ing.
5. Close the fuel filler lid completely.
If you spill any fuel on the painted surface, rinse it off immediately.
Otherwise, the painted surface could be damaged. NOTE
HG3016AA
You will see the “FUEL DOOR p” sign in the combination
meter. This indicates that the fuel filler door (lid) is located on the right side of the vehicle.

Starting and operating7-7
–
CONTINUED –
If the fuel filler cap is not tightened until it clicks or if the tether
is caught under the cap, the CHECK ENGINE warning light may come on. Refer to the “Warning and indicator lights ” section lo-
cated in chapter 3.
State emission testing (U.S. only)
WARNING
Testing of an All-Wheel Drive vehicle must NEVER be performed
on a single two-wheel dynamometer. Attempting to do so willresult in uncontrolled vehicle movement and may cause an acci-
dent or injuries to persons nearby.
CAUTION
Resultant vehicle damage due to improper testing is not covered
under the SUBARU Limited Warranty and is the responsibility ofthe state inspection program or its contractors or licensees.
At state inspection time, remember to tell your inspection or service
station in advance not to place your Subaru AWD vehicle on a two-
wheel dynamometer. Otherwise, serious transmission damage willresult.
Some states have started using dynamometers in their state inspection
programs in order to meet their obligation under federal law to implement
stricter vehicle emission standards to reduce air pollution from cars. A
dynamometer is a treadmill or roller-like testing device that allows your
car’ s wheels to turn while the car remains in one place. Depending on
the severity of a state ’s air pollution problems, the states must adopt
either a “basic” or “enhanced” vehicle emission inspection test. Nor-
mally, a portion of the basic emission test consists of an emission
inspector inserting an analyzer probe into the exhaust pipe of an idling
vehicle for a short period of time. States with more severe air pollution
problems are required to adopt an enhanced vehicle emission test. This
test simulates actual driving conditions on a dynamometer and permits

7-8
more accurate measurement of tailpipe emitted pollution than the basic emission test.
The U.S. Environmental Protection Agency (EPA) and states using two-
wheel dynamometers in their emission testing programs haveEXEMPTED Subaru AWD vehicles from the portion of the testing pro-
gram that involves a two-wheel dynamometer.
There are some states that use four-wheel dynamometers in their testing
programs. When properly used, that equipment will not damage an AWD Subaru vehicle.
Under no circumstances should the rear wheels be jacked off the
ground, nor should the driveshaft be disconnected for state emission testing.
Preparing to drive
You should perform the following checks and adjustments every day be-
fore you start driving.
1. Check that all windows, mirrors, and lights are clean and unob- structed.
2. Check the appearance and condition of the tires. Also check tires for
proper inflation.
3. Look under the vehicle for any sign of leaks.
4. Check that the hood, trunk and rear gate are fully closed.
5. Check the adjustment of the seat.
6. Check the adjustment of the inside and outside mirrors.
7. Fasten your seatbelt. Check that your passengers have fastened theirseatbelts.
8. Check the operation of the warning and indicator lights when the igni-
tion switch is turned to the “ON” position.
9. Check the gauges, indicator and warning lights after starting the en-gine. NOTE Engine oil, engine coolant, brake fluid, washer fluid and other fluid
levels should be checked daily, weekly or at fuel stops.

Starting and operating7-9
–
CONTINUED –
Starting the engine
CAUTION
Do not operate the starter motor continuously for more than ten
seconds. If the engine fails to start after operating the starter forfive to ten seconds, wait for ten seconds or more before tryingagain.
Starting the engine for a manual transmission vehicle
1. Apply the parking brake.
2. Turn off unnecessary lights and accessories.
3. Press the clutch pedal to the floor and shift the shift lever into neutral.
Hold the clutch pedal to the floor while starting the engine. The starter
motor will only operate when the clutch pedal is pressed fully to the floor.
4. Turn the ignition switch to the “ON” position and check the operation
of the warning and indicator lights. Refer to the “Warning and indicator
light” section (chapter 3).
5. Turn the ignition switch to the “START” position without depressing
the accelerator pedal. Release the key immediately after the engine has
started.
If the engine does not start within ten seconds, wait a while and then turn the ignition switch to the “START” position again while depressing the ac-
celerator pedal half way down.
6. Confirm that all warning and indicator lights have gone off after the
engine has started. The fuel injection system automatically lowers the
idle speed as the engine warms up.
Starting the engine for an automatic transmission ve- hicle
CAUTION
If you restart the engine while the vehicle is moving, shift the se- lector lever into the “N” position. Do not attempt to place the se-
lector lever of a moving vehicle into the “P” position.

7-10
1. Apply the parking brake.
2. Turn off unnecessary lights and accessories.
3. Shift the selector lever to the “P” or “N” position (preferably “P” posi-
tion). The starter will only operate when the select lever is at the “P” or
“N” position.
4. Turn the ignition switch to the “ON” position and check the operation
of the warning and indicator lights. Refer to the “Warning and indicator
lights” section (chapter 3).
5. Turn the ignition switch to the “START” position without depressing
the accelerator pedal. Release the key immediately after the engine has
started.
If the engine does not start within ten seconds, wait a while and then turnthe ignition switch to the “START” position again while depressing the ac-
celerator pedal half way down.
6. Confirm that all warning and indicator lights have gone out after the
engine has started. The fuel injection system automatically lowers the
idle speed as the engine warms up.
While the engine is warming up, make sure that the selector lever is at the “P” or “N” position and that the parking brake is applied.
Starting the engine during cold weather below –4°F
(–20 °C)
If the engine is difficult to start using the normal method (without de-
pressing the accelerator pedal), turn the ignition switch to the “START”
position while slightly depressing the accelerator pedal.
Starting a flooded engine
If the engine does not start, it may be flooded (excessive fuel in the en-gine).
In case of a flooded engine, turn the starter motor for five seconds with
the accelerator pedal fully depressed. Repeat this two or three times until
the engine starts. Release the ignition switch and accelerator pedal as
soon as the engine starts.

Starting and operating7-11
–
CONTINUED –
Stopping the engine
WARNING
Do not stop the engine when the vehicle is moving. This will
cause loss of power to the power steering and the brake booster,making steering and braking more difficult. It could also result in
accidental activation of the “LOCK” position on the ignition
switch, causing the steering wheel to lock.
The ignition switch should be turned off only when the engine is idling.
Manual transmission
WARNING
Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutralposition. Engine braking has no effect in either of these condi-tions and the risk of an accident is consequently increased.
CAUTION
Shift into reverse ONLY when the vehicle has completelystopped. It may cause damage to the transmission to try shiftinginto reverse when the vehicle is moving.
The manual transmission is a fully synchromeshed 5-forward and 1-re-
verse speed transmission.

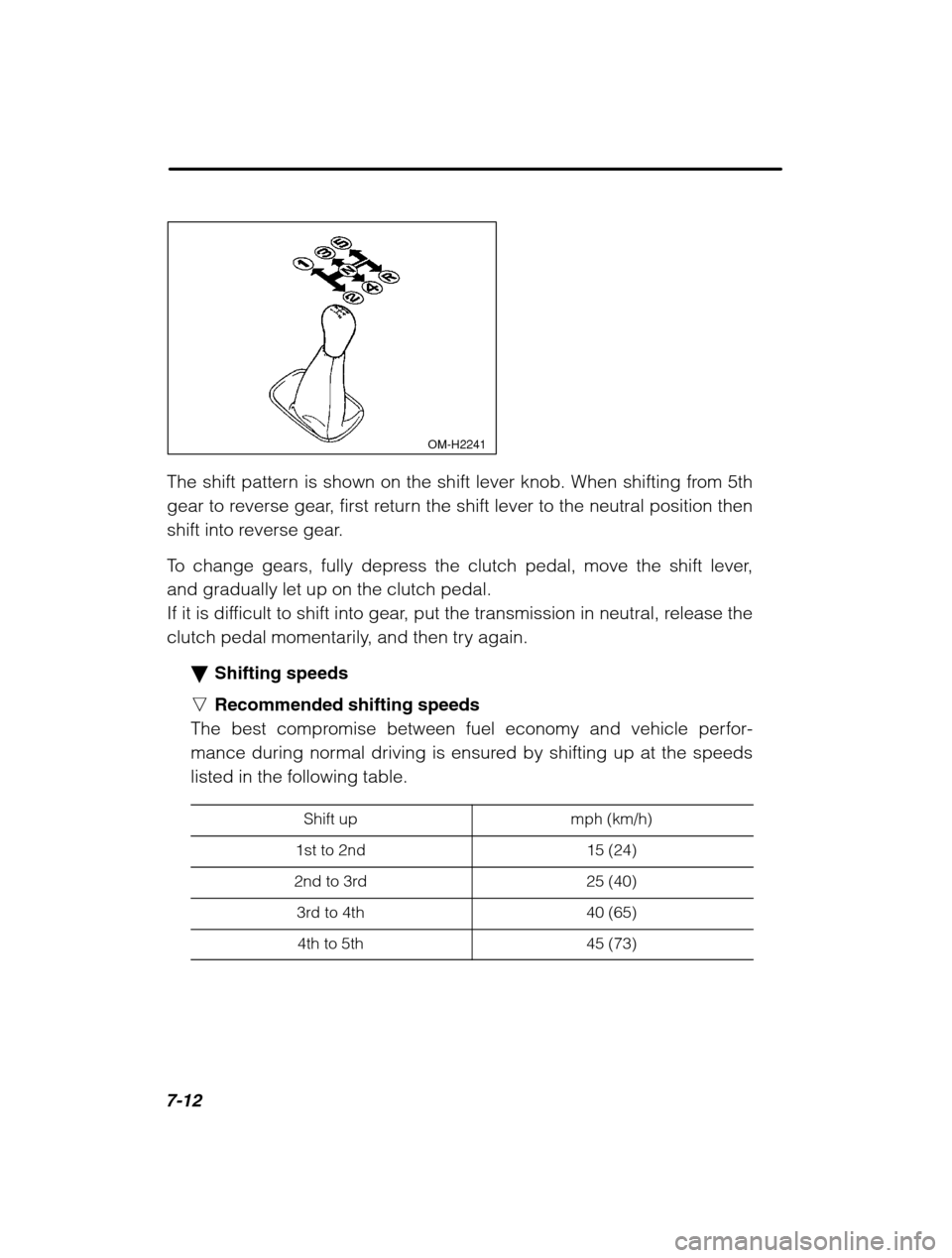

7-12
OM-H2241
The shift pattern is shown on the shift lever knob. When shifting from 5th
gear to reverse gear, first return the shift lever to the neutral position then
shift into reverse gear.
To change gears, fully depress the clutch pedal, move the shift lever, and gradually let up on the clutch pedal.
If it is difficult to shift into gear, put the transmission in neutral, release the
clutch pedal momentarily, and then try again.Shifting speeds
n Recommended shifting speeds
The best compromise between fuel economy and vehicle perfor-
mance during normal driving is ensured by shifting up at the speedslisted in the following table.
Shift up
mph (km/h)
1st to 2nd15 (24)
2nd to 3rd25 (40)
3rd to 4th40 (65)
4th to 5th45 (73)

Starting and operating7-13
–
CONTINUED –
nMaximum allowable speeds
WARNING
When shifting down a gear, ensure that the vehicle is not travel- ling at a speed exceeding the Maximum Allowable Speed for thegear which is about to be selected. Failure to observe this pre-caution can lead to engine over-revving and this in turn canresult in engine damage.In addition, sudden application of engine brakes when the vehicleis travelling on a slippery surface can lead to wheel locking; as a
consequence, control of the vehicle may be lost and the risk ofan accident increased.
The following table shows the maximum speeds that are possible with
each different gear. Never exceed the speed limit below for each gear position except for
brief acceleration in an emergency. The tachometer ’s needle (if so
equipped) will enter the red area if these speeds are exceeded. Fail-
ure to observe this precaution can lead to excessive engine wear and
poor fuel economy.
mph (km/h)
Vehicle type
GearBrightonLGTOUT-
BACK
1st30 (48)30 (49)29 (47)31 (50)
2nd50 (81)51 (82)49 (79)52 (84)
3rd71 (115)73 (117)70 (112)74 (119)
Driving tips
Do not drive with your foot resting on the clutch pedal and do not use the clutch to hold your vehicle at a standstill on an upgrade. Either ofthose actions may cause clutch damage.
Do not drive with your hand resting on the shift lever. This may causewear on the transmission components.
