2002 SUBARU LEGACY Owners Manual

9
In case of emergency
If you park your vehicle in an emergency 9-2. . . . . . . . . . . . . . . . . . . . . . . .
Temporary spare tire 9-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat tires 9-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 9-11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine overheating 9-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing 9-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moonroof — if the moonroof cannot be closed 9-25 . . . . . . . . . . . . . . . .
Maintenance tools 9-26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jack and jack handle 9-27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9-2

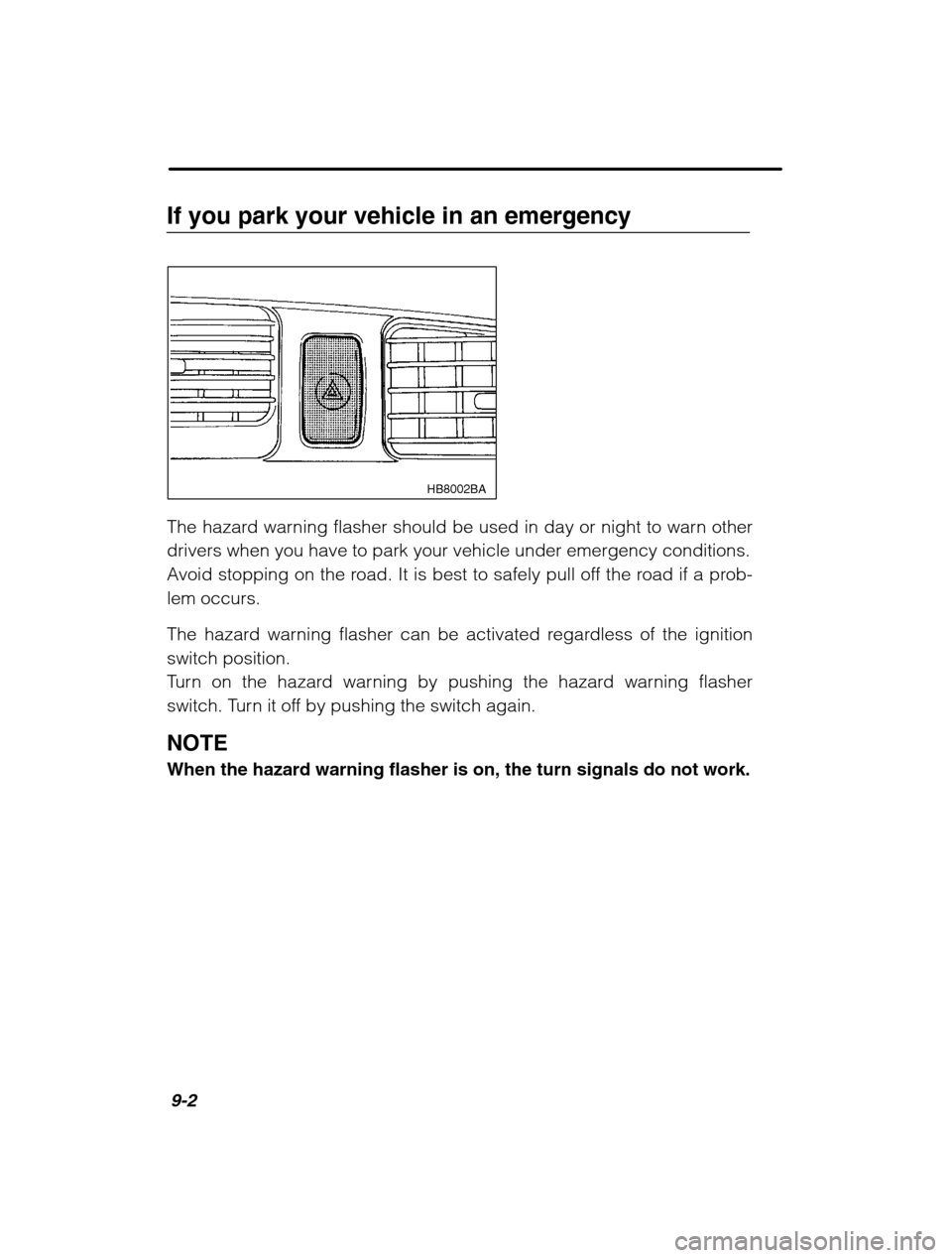

If you park your vehicle in an emergency
HB8002BA
The hazard warning flasher should be used in day or night to warn other
drivers when you have to park your vehicle under emergency conditions.
Avoid stopping on the road. It is best to safely pull off the road if a prob-lem occurs.
The hazard warning flasher can be activated regardless of the ignition switch position.
Turn on the hazard warning by pushing the hazard warning flasher
switch. Turn it off by pushing the switch again. NOTE When the hazard warning flasher is on, the turn signals do not work.

In case of emergency9-3
–
CONTINUED –
Temporary spare tire
WARNING
Never tow a trailer when the temporary spare tire is used. The temporary spare tire is not designed to sustain the towing load.
Use of the temporary spare tire when towing can result in failureof the spare tire and/or less stability of the vehicle and may leadto an accident.
CAUTION
Never use any temporary spare tire other than the original. Usingother sizes may result in severe mechanical damage to the drivetrain of your vehicle.
The temporary spare tire is smaller and lighter than a conventional tire
and is designed for emergency use only. Remove the temporary spare
tire and re-install the conventional tire as soon as possible because the
spare tire is designed only for temporary use.
Check the inflation pressure of the temporary spare tire periodically to
keep the tire ready for use. The correct pressure is 60 psi (420 kPa, 4.2
kg/cm 2
).
When using the temporary spare tire, note the following: Do not exceed 50 mph (80 km/h).
Do not put a tire chain on the temporary spare tire. Because of the
smaller tire size, a tire chain will not fit properly. Do not use two or more temporary spare tires at the same time.
Do not drive over obstacles. This tire has a smaller diameter, so
road clearance is reduced. When the wear indicator appears on the tread, replace the tire.

9-4

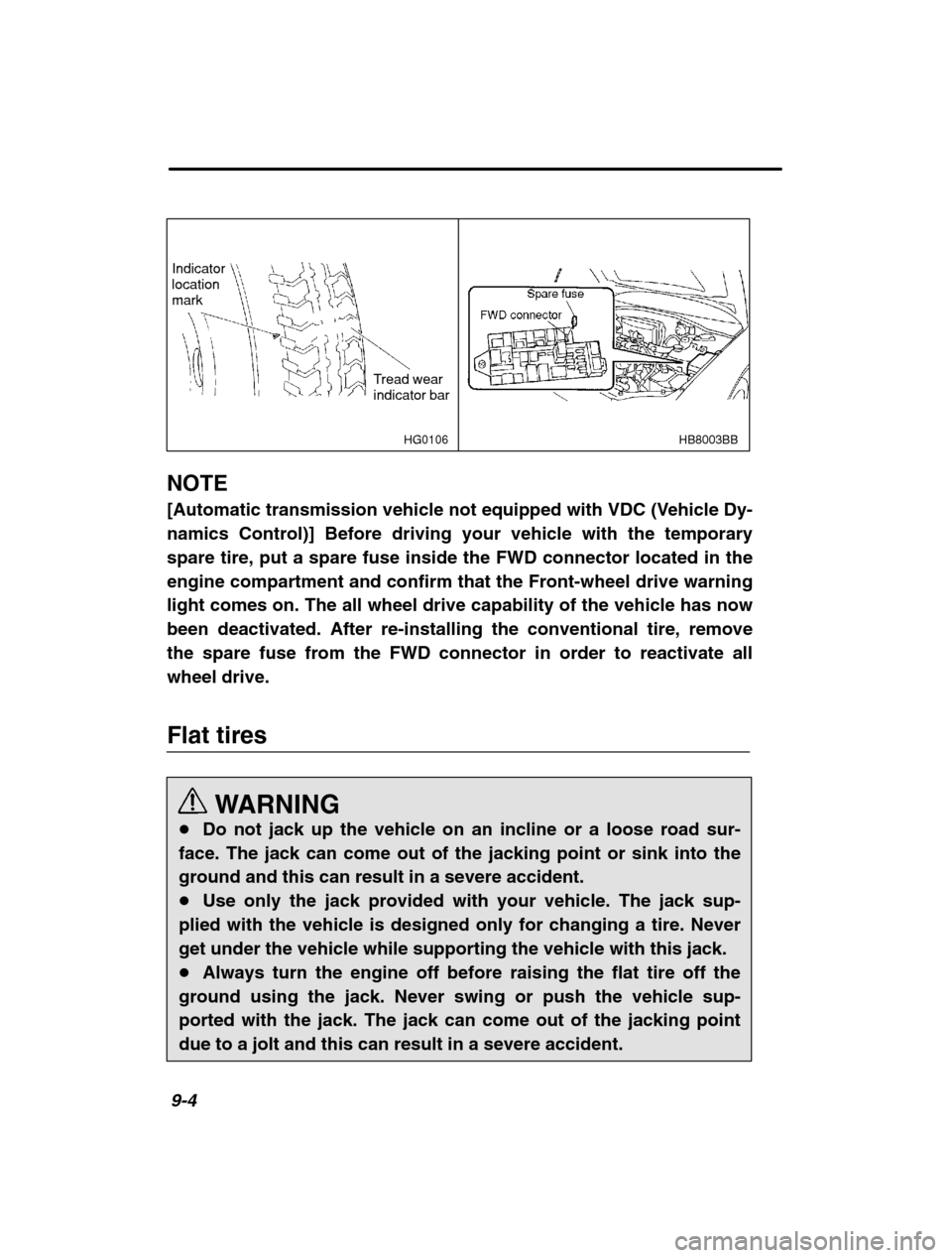

HB8003BB
HG0106
Indicator location mark
Tread wear indicator bar
NOTE
[Automatic transmission vehicle not equipped with VDC (Vehicle Dy-
namics Control)] Before driving your vehicle with the temporaryspare tire, put a spare fuse inside the FWD connector located in theengine compartment and confirm that the Front-wheel drive warninglight comes on. The all wheel drive capability of the vehicle has now
been deactivated. After re-installing the conventional tire, removethe spare fuse from the FWD connector in order to reactivate allwheel drive.
Flat tires
WARNING
Do not jack up the vehicle on an incline or a loose road sur-
face. The jack can come out of the jacking point or sink into the ground and this can result in a severe accident. Use only the jack provided with your vehicle. The jack sup-
plied with the vehicle is designed only for changing a tire. Neverget under the vehicle while supporting the vehicle with this jack. Always turn the engine off before raising the flat tire off the
ground using the jack. Never swing or push the vehicle sup-ported with the jack. The jack can come out of the jacking pointdue to a jolt and this can result in a severe accident.

In case of emergency9-5
–
CONTINUED –

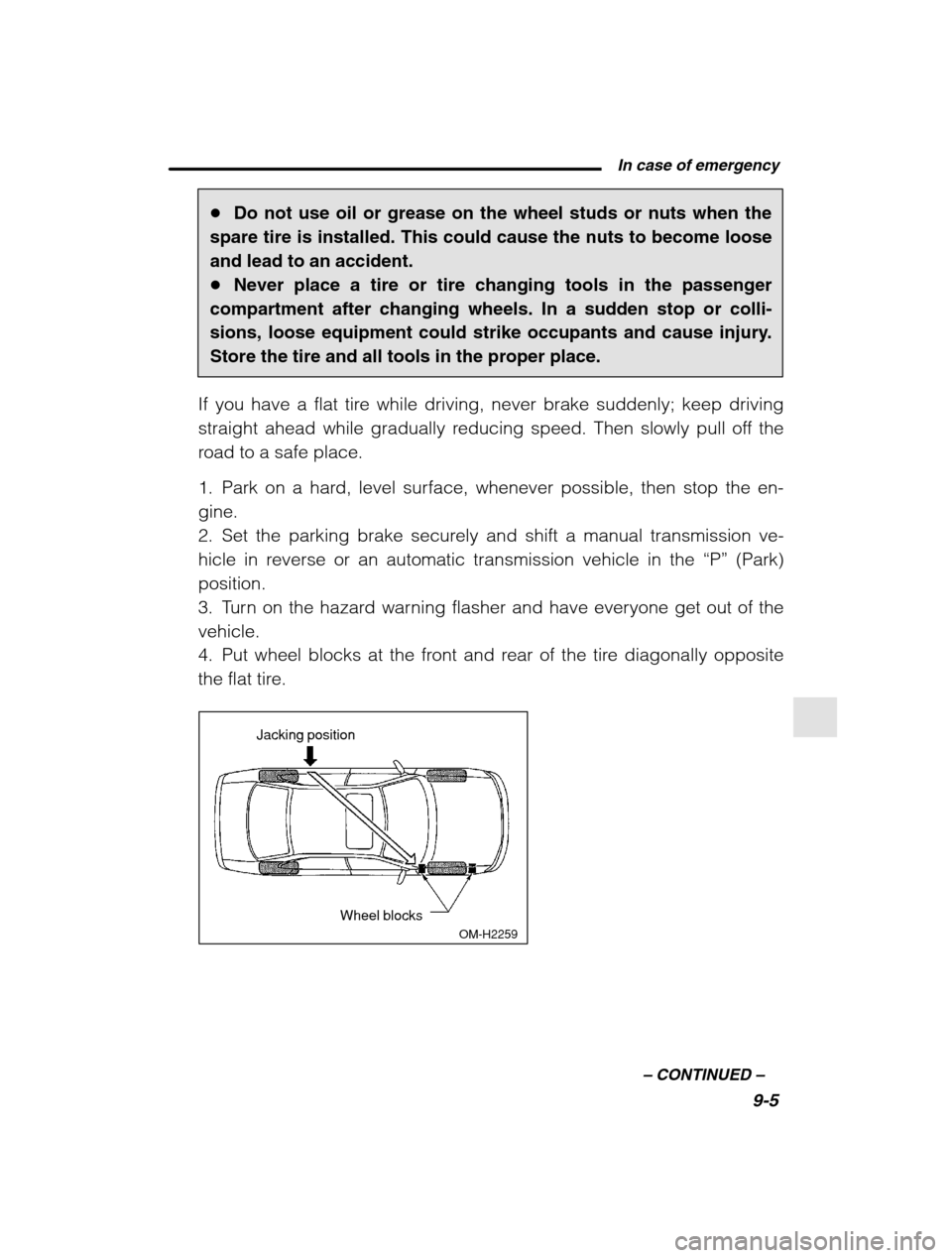

Do not use oil or grease on the wheel studs or nuts when the
spare tire is installed. This could cause the nuts to become loose and lead to an accident. Never place a tire or tire changing tools in the passenger
compartment after changing wheels. In a sudden stop or colli-
sions, loose equipment could strike occupants and cause injury.Store the tire and all tools in the proper place.
If you have a flat tire while driving, never brake suddenly; keep driving
straight ahead while gradually reducing speed. Then slowly pull off the
road to a safe place.
1. Park on a hard, level surface, whenever possible, then stop the en- gine.
2. Set the parking brake securely and shift a manual transmission ve-
hicle in reverse or an automatic transmission vehicle in the “P” (Park)
position.
3. Turn on the hazard warning flasher and have everyone get out of thevehicle.
4. Put wheel blocks at the front and rear of the tire diagonally opposite
the flat tire.
OM-H2259
Jacking position
Wheel blocks

9-6

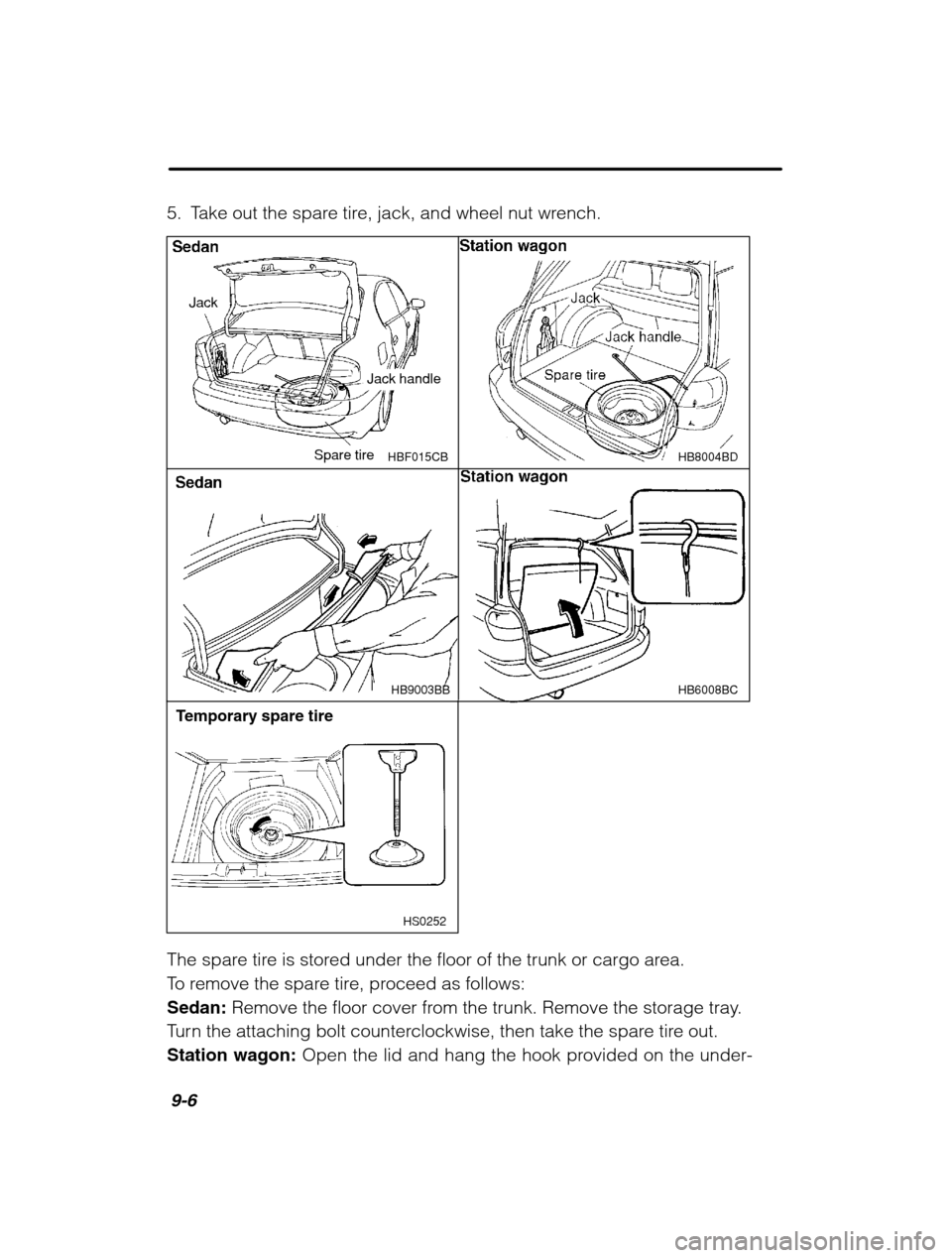

5. Take out the spare tire, jack, and wheel nut wrench.
HB6008BCHB9003BB
HS0252
Temporary spare tire
HBF015CB
Jack handle
Jack
Spare tireHB8004BD
The spare tire is stored under the floor of the trunk or cargo area.
To remove the spare tire, proceed as follows:Sedan: Remove the floor cover from the trunk. Remove the storage tray.
Turn the attaching bolt counterclockwise, then take the spare tire out.Station wagon: Open the lid and hang the hook provided on the under-

In case of emergency9-7
–
CONTINUED –

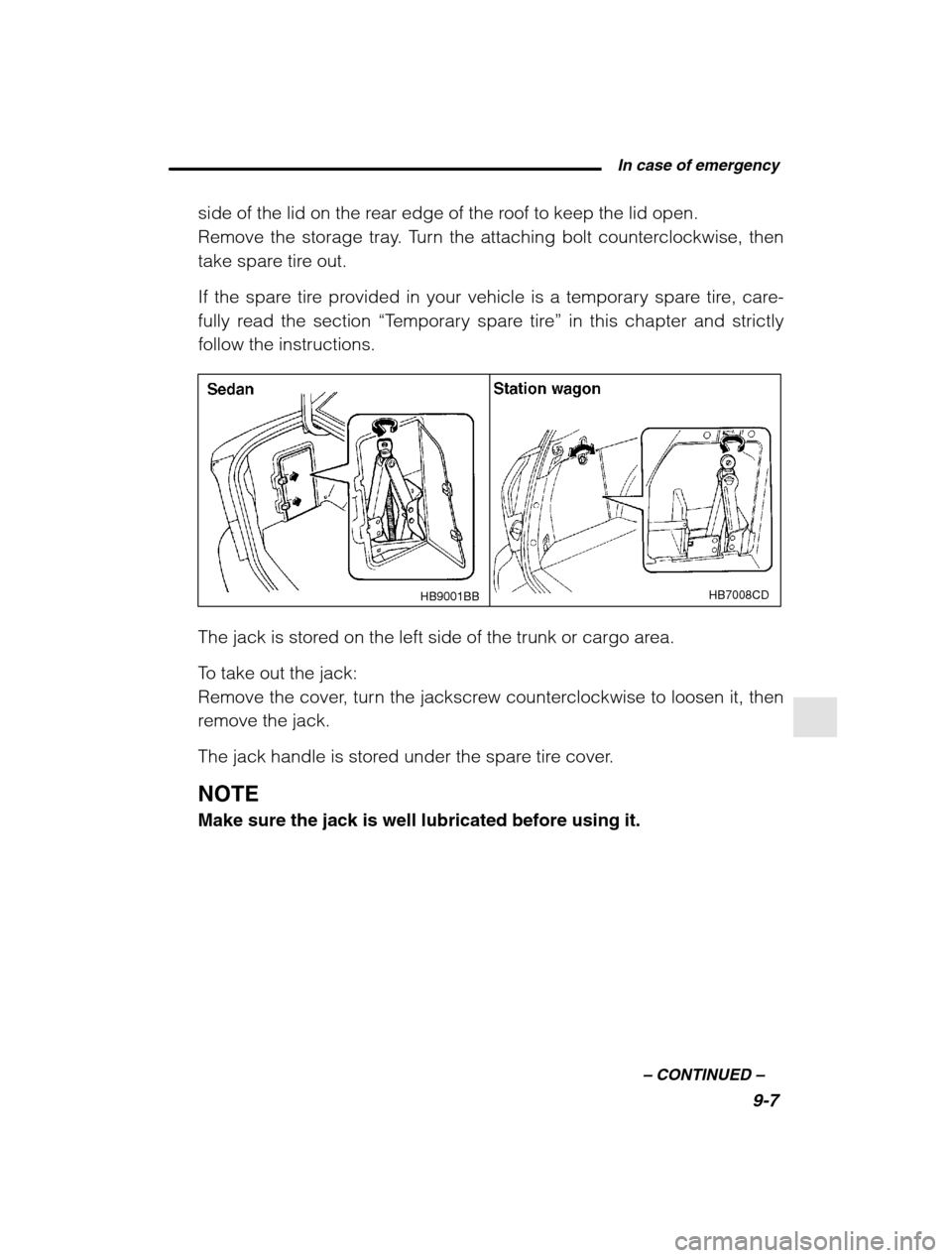

side of the lid on the rear edge of the roof to keep the lid open.
Remove the storage tray. Turn the attaching bolt counterclockwise, then
take spare tire out.
If the spare tire provided in your vehicle is a temporary spare tire, care-
fully read the section “Temporary spare tire ” in this chapter and strictly
follow the instructions.
HB7008CD
HB9001BB
The jack is stored on the left side of the trunk or cargo area.
To take out the jack:
Remove the cover, turn the jackscrew counterclockwise to loosen it, then
remove the jack.
The jack handle is stored under the spare tire cover. NOTE Make sure the jack is well lubricated before using it.

9-8

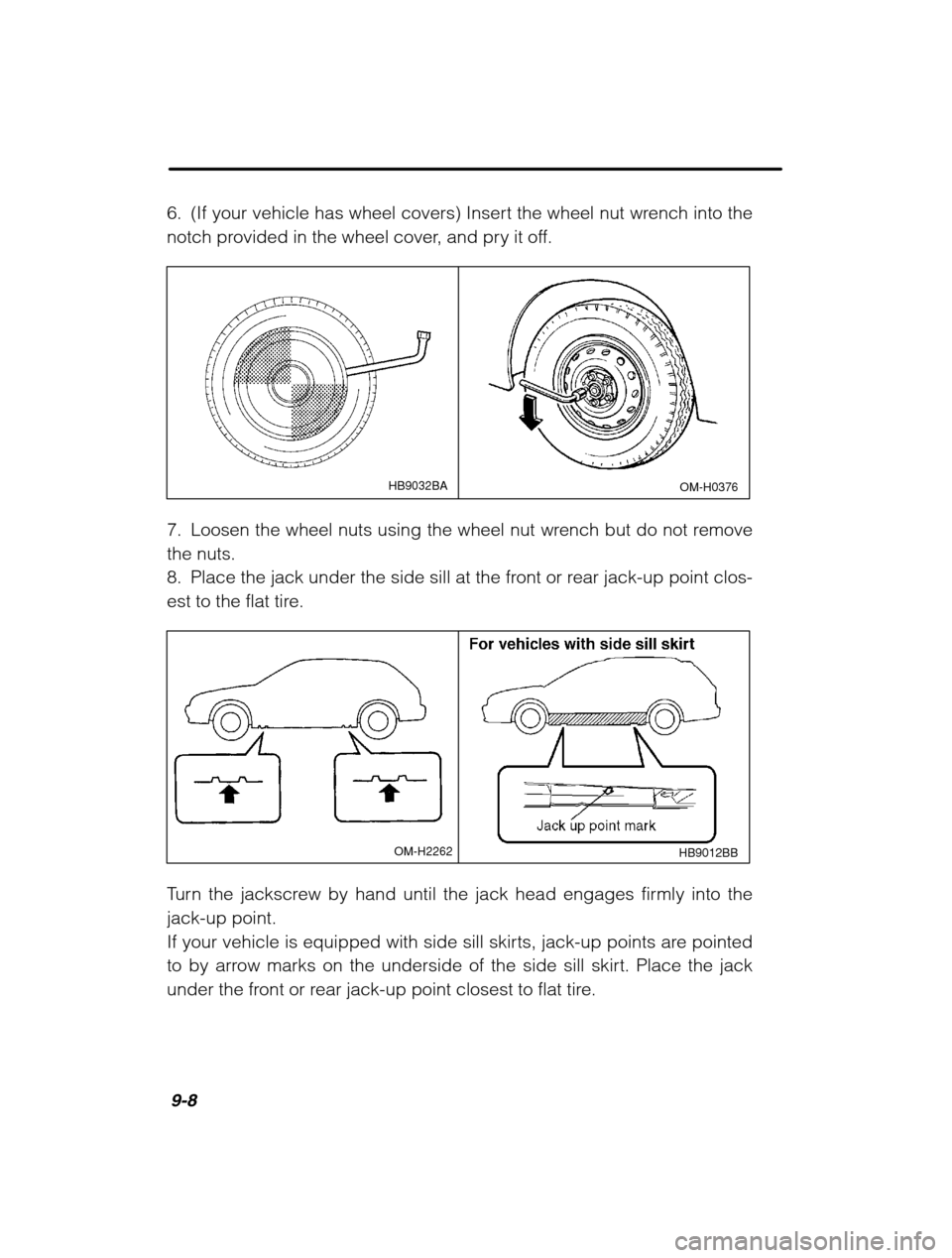

6. (If your vehicle has wheel covers) Insert the wheel nut wrench into the
notch provided in the wheel cover, and pry it off.
OM-H0376HB9032BA
7. Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts.
8. Place the jack under the side sill at the front or rear jack-up point clos-
est to the flat tire.
HB9012BB
OM-H2262
Turn the jackscrew by hand until the jack head engages firmly into the jack-up point.
If your vehicle is equipped with side sill skirts, jack-up points are pointed
to by arrow marks on the underside of the side sill skirt. Place the jack
under the front or rear jack-up point closest to flat tire.
