2002 SUBARU LEGACY Owners Manual

5-38

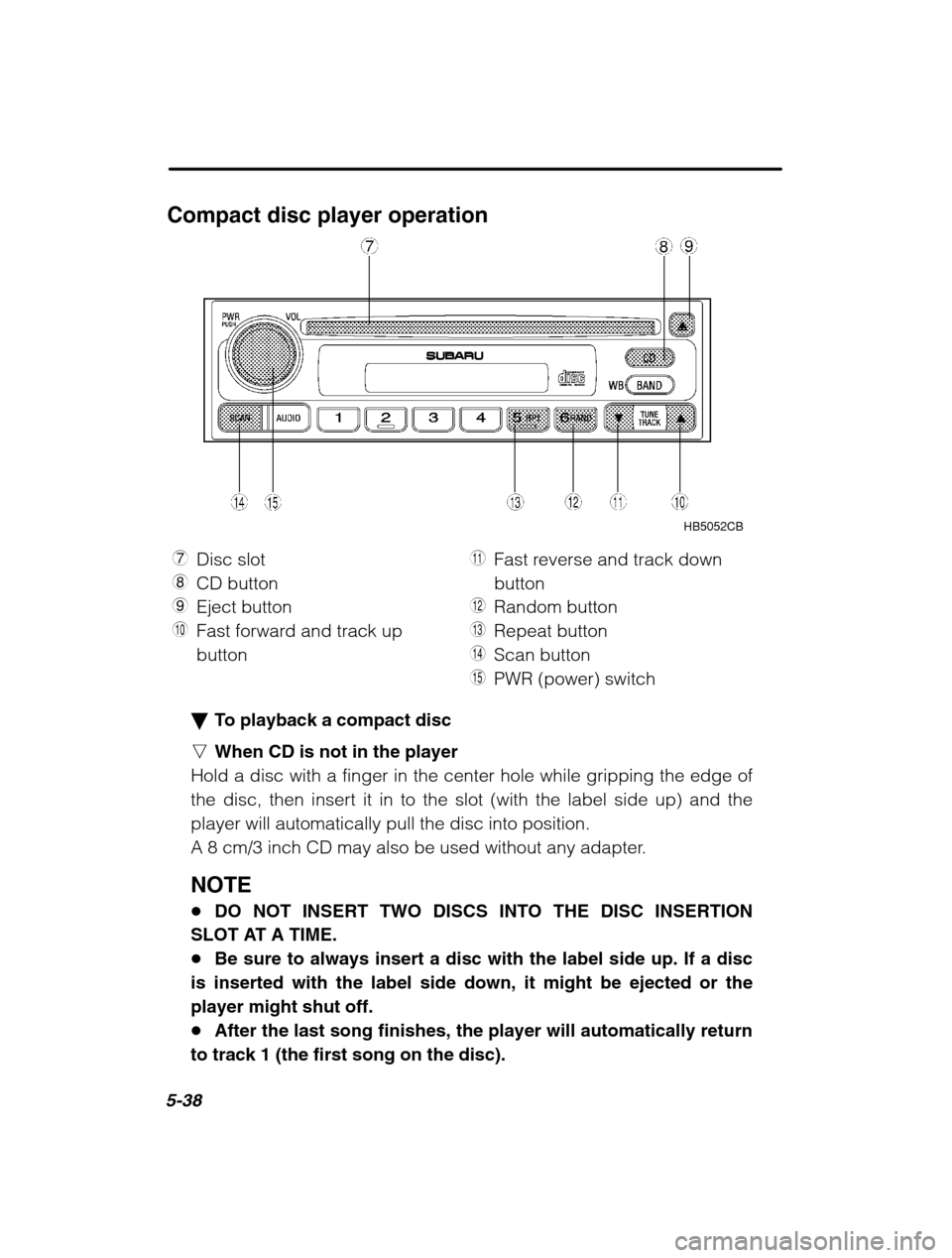

Compact disc player operationHB5052CB
7 Disc slot
8 CD button
9 Eject button
Q Fast forward and track up button W
Fast reverse and track downbutton
E Random button
R Repeat button
T Scan button
Y PWR (power) switch
To playback a compact disc
n When CD is not in the player
Hold a disc with a finger in the center hole while gripping the edge of
the disc, then insert it in to the slot (with the label side up) and theplayer will automatically pull the disc into position.
A 8 cm/3 inch CD may also be used without any adapter. NOTE DO NOT INSERT TWO DISCS INTO THE DISC INSERTION
SLOT AT A TIME. Be sure to always insert a disc with the label side up. If a disc
is inserted with the label side down, it might be ejected or theplayer might shut off. After the last song finishes, the player will automatically return
to track 1 (the first song on the disc).

Audio5-39
–
CONTINUED –
nWhen CD is in the player
When the “CD” button 8 is pressed, the player will start playback.
NOTE After the last song finishes, the player will automatically return to track 1 (the first song on the disc). To stop playback of a CD
When the “PWR” button Y is pressed during playback of a CD, the
CD stops playing temporarily. To let the CD resume playing, press the
button again. To select a song from its beginning
n Forward direction
Briefly press the “ ” button Q to skip to the beginning of the next
track. Each time the button is pressed, the indicated track number will
increase. n Backward direction
Briefly press the “ ” button W to skip to the beginning of the current
track. Each time the button is pressed, the indicated truck number will
decrease. Fast forwarding and fast reverse
n Fast forward
Press the “ ” button Q continuously for more than 0.5 second to fast
forward the disc.
Release the button to stop fast forwarding. n Fast reverse
Press the “ ” button
W continuously for more than 0.5 second to fast
reverse the disc.
Release the button to stop fast reverse. Repeat playback
Use this to play a certain track repeatedly. During playback, press the
“RPT” button
R and release it in less than 2 seconds. The “RPT” indi-
cator will come on and the song will be played continuously. To can-

5-40

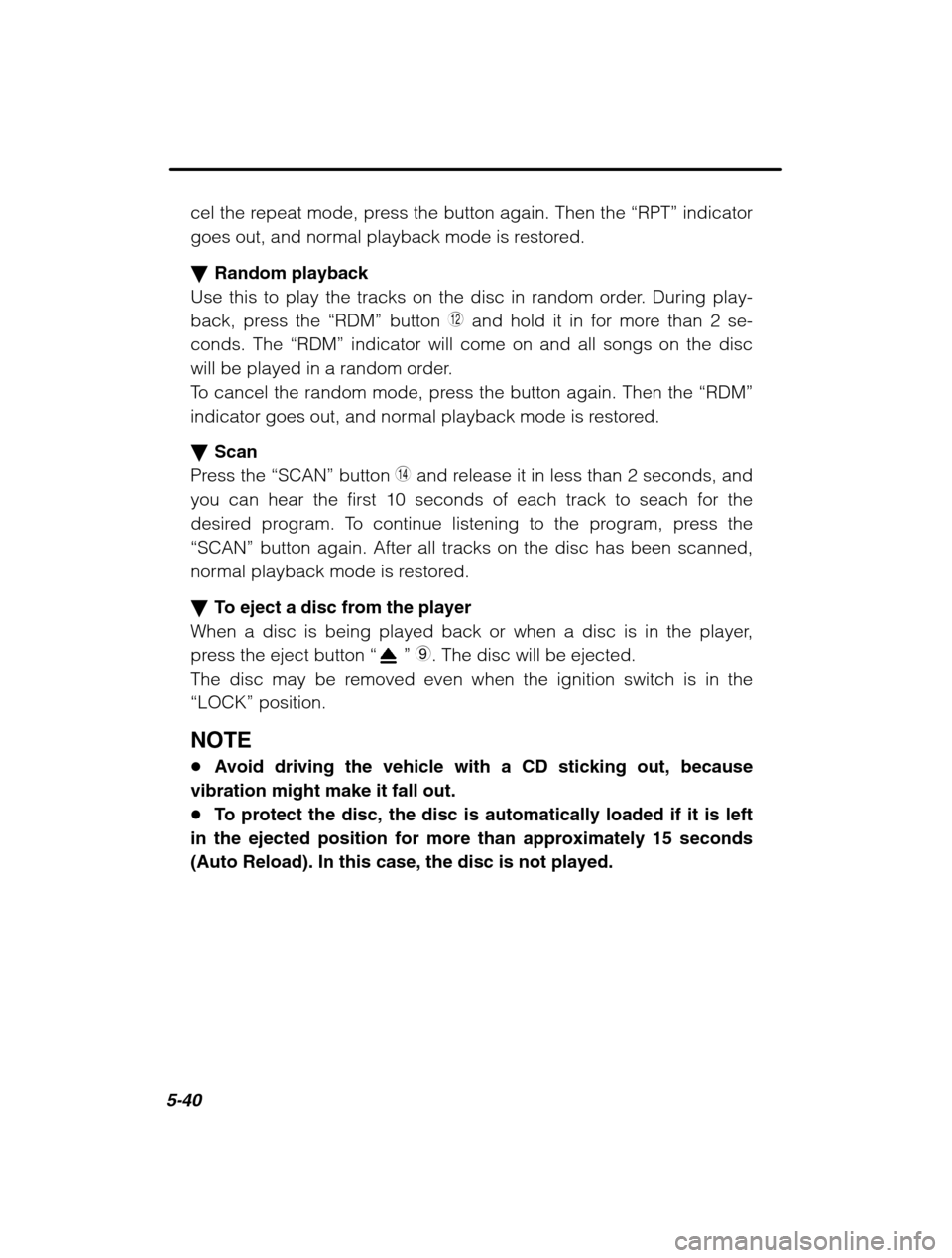

cel the repeat mode, press the button again. Then the “RPT” indicator
goes out, and normal playback mode is restored. Random playback
Use this to play the tracks on the disc in random order. During play-
back, press the “RDM” button
E and hold it in for more than 2 se-
conds. The “RDM” indicator will come on and all songs on the disc
will be played in a random order.
To cancel the random mode, press the button again. Then the “RDM”
indicator goes out, and normal playback mode is restored. Scan
Press the “SCAN” button
T and release it in less than 2 seconds, and
you can hear the first 10 seconds of each track to seach for the
desired program. To continue listening to the program, press the
“SCAN” button again. After all tracks on the disc has been scanned,
normal playback mode is restored. To eject a disc from the player
When a disc is being played back or when a disc is in the player,
press the eject button “
” 9 . The disc will be ejected.
The disc may be removed even when the ignition switch is in the
“LOCK” position.
NOTE Avoid driving the vehicle with a CD sticking out, because
vibration might make it fall out. To protect the disc, the disc is automatically loaded if it is left
in the ejected position for more than approximately 15 seconds(Auto Reload). In this case, the disc is not played.

Audio5-41
–
CONTINUED –
CD changer control (If optional in dash CD changer is connected) An optional CD changer can be connected to this audio unit. See your
SUBARU dealer for more information. For procedures for loading and un-
loading CDs, refer to “In-dash 6 CD auto changer ” in this chapter.
HB5052DB
U CD button
I Track selection buttons
O RAND (Random) button P
RPT (Repeat) button
A SCAN button
To start playback
Press the “CD” button U. The “CD” indicator will come on and the
disc number will appear on the display and the CD changer will start playback.
NOTE If the “CD” button is pressed during a radio broadcast, the CD
changer will interrupt the broadcast. At the end of the disc, playback automatically continues with
the next disc. After playback on the last disc finishes, the player will auto-
matically return to the first disc. If you have loaded fewer than 6 discs, any missing disc is
automatically skipped.

5-42
Selection of a desired disc
Discs cannot be selected using the main audio unit. To select a disc,
press one of the “Disc select ” buttons (these are numbered from 1 to
6) on the CD changer unit. The disc will begin to play. To select a song from its beginning
Briefly press the “ ” button
I to skip to the beginning of the next
track and briefly press the “ ” button to skip to the beginning of the
current track. Fast-forwarding and fast-reverse
Press the “ ” button I continuously for more than a half second to
fast-forward the disc.
Press the “ ” button continuously for more than a half second to fast
reverse the disc.
Release the button to stop fast forwarding or fast reverse. Repeat
Press the “RPT” button
P while a song is playing to play the song
repeatedly. The “RPT” indicator will come on and the song will be
played continuously. To cancel the repeat mode, press the button
again. Then the “RPT” indicator goes out, and normal playback mode
is restored. Random playback
Press the “RAND” button
O while a disc is being played back to play
all songs on the disc in a random order. The “RAND” indicator will
come on and all songs on the disc will be played in a random order.
To cancel the random mode, press the button again. Then the
“RAND” indicator goes out, and normal playback mode is restored.
Scan (a convenient way to become familiar with a disc)
1. Press the “SCAN” button
A.
– The display shows “SCAN” and the track number being
scanned.– You hear the first 10 seconds of each track.
– The operation is automatically cleared after playing all pro-
grams. Then, normal playback starts.

Audio5-43
–
CONTINUED –

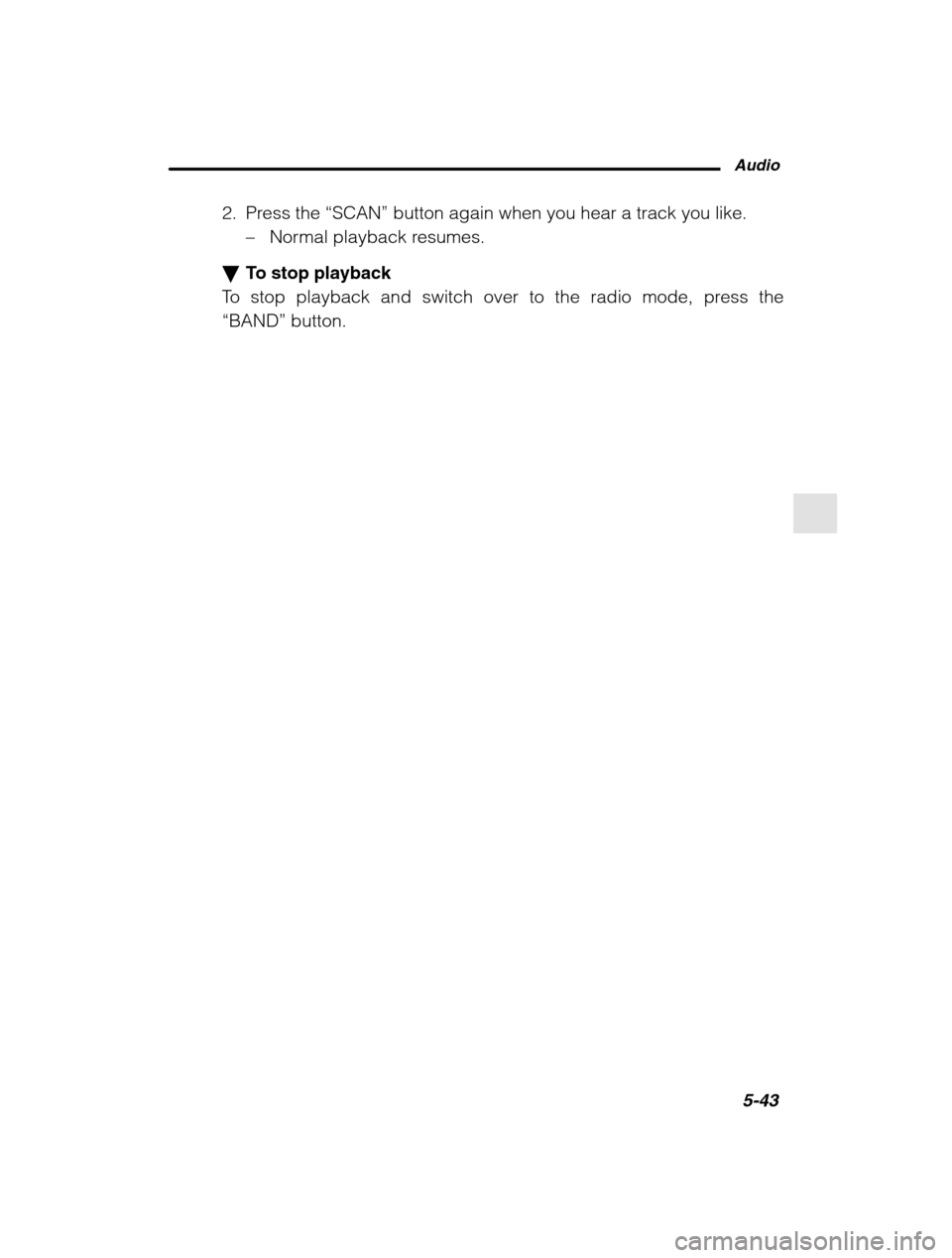

2. Press the “SCAN” button again when you hear a track you like.
– Normal playback resumes.
To stop playback
To stop playback and switch over to the radio mode, press the
“BAND” button.

5-44

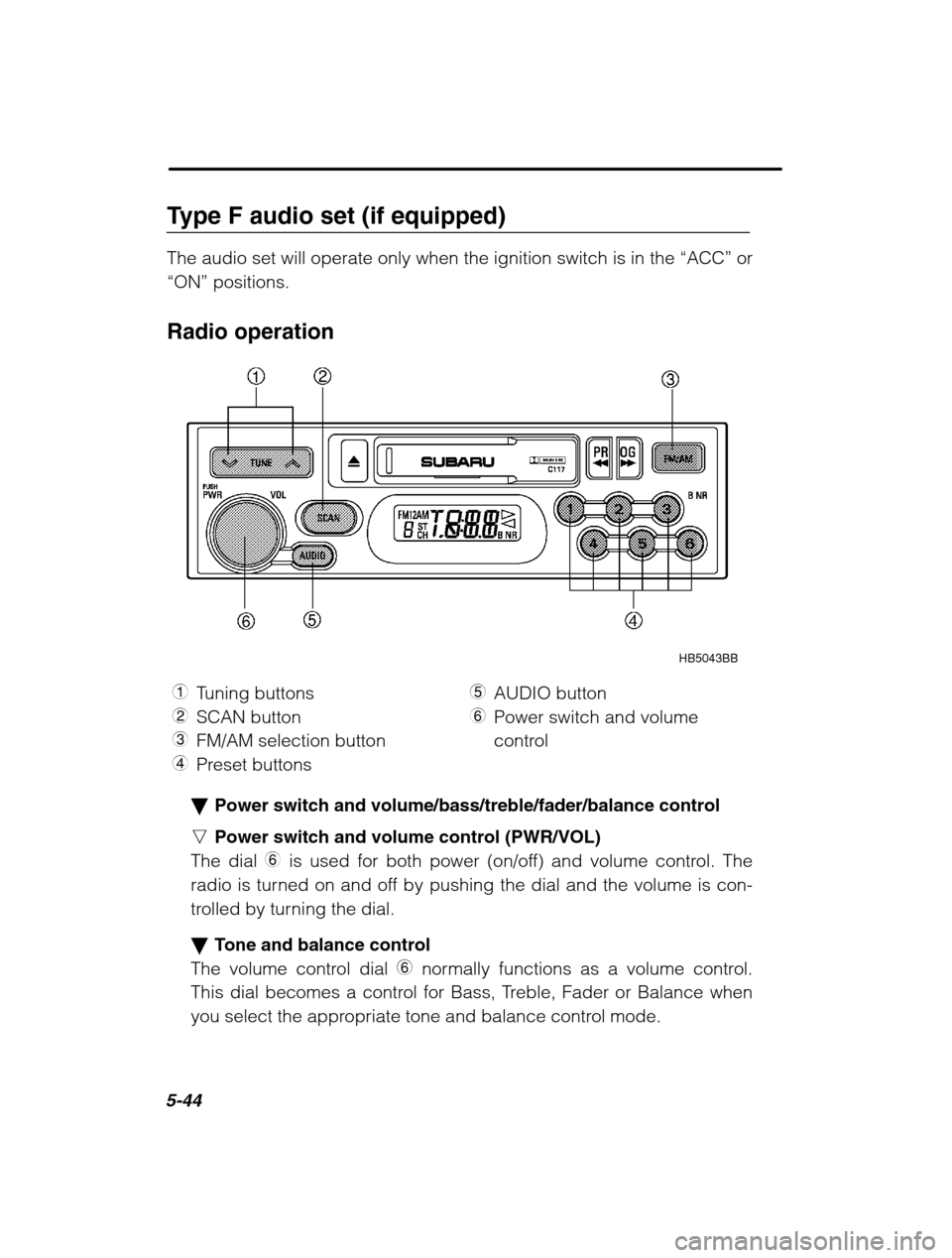

Type F audio set (if equipped) The audio set will operate only when the ignition switch is in the “ACC” or
“ON” positions.
Radio operation
HB5043BB
1 Tuning buttons
2 SCAN button
3 FM/AM selection button
4 Preset buttons 5
AUDIO button
6 Power switch and volume
control
Power switch and volume/bass/treble/fader/balance control
n Power switch and volume control (PWR/VOL)
The dial 6 is used for both power (on/off) and volume control. The
radio is turned on and off by pushing the dial and the volume is con-
trolled by turning the dial. Tone and balance control
The volume control dial 6 normally functions as a volume control.
This dial becomes a control for Bass, Treble, Fader or Balance when
you select the appropriate tone and balance control mode.

Audio5-45
–
CONTINUED –
Choose desired volume level for each mode by turning the volume
control dial. The control function returns to volume control mode after
about 5 seconds.
To change control modes: Each brief press of the “AUDIO” button
5 changes control modes in the following sequence starting from vol-
ume control mode. (When the radio is first turned on, the control mode
is in the volume control.)
Volume Bass Treble Fader Balance(VOL) (BAS) (TRE) (FAD) (BAL)
The “AUDIO” button 5 is used for selecting the following control
modes:
Display
Control mode
HB5036BA
Turn counterclockwiseTurn clockwise
BASBass controlFor less bassFor more bass
TRETreble controlFor less trebleFor more treble
FA DFader controlTo increase rear speaker
volume and decrease front
speaker volumeTo increase front speaker
volume and decrease rear
speaker volume
BALBalance controlTo increase left speaker
volume and decrease right
speaker volumeTo increase right speakervolume and decrease left
speaker volume
VOLVolume controlFor less volumeFor more volume
