2002 SUBARU LEGACY length

vii
–
CONTINUED –
Never run the engine in a closed space, such as a garage, ex-
cept for the brief time needed to drive the vehicle in or out of it. Avoid remaining in a parked vehicle for a lengthy time while
the engine is running. If that is unavoidable, then use the ventila-tion fan to force fresh air into the vehicle. Always keep the front ventilator inlet grille free from snow,
leaves or other obstructions to ensure that the ventilation system
always works properly. If at any time you suspect that exhaust fumes are entering the
vehicle, have the problem checked and corrected as soon as pos-
sible. If you must drive under these conditions, drive only with allwindows fully open. Keep the trunk lid or rear gate closed while driving to prevent
exhaust gas from entering the vehicle.
DRINKING AND DRIVING WARNING
Drinking and then driving is very dangerous. Alcohol in the
bloodstream delays your reaction and impairs your perception,judgment and attentiveness. If you drive after drinking – even if
you drink just a little – it will increase the risk of being involved in
a serious or fatal accident, injuring or killing yourself, your pas-sengers and others. In addition, if you are injured in the accident,
alcohol may increase the severity of that injury. Please don ’t drink and drive.
Drunken driving is one of the most frequent causes of accidents. Since
alcohol affects all people differently, you may have consumed too much
alcohol to drive safely even if the level of alcohol in your blood is belowthe legal limit. The safest thing you can do is never drink and drive. How-ever if you have no choice but to drive, stop drinking and sober up com-
pletely before getting behind the wheel.

1-10
Rear seatsWARNING
Seatbelts provide maximum restraint when the occupant sits
well back and upright in the seat. Do not put cushions or any other
materials between occupants and seatbacks or seat cushions. If
you do so, the risk of sliding under the lap belt and of the lap belt
sliding up over the abdomen will increase, and both can result in
serious internal injury or death. Never allow passengers to ride on the folded rear seatback, in
the cargo area. Doing so may result in serious injury or death. Never stack luggage or other cargo higher than the top of the
seatback because it could tumble forward and injure passengersin the event of a sudden stop or accident. Secure skis and other lengthy items properly to prevent them
from being thrown around inside the vehicle and causing serious
injury during a sudden stop, a sudden steering or a rapid accel-eration.
HB0302
Sit well back and upright.
Armrest (if equipped)
WARNING
To avoid the possibility of serious injury, passengers must never be allowed to sit on the center armrest while the vehicle is in mo-tion.

5-2

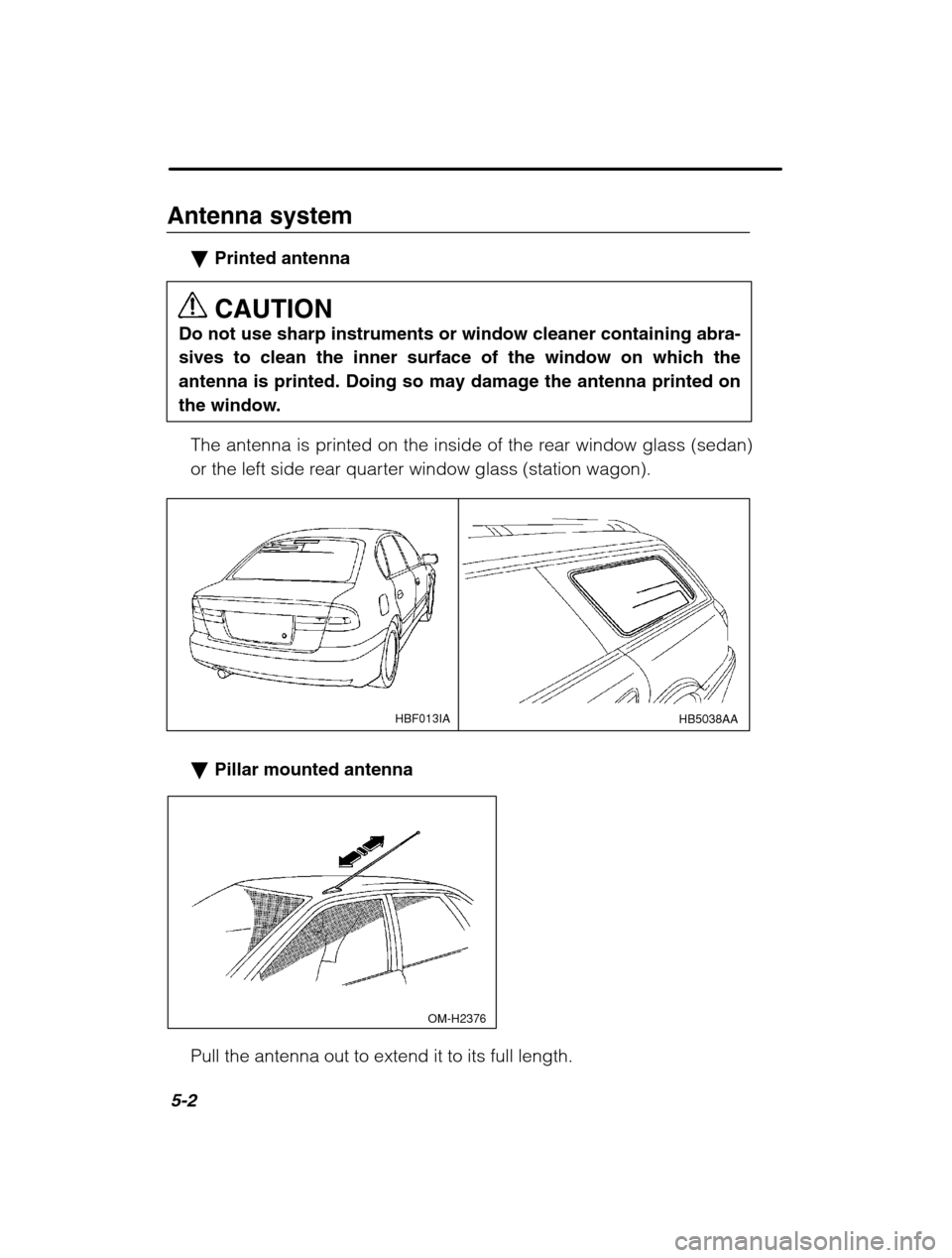

Antenna systemPrinted antenna CAUTION
Do not use sharp instruments or window cleaner containing abra-
sives to clean the inner surface of the window on which theantenna is printed. Doing so may damage the antenna printed on
the window.
The antenna is printed on the inside of the rear window glass (sedan)
or the left side rear quarter window glass (station wagon).
HB5038AA
HBF013IA

Pillar mounted antenna
OM-H2376
Pull the antenna out to extend it to its full length.

Driving tips8-3
–
CONTINUED –
Fuel economy hints The following suggestions will help to save your fuel. Select the proper gear position for the speed and road conditions.
Avoid sudden acceleration or deceleration. Always accelerate gently
until you reach the desired speed. Then try to maintain that speed for as long as possible. Do not pump the accelerator and avoid racing the engine.
Avoid unnecessary engine idling.
Keep the engine properly tuned.
Keep the tires inflated to the correct pressure shown on the tire plac-
ard, which is located under the door latch on the driver ’s side. Low pres-
sure will increase tire wear and fuel consumption. Use the air conditioner only when necessary.
Keep the front and rear wheels in proper alignment.
Avoid carrying unnecessary luggage or cargo.
Engine exhaust gas (Carbon monoxide)
WARNING
Never inhale engine exhaust gas. Engine exhaust gas contains
carbon monoxide, a colorless and odorless gas which is danger-ous, or even lethal, if inhaled. Always properly maintain the engine exhaust system to pre-
vent engine exhaust gas from entering the vehicle. Never run the engine in a closed space, such as a garage, ex-
cept for the brief time needed to drive the vehicle in or out of it. Avoid remaining in a parked vehicle for a lengthy time while
the engine is running. If that is unavoidable, then use the ventila-tion fan to force fresh air into the vehicle. Always keep the front ventilator inlet grille free from snow,
leaves or other obstructions to ensure that the ventilation system
always works properly.

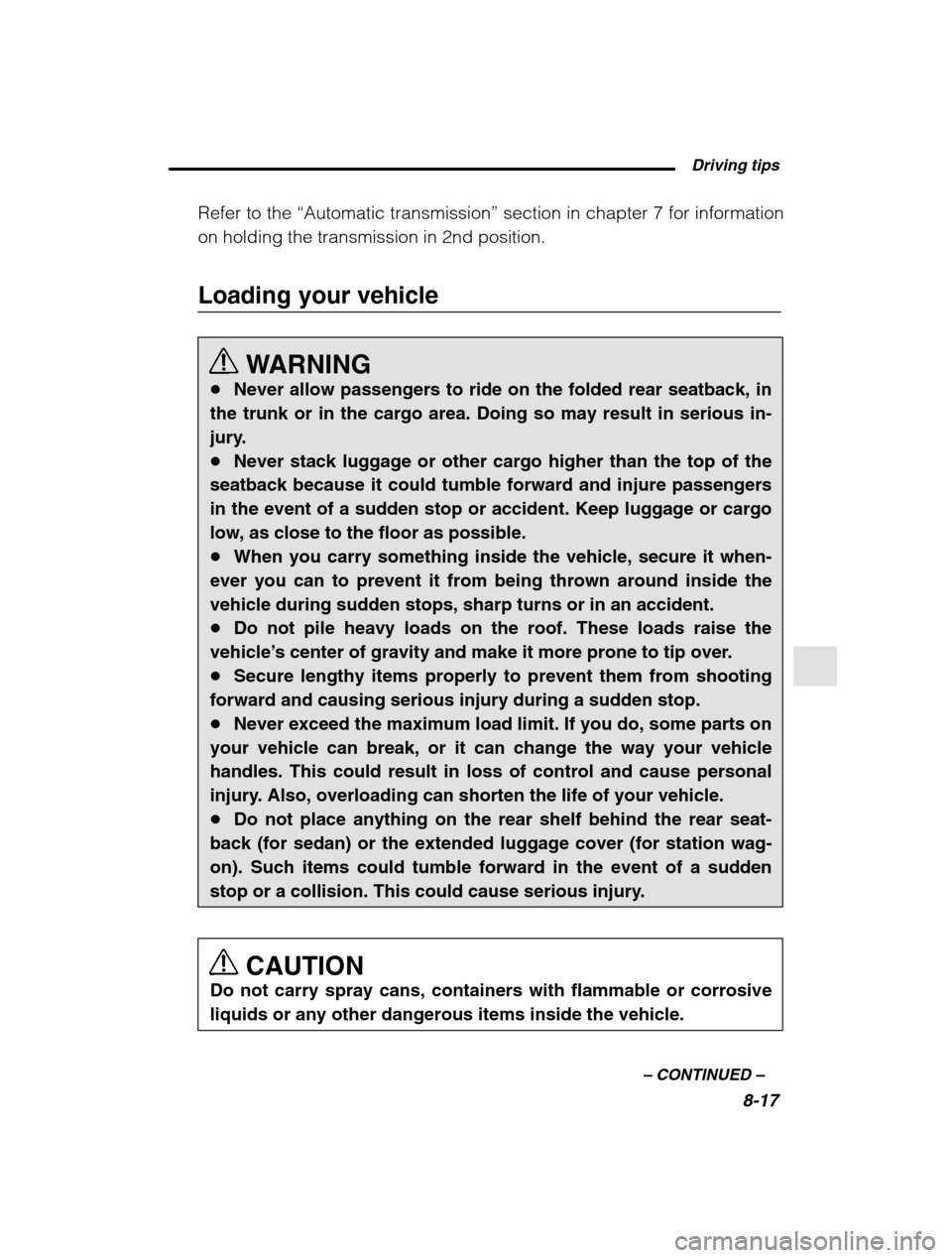

Driving tips8-17
–
CONTINUED –
Refer to the “Automatic transmission ” section in chapter 7 for information
on holding the transmission in 2nd position.
Loading your vehicle
WARNING
Never allow passengers to ride on the folded rear seatback, in
the trunk or in the cargo area. Doing so may result in serious in-
jury. Never stack luggage or other cargo higher than the top of the
seatback because it could tumble forward and injure passengersin the event of a sudden stop or accident. Keep luggage or cargo
low, as close to the floor as possible. When you carry something inside the vehicle, secure it when-
ever you can to prevent it from being thrown around inside the
vehicle during sudden stops, sharp turns or in an accident. Do not pile heavy loads on the roof. These loads raise the
vehicle’ s center of gravity and make it more prone to tip over.
Secure lengthy items properly to prevent them from shooting
forward and causing serious injury during a sudden stop. Never exceed the maximum load limit. If you do, some parts on
your vehicle can break, or it can change the way your vehicle
handles. This could result in loss of control and cause personal
injury. Also, overloading can shorten the life of your vehicle. Do not place anything on the rear shelf behind the rear seat-
back (for sedan) or the extended luggage cover (for station wag-on). Such items could tumble forward in the event of a sudden
stop or a collision. This could cause serious injury.
CAUTION
Do not carry spray cans, containers with flammable or corrosiveliquids or any other dangerous items inside the vehicle.

8-38
nDriving with a trailer
You should allow for considerably more stopping distance when
towing a trailer. Avoid sudden braking because it may result in skid-
ding or jackknifing and loss of control. Avoid abrupt starts and sudden accelerations. If your vehicle has a
manual transmission, always start out in first gear and release the
clutch at moderate engine revolution. Avoid uneven steering, sharp turns and rapid lane changes.
Slow down before turning. Make a longer than normal turning
radius because the trailer wheels will be closer than the vehicle
wheels to the inside of the turn. In a tight turn, the trailer could hit yourvehicle. Crosswinds will adversely affect the handling of your vehicle and
trailer, causing sway. Crosswinds can be due to weather conditions or
the passing of large trucks or buses. If swaying occurs, firmly grip the
steering wheel and slow down immediately but gradually. When passing other vehicles, considerable distance is required
because of the added weight and length caused by attaching the
trailer to your vehicle. Backing up with a trailer is difficult and takes practice. When back-
ing up with a trailer, never accelerate or steer rapidly. When turning
back, grip the bottom of the steering wheel with one hand and turn it
to the left for a left turn, and turn it to the right for a right turn.
Left turn Right turn
OM-H2791
If the ABS warning light illuminates while the vehicle is in motion,
stop towing the trailer and have repairs performed immediately by the

12-2
Specifications
These specifications are subject to change without notice. Dimensions Legacy sedan
Overall length 184.4 in (4,685 mm)
Overall width 68.7 in (1,745 mm)
Overall height 55.7 in (1,415 mm)
Ground clearance 6.1 in (155 mm)
Front tread 57.5 in (1,460 mm)
Rear tread 57.5 in (1,460 mm)
Wheelbase 104.3 in (2,650 mm) Legacy station wagon
Overall length 187.4 in (4,760 mm)
Overall width 68.7 in (1,745 mm)
Overall height 56.6 in (1,435 mm)
59.6 in (1,525 mm)*
Ground clearance 6.3 in (160 mm)
Front tread 57.5 in (1,460 mm)
Rear tread 57.3 in (1,455 mm)
Wheelbase 104.3 in (2,650 mm)
*: With roof rail
OUTBACK sedan
Overall length 184.4 in (4,685 mm)
Overall width 68.7 in (1,745 mm)
Overall height 58.3 in (1,480 mm)
Ground clearance 7.3 in (185 mm)
Front tread 57.9 in (1,470 mm)
Rear tread 57.7 in (1,465 mm)
Wheelbase 104.3 in (2,650 mm) OUTBACK station wagon
Overall length 187.4 in (4,760 mm)
Overall width 68.7 in (1,745 mm)
