2002 SUBARU LEGACY Owners Manual

and are registered trademarks of FUJI HEAVY INDUSTRIES, LTD.
copyright 2001 FUJI HEAVY INDUSTRIES LTD.
Foreword
Congratulations on choosing a SUBARU vehicle. This Owner’s
Manual has all the information necessary to keep your SUBARU in
excellent condition and to properly maintain the emission control
system for minimizing emission pollutants. We urge you to read thismanual carefully so that you may understand your vehicle and its
operation. For information not found in this Owner’s Manual, suchas details concerning repairs or adjustments, please contact thedealer from whom you purchased your SUBARU or the nearest
SUBARU dealer. The information, specifications and illustrations found in this manu-
al are those in effect at the time of printing. FUJI HEAVY INDUS-
TRIES LTD. reserves the right to change specifications and designs
at any time without prior notice and without incurring any obligationto make the same or similar changes on vehicles previously sold.
This Owner’s Manual applies to all models and covers all equip-ment, including factory installed options. Some explanations, there-fore may be for equipment not installed in your vehicle.
Please leave this manual in the vehicle at the time of resale. The next owner will need the information found herein.
FUJI HEAVY INDUSTRIES LTD., TOKYO, JAPAN

HBF016ABHBF017AB
This manual describes the following types of the Legacy series.
HBF019AB
HBF018AB

i
– CONTINUED –
Warranties
Warranties for U.S.A.
All SUBARU vehicles distributed by Subaru of America, Inc. and sold
at retail by an authorized SUBARU dealer in the United States comewith the following warranties:
SUBARU Limited Warranty
Emission Control Systems Warranty
Emissions Performance Warranty
All warranty information, including details of coverage and exclusions,is in the “Warranty and Maintenance Booklet ”. Please read these war-
ranties carefully. Warranties for Canada
All SUBARU vehicles distributed by Subaru Canada, Inc. and sold at
retail by an authorized SUBARU dealer in Canada come with the fol-lowing warranties:
SUBARU Limited Warranty
Anti-Corrosion Warranty
Emission Control Warranty
All warranty information, including details of coverage and exclusions, isin the “Warranty and Service Booklet ”. Please read these warranties
carefully.
NOTE
This vehicle does not contain mercury devices or parts.

ii
How to use this owner’s manual
Using your Owner ’s manual
Before you operate your vehicle, carefully read this manual. To protect yourself and extend the service life of your vehicle, follow the instructions
in this manual. Failure to observe these instructions may result in serious
injury and damage to your vehicle.
This manual is composed of fourteen chapters. Each chapter begins with a brief table of contents, so you can usually tell at a glance if that
chapter contains the information you want. Chapter 1: Seat, seatbelt and SRS airbags

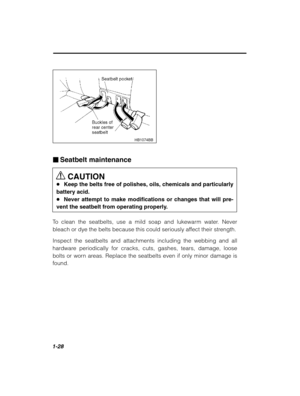

This chapter informs you how to use the seat and seatbelt and contains

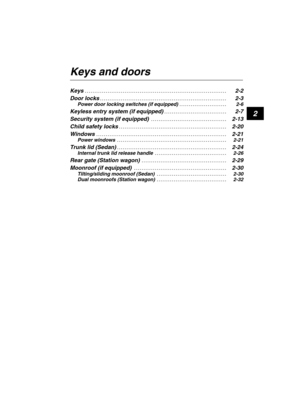

precautions for the SRS airbags.Chapter 2: Keys and doors

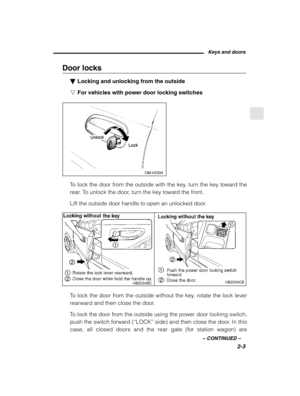

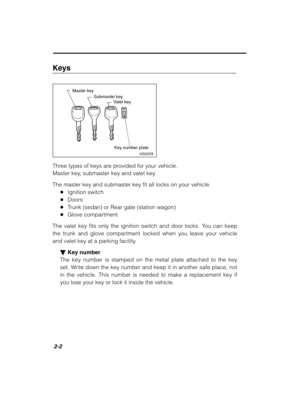

This chapter informs you how to operate the keys, locks and windows.Chapter 3: Instruments and controls

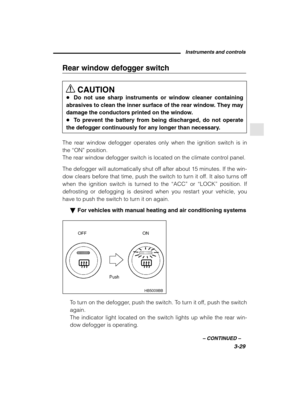

This chapter informs you about the operation of instrument panel indica-tors and how to use the instruments and other switches.Chapter 4: Climate control

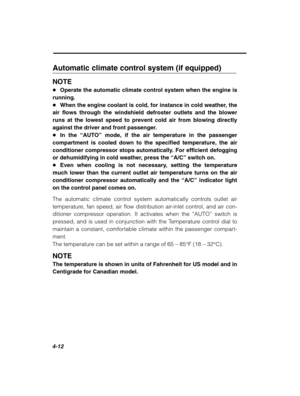

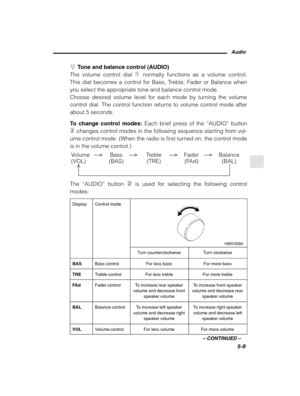

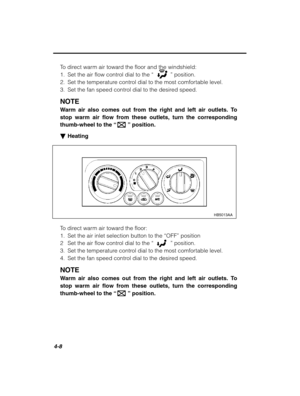

This chapter informs you how to operate the climate control.Chapter 5: Audio

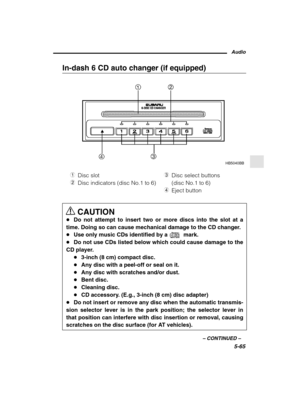

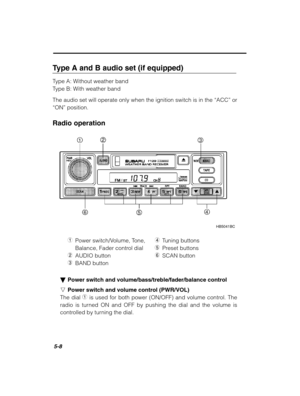

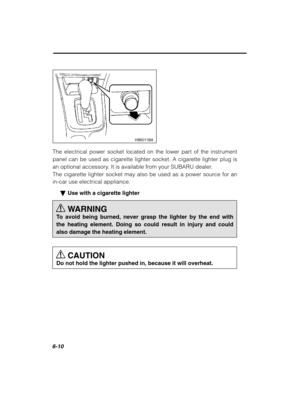

This chapter informs you how to operate your audio system.Chapter 6: Interior equipment

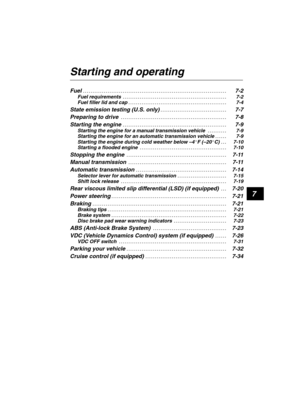

This chapter informs you how to operate interior equipment.Chapter 7: Starting and operating

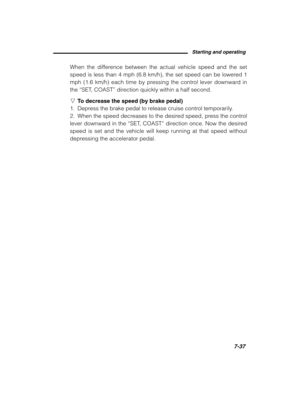

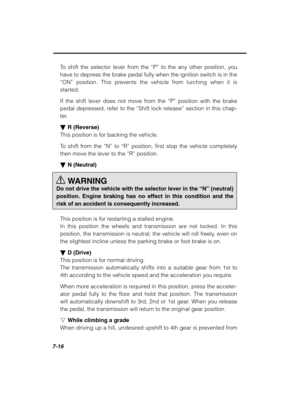

This chapter informs you how to start and operate your SUBARU.Chapter 8: Driving tips

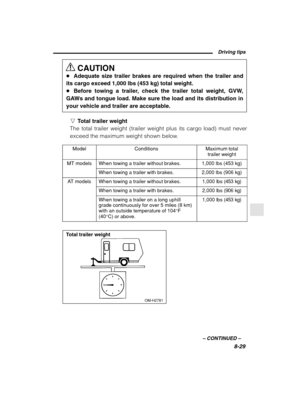

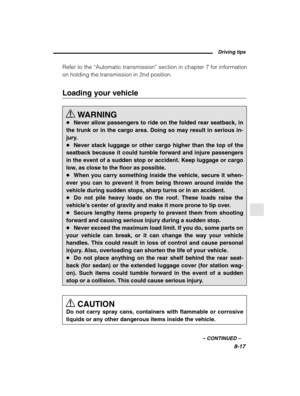

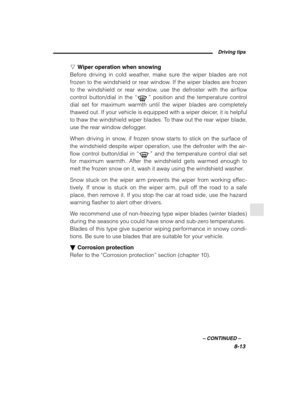

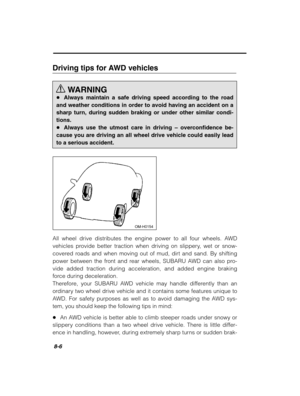

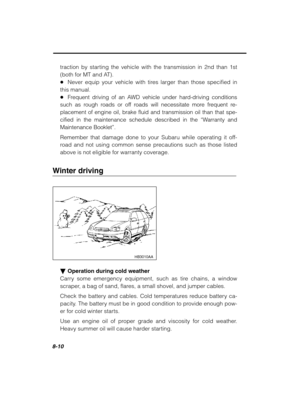

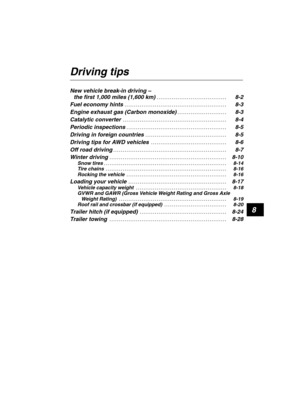

This chapter informs you how to drive your SUBARU in various condi-tions and explains some safety tips on driving.Chapter 9: In case of emergency
This chapter informs you what to do if you have a problem while driving,

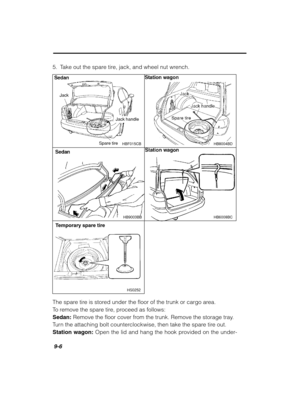

such as a flat tire or engine overheating.Chapter 10: Appearance care
This chapter informs you how to keep your SUBARU looking good.

iii
–
CONTINUED –

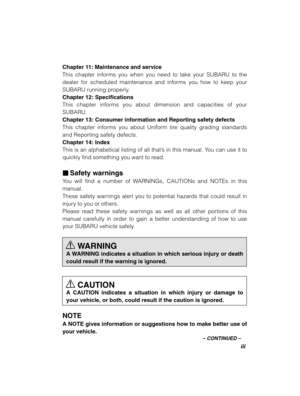

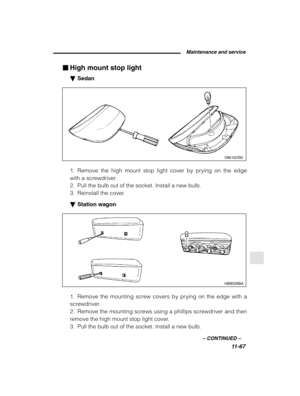

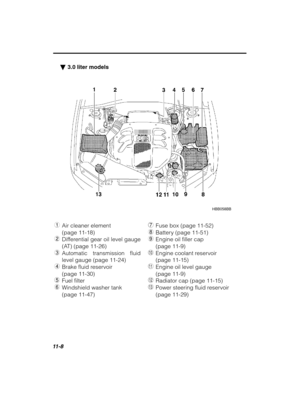

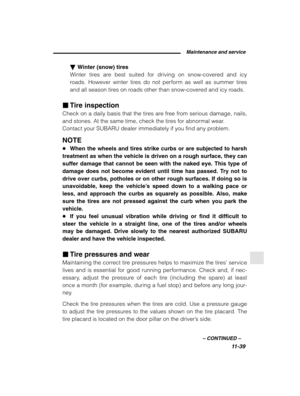

Chapter 11: Maintenance and service
This chapter informs you when you need to take your SUBARU to the
dealer for scheduled maintenance and informs you how to keep your

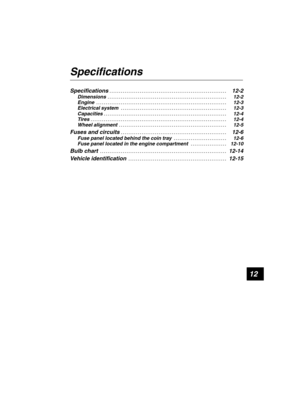

SUBARU running properly.Chapter 12: Specifications

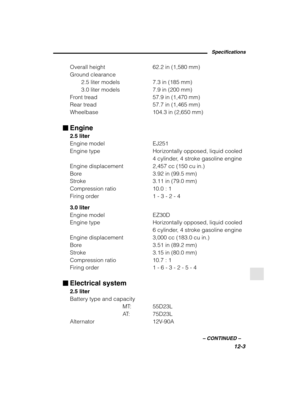

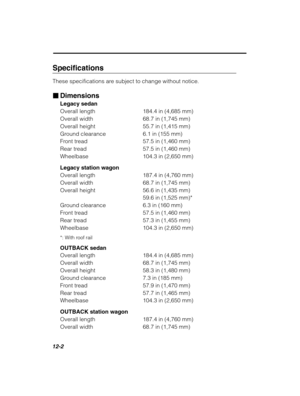

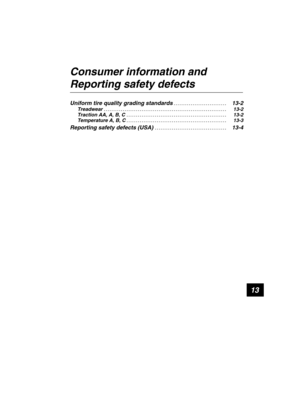

This chapter informs you about dimension and capacities of yourSUBARU.Chapter 13: Consumer information and Reporting safety defects
This chapter informs you about Uniform tire quality grading standards
and Reporting safety defects.Chapter 14: IndexThis is an alphabetical listing of all that ’s in this manual. You can use it to
quickly find something you want to read. Safety warnings
You will find a number of WARNINGs, CAUTIONs and NOTEs in this manual.
These safety warnings alert you to potential hazards that could result in
injury to you or others.
Please read these safety warnings as well as all other portions of this
manual carefully in order to gain a better understanding of how to use
your SUBARU vehicle safely.
WARNING
A WARNING indicates a situation in which serious injury or deathcould result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in which injury or damage toyour vehicle, or both, could result if the caution is ignored.
NOTE A NOTE gives information or suggestions how to make better use of your vehicle.

iv
Safety symbol
HS0008
You will find a circle with a slash through it in this manual. This symbol means “Do not ”, “Do not do this ”, or “Do not let this happen ”, depending
upon the context.
Safety precautions when driving
SEATBELT AND SRS AIRBAG
WARNING
All persons in the vehicle should fasten their seatbelts BE-
FORE the vehicle starts to move. Otherwise, the possibility of se-
rious injury becomes greater in the event of a sudden stop or ac-cident. To obtain maximum protection in the event of an accident, the
driver and all passengers in the vehicle should always wear seat-
belts when the vehicle is moving. The SRS (SupplementalRestraint System) airbag does not do away with the need to fas-ten seatbelts. In combination with the seatbelts, it offers the bestcombined protection in case of a serious accident.Not wearing a seatbelt increases the chance of severe injury ordeath in a crash even when the car has the SRS airbag. The SRS airbags deploy with considerable speed and force.
Occupants who are out of proper position when the SRS airbag

v
–
CONTINUED –
deploys could suffer very serious injuries. Because the SRS air- bag needs enough space for deployment, the driver should al-ways sit upright and well back in the seat as far from the steeringwheel as practical while still maintaining full vehicle control and
the front passenger should move the seat as far back as possibleand sit upright and well back in the seat.
Carefully read the sections “Seat, seatbelts and SRS airbag ” in chapter 1
of this owner ’s manual for instructions and precautions concerning the

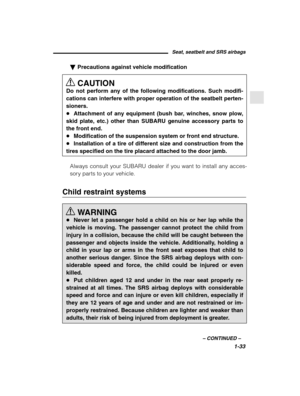

seatbelt system and SRS airbag system. CHILD SAFETY

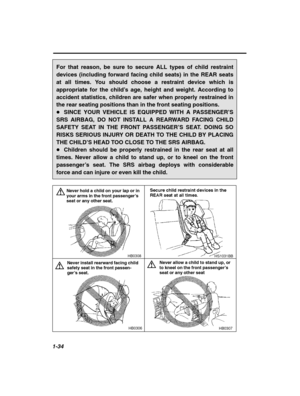

WARNING

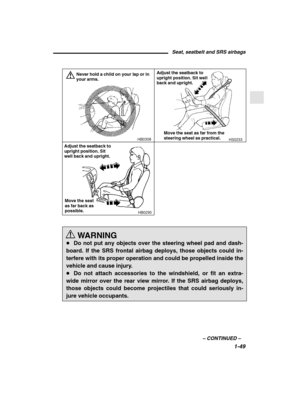

Never hold a child on your lap or in your arms while the ve-
hicle is moving. The passenger cannot protect the child from in- jury in a collision, because the child will be caught between the
passenger and objects inside the vehicle. While riding in the vehicle, infants and small children should
always be placed in the REAR seat in an infant or child restraint
system which is appropriate for the child ’s age, height and
weight. If a child is too big for a child restraint system, the childshould sit in the REAR seat and be restrained using the seatbelts.According to accident statistics, children are safer when properlyrestrained in the rear seating positions than in the front seatingpositions. Never allow a child to stand up or kneel on the seat. Put children aged 12 and under in the REAR seat properly re-
strained at all times in a child restraint device or in a seatbelt. TheSRS airbag deploys with considerable speed and force and caninjure or even kill children, especially if they are 12 years of ageand under and are not restrained or improperly restrained. Be-
cause children are lighter and weaker than adults, their risk being
injured from deployment is greater. NEVER INSTALL A REARWARD FACING CHILD SAFETY SEAT
IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY PLACING THE CHILD ’S HEAD TOO
