2002 SUBARU LEGACY Owners Manual

5-6
CD player 1 (Optional audio unit — if equipped)
HB5039AA
Inserting and removing a disc: refer to page 5-60
CD player 2 (Optional audio unit — if equipped)
HB5044AA
CD (compact disc) player operation: refer to page 5-62

Audio5-7
–
CONTINUED –

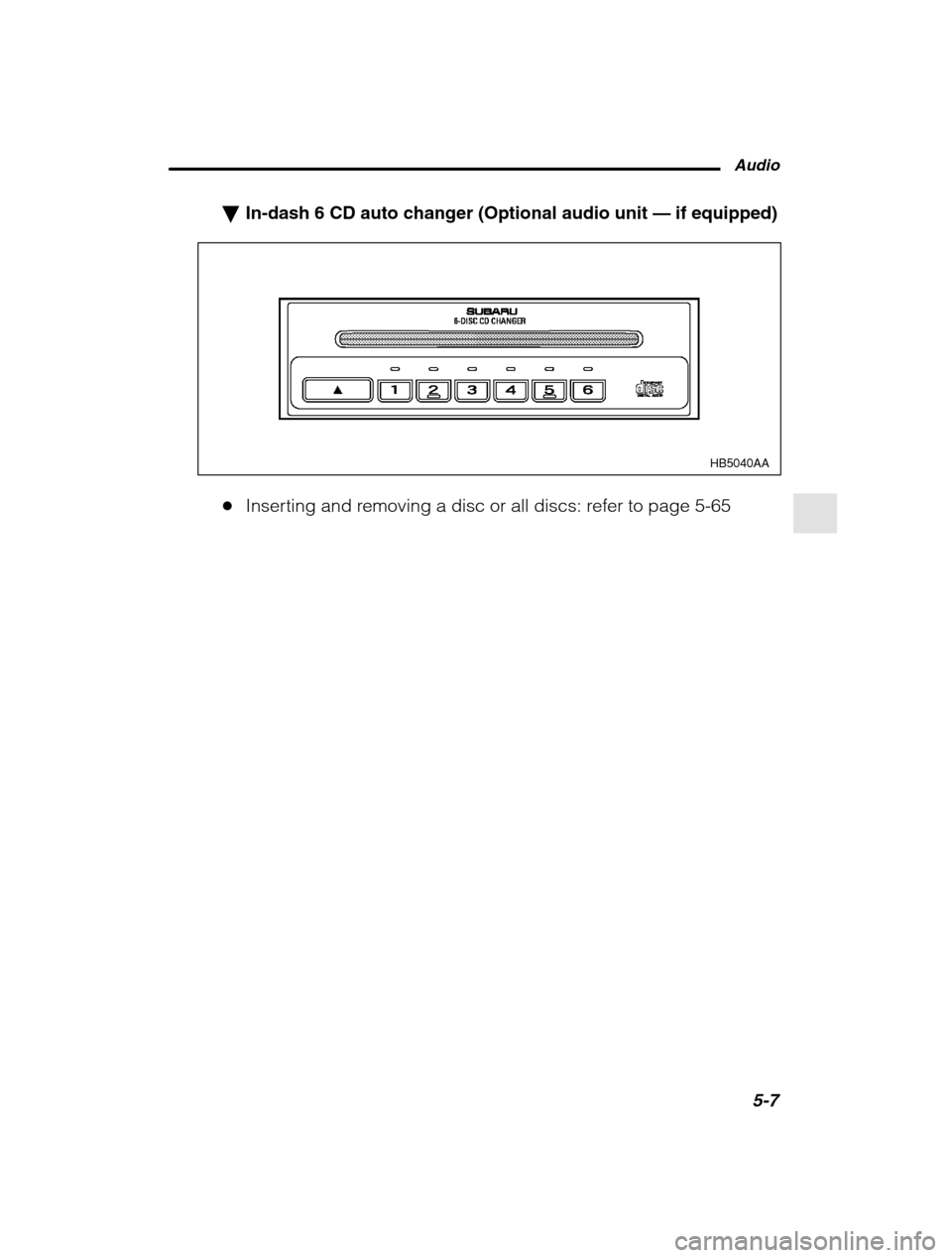

In-dash 6 CD auto changer (Optional audio unit — if equipped)
HB5040AA
Inserting and removing a disc or all discs: refer to page 5-65

5-8

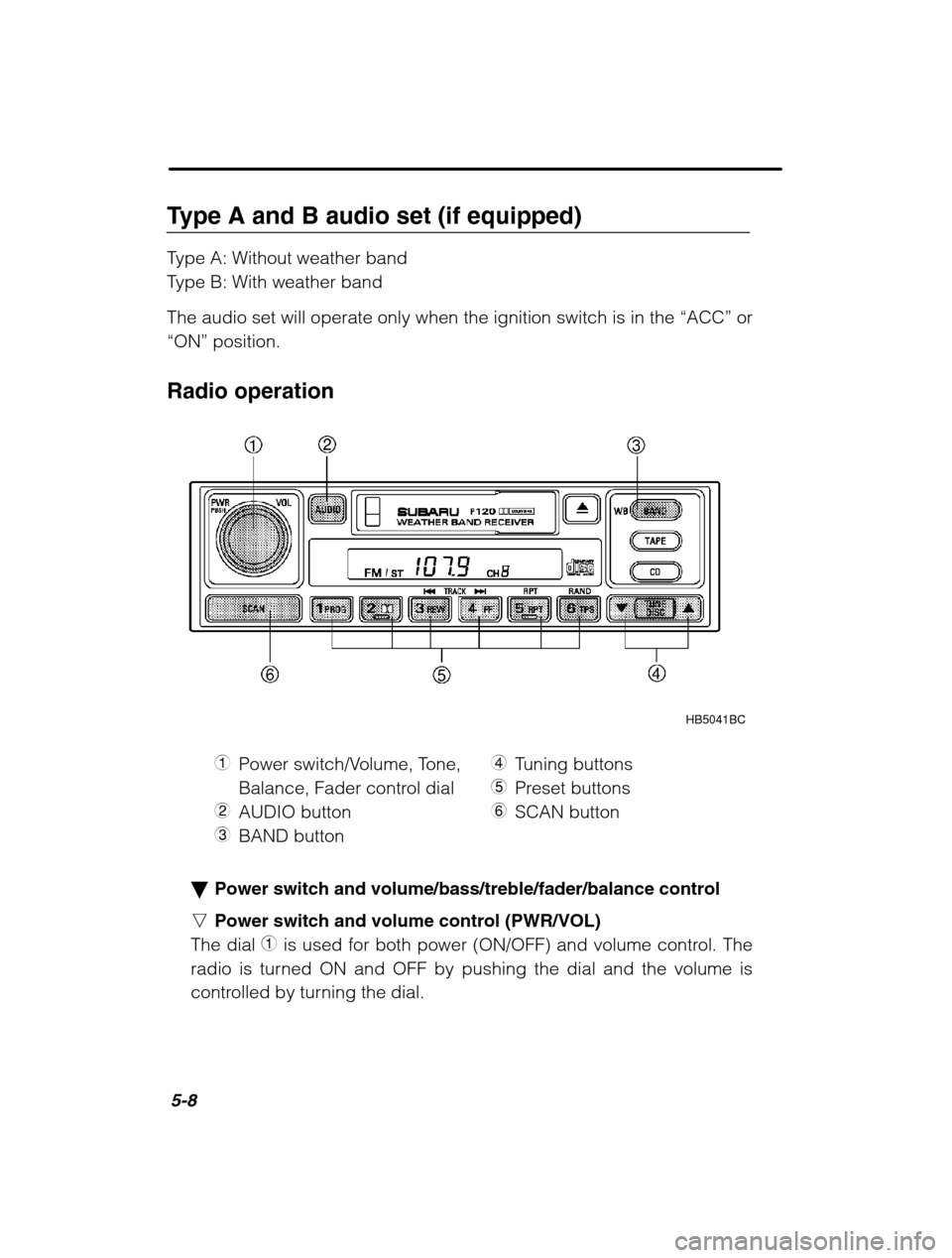

Type A and B audio set (if equipped)
Type A: Without weather band
Type B: With weather band
The audio set will operate only when the ignition switch is in the “ACC” or
“ON” position.
Radio operation
HB5041BC
1 Power switch/Volume, Tone,
Balance, Fader control dial
2 AUDIO button
3 BAND button 4
Tuning buttons
5 Preset buttons
6 SCAN button
Power switch and volume/bass/treble/fader/balance control
n Power switch and volume control (PWR/VOL)
The dial 1 is used for both power (ON/OFF) and volume control. The
radio is turned ON and OFF by pushing the dial and the volume is
controlled by turning the dial.

Audio5-9
–
CONTINUED –
nTone and balance control (AUDIO)
The volume control dial 1 normally functions as a volume control.
This dial becomes a control for Bass, Treble, Fader or Balance when
you select the appropriate tone and balance control mode.
Choose desired volume level for each mode by turning the volume
control dial. The control function returns to volume control mode after
about 5 seconds.
To change control modes: Each brief press of the “AUDIO” button
2 changes control modes in the following sequence starting from vol-
ume control mode. (When the radio is first turned on, the control mode
is in the volume control.)
Volume Bass Treble Fader Balance
(VOL) (BAS) (TRE) (FAd) (BAL)
The “AUDIO” button 2 is used for selecting the following control
modes:
Display
Control mode
HB5036BA
Turn counterclockwiseTurn clockwise
BASBass controlFor less bassFor more bass
TRETreble controlFor less trebleFor more treble
FA dFader controlTo increase rear speaker
volume and decrease front
speaker volumeTo increase front speaker
volume and decrease rear
speaker volume
BALBalance controlTo increase left speaker
volume and decrease right
speaker volumeTo increase right speakervolume and decrease left
speaker volume
VOLVolume controlFor less volumeFor more volume

5-10
Waveband selection
n FM/AM selection
Push the “BAND” button 3 to select FM1, FM2 or AM reception. The
display indicates which one is currently selected. n FM/AM/Weather band selection
Push the “BAND” button 3 to select FM1, FM2, AM or Weather band
(WB) reception. The display indicates which is currently selected. Stereo indicator
The stereo indicator “ST” will come on when an FM stereo broadcast
is received. Tuning (TUNE)
n Manual tuning (TUNE)
Press the tuning button 4 marked “ ” to increase the tuning frequen-
cy and press the tuning button marked “ ” to decrease it.
Each time the button is pressed, the frequency interval can be
changed between 10 kHz in the AM mode and 0.2 MHz in the FMmode.
Constant pressure on the button causes a continuous change in the
frequency. n Manual tuning for weather band
When weather band mode is selected, press the tuning button 4
marked “ ” to change the WB channel up and press the tuning but-
ton marked “ ” to change the WB channel down. Each time the but-
ton is pressed, the WB channel changes to the next channel.
Constant pressure on the button causes a continuous change in the
frequency. n Automatic tuning (SCAN)
Press the “SCAN” button
6 to change the radio to the SCAN mode. In
this mode, the radio scans through the radio band until a station is
found. The radio will stop at the station for five seconds while display-
ing the frequency, after which scanning will continue until the entire
band has been scanned from the low end to the high end.

Audio5-11
–
CONTINUED –
Press the “SCAN” button again to cancel the SCAN mode and to stop
on any displayed frequency.
When the “SCAN” button is pressed for automatic tuning, stations are
scanned in the direction of low frequencies to high frequencies only.
Automatic tuning may not function properly if the station reception is
weakened by distance from the station or proximity to tall buildingsand hills. Selecting preset stations
Presetting a station with a “preset button ”
5 allows you to select that
station in a single operation. Up to six WB (if equipped), AM, FM1 and
FM2 stations each may be preset. How to preset stations
1. Press the “BAND” button 3 to select FM1, FM2, AM or WB (if
equipped) reception.
2. Press the “SCAN” button or tune the radio manually until the
desired station frequency is displayed.
3. Press one of the preset buttons for more than 2 seconds to store
the frequency. At this time, there will momentarily be no sound from
the radio. If the button is pressed for less than 2 seconds, the preced-
ing selection will remain in memory.
NOTE If the connection between the radio and battery is broken for any
reason such as vehicle maintenance or radio removal, all stationsstored in the preset buttons are cleared. If this occurs, it is neces-sary to reset the preset buttons.

5-12
Cassette player operationHB5041CB
7 Cassette slot
8 Eject button
9 TAPE button
Q TPS (Tape Program Search)
W Repeat button E
Fast-forward button
R Rewind button
T Dolby B NR button
Y Program button
NOTE Only use good quality cassettes (cassettes longer than C-90 are
not recommended). Put cassettes back in their boxes immediately after use to protect
them from dust and dirt and to prevent the tape from unwinding. Never expose cassettes to heat, direct sunlight or moisture.
Clean the tape head (once or twice a month) using a
wet-type
cleaning cassette
.
Cassette slot
Insert a cassette with the exposed tape side facing to the right. After
insertion, playback starts. TAPE button
Press the “TAPE button ”
9 when the cassette left in the cassette slot
is to be played back again.

Audio5-13
–
CONTINUED –
Tape travel indicators
These indicate the direction the cassette tape is moving. : Indicates that the top side of the cassette is being played back.
: Indicates that the bottom side of the cassette is being played
back. Program button (PROG)
When the program button Y is pressed during playback, the tape
travel indicators will switch and the player will begin playing back the opposite side of the tape. The same mechanism is automatically acti-
vated when the end of the tape is reached. This allows the opposite
side of the tape to play, providing continuous playback. Fast-forward button (FF)
To fast-forward the tape, press the “FF” button
E. To stop fast-for-
warding, lightly press the “
” 8 button.
Rewind button (REW)
To rewind the tape, press the “REW” button R. To stop rewinding,
lightly press the “
” 8 button.
Eject button (
)
When “
” button 8 is pressed, playback stops and the cassette
tape is ejected. The ejection function is also active when the ignition switch is in the
“LOCK” position. Always make certain that you remove the cassette
tape. Tape program sensor button (TPS)
n Blank skip
When the “TPS” button Q is pressed, the “TPS” indicator will come on
and the player will automatically skip any blank portion of 15 second
or more and play the next program, even if it is on the other side. To
cancel blank skip mode, press the “TPS” button again.
n Blank search
Press “TPS” button
Q during playback to return to the beginning of
the current selection or to skip to the beginning of the next selection.
