Seat, seatbelt and SRS airbags1-27
–
CONTINUED –
HB1037BA
HB1036BA

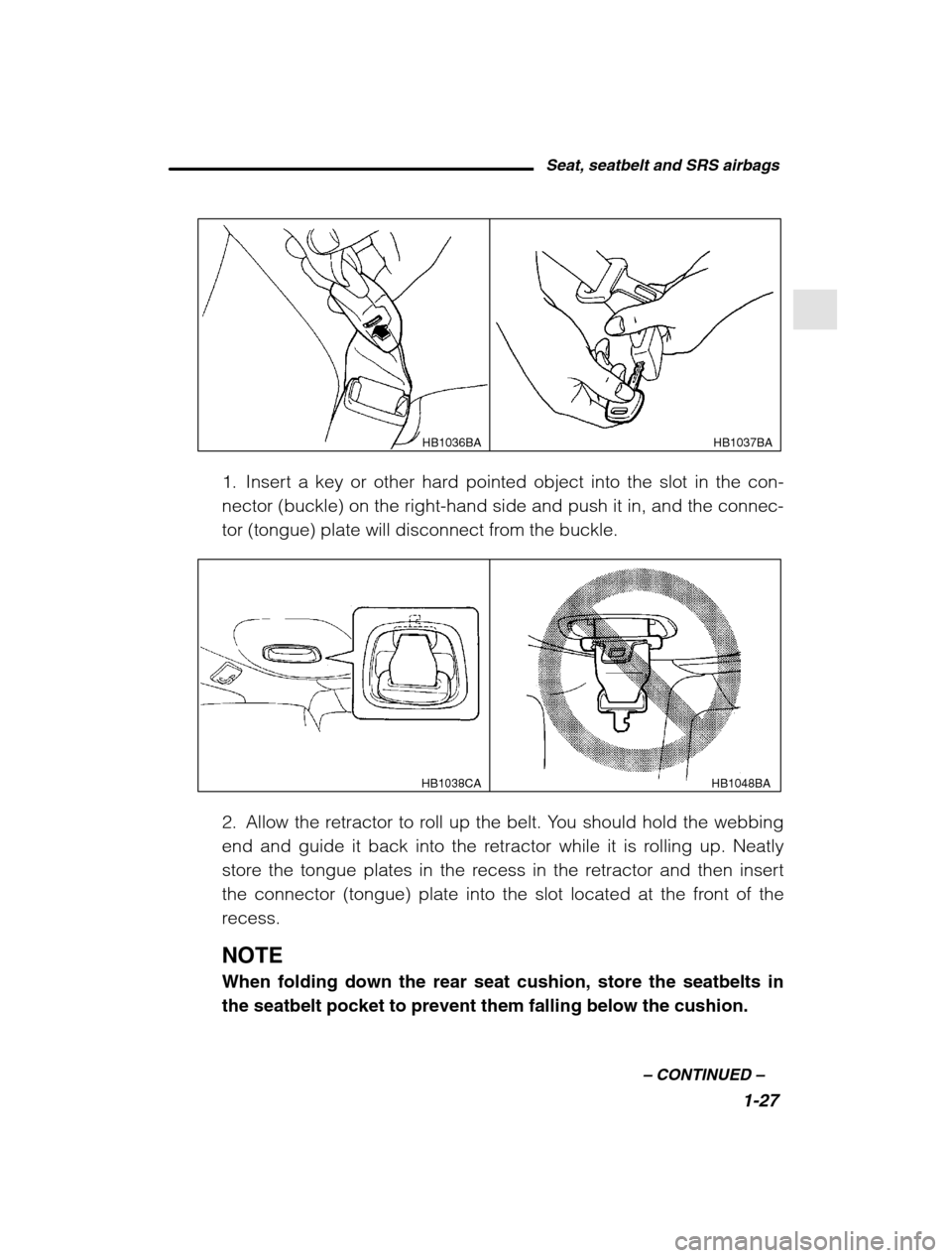

1. Insert a key or other hard pointed object into the slot in the con-
nector (buckle) on the right-hand side and push it in, and the connec-
tor (tongue) plate will disconnect from the buckle.
HB1048BA
HB1038CA
2. Allow the retractor to roll up the belt. You should hold the webbing
end and guide it back into the retractor while it is rolling up. Neatly
store the tongue plates in the recess in the retractor and then insert
the connector (tongue) plate into the slot located at the front of the
recess. NOTE When folding down the rear seat cushion, store the seatbelts in the seatbelt pocket to prevent them falling below the cushion.

1-28

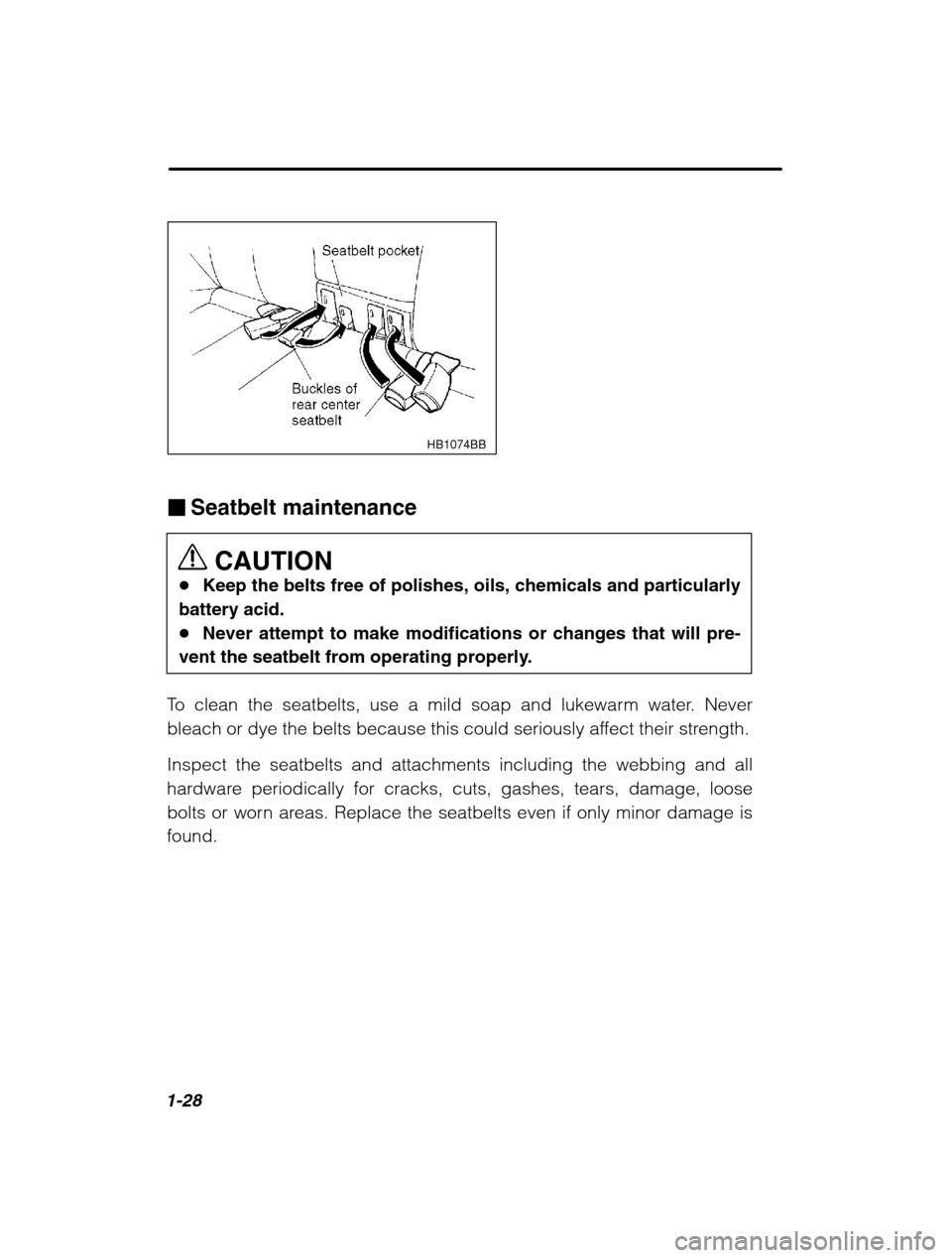

HB1074BB
Seatbelt maintenance
CAUTION
Keep the belts free of polishes, oils, chemicals and particularly
battery acid. Never attempt to make modifications or changes that will pre-
vent the seatbelt from operating properly.
To clean the seatbelts, use a mild soap and lukewarm water. Never
bleach or dye the belts because this could seriously affect their strength. Inspect the seatbelts and attachments including the webbing and all
hardware periodically for cracks, cuts, gashes, tears, damage, loose
bolts or worn areas. Replace the seatbelts even if only minor damage isfound.

Seat, seatbelt and SRS airbags1-29
–
CONTINUED –
Front seatbelt pretensioners
WARNING
To obtain maximum protection, occupants should sit in an up-
right position with their seatbelts properly fastened. Refer to
“Seatbelts” section in this chapter.
Do not modify, remove or strike the front seatbelt retractor as-
semblies or surrounding area. This could result in accidental ac-tivation of the seatbelt pretensioners or could make the system
inoperative, possibly resulting in serious injury. Seatbelt preten-sioners have no user-serviceable parts. For required servicing of
front seatbelt retractors equipped with seatbelt pretensioners,
see your nearest SUBARU dealer. When discarding front seatbelt retractor assemblies or scrap-
ping the entire car due to collision damage or for other reasons,
consult your SUBARU dealer.
HB0373
Seatbelt retractor assembly (Pretensioner)
The driver
’s and front passenger ’s seatbelts have a seatbelt preten-
sioner. The seatbelt pretensioners are designed to be activated in the
event of an accident involving a moderate to severe frontal collision.
The pretensioner sensor also serves as a SRS frontal airbag sensor. If
the sensor detects a certain predetermined amount of force during a
frontal collision, the front seatbelt is quickly drawn back in by the re-
tractor to take up the slack so that the belt more effectively restrains

1-30

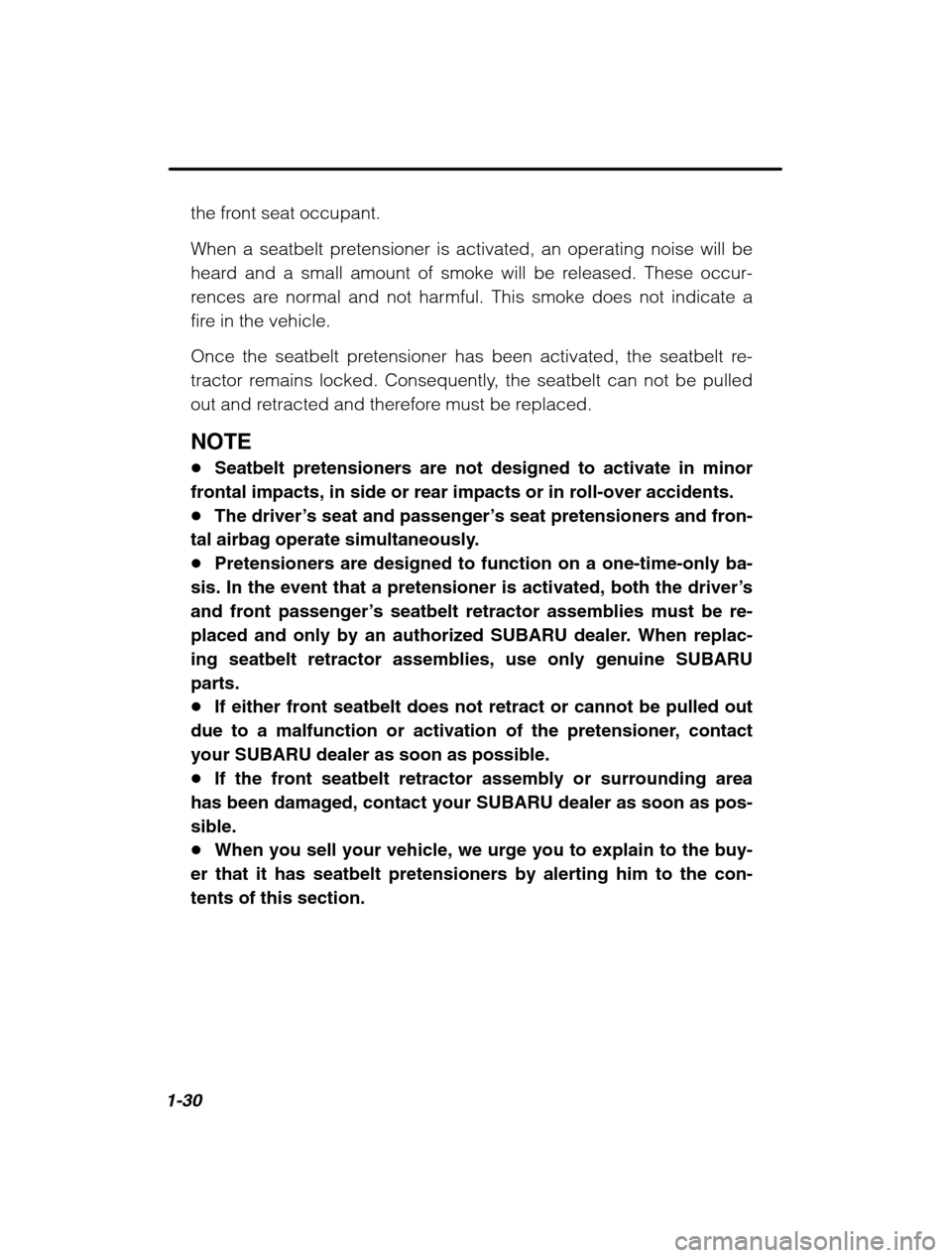

the front seat occupant.
When a seatbelt pretensioner is activated, an operating noise will be
heard and a small amount of smoke will be released. These occur-
rences are normal and not harmful. This smoke does not indicate a
fire in the vehicle.
Once the seatbelt pretensioner has been activated, the seatbelt re-
tractor remains locked. Consequently, the seatbelt can not be pulled
out and retracted and therefore must be replaced. NOTE Seatbelt pretensioners are not designed to activate in minor
frontal impacts, in side or rear impacts or in roll-over accidents. The driver ’s seat and passenger ’s seat pretensioners and fron-
tal airbag operate simultaneously. Pretensioners are designed to function on a one-time-only ba-
sis. In the event that a pretensioner is activated, both the driver ’s
and front passenger ’s seatbelt retractor assemblies must be re-
placed and only by an authorized SUBARU dealer. When replac-
ing seatbelt retractor assemblies, use only genuine SUBARUparts. If either front seatbelt does not retract or cannot be pulled out
due to a malfunction or activation of the pretensioner, contactyour SUBARU dealer as soon as possible. If the front seatbelt retractor assembly or surrounding area
has been damaged, contact your SUBARU dealer as soon as pos-sible. When you sell your vehicle, we urge you to explain to the buy-
er that it has seatbelt pretensioners by alerting him to the con-tents of this section.

Seat, seatbelt and SRS airbags1-31
–
CONTINUED –
System monitors
HB4010EC
A diagnostic system continually monitors the readiness of the seatbelt
pretensioner while the vehicle is being driven. The seatbelt preten-
sioners share the control module with the airbag system. Therefore, if
any malfunction occurs in a seatbelt pretensioner, the SRS airbag sys-
tem warning light will illuminate. The SRS airbag system warning light
will show normal system operation by lighting for about 6 seconds
when the ignition key is turned to the “ON” position.
The following components are monitored by the indicator: Front sub sensor (Right hand side)
Front sub sensor (Left hand side)
Airbag control module (including impact sensors)
Seatbelt pretensioner (Driver ’s side)
Seatbelt pretensioner (Passenger ’s side)
All related wiring
In the event of a malfunction indicated by any of following, the vehicle
should be taken promptly to your nearest SUBARU dealer to have the
system checked. Unless checked and repaired, the seatbelt preten-
sioners and airbags will not function reliably: Flashing or flickering of the indicator light.
No illumination of the warning light when the ignition switch is
first turned to the “ON” position.
Continuous illumination of the warning light.
Illumination of the warning light while driving.

1-32
System servicing
WARNING
When discarding a seatbelt retractor assembly or scrapping
the entire car damaged by a collision, consult your SUBARU deal-
er. Tampering with or disconnecting the system ’s wiring could re-
sult in accidental activation of the seatbelt pretensioner and/orairbag or could make the system inoperative, which may result in
serious injury. The wiring harnesses of the seatbelt pretensionerand SRS airbag systems are covered with yellow insulation andthe connectors of the system are yellow for easy identification.Do not use electrical test equipment on any circuit related to theseatbelt pretensioner and airbag systems. For required servicing
of the seatbelt pretensioner, see your nearest SUBARU dealer.
CAUTION
The front sub sensors are located in both front fenders and theairbag control module including the impact sensors is locatedunder the center console. If you need service or repair in those
areas or near the front seatbelt retractors, we recommend thatyou have an authorized SUBARU dealer perform the work.
NOTE If the front part of the vehicle is damaged in an accident to the extent that the seatbelt pretensioner does not operate, contactyour SUBARU dealer as soon as possible.

Seat, seatbelt and SRS airbags1-33
–
CONTINUED –
Precautions against vehicle modification CAUTION
Do not perform any of the following modifications. Such modifi- cations can interfere with proper operation of the seatbelt perten-sioners. Attachment of any equipment (bush bar, winches, snow plow,
skid plate, etc.) other than SUBARU genuine accessory parts tothe front end. Modification of the suspension system or front end structure.
Installation of a tire of different size and construction from the
tires specified on the tire placard attached to the door jamb.
Always consult your SUBARU dealer if you want to install any acces-
sory parts to your vehicle.
Child restraint systems
WARNING
Never let a passenger hold a child on his or her lap while the
vehicle is moving. The passenger cannot protect the child frominjury in a collision, because the child will be caught between the
passenger and objects inside the vehicle. Additionally, holding achild in your lap or arms in the front seat exposes that child to
another serious danger. Since the SRS airbag deploys with con-
siderable speed and force, the child could be injured or evenkilled. Put children aged 12 and under in the rear seat properly re-
strained at all times. The SRS airbag deploys with considerablespeed and force and can injure or even kill children, especially ifthey are 12 years of age and under and are not restrained or im-properly restrained. Because children are lighter and weaker than
adults, their risk of being injured from deployment is greater.

1-34
For that reason, be sure to secure ALL types of child restraint
devices (including forward facing child seats) in the REAR seats
at all times. You should choose a restraint device which isappropriate for the child’s age, height and weight. According to
accident statistics, children are safer when properly restrained inthe rear seating positions than in the front seating positions. SINCE YOUR VEHICLE IS EQUIPPED WITH A PASSENGER ’S
SRS AIRBAG, DO NOT INSTALL A REARWARD FACING CHILD
SAFETY SEAT IN THE FRONT PASSENGER ’S SEAT. DOING SO
RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACINGTHE CHILD ’S HEAD TOO CLOSE TO THE SRS AIRBAG.
Children should be properly restrained in the rear seat at all
times. Never allow a child to stand up, or to kneel on the front
passenger’ s seat. The SRS airbag deploys with considerable
force and can injure or even kill the child.
HB0306
HB0308
HB0307
Never install rearward facing child safety seat in the front passen-
ger’
s seat.
Never allow a child to stand up, or to kneel on the front passenger ’s
seat or any other seat
Never hold a child on your lap or inyour arms in the front passenger
’s
seat or any other seat.
