2002 SUBARU LEGACY Owners Manual

2-18
2. Connect the white (1 pole) connector.
3. Turn the ignition switch from the “LOCK” to the “ON” position.
4. Install the side sill cover.
To place the system in active arming mode (remote required for ac-
tivation), disconnect the white connector. n Arming the system CAUTION
In passive mode, the system will automatically activate the alarm
but WILL NOT automatically lock the doors. In order to lock thedoors you must either lock them as indicated in step 4 below orwith the key once they have been closed. Failure to lock thedoors manually will result in a higher security risk.
HB2024DB
HB2031BB
1. Turn the ignition switch to the “ON” position.
2. Turn the ignition switch from “ON” to “LOCK” position and remove
the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Before closing the doors, lock all doors with the inside door locklevers.
5. Close the doors. The system will automatically arm after one min-ute.

Keys and doors2-19
–
CONTINUED –
In the passive mode, the system can also be armed with the remote
transmitter or with the power door locking switches. If the remote
transmitter or power door lock switch is used to lock the vehicle, arm-
ing will take place immediately regardless of whether or not the pas-sive mode has been selected. Disarming the system
To disarm the system, briefly press the “UNLOCK/DISARM” button on
the transmitter. Tripped sensor identification
If the horn sounds four times and the parking lights flash four times
when you disarm the system, this indicates that the alarm was trig-
gered. The number of times the indicator light flashes indicates what
sensor caused the alarm condition.
To enter identification mode:
1. Open the driver ’s door and leave it open.
2. Turn the ignition switch to the “ON” position two times. ( “LOCK”
“ON” “LOCK” “ON” “LOCK”)
3. The indicator light will start flashing.
The indicator light provides the following indications. Flashing one time: Any door, the rear gate or the trunk lid has been
opened.
Flashing three times: The impact sensor in the system ’s unit has
been activated. This may indicate that your vehicle has been shocked
or tampered with by some outside force and/or unauthorized person.Flashing four times: The ignition switch has been turned on or the
battery has been disconnected.
NOTE The battery must be reconnected before the indicator light will flash.
To exit this mode, close the door and turn the ignition switch to the
“ON” position.

2-20

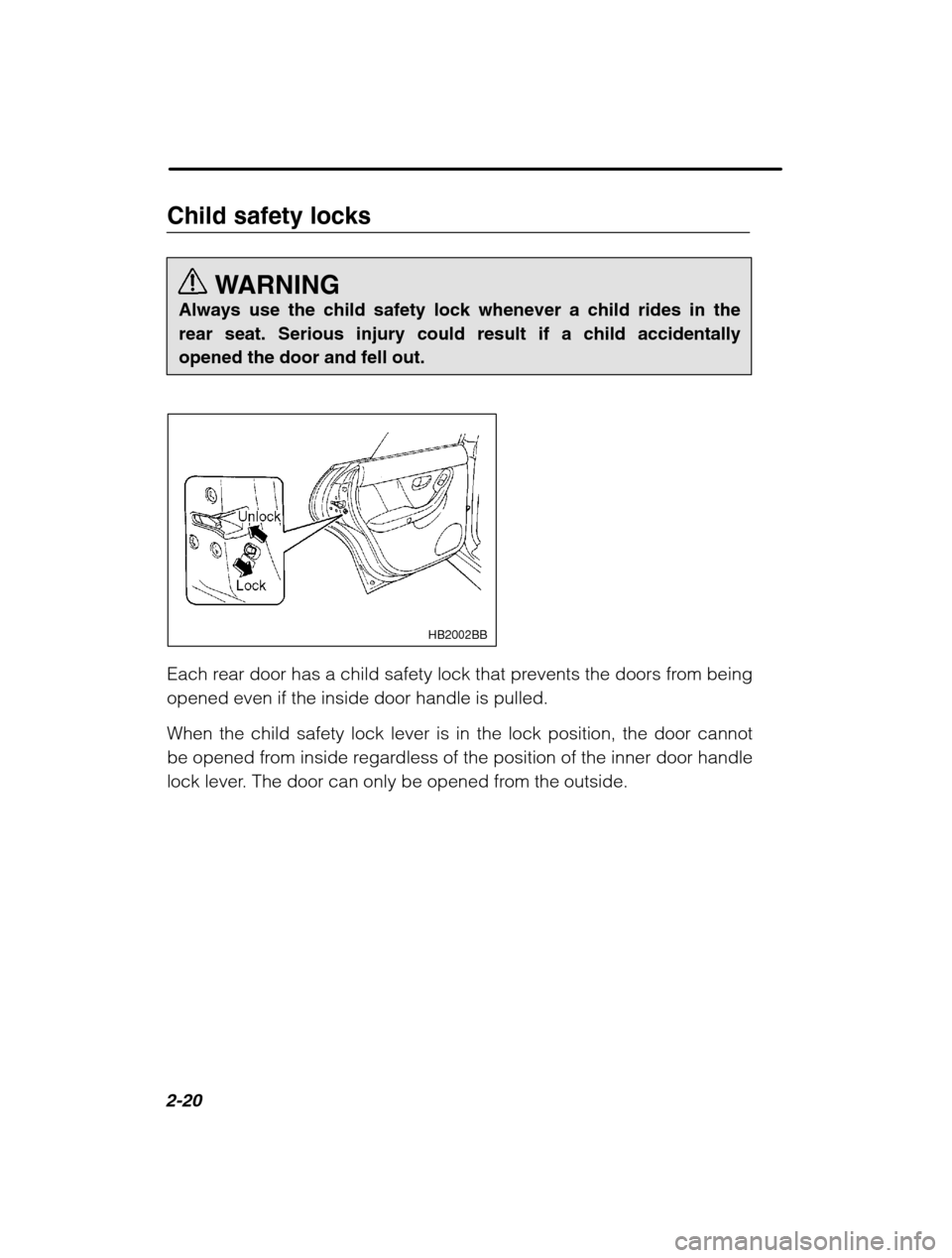

Child safety locksWARNING
Always use the child safety lock whenever a child rides in the rear seat. Serious injury could result if a child accidentallyopened the door and fell out.
HB2002BB
Each rear door has a child safety lock that prevents the doors from being
opened even if the inside door handle is pulled.
When the child safety lock lever is in the lock position, the door cannot
be opened from inside regardless of the position of the inner door handle
lock lever. The door can only be opened from the outside.

Keys and doors2-21
–
CONTINUED –

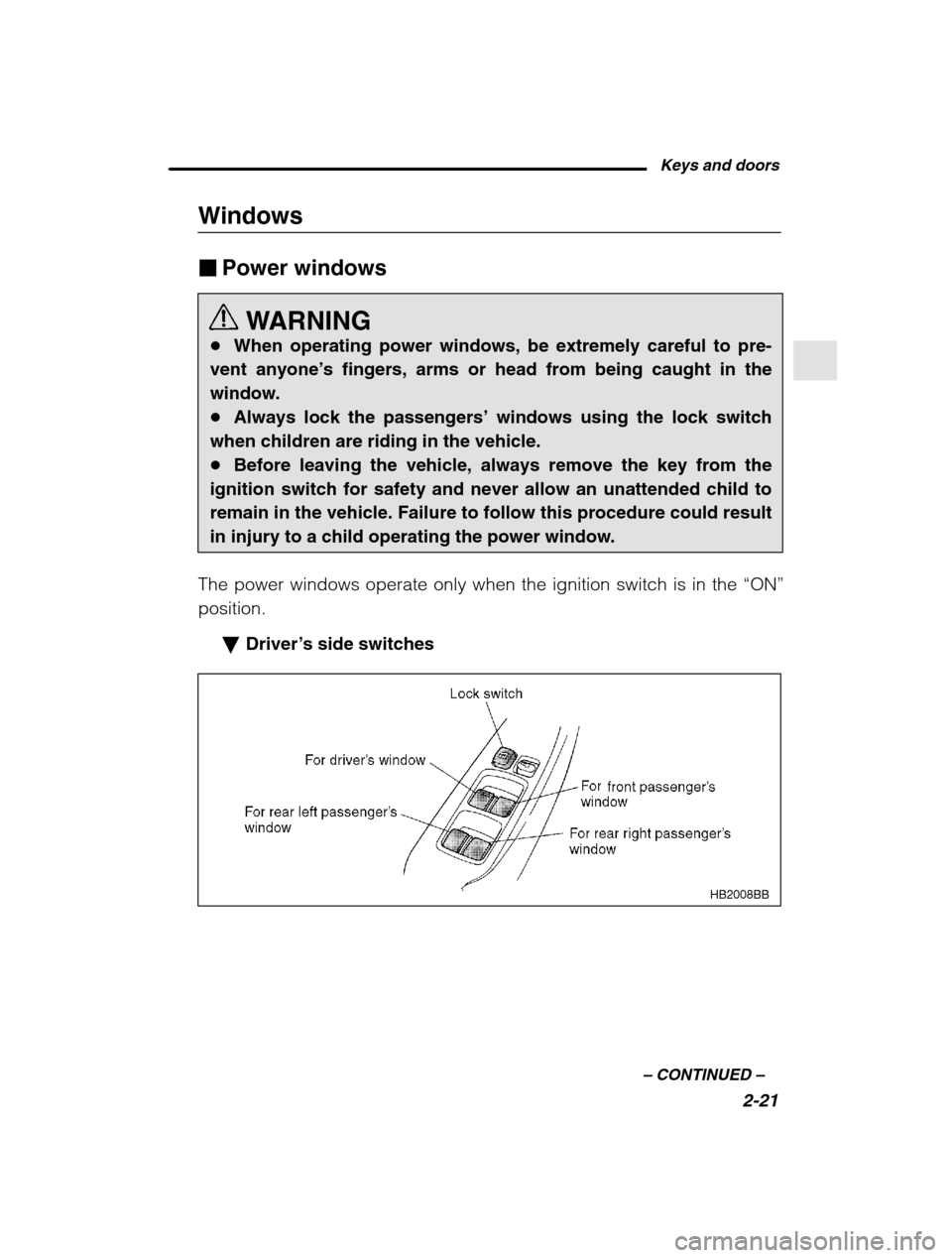

Windows Power windows
WARNING
When operating power windows, be extremely careful to pre-
vent anyone ’s fingers, arms or head from being caught in the
window. Always lock the passengers ’ windows using the lock switch
when children are riding in the vehicle. Before leaving the vehicle, always remove the key from the
ignition switch for safety and never allow an unattended child toremain in the vehicle. Failure to follow this procedure could result
in injury to a child operating the power window.
The power windows operate only when the ignition switch is in the “ON”
position.
Driver’ s side switches
HB2008BB

2-22
HB2008DB

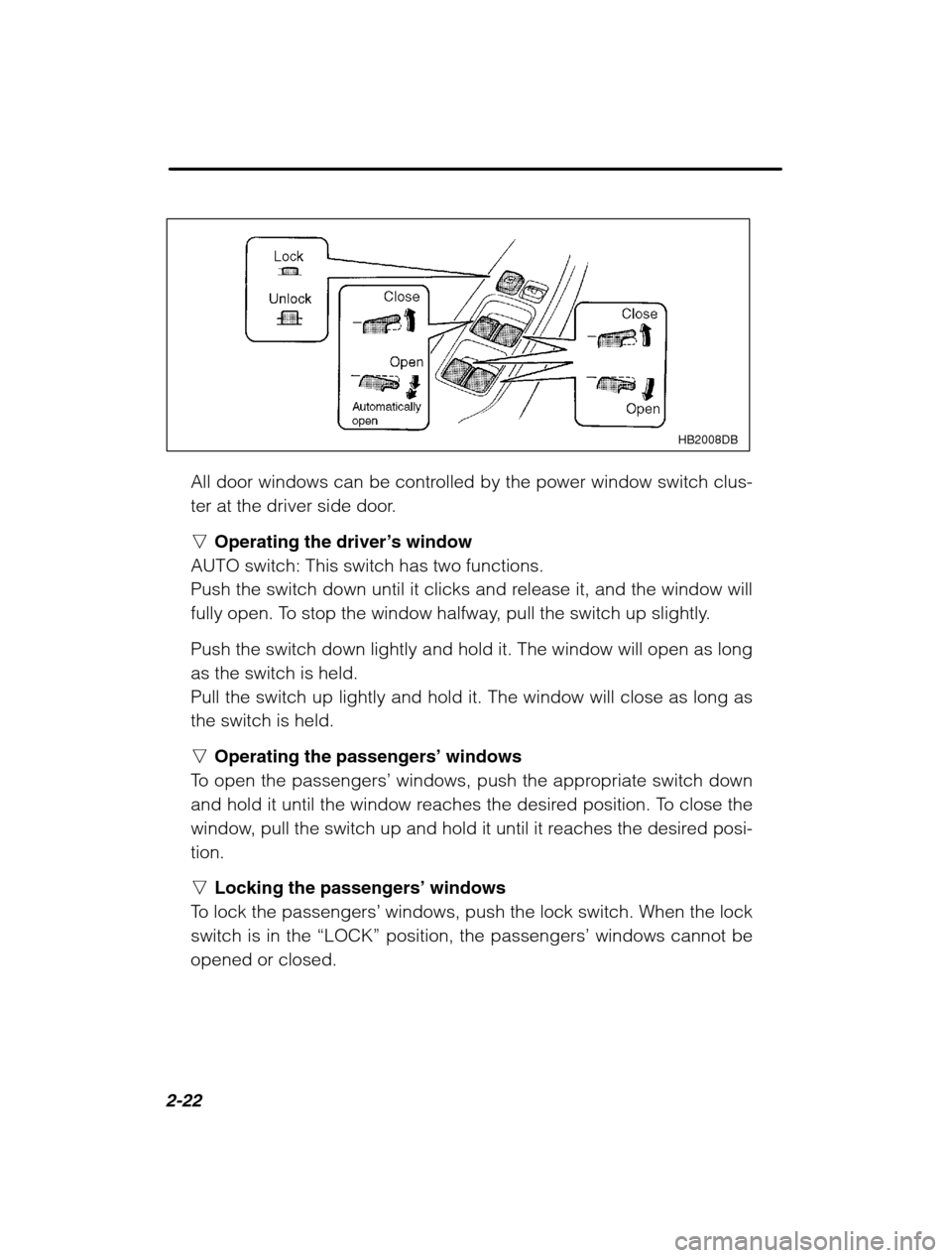

All door windows can be controlled by the power window switch clus-
ter at the driver side door. nOperating the driver ’s window
AUTO switch: This switch has two functions.
Push the switch down until it clicks and release it, and the window will
fully open. To stop the window halfway, pull the switch up slightly. Push the switch down lightly and hold it. The window will open as long as the switch is held.Pull the switch up lightly and hold it. The window will close as long asthe switch is held. n Operating the passengers ’ windows
To open the passengers ’ windows, push the appropriate switch down
and hold it until the window reaches the desired position. To close the
window, pull the switch up and hold it until it reaches the desired posi-tion. n Locking the passengers ’ windows
To lock the passengers ’ windows, push the lock switch. When the lock
switch is in the “LOCK” position, the passengers ’ windows cannot be
opened or closed.

Keys and doors2-23
–
CONTINUED –
Passengers’ side switches
HB2005BB
HB2009CB
To open the window, push the switch down and hold it until the win-
dow reaches the desired position. To close the window, pull the switch
up and hold it until the window reaches the desired position.
When the lock switch on the power window switch cluster, located on the driver ’s side door, is in the “LOCK” position, the passengers ’ win-
dows cannot be operated with the passengers ’ switches.

2-24
Trunk lid (Sedan)WARNING
To prevent dangerous exhaust gas from entering the vehicle,
always keep the trunk lid closed while driving. Help prevent young children from locking themselves in the
trunk. When leaving the vehicle, either close all windows and lockall doors or cancel the inside trunk lid release. Also make certainthat the trunk is closed. On hot or sunny days, the temperature inthe trunk could quickly become high enough to cause death orserious heat-related injuries including brain damage, particularlyfor small children.
To open and close the trunk lid from outside
HBF013CB
To open the trunk lid from outside, insert the key and turn it clockwise.
To close the trunk lid, lightly press the trunk lid down until the latchengages.

Keys and doors2-25
–
CONTINUED –
To open the trunk lid from inside
HB3000CB
Pull the trunk lid release lever upward. To cancel the trunk lid release
HBF014BA
The inside trunk lid release can be cancelled to help prevent unautho-
rized entry into the trunk. To cancel the trunk lid release, set the lid
release cancel lever (located on the inside of the trunk lid, mounted tothe trunk lid latch) to the “CANCEL” position. When this lock is in the
“CANCEL” position, the trunk can be opened only with the key.
