2002 SUBARU LEGACY Owners Manual

Interior equipment6-9
–
CONTINUED –
Rear passenger ’s cup holder (if equipped)
HB6024BAHB7009CA
The rear passenger ’s cup holder is located on the lower side of the
back of the center console. To use the cup holder, open the lid by
pulling its upper edge.
Cigarette lighter socket (if equipped)
CAUTION
The electrical power socket located on the lower part of the
instrument panel is originally designed to use a SUBARU genuine
cigarette lighter plug. Do not use non-genuine cigarette lighterplugs in the socket. Doing so may cause a short-circuit and over-heating, resulting in a fire. If the socket is ever used for a plug-in accessory such as a
mobile phone, they may damage the portion of the socket ’s inter-
nal mechanism that causes a cigarette lighter plug to “pop out ”
after its lighter element is heated. Therefore, do not place a ciga-rette lighter plug in a socket that has been used, even once, to
power a plug-in accessory. Doing so may cause the plug to stickand overheat, creating a potential fire hazard. Do not place any foreign objects, especially metal ones such
as coins or aluminum foil, into the socket. That could cause ashort circuit.

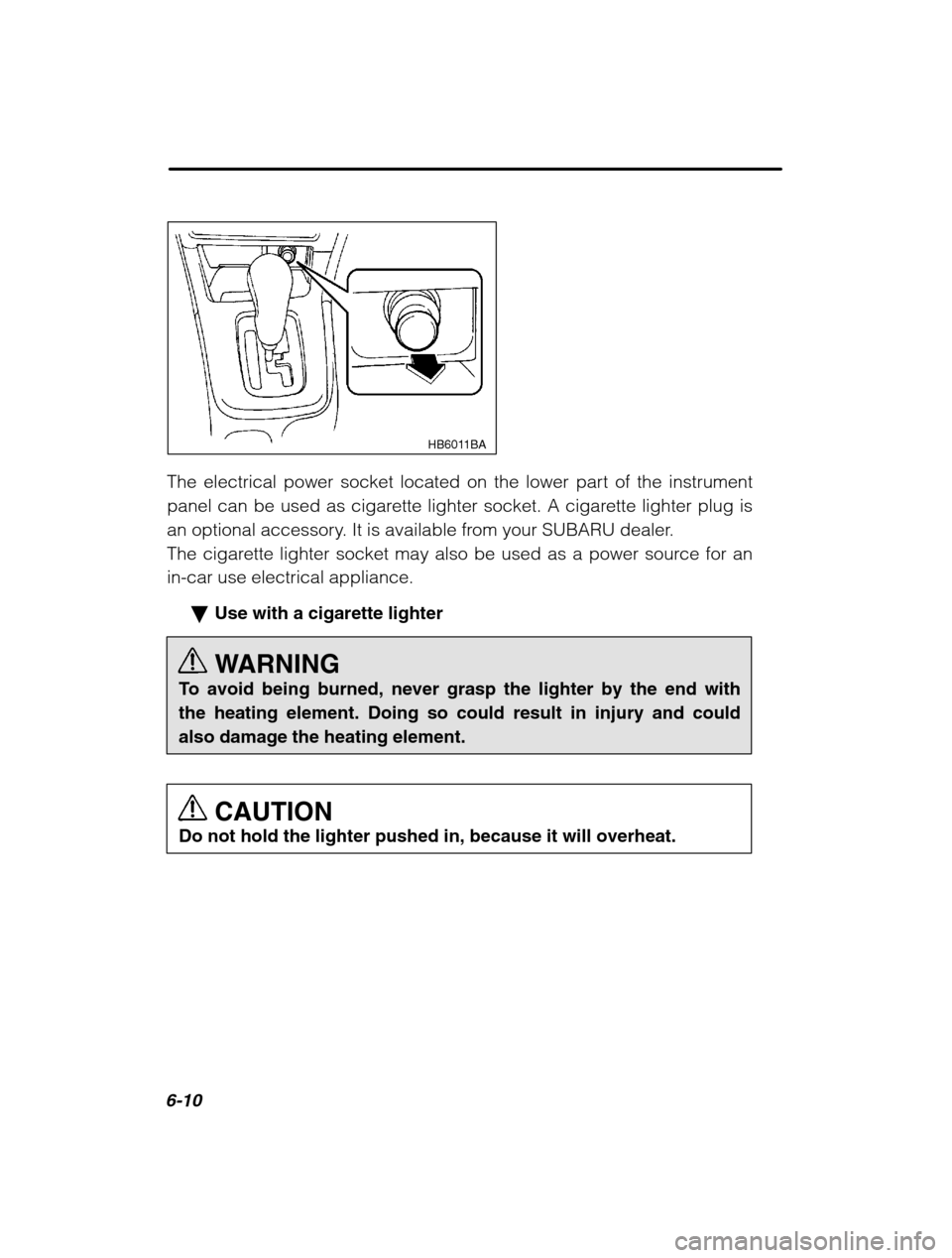

6-10
HB6011BA
The electrical power socket located on the lower part of the instrument
panel can be used as cigarette lighter socket. A cigarette lighter plug is
an optional accessory. It is available from your SUBARU dealer.
The cigarette lighter socket may also be used as a power source for anin-car use electrical appliance.Use with a cigarette lighter
WARNING
To avoid being burned, never grasp the lighter by the end withthe heating element. Doing so could result in injury and couldalso damage the heating element.
CAUTION
Do not hold the lighter pushed in, because it will overheat.

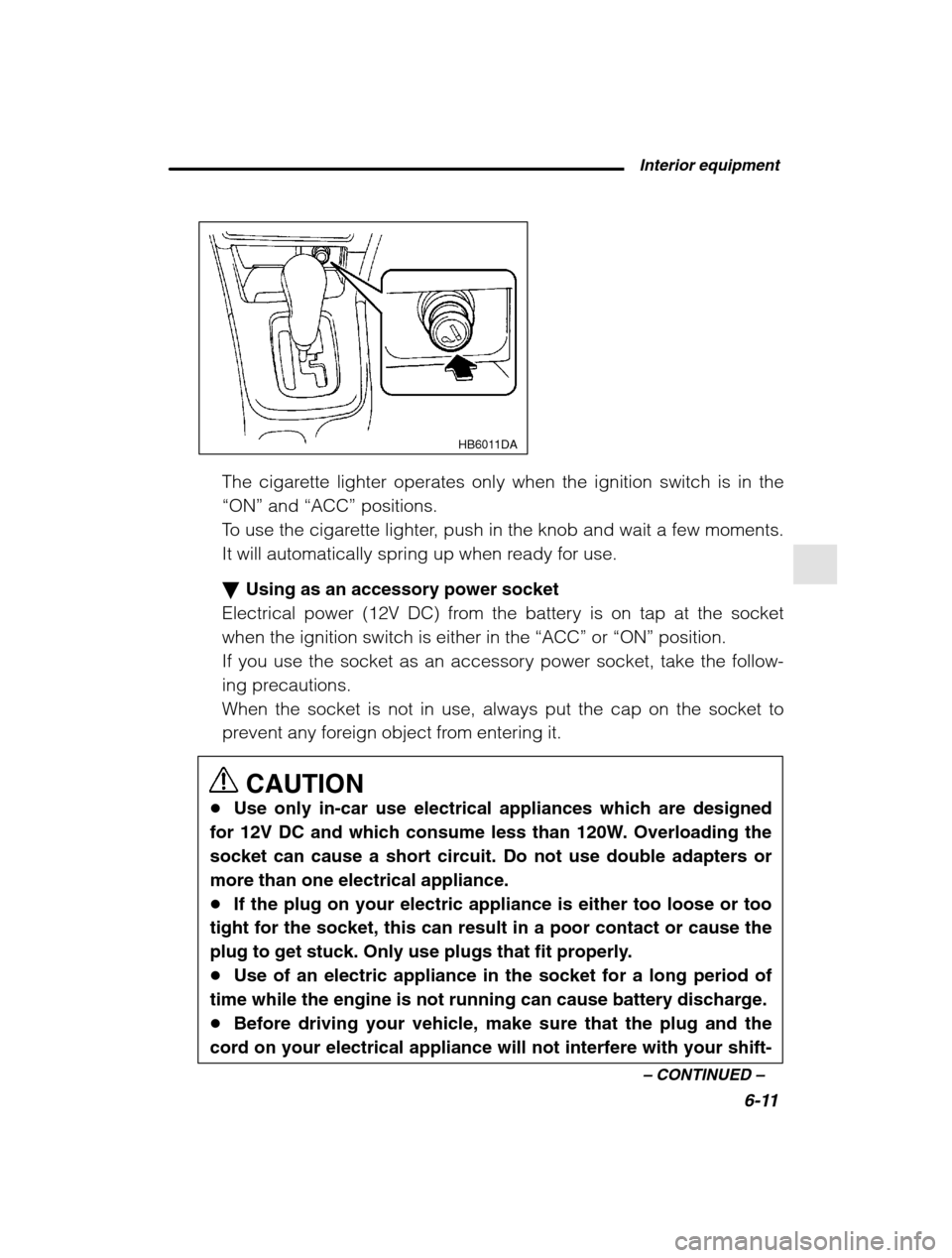

Interior equipment6-11
–
CONTINUED –
HB6011DA
The cigarette lighter operates only when the ignition switch is in the
“ON” and “ACC” positions.
To use the cigarette lighter, push in the knob and wait a few moments.
It will automatically spring up when ready for use. Using as an accessory power socket
Electrical power (12V DC) from the battery is on tap at the socket when the ignition switch is either in the “ACC” or “ON” position.
If you use the socket as an accessory power socket, take the follow-
ing precautions.
When the socket is not in use, always put the cap on the socket to
prevent any foreign object from entering it.
CAUTION
Use only in-car use electrical appliances which are designed
for 12V DC and which consume less than 120W. Overloading the
socket can cause a short circuit. Do not use double adapters ormore than one electrical appliance. If the plug on your electric appliance is either too loose or too
tight for the socket, this can result in a poor contact or cause the
plug to get stuck. Only use plugs that fit properly. Use of an electric appliance in the socket for a long period of
time while the engine is not running can cause battery discharge. Before driving your vehicle, make sure that the plug and the
cord on your electrical appliance will not interfere with your shift-

6-12
ing gears and operating the accelerator and brake pedals. If they do, do not use the electrical appliance while driving.If the socket has been used for electrical appliances, damage may
have been done to the internal mechanism that cause a cigarette
lighter to “pop-out” after its element has been heated. For that reason,
a cigarette lighter, even if it is a genuine part, should not be used in
the socket. If you want to use the socket for a cigarette lighter again,
or to protect your purchaser before you sell your car, have your
SUBARU dealer replace the socket with a new one.
Ashtray
CAUTION
Do not use ashtrays as waste receptacles or leave a lighted ciga-
rette in an ashtray. This could cause a fire.
Fully close the ashtray after using it to help reduce residual smoke.
HB7009BA
HB6011CA
Front ashtray
To open the ashtray, pull the lid out. Rear ashtray (if equipped)
The rear ashtray is located on the upper side of the back of the center
console. To open the ashtray, pull the upper edge of the lid.

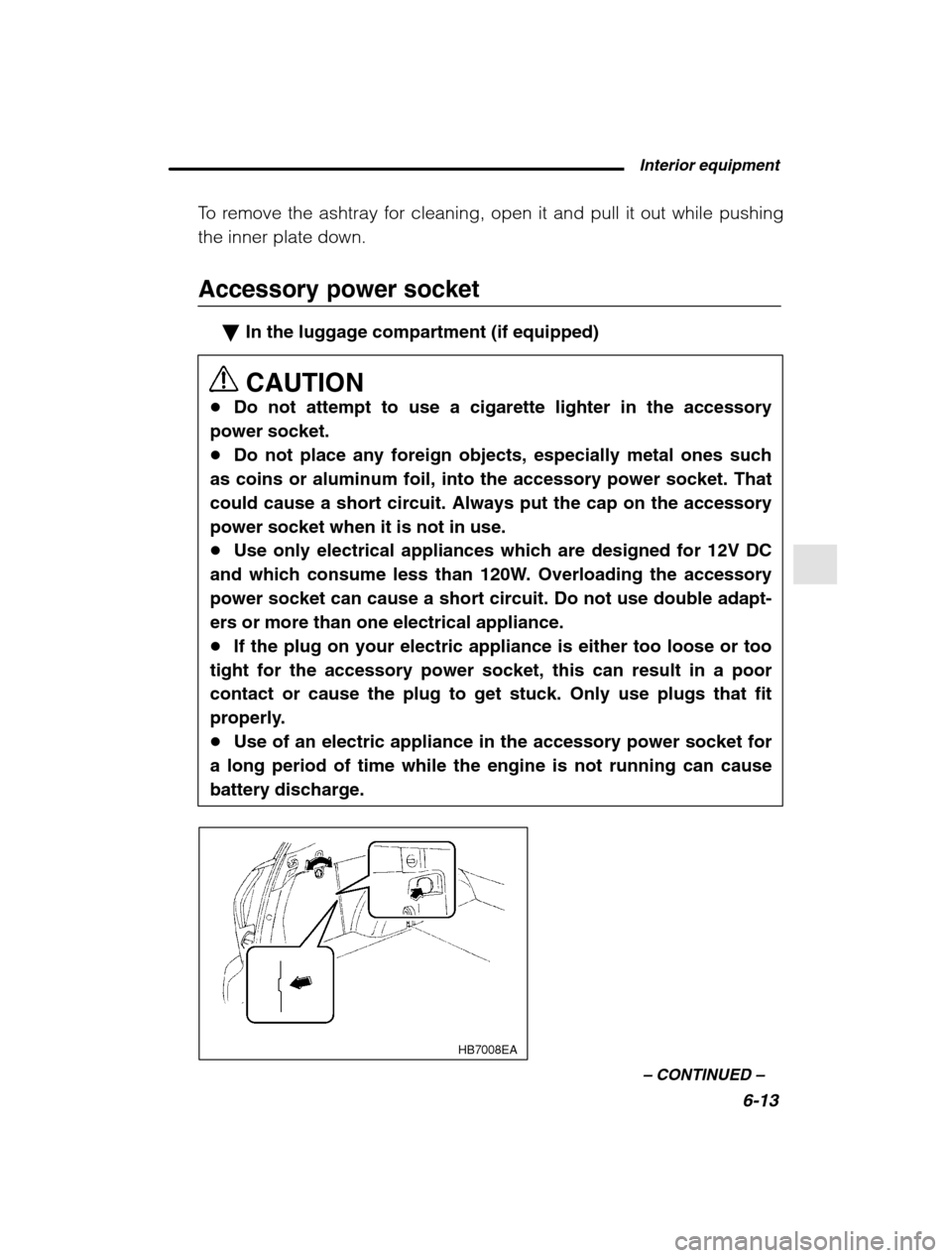

Interior equipment6-13
–
CONTINUED –
To remove the ashtray for cleaning, open it and pull it out while pushing the inner plate down.
Accessory power socket
In the luggage compartment (if equipped) CAUTION
Do not attempt to use a cigarette lighter in the accessory
power socket. Do not place any foreign objects, especially metal ones such
as coins or aluminum foil, into the accessory power socket. Thatcould cause a short circuit. Always put the cap on the accessorypower socket when it is not in use. Use only electrical appliances which are designed for 12V DC
and which consume less than 120W. Overloading the accessorypower socket can cause a short circuit. Do not use double adapt-ers or more than one electrical appliance. If the plug on your electric appliance is either too loose or too
tight for the accessory power socket, this can result in a poorcontact or cause the plug to get stuck. Only use plugs that fit
properly. Use of an electric appliance in the accessory power socket for
a long period of time while the engine is not running can causebattery discharge.
HB7008EA

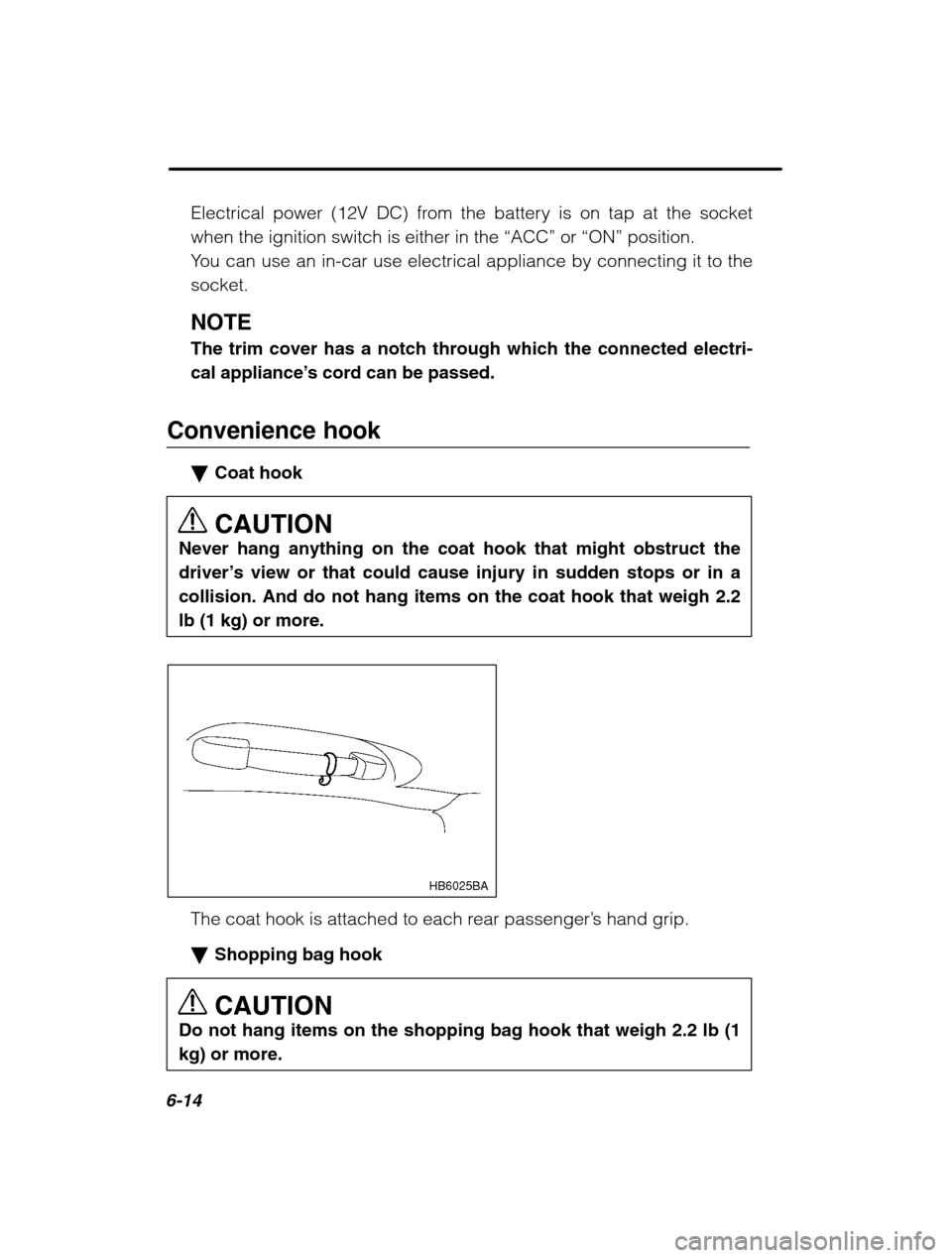

6-14
Electrical power (12V DC) from the battery is on tap at the socket when the ignition switch is either in the “ACC” or “ON” position.
You can use an in-car use electrical appliance by connecting it to thesocket. NOTE
The trim cover has a notch through which the connected electri- cal appliance ’s cord can be passed.
Convenience hook Coat hook CAUTION
Never hang anything on the coat hook that might obstruct the
driver’ s view or that could cause injury in sudden stops or in a
collision. And do not hang items on the coat hook that weigh 2.2lb (1 kg) or more.
HB6025BA
The coat hook is attached to each rear passenger ’s hand grip.
Shopping bag hook CAUTION
Do not hang items on the shopping bag hook that weigh 2.2 lb (1 kg) or more.

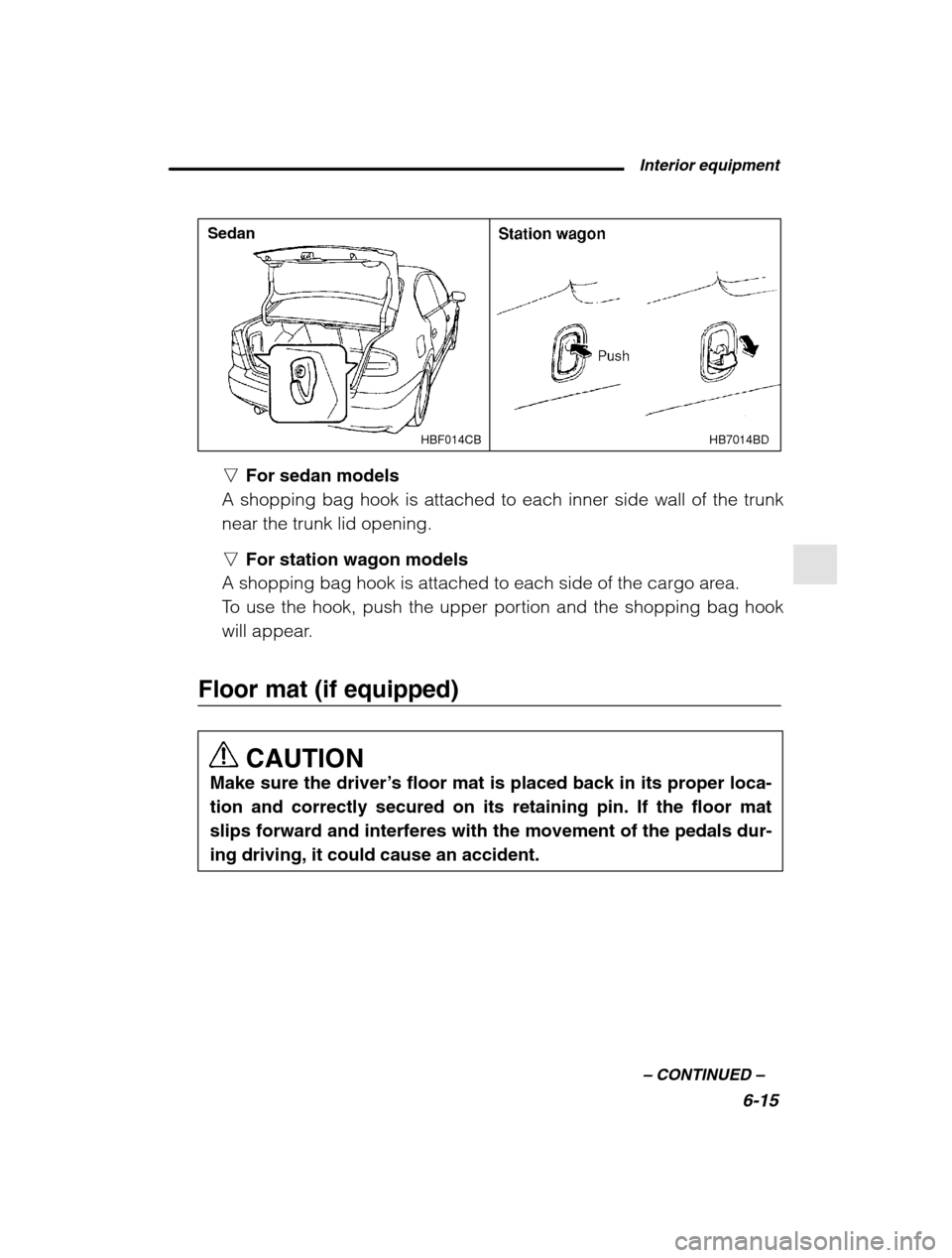

Interior equipment6-15
–
CONTINUED –
HB7014BD
HBF014CB
Sedan
n For sedan models
A shopping bag hook is attached to each inner side wall of the trunk near the trunk lid opening. n For station wagon models
A shopping bag hook is attached to each side of the cargo area.
To use the hook, push the upper portion and the shopping bag hook
will appear.
Floor mat (if equipped)
CAUTION
Make sure the driver ’s floor mat is placed back in its proper loca-
tion and correctly secured on its retaining pin. If the floor matslips forward and interferes with the movement of the pedals dur-ing driving, it could cause an accident.

6-16
HB6016BA
HB6015BA
A retaining pin is located on the driver ’s side of the vehicle next to the
fuel filler door release. The floor mat is secured using the built-in grom-
met, by placing the grommet over the pin and pushing downward.
Luggage cover (if equipped)
WARNING
Do not place anything on the extended cover. Putting excessive weight on the extended cover can break it and an object on the
cover could tumble forward in the event of a sudden stop or colli-
sion. This could cause serious injury.
The luggage cover is provided for covering the cargo area and to pro-
tect its contents from direct sunlight. This cover is detachable to make
room for additional cargo.
