Keys and doors2-13
–
CONTINUED –
times. If you have two current transmitters, program each one twice. If
you have three current transmitters, program two of them once and
the third one twice. This process will leave only current transmittercodes in the system ’s memory.
NOTE
Make sure no one else is operating their keyless entry system within range of your vehicle when programming transmitters. If
someone else were to operate their remote transmitter while youare programming your transmitters, it is possible that their trans-mitter code will be programmed into your system, allowing themunauthorized access to your vehicle.
Security system (if equipped)
The security system helps to protect your vehicle and valuables from
theft. The horn sounds and the parking lights flash if someone attempts
to break into your vehicle. The starter motor is also interrupted to prevent
starting the vehicle without a key.
The system can be armed and disarmed with the remote transmitter.
The system does not operate when the key is inserted into the ignitionswitch. System operation
The security system will give the following alarm indications when trig-
gered: The parking lights will flash and the horn will sound intermittently.
In addition, the starter motor will not operate. The alarm automatically resets after 30 seconds; however, the
alarm will reactivate if the vehicle is tampered with again. The alarmwill continue for six times if any sensor continues to be activated.
The alarm is triggered by: Opening a door, the rear gate or trunk lid.
Application of physical shock to the vehicle (e.g. breaking glass or
forced entry). Note that there are two alarm levels for shock: warning
Page 93 of 466

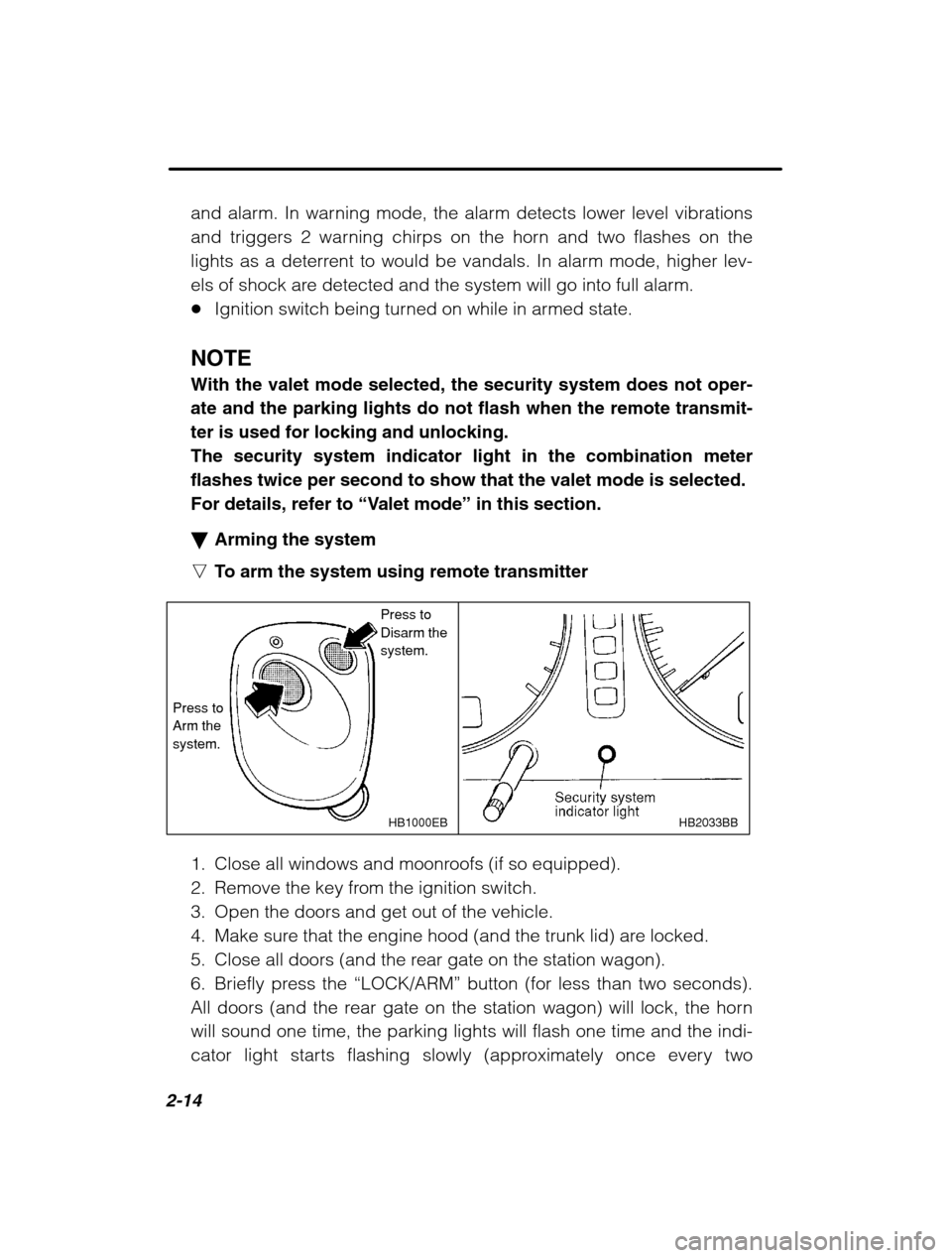

2-14
and alarm. In warning mode, the alarm detects lower level vibrations
and triggers 2 warning chirps on the horn and two flashes on the
lights as a deterrent to would be vandals. In alarm mode, higher lev-
els of shock are detected and the system will go into full alarm. Ignition switch being turned on while in armed state.
NOTE
With the valet mode selected, the security system does not oper-
ate and the parking lights do not flash when the remote transmit-ter is used for locking and unlocking.The security system indicator light in the combination meter
flashes twice per second to show that the valet mode is selected.For details, refer to “Valet mode ” in this section.
Arming the system
n To arm the system using remote transmitter
HB2033BB
Press to Arm the system. Press to Disarm the system.
HB1000EB
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close all doors (and the rear gate on the station wagon).
6. Briefly press the “LOCK/ARM” button (for less than two seconds).
All doors (and the rear gate on the station wagon) will lock, the hornwill sound one time, the parking lights will flash one time and the indi-
cator light starts flashing slowly (approximately once every two
Page 98 of 466
Keys and doors2-19
–
CONTINUED –
In the passive mode, the system can also be armed with the remote
transmitter or with the power door locking switches. If the remote
transmitter or power door lock switch is used to lock the vehicle, arm-
ing will take place immediately regardless of whether or not the pas-sive mode has been selected. Disarming the system
To disarm the system, briefly press the “UNLOCK/DISARM” button on
the transmitter. Tripped sensor identification
If the horn sounds four times and the parking lights flash four times
when you disarm the system, this indicates that the alarm was trig-
gered. The number of times the indicator light flashes indicates what
sensor caused the alarm condition.
To enter identification mode:
1. Open the driver ’s door and leave it open.
2. Turn the ignition switch to the “ON” position two times. ( “LOCK”
“ON” “LOCK” “ON” “LOCK”)
3. The indicator light will start flashing.
The indicator light provides the following indications. Flashing one time: Any door, the rear gate or the trunk lid has been
opened.
Flashing three times: The impact sensor in the system ’s unit has
been activated. This may indicate that your vehicle has been shocked
or tampered with by some outside force and/or unauthorized person.Flashing four times: The ignition switch has been turned on or the
battery has been disconnected.
NOTE The battery must be reconnected before the indicator light will flash.
To exit this mode, close the door and turn the ignition switch to the
“ON” position.
