Page 1273 of 2189

HONDA CIVIC 2000 6.G Workshop Manual t l 7. With a sponge, apply a light coat of glass primer to the inside face of the quarter glass, as shown, then lightly wipe it off with gauze or cheesecloth. NOTE: . Do not apply body primer to the

Page 1274 of 2189

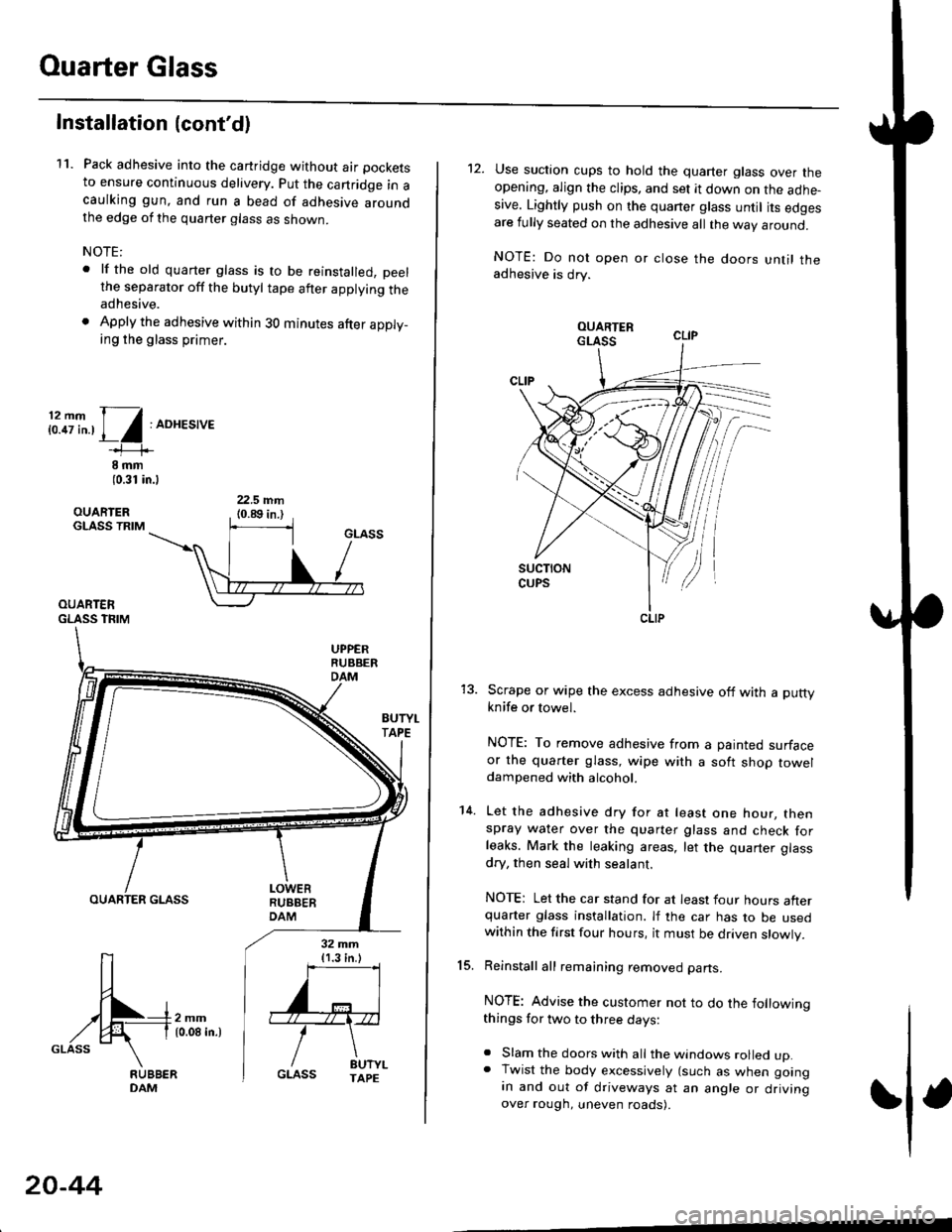

HONDA CIVIC 2000 6.G Workshop Manual Ouarter Glass Installation (contd) 11. Pack adhesive into the cartridge without air pockets to ensure continuous delivery. put the canridge in acaulking gun, and run a bead of adhesive aroundthe edge

Page 1275 of 2189

HONDA CIVIC 2000 6.G Workshop Manual Removal 2Oi CAUTION: . Put on gloves to protect your hands. . Use seat covers to avoid damaging any surfaces. 1. To remove the quarter glass, first remove the: . Rear seat-back and rear seat cushion (

Page 1276 of 2189

HONDA CIVIC 2000 6.G Workshop Manual Ouarter Glass 1. Installation Using a knife, scrape the old adhesive smooth to athickness of about 2 mm (0.08 in.) on the bondingsurface around the entire quarter glass openingflange. NOTE: . Do not s

Page 1277 of 2189

HONDA CIVIC 2000 6.G Workshop Manual t \b 5. lf the old quarter glass is to be reinstalled, glue the upper and lower clips and fastener as shown NOTE: Be careful not to touch the quarter glass where adhesive will be applied. >: Clip, fas

Page 1278 of 2189

HONDA CIVIC 2000 6.G Workshop Manual Ouarter Glass Installation (contdl 8. With a sponge, apply a light coat of body primer tothe original adhesive remaining around the quarter glass opening flange. Let the body primer dry for atleast l

Page 1279 of 2189

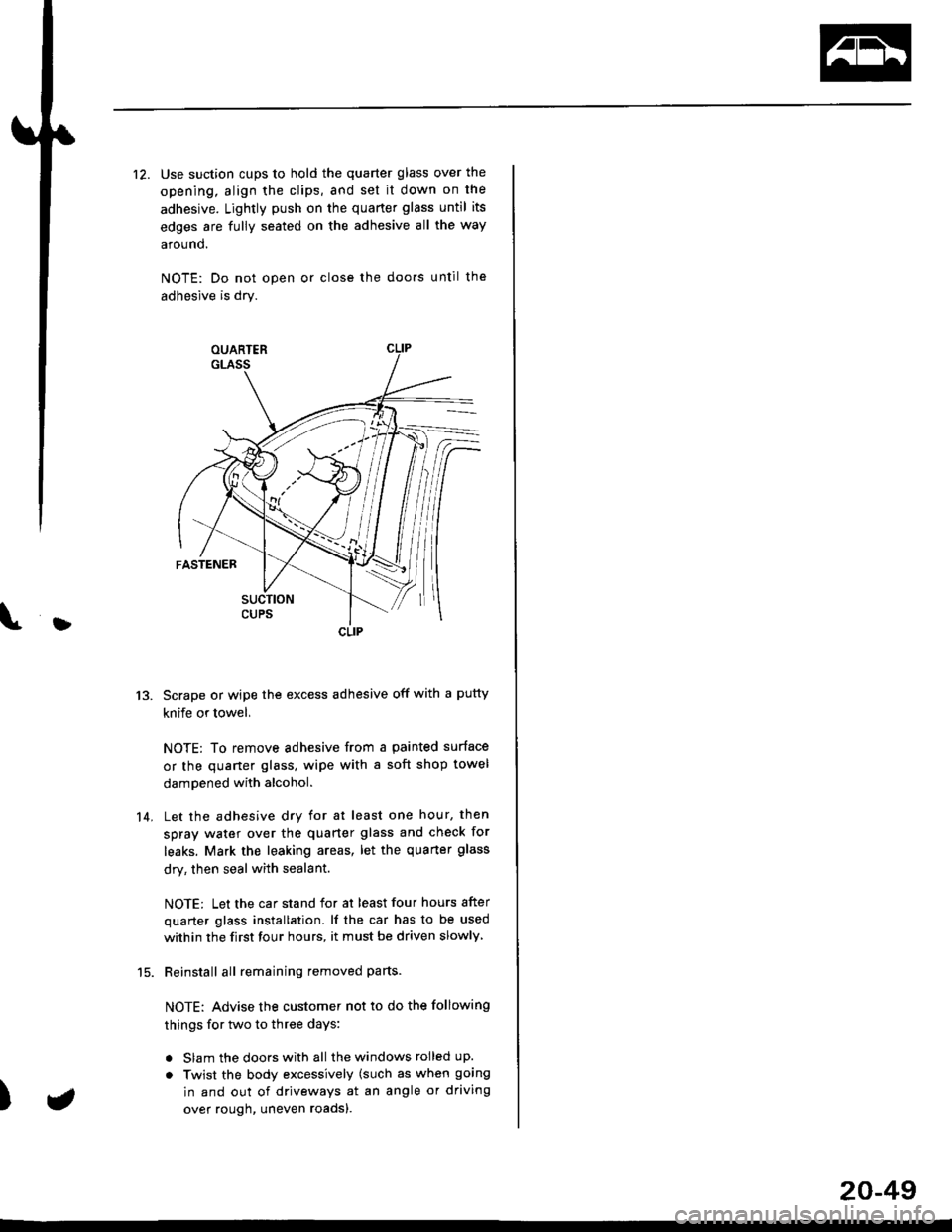

HONDA CIVIC 2000 6.G Workshop Manual } 12. Use suction cups to hold the quarter glass over the opening, align the clips, and set it down on the adhesive. Lightly push on the quarter glass until its edges are fully seated on the adhesive

Page 1280 of 2189

HONDA CIVIC 2000 6.G Workshop Manual Moonroof SWITCH PLATEAdjustment, page 20 56 REAR DRAINTUBE Y< / ?�u8E ll /LfP ll I U6 ./w FRONT ORAIN TUBE CABLE ASSEMBLYReplacement, page 2O-55 Index SUNSHADEReplacement, page 20-52 RAIL HOLDER B
