Page 1249 of 2189

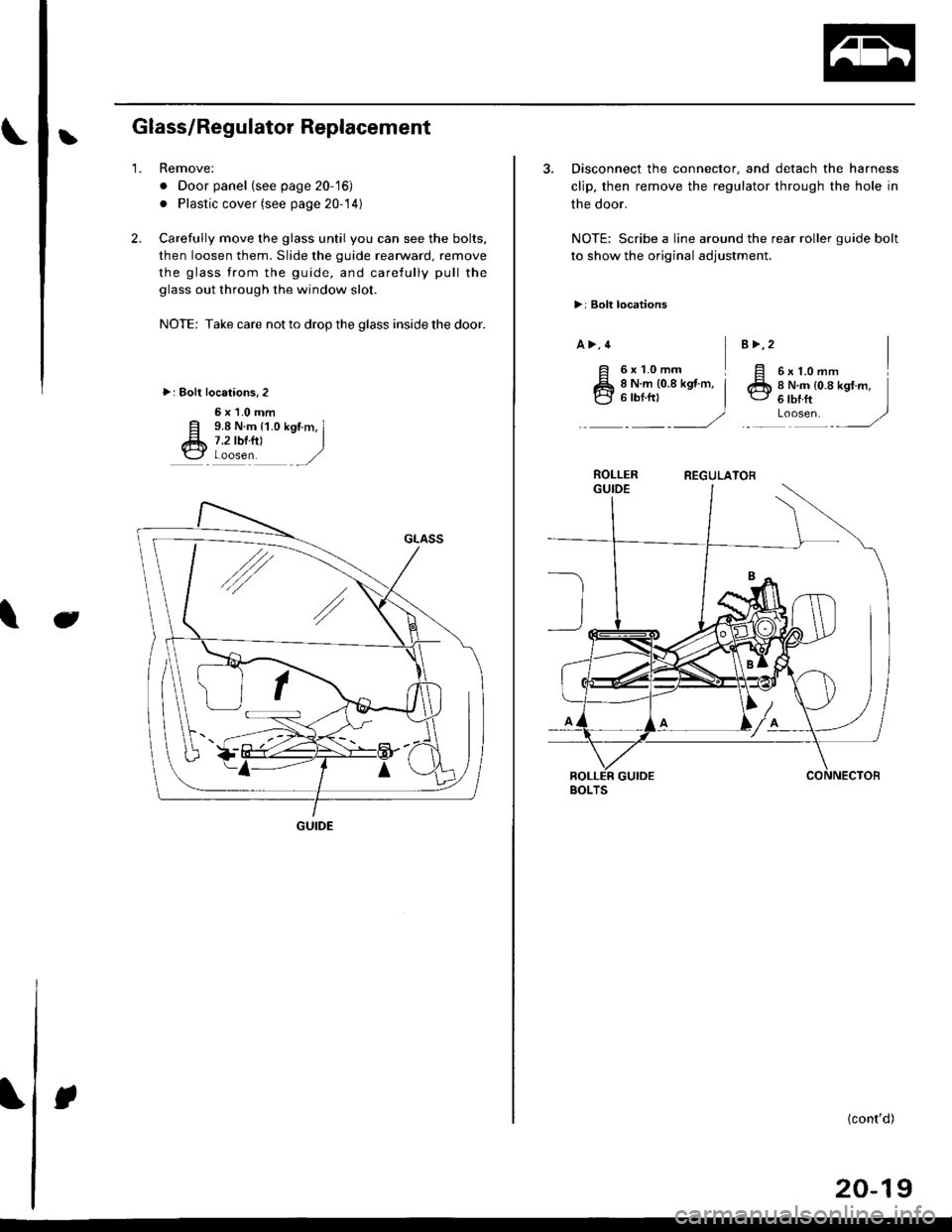

HONDA CIVIC 2000 6.G Workshop Manual LGlass/Regulator Replacement
2.
1.Remove:
. Door panel (see page 20-16)
. Plastic cover (see page 20-14)
Carefully move the glass until you can see the bolts,
then loosen them. Slide the guide rearwa

Page 1250 of 2189

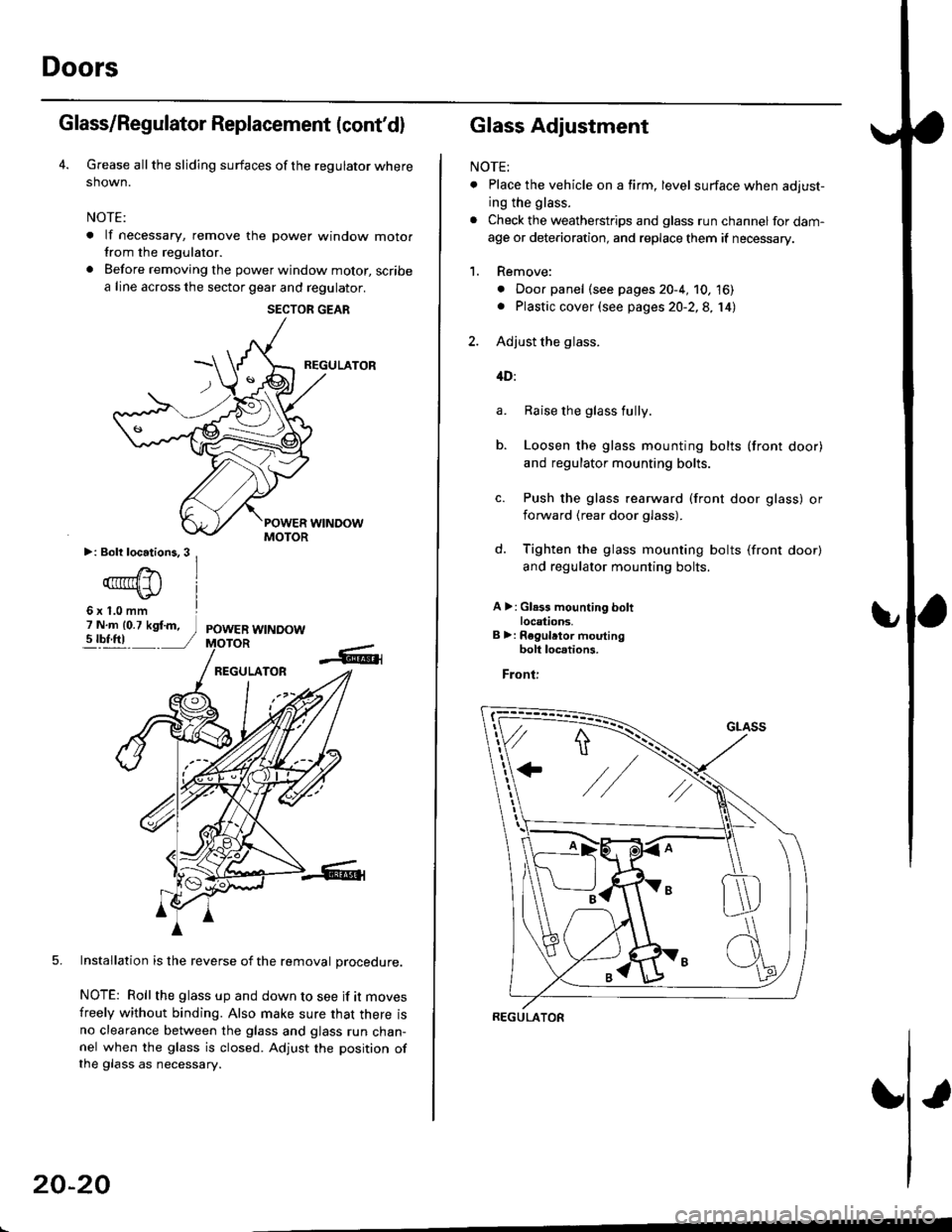

HONDA CIVIC 2000 6.G Workshop Manual Doors
Glass/Regulator Replacement (contdl
Grease all the sliding surfaces of the regulator where
shown.
NOTE:
. lf necessary, remove the power window motorfrom the regulator.
. Before removing the po

Page 1251 of 2189

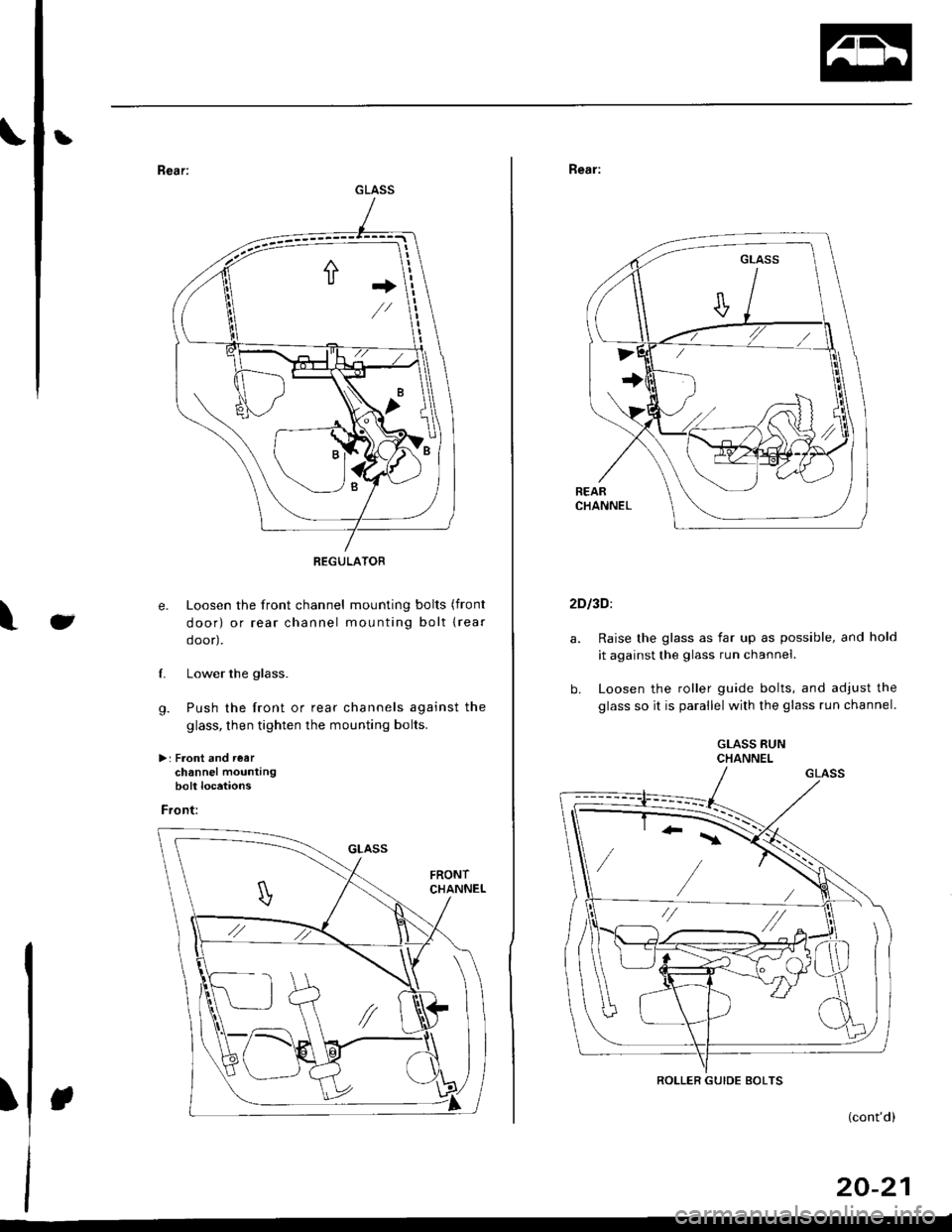

$HONDA CIVIC 2000 6.G Workshop Manual b GLASS REGULATOR +"+ J\ e. Loosen the front channel mounting bolts (front door) or rear channel mounting bolt lrear ooor,, f. Lower the glass. g. Push the front or rear channels against the glass, th$

Page 1252 of 2189

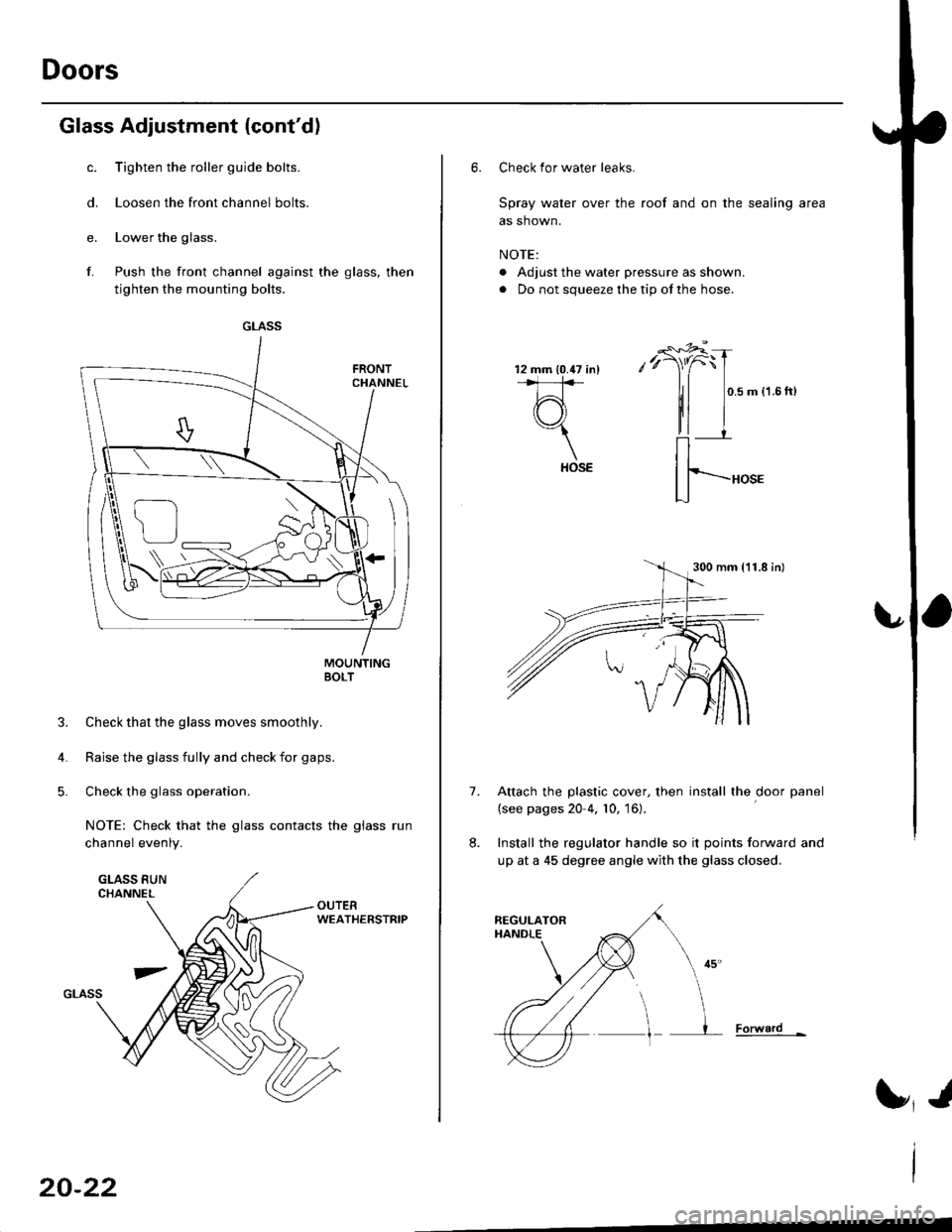

HONDA CIVIC 2000 6.G Workshop Manual Doors
Glass Adjustment {contd)
c. Tighten the roller guide bolts.
d. Loosen the front channel bolts.
e. Lower the glass.
f. Push the front channel against the glass, then
tighten the mounting bolts.

Page 1253 of 2189

HONDA CIVIC 2000 6.G Workshop Manual bPosition Adjustment
NOTE: Place the vehicle on a firm, level surface when
adjusting the doors.
After installing the door, check for a flush fit with the
body, then check for equal gaps between the fr

Page 1254 of 2189

HONDA CIVIC 2000 6.G Workshop Manual Mirrors
Mirror Replacement
NOTE: Take care not to scratch the mirror. mirror basecover and door.
l� Lower the door glass.
2. Carelully pry out the mirror mount cover panel bynano.
Power mirro.:
MIRROR

Page 1255 of 2189

HONDA CIVIC 2000 6.G Workshop Manual |}Mirror Holder/Cover Replacement
CAUTION: Put on gloves to protecl your hands.
L Carefully pry out the mirror holder with a flat tip
screwdriver as shown.
Installation is the reverse of the removal p

Page 1256 of 2189

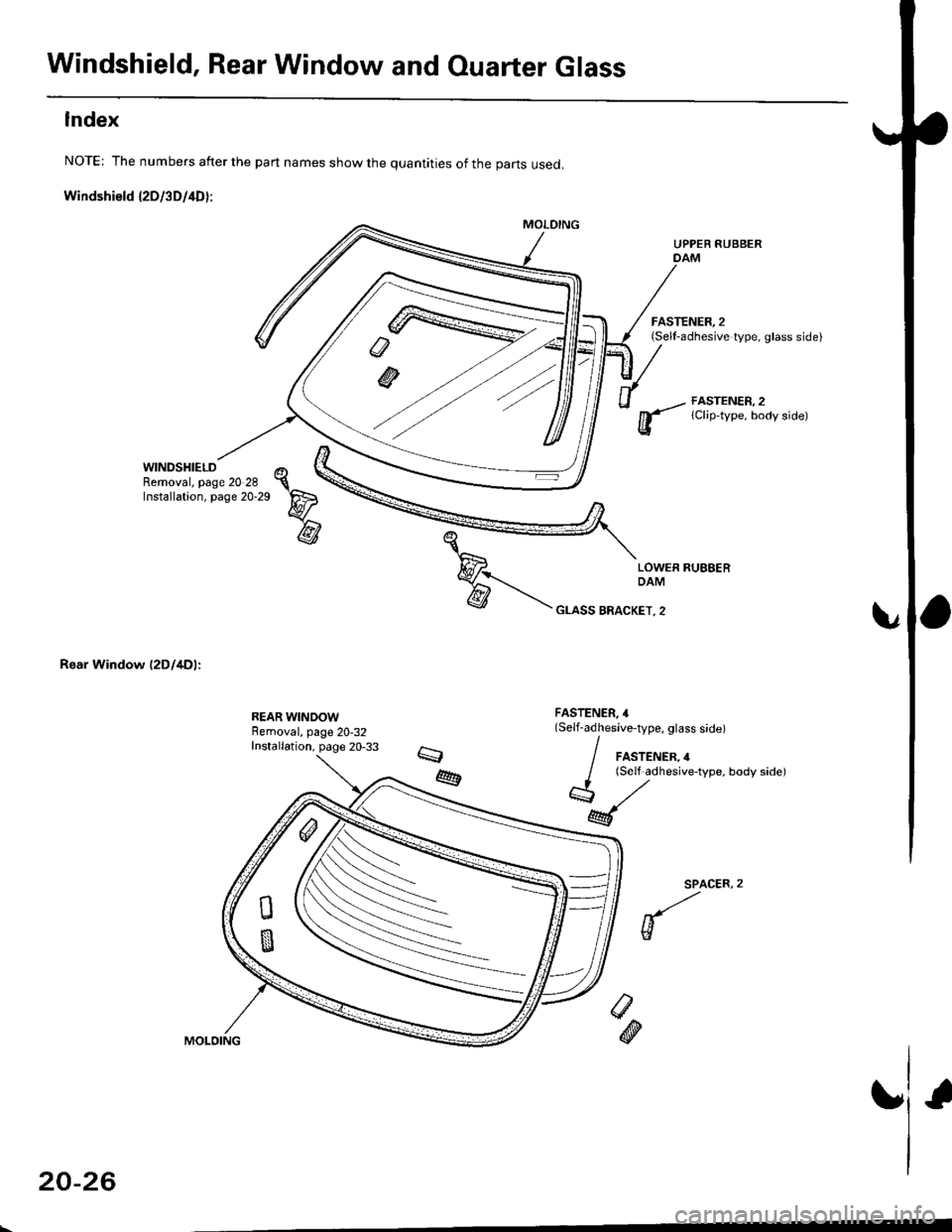

HONDA CIVIC 2000 6.G Workshop Manual Windshield, Rear Window and Ouarter Glass
Index
NOTE: The numbers after the part names show the quantities of the parts used.
Windshield l2Dl3D/4D):
WINDSHIELDRemoval, page 20 28Installation, page 20-
