1997 MITSUBISHI TRITON Workshop Manual

± On-vehicle Service HEATER, AIR CONDITIONER
AND VENTILATION55-14

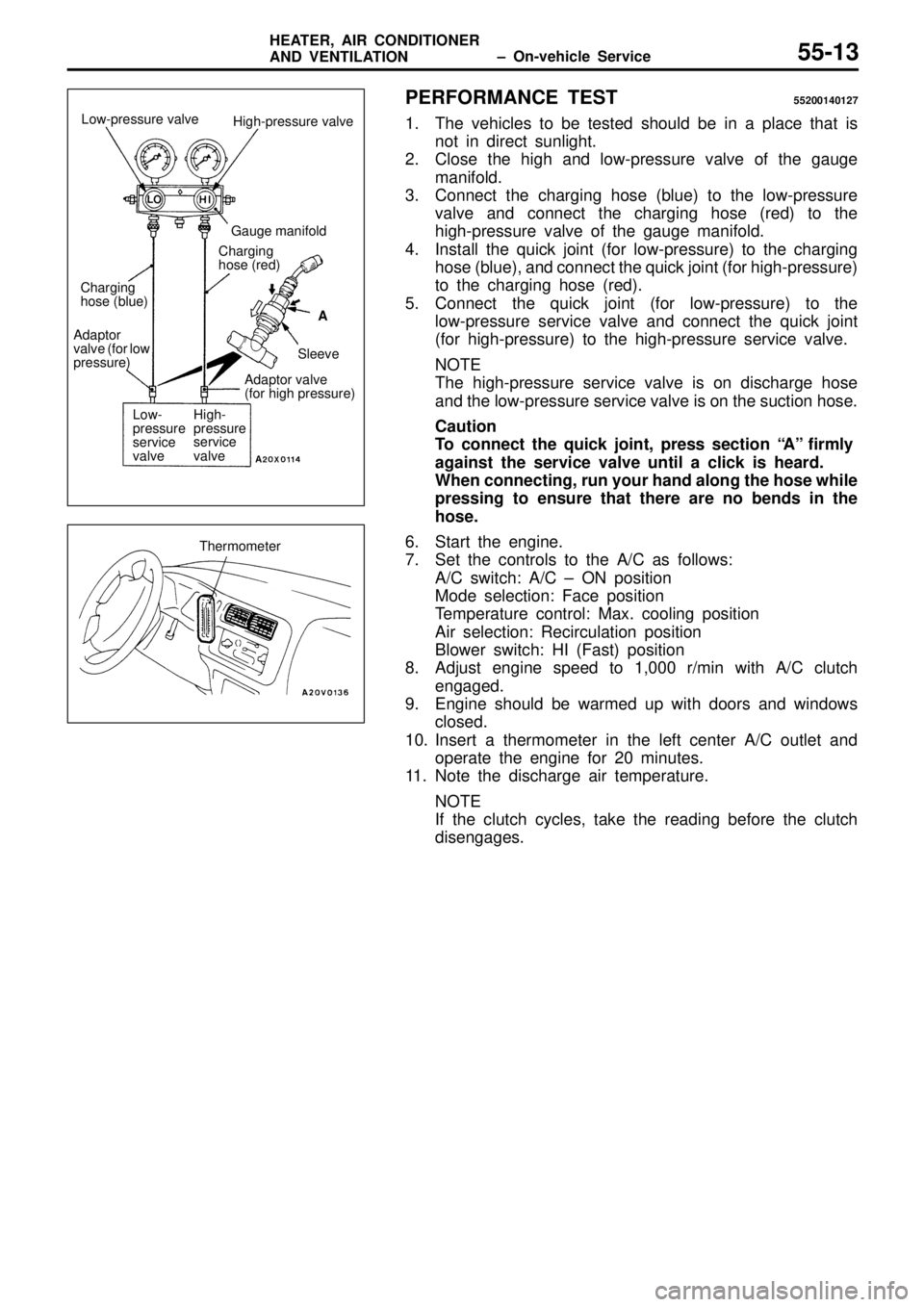

Performance Temperature Chart
Garage ambient temperature
C20253540
Discharge air temperature
C3.6 ± 9.54.0 ± 11.07.0 ± 9.011.0 ± 13.8
Compressor high pressure kPa1,1201,2361,8142,050
Compressor low pressure kPa11 5131152175
REFRIGERANT LEAK REPAIR55200150083
LOST CHARGE
If the system has lost all charge due to a leak:
1. Evacuate the system. (See procedure.)
2. Charge the system with approximately one
pound of refrigerant.
3. Check for leaks.

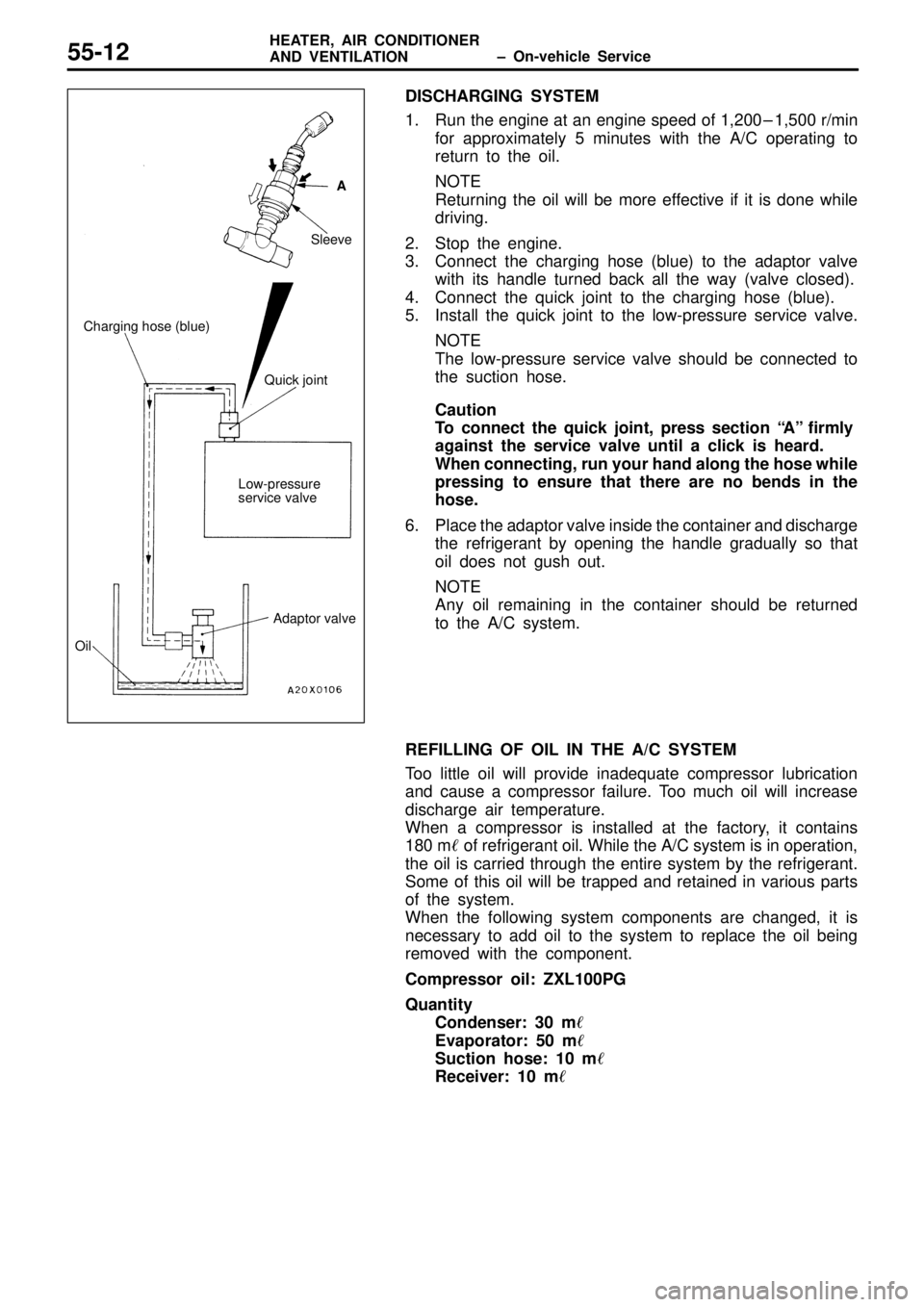

4. Discharge the system.
5. Repair leaks.
6. Replace receiver drier.
Caution
Replacement filter-drier units must be
sealed while in storage. The drier used in
these units will saturate water quickly upon
exposure to the atmosphere. When
installing a drier, have all tools and supplies
ready for quick reassembly to avoid keeping
the system open any longer than necessary.
7. Evacuate and charge system.
LOW CHARGE
If the system has not lost all of its refrigerant charge;
locate and repair all leaks. If it is necessary to
increase the system pressure to find the leak
(because of an especially low charge) add
refrigerant. If it is possible to repair the leak without
discharging the refrigerant system, use the
procedure for correcting low refrigerant level.HANDLING TUBING AND FITTINGS
Kinks in the refrigerant tubing or sharp bends in
the refrigerant hose lines will greatly reduce the
capacity of the entire system. High pressures are
produced in the system when it is operating.
Extreme care must be exercised to make sure that
all connections are pressure tight. Dirt and moisture
can enter the system when it is opened for repair
or replacement of lines or components. The
following precautions must be observed. The
system must be completely discharged before
opening any fitting of connection in the refrigeration
system. Open fittings with caution even after the
system has been discharged. If any pressure is
noticed as a fitting is loosened, allow trapped
pressure to bleed off very slowly.
Never attempt to rebend formed lines to fit. Use
the correct line for the installation you are servicing.
A good rule for the flexible hose lines is keep the
radius of all bends at least 10 times the diameter
of the hose.
Sharper bends will reduce the flow of refrigerant.
The flexible hose lines should be routed so that
they are at least 80 mm from the exhaust manifold.
It is good practice to inspect all flexible hose lines
at least once a year to make sure they are in good
condition and properly routed.
Unified plumbing connections with O-rings, these
O-rings are not reusable.

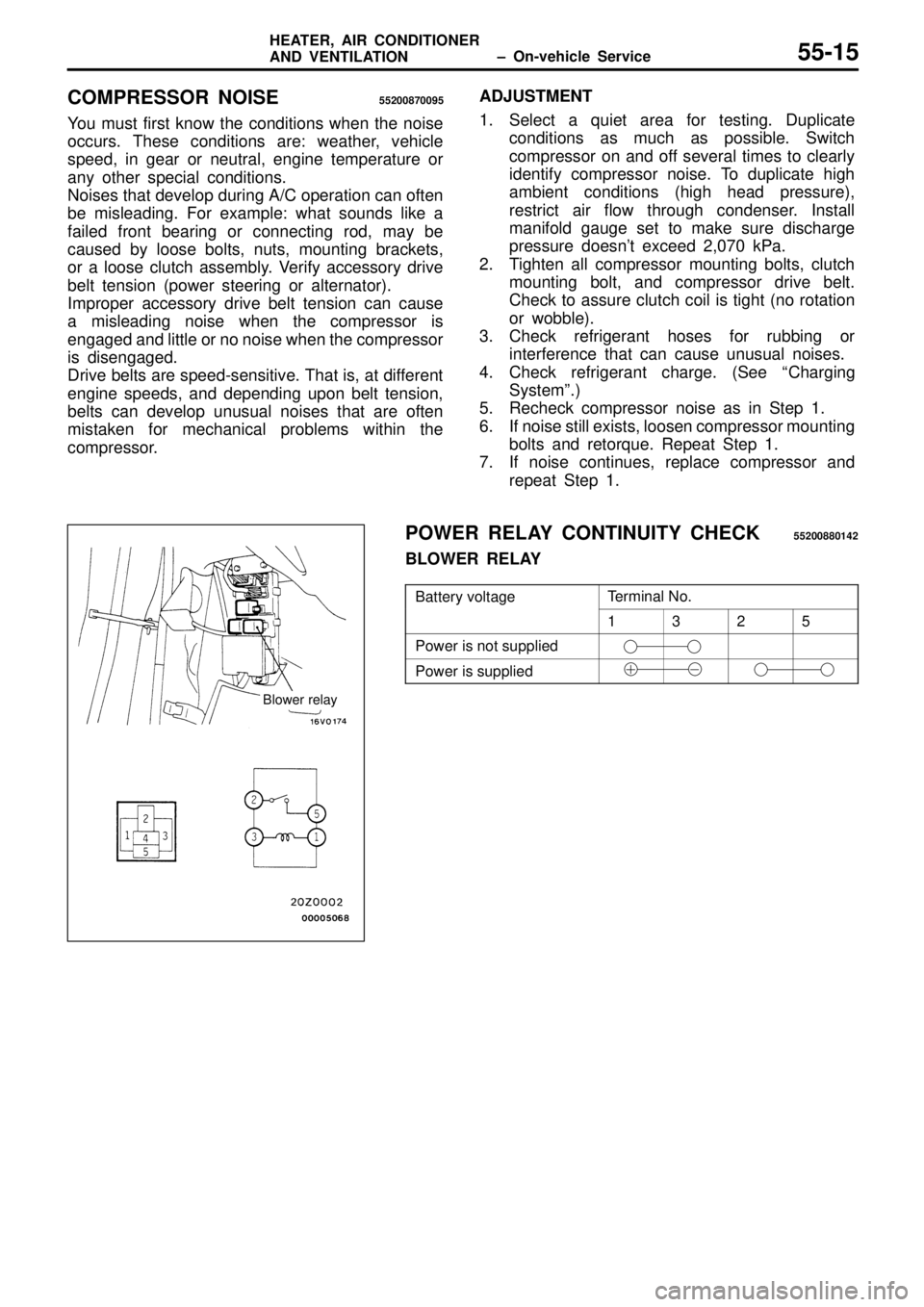

T
e rm in al N o. 1 3 2 5
P
ow er is n ot s u pplie d P
ow er is s u pplie d

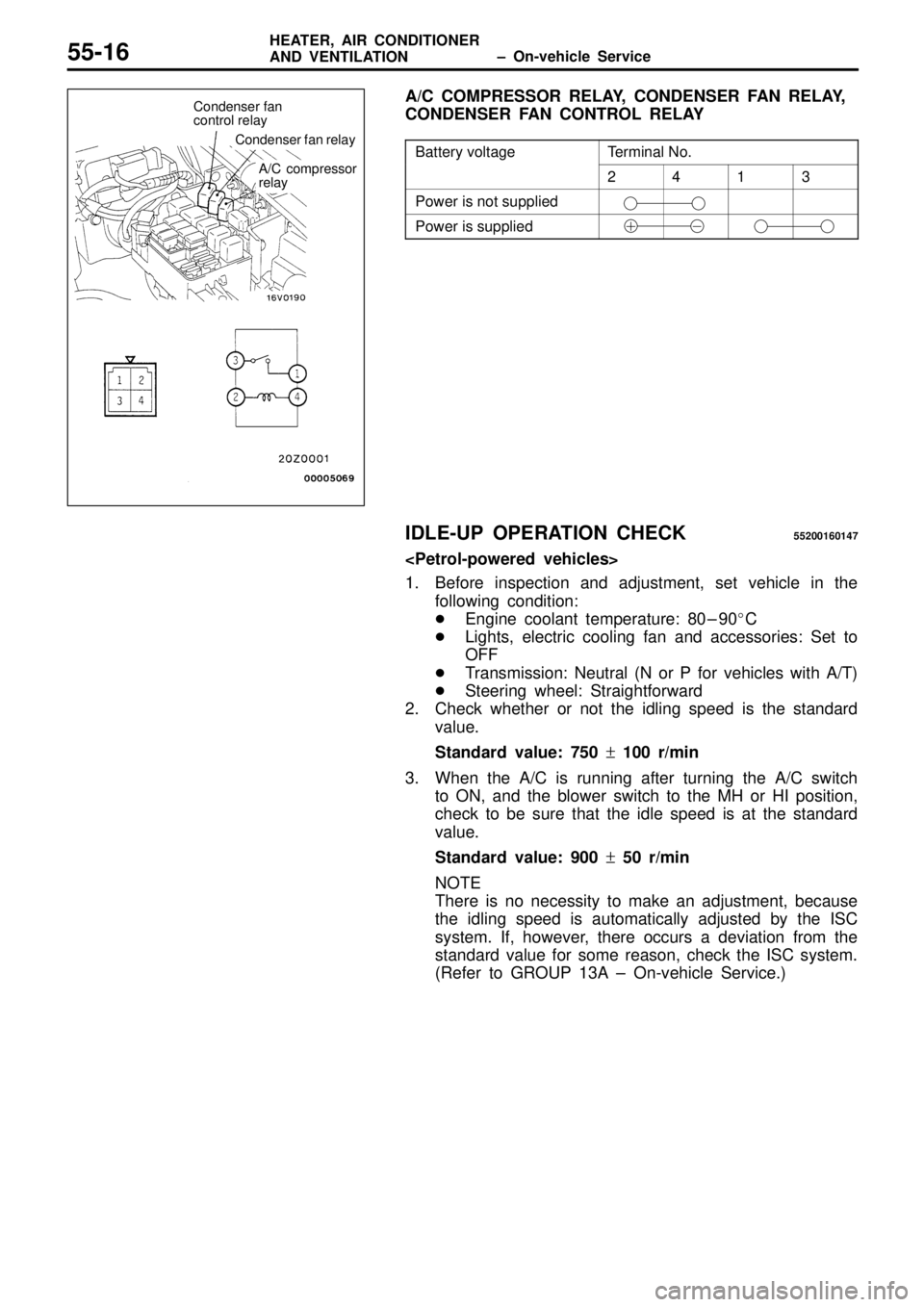

T
e rm in al N o. 2 4 1 3
P
ow er is n ot s u pplie d P
ow er is s u pplie d C
ondense r fa n r e la y A
/C c o m pre sso r
r e la y

N
egativ e p re ssu re a t h ose
e nd O
FF N
o O
N Y
es V

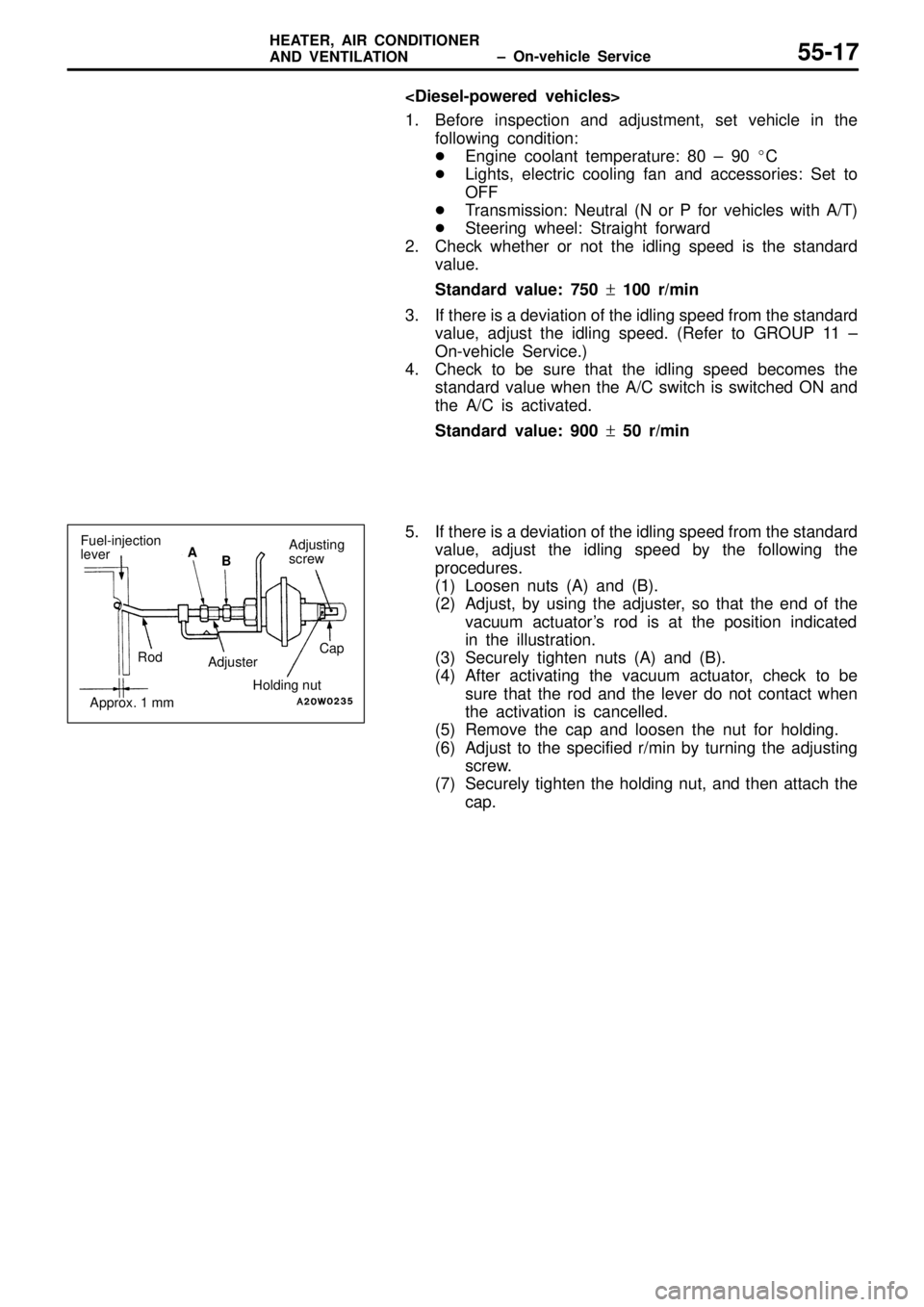

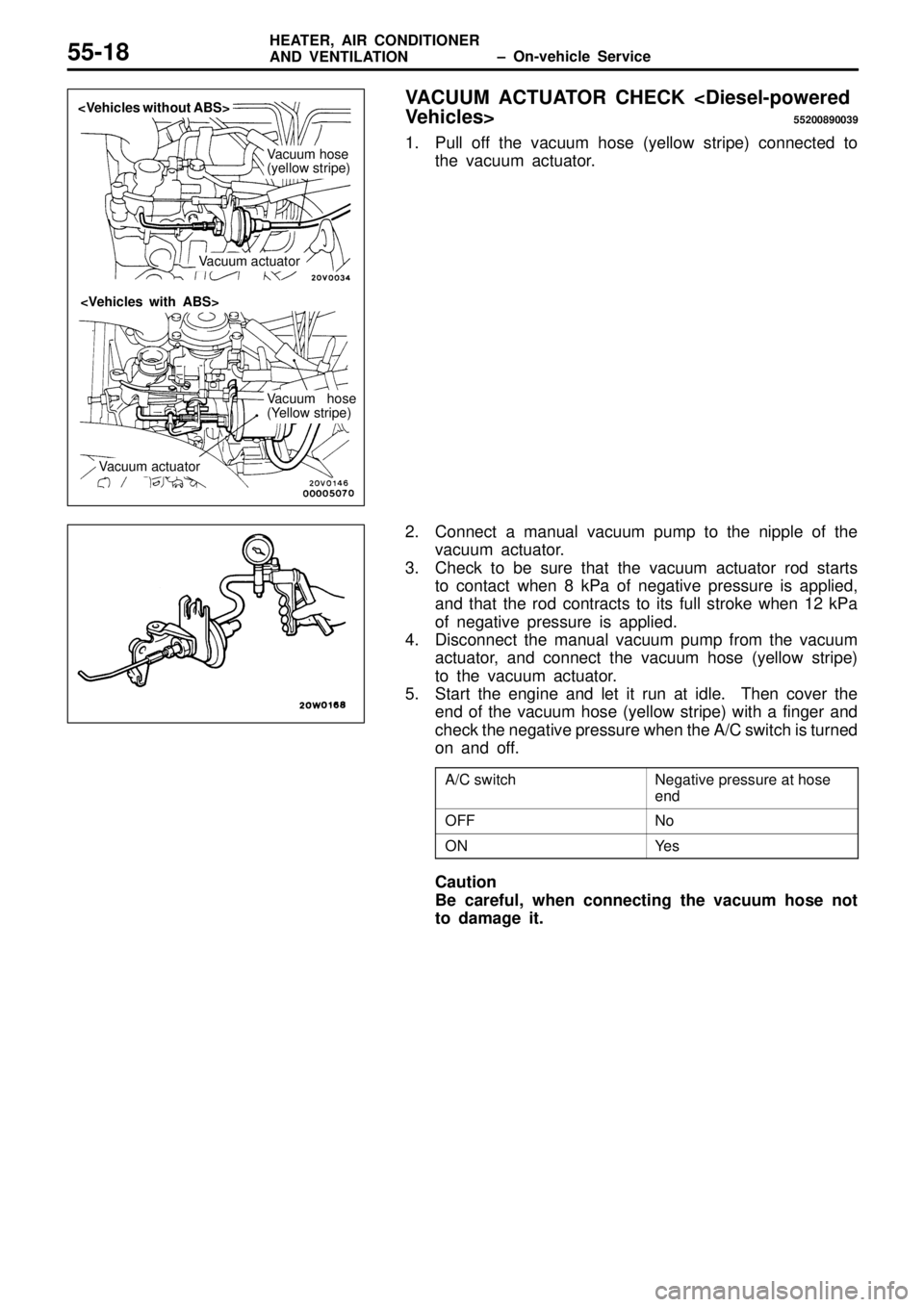

acu um a ctu ato r V
acu um a ctu ato r

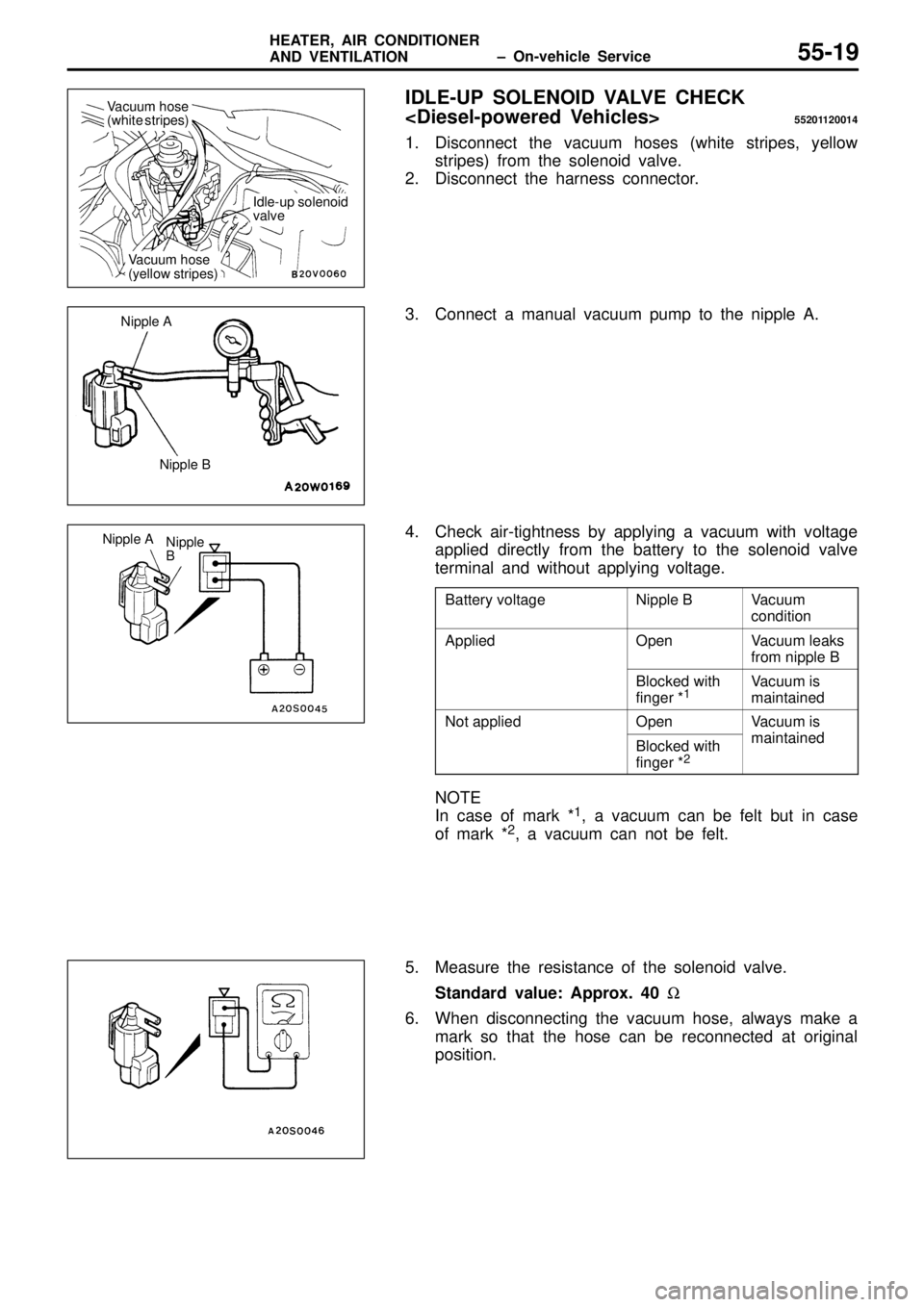

N
ip ple B V
acu um
c o ndit io n A
pplie d O
pen V
acu um le aks
f r o m n ip ple B B
lo cke d w it h
f in ger * 1 N
ot a pplie d O
pen V
acu um is i
t i d B
lo cke d w it h
f in ger * 2 V
acu um h ose
( y e llo w s tr ip es) I
d le -u p s o le noid
v a lv e N
ip ple A N
ip ple B N
ip ple A
Nip ple
B
