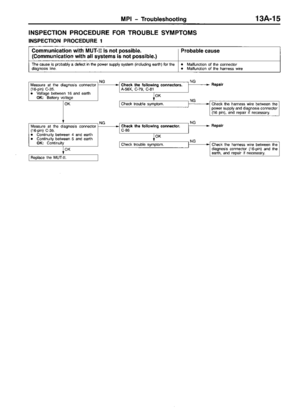

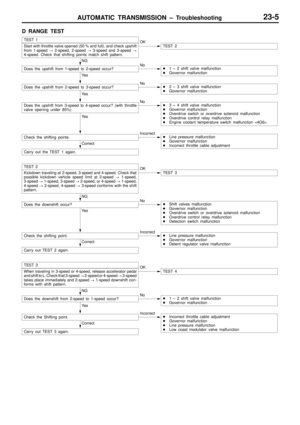

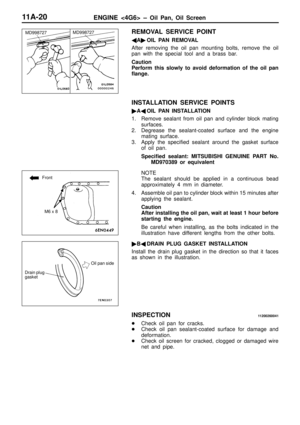

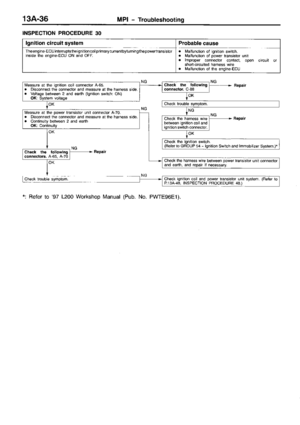

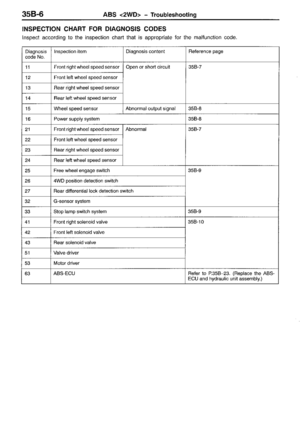

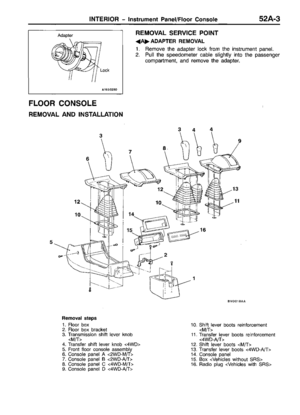

1997 MITSUBISHI TRITON Workshop Manual

Pub. No. PWTE96E1
ENGLISH
EUROPE
March 19989 Printed in The Netherlands
Workshop Manual
chassis
Pub. No. PWTE96E1
chassis

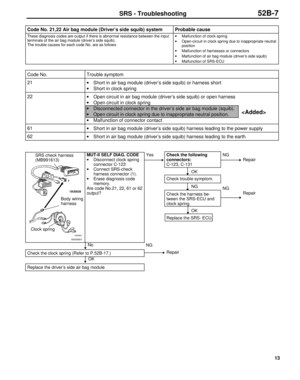

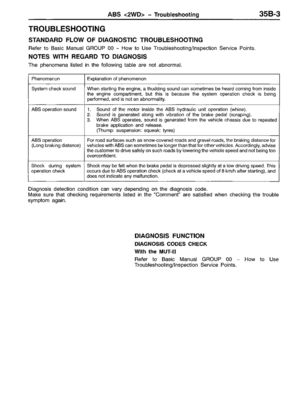

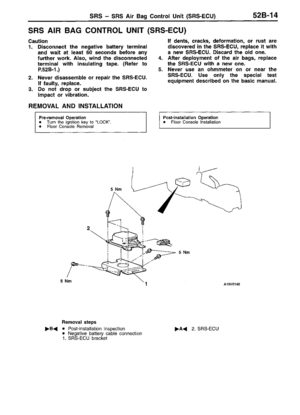

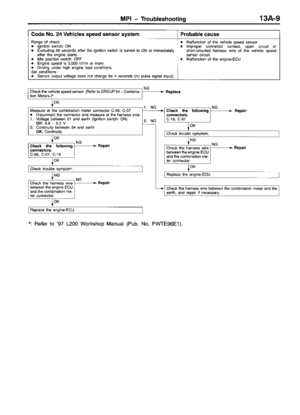

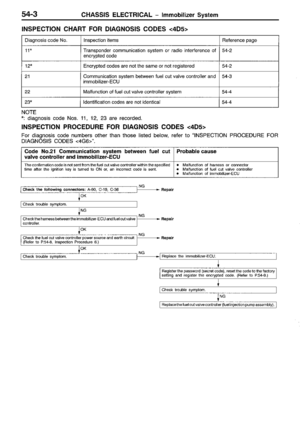

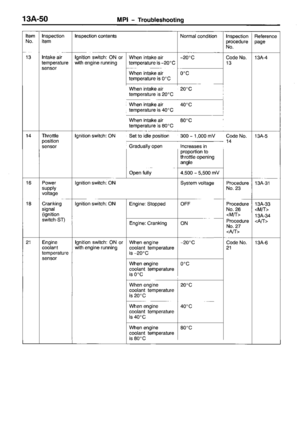

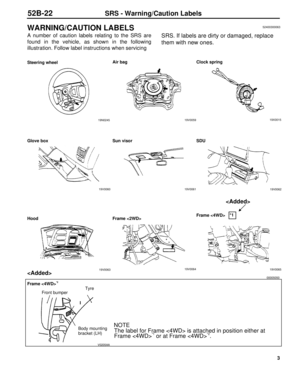

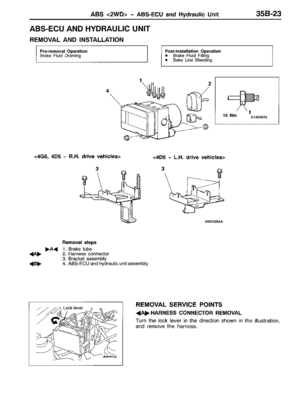

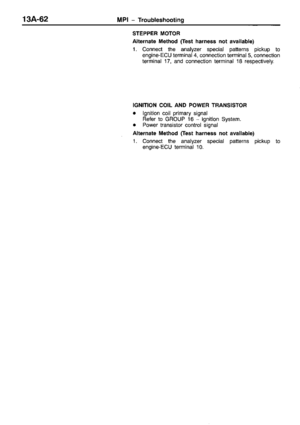

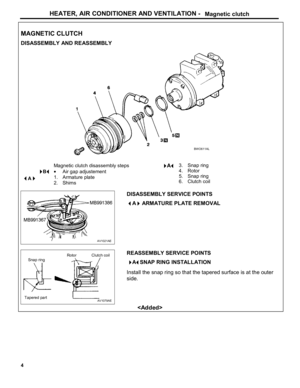

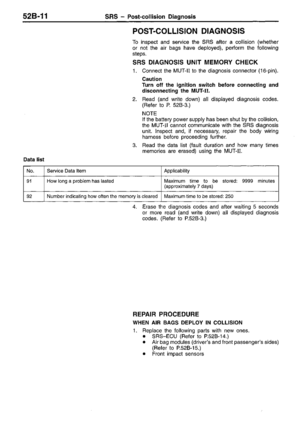

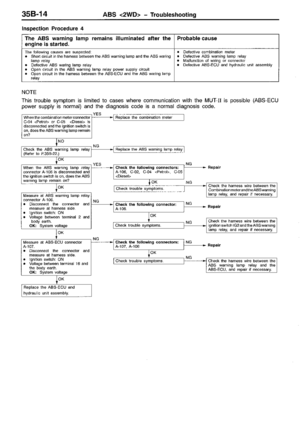

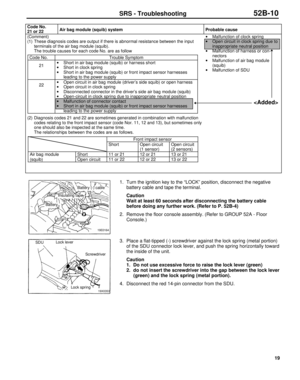

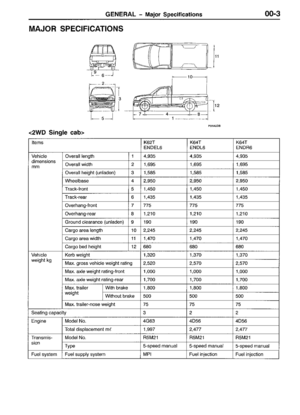

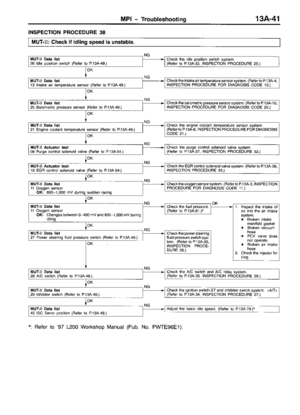

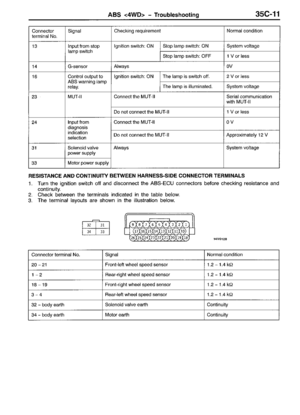

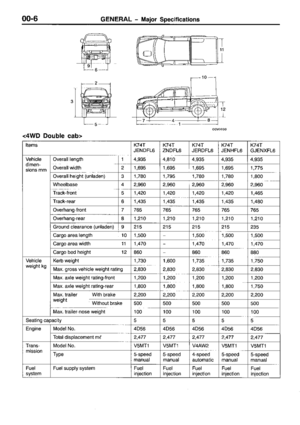

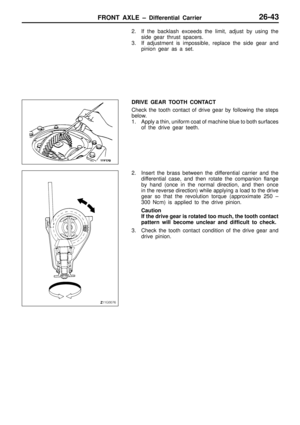

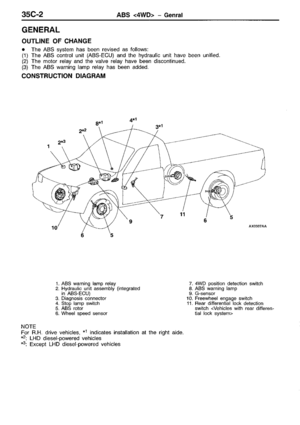

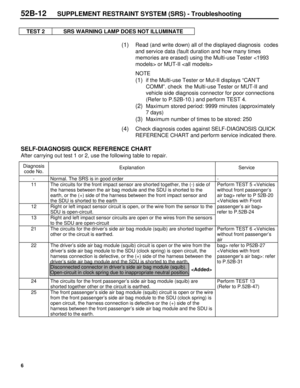

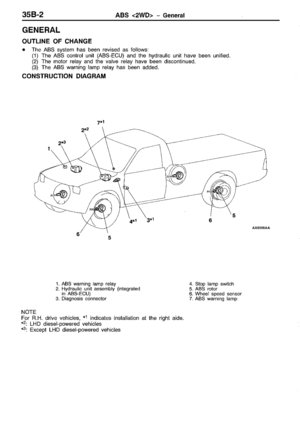

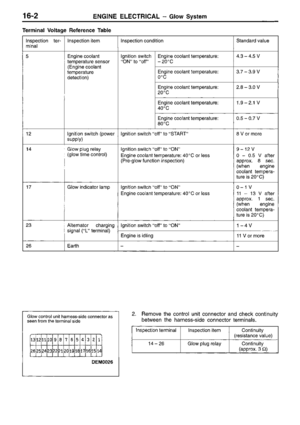

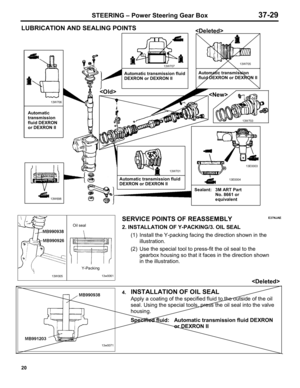

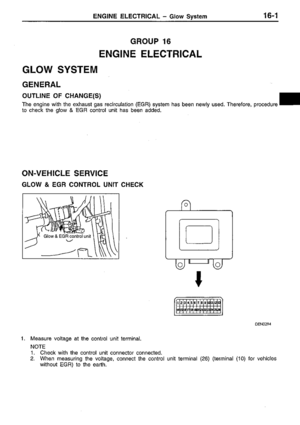

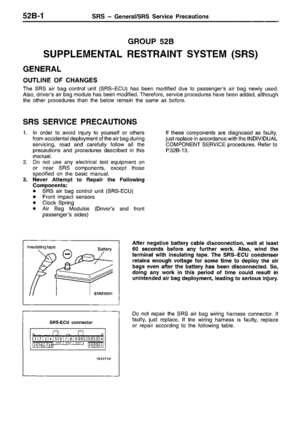

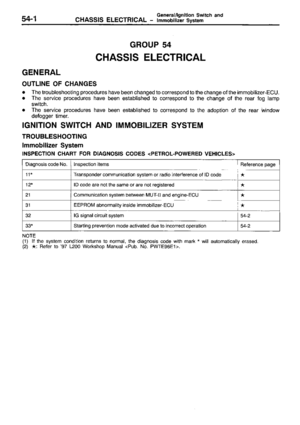

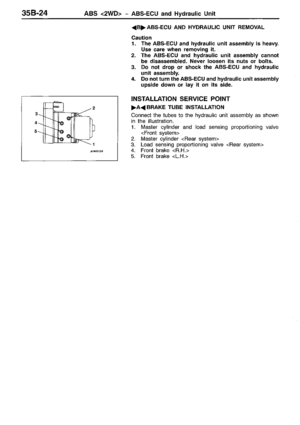

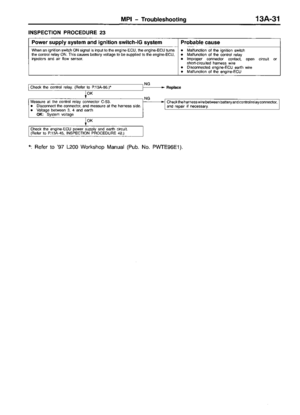

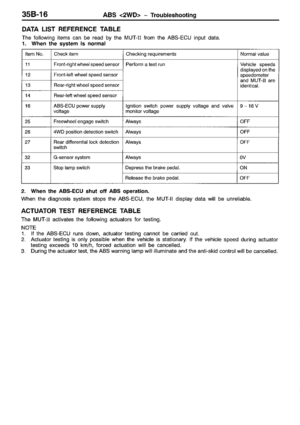

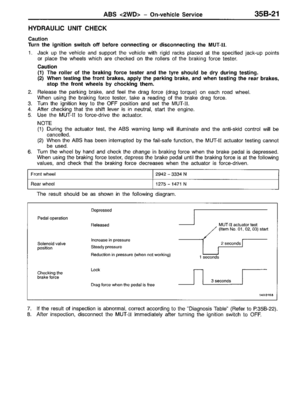

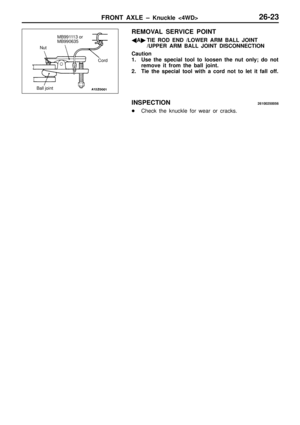

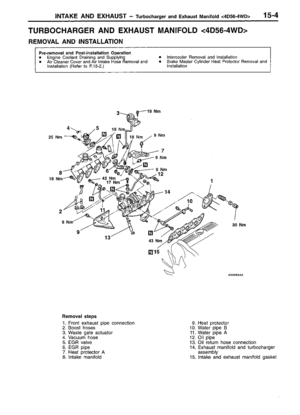

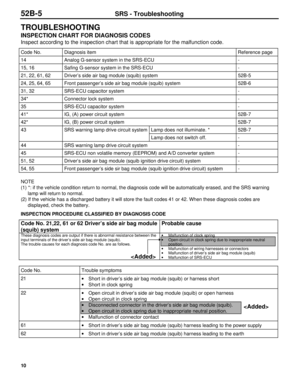

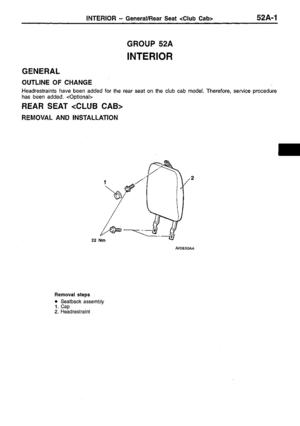

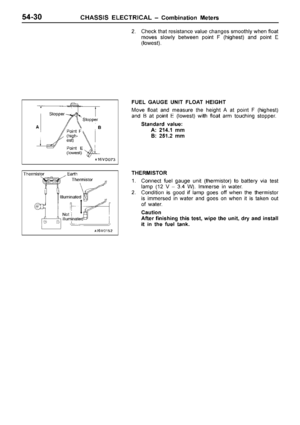

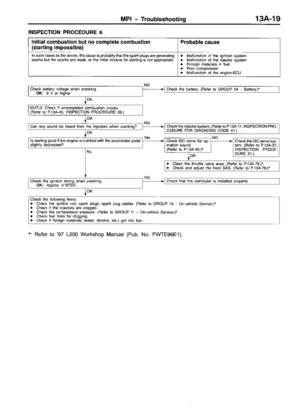

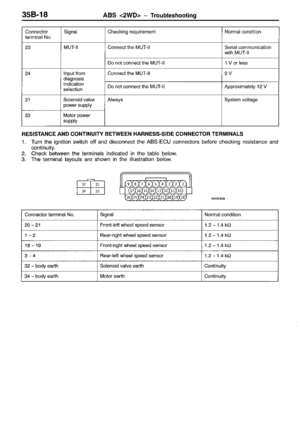

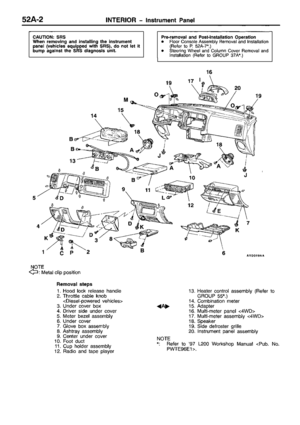

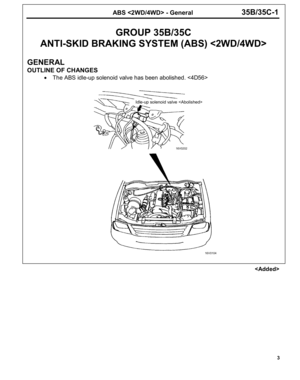

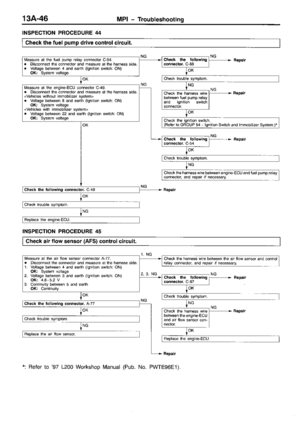

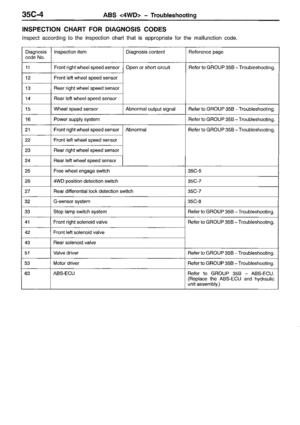

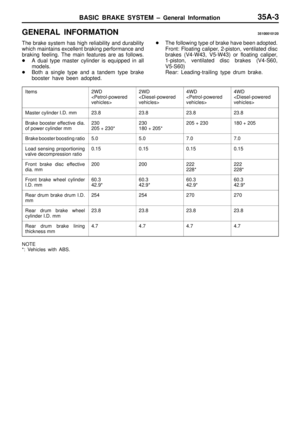

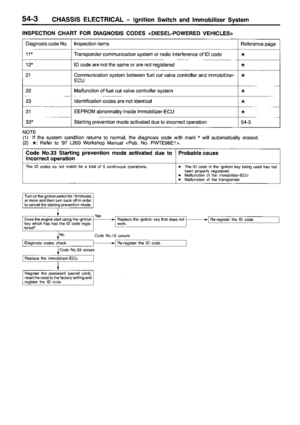

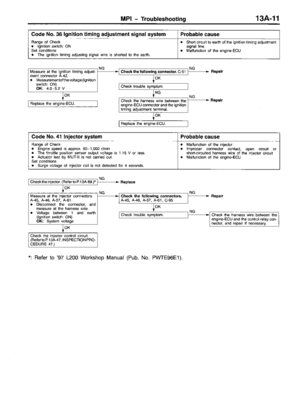

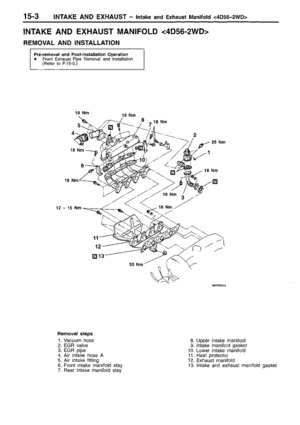

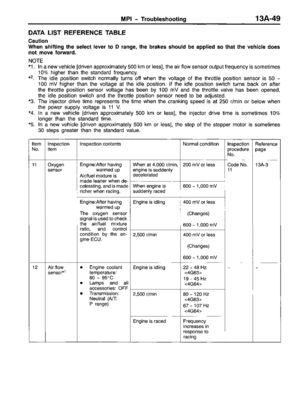

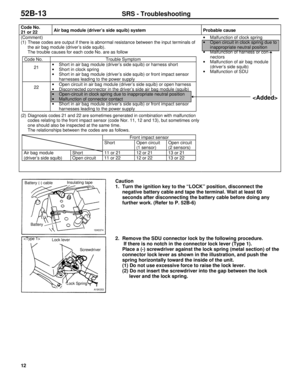

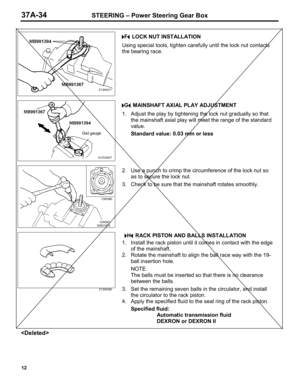

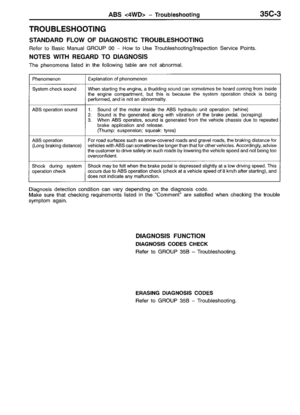

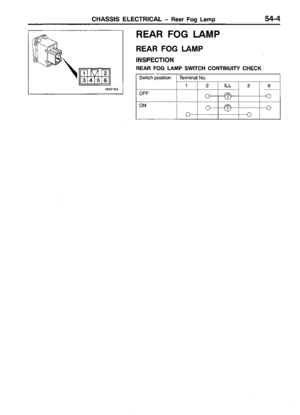

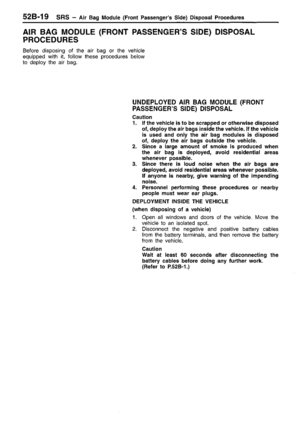

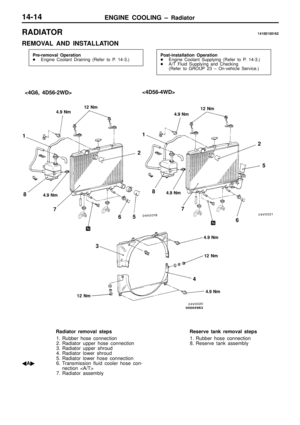

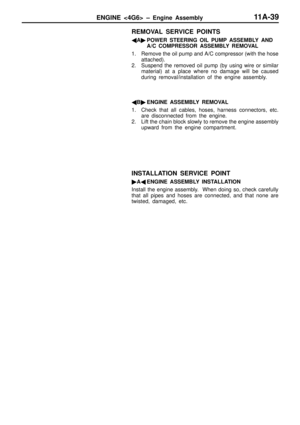

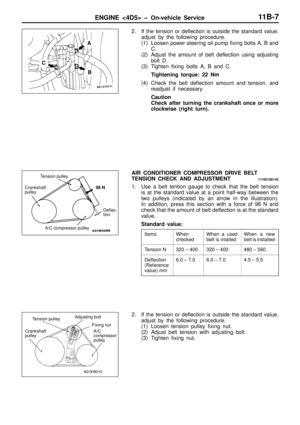

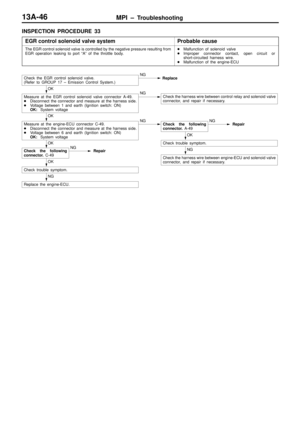

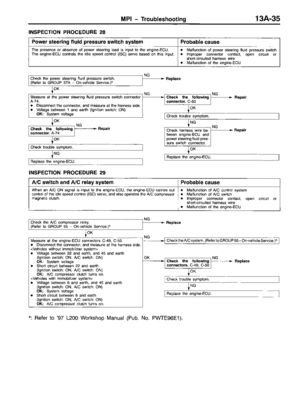

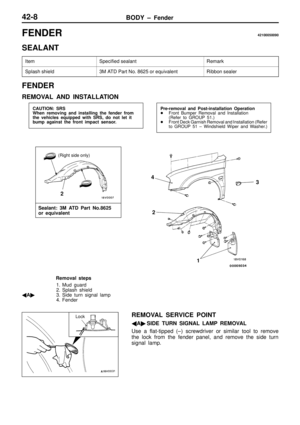

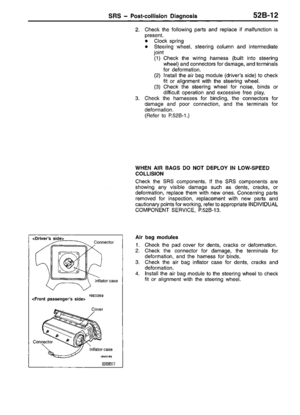

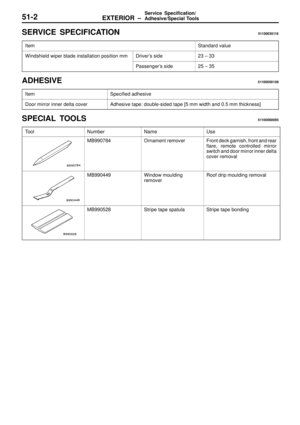

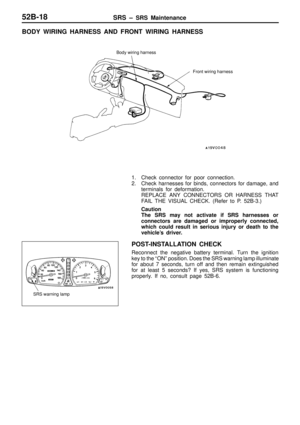

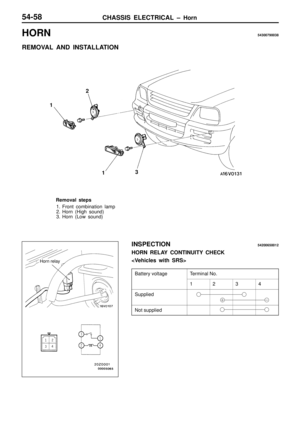

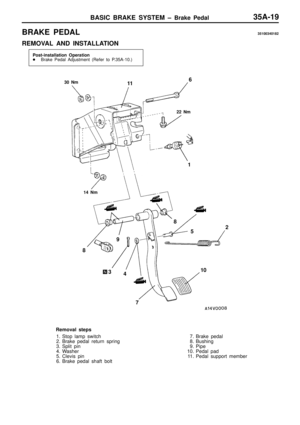

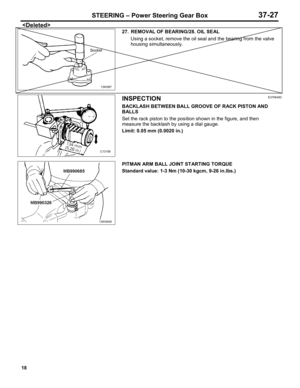

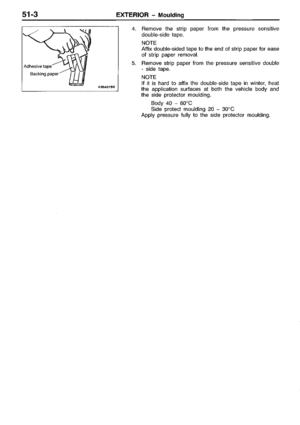

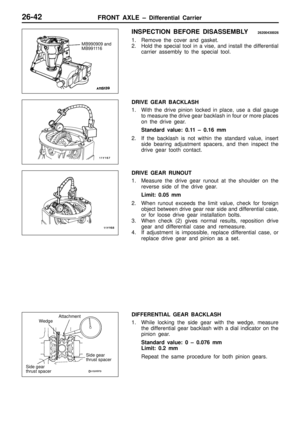

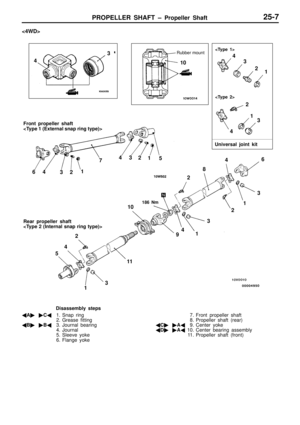

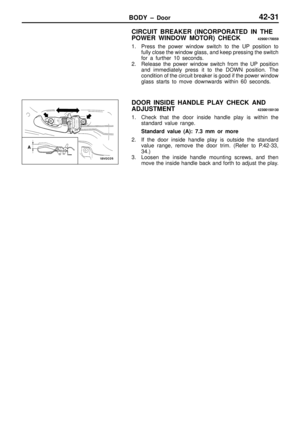

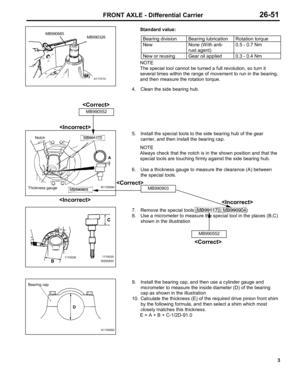

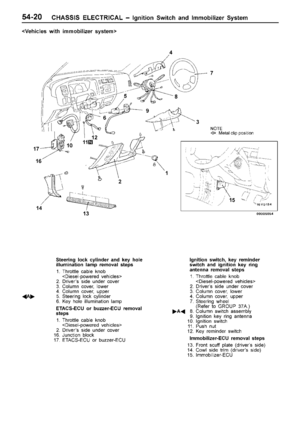

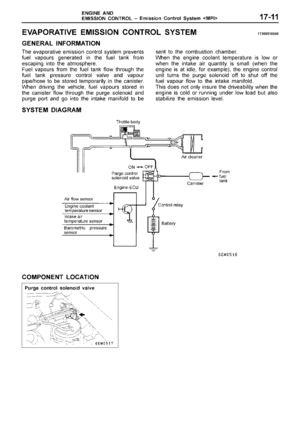

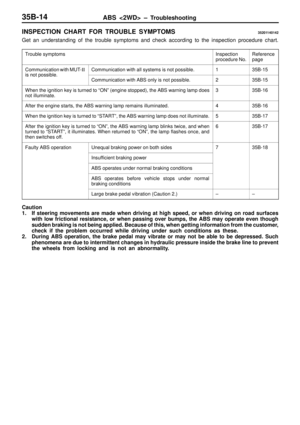

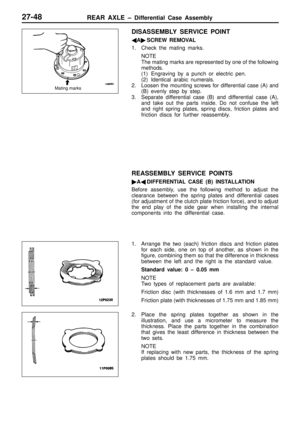

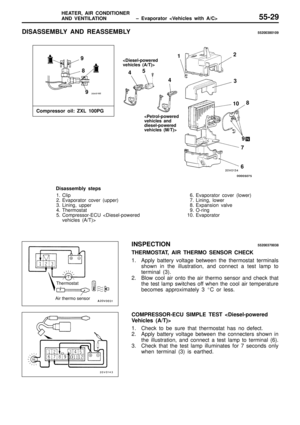

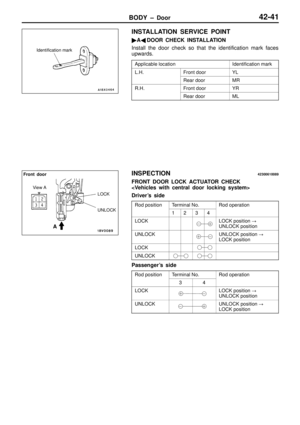

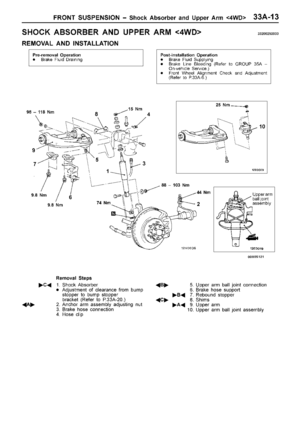

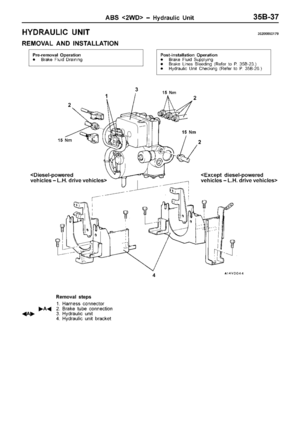

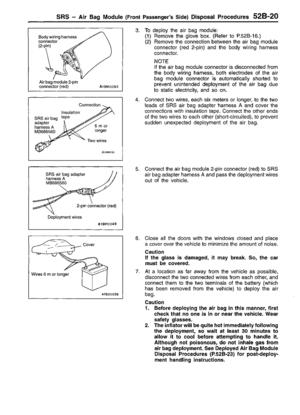

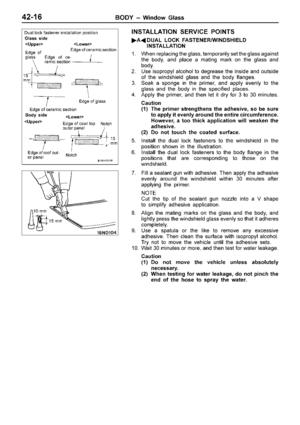

Workshop Manual Group Index

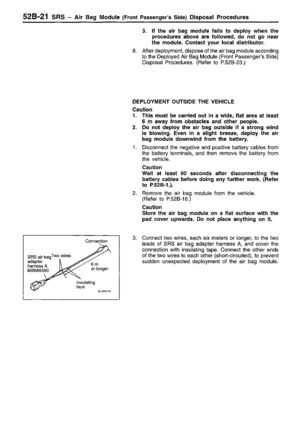

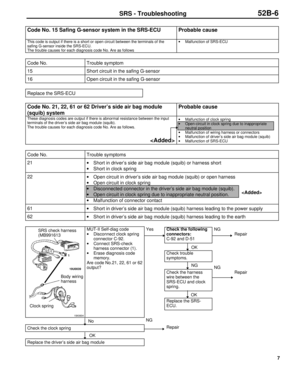

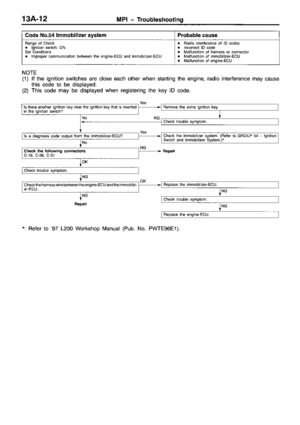

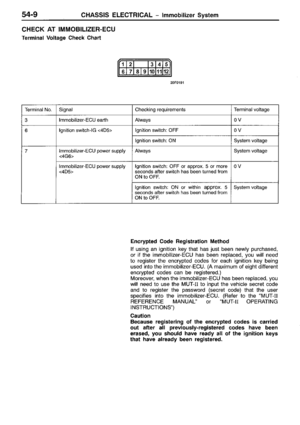

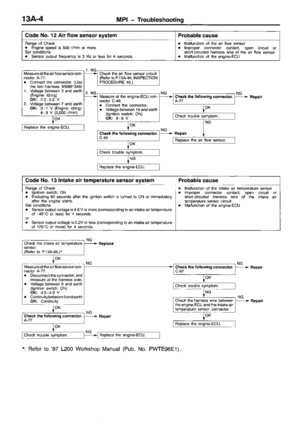

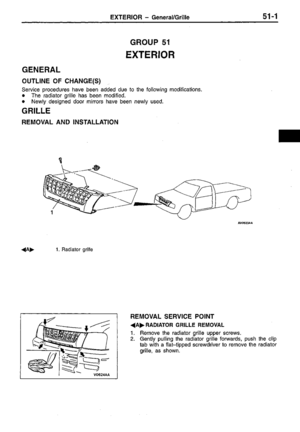

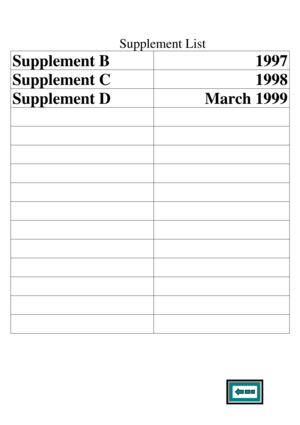

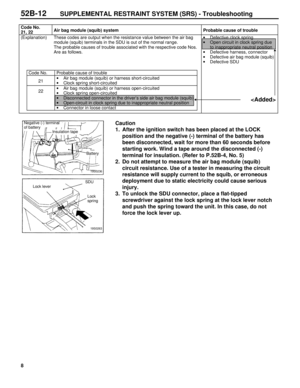

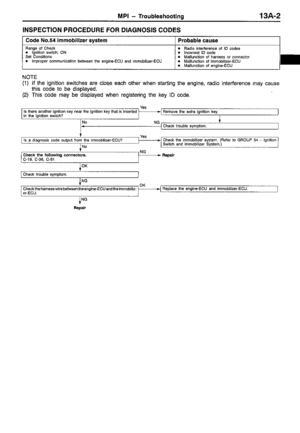

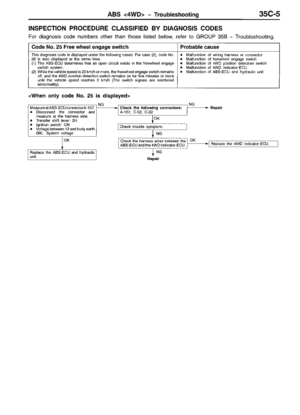

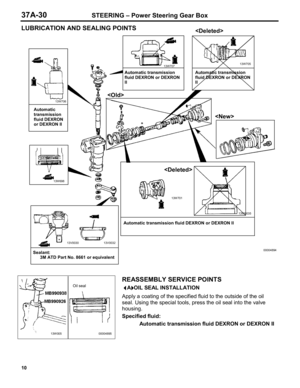

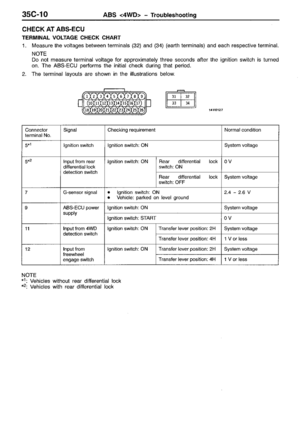

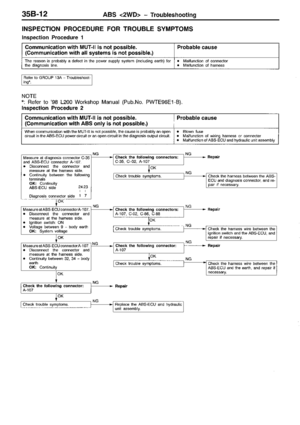

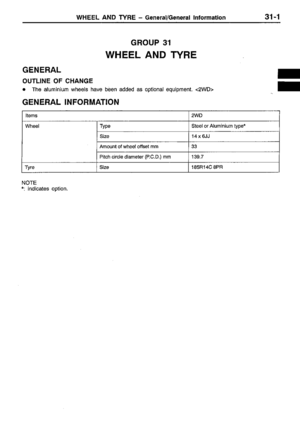

Supplement List

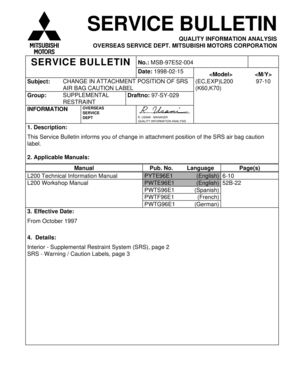

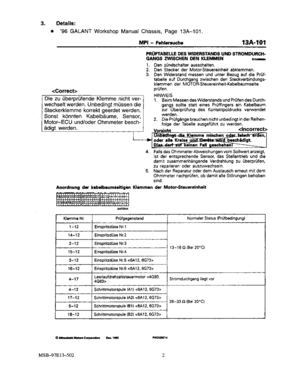

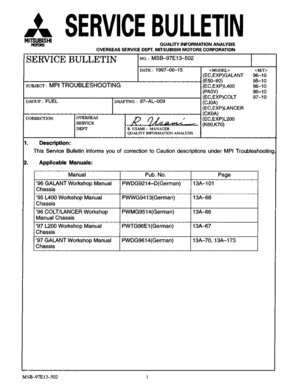

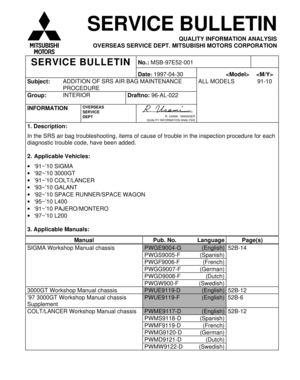

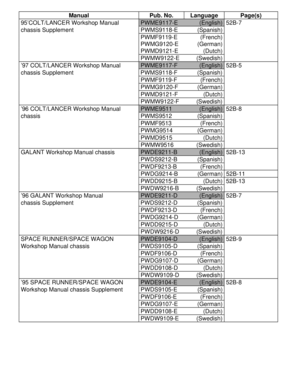

Service Bulletin List

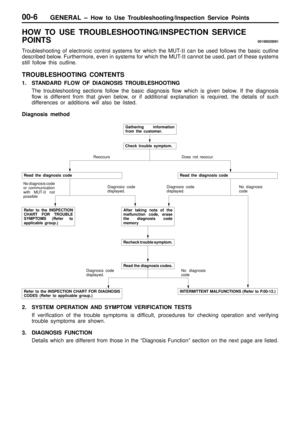

GENERAL ± How to Use This Manual00-2
HOW TO USE THIS MANUAL00100010210
SCOPE OF MAINTENANCE, REPAIR
AND SERVICING EXPLANATIONS
This manual provides explanations, etc. concerning
procedures for the inspection, maintenance, repair
and servicing of the subject model. Note, however,
that for engine and transmission-related component
parts, this manual covers only on-vehicle
inspections, adjustments, and the removal and
installation procedures for major components.
For detailed information concerning the inspection,
checking, adjustment, disassembly and reassembly
of the engine, transmission and major components
after they have been removed from the vehicle,
please refer to separate manuals covering the
engine and the transmission.

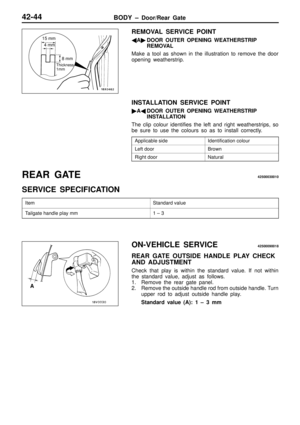

ON-VEHICLE SERVICE
ªOn-vehicle Serviceº is procedures for performing
inspections and adjustments of particularly
important locations with regard to the construction
and for maintenance and servicing, but other
inspection (for looseness, play, cracking, damage,
etc.) must also be performed.

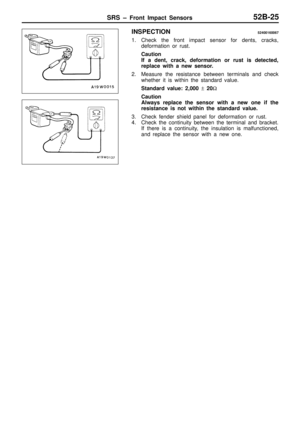

INSPECTION
Under this title are presented inspection and
checking procedures to be performed by using
special tools and measuring instruments and by
feeling, but, for actual maintenance and servicing
procedures, visual inspections should always be
performed as well.
DEFINITION OF TERMS
STANDARD VALUE
Indicates the value used as the standard for judging
the quality of a part or assembly on inspection
or the value to which the part or assembly is
corrected and adjusted. It is given by tolerance.
LIMIT
Shows the standard for judging the quality of a
part or assembly on inspection and means the
maximum or minimum value within which the part
or assembly must be kept functionally or in strength.
It is a value established outside the range of
standard value.
REFERENCE VALUE
Indicates the adjustment value prior to starting the
work (presented in order to facilitate assembly and
adjustment procedures, and so they can be
completed in a shorter time).
CAUTION
Indicates the presentation of information particularly
vital to the worker during the performance of
maintenance and servicing procedures in order to
avoid the possibility of injury to the worker, or
damage to component parts, or a reduction of
component or vehicle function or performance, etc.
INDICATION OF TIGHTENING TORQUE
The tightening torque shown in this manual is a
basic value with a tolerance of +10% except the
following cases when the upper and lower limits
of tightening torque are given.
(1) The tolerance of the basic value is within +10%.
(2) Special bolts or the like are in use.
(3) Special tightening methods are used.

GENERAL ± How to Use This Manual00-3

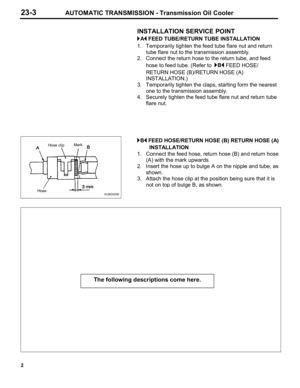

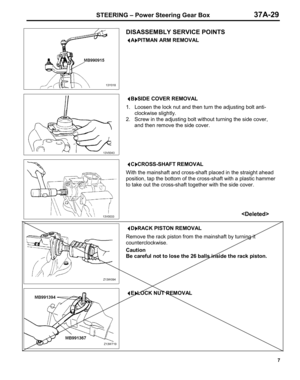

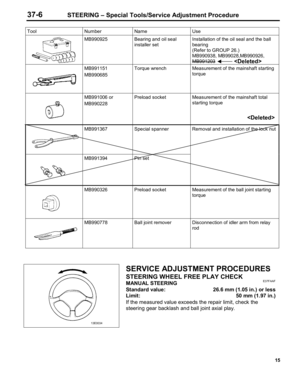

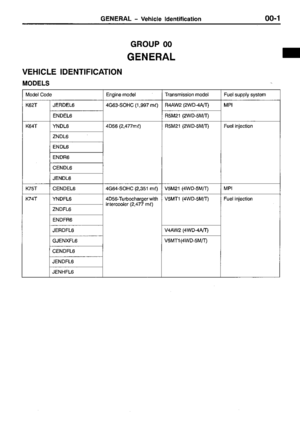

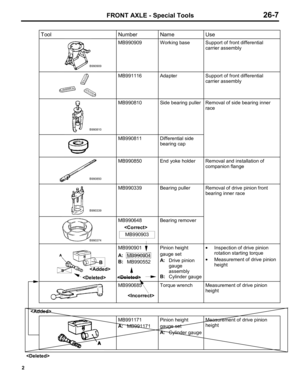

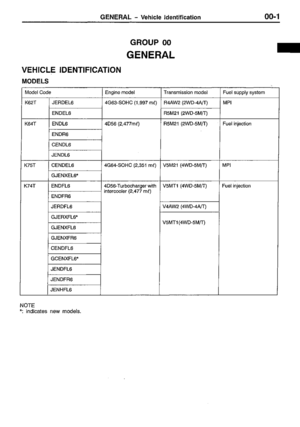

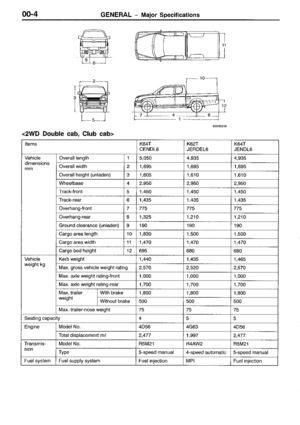

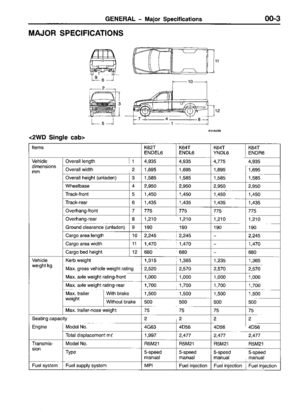

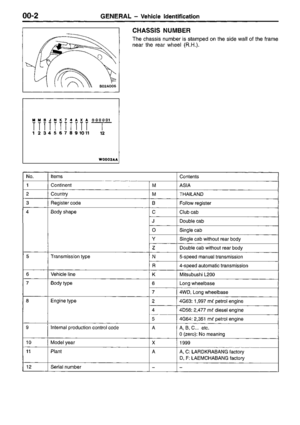

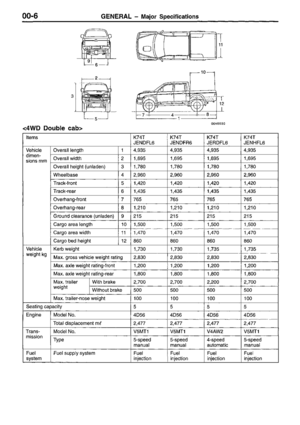

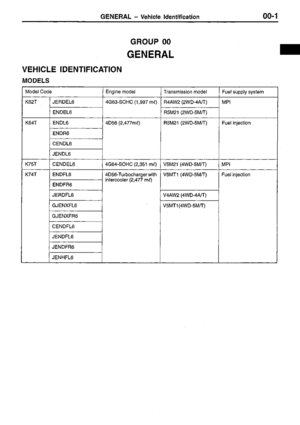

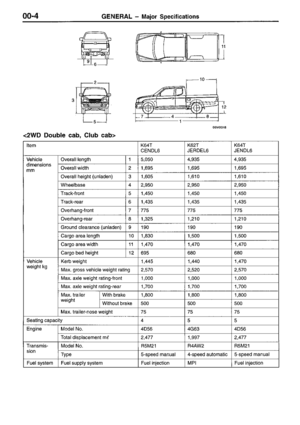

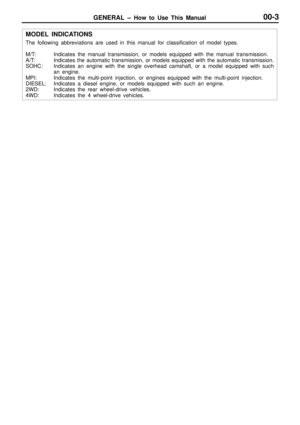

MODEL INDICATIONS
The following abbreviations are used in this manual for classification of model types.

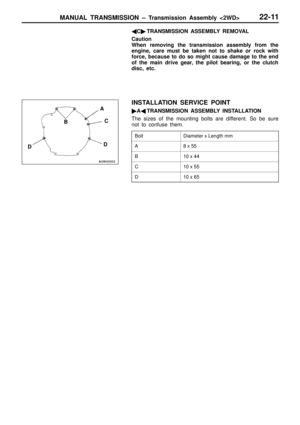

M/T: Indicates the manual transmission, or models equipped with the manual transmission.
A/T: Indicates the automatic transmission, or models equipped with the automatic transmission.
SOHC: Indicates an engine with the single overhead camshaft, or a model equipped with such
an engine.

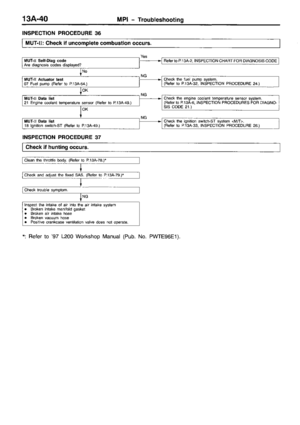

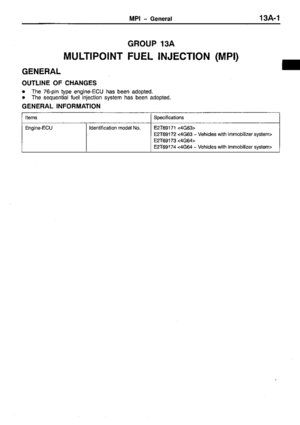

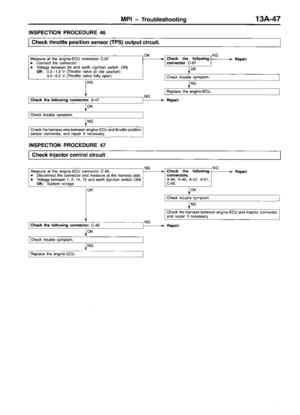

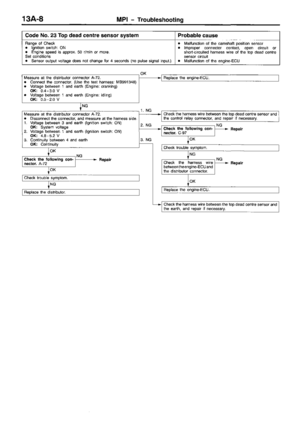

MPI: Indicates the multi-point injection, or engines equipped with the multi-point injection.
DIESEL: Indicates a diesel engine, or models equipped with such an engine.
2WD: Indicates the rear wheel-drive vehicles.

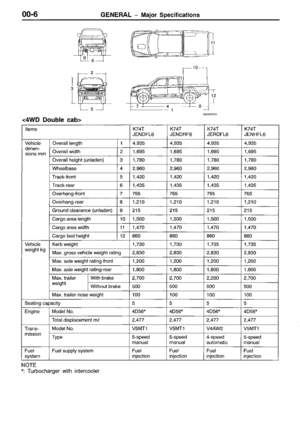

4WD: Indicates the 4 wheel-drive vehicles.

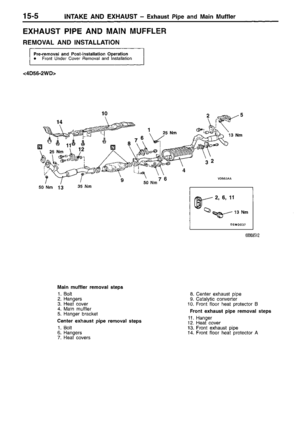

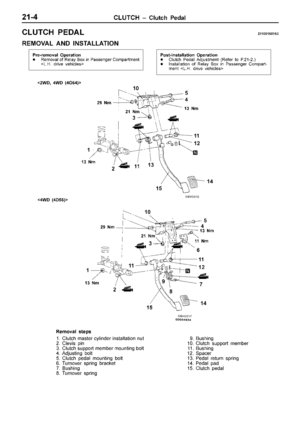

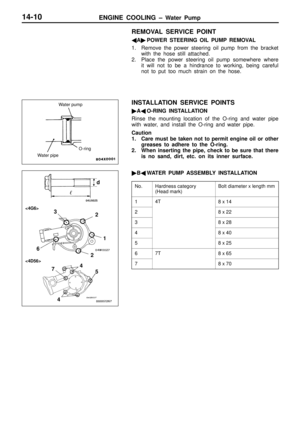

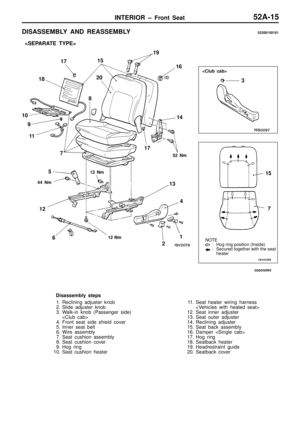

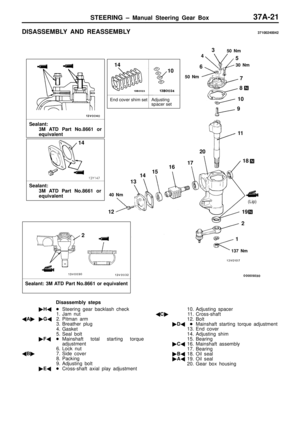

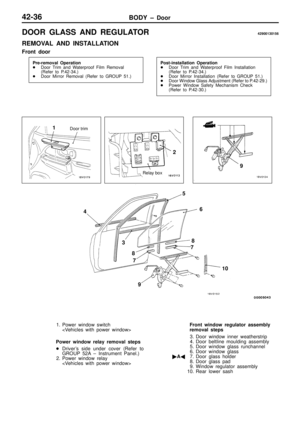

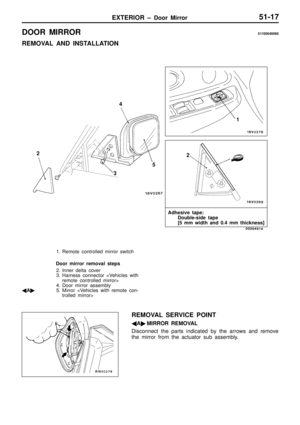

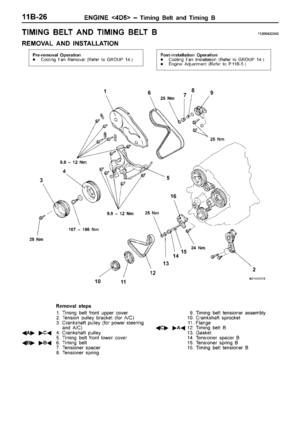

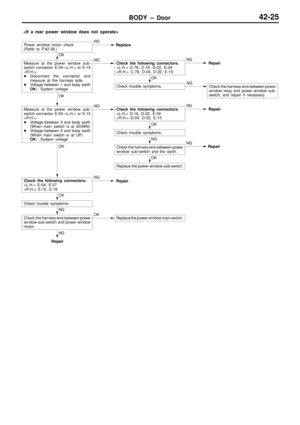

I
n dic a te s ( b y s ym bols ) w here lu bric a -
t io n is n ece ssa ry .

i
n dic a te s th at th ere is
a c o ntin uit y b etw een th e te rm i-
n als .
in dic a te s te rm in als to
w hic h b atte ry v o lt a ge is a pplie d. I
n dic a te s th e
s e ctio n tit le . I
n dic a te s th e
g ro up n um -
b er. I
n dic a te s th e
p age n um ber. I
n dic a te s th e
g ro up tit le . D
enote s n on-re us-
a ble p art. R
epair k it o r s e t p arts
a re s h ow n. ( O nly v e ry
f r e quently u se d p arts
a re s h ow n.) O
pera tin g p ro ce dure s, c a u-
t io ns, e tc . o n r e m ova l, in sta lla -
t io n, d is a sse m bly a nd r e as-
s e m bly a re d escrib ed. T
he tit le o f th e p age ( fo llo w in g
t h e p age o n w hic h th e d ia gra m
o f c o m ponent p arts is p re s-
e nte d) in dic a tin g th e lo ca tio ns o f
l u bric a tio n a nd s e alin g p ro ce -
d ure s.
