1997 MITSUBISHI TRITON Workshop Manual

1
Contin ent MAS IA 2
Countr y MTH AIL A N D 3
Regis te r c o de BFollo w r e gis te r C
Clu b c a b J
Double c a b O
Sin gle c a b Y
Sin gle c a b w it h out r e ar b ody 4
Body s h ape
ZDouble c a b w it h ou t r e ar b ody N
5-s p eed m anua l tr a nsm is sio n 5
Tra nsm is sio n ty p e
R4-s p ee d a uto m atic tr a nsm is sio n 6
Vehic le lin e KMit s u bush i L 20 0 6
Lo ng w heelb ase 7
Body ty p e
74W D, L ong w heelb ase 2

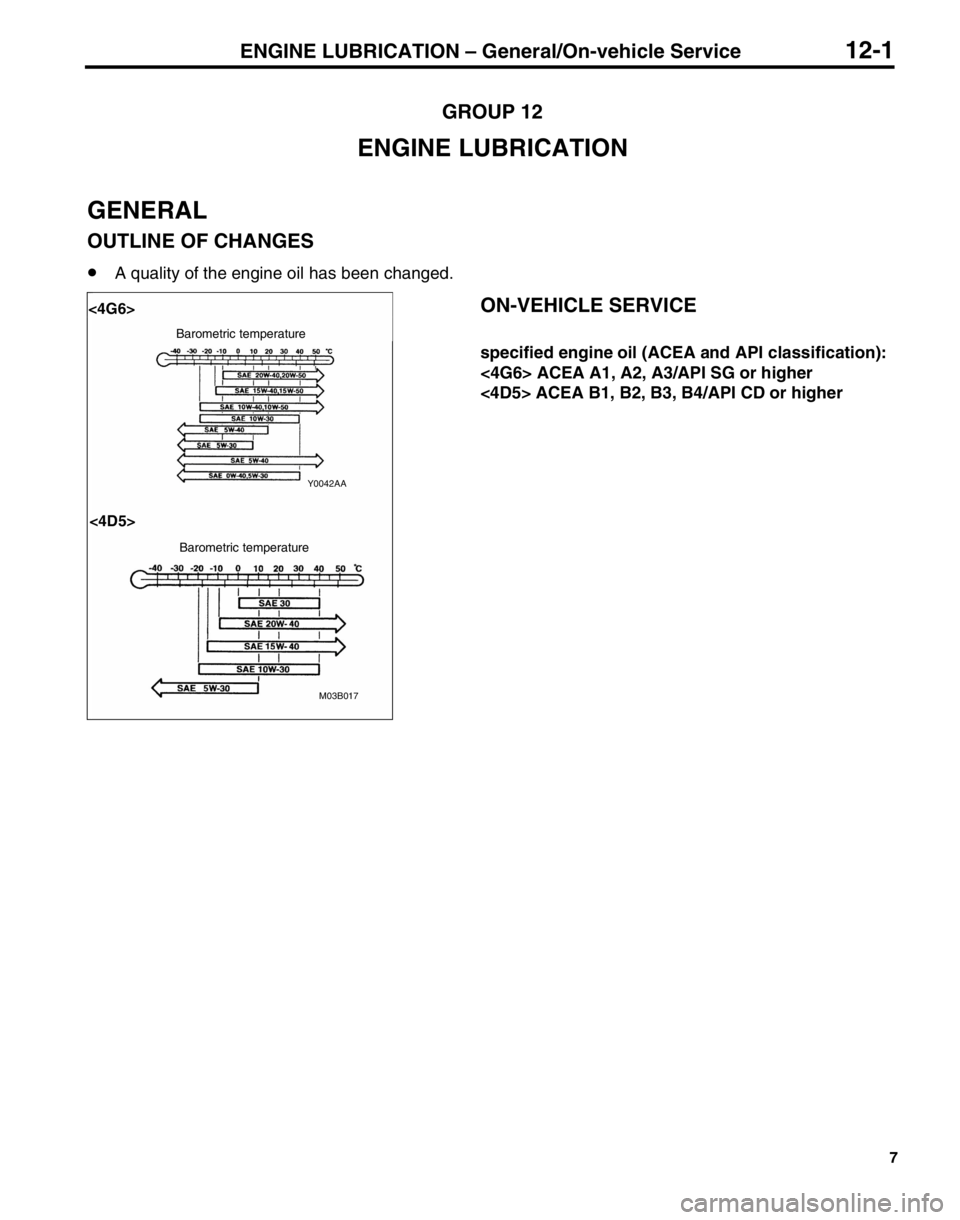

4G 63: 1 ,9 9 7m
ℓ
p e tr o l e ngin e 4
4D 56 :2 ,4 7 7m
ℓ
d ie se l e ngin e 8
Engin e ty p e
54G 64: 2 ,3 5 1 m
ℓ
p etr o l e ngin e 9
In te rn al p ro ductio n c o ntr o l c o de AA, B , C … etc
0 ( z e ro ): N o m eanin g 1
0 Model y e a r 1* 2001 1
1 Pla nt AA, C : L A R DKR ABAN G f a cto ry
D , F : L A E M CHABAN G fa cto ry 1
2 Seria l n u m ber --

6
NOTES

8
NOTES

M
B991502 MUT-II s u b a sse m bly Encry p te d c o de s r e co rd in g

10
2.
Exit conditions from the adjustment mode
The ETACS-ECU cancels the adjustment mode when any of the following conditions is satisfied:
•
Diagnosis control: OFF (Disconnect the MUT-II>)
•
Key reminder switch: ON (Pull out the ignition key.)
•
Ignition switch: Other than LOCK (OFF)
•
Door switch: ON (Open the door)
•
After the ETACS_ECU has entered the adjustment mode, no adjustment is made within 3 minutes (If
any adjustment is made within 3 minutes, the ETACS-ECU monitors an adjustment operation for
other 3 minutes.
•
Other warning buzzer(s) sounds
3.
Adjustment of functions
Function Adjustment procedure
Keyless entry answerback function When the transmitter lock switch is turned on twice continuously
within 2 seconds, the lock answerback function toggles on and off.
•
If the function toggles on, the buzzer sounds once (default con-
dition).
•
If the function toggles off, the buzzer sounds twice,
When the transmitter unlock switch is turned on twice continuously
within 2 seconds, the unlock answerback function toggles on and
off.
•
If the function toggles on, the buzzer sounds once (default con-
dition).
•
If the function toggles off, the buzzer sounds twice,
Initialisation of all the ETACS func-
tions (From deactivation to activa-
tion)When the tailgate switch remains on for more than 20 seconds, th
buzzer sounds twice and he answer-back function of the keyless
entry system is initialised.
The buzzer will sound in 10 seconds (indicating that the ETACS-
ECU enters the adjustment mode), but the washer switch must re-
mains off for 20 seconds in order to initialise all the functions.
If the tailgate switch remains on for more than 20 seconds without
entering the adjustment mode, the system enters the adjustment
mode in 10 seconds, but does not initialise all of the functions.
INSPECTION CHART FOR TROUBLE SYMPTOMS
Trouble symptom Inspection procedure No. Reference page
None of the doors can be locked or unlocked using th
transmitter.142-3
All of the doors can be locked and unlocked using th
transmitter, but the room lamp or turn-signal lamp does
not flash or illuminate. (However, the room lamp oper-
ates normally when the doors are opened and closed.)242-4
Encrypted codes cannot be registered. 3 42-5
42-2BODY – Keyless entry system

11
INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS
INSPECTION PROCEDURE 1
None of the doors can be locked or unlocked using
the transmitter.Probable cause
The cause may be a malfunction of the transmitter or ETACS-
ECU, defective connection between ETACS-ECU and junction
block, defective power supply voltage to ETACS-ECU input
line due to commercial equipment, or the lock and unlock sig-
nals are not being sent to the ETACS-ECU.•
Malfunction of transmitter
•
Malfunction of ETACS-ECU
•
Malfunction of key reminder switch
•
Malfunction of wiring harness or connector
•
Malfunction of door switch
•
Defective connection between ETACS-ECU and
junction block
•
Defective power supply voltage to ETACS-ECU
input line due to commercial equipment
Check the central door lock systemCan the doors be locked and unlocked by the pas-
senger’s-side door key cylinder and lock knob?
YesNo
Has the encrypted code been registered properly? * NG Re-register the encrypted code. (Refer to P.42.6)
OK
Replace the transmitter battery. (Refer to P.42-6)
NG
Is a commercial equipment equipped?
NoYes
Remove that equipment, and then check trouble
symptoms.
NG
Check the connection between ETACS-ECU and
junction block claw.NG
Repair
OK
NG .Check the following connectors:
A-56X, C-81, C-91
OK NG
Measure at the ETACS-ECU connector C-91.
•
Disconnect the connector, and measure at the
harness side.
•
Voltage between 2 and body earth
OK:
System voltageCheck trouble symptomsRepair
OK NG
Check the harness wire, and repair if necessary.
•
Between fusible link No.5 and ETACS-ECU
Door switch continuity check
OK NG
Mut-II Pulse Check
•
Door switch input signal
OK:
MUT-II Buzzer sounds once when opening
and closing each door.NG
Repair
OK
Check the following connectors:
C-110, D-03, D-07, D-14, D-17, D-21
OK NG
Check trouble Symptoms.Repair
NG
To next pageCheck the harness wire, and repair if necessary.
•
Between ETACS-ECU and door switch
NOTE
*: This should be done if a transmitter, receiver or ETACS-ECU has been replaced, and if a secret cod
has not been registered properly
BODY – Keyless Entry System42-3

12From previous page
Key reminder switch continuity check
OK NG
MUT-II Pulse Check
•
Key reminder switch input signal
OK:
MUT-II buzzer sounds once when removing
and inserting ignition key.NG
Repair
OK
Check the following connectors:
C-72, C-79, C-86, C-91
Replace the transmitter.OK NG
OK
Check trouble symptomsRepair
Check the trouble symptoms.NG
OK
Replace the ETACS-ECU.
Check the harness wire, and repair if necessary.
•
Between key reminder switch and ETACS-ECU
•
Between key reminder switch and earth
INSPECTION PROCEDURE 2
All of the doors can be locked and unlocked using th
transmitter, but the room lamp or turn-signal lamp does
not flash or illuminate. (However, the room lamp oper-
ates normally when the doors are opened and closed.)Probable cause
If neither room lamp nor turn-signal lamp flash/illuminate, the
cause may be a malfunction of the ETACS-ECU or driver’s-side
door lock actuator.
If either room lamp or turn-signal lamp does not flash/illuminate,
the cause may be a malfunction of the room lamp circuit or turn-
signal lamp.•
Malfunction of ETACS-ECU
•
Malfunction of driver’s door lock actuator
•
Burnt turn-signal lamp bulb
•
Malfunction of connector or wiring harness
Carry out the troubleshooting for room lamp circuit.Does the room lamp go on/go off simultaneous
with opening/closing door?NO
Yes
Does the turn-signal lamp flash when the turn-
signal lamp switch is operated?NO
Carry out the troubleshooting for turn-signal lamp
circuit.
Yes
NG
Check the driver’s door lock actuator
OK NG
MUT-II Pulse Check
•
Drivers door lock actuator switch input signal
OK:
MUT-II buzzer sounds once when locking
or unlocking driver’s door.Replace
OKCheck the following connectors:
C-38, C-110, E-09 ,
E-20
Replace the ETACS-ECUOK NG
Check trouble symptoms.Repair
NG
Check the harness wire, and repair if necessary.
•
Between ETACS-ECU and driver’s door lock actua-
tor
•
Between driver’s door lock actuator and earth
42-4BODY – Keyless Entry System
