1996 FORD E SERIES Owners Manual

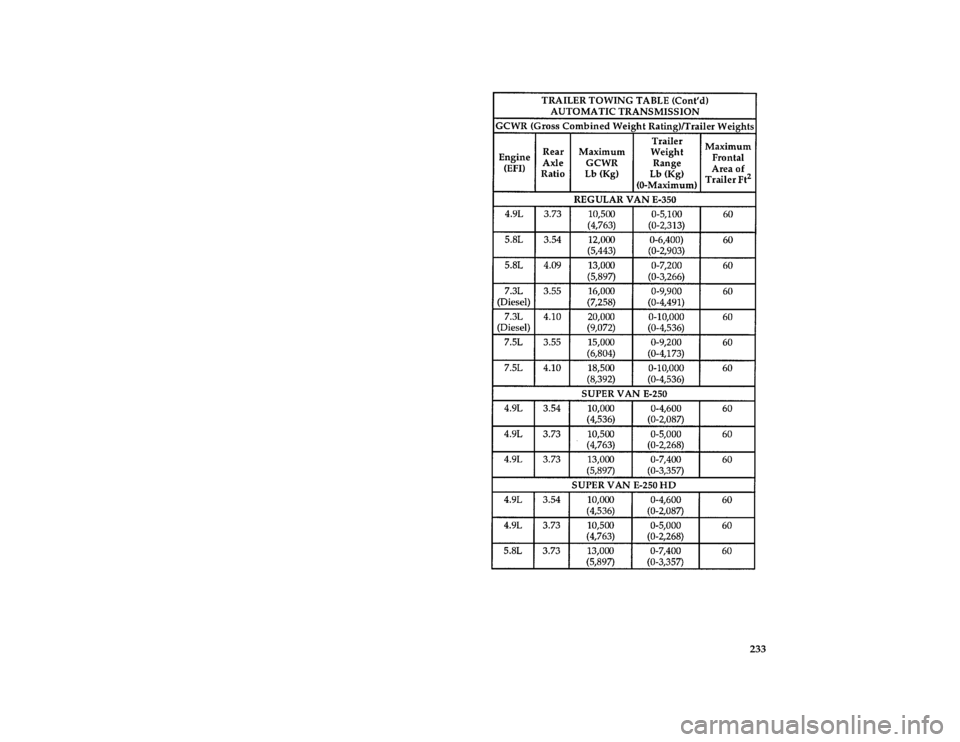

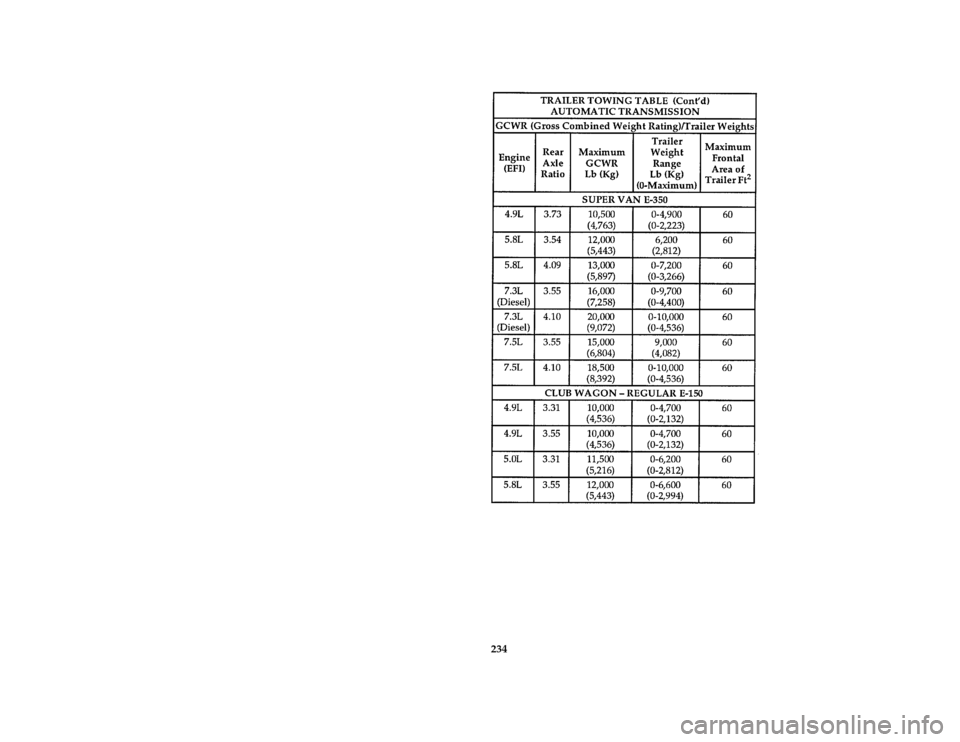

233 [DR34550( E )05/95]
thirty-four pica chart:0020498-L
File:10ltdre.ex
Update:Wed Apr 17 08:44:07 1996

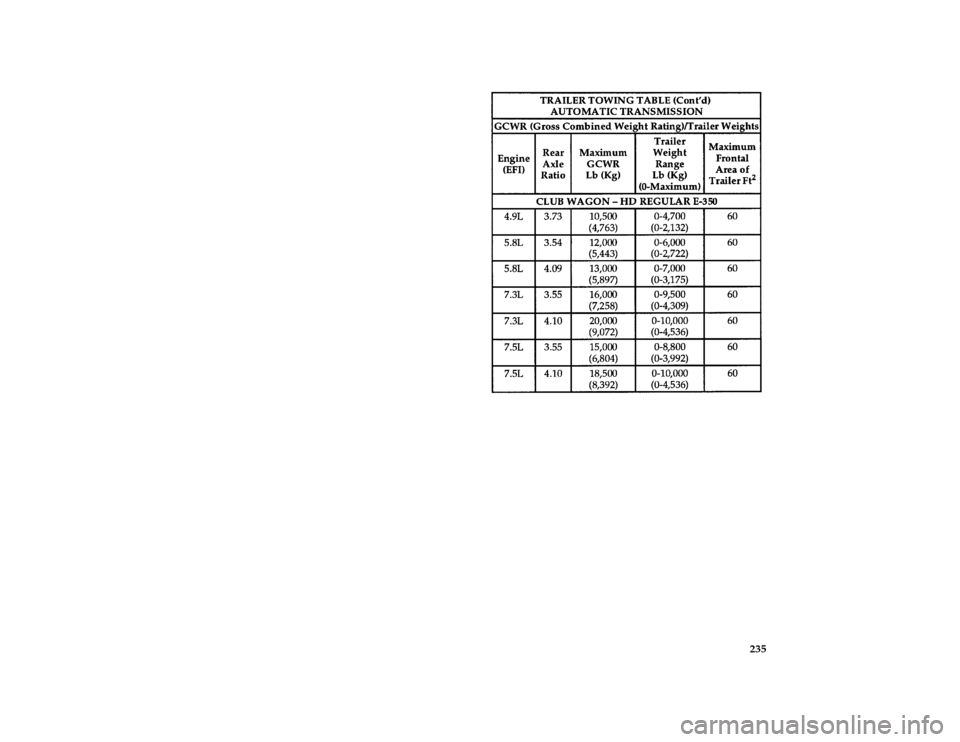

234 [DR34600( E )05/95]
thirty-four pica chart:0020168-H
File:10ltdre.ex
Update:Wed Apr 17 08:44:07 1996

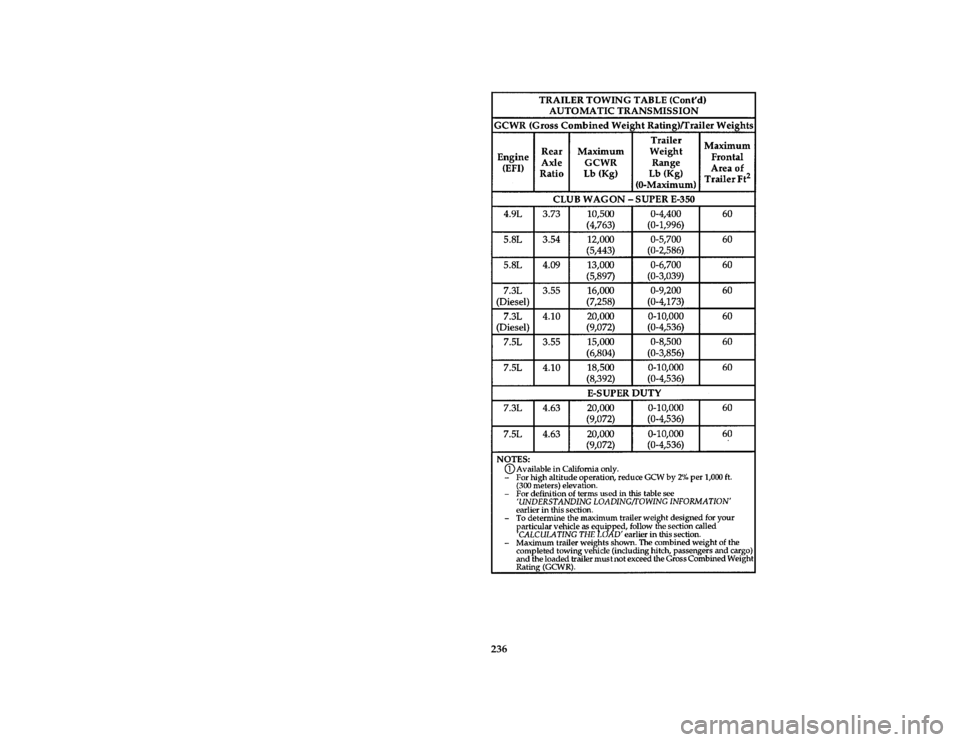

235 [DR34630( E )04/95]
twenty-two pica chart:0020941-D
File:10ltdre.ex
Update:Wed Apr 17 08:44:07 1996

236 [DR34660( E )04/95]
thirty-two pica chart:0020942-D
File:10ltdre.ex
Update:Wed Apr 17 08:44:07 1996

237
*
[DR35500(BEF )02/91]
Required equipment
*
[DR35700(BEF )01/89]
q
Super Cooling is required with trailers over
2,000 lb (907 kg).
*
[DR35800(BEF )06/92]
q
Super Cooling and Handling/Suspension
Package or trailer towing package is required
with trailers over 3,500 lb (1587 kg).
*
[DR36500( ALL)01/95]
Preparing to Tow
*
[DR36550( ALL)01/95]
For your safety and for the good of your
vehicle, use the right equipment for the type of
trailer you tow. Also, make sure that all towing
equipment is properly attached to your vehicle.
If you are not certain that you are using the
right equipment in the proper manner, see your
Ford or Lincoln-Mercury dealer.
%*
[DR36600( ALL)01/93]
Hitches
*
[DR36650( E M)01/95]
For towing trailers up to 2,000 lb (907 kg), use a
weight carrying hitch and ball which uniformly
distributes the trailer tongue loads through the
underbody structure. Use a frame-mounted
weight distributing hitch for trailers over 2,000
lb (907 kg).
[DR36900( E M)12/91]
Do not use single clamp bumper hitches or
hitches which attach to the axle. Provisions for
multi-clamp type temporary bumper hitch have
been provided (Class I, max. loading), if installed
properly. Follow towing instructions of a
reputable rental agency.
*
[DR37000( ALL)12/92]
Whenever a trailer hitch and hardware are
removed, make sure all mounting holes in the
underbody are properly sealed to prevent
noxious gases or water from entering.
File:10ltdre.ex
Update:Wed Apr 17 08:44:07 1996

238 [DR37100(BE )03/93]Trailer Tow/Step bumper
[DR37225( E )06/93]
The step bumper has a built-in hitch and only
requires a ball with a one inch shank diameter.
The step bumper has a limited Class III
capability (5000 lb/2270 kg) trailer weight and
500 lb/227 kg tongue weight.
*
[DR37800( ALL)11/89]
Safety Chains
*
[DR37900( ALL)12/92]
Always use safety chains between your vehicle
and trailer. Cross chains under the trailer tongue
and allow slack for turning corners. Connect
safety chains to the vehicle frame or hook
retainers. Never attach chains to the bumper.
[DR37935( E )03/93]
Located near the step bumper hitch ball position
are two holes in the hitch plate for a Class III
trailer (max). These holes may be used for safety
chain attachment when towing with a step
bumper. Always use safety chains when towing.
Safety chains are used to retain connection
between the towing and towed vehicle in the
event of separation of the trailer coupling or
ball. Cross the chains under the trailer tongue
and allow slack for turning corners. Connect the
chain to the hitch plate using a positive
coupling, such as ªQuick Linksº, with a strength
rating of at least that of the safety chain rating.
*
[DR38000( ALL)01/93]
Trailer Brakes
*
[DR38100( ALL)03/95]
Separate trailer brakes are required on most
towed vehicles weighing over 1,500 lb (680 kg).
*
[DR38200( ALL)05/95]
RWARNING
Do not connect a trailer's hydraulic brake
system directly to your vehicle's brake
system. Your vehicle may not have
enough braking power and your chances
of having a collision greatly increase.
File:10ltdre.ex
Update:Wed Apr 17 08:44:07 1996

239 [DR38300( ALL)06/95]
Trailer lamps
*
[DR38400( ALL)11/89]
Make sure your trailer lamps conform to Federal
and local regulations.
*
[DR38425(BEF )03/91]
Class I and Class II Trailer Tow electrical wiring
provides two circuits (right hand and left hand)
to operate trailer stop/turn tail lamps. Each
stop/turn circuit will operate one combination
stop/turn light bulb (#1157, 3157, 2357, or 3357)
on the trailer. Never add more than one trailer
light bulb to one circuit.
*
[DR38450( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[DR38500( ALL)06/95]
Driving While You Tow
*
[DR38520( ALL)05/95]
Be especially careful when driving while you
tow a trailer. Never drive faster than 45 mph
(70 km/h) when you tow in hilly country on
hot days. Also, anticipate stops so that you can
brake gradually.
%*
[DR38540( ALL)01/95]
If you use the speed control while you are
towing on very long, steep grades, the speed
control may shut off.
*
[DR38700(BEF )06/95]
If your vehicle is equipped with an Electronic
4-Speed Automatic (E4OD or 4R70W)
transmission, operate in Overdrive. Refer to the
automatic transmission operation earlier in this
chapter.
*
[DR38800( ALL)06/95]
When descending a steep grade with a trailer,
operate in Drive rather than Overdrive. If
additional braking is needed, shift the automatic
transmission gearshift into 2 (Second) gear or 1
(Low).
File:10ltdre.ex
Update:Wed Apr 17 08:44:07 1996

240
*
[DR38925( ALL)05/95]
Servicing your vehicle if you tow
*
[DR38950( ALL)08/93]
If you tow a trailer for a long distance, your
vehicle will need to be serviced more frequently
than usual. Refer to theMaintenance Schedule and
Recordbooklet for additional information.
*
[DR39000( ALL)01/93]
Trailer towing tips
*
[DR39100( ALL)11/89]
Before starting on a trip, practice turning,
stopping and backing in an area away from
heavy traffic. Get to know the ªfeelº of the
vehicle/trailer combination.
*
[DR39200( ALL)05/90]
Practice backing up. Back up very slowly, with
someone outside at the rear of your trailer to
guide you. Place your hand at the bottom of the
steering wheel and move it in the direction you
want the rear of the trailer to swing. Slight
movement of the steering wheel results in a
much larger movement of the rear of the trailer.
*
[DR39300( ALL)11/89]
Allow more room for stopping with a trailer
attached. Trailer brakes should be applied first,
whether manually or automatically controlled,
when approaching a stop.
*
[DR39400( ALL)11/89]
For a good handling truck-trailer combination,
the trailer tongue load should be approximately
10-15% of the loaded trailer weight.
*
[DR39500( ALL)05/95]
Make a thorough check of your equipment
before starting out on the road. After you have
traveled about 50 miles (80 km) stop in a
protected area and double-check your hitch and
electrical connections. Also check trailer wheel
lug nuts for tightness.
*
[DR39600( ALL)11/89]
When turning, drive slightly beyond the normal
turning point so the trailer wheels will clear
curbs or other obstructions.
