1996 FORD E SERIES Owners Manual

14 [SR03030(BEF )04/95]To switch the retractor from the ªemergency
locking modeº to the ªautomatic locking mode,º
perform the following steps:
[SR03040(BEF )04/95]
1. Buckle the lap/shoulder combination belt.
[SR03050(BEF )04/95]
2. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted, and when allowed to retract, a
clicking sound will be heard. At this time,
the belt retractor is in the ªautomatic locking
modeº (child restraint mode).
[SR03060(BEF )04/95]
3. A clicking sound will continue to be heard
as the belt is allowed to retract. This
indicates that the retractor is in the
ªautomatic locking mode.º
[SR03070(BEF )04/95]
NOTE: When the combination lap/shoulder
belt is unbuckled and allowed to
retract completely, the retractor will
switch back to the vehicle sensitive
(emergency) locking mode. See the
detailed instructions underSafety Seats
for Childrenin this chapter.
*
[SR03120(BEF )05/95]
Combination Lap and Shoulder
Belts
*
[SR03125(BEF )05/95]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, corner hard or if
your truck receives an impact of 5 mph
(8 km/h) or more, the combination lap/shoulder
belt locks and helps reduce your forward
movement. The front seat belt systems can also
be made to lock by jerking on the shoulder belt.
*
[SR03130(BEF )05/95]
NOTE: The rear belts cannot be made to lock
up by jerking on shoulder belt.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

15
*
[SR03135(BEF )05/95]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SR03137(BEF )05/95]
To fasten the belt
*
[SR03140(BEF )05/95]
Pull the combination lap/shoulder belt from the
retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If it is, remove the twist. Insert
the belt tongue into the proper buckle until you
hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.

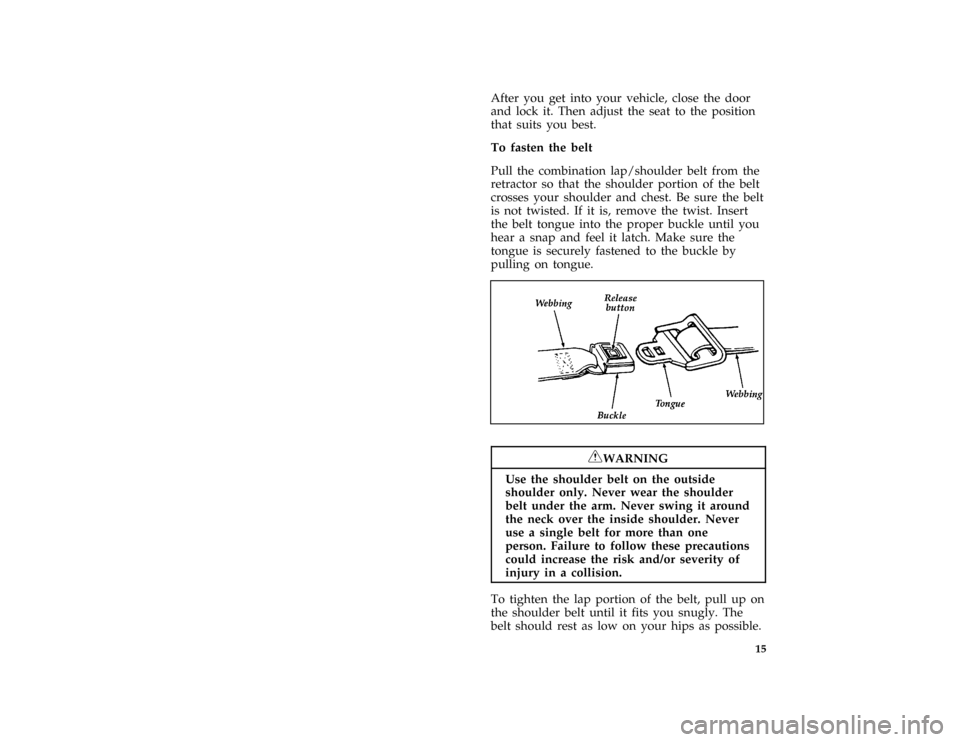

[SR03145( EF )05/95]
7-1/2 pica art:0020639-D*
[SR03160(BEF )05/95]
RWARNING
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never swing it around
the neck over the inside shoulder. Never
use a single belt for more than one
person. Failure to follow these precautions
could increase the risk and/or severity of
injury in a collision.
*
[SR03165(BEF )05/95]
To tighten the lap portion of the belt, pull up on
the shoulder belt until it fits you snugly. The
belt should rest as low on your hips as possible.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

16 [SR03170( E )05/95]
RWARNING
Front and rear seat occupants, including
pregnant women, should wear safety belts
for optimum protection in an accident.
[SR03185(BEF )05/95]
Due to folding rear seats, sometimes the buckles
and tongues toward the center of the vehicle
may be hidden by the rear edge of the seat
cushion. Pull them out so they will be accessible.
[SR03190(BEF )05/95]
While you are fastened in the seat belt, the
combination lap and shoulder belt adjusts to
your movement. However, if you brake hard,
turn hard, or if your vehicle receives an impact
of 5 mph (8 km/h) or more, the lap and
shoulder belt will become locked and help
reduce your forward movement.
% [SR04300( E )05/95]
All Three Passenger Bench/Bed Seat or
Captain's Chair
*
[SR04400( E )12/91]
In addition to anchorages in the floor and roof
structures, some rear safety belts have a
detachable anchor mounted to the outboard side
of the rear seats. This should remain attached,
except when removing the rear seats.
*
[SR04500( E )11/93]
The second row passenger side outboard seating
position uses a hook above the sliding/cargo
door to stow the shoulder safety belt when
entering or exiting the vehicle or when it is not
being used.
*
[SR04525( E )11/93]
NOTE: When the belt is stowed using the
hook, DO NOT use the hanging belt as
an assist when entering the vehicle.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

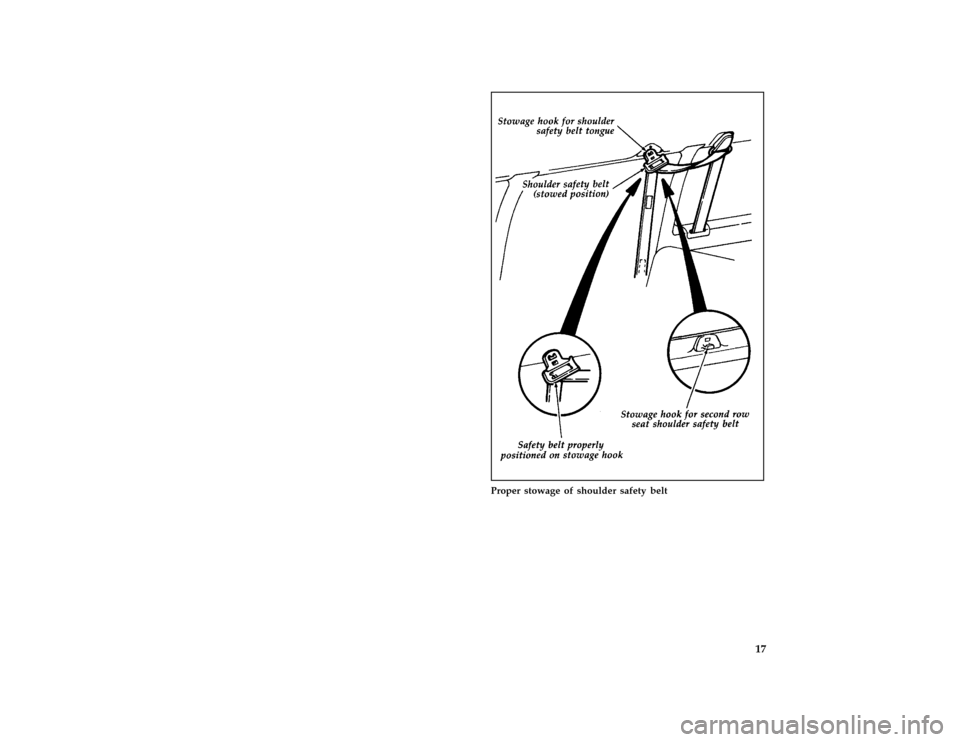

17 [SR04701( E )03/93]
three fourths page art:0020854-B
Proper stowage of shoulder safety belt
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

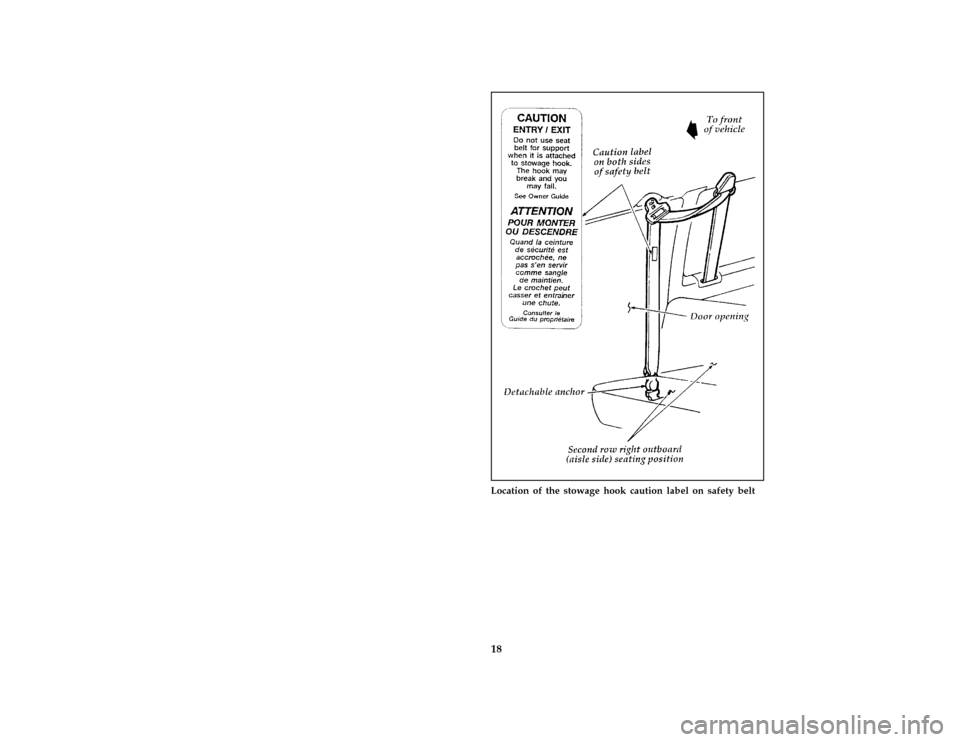

18 [SR04750( E )05/95]
three fourths page art:0020784-CLocation of the stowage hook caution label on safety belt
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

19 [SR04800( E )05/91]
three fourths page art:0020783-B
Location of the detachable anchor warning label on safety
belt
[SR04850( E )05/95]
In order to remove the rear seat, the safety belt
must be disengaged from the seat. To disengage
the safety belt from the seat, insert a key or
small screwdriver into the slot provided on the
detachable anchor. Then lift upward. See
previous illustration.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

20 [SR05200( E )02/95]Whenever a rear seat has been removed, the
tongue end of the detachable anchor must be
correctly stowed. See the following illustrations.

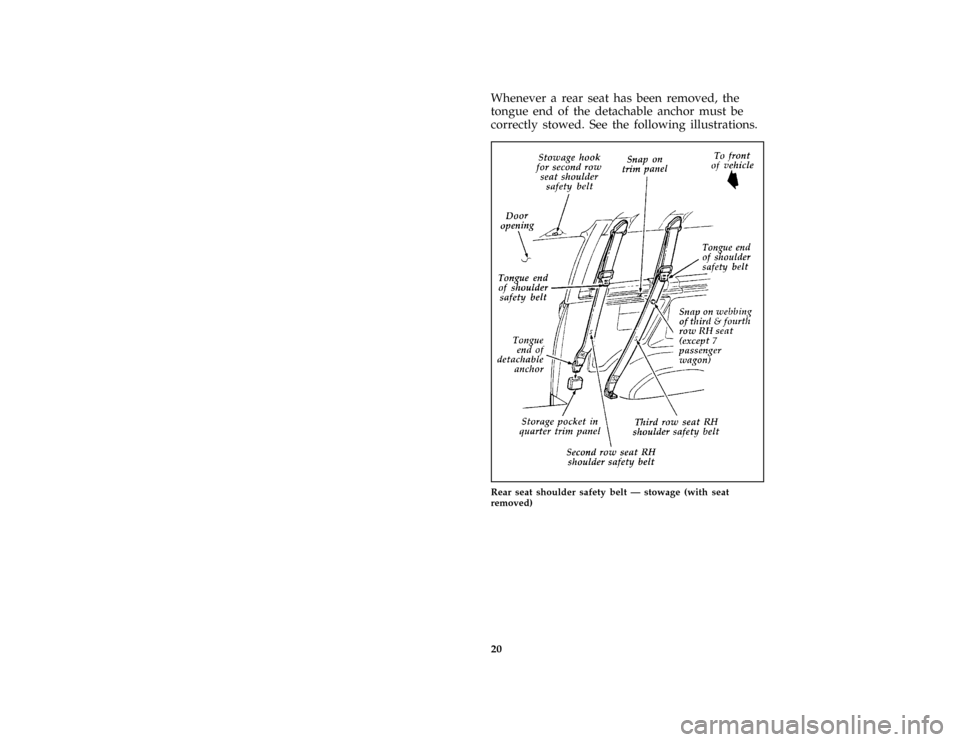

[SR05400( E )05/95]
two third page art:0020856-C
Rear seat shoulder safety belt Ð stowage (with seat
removed)
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

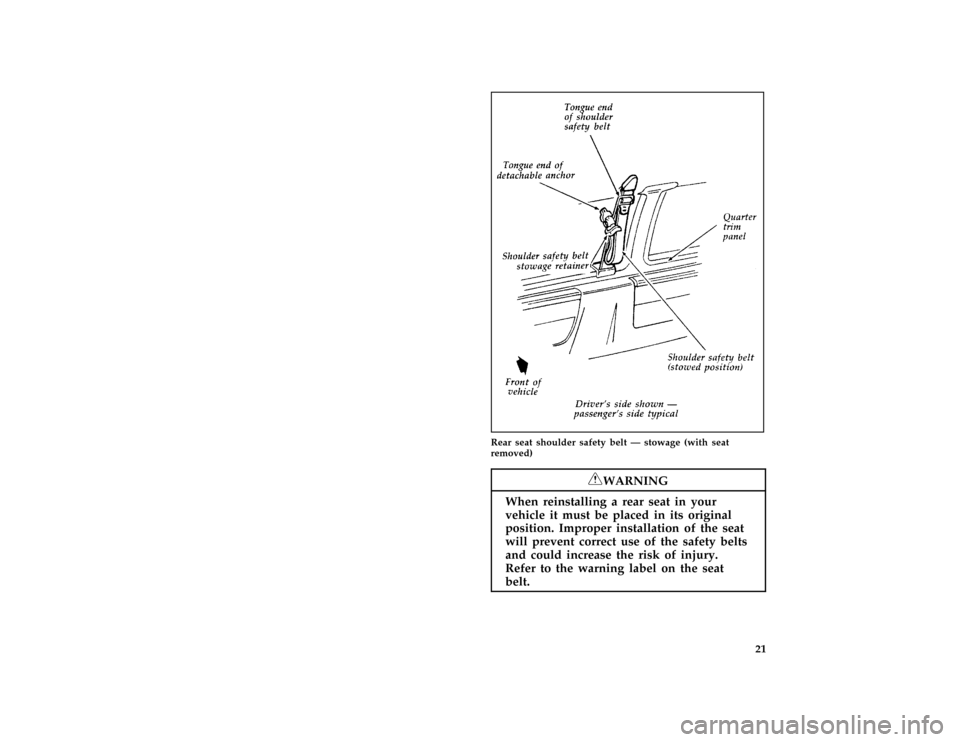

21 [SR05500( E )05/95]
two third page art:0020857-B
Rear seat shoulder safety belt Ð stowage (with seat
removed)
*
[SR05600( E )06/95]
RWARNING
When reinstalling a rear seat in your
vehicle it must be placed in its original
position. Improper installation of the seat
will prevent correct use of the safety belts
and could increase the risk of injury.
Refer to the warning label on the seat
belt.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996
