1996 FORD E SERIES Owners Manual

176
*
[AS21070( E )06/95]
How to turn the rear seat radio controls on
and off
*
[AS21075( E )12/93]
Press memory preset buttons ª1º and ª3º
simultaneously on the face of your radio to turn
the rear seat radio controls on. A headphones
symbol (j) will appear in the display when the
rear seat controls are on. Press ª1º and ª3º
simultaneously again to turn rear seat radio
controls off.
*
[AS21080( E )06/95]
How to adjust the volume
*
[AS21085( E )12/93]
Press the right (+) side of the ªVOLUMEº rocker
switch to increase volume, and push the left (-)
side to decrease the volume of the rear speakers.
[AS21090( E )07/93]
NOTE: Rear seat control volume can be set no
higher than current radio setting unless
speakers are turned off. See note under
How to turn speakers on and off.
*
[AS21095( E )06/95]
Setting the AM or FM frequency band
*
[AS21100( E )06/95]
Push the ªBANDº button to change the
frequency band.
*
[AS21105( E )06/95]
Using the ªMEMORYº button
*
[AS21110( E )06/95]
Push the ªMEMORYº button to access the
station you have set into memory button 1 on
the face of the radio. Successively pushing this
button will access, numerically, all stations set
into the Station Memory Preset buttons (1
through 5).
File:09ltase.ex
Update:Wed Apr 17 08:44:51 1996

177
*
[AS21115( E )06/95]
How to turn the speakers on and off
*
[AS21120( E )06/95]
When the rear seat controls are on, push the
ªSPKRS ON-OFFº button to turn all speakers
off. Push again to turn all speakers on.
[AS21125( E )07/93]
NOTE: Turning the ignition off, then on again
will not turn the speakers back on, if
previously turned off by the ªSPKRS
ON-OFFº button on the rear seat
controls.
*
[AS21130( E )06/95]
Using the ªSEEKº function
*
[AS21135( E )06/95]
Press the right (
a) side of the ªSEEKº rocker
switch to seek to the next radio station. Press the
left (
b) side of the ªSEEKº rocker switch to
seek to the previous radio station.
*
[AS21140( E )06/95]
NOTE: When using the rear seat controls with
a High-Level Audio System, the
ªSEEKº function on the rear seat
controls will also function with
cassettes, seeking the next (ªSEEK
aº)
or previous (ª
bSEEKº) selection on
the tape.
*
[AS21145( E )06/95]
Using headphones with the rear seat
controls
*
[AS21150( E )12/93]
Two 3.5mm headphone jacks have been
provided on the rear seat controls. Plug
headphone(s) into the provided jack(s) to operate
headphones.
File:09ltase.ex
Update:Wed Apr 17 08:44:51 1996

178
*
[AS21300(BEF )05/95]
Electronic Stereo and Stereo
Cassette Radios
*
[AS21400(BEF )06/95]
Using the Controls on Your New Radio
*
[AS21415(BEF )04/95]
full page art:0060586-C
Electronic Stereo Radio
File:09ltase.ex
Update:Wed Apr 17 08:44:51 1996

179
*
[AS21420(BEF )04/95]

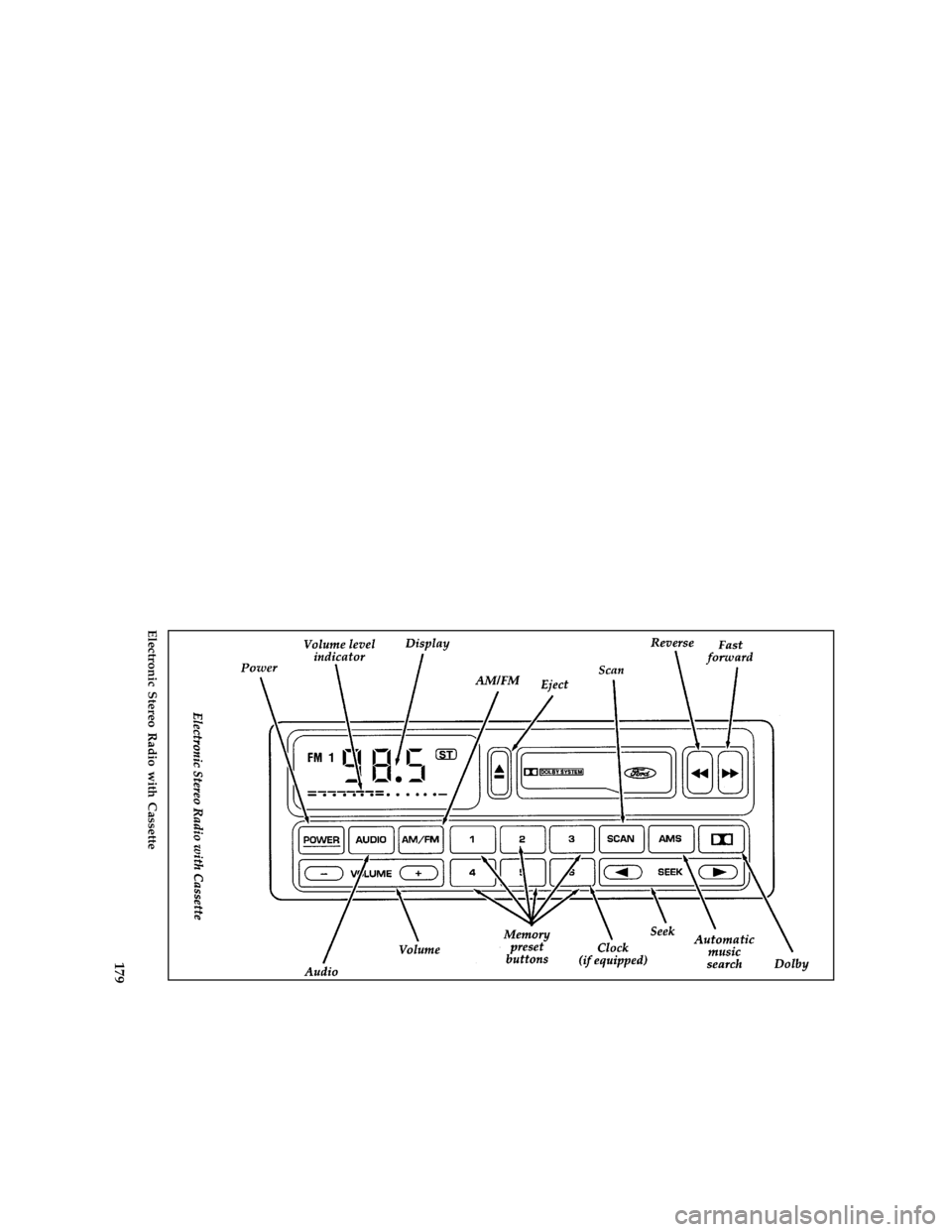

full page art:0032394-A
Electronic Stereo Radio with Cassette
File:09ltase.ex
Update:Wed Apr 17 08:44:51 1996

180
*
[AS22305(BEF )05/95]
How to tune radio stations (Stereo Radio)
*
[AS22310(BEF )05/95]
There are three ways for you to tune in to a
particular station. You can manually locate the
station by using the ªTUNEº button, ªSEEKº the
station or select the station by using the memory
preset buttons, which you can set to any desired
frequency.
%*
[AS22320(BEF )05/95]
How to tune radio stations (Stereo Cassette
Radio)
*
[AS22350(BEF )02/95]
There are four ways for you to tune in to a
particular station. You can manually locate the
station by using Automatic Music Search
(ªAMSº), ªSEEKº the station, ªSCANº to the
station or select the station by using the memory
buttons, which you can set to any desired
frequency.
*
[AS22450(BEF )05/95]
q
Using the ªTUNEº function
*
[AS22460(BEF )05/95]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the right (+) or left (-) side of
the ªTUNEº button. To change frequencies
quickly, press and hold down either the right
or left side of the ªTUNEº button.
*
[AS22470(BEF )04/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
File:09ltase.ex
Update:Wed Apr 17 08:44:51 1996

181
*
[AS22550(BEF )05/95]
q
Using the ªAMSº function to manually tune
your radio (Stereo Cassette Radio)
*
[AS22650(BEF )06/95]
You can change the frequency up or down
one increment at a time by first pressing the
ªAMSº button (display shows ªTUNEº) then
within approximately five seconds pressing
and releasing either the right
aor left
b
side of the ªSEEKº button. To change
frequencies quickly, press andhold down
either the right or left side of the ªSEEKº
button.
*
[AS22800(BEF )04/95]
q
Using the ªSEEKº function
*
[AS22900(BEF )06/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the right
a
side of the ªSEEKº button to select the next
listenable station up the frequency band.
Press the left
bside of the button to select
the next listenable station down the
frequency band. By holding the button down,
listenable stations can be passed over to reach
the desired station.
*
[AS23125(BEF )02/95]
q
Using the ªSCANº function (Stereo Cassette
Radio)
*
[AS23150(BEF )06/95]
Press the ªSCANº button to enter the scan
mode. The radio will begin scanning up the
frequency band, stopping on each listenable
station for approximately a five-second
sampling. This continues until you press the
ªSCANº button a second time.
*
[AS23200(BEF )04/95]
q
Setting the Station Memory Preset buttons
*
[AS23250(BEF )05/95]
Your radio is equipped with 5 station
memory buttons. These buttons can be used
to select up to 5 preset AM stations and 10
preset FM stations (5 in FM1 and 5 in FM2).
File:09ltase.ex
Update:Wed Apr 17 08:44:51 1996

182
*
[AS23400(BEF )06/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS23500(BEF )06/95]
1. Select a band, then select a frequency.
*
[AS23700(BEF )06/95]
2. Press one of the memory preset buttons and
hold the button until the sound returns. That
station is now held in memory on that
button.
*
[AS23800(BEF )06/95]
3. Follow the two steps above for each station
memory preset button you want to set.
*
[AS23900(BEF )04/95]
NOTE: If the vehicle's battery is disconnected,
the clock and station memory preset
buttons (if programmed in auto mode)
will need to be reset.
*
[AS24000(BEF )02/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS24150(BEF )06/95]
Push the ªAUDIOº button repeatedly until
the display reads ªBASS.º Push the right (+)
side of the ªVOLUMEº button to increase
bass (more ªlowsº), and push the left (-) side
to decrease bass (less ªlowsº).
*
[AS24300(BEF )06/95]
q
Increasing or decreasing treble response
*
[AS24350(BEF )05/95]
Push the ªAUDIOº button repeatedly until
the display reads ªTREB.º Push the right (+)
side of the ªVOLUMEº button to increase the
treble (more ªhighsº), and push the left (-)
side to decrease treble (less ªhighsº).
File:09ltase.ex
Update:Wed Apr 17 08:44:51 1996

183
*
[AS24500(BEF )08/89]
Speaker features and operation
*
[AS24600(BEF )06/95]
q
Adjusting speaker balance
*
[AS24650(BEF )06/95]
Balance control allows you to adjust the
sound distribution between the right and left
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªBAL.º
Push the right (+) side of the ªVOLUMEº
button to shift the sound to the right
speakers, and push the left (-) side to shift
the sound to the left speakers.
*
[AS24800(BEF )06/95]
q
Adjusting speaker fader
*
[AS24850(BEF )06/95]
Fade control allows you to adjust the sound
distribution between the front and rear
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªFADE.º
Push the right (+) side of the ªVOLUMEº
button to shift the sound to the front
speakers, and push the left (-) side to shift
the sound to the rear speakers.
*
[AS24950(BEF )05/94]
NOTE: Illuminated bars show relative levels of
bass and treble and positions of
speaker balance and fader functions
after adjustments are made, then revert
to volume level set.
