1996 FORD E SERIES Owners Manual

46 [SR16365(BEF )04/95]
half page art:0011239-BRouting the lap/shoulder belt
*
[SR16370(BEF )06/95]

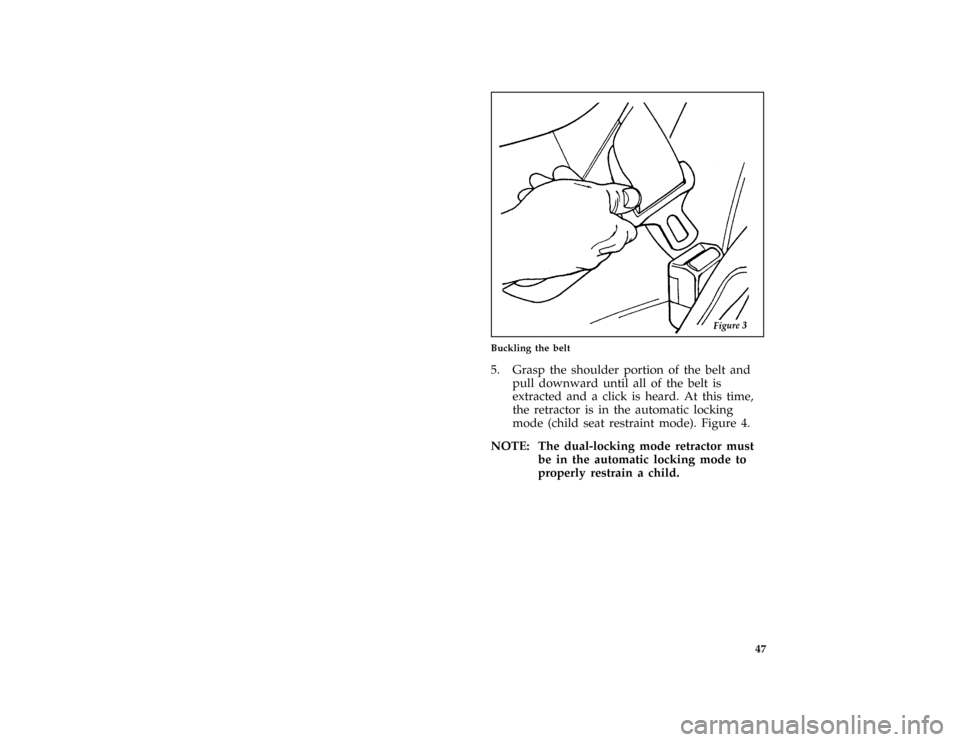

4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. Figure 3. Make sure tongue is
latched securely to buckle by pulling on
tongue.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

47
*
[SR16375(BEF )06/95]
half page art:0011240-B
Buckling the belt
*
[SR16380(BEF )06/95]

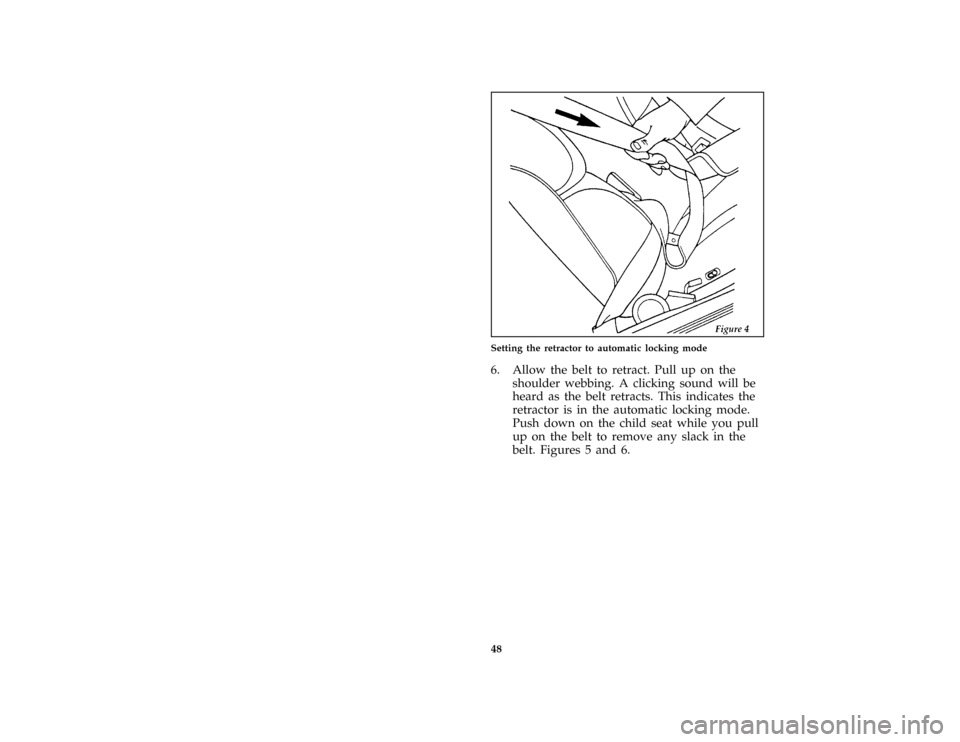

5. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). Figure 4.
*
[SR16385(BEF )06/95]
NOTE: The dual-locking mode retractor must
be in the automatic locking mode to
properly restrain a child.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

48
*
[SR16390(BEF )06/95]
half page art:0011241-A
Setting the retractor to automatic locking mode
*
[SR16395(BEF )06/95]

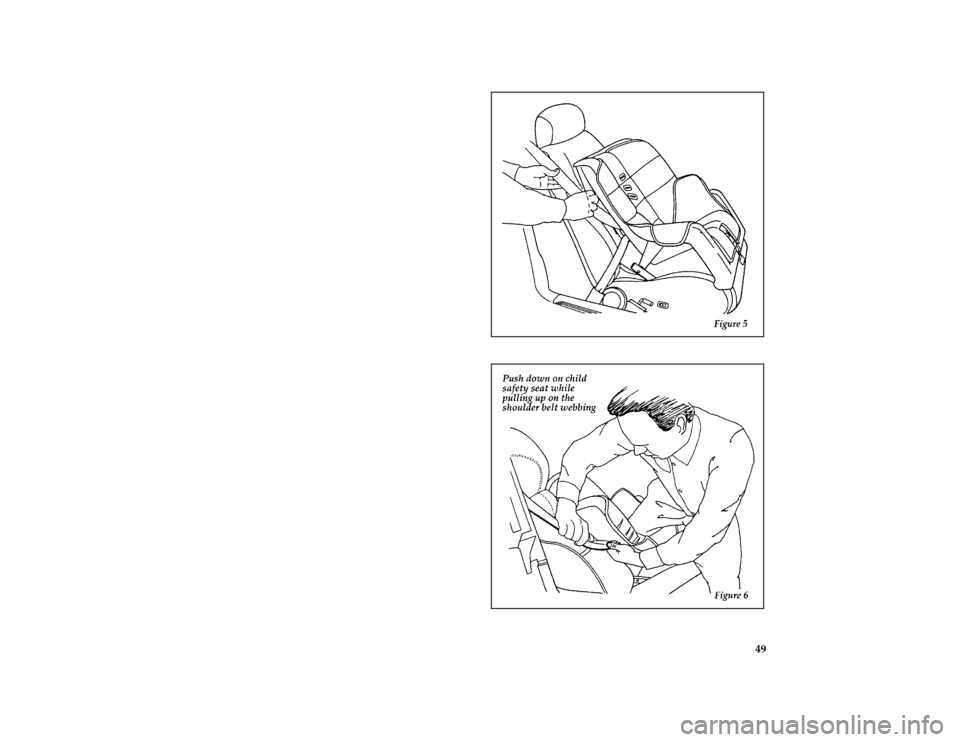

6. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. Figures 5 and 6.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

49
*
[SR16400(BEF )06/95]
half page art:0011242-A
*
[SR16405(BEF )06/95]
half page art:0011243-A
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

50
*
[SR16410(BEF )06/95]

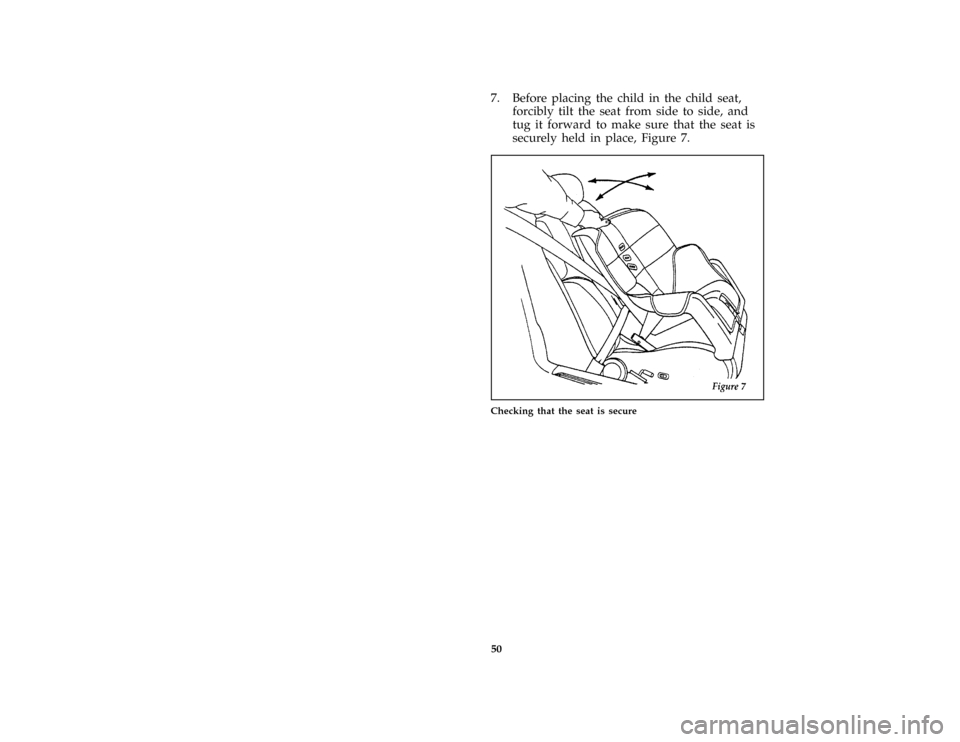

7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place, Figure 7.
*
[SR16412(BEF )06/95]
half page art:0011244-A
Checking that the seat is secure
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

51
*
[SR16415(BEF )06/95]

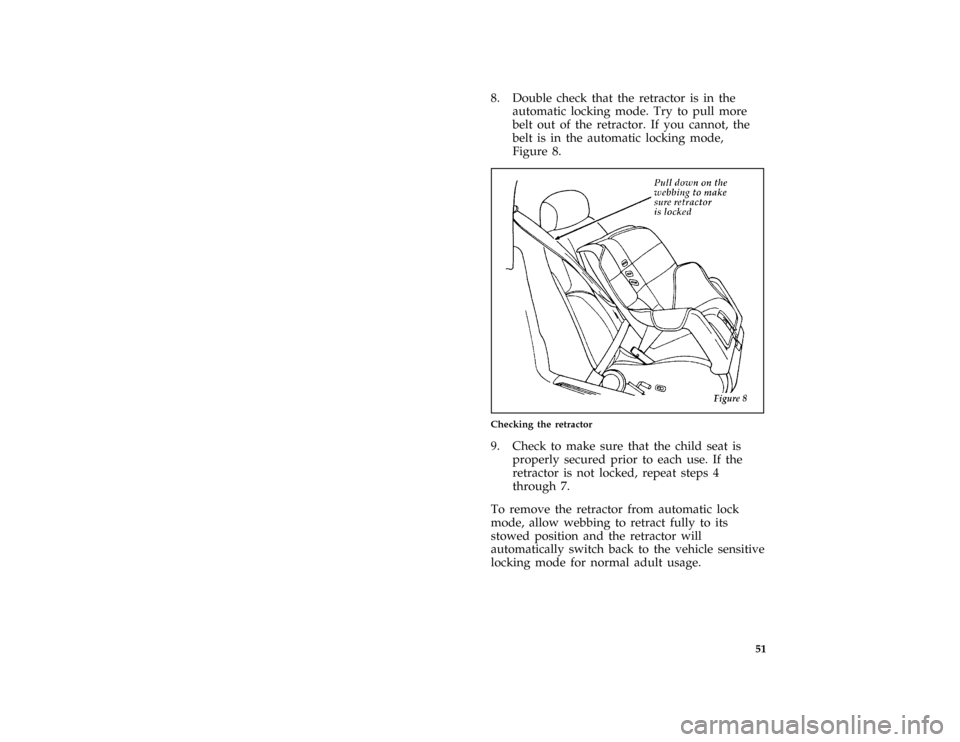

8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode,
Figure 8.
*
[SR16420(BEF )06/95]
half page art:0011245-B
Checking the retractor
*
[SR16425(BEF )06/95]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
*
[SR16430(BEF )06/95]
To remove the retractor from automatic lock
mode, allow webbing to retract fully to its
stowed position and the retractor will
automatically switch back to the vehicle sensitive
locking mode for normal adult usage.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

52 [SR16440(BEF )04/95]Installing a Child Safety Seat at the Rear
Center Seating Position with Locking
Adjustable Lap Belt
[SR16450(BEF )04/95]
1. Lengthen the lap belt. To lengthen the belt,
hold the tongue so that its bottom is
perpendicular to the direction of webbing
while sliding the tongue up the webbing.
[SR16455(BEF )04/95]
2. Place the child safety seat in the center
seating position.
[SR16460(BEF )04/95]
3. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions.
[SR16465(BEF )04/95]
4. Insert the belt tongue into the proper buckle
for the center seating position until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR16470(BEF )04/95]
5. Push down on the child seat while pulling
on the loose end of the lap belt webbing to
tighten the belt.
[SR16475(BEF )04/95]
6. Before placing the child into child seat,
forcibly tilt the child seat from side-to-side
and in forward directions to ensure that the
seat is held securely in place. If the child
seat moves excessively, repeat steps 5
through 6, or properly install the child seat
in a different seating position.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

53
*
[SR18400(BEF )06/95]
Attaching Safety Seats With Tether Straps
*
[SR18410(BEF )05/95]
General Instructions
[SR18413(BEF )02/95]
Some manufacturers make safety seats that
include an upper tether strap that goes over the
seatback and attaches to an anchoring point.
Other manufacturers offer the tether strap as an
accessory. Contact the manufacturer of your
child safety seat for information about ordering
a tether strap.
[SR18418( E )04/95]
You can install a tether strap anchor bracket to
the back of the seat by using a tether anchor kit
(613D74), available at no charge from any Ford
dealer.
*
[SR18420(BEF )05/95]
Read and follow the instructions provided with
the kit carefully for installation of the child
tether strap anchor.
*
[SR18501(BEF )05/95]
Follow the child seat manufacturer's instructions
to attach the tether strap to the tether bracket.
[SR18600( E )03/91]
Ford recommends placement of tethered safety
seats in a rear seating position with the tether
strap attached to the tether anchoring point as
shown in the following illustration. The front,
right hand seating position may be used if it is
the only seating position available.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996
