1996 FORD E SERIES Owners Manual

38
*
[SR14200(BEF )05/95]
one third page art:0010605-D
Label on radiator support in the engine compartment
*
[SR14300(BEF )05/95]
Safety Restraints for Children
*
[SR14400(BEF )02/95]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
*
[SR14500(BEF )05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

39
*
[SR14600(BEF )06/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR14700(BEF )06/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR14800(BEF )06/95]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SR15000(BEF )05/95]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
*
[SR15025(BEF )05/95]
RWARNING
Never leave a child unattended in your
vehicle.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

40 %
*
[SR15250(BEF )06/95]
Safety Belts for Children
*
[SR15300(BEF )05/95]
Children who are too large for child safety seats
should always wear safety belts. (See instructions
with your child seat, or contact its manufacturer,
to determine maximum size of child that will
safely fit in the seat.)
*
[SR15400(BEF )06/95]
RWARNING
If safety belts are not properly worn and
adjusted as described, the risk of serious
injury to the child in a collision will be
much greater.
*
[SR15500(BEF )06/95]
If the shoulder belt portion of one of the lap and
shoulder belts can be positioned so that it does
not cross or rest in front of the child's face or
neck, the child should wear the lap and shoulder
belt. Moving the child closer to the center of the
vehicle may help provide a good shoulder belt
fit.
*
[SR15600(BEF )05/95]
RWARNING
If the shoulder belt cannot be properly
positioned, move the child to one of the
seats with a lap belt only (preferably in a
rear seat) and use the lap belt.
*
[SR15700(BEF )06/95]
Lap belts and the lap belt portion of lap and
shoulder belts should always be worn snugly
and below the hips, touching the child's thighs.
*
[SR15800(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

41 %
*
[SR15900(BEF )01/95]
Safety Seats for Children
*
[SR16000(BEF )05/95]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
*
[SR16015(BEF )02/95]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps seeAttaching
Safety Seats With Tether Strapsin this chapter.
[SR16025(BEF )05/95]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position making sure the tongue is securely
fastened in the buckle and for a shoulder/lap
belt combination with a sliding tongue make
sure the retractor is in the ªautomatic locking
mode.º
[SR16035( E )05/95]
Most child safety seats can be used in this
vehicle only in vehicle seating positions with
lap-shoulder belts. The Ford Tot-Guard should
NOT be used in this vehicle. Any booster-type
seat that places the vehicle's lap belt or shoulder
belt around a shield above and ahead of the
child's hips should not be used in this vehiicle.
This type of safety seat could cause injury by
tipping over the front edge of the vehicle seat
during a collision.
[SR16050( E )05/95]
RWARNING
The following instructions MUST BE
FOLLOWED to reduce risk of injury from
a safety seat tipping too far forward in a
severe crash.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

42 [SR16055( E )05/95]A safety seat can appear to be securely fastened
by the safety belts, but the high forces during a
severe crash could tip it forward if held only by
a lap belt.
[SR16060( E )05/95]
Infants (under one year)
[SR16067( E )05/95]
Restrain infants in a rear-facing infant safety seat
or convertible safety seat in the rear-facing
position. These safety seats can be placed in any
passenger seating position in this vehicle other
than the last row of a 12 or 15 passenger club
wagon, and restrained by either a lap or
lap-shoulder belt according to the instructions on
the safety seat. In vehicle seats equipped with
lap-shoulder belts make sure the retractor is in
the automatic locking mode.ª
[SR16070( E )05/95]
Toddlers (one to four years)
[SR16080( E )05/95]
Install forward-facing convertible safety seats
only in vehicle seating positions equipped with
lap-shoulder belts. Forward facing convertible
safety seats can be used in the center of the
three-passenger second row bench seat only if a
top tether strap is used. Ford recommends
placing forward-facing safety seats in the second
row and using safety seats with top tether straps
for added protection. For more information on
top tether straps seeAttaching safety seats with
tether strapslater in this section.
[SR16090( E )05/95]
RWARNING
DO NOT use a forward-facing safety seat
or an infant seat in the last row of a 12-
or 15-passenger Club Wagon.
*
[SR16095(BEF )06/95]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

43
*
[SR16100(BEF )06/95]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SR16200(BEF )06/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR16250(BEF )06/95]
RWARNING
Seatbacks should be upright for use with
child safety seats.
*
[SR16275(BEF )06/95]
RWARNING
Always keep the buckle release button
pointing upward and away from the child
seat, with the tongue between the child
seat and the release button as shown in
the following illustration.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

44 [SR16280(BEF )05/95]
half page art:0021377-B
[SR16300(BEF )04/95]
Installing Child Safety Seats
[SR16310( E )04/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for the
front seat passenger and rear seat outboard
passengers.
[SR16320( EF )04/95]
If you choose to install a forward-facing child
safety seat or infant carrier in the front seating
positions, move vehicle seat as far back as
possible.
[SR16325( EF )04/95]
For seating positions equipped with a
dual-locking mode retractor, use the following
procedure:
*
[SR16345(BEF )06/95]
1. Position the child seat in the center of the
passenger seat.
*
[SR16350(BEF )06/95]

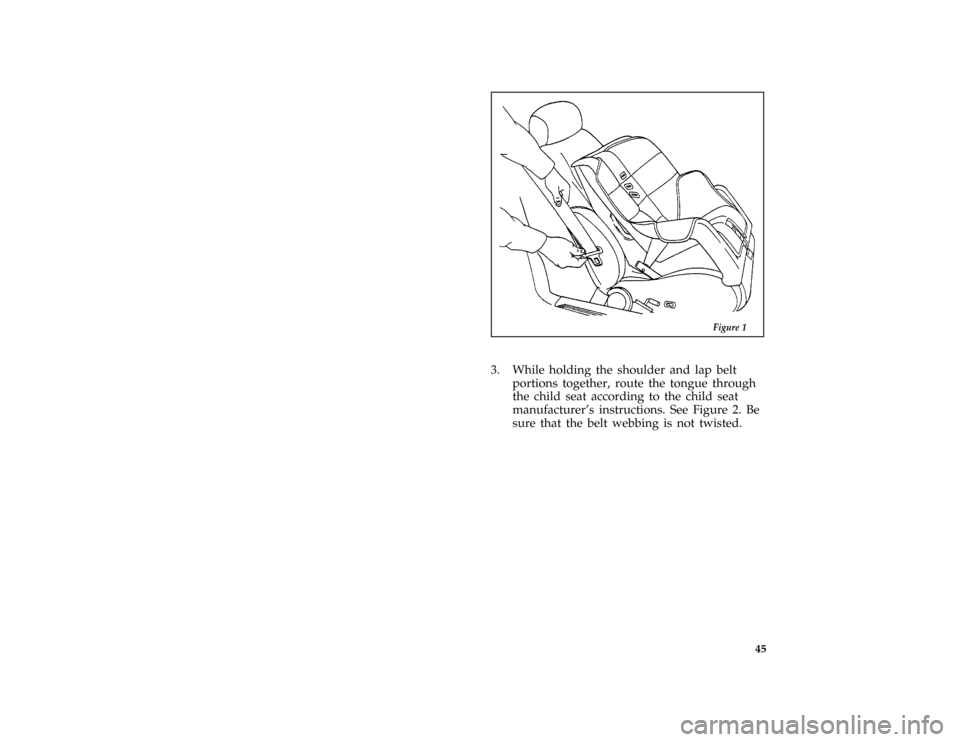

2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. Figure 1.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

45
*
[SR16355(BEF )06/95]
half page art:0011238-B
*
[SR16360(BEF )06/95]
3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
