1996 FORD E SERIES Owners Manual

331
*
[SV38900(BEF )01/95]
Use only power steering fluid that:
%*
[SV39000(BEF )01/95]
q
meets Ford's Specification, such as MerconH
Automatic Transmission Fluid.
*
[SV39200( ALL)01/95]
If the power steering fluid is low, do not drive
your vehicle for a long period of time before
adding fluid. This can damage the power
steering pump.
*
[SV39405( ALL)06/93]
NOTE: Do not turn the steering wheel of your
vehicle with the engine off. It could
force power steering fluid out from the
reservoir cap or in extreme cases, it
could unseat the cap.
*
[SV39500( ALL)04/95]
Fuses, Fuse Links and Circuit
Breakers
*
[SV39600( E )12/91]
Fuses and circuit breakers protect your vehicle's
electrical system from overloading. If electrical
parts in your vehicle are not working, the
system may have been overloaded and blown a
fuse or tripped a circuit breaker. Before you
replace or repair any electrical parts, check the
appropriate fuses or circuit breakers.
*
[SV39700( ALL)10/89]

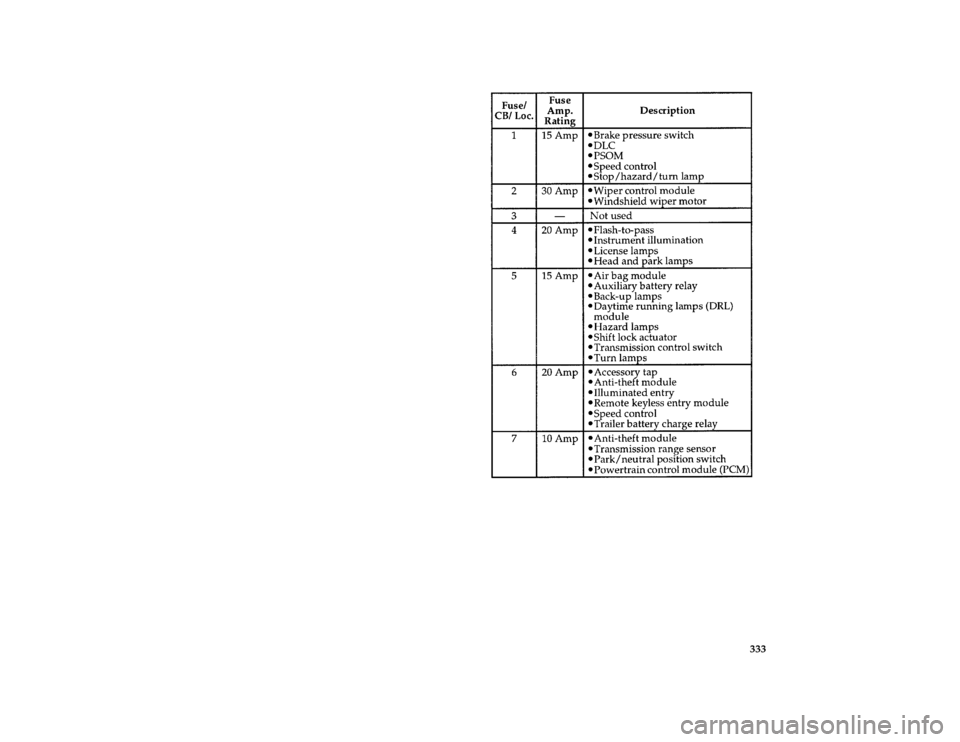

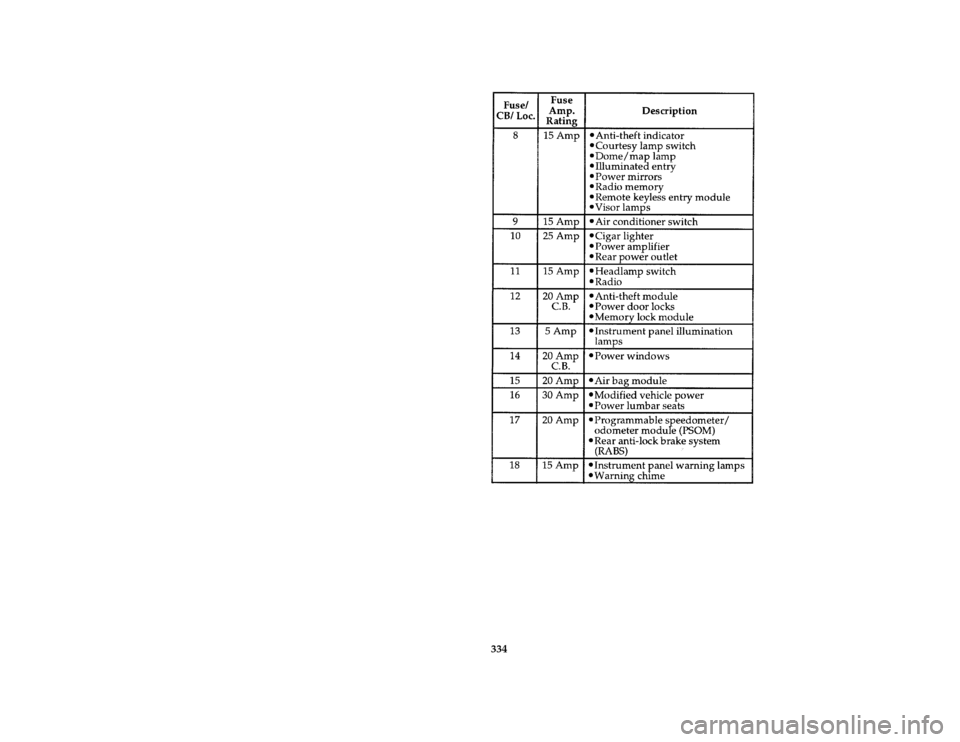

The following charts tell you which fuses or
circuit breakers protect each electrical part of
your vehicle. If a fuse blows or a circuit breaker
opens a circuit, all the parts of your vehicle that
use that circuit will not work.
*
[SV39800( ALL)06/95]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakerslater in this chapter.
File:14ltsve.ex
Update:Wed Apr 17 08:40:13 1996

332 % [SV40300( E )05/94]
full page art:0020392-IFuses/circuit breakers and their locations
File:14ltsve.ex
Update:Wed Apr 17 08:40:13 1996

333 [SV40400( E )02/95]
thirty pica chart:0021000-F
File:14ltsve.ex
Update:Wed Apr 17 08:40:13 1996

334
File:14ltsve.ex

335
File:14ltsve.ex

336 [SV41300( ALL)06/95]Power Distribution Box
*
[SV41400( ALL)10/92]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[SV41500( ALL)10/92]
The high current fuses are coded as follows: 30
amp -light green, 40 amp - orange, 50 amp - red,
60 amp -blue.
*
[SV41600( ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[SV41620( ALL)05/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[SV41700( ALL)03/93]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[SV41800( ALL)04/95]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[SV41900( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
File:14ltsve.ex
Update:Wed Apr 17 08:40:13 1996

337 [SV42175( E )07/94]

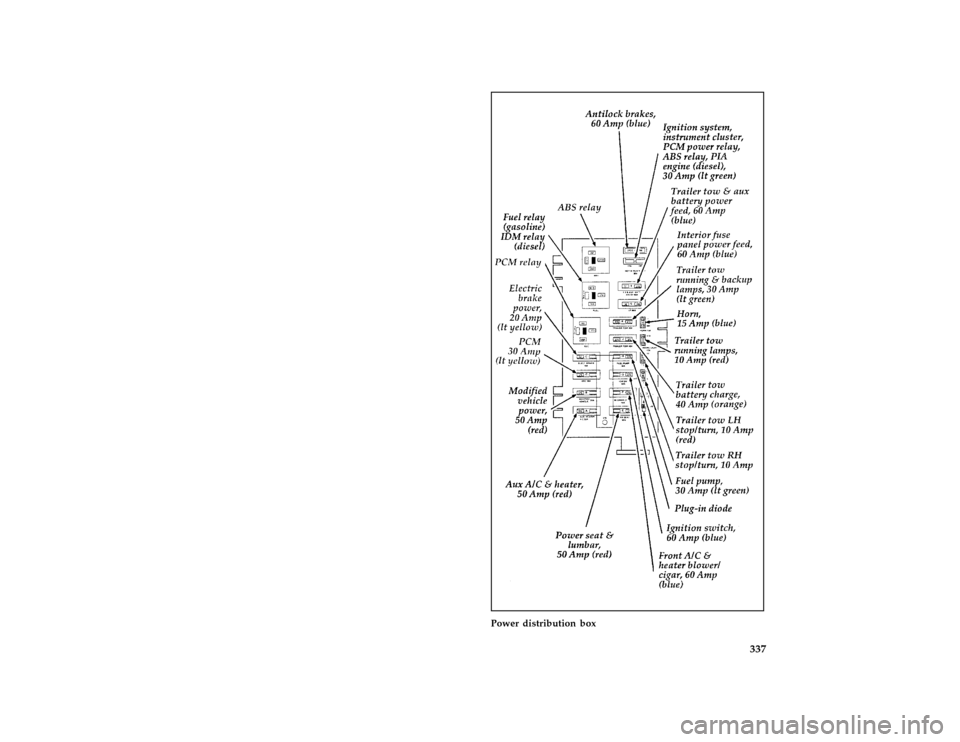

full page art:0020841-I
Power distribution box
File:14ltsve.ex
Update:Wed Apr 17 08:40:13 1996

338 [SV42190( E )03/91]Non-fuse panel circuit protection
[SV42195( E )02/95]
twelve pica chart:0020853-E%*
[SV42200( ALL)06/95]
Checking and Replacing Fuses
*
[SV42300( ALL)02/95]
If you need to check a fuse, follow these steps:
[SV42950( E )02/91]
1. You can access the fuse panel through the
steering column lower opening. Remove the
cover using the quick release fasteners.
*
[SV43300( ALL)06/95]
2. On the fuse panel cover, find the number of
the fuse you want to check. The diagram on
the cover tells you where to locate the fuse
on the panel.
*
[SV43400( ALL)06/95]
3. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse is blown and should be replaced.
*
[SV43500( ALL)06/95]
quarter page art:0020405-A
The side view of a fuse
