1996 CHRYSLER VOYAGER Service Manual

JUNCTION BLOCK TERMINAL CALL-OUT WITH DRL
CAV. CKT. WIRE
GAUGECOLOR FUNCTION
1 L09 18 BLK/WT BATTERY INTPUT MAIN FEED
2 L61 18 LG LEFT FRONT T/S OUTPUT TO LAMP
3 L60 18 TN RIGHT FRONT T/S OUTPUT TO LAMP
4 L63 18 DG/RD LEFT REAR T/S OUTPUT TO LAMP
5 L62 18 BR/RD RIGHT REAR T/S OUTPUT TO LAMP
6 A22D 20 BK/OR IGNITION INPUT SENSE ONLY
7 L305 22 LB/WT LEFT T/S SWITCH INPUT SENSE ONLY
8 L302 22 LB/YL RIGHT T/S SWITCH INPUT SENSE ONLY
9 L91 22 DB/PK HAZARD SWITCH INPUT SENSE ONLY
10 G09 22 GY/BK PARK BRAKE SWITCH INPUT SENSE ONLY
11 Z01 14 BK GROUND MAIN GRD.
12 L93 22 RD/YL HEADLAMP RELAY SWITCH
INPUTSENSE ONLY
NSTURN SIGNAL AND FLASHERS 8J - 5
DIAGNOSIS AND TESTING (Continued)

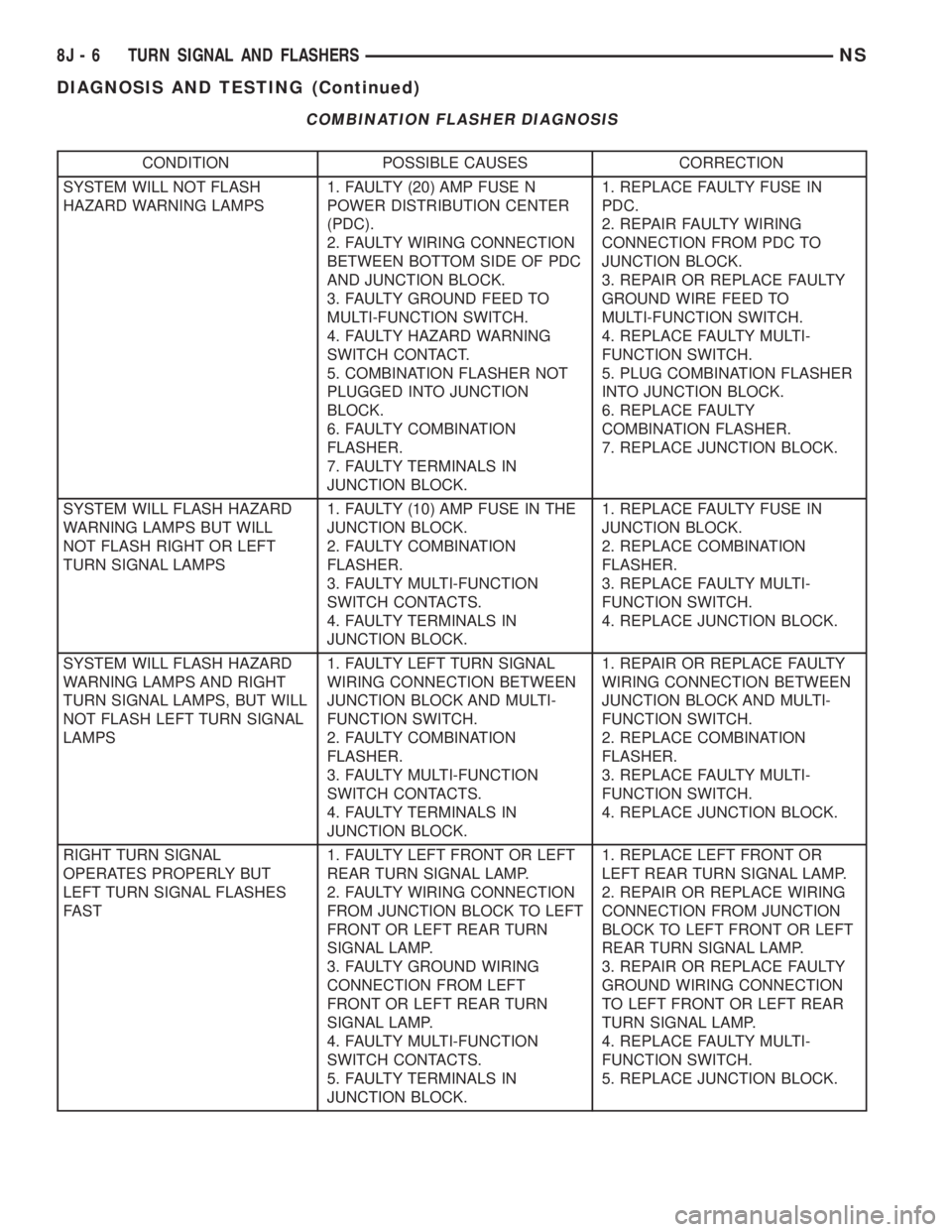

COMBINATION FLASHER DIAGNOSIS
CONDITION POSSIBLE CAUSES CORRECTION
SYSTEM WILL NOT FLASH
HAZARD WARNING LAMPS1. FAULTY (20) AMP FUSE N
POWER DISTRIBUTION CENTER
(PDC).
2. FAULTY WIRING CONNECTION
BETWEEN BOTTOM SIDE OF PDC
AND JUNCTION BLOCK.
3. FAULTY GROUND FEED TO
MULTI-FUNCTION SWITCH.
4. FAULTY HAZARD WARNING
SWITCH CONTACT.
5. COMBINATION FLASHER NOT
PLUGGED INTO JUNCTION
BLOCK.
6. FAULTY COMBINATION
FLASHER.
7. FAULTY TERMINALS IN
JUNCTION BLOCK.1. REPLACE FAULTY FUSE IN
PDC.
2. REPAIR FAULTY WIRING
CONNECTION FROM PDC TO
JUNCTION BLOCK.
3. REPAIR OR REPLACE FAULTY
GROUND WIRE FEED TO
MULTI-FUNCTION SWITCH.
4. REPLACE FAULTY MULTI-
FUNCTION SWITCH.
5. PLUG COMBINATION FLASHER
INTO JUNCTION BLOCK.
6. REPLACE FAULTY
COMBINATION FLASHER.
7. REPLACE JUNCTION BLOCK.
SYSTEM WILL FLASH HAZARD
WARNING LAMPS BUT WILL
NOT FLASH RIGHT OR LEFT
TURN SIGNAL LAMPS1. FAULTY (10) AMP FUSE IN THE
JUNCTION BLOCK.
2. FAULTY COMBINATION
FLASHER.
3. FAULTY MULTI-FUNCTION
SWITCH CONTACTS.
4. FAULTY TERMINALS IN
JUNCTION BLOCK.1. REPLACE FAULTY FUSE IN
JUNCTION BLOCK.
2. REPLACE COMBINATION
FLASHER.
3. REPLACE FAULTY MULTI-
FUNCTION SWITCH.
4. REPLACE JUNCTION BLOCK.
SYSTEM WILL FLASH HAZARD
WARNING LAMPS AND RIGHT
TURN SIGNAL LAMPS, BUT WILL
NOT FLASH LEFT TURN SIGNAL
LAMPS1. FAULTY LEFT TURN SIGNAL
WIRING CONNECTION BETWEEN
JUNCTION BLOCK AND MULTI-
FUNCTION SWITCH.
2. FAULTY COMBINATION
FLASHER.
3. FAULTY MULTI-FUNCTION
SWITCH CONTACTS.
4. FAULTY TERMINALS IN
JUNCTION BLOCK.1. REPAIR OR REPLACE FAULTY
WIRING CONNECTION BETWEEN
JUNCTION BLOCK AND MULTI-
FUNCTION SWITCH.
2. REPLACE COMBINATION
FLASHER.
3. REPLACE FAULTY MULTI-
FUNCTION SWITCH.
4. REPLACE JUNCTION BLOCK.
RIGHT TURN SIGNAL
OPERATES PROPERLY BUT
LEFT TURN SIGNAL FLASHES
FAST1. FAULTY LEFT FRONT OR LEFT
REAR TURN SIGNAL LAMP.
2. FAULTY WIRING CONNECTION
FROM JUNCTION BLOCK TO LEFT
FRONT OR LEFT REAR TURN
SIGNAL LAMP.
3. FAULTY GROUND WIRING
CONNECTION FROM LEFT
FRONT OR LEFT REAR TURN
SIGNAL LAMP.
4. FAULTY MULTI-FUNCTION
SWITCH CONTACTS.
5. FAULTY TERMINALS IN
JUNCTION BLOCK.1. REPLACE LEFT FRONT OR
LEFT REAR TURN SIGNAL LAMP.
2. REPAIR OR REPLACE WIRING
CONNECTION FROM JUNCTION
BLOCK TO LEFT FRONT OR LEFT
REAR TURN SIGNAL LAMP.
3. REPAIR OR REPLACE FAULTY
GROUND WIRING CONNECTION
TO LEFT FRONT OR LEFT REAR
TURN SIGNAL LAMP.
4. REPLACE FAULTY MULTI-
FUNCTION SWITCH.
5. REPLACE JUNCTION BLOCK.
8J - 6 TURN SIGNAL AND FLASHERSNS
DIAGNOSIS AND TESTING (Continued)

CONDITION POSSIBLE CAUSES CORRECTION
LEFT TURN SIGNAL OPERATES
PROPERLY BUT RIGHT TURN
SIGNAL FLASHES FAST1. FAULTY RIGHT FRONT OR
RIGHT REAR TURN SIGNAL LAMP.
2. FAULTY WIRING CONNECTION
FROM JUNCTION BLOCK TO
RIGHT FRONT OR RIGHT REAR
TURN SIGNAL LAMP.
3. FAULTY GROUND WIRING
CONNECTION FROM RIGHT
FRONT OR RIGHT REAR TURN
SIGNAL LAMP.
4. FAULTY MULTI-FUNCTION
SWITCH CONTACTS.
5. FAULTY TERMINALS IN
JUNCTION BLOCK.1. REPLACE RIGHT FRONT OR
RIGHT REAR TURN SIGNAL LAMP.
2. REPAIR OR REPLACE WIRING
CONNECTION FROM JUNCTION
BLOCK TO RIGHT FRONT OR
RIGHT REAR TURN SIGNAL LAMP.
3. REPAIR OR REPLACE FAULTY
GROUND WIRING CONNECTION
TO RIGHT FRONT OR RIGHT
REAR TURN SIGNAL LAMP.
4. REPLACE FAULTY MULTI-
FUNCTION SWITCH.
5. REPLACE JUNCTION BLOCK.
BOTH TURN SIGNAL
INDICATORS IN MESSAGE
CENTER DO NOT FLASH IN
CONJUNCTION WITH OUTSIDE
TURN SIGNAL LAMPS1. FAULTY GROUND WIRING
CONNECTION FROM COWL
GROUND SPLICE.1. REPAIR OR REPLACE WIRING
CONNECTION FROM COWL
GROUND SPLICE.
LEFT OR RIGHT TURN SIGNAL
INDICATOR IN MESSAGE
CENTER DOES NOT FLASH IN
CONJUNCTION WITH OUTSIDE
TURN SIGNAL LAMPS, BUT
OTHER INDICATOR PERFORMS
PROPERLY1. FAULTY INDICATOR LAMP IN
MESSAGE CENTER.
2. FAULTY WIRING CONNECTION
BETWEEN MESSAGE CENTER
AND JUNCTION BLOCK.1. REPLACE FAULTY INDICATOR
LAMP IN MESSAGE CENTER.
2. REPAIR OR REPLACE FAULTY
WIRING CONNECTION BETWEEN
MESSAGE CENTER AND
JUNCTION BLOCK.
