1996 CHRYSLER VOYAGER Service Manual

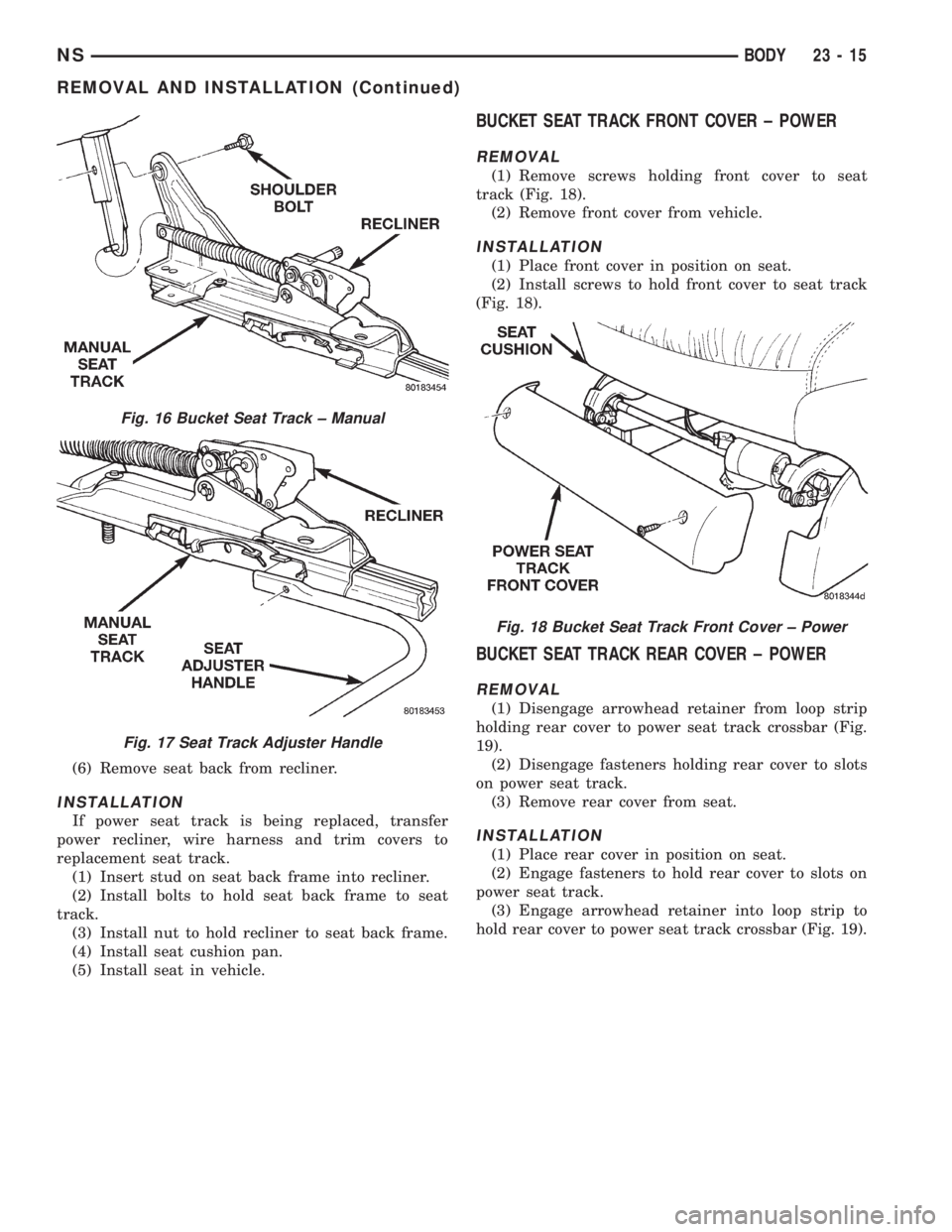

(6) Remove seat back from recliner.
INSTALLATION
If power seat track is being replaced, transfer
power recliner, wire harness and trim covers to
replacement seat track.
(1) Insert stud on seat back frame into recliner.
(2) Install bolts to hold seat back frame to seat
track.
(3) Install nut to hold recliner to seat back frame.
(4) Install seat cushion pan.
(5) Install seat in vehicle.
BUCKET SEAT TRACK FRONT COVER ± POWER
REMOVAL
(1) Remove screws holding front cover to seat
track (Fig. 18).
(2) Remove front cover from vehicle.
INSTALLATION
(1) Place front cover in position on seat.
(2) Install screws to hold front cover to seat track
(Fig. 18).
BUCKET SEAT TRACK REAR COVER ± POWER
REMOVAL
(1) Disengage arrowhead retainer from loop strip
holding rear cover to power seat track crossbar (Fig.
19).
(2) Disengage fasteners holding rear cover to slots
on power seat track.
(3) Remove rear cover from seat.
INSTALLATION
(1) Place rear cover in position on seat.
(2) Engage fasteners to hold rear cover to slots on
power seat track.
(3) Engage arrowhead retainer into loop strip to
hold rear cover to power seat track crossbar (Fig. 19).
Fig. 16 Bucket Seat Track ± Manual
Fig. 17 Seat Track Adjuster Handle
Fig. 18 Bucket Seat Track Front Cover ± Power
NSBODY 23 - 15
REMOVAL AND INSTALLATION (Continued)

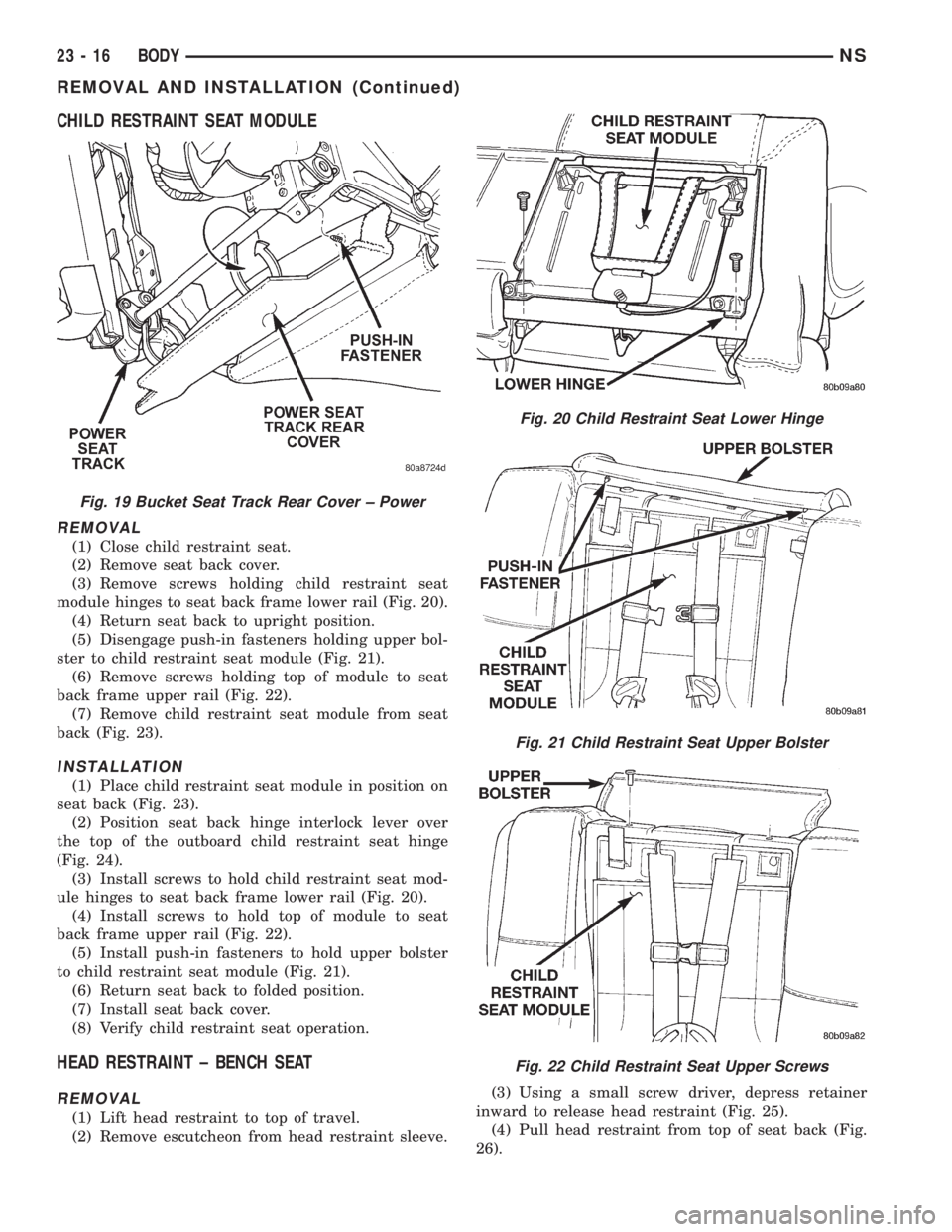

CHILD RESTRAINT SEAT MODULE
REMOVAL
(1) Close child restraint seat.
(2) Remove seat back cover.
(3) Remove screws holding child restraint seat
module hinges to seat back frame lower rail (Fig. 20).
(4) Return seat back to upright position.
(5) Disengage push-in fasteners holding upper bol-
ster to child restraint seat module (Fig. 21).
(6) Remove screws holding top of module to seat
back frame upper rail (Fig. 22).
(7) Remove child restraint seat module from seat
back (Fig. 23).
INSTALLATION
(1) Place child restraint seat module in position on
seat back (Fig. 23).
(2) Position seat back hinge interlock lever over
the top of the outboard child restraint seat hinge
(Fig. 24).
(3) Install screws to hold child restraint seat mod-
ule hinges to seat back frame lower rail (Fig. 20).
(4) Install screws to hold top of module to seat
back frame upper rail (Fig. 22).
(5) Install push-in fasteners to hold upper bolster
to child restraint seat module (Fig. 21).
(6) Return seat back to folded position.
(7) Install seat back cover.
(8) Verify child restraint seat operation.
HEAD RESTRAINT ± BENCH SEAT
REMOVAL
(1) Lift head restraint to top of travel.
(2) Remove escutcheon from head restraint sleeve.(3) Using a small screw driver, depress retainer
inward to release head restraint (Fig. 25).
(4) Pull head restraint from top of seat back (Fig.
26).
Fig. 19 Bucket Seat Track Rear Cover ± Power
Fig. 20 Child Restraint Seat Lower Hinge
Fig. 21 Child Restraint Seat Upper Bolster
Fig. 22 Child Restraint Seat Upper Screws
23 - 16 BODYNS
REMOVAL AND INSTALLATION (Continued)

INSTALLATION
(1) Insert retainer and escutcheon into head
restraint sleeve (Fig. 27).
(2) Insert head restraint into sleeve. The lock but-
ton must be depressed to lower the head rest.
HEAD RESTRAINT ± BUCKET SEAT
REMOVAL
(1) Lift head restraint to top of travel.(2) Depress lock button on side of sleeve at top of
seat back (Fig. 28).
(3) Pull head restraint from top of seat back.

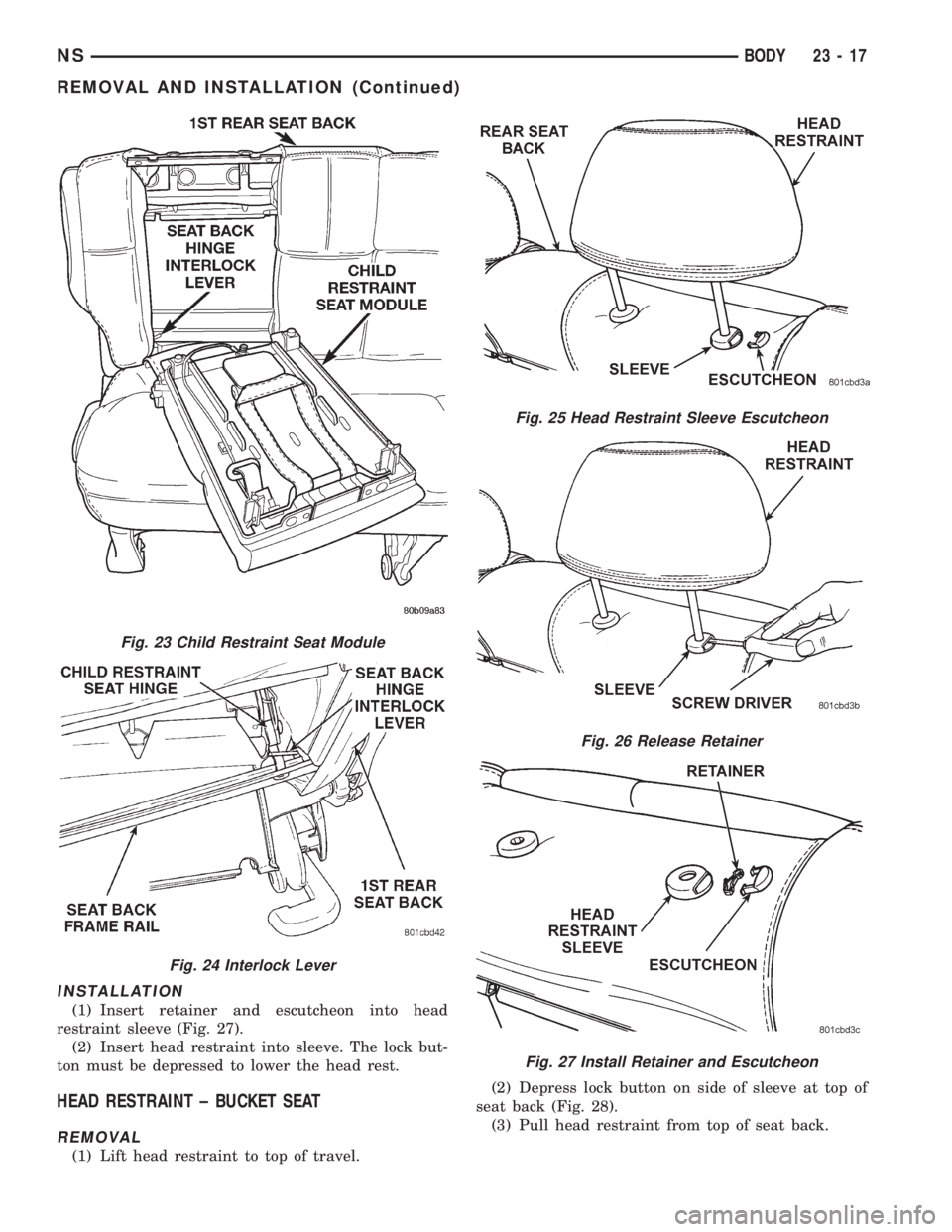

Fig. 23 Child Restraint Seat Module
Fig. 24 Interlock Lever
Fig. 25 Head Restraint Sleeve Escutcheon
Fig. 26 Release Retainer
Fig. 27 Install Retainer and Escutcheon
NSBODY 23 - 17
REMOVAL AND INSTALLATION (Continued)

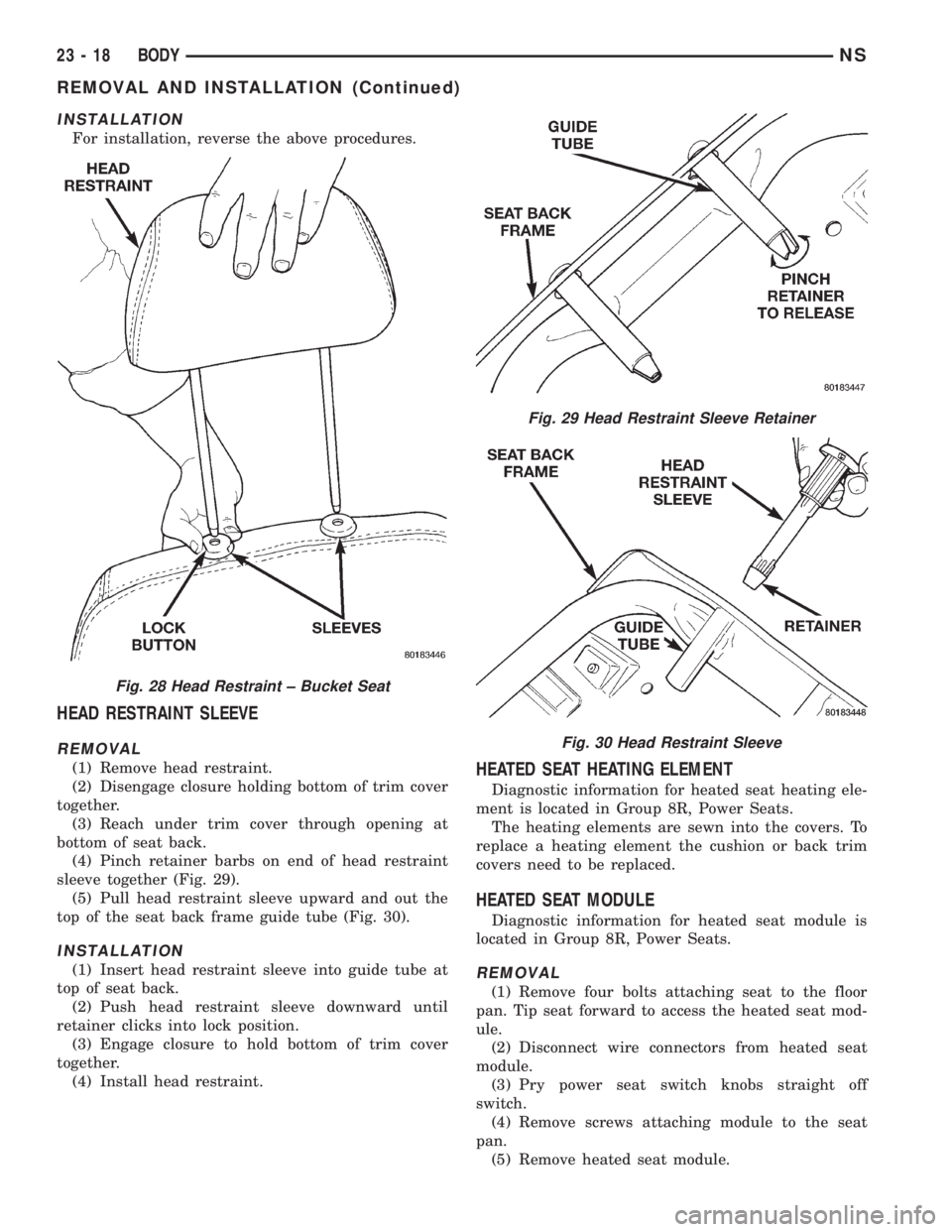

INSTALLATION
For installation, reverse the above procedures.
HEAD RESTRAINT SLEEVE
REMOVAL
(1) Remove head restraint.
(2) Disengage closure holding bottom of trim cover
together.
(3) Reach under trim cover through opening at
bottom of seat back.
(4) Pinch retainer barbs on end of head restraint
sleeve together (Fig. 29).
(5) Pull head restraint sleeve upward and out the
top of the seat back frame guide tube (Fig. 30).
INSTALLATION
(1) Insert head restraint sleeve into guide tube at
top of seat back.
(2) Push head restraint sleeve downward until
retainer clicks into lock position.
(3) Engage closure to hold bottom of trim cover
together.
(4) Install head restraint.
HEATED SEAT HEATING ELEMENT
Diagnostic information for heated seat heating ele-
ment is located in Group 8R, Power Seats.
The heating elements are sewn into the covers. To
replace a heating element the cushion or back trim
covers need to be replaced.
HEATED SEAT MODULE
Diagnostic information for heated seat module is
located in Group 8R, Power Seats.
REMOVAL
(1) Remove four bolts attaching seat to the floor
pan. Tip seat forward to access the heated seat mod-
ule.
(2) Disconnect wire connectors from heated seat
module.
(3) Pry power seat switch knobs straight off
switch.
(4) Remove screws attaching module to the seat
pan.
(5) Remove heated seat module.
Fig. 28 Head Restraint ± Bucket Seat
Fig. 29 Head Restraint Sleeve Retainer
Fig. 30 Head Restraint Sleeve
23 - 18 BODYNS
REMOVAL AND INSTALLATION (Continued)

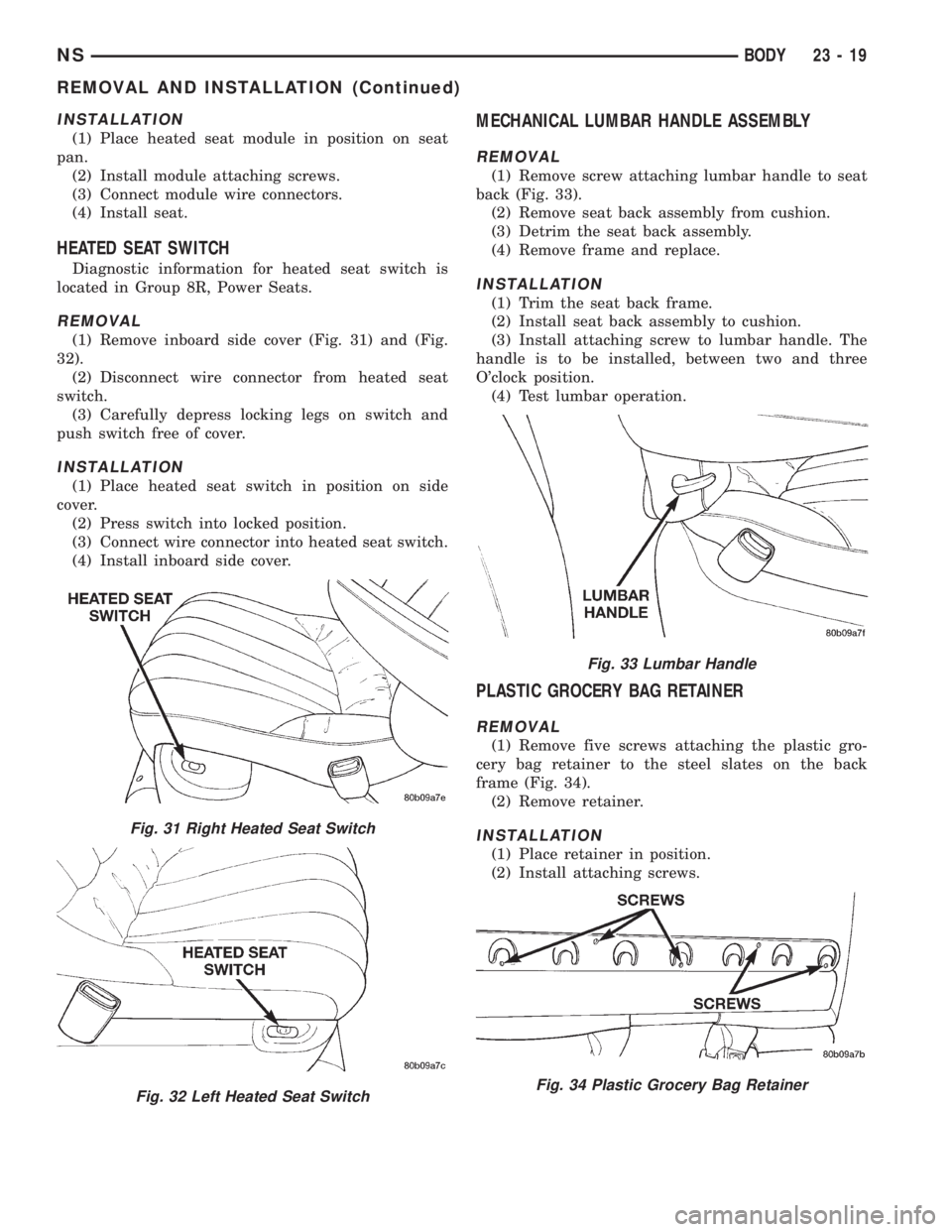

INSTALLATION
(1) Place heated seat module in position on seat
pan.
(2) Install module attaching screws.
(3) Connect module wire connectors.
(4) Install seat.
HEATED SEAT SWITCH
Diagnostic information for heated seat switch is
located in Group 8R, Power Seats.
REMOVAL
(1) Remove inboard side cover (Fig. 31) and (Fig.
32).
(2) Disconnect wire connector from heated seat
switch.
(3) Carefully depress locking legs on switch and
push switch free of cover.
INSTALLATION
(1) Place heated seat switch in position on side
cover.
(2) Press switch into locked position.
(3) Connect wire connector into heated seat switch.
(4) Install inboard side cover.
MECHANICAL LUMBAR HANDLE ASSEMBLY
REMOVAL
(1) Remove screw attaching lumbar handle to seat
back (Fig. 33).
(2) Remove seat back assembly from cushion.
(3) Detrim the seat back assembly.
(4) Remove frame and replace.
INSTALLATION
(1) Trim the seat back frame.
(2) Install seat back assembly to cushion.
(3) Install attaching screw to lumbar handle. The
handle is to be installed, between two and three
O'clock position.
(4) Test lumbar operation.
PLASTIC GROCERY BAG RETAINER
REMOVAL
(1) Remove five screws attaching the plastic gro-
cery bag retainer to the steel slates on the back
frame (Fig. 34).
(2) Remove retainer.
INSTALLATION
(1) Place retainer in position.
(2) Install attaching screws.
Fig. 31 Right Heated Seat Switch
Fig. 32 Left Heated Seat Switch
Fig. 33 Lumbar Handle
Fig. 34 Plastic Grocery Bag Retainer
NSBODY 23 - 19
REMOVAL AND INSTALLATION (Continued)
