1996 CHRYSLER VOYAGER Service Manual

(2) Verify the oil feeder is centered within the
bearing bore.
(3) Position the bearing cup into the bearing bore.
(4) Position Special Tool 6939 and Special Tool
C-4171 into the intermediate shaft bearing cup.
(5) Press new bearing cup into the case (Fig. 196).INPUT SHAFT FRONT BEARING
REMOVAL
(1) From inside the bellhousing, remove the E-clip
retaining the clutch release lever shaft (Fig. 197).
(2) Pull release lever shaft out of the clutch bell-
housing (Fig. 198).
(3) Remove the clutch release bearing from the
input bearing retainer sleeve (Fig. 199).
(4) Remove the three bolts retaining the input
shaft bearing retainer sleeve (Fig. 200).
(5) Remove the input bearing retainer sleeve from
the front of the bellhousing (Fig. 201).
(6) Position transaxle case in a shop press (bell-
housing side down).
(7) Install Special Tool 5066 into input bearing.
(8) Install Special Tool C-4171 into Special Tool
5066
(9) Press out the input bearing from the case (Fig.
202).

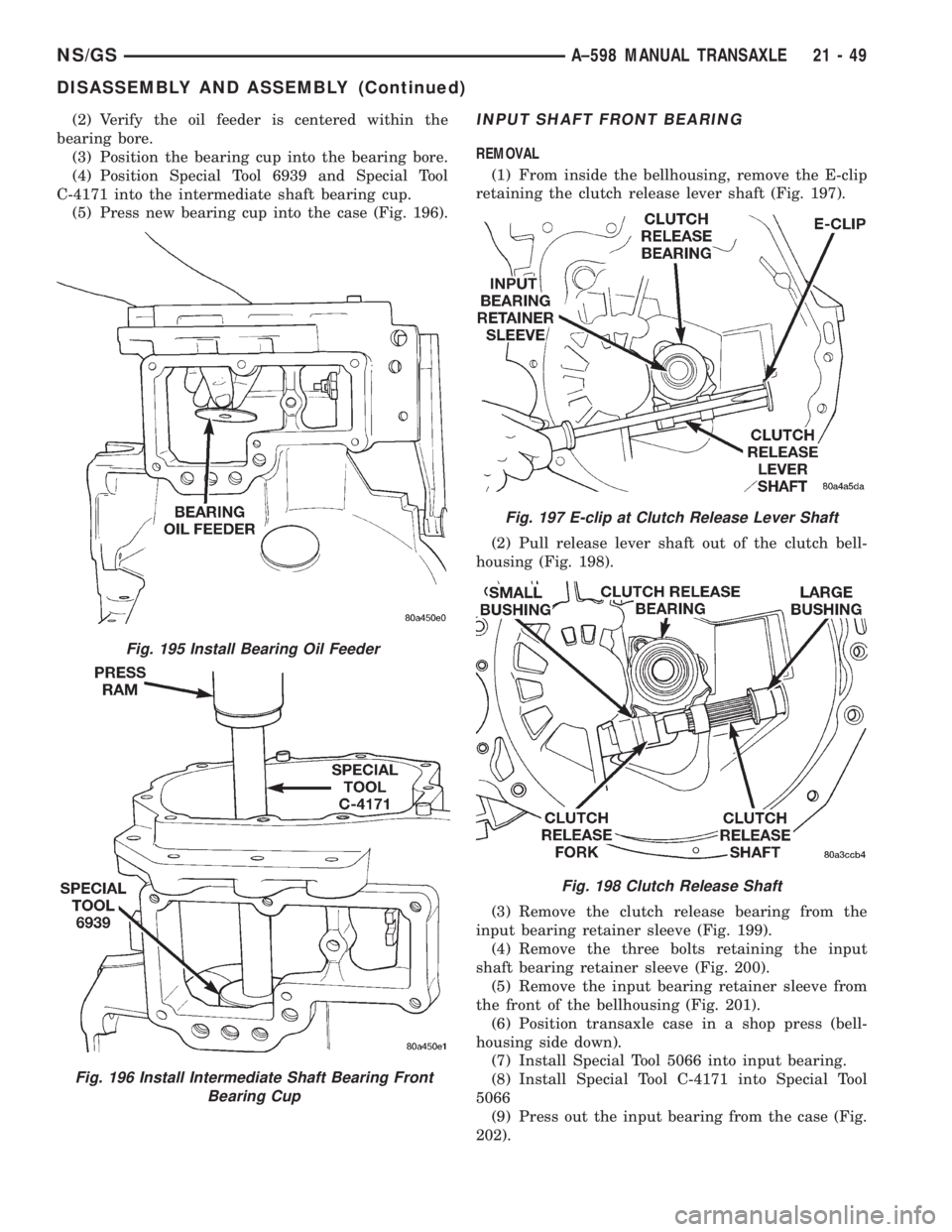

Fig. 196 Install Intermediate Shaft Bearing Front
Bearing Cup
Fig. 195 Install Bearing Oil Feeder
Fig. 197 E-clip at Clutch Release Lever Shaft
Fig. 198 Clutch Release Shaft
NS/GSA±598 MANUAL TRANSAXLE 21 - 49
DISASSEMBLY AND ASSEMBLY (Continued)

INSTALLATION
(1) Position new input bearing into the transaxle
case (Fig. 203).(2) Position transaxle case in shop press (bellhous-
ing side up).
(3) Install Special Tool 6933 into input bearing
(Fig. 204).
(4) Install Special Tool C-4171 into Special Tool
6933.
(5) Press input bearing into transaxle case (Fig.
205).

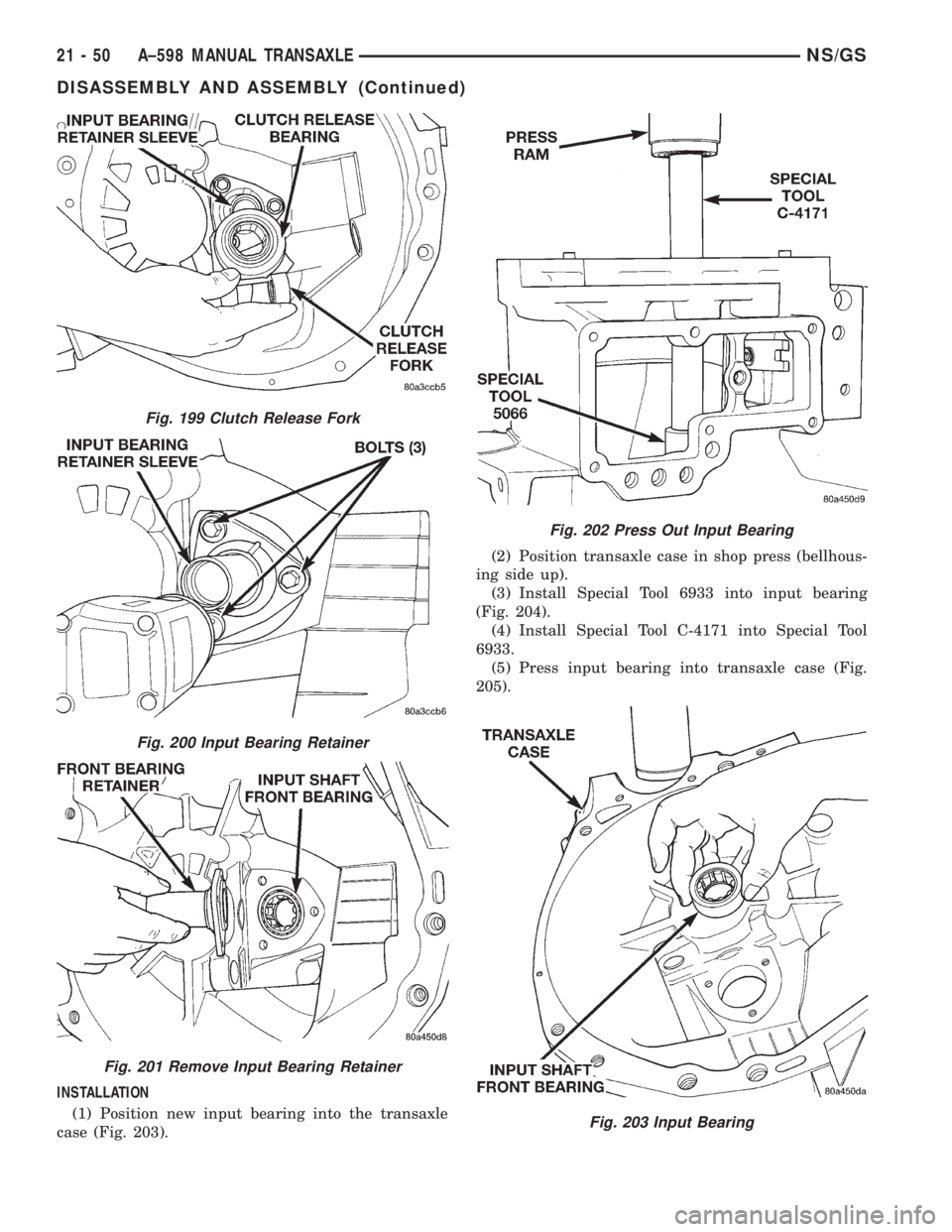

Fig. 199 Clutch Release Fork
Fig. 200 Input Bearing Retainer
Fig. 201 Remove Input Bearing Retainer
Fig. 202 Press Out Input Bearing
Fig. 203 Input Bearing
21 - 50 A±598 MANUAL TRANSAXLENS/GS
DISASSEMBLY AND ASSEMBLY (Continued)

(6) Apply a small bead of Mopartgasket Maker to
the input bearing retainer.
(7) Install bearing retainer.
(8) Install clutch release fork onto clutch release
bearing.
(9) Install bearing and fork onto input bearing
retainer sleeve.
(10) Install clutch release shaft bushings into tran-
saxle case.
(11) Install clutch release shaft into case and
install E-clip onto shaft (Fig. 206).
SHIFT RAIL BUSHINGS
REMOVAL
(1) Install Special Tool 6786 into rail bushing that
is to be removed (Fig. 207).
(2) Tighten tool until the tool is thoroughly imbed-
ded into the bushing.
(3) Install Special Tool 3752 (Slide Hammer) into
Special Tool 6786 (Fig. 208).
(4) Tap out shift rail bushing (Fig. 209).
INSTALLATION
(1) Lubricate outer shell of the shift rail bushing.
(2) Position shift rail bushing into the shift rail
bore.
(3) Tap bushing into the bore, flush with the bore
face

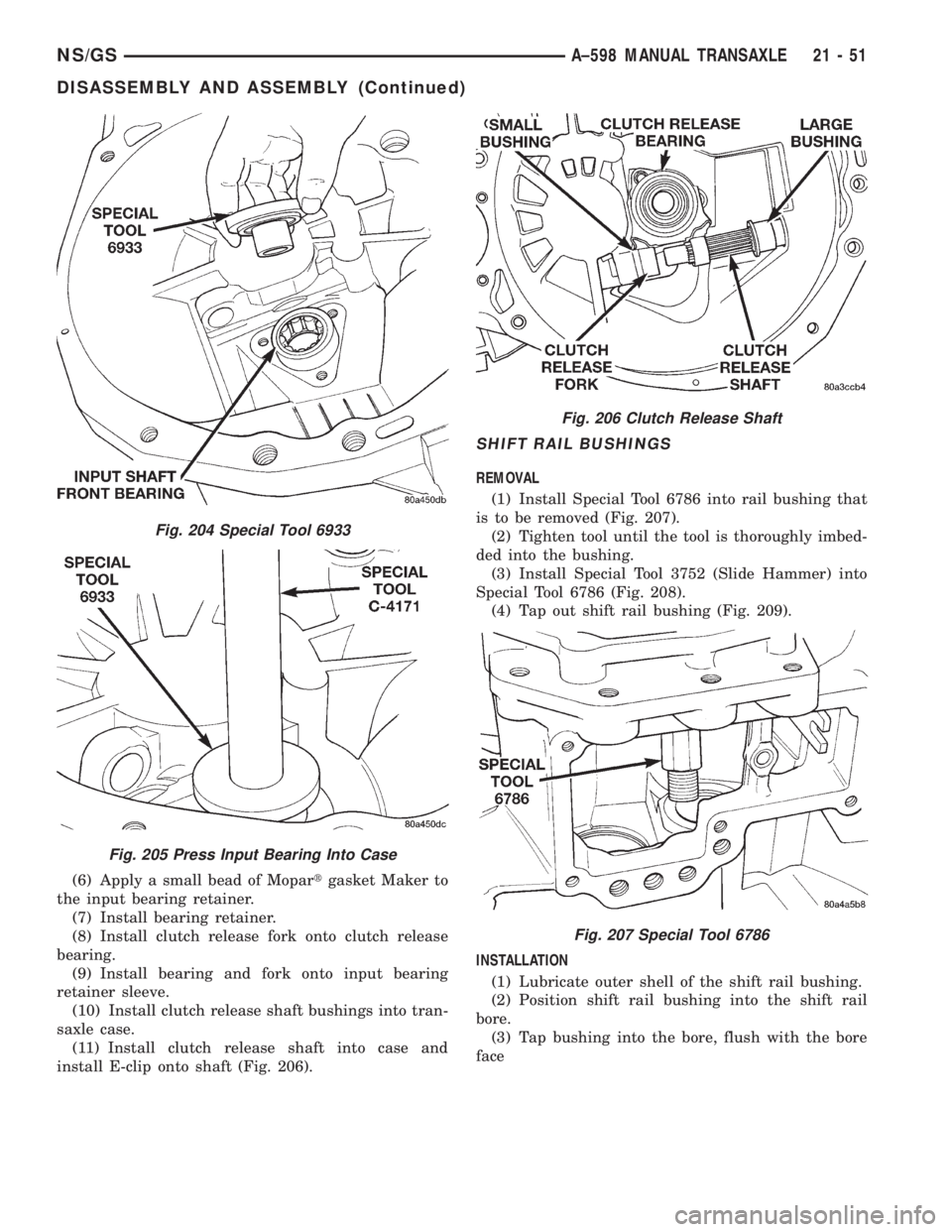

Fig. 204 Special Tool 6933
Fig. 205 Press Input Bearing Into Case
Fig. 206 Clutch Release Shaft
Fig. 207 Special Tool 6786
NS/GSA±598 MANUAL TRANSAXLE 21 - 51
DISASSEMBLY AND ASSEMBLY (Continued)

REVERSE SHIFT LEVER
REMOVAL
(1) Remove reverse shift lever E-clip.
(2) Remove the flat and wave washers.
(3) Remove the reverse shift lever from the mount-
ing stud.
INSTALLATION
(1) Position the reverse shift lever onto the mount-
ing stud.
(2) Install the washers onto the mounting stud.
(3) Install the E-clip.
CLEANING AND INSPECTION
TRANSAXLE
Clean the gears, bearings, shafts, synchronizers,
thrust washers, oil feeder, shift mechanism, gear
case, and bellhousing with solvent. Dry all parts
except the bearings with compressed air. Allow thebearings to either air dry or wipe them dry with
clean shop towels.
Inspect the gears, bearings, shafts and thrust
washers. Replace the bearings and cups if the rollers
are worn, chipped, cracked, flat spotted, or brin-
nelled, or if the bearing cage is damaged or distorted.
Replace the thrust washers if cracked, chipped, or
worn. Replace the gears if the teeth are chipped,
cracked, or worn thin. Inspect the synchronizers.
Replace the sleeve if worn or damaged in any way.
Replace the stop rings if the friction material is
burned, flaking off, or worn. Check the condition of
the synchro struts and springs. Replace these parts if
worn, cracked, or distorted.
SYNCHRONIZER
CLEAN
Do not attempt to clean the blocking rings in sol-
vent. The friction material will become contaminated.
Place synchronizer components in a suitable holder
and clean with solvent. Air dry.
INSPECT
Proper inspection of components involve:
²Teeth, for wear, scuffed, nicked, burred, or bro-
ken teeth
²Struts, for wear or distortion
²Springs, for distortion, cracks, or wear
If any of these conditions exist in these compo-
nents, replace as necessary.
ADJUSTMENTS
GEARSHIFT CROSSOVER CABLE
Before replacing the gearshift cables for a hard-
shifting complaint, disconnect both cables at the
transaxle. Then, from the driver's seat, manually
operate the gearshift lever through all gear ranges. If
the gearshift lever moves smoothly, the cable(s)
should NOT be replaced. If the gear lever binds
replace the cable that is causing the binding condi-
tion. If the problem still exists, check the crossover
cable adjustment (Fig. 210).
(1) Working over the left front fender, remove the
auxiliary vent from the selector shaft housing (Fig.
211).
(2) Locate the gearshift lock pin that has been
included in the new vehicle packet located in the
glove box.
(3) Place transaxle gearshift in the neutral posi-
tion.
(4) Insert lock pin (so long end is down) into same
threaded hole (Fig. 212). A hole in the selector shaft
will align with the lock pin, allowing the lock pin to
Fig. 208 Slide Hammer 3752
Fig. 209 Shift Rail Bushing Removal
21 - 52 A±598 MANUAL TRANSAXLENS/GS
DISASSEMBLY AND ASSEMBLY (Continued)

be screwed into the housing. This operation locks the
selector shaft in the 3-4 neutral position.
(5) Remove gearshift knob (Fig. 213).
(6) Remove gearshift boot (Fig. 214).
(7) Remove gearshift console screws and remove
the console (Fig. 215).
(8) Loosen crossover cable adjustment screw.
(9) Verify gearshift mechanism is in the neutral
position.CAUTION: Be sure crossover bellcrank does NOT
move when tightening adjusting screw.
Fig. 210 Gearshift Mechanism
Fig. 211 Auxiliary Vent Removal
Fig. 212 Lock Pin Installation
NS/GSA±598 MANUAL TRANSAXLE 21 - 53
ADJUSTMENTS (Continued)
