1996 CHRYSLER VOYAGER Service Manual

NOTE: If end play is too high, install a .05 mm (.002
inch) thinner shim combination. If end play is too
low, install a .05 mm (.002 inch) thicker shim com-
bination. Repeat until .05 to .25 mm (.002 to .010
inch) end play is obtained.

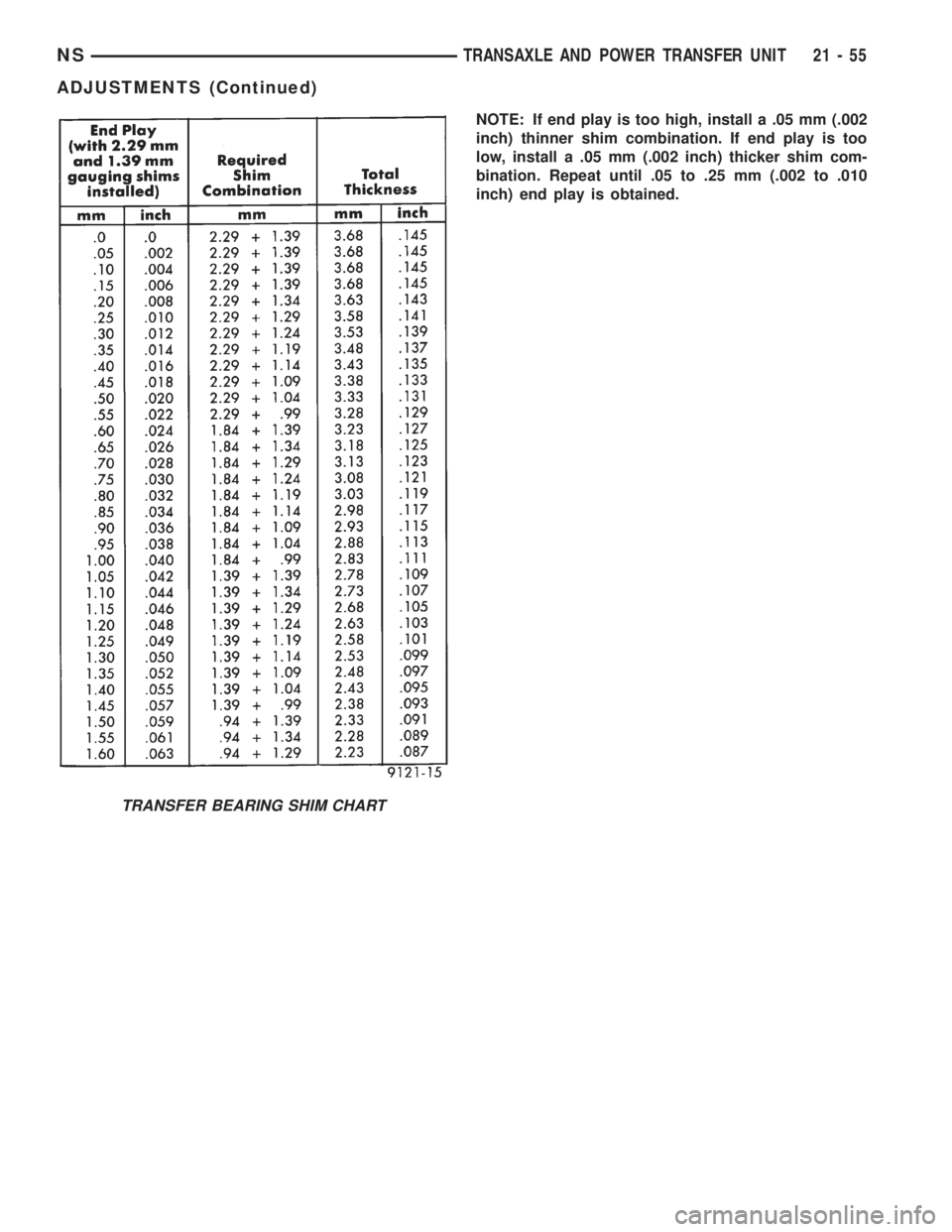

TRANSFER BEARING SHIM CHART
NSTRANSAXLE AND POWER TRANSFER UNIT 21 - 55
ADJUSTMENTS (Continued)

SCHEMATICS AND DIAGRAMS

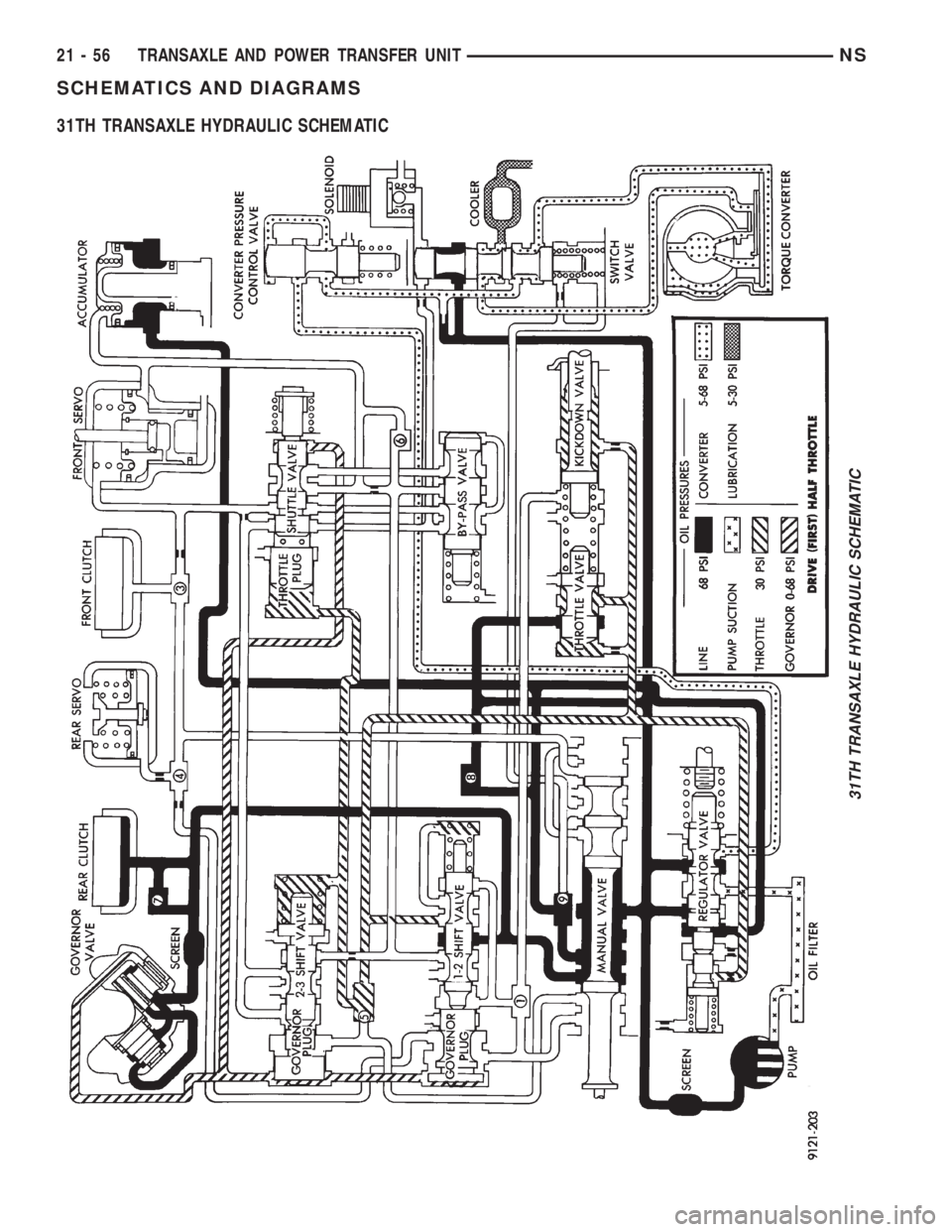

31TH TRANSAXLE HYDRAULIC SCHEMATIC
31TH TRANSAXLE HYDRAULIC SCHEMATIC
21 - 56 TRANSAXLE AND POWER TRANSFER UNITNS

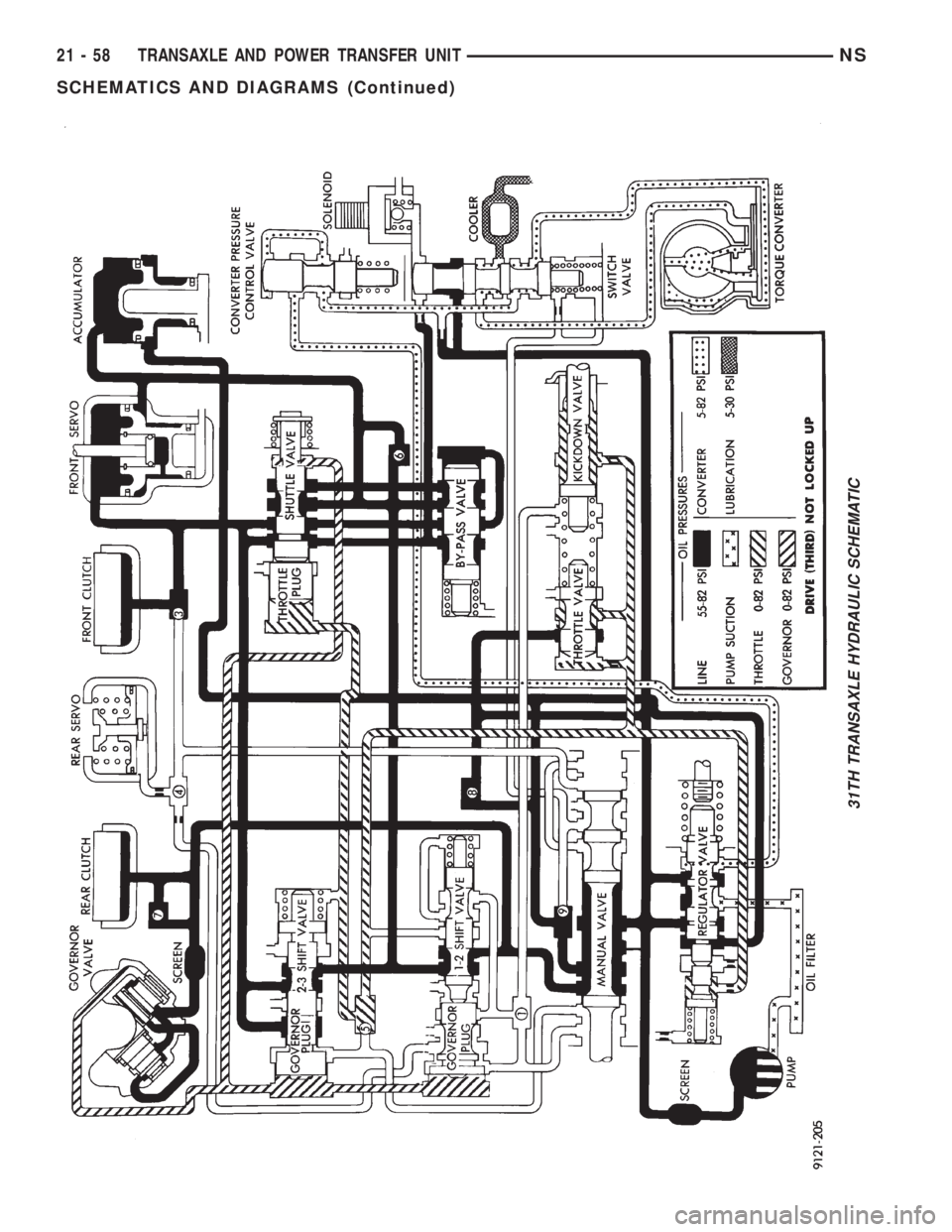

31TH TRANSAXLE HYDRAULIC SCHEMATIC
NSTRANSAXLE AND POWER TRANSFER UNIT 21 - 57
SCHEMATICS AND DIAGRAMS (Continued)

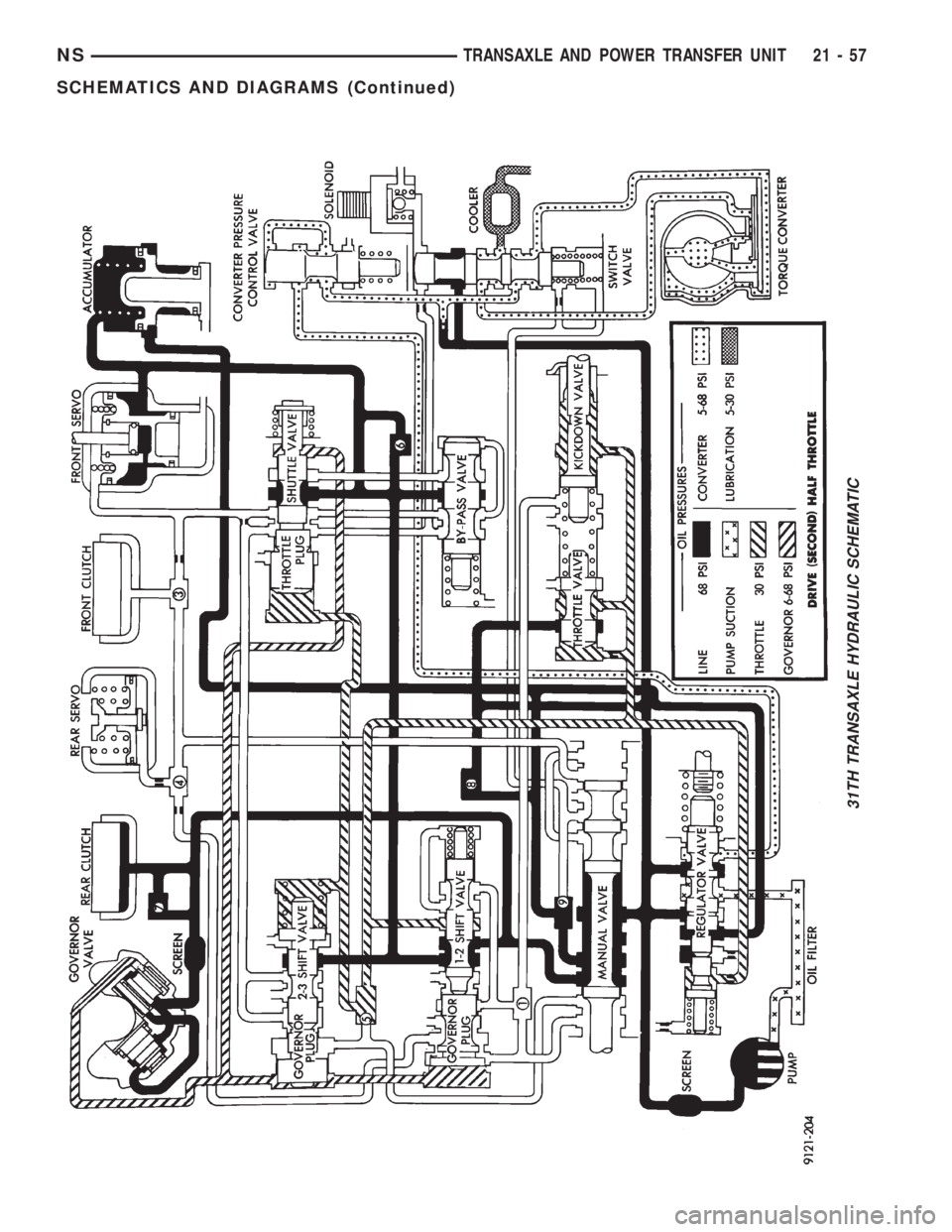

31TH TRANSAXLE HYDRAULIC SCHEMATIC
21 - 58 TRANSAXLE AND POWER TRANSFER UNITNS
SCHEMATICS AND DIAGRAMS (Continued)

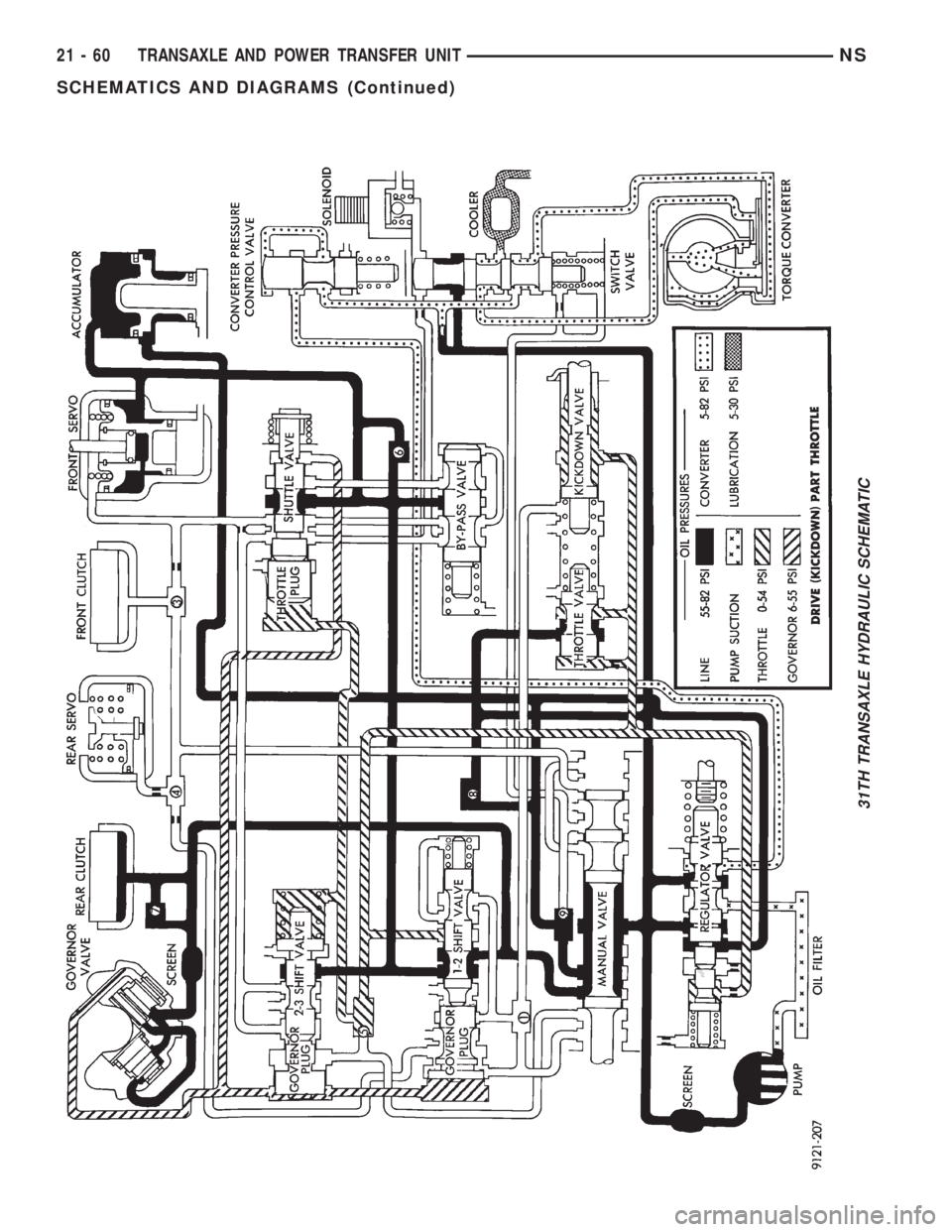

31TH TRANSAXLE HYDRAULIC SCHEMATIC
NSTRANSAXLE AND POWER TRANSFER UNIT 21 - 59
SCHEMATICS AND DIAGRAMS (Continued)

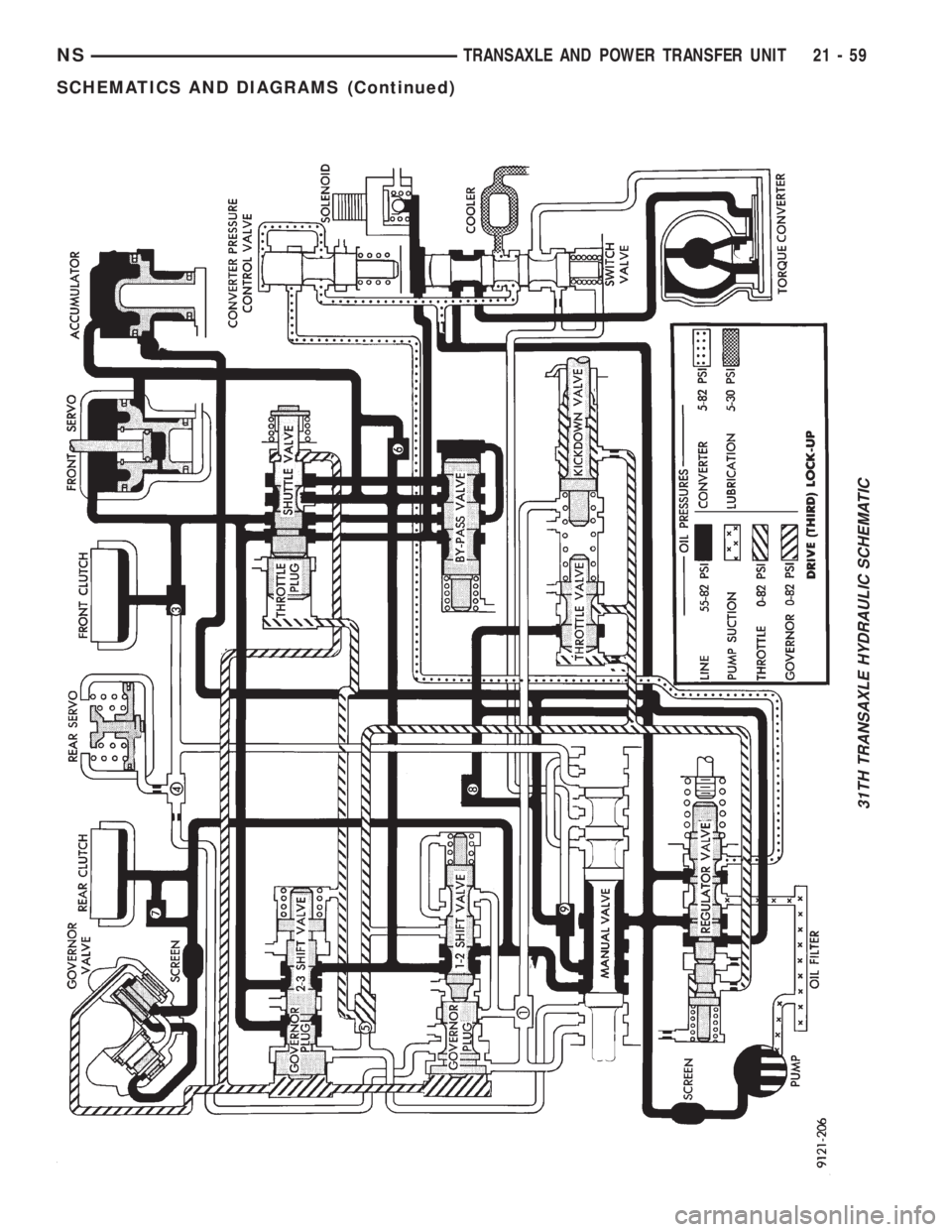

31TH TRANSAXLE HYDRAULIC SCHEMATIC
21 - 60 TRANSAXLE AND POWER TRANSFER UNITNS
SCHEMATICS AND DIAGRAMS (Continued)

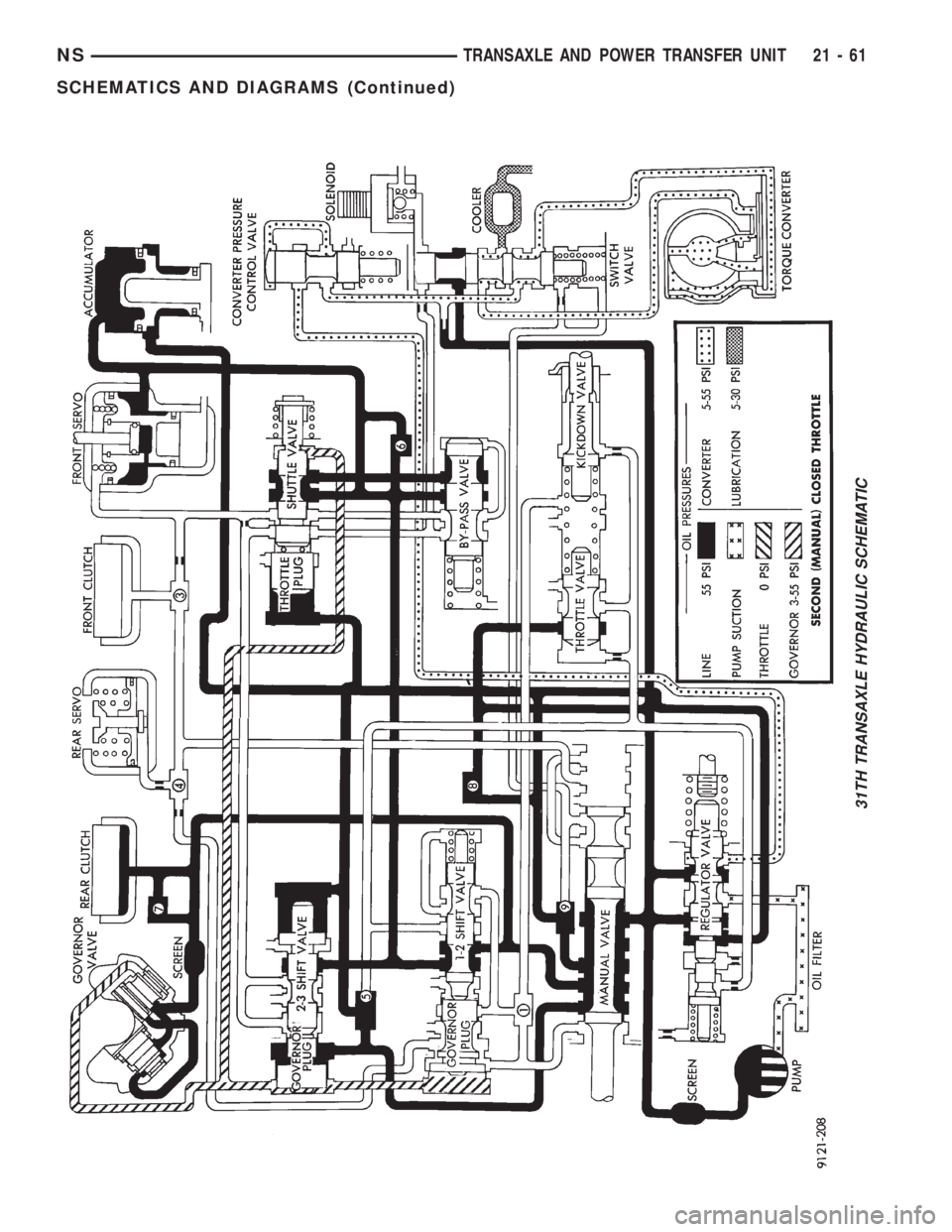

31TH TRANSAXLE HYDRAULIC SCHEMATIC
NSTRANSAXLE AND POWER TRANSFER UNIT 21 - 61
SCHEMATICS AND DIAGRAMS (Continued)

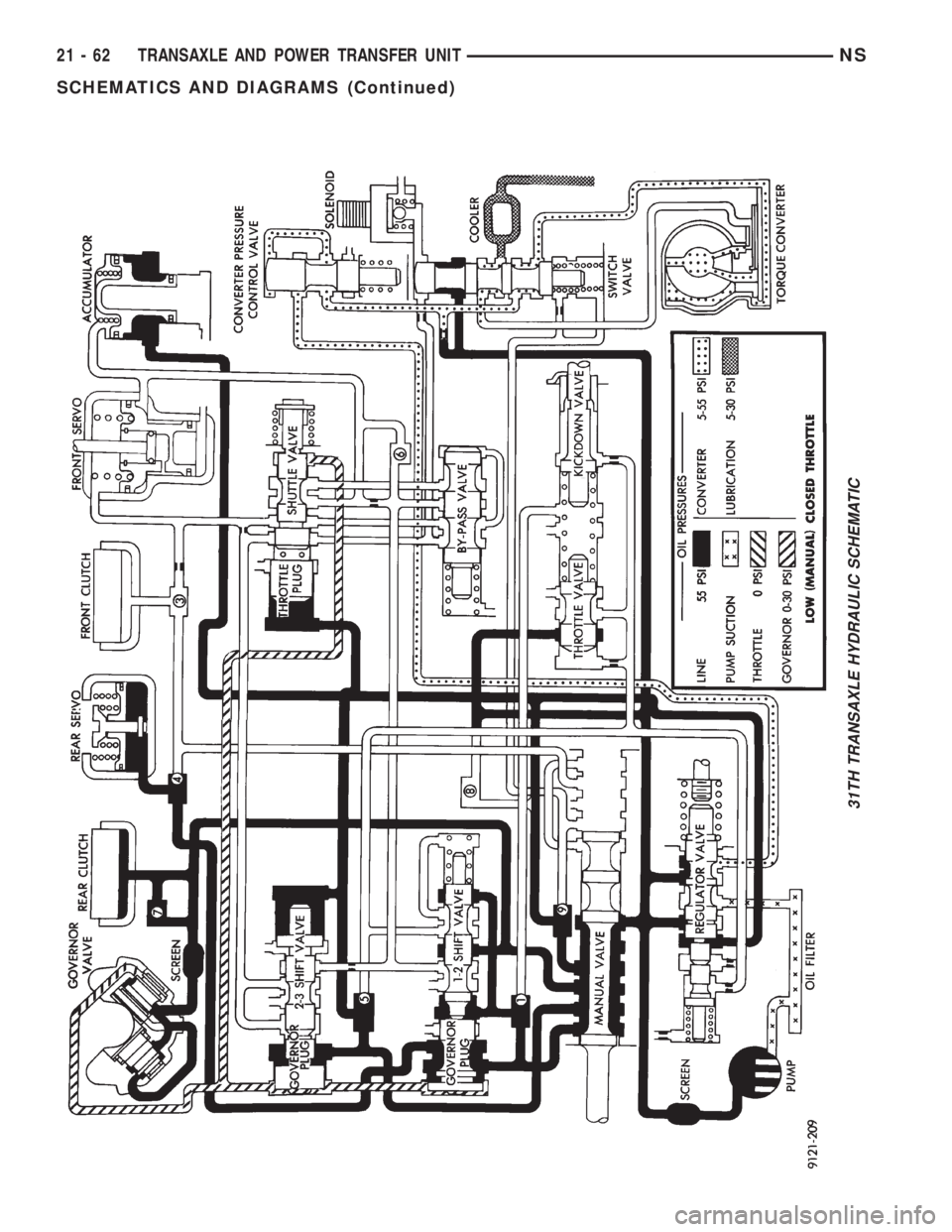

31TH TRANSAXLE HYDRAULIC SCHEMATIC
21 - 62 TRANSAXLE AND POWER TRANSFER UNITNS
SCHEMATICS AND DIAGRAMS (Continued)
