Page 785 of 1708
MOLDING AND GARNISH s MOLDING AND GARNISH COMPONENTS Removal / Installation 1. Remove in the order shown in the figure, referring to Removal Note. 2. Install in the reverse order of removal. 1 REPLACE P REPLACE 1. Windshield molding 4. Beltline molding ............. Installation Note ........... page S-28 Removal Note page S-28 2. Cowl grille 5. Rear window molding (detachable hardtop) ....... ........... Removal I Installation page S-44 Installation Note page S-29 3. Front beltline molding 6. Rear finisher ............. Removal Note ............. page S-28 Removal Note page $28 Gartner Banana
Page 786 of 1708

s MOLDING AND GARNISH Removal Note Front beltline molding Remove the outside mirror to remove the front beltline molding. (Refer to page S-34.) i/ Rear finisher Remove the rear combination light to remove the rear finisher. (Refer to Section T.) PRIMER 45UOSX42C I MOLDING I MOLDING Beltline molding Remove the convertible top to remove the beltline mold- ing. (Refer to page S-67.) Installation Note Windshield molding 1. Remove the windshield. (Refer to page S-44.) 2. Install the windshield. (Refer to page S-44.) 3. Apply primer with a brush to the bonding area of the new upper molding. Keep the bonding area free of dirt and -- grease, and do not touch the surface. Allow the primer to dry for approximately 30 minutes. 4. Align the center mark in the molding with the glass mark (0) 5. Install the upper portions of the molding into the body (Q) . 6. Push the corner of the molding into the body ((3). 7. Push the side portions of the molding into the body, beginning from the bottom (@). 8. Check for water leaks. If a leak is found, wipe the water off well and repeat the installation. Hardening time of repair sealant Time required until car Temperature Surface hardening time ,, be put into service 5°C (41 OF) Aoorox. 1.5 hr 12 hr I 35°C {95"F} I Approx. 10 rnin 2 hr 1 Gartner Banana

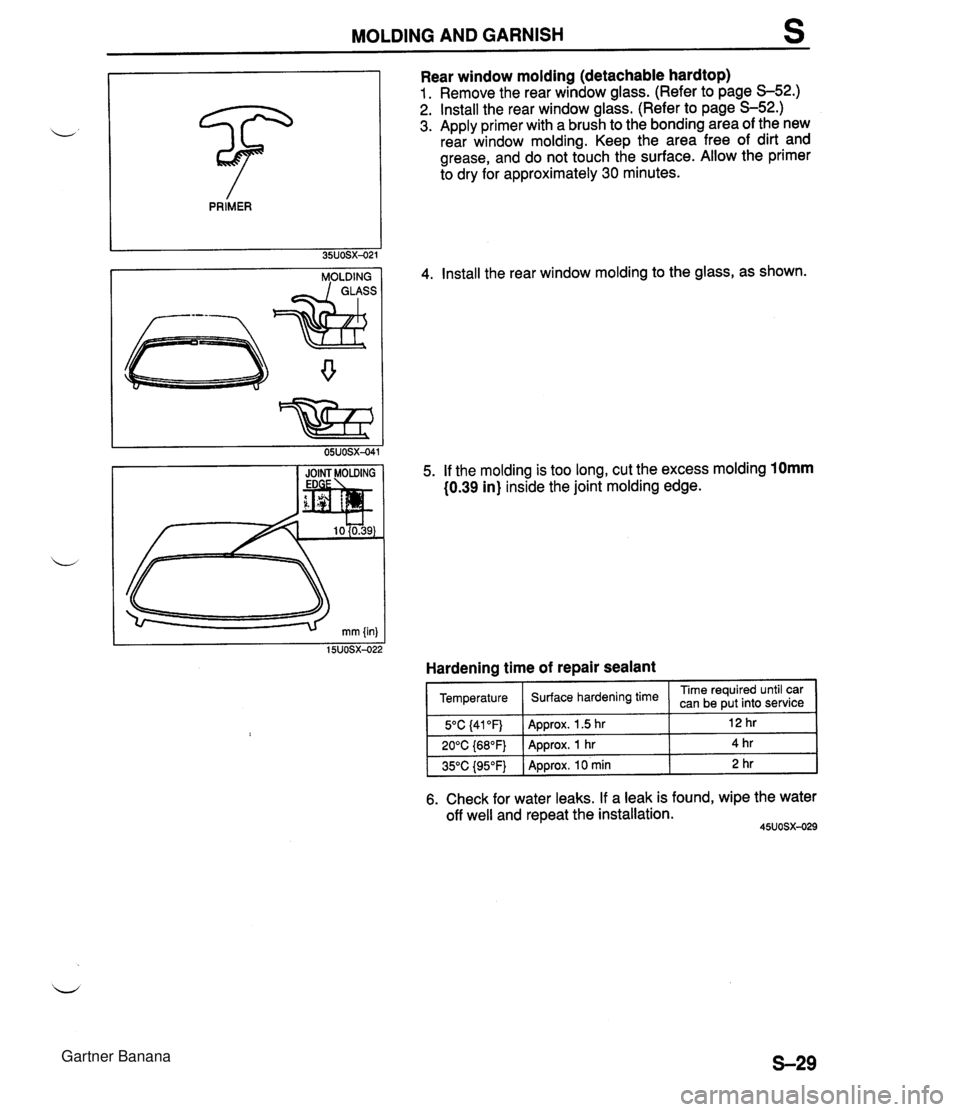

Page 787 of 1708
MOLDING AND GARNISH s F PRIMER I 35UOSX-021 MOLDING & GLASS I Rear window molding (detachable hardtop) 1. Remove the rear window glass. (Refer to page S-52.) 2. Install the rear window glass. (Refer to page S-52.) 3. Apply primer with a brush to the bonding area of the new rear window molding. Keep the area free of dirt and grease, and do not touch the surface. Allow the primer to dry for approximately 30 minutes. JOINT MOLDING I 4. Install the rear window molding to the glass, as shown. Temperature 5°C (41 OF) 20°C (68OF1 5. If the molding is too long, cut the excess molding 10mm (0.39 in) inside the joint molding edge. Hardening time of repair sealant Surface hardening time Approx. 1.5 hr ADD~OX. 1 hr Time required until car can be put into service 12 hr 4 hr . . . . I 35°C {95"F} I Approx. 10 min 2 hr 6. Check for water leaks. If a leak is found, wipe the water off well and repeat the installation. 45uosx-029 Gartner Banana
Page 788 of 1708
OUTSIDE MIRROR OUTSIDE MIRROR STRUCTURAL VIEW t 35uosx-022 1. Power outside mirror switch 2. Power outside mirror Inspection . . . . . . . . . . . . . . . . . page S-33 Inspection . . . . . . . . . . . . . . . . . page S-33 Removal 1 Installation . . . . . . . page S-34 Removal 1 Installation . . . . . . . page S-34 S30 Gartner Banana
Page 789 of 1708
OUTSIDE MIRROR TROUBLESHOOTING Gartner Banana
Page 790 of 1708

OUTSIDE MIRROR Power outside mirrors do not operate 1 B+: Battery positive voltage 1 u Check CIGAR 15A fuse Replace fuse after checking and repairing wiring harness I Turn ignition switch to ON I ,,.,,,,,,,,,.,,,,.,. switch connector Repair harness (Fuse box - Power outside mirror switch) 1 OK I I I RIGHT i i~&) wire Disconnect power outside mirror switch connector Check for continuity between terminal wire (0) and ground Fbpair harness (Power outside mirror switch -Ground) 1 Check power outside mirror switch (Refer to page S-33) Reconnect power outside mirror switch connector Check for B+ at terminal wires of power outside mirror I I Switch position I Terminal I Voltage I UP I (BRl wire 1 B+ switch connector with mirror switch in positions indicated below NG c OK Right Left Check for B+ at terminal wires py of power outside mirror con- nector with mirror switch in positions indicated below Check power outside mirror (Refer to page S-33) - DOWN LEFT RIGHT UP DOWN LEFT RIGHT OK > ,- , - (LGIB) wire (LG/B) wire (B R/B) wire (BR) wire (LGIB) wire (LGIB) wire (BRIB) wire - Repair harness (Power outside mirror switch - Power outside mirror) B+ B+ B+ B+ B+ B+ B+ Gartner Banana
Page 791 of 1708
OUTSIDE MIRROR POWER OUTSIDE MIRROR lnspection 1. Remove the power outside mirror. (Refer to page S-34.) 2. Check for continuity between the mirror terminals. Movement 0 I n I 0 O---<): Continuity 3. If not as specified, replace the power outside mirror. POWER OUTSIDE MIRROR SWITCH lnspection 1. Remove the power outside mirror switch. (Refer to page S-34.) 2. Check for continuity between the switch terminals. Left Right 0---0: Continuity 3. If not as specified, replace the power outside mirror switch. Gartner Banana
Page 792 of 1708
OUTSIDE MIRROR COMPONENTS Removal / Installation 1. Disconnect the negative battery cable. 2. Remove in the order shown in the figure, referring to Removal Note. 3. Install in the reverse order of removal. I. Remote control mirror 5. Door trim 1 2. Regulator handle Removal / Installation . . . . . . . page S-59 Removal Note . . . . . . . . . . . . . page S-10 6. Inner handle Installation Note . . . . . . . . . . . page S-10 7. Sealing pad 3. Inner handle cover 8. Door screen 4. Pull handle 9. Power outside mirror 10. Power outside mirror switch Gartner Banana
