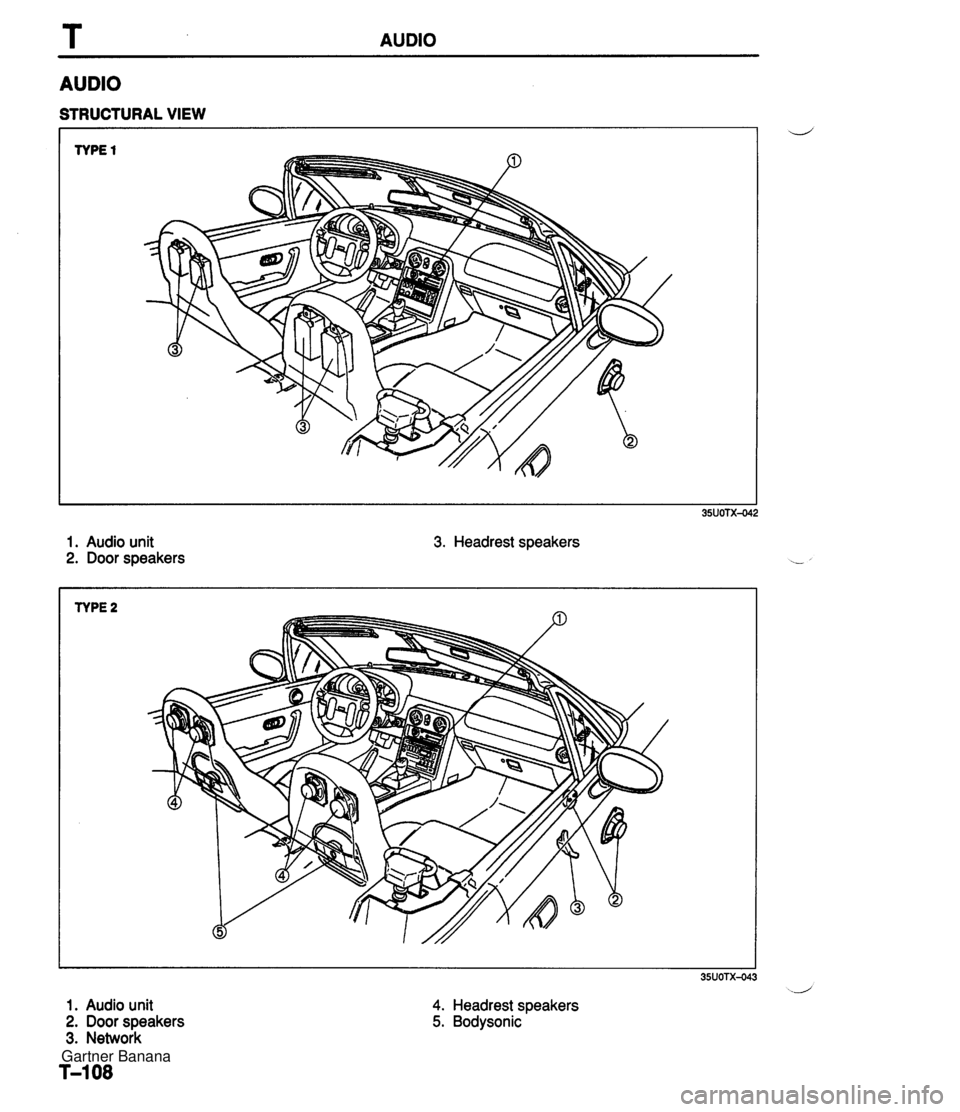

T AUDIO AUDIO STRUCTURAL VIEW TYPE 1 1. Audio unit 2. Door speakers TYPE 2 1. Audio unit 2. Door speakers 3. Network 3. Headrest speakers 4. Headrest speakers 5. Bodysonic Gartner Banana

AUDIO T SYSTEM DIAGRAM TYPE 1 NPE 2 V ANTENNA 0 DOOR SPEAKER (RH) DOOR SPEAKER (LH) AMsFM RADIO UNIT HEADREST SPEAKER (RH) [DRIVER] HEADREST SPEAKER (LH) [DRIVER] HEADREST SPEAKER (RH) [PASSENGER] I HEADREST SPEAKER (LH) [PASSENGER] CD PLAYER NETWORK DOOR SPEAKER (RH) I (RH) VEETER] DOOR SPEAKER (RH) AM-FM RADIO UNIT [WOOFER] y (WITH CD PLAYER) y CLUSTER DOOR SPEAKER (LH) [WOOFER] DOOR SPEAKER (LH) NEETER] HEADREST SPEAKER (RH) [DRIVER] HEADREST SPEAKER (LH) ALC (AUTO LEVEL CONTROLLER) [DRIVER] HEADREST SPEAKER (RH) [PASSENGER] HEADREST SPEAKER (LH) [PASSENGER] BODYSONIC (RH) BODYSONIC (LH) Gartner Banana

T AUDIO FEATURES 1. Antitheft System To deter audio unit theft, the system is designed to accept a code number that makes the audio unit inop- erable if it is removed from the vehicle and then reconnected without inputting the correct code number. 4 If the antitheft system is activated, the unit will not operate and a code will flash on the display until the correct code is entered. 2. Headrest Speaker Headrest speakers are available. 3. Preset Memory A total of 18 broadcasting stations on AM, FM1, and FM2 bands can be quickly and easily set. 4. Automatic Memory By using the automatic memory function, which is independent from the preset memory, station selec- tions can be easily made in an area where the broadcasting station frequencies are not known. 5. Clock The clock display is incorporated within the audio display. 6. Metal Tape Automatic Detection The tape player automatically detects the use of metal tape and makes internal adjustments for metal tape playback. The word "METAL" is shown on the display. 7. Display Lights The unit's display lights can be switched on or off as desired. 8. Bodysonic System In order for sufficient bass reproduction to be possible in a car audio system, a large-diameter woofer must be equipped. However, these woofers are space consuming. With the bodysonic system, the "bass ,, sensation" can still be felt, ever without a woofer. 9. Auto Level Controller (ALC) If the optimum bodysonic level is set when the car is stopped, the level will feel insufficient due to vehicle vibration when the car is running. The autolevel controller automatically adjusts the bodysonic level to . . the appropriate amount at any speed. 45UOTX-221 Gartner Banana

AUDIO T FUNCTION AND OPERATING PROCEDURE RADIO ONIOFF VOLUME - I I APC 00 W~AL AUTO M -- TUNE MANUAUSEEK - TUNE (UP) - HOUR SET MANUAUSEEK - TUNE (DOWN) - MINUTE SET - SCAN - DOLBY - CLOCKIDISPLAY MODE CHANGE (PUSHING THlS ALTERNATES DISPLAY MODE TYPE 1 AMaFM RADIO UNIT PRESET CHANNELS AMIFM AUTO MEMORY - 6 I I I I I 1 I I RADIO OR TIME) BASS - TREBLE ILLUMINATION ONIOFF REVERSE) (PUSHING THlS ALTERNATES ON - OFF ILLUMINATION) HEAD - RESTRAINT SPEAKER VOLUME COMPACT DISC (CD) PLAYER BALANCE REWIND STOP - FAST - PLAY - I EJECT FORWARD PROGRAM "OGRAM rrApE CONTROL RESET BU7TON I I FAST - REPEAT FORWARD I EJECT - RELOAD I +RACKSEARCH I I REVERSE SCAN PLAY - STOP I DISPLAY Gartner Banana

T AUDIO TYPE 2 AM.FM RADIO UNIT AUTO MEMORY CD EJECT CD SLOT I DISC SET LIGHT- VOLUME CLOCK - / BLANCE BASS - VOLO BA D J I I I I TREBLE ILLUMINATION ONIOFF TAPE SLOT I TREBLE ILLUMINATION ONIOFF I TAPE SLOT DOLBY ALC (AUTO LEVEL CONTROLLER) ROOF MODE ALC ONIOFF BODYSONIC VOLUME ALC INDICATOR LIGHT MUTE 1 FADER MANUAUSEEK - TUNE FAST FOWARDI REWIND - TAPE EJECT PLAY/REVERSE STEREO WIDE I ALC ON + - PW AUTO LEVEL CONTROLLER ONlOFF Gartner Banana

AUDIO OPERATION DESCRIPTION Type 1 Five seconds after completing an operation that is shown on the display, the indicator returns to clock u mode. Radio control 1 Headrest speaker control Bass control knob Treble control knob I Manual tuning button Scan tuning button r- button Auto memory tuning button Illustration Operation 1. Press knob to turn power ON/OFF 2. Turn knob clockwise - Volume up Turn knob counterclockwise-Volume down To increase volume, turn HRSP clockwise I 1. Press BASSiTREBLE 2. For more lows, turn BASSRREBLE clockwise For less lows, turn BASSRREBLE counterclockwise 1. Pull BASSiTREBLE 2. For more highs, turn BASSRREBLE clockwise For less highs, turn BASSRREBLE counterclockwise To shift sound to left, turn BALANCE clockwise To shift sound to right, turn BALANCE counterclockwise Press button to change bands AM, FMl, and FM2 modes are alternatively selected as shown When stereophonic broadcasting is received in FM1 or FM2 mode, ST is shown on display PressV or A less than 0.5 second to manually tune stations When pressed until beep in heard (0.5 sec.), a first receivable frequency is tuned Press A for higher frequency Press V for lower frequency Press SCAN button and searching of station starts from lowest frequency of selected band When receivable frequency is tuned, frequency flashes on display for 5 seconds; then searching starts again Press button again while frequency is flashing to memorize station Six buttons are equipped to set frequencies of up to six stations each for AM, FM, and FM2 1. Setting frequency Select frequency and press a preset button Hold button until deep is heard (1.5 sec.) and setting is complete 2. Tuning to preset frequency Press desired preset button for less than 1.5 seconds 1. Setting frequency Press and hold AUTO-M button until beep is heard (1.5 sec.) Searching starts from lowest frequency within selected band and six strongest stations are selected and memorized 2. Tuning to preset frequency Press AUTO-M button for less than 1.5 seconds and memorized fre- quencies are tuned one by one with each press When preset frequencies is less than six,R appears on display 35UOTX-046 Gartner Banana

AUDIO Cassette tape player Name Tape slot Playlreverse button Stopleject button APC (automatic program control) button Dolby noise reduction bunon*' Fast forwardlrewind button lllustration Operation Insert a tape into tape slot to begin tape operation When tape is inserted, system determines tape type by identification hole in cassette pack; if metal or chromium tape, METAL is shown on display Press button during tape playback to play reverse side of tape Press button during fast forwardlrewind mode to play tape Press button during modes other than tape playback or tape Player OFF to select tape mode and play tape Press button during fast forwardlrewind mode to cancel mode; select tape playback mode, if desired Press button during tape playback to stop play Press again to eject tape Press button during tape playback and APC appears on display In this condition, press FF button skip to beginning of next program Press REW button during tape playback to rewind tape to beginning of current tune APC detects silence of more than 15 seconds and skips forward to next recorded section Press button when playing tape encoded with Dolby NR Dolby alternately turns ONIOFF with each press Press REW button to rewind tape Press FF button to fast forward tape The Dolby noise reduction system is manufactured under license of the Dolby Laboratory Licensing Corporation. -,, DOLBY and 00 are registered trade marks of Dolby Laboratory Licensing Corporation. Compact disc (CD) player Caution Never use mini CDs (8 cm (3.1 in)) because they may dislodge from the adapter and damage the disc or player. Use only standard CDs (12 cm (4.7 in)). Name Illustration Disc slot Playlstop button Lightly push disc, label-side up, into slot; auto loading mechanism will take over to set disc and begin play During loading, DlSC SET flashes on display When loading completed, DlSC SET displayed Press this button while disc is being played and play will pause Press again and play will resume Press button during tape or radio mode to play loaded disc Press button to eject disc Disc SET flashes on display Press again and disc is reloaded Gartner Banana

AUDIO Name ;can button 3epeat button rrack search button Press SCAN button and beginning of tunes are played one by one (10 seconds for each) Press button during playback and scanning starts from next tune Press button during scanning and tune being scanned is played Scanning is canceled automatically when all programs in disc have been scanned Illustration Press RPT button during a tune is playing to play it repeatedly Press again to cancel repeat operation and resume normal playback Operation Press button to search for beginning of next or current program 1. PressA(up) button for less than 0.5 second during disc play and be- ginning of next tune is selected and played Tunes are changed one by one with each press of button When pressed during play of last tune, first tune is replayed 2. PressV(down) button for less than 0.5 second during disc play and current tune is replayed from beginning Tunes are changed one by one with each press of button When pressed during play of first tune, last tune is replayed Press button to fast forwardheverse disc 1. Press and hold FF (up) button for more than 0.5 second and disc play position moved ahead at high speed while button pressed When last part of last tune is reached, first tune is selected and disc stops 2. Press and hold REV (down) button for opposite operation of FF button When first part of first tune reached, disc stops reversing and starts playing Clock The clock can be set while the radio or tape/CD player is ON. Illustration Clock button (clock display) HIM button (clock setup) Operation Press button to display present radio frequency or operation mode If power supply to unit is broken (burnt fuse or disconnected battery), clock setup will be canceled When clock button is pushed for 2 seconds, clock display flashes. At this point, press H button to advance hours and M button to advance minutes Press clock button again to return to normal display If clock button is pressed again while clock display is flashing and time has not been adjusted (that is, H and M buttons have not been pressed), min- utes will be set at : 00. If time before adjustment showed 30-59 minutes, time will be set at next hour For example, nn Gartner Banana
