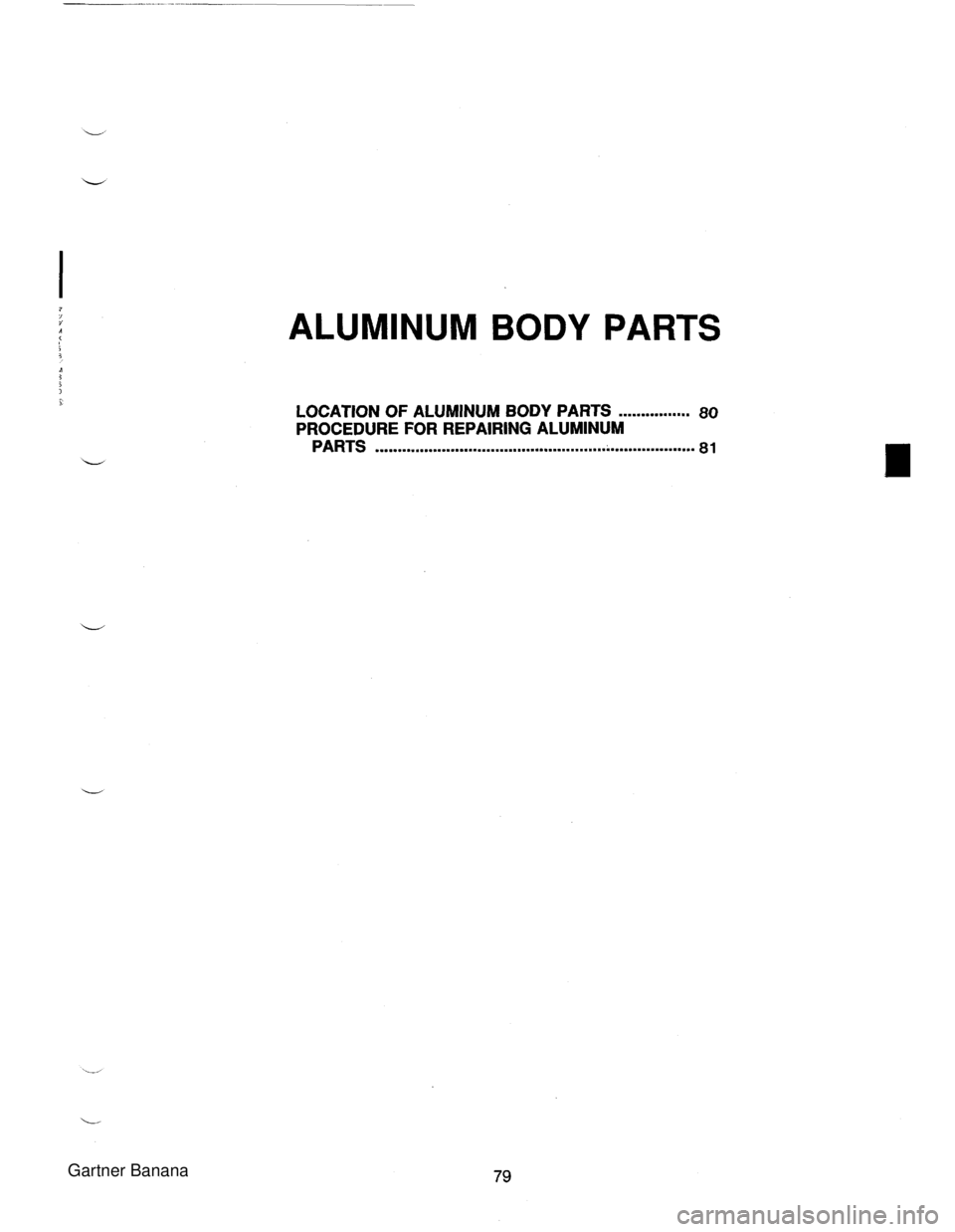

ALUMINUM BODY PARTS LOCATION OF ALUMINUM BODY PARTS ................ 80 PROCEDURE FOR REPAIRING ALUMINUM PARTS .................................................................. 81 Gartner Banana
Page 1330 of 1708

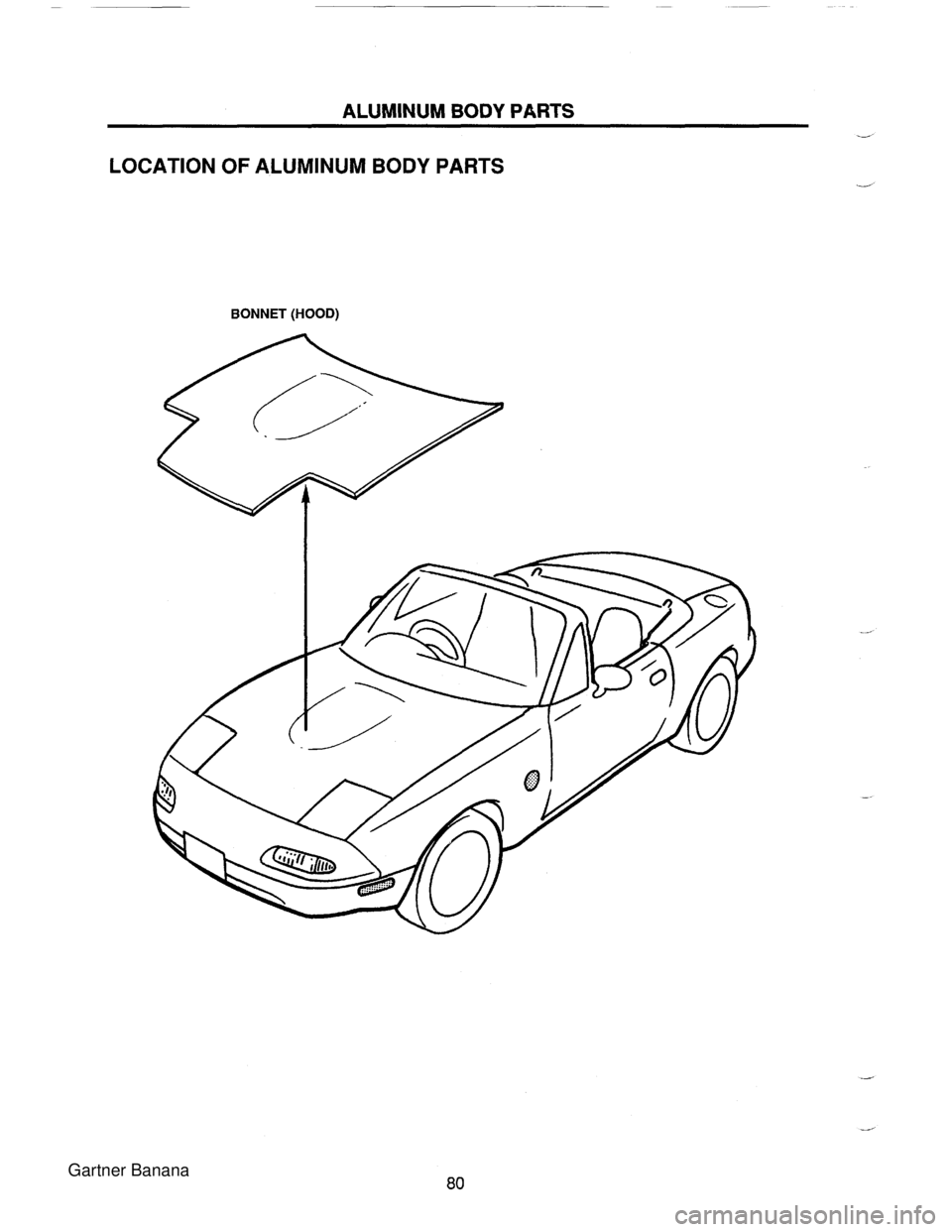

ALUMINUM BODY PARTS - LOCATION OF ALUMINUM BODY PARTS BONNET (HOOD) Gartner Banana
Page 1331 of 1708

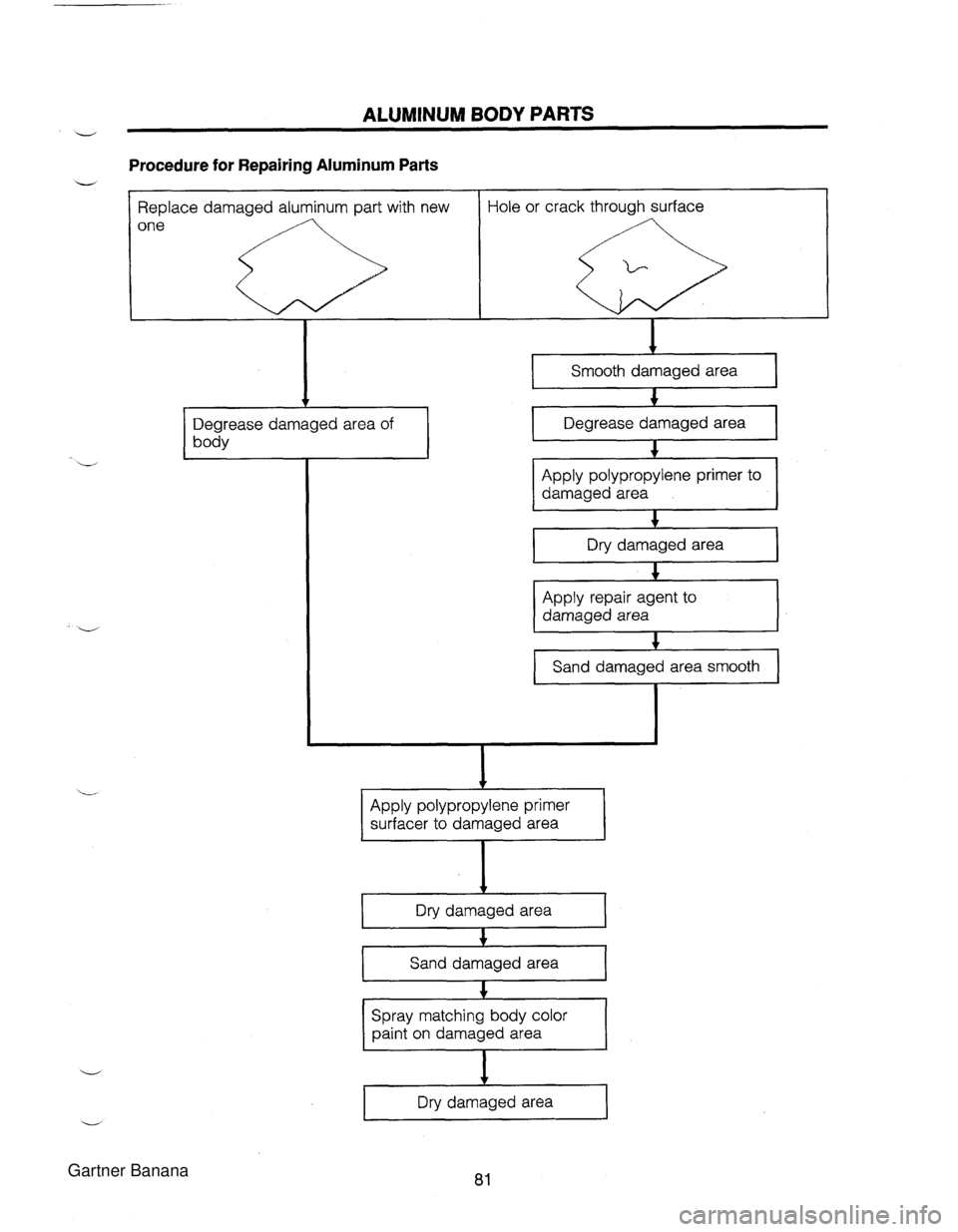

ALUMINUM BODY PARTS V Procedure for Repairing Aluminum Parts Apply polypropylene primer surfacer to damaged area Replace damaged aluminum part with new one Dry damaged area I Hole or crack through surface + Sand damaged area Spray matching body color paint on damaged area I 0 .;. + Dry damaged area v Degrease damaged area of body Smooth damaged area C Degrease damaged area C Apply polypropylene primer to damaged area C Dry damaged area C Apply repair agent to damaged area C I Sand damaged area smooth r Gartner Banana
Page 1332 of 1708

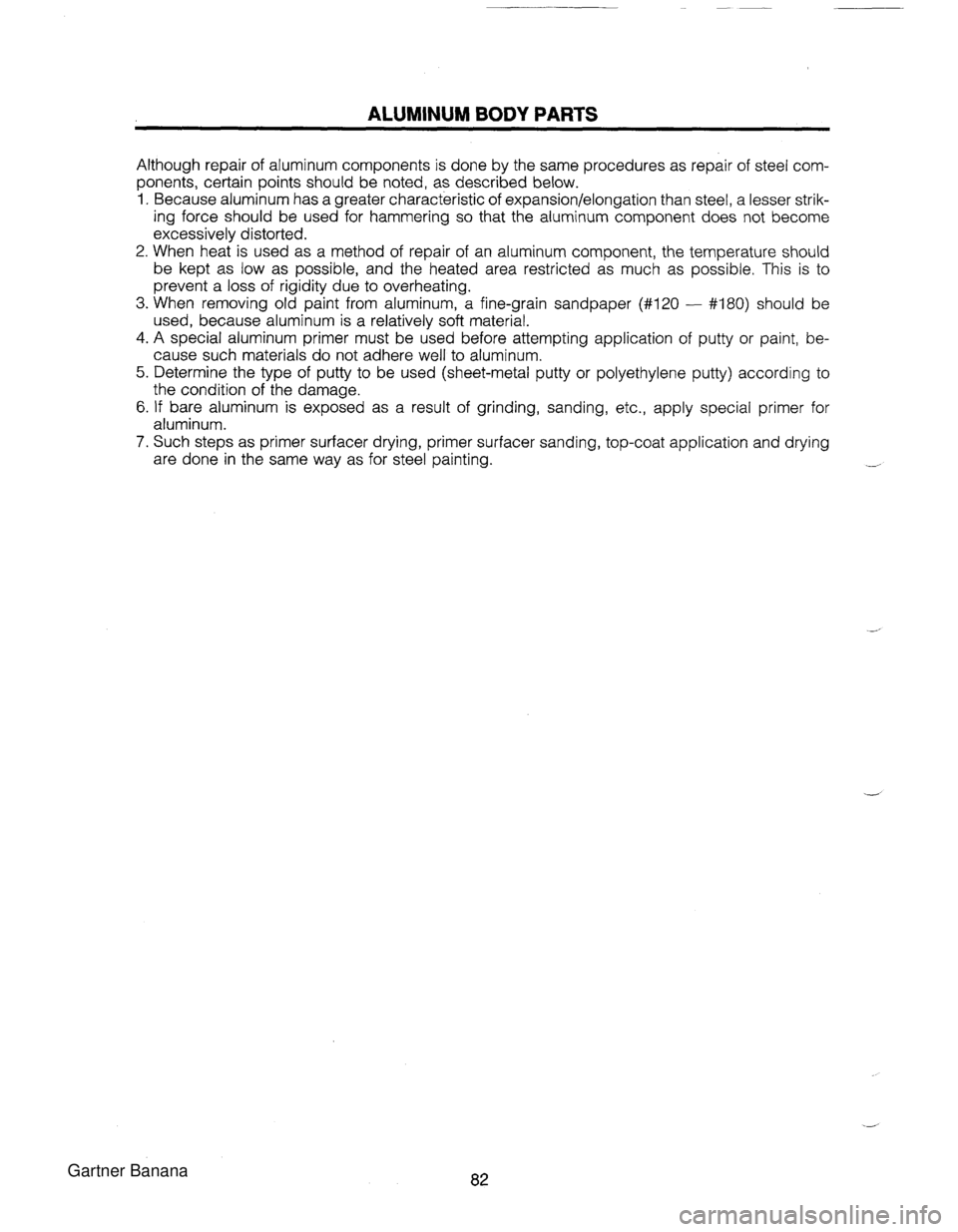

ALUMINUM BODY PARTS Although repair of aluminum components is done by the same procedures as repair of steel com- ponents, certain points should be noted, as described below. 1. Because aluminum has a greater characteristic of expansion/elongation than steel, a lesser strik- ing force should be used for hammering so that the aluminum component does not become excessively distorted. 2. When heat is used as a method of repair of an aluminum component, the temperature should be kept as low as possible, and the heated area restricted as much as possible. This is to prevent a loss of rigidity due to overheating. 3. When removing old paint from aluminum, a fine-grain sandpaper (#I20 - #180) should be used, because aluminum is a relatively soft material. 4. A special aluminum primer must be used before attempting application of putty or paint, be- cause such materials do not adhere well to aluminum. 5. Determine the type of putty to be used (sheet-metal putty or polyethylene putty) according to the condition of the damage. 6. If bare aluminum is exposed as a result of grinding, sanding, etc., apply special primer for aluminum. 7. Such steps as primer surfacer drying, primer surfacer sanding, top-coat application and drying are done in the same way as for steel painting. - Gartner Banana
Page 1333 of 1708

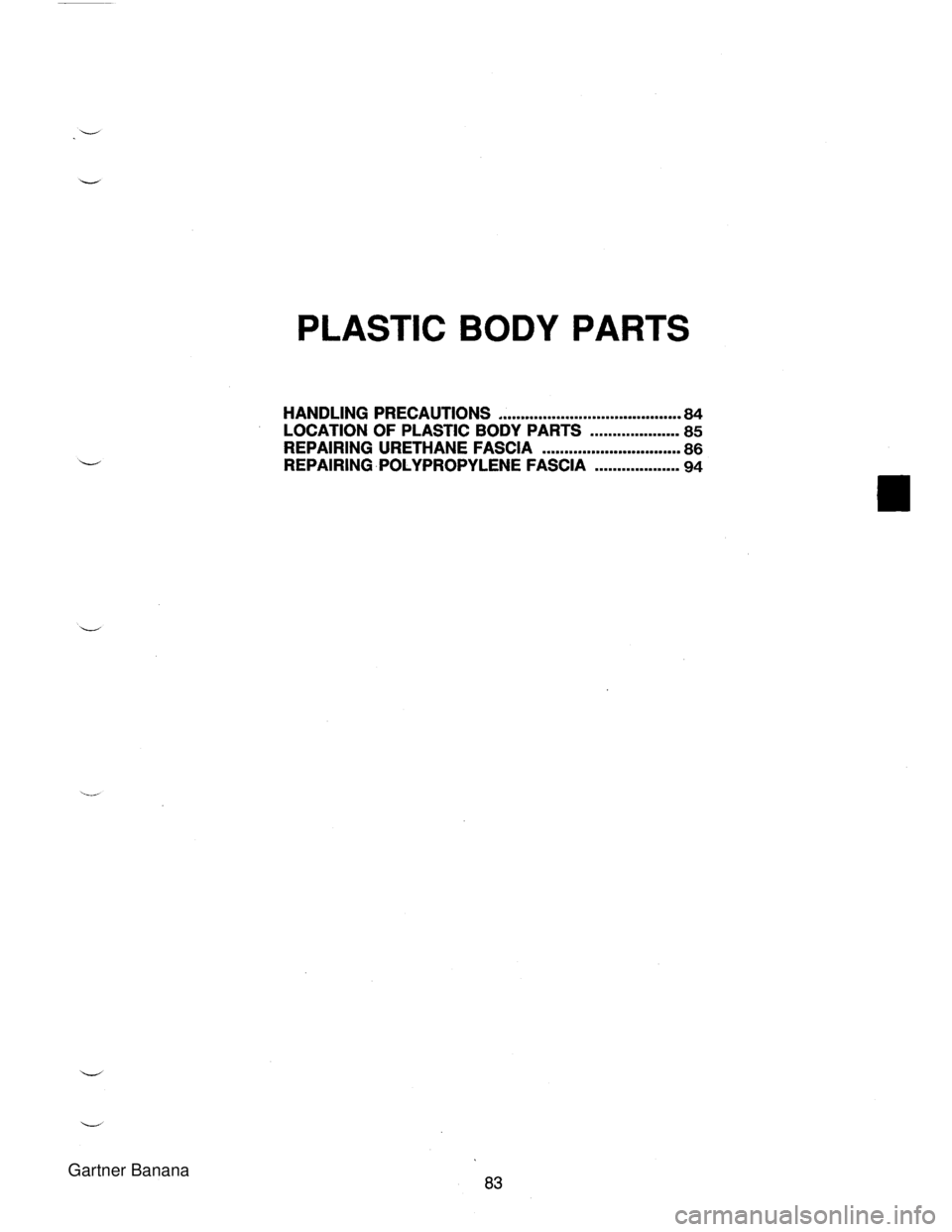

PLASTIC BODY PARTS HANDLING PRECAUTIONS ......................................... 84 LOCATION OF PLASTIC BODY PARTS .................... 85 REPAIRING URETHANE FASCIA ............................... 86 REPAIRING POLYPROPYLENE FASCIA ................... 94 Gartner Banana
Page 1334 of 1708

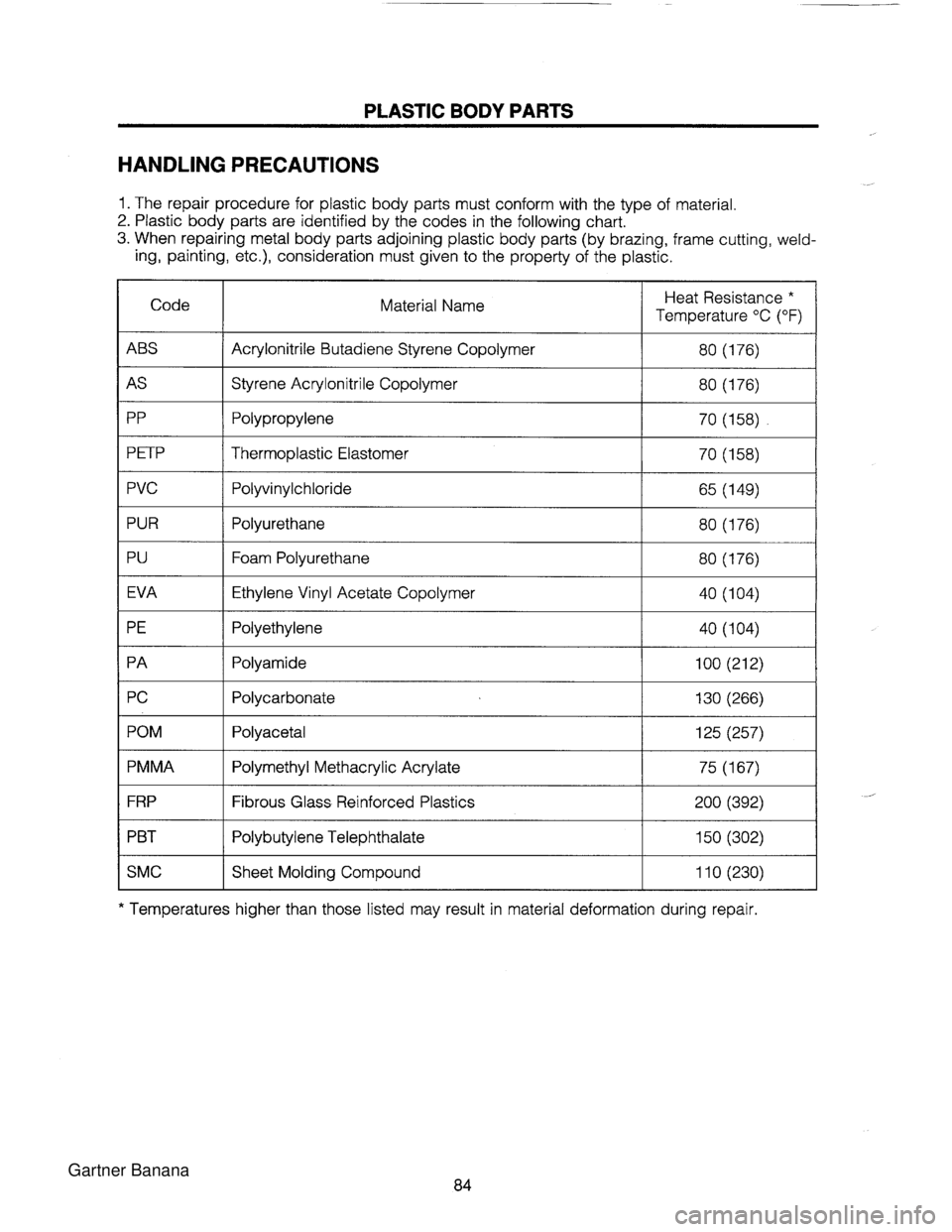

PLASTIC BODY PARTS HANDLING PRECAUTIONS 1. The repair procedure for plastic body parts must conform with the type of material. 2. Plastic body parts are identified by the codes in the following chart. 3. When repairing metal body parts adjoining plastic body parts (by brazing, frame cutting, weld- ing, painting, etc.), consideration must given to the property of the plastic. Code Material Name Heat Resistance * Temperature OC (OF) ABS PP P ETP Acrylonitrile Butadiene Styrene Copolymer Styrene Acrylonitrile Copolymer 80 (176) 80 (176) PVC Polypropylene Thermoplastic Elastomer Polyvinylchloride PUR 70 (158) 70 (158) 65 (149) Polyurethane EVA Foam Polyurethane Ethylene Vinyl Acetate Copolymer Polyethylene 80 (176) 40 (104) POM PMMA Polyamide Polycarbonate 100 (212) 130 (266) FRP Polyacetal Polymethyl Methacrylic Acrylate Fibrous Glass Reinforced Plastics 125 (257) 75 (167) PBT Polybutylene Telephthalate SMC Sheet Molding Compound * Temperatures higher than those listed may result in material deformation during repair Gartner Banana
Page 1335 of 1708

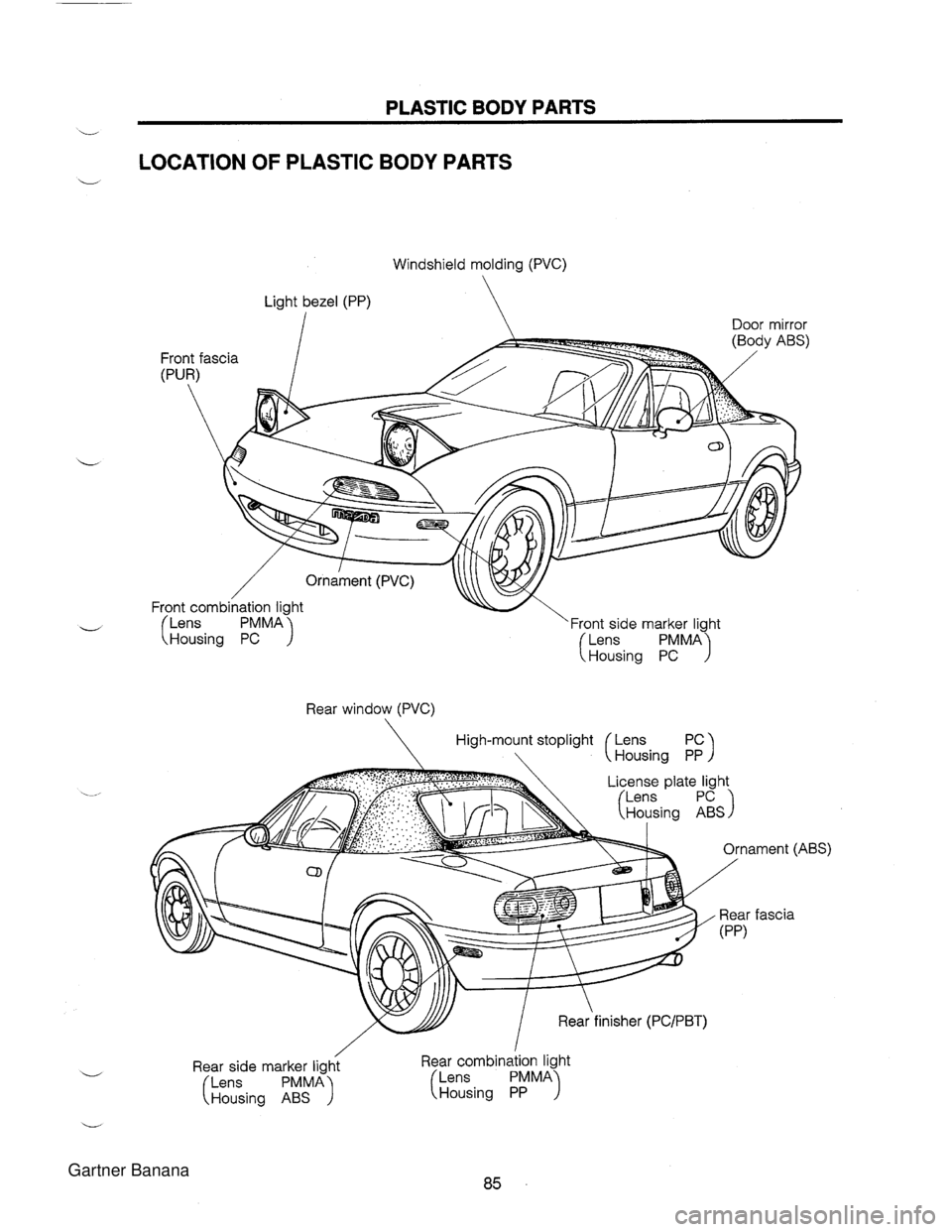

PLASTIC BODY PARTS L LOCATION OF PLASTIC BODY PARTS Windshield molding (PVC) Light bezel (PP) Door mirror Front side marker light Rear window (PVC) High-mount stoplight - _ .. .. .- License plate light / I Rear side marker light Rear combination light Gartner Banana
Page 1336 of 1708

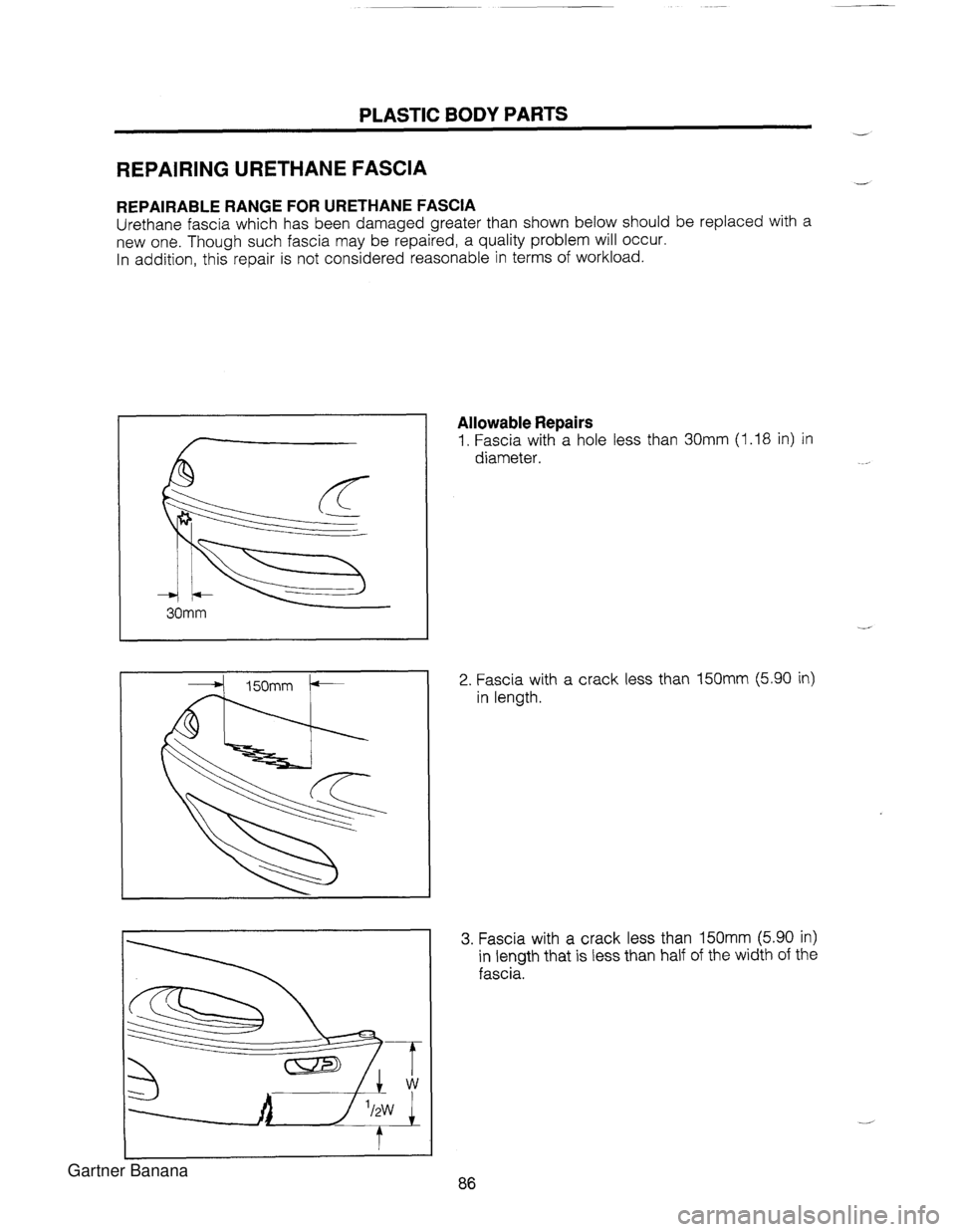

PLASTIC BODY PARTS - REPAIRING URETHANE FASCIA - REPAIRABLE RANGE FOR URETHANE FASCIA Urethane fascia which has been damaged greater than shown below should be replaced with a new one. Though such fascia may be repaired, a quality problem will occur. In addition, this repair is not considered reasonable in terms of workload. Allowable Repairs 1. Fascia with a hole less than 30mm (1.18 in) in diameter. .-- 2. Fascia with a crack less than 150mm (5.90 in) in length. 3. Fascia with a crack less than 150mm (5.90 in) in length that is less than half of the width of the fascia. Gartner Banana
